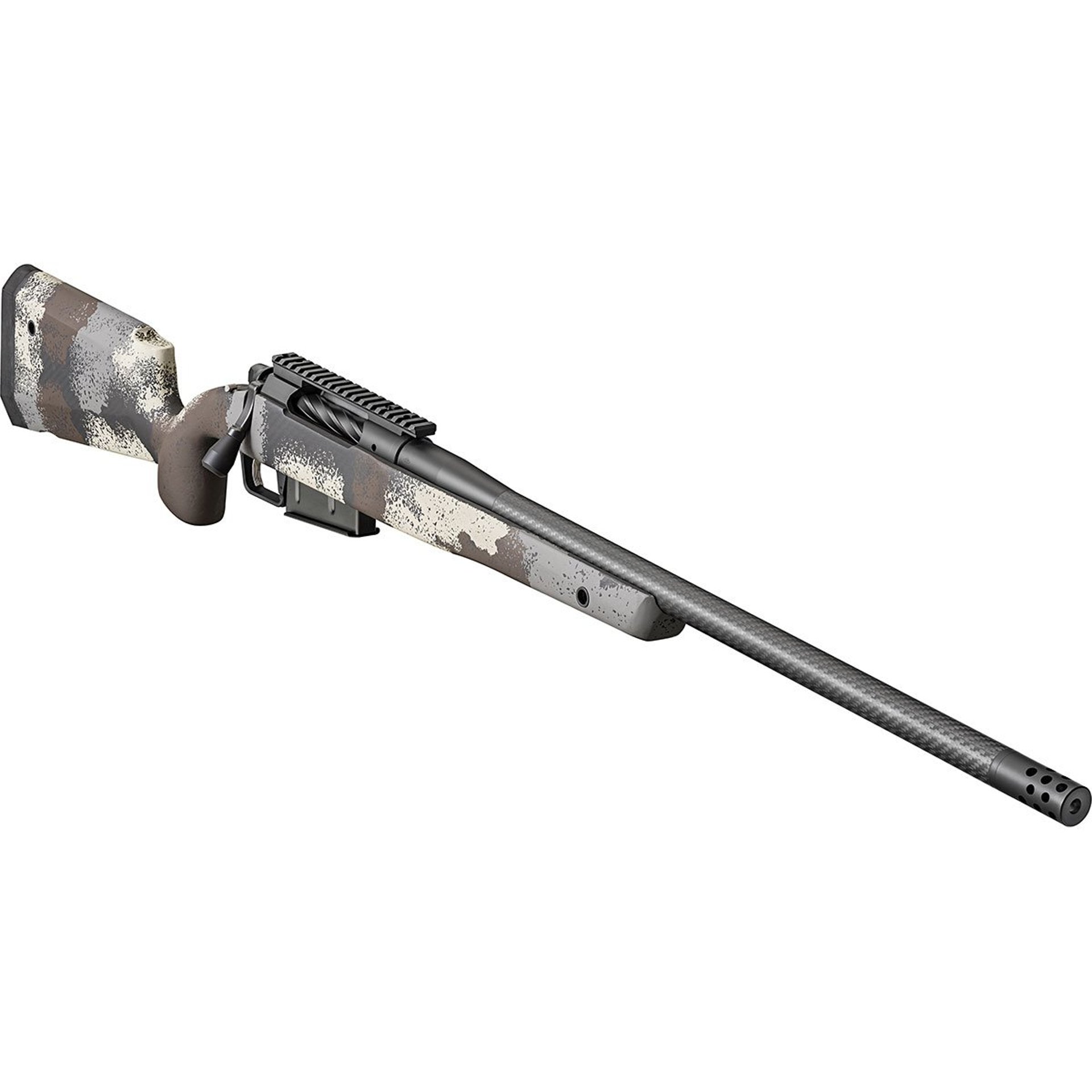

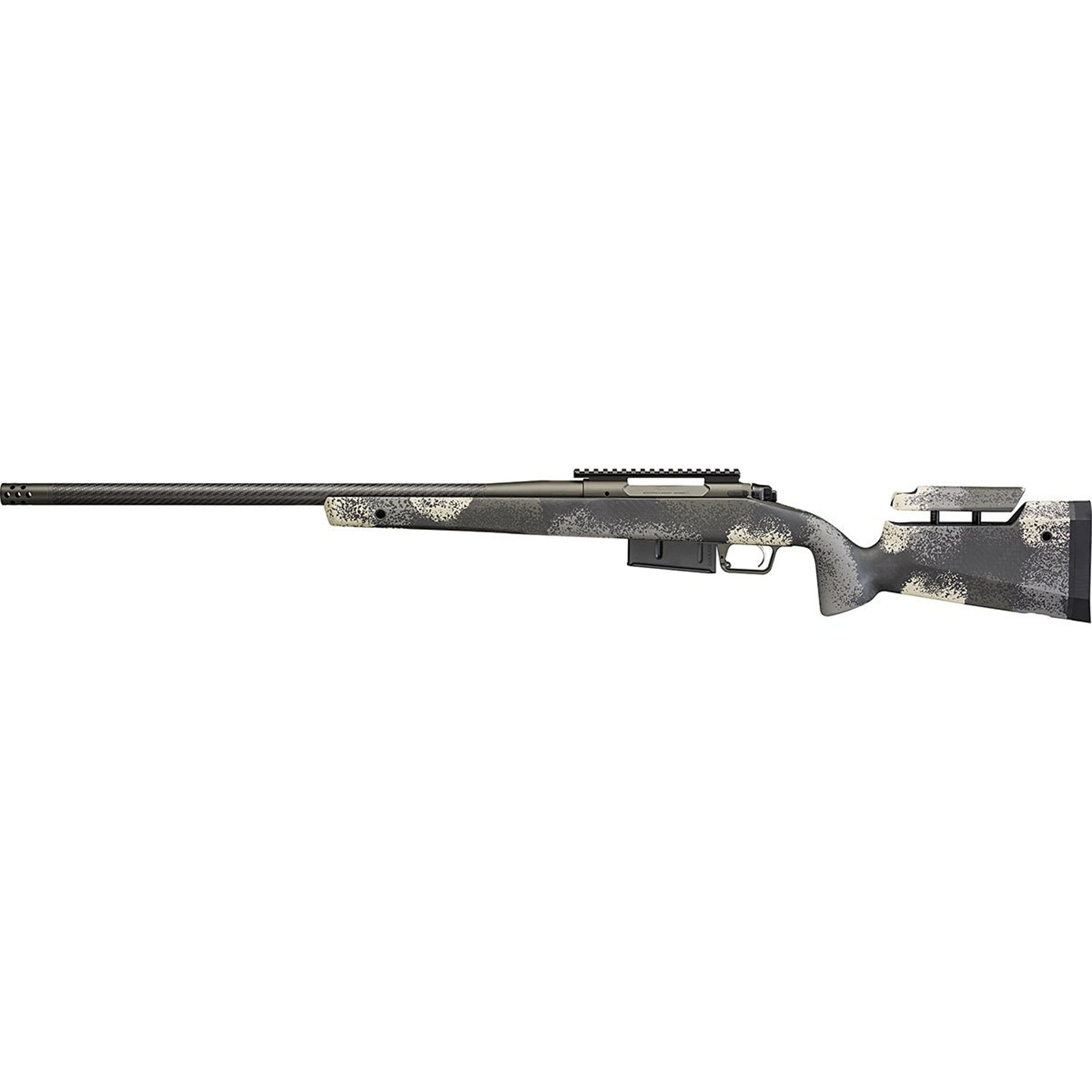

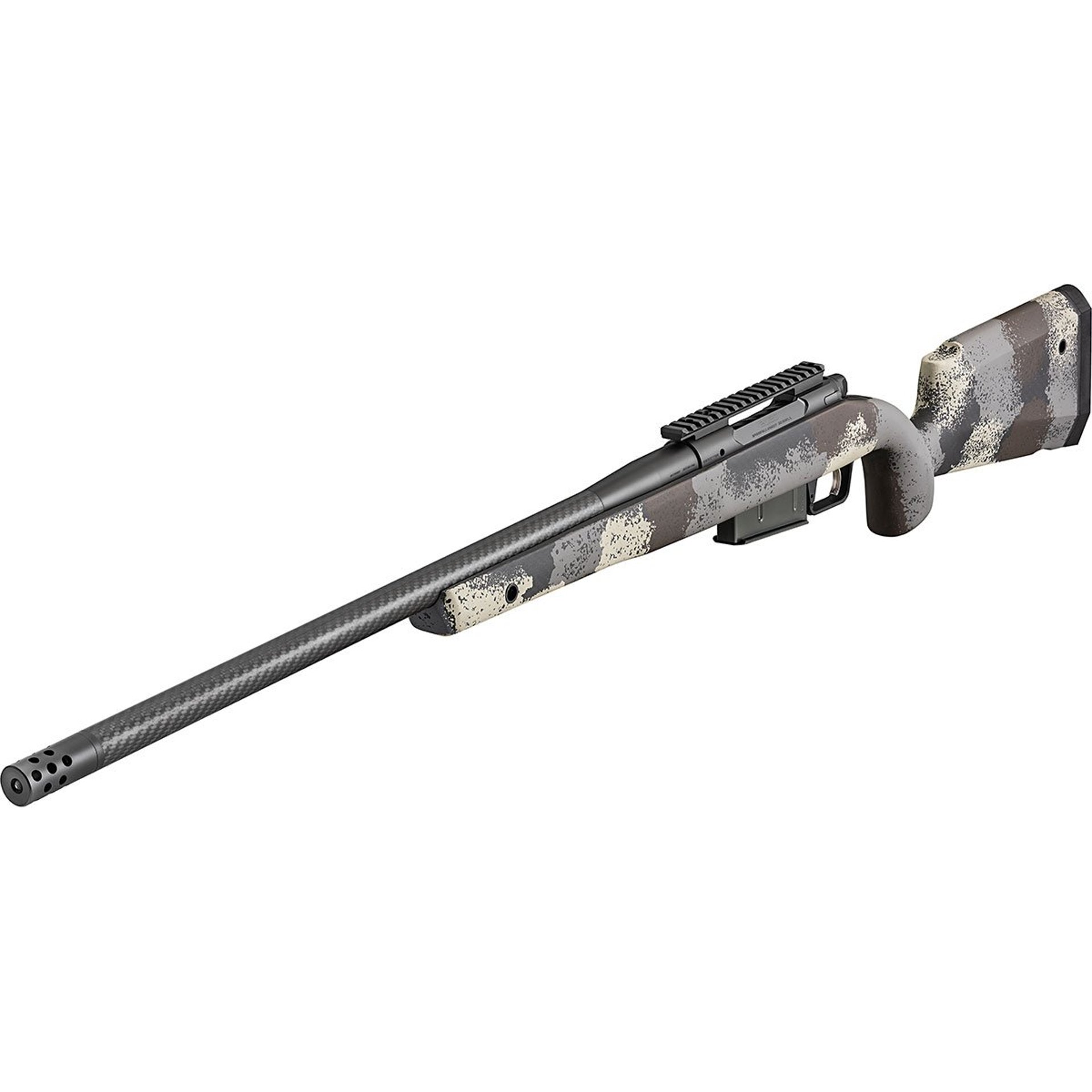

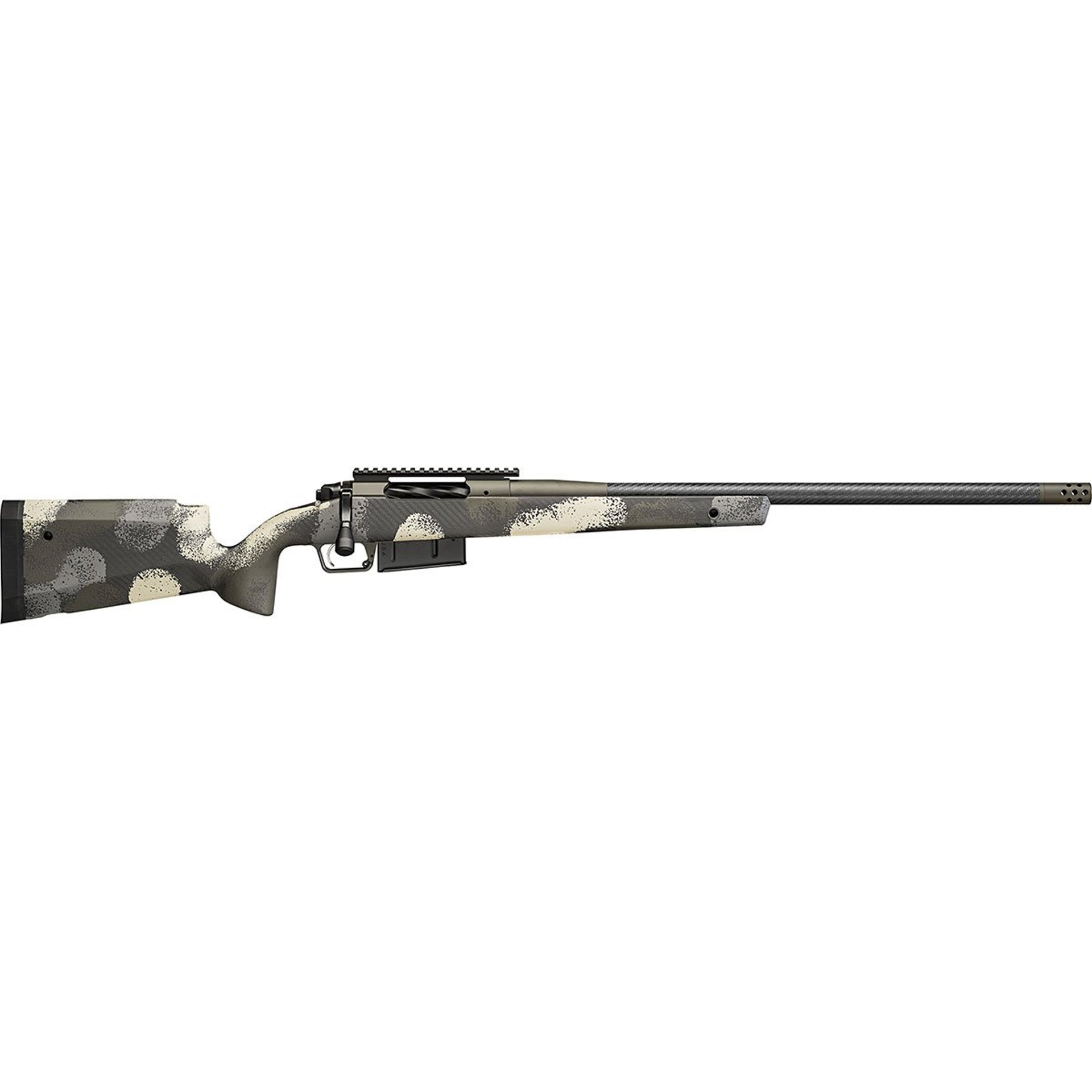

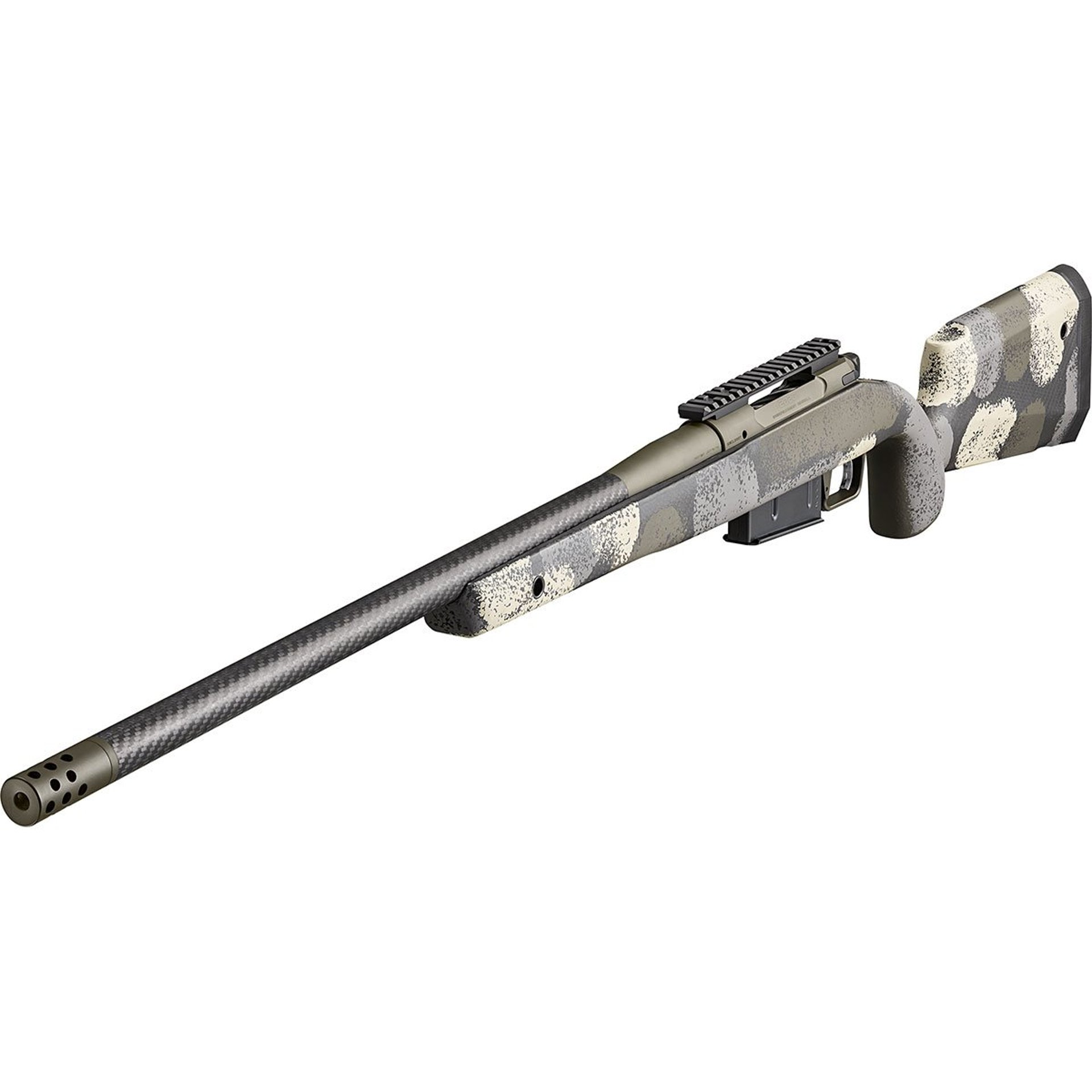

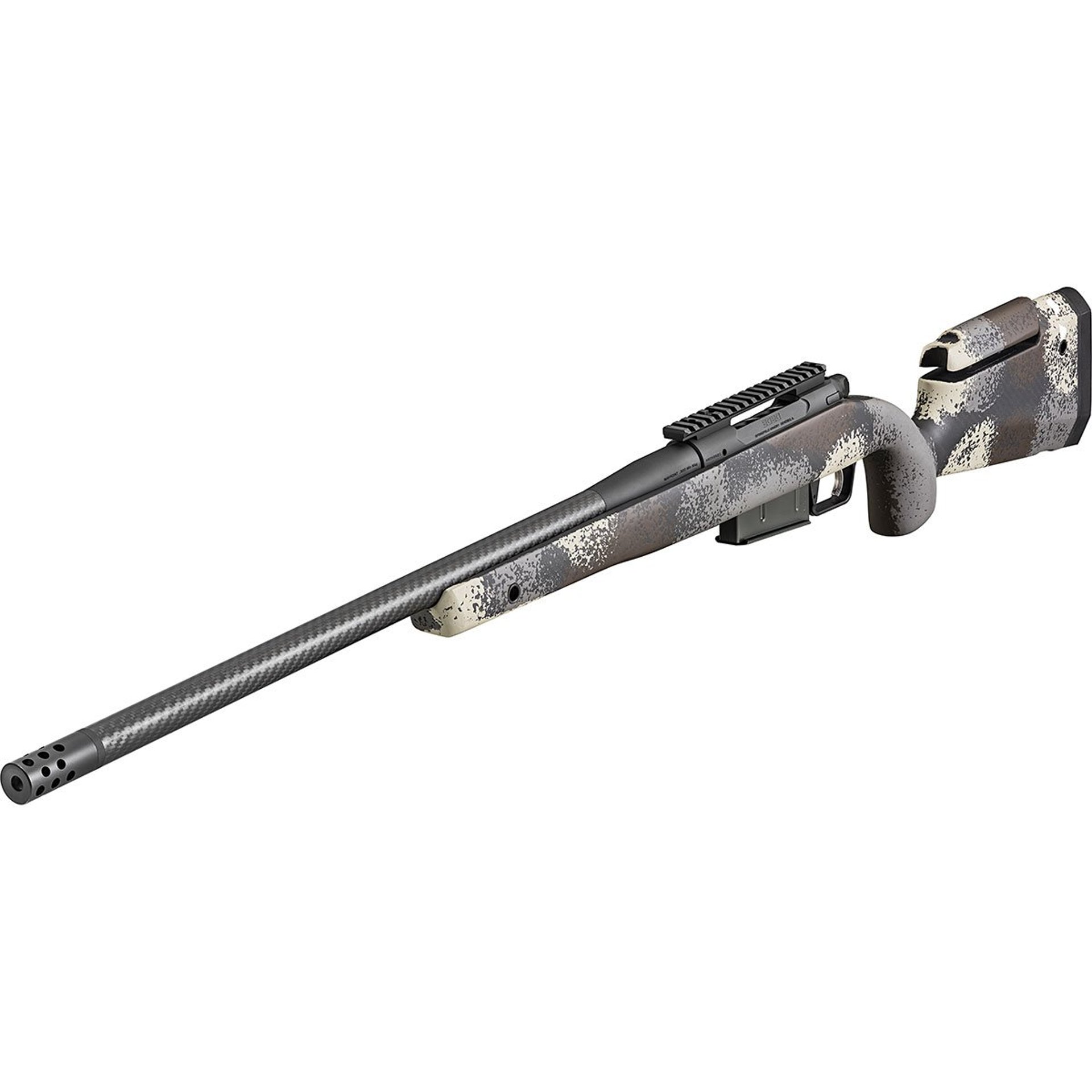

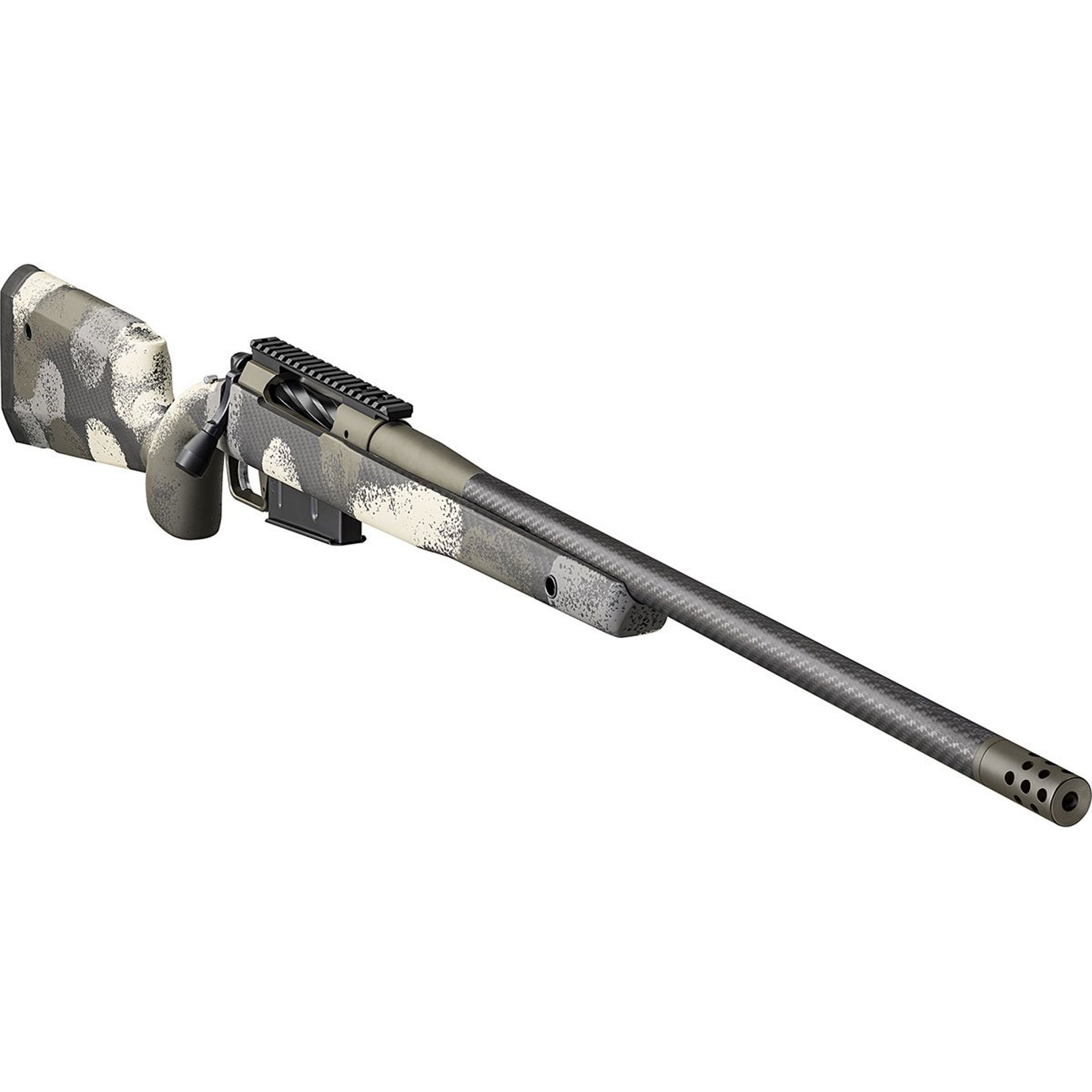

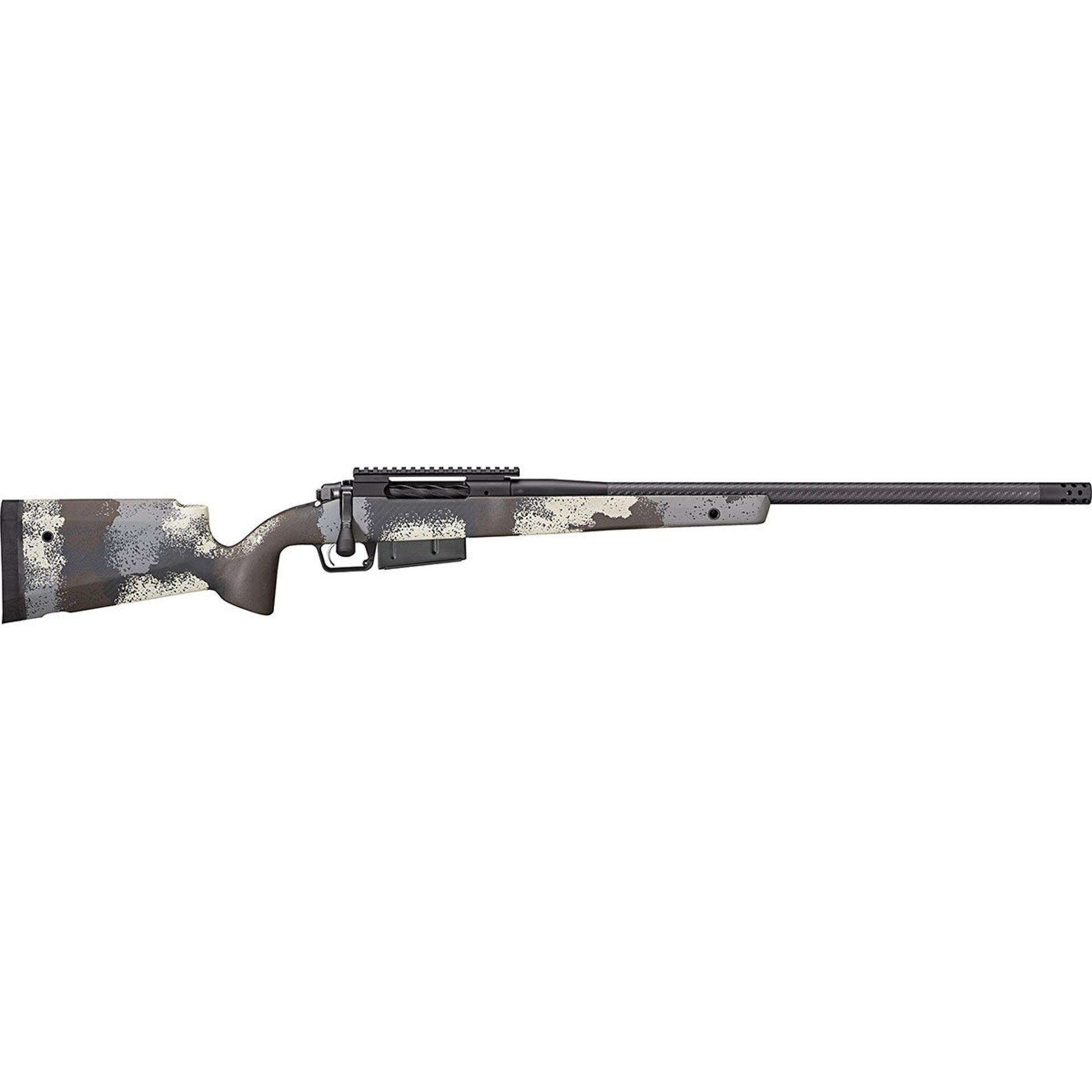

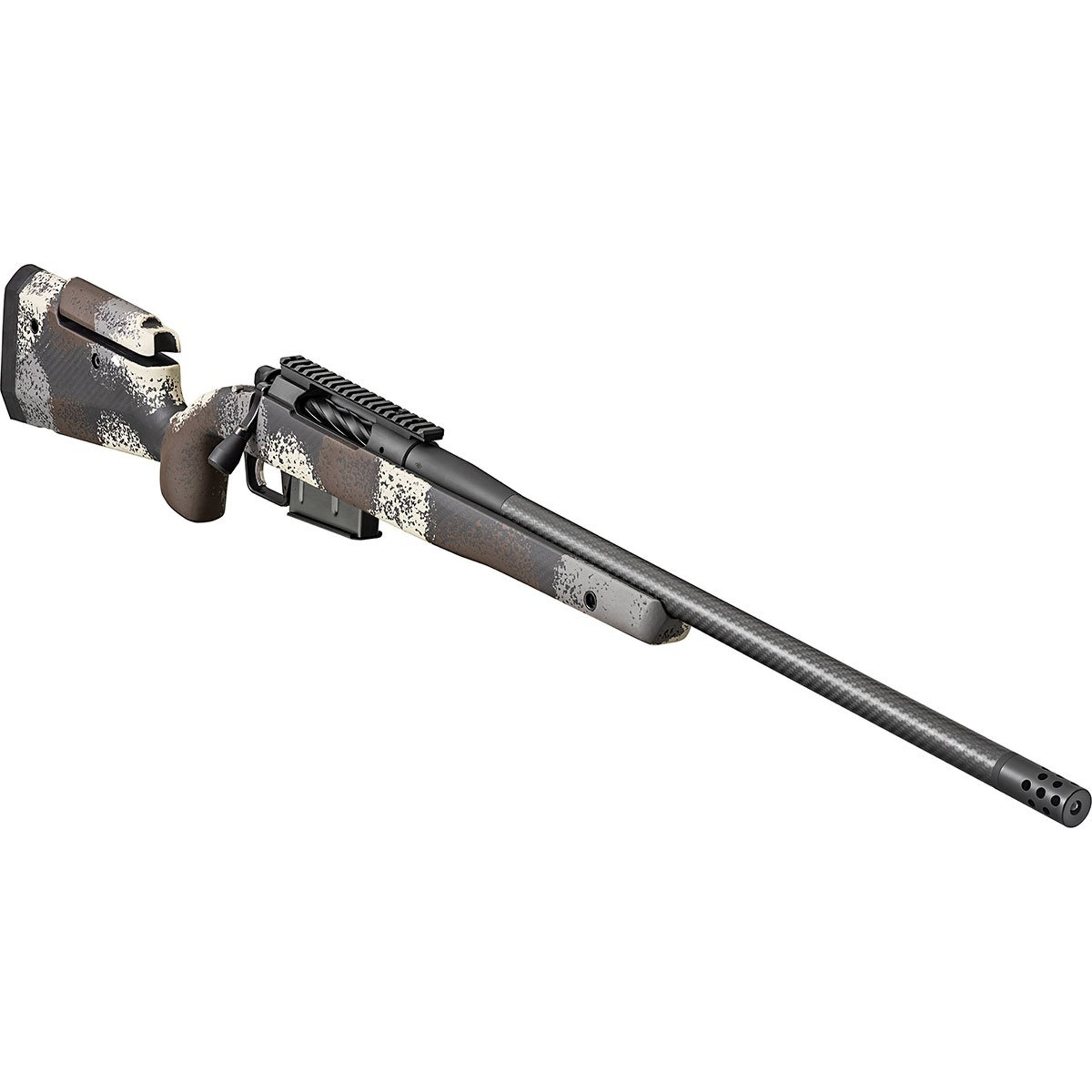

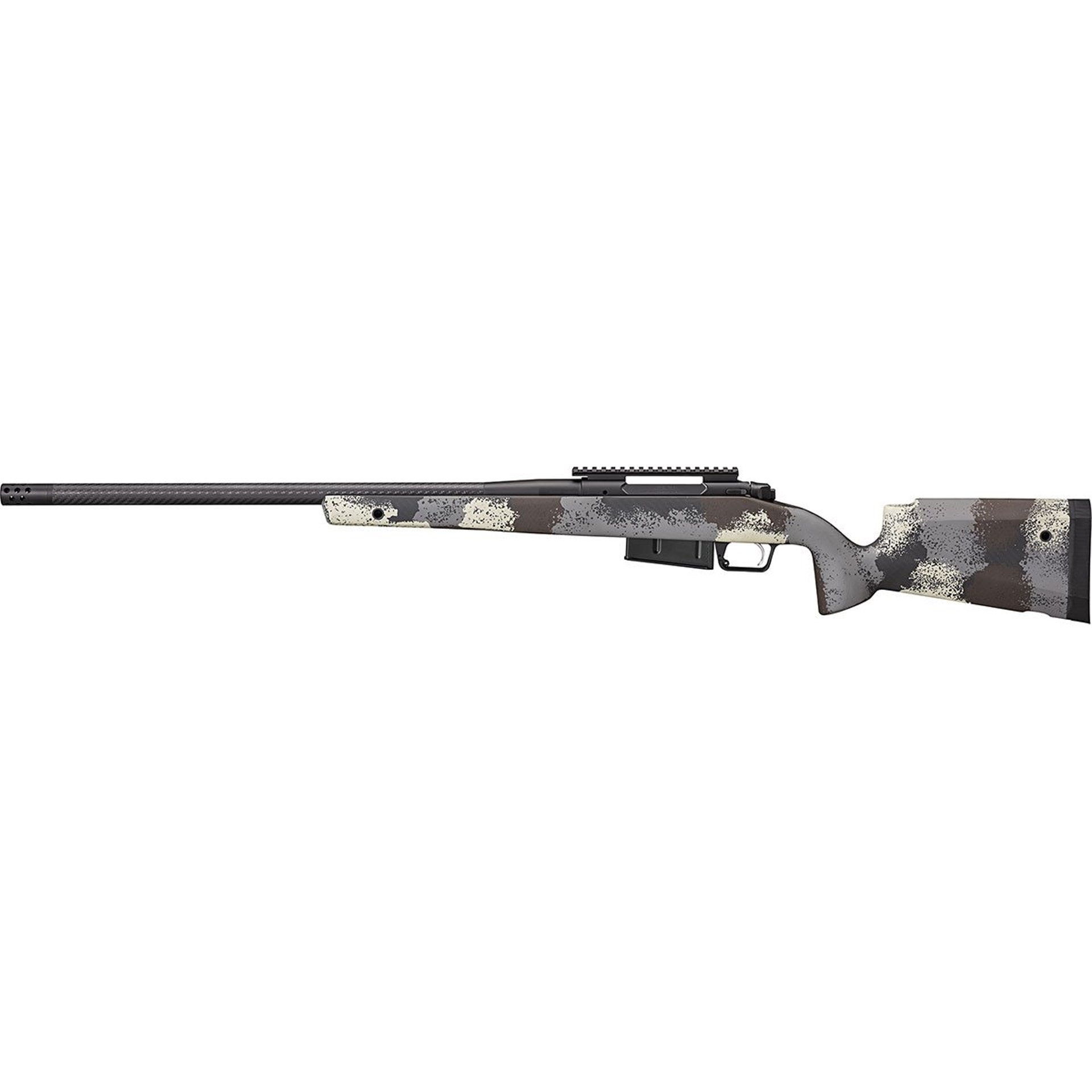

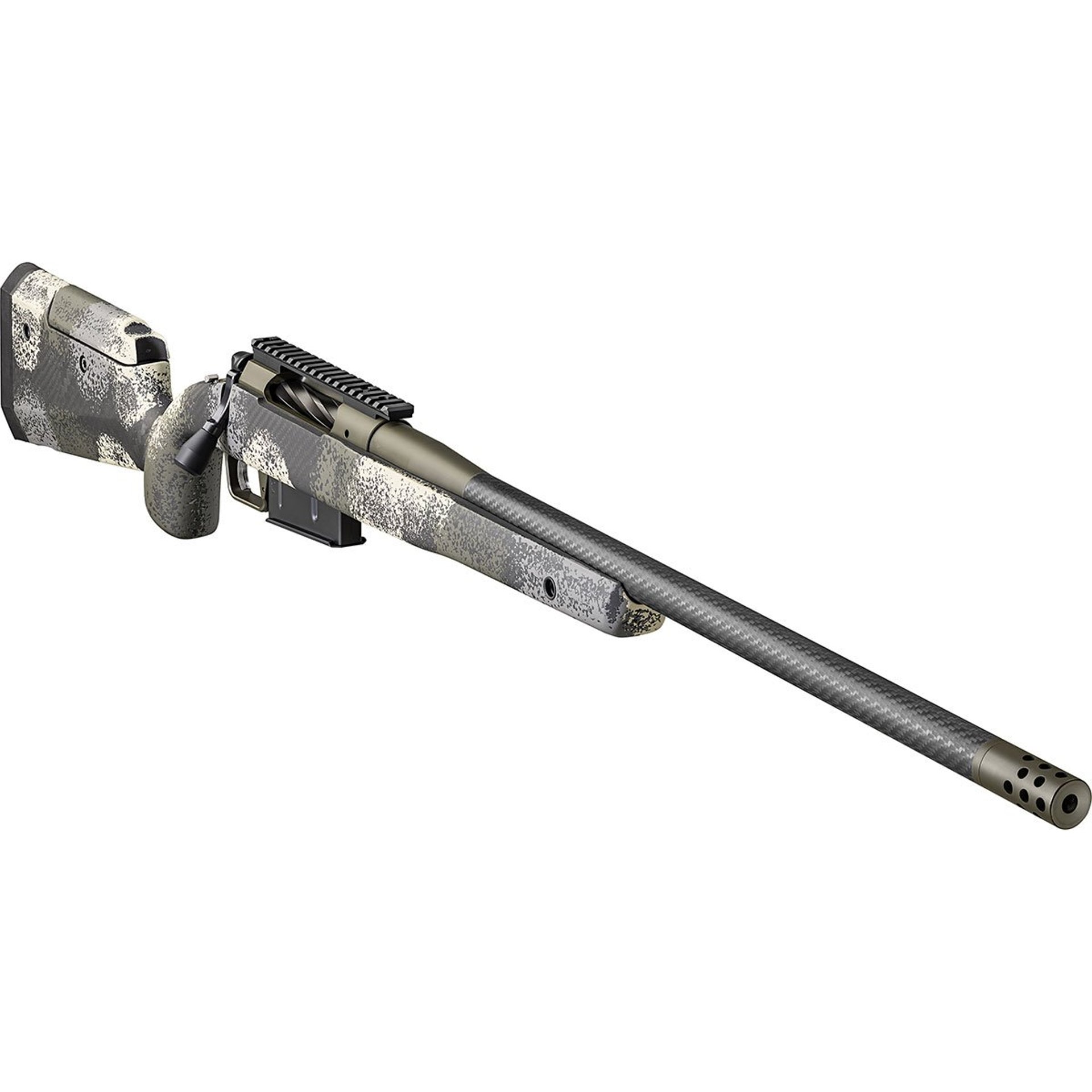

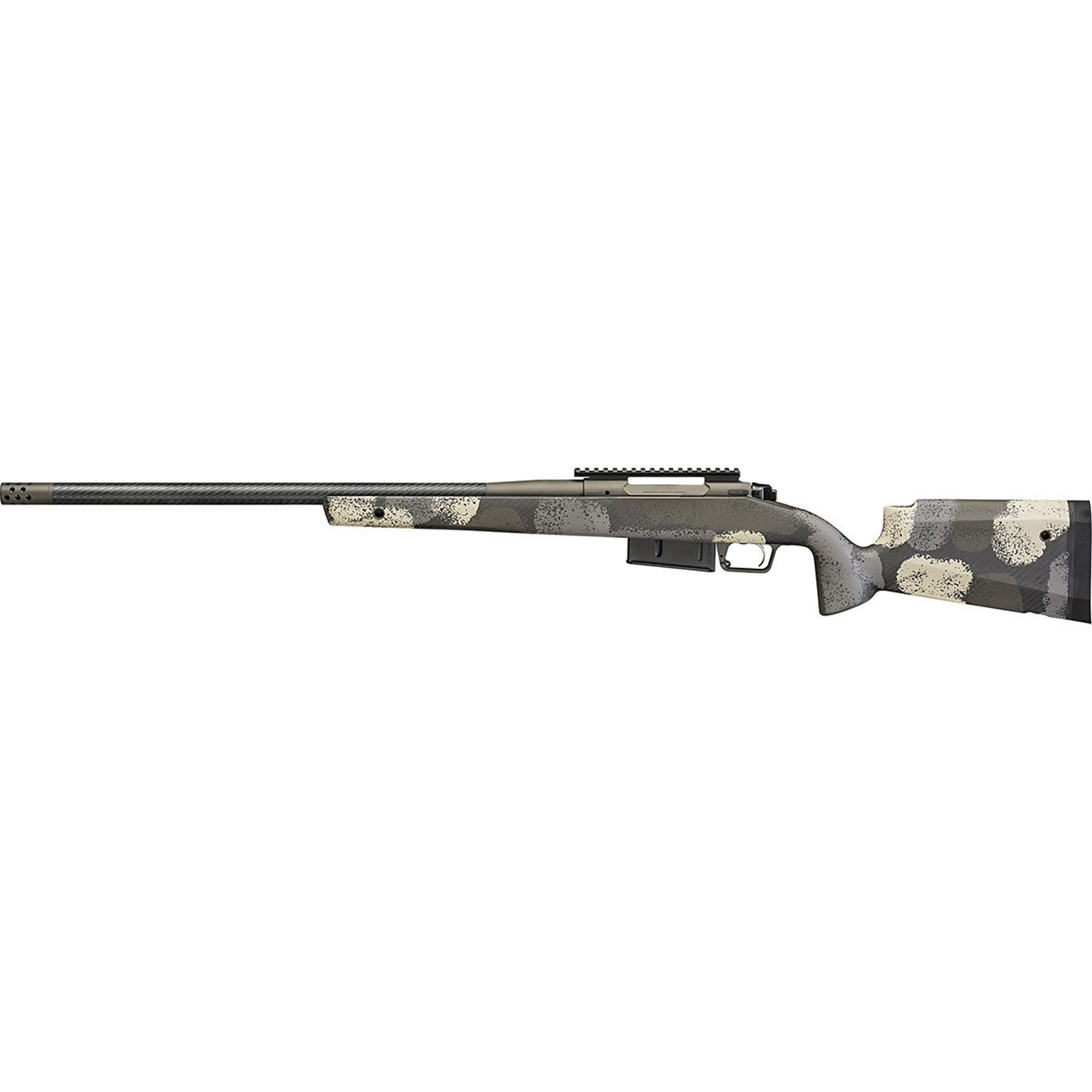

Precision manufactured in the USA, each Model 2020 is built to deliver the accuracy and performance expected from a custom grade rifle. The Model 2020 Waypoint features a premium carbon fiber stock and the option of a steel or carbon fiber barrel with an impressive .75 MOA accuracy guarantee.
LESS TALK, MORE ACTION
Accuracy and performance begin with the all new Model 2020 action. Precision manufactured from premium materials, each Model 2020 action is the foundation for success and is designed to take advantage of today’s most advanced production techniques. Dual locking lugs on the fluted bolt run smoothly down EDM raceways for perfect, repeatable engagement while an optimized extraction cam provides robust, reliable extraction in any condition. Additionally, the bolt features dual cocking cams for ease of operation and toolless disassembly for maintenance.
CUSTOM FEATURES
Offering users a custom-grade firearm for thousands less than you would expect, the Model 2020’s receiver features top-tier features and refinements. Providing strength and repeatability is an integral machined recoil lug, and electrical discharge machining (EDM) of the bolt lug raceways ensures precision dimensions and smooth cycling. An enlarged ejection port, sliding extractor — for reliable operation in the most adverse conditions — and hybrid dual-plane feed ramp deliver reliable and repeatable performance.
CARBON FIBER STOCK
Springfield Armory worked with AG Composites to develop the rifle’s premium line of carbon fiber stocks. When weight matters, carbon fiber’s exceptional capabilities make it the only choice. Each stock is hand-layed, made from 100% carbon fiber and pillar bedded for perfect marriage to the action. With a weight as low as 6 lbs. 9 oz., the Waypoint and its carbon fiber stock strike the perfect balance between rock-solid strength and mobility.
TRIGGERTECH TRIGGER
The trigger is the most important interface between the rifle and shooter. The Waypoint’s trigger from TriggerTech features a low-profile, non-snag safety and employs the company’s Frictionless Release Technology™. It’s adjustable from 2.5 – 5 pounds with a patented, free-floating roller for a crisp, clean and repeatable pull.
3 AXIS ADJUSTABLE CHEEK COMB (OPTIONAL)
An optional 3 axis adjustable cheek comb allows the shooter to dial in the perfect fit for repeatable shooting comfort.
FIVE QD MOUNTS
The stock features five QD mounts strategically placed to allow the rifle to be slung in a variety of configurations.
SA RADIAL BRAKE
The removable SA Radial Brake on the Model 2020 Waypoint™ effectively reduces recoil by directing gasses in an outward direction. A thread protector is included.

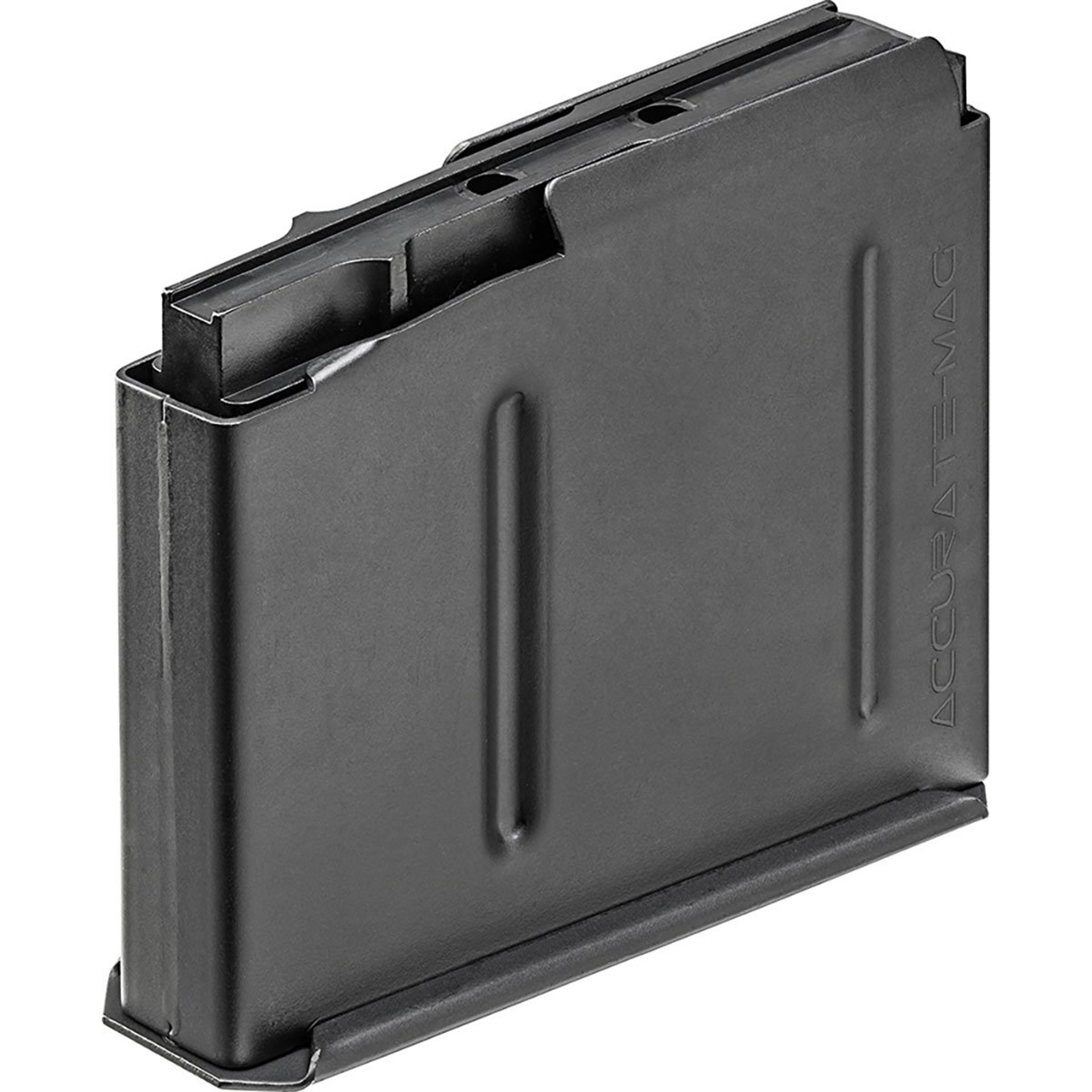

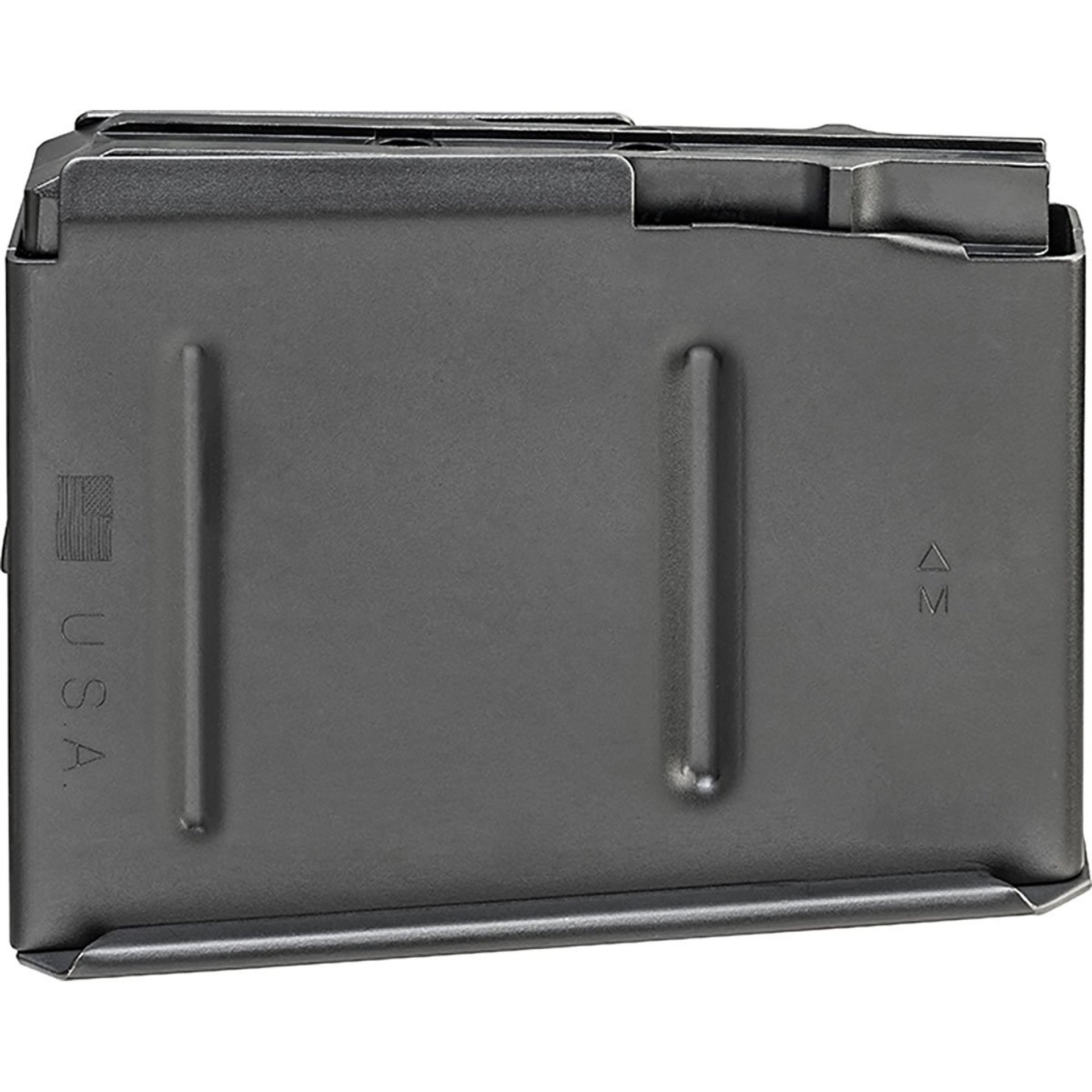

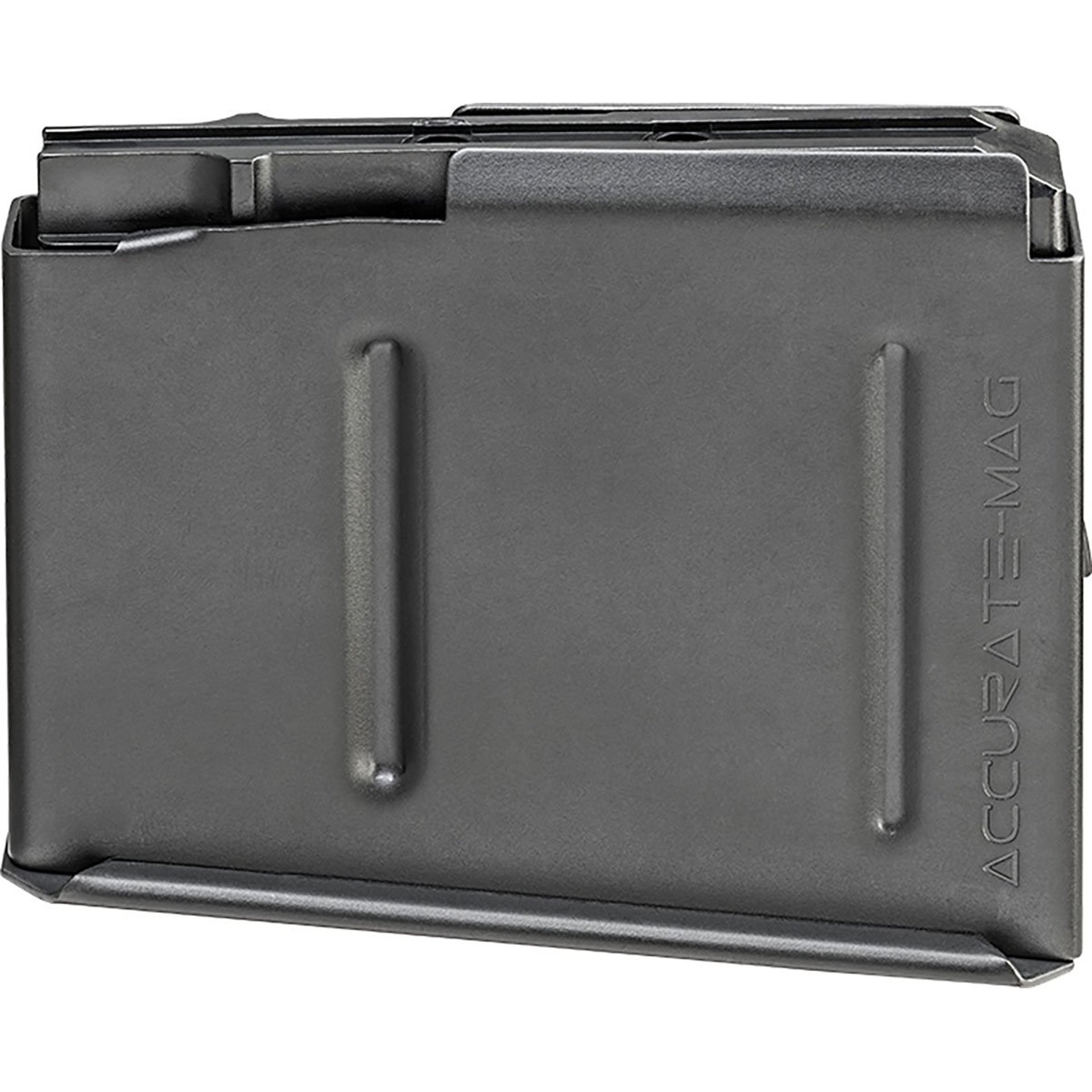

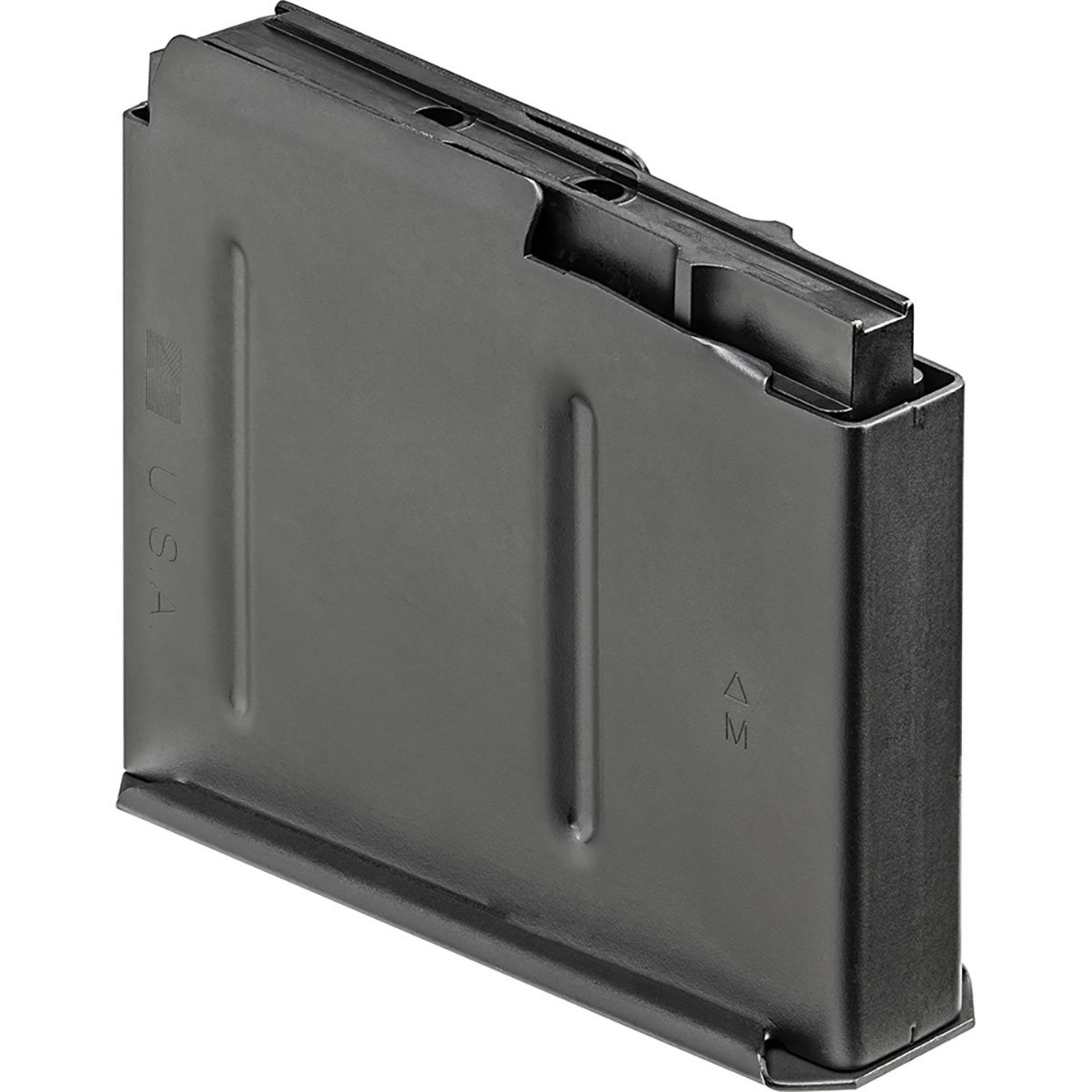

AICS PATTERN MAGAZINE
With exceptional design, broad acceptance and utter reliability due to the rounds feeding straight into the chamber, this magazine ensures you will have your shot - every time.
PACHMAYR® DECELERATOR RECOIL PAD
Made from a super soft rubber blend, the Pachmayr Decelerator provides maximum recoil reduction and shooting comfort.
SPECIFICATIONS:
- COLOR: Evergreen Camo
- BARREL: 24" Carbon Fiber, 1:10, Mil-Spec Green Cerakote® H-264
- RECEIVER: Model 2020 Stainless Steel, Mil-Spec Green Cerakote® H-264
- OPTIC MOUNTING: Picatinny Mount, Rem 700 SA Pattern, 6-48 Screws
- BOLT: Fluted 4140 Tool Steel, Nitride
- STOCK: Hybrid Profile, Carbon Fiber, M-Lok®, QD Cups (Optional Adjustable)
- TRIGGER: TriggerTech Adjustable, 2.5 - 5 lbs
- MUZZLE DEVICE: SA Radial Brake, Mil-Spec Green Cerakote® H-264
- MAGAZINES: (1) 3-Round, Accumag
- WEIGHT: 7 lbs 5 oz – 8 lbs 2 oz
- LENGTH: 46"
