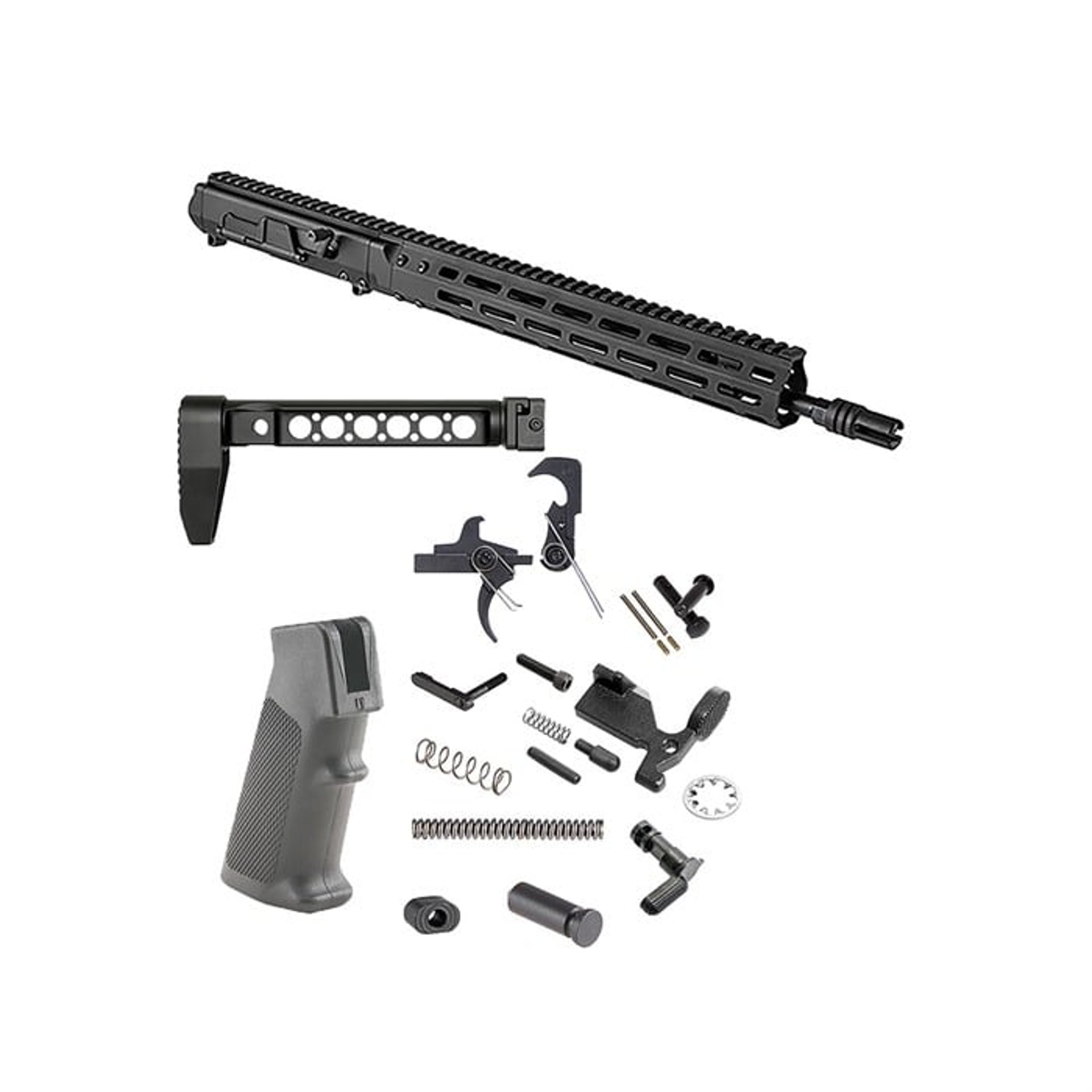

BROWNELLS BUNDLES BRN-180 16" Build Kit .223 Wylde BRN-180 16" BUILD KIT .223 WYLDE

BRN-180 16" Build Kit .223 Wylde
Brownells #
078000686
MFR #
BRN-180 16 BUILD KIT 223 WYLD
UPC
$959.99 $1,285.49
Coupon Code
Purchase Limit Help

Out of Stock

Specifications
Color:
Black
Model Number:
BRN-180
Restriction
Restricted Part:
Yes
Description

Designed in conjunction with PWS & FM Products, the Brownells BRN-180™ Complete Upper Receiver is inspired by the Armalite® AR-180 of the 1960s. Developed as a successor to the original AR-15, the AR-180 was a civilianized version of the AR-18, itself an upgrade on the M16 platform. The BRN-180™ incorporates many of the AR-18/AR-180 improvements - including its robust and reliable gas piston operating system. (Yes, the originators of the AR-15 / M16 eventually embraced a piston!) The BRN-180™ Gen2 Upper Receiver Group improves upon the original BRN-180 with two main upgrades. First, all BRN-180™ Upper Receivers now ship with an Adjustable Gas System, previously only found on the BRN-180S™. The operating mechanism, the short stroke gas piston concept remains the same, but the user can select between two settings, depending on their conditions and ammunition, to ensure smooth and consistent function. No more spare gas piston cup to worry about. In addition to the new Adjustable Gas System, the Handguard is now retaining with a single locking screw. This large screw provides ample locking force and ensures a more consistent handguard lockup than the previous mechanism. During extended firing, and the barrel heating up, this new locking system ensures the handguard retains alignment and rigidity with the upper receiver. Also, with this new takedown mechanism, the handguard can be removed to access the gas system without removing the internal components. Like the original, the BRN-180™ bolt carrier rides smoothly on a PAIR of guide rods. The carrier is buffered at the rear by a built-in polymer buffer with a molded-in steel plate that captures the guide rods. The Nitride bolt replicates the original AR-180 bolt design, right down to its use of a standard AR-15 extractor. Wait - we know what you're dying to ask. Yes, the BRN-180™ upper receiver is fully compatible with any standard, mil-spec AR-15 lower receiver. The 16"" or 18.5” barrel is machined from extra-strong 4150 carbon steel, with a hard Nitride finish that really resists surface wear. The BRN-180™ is chambered in .223 Wylde - for extra flexibility in ammo choice - with 1-8"" rifling, so it handles both .223 Remington and military-type 5.56mm NATO ammo with equal aplomb. Up front there's a replica of the AR-180's unusual three-prong flash hider: the hemispherical bottom prong helps prevent the muzzle blast from kicking up a dust signature when shooting prone. Standard ½-28 tpi muzzle threads let you swap on a modern AR-15 muzzle device should you be bitten by the customizing bug.

  • Ultra-reliable AR-180 piston operating system
  • Compatible with current mil-spec AR-15 lowers
  • Machined 7075 T6 aluminum receiver & handguard - hardcoat anodized finish
  • 16"" or 18.5” barrel with matte black Nitride finish
  • .223 Wylde chamber
  • Button rifled bore; 1-8"" twist
  • ½""-28 threaded muzzle
  • Replica 3-prong AR-180 flash suppressor
  • Molded polymer ejection port cover
  • Total weight: 4.65 lbs

New for Midwest Industries in 2021, their Side Folder with a lightweight stock! The modular design features a skeletonized body with a minimalistic butt plate to keep the weight off your gun!

  • Heavy-duty side-folding mechanism constructed from 4140 steel
  • Full-length locking lug for maximum strength
  • Solid positive lock up in both positions
  • Steel clamp with large surface engagement
  • Can be configured to right or left folding
  • Modular design can accommodate different stock attachments
  • Features a skeletonized modular body
  • Includes 3 anti-rotation QD swivel sockets
  • Includes aluminum minimalistic butt plate
  • Adds 8.75 inches to firearm length in the open position
  • Adds 0.75 inches to the firearm in the folded position
  • Complete assembly weight: 15.9 oz.
  • Steel parts are mag phosphate finished
  • 100% made in the USA

Brownells has taken the guesswork out for you! Need a lower parts kit? We have put together the small parts needed from some of our top suppliers just for you! This kit includes the following items:

  • Magazine Release
  • Magazine Release Button
  • Magazine Catch Spring
  • Bolt Catch
  • CMMG Trigger
  • Hammer Assembly
  • Hammer Spring
  • Trigger Disconnector Spring
  • Trigger Spring
  • Disconnect
  • Disconnect Spring
  • Safety Selector
  • Selector Spring
  • Selector Detent
  • Pistol Grip Screw
  • Pistol Grip Washer A2 Pistol Grip
  • Takedown/Pivot Pins

Restricted Part
Please check with your state regulations for ownership of Restricted Parts. May require documentation.
