TRIJICON ACOG 223/5.56 BDC 4X32MM FIXED RIFLE SCOPE

ACOG 223/556 BDC 4x32mm Fixed Amber Crosshair Reticle Black
Brownells #
892810432
MFR #
TA01NSN
UPC
719307300538
$969.99
Coupon Code
Purchase Limit Help

In stock

Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Specifications
Hand:
Right
Eye Relief (Minimum Inches):
1.5
Battery Type:
No
Click Value:
1/2 MOA
Item Length (Inches):
5.800
Item Width (Inches):
2.000
Cartridge:
223 Remington,5.56x45 NATO
Finish:
Matte
Item Weight (lbs):
0.619
Min Magnification:
4
Color:
Black
Item Height (Inches):
2.300
Max Magnification:
4
Mount Type:
Mount
Eye Relief (Maximum Inches):
1.5
Material:
Aluminum
Objective Size:
32
Reticle Type:
Amber Crosshair
Focal Plane:
Fixed
Quantity:
1
Illumination:
Yes
Scope Tube Diameter:
NA
Model Number:
TA01NSN
Restriction
Oversea shipping:
No
Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Description

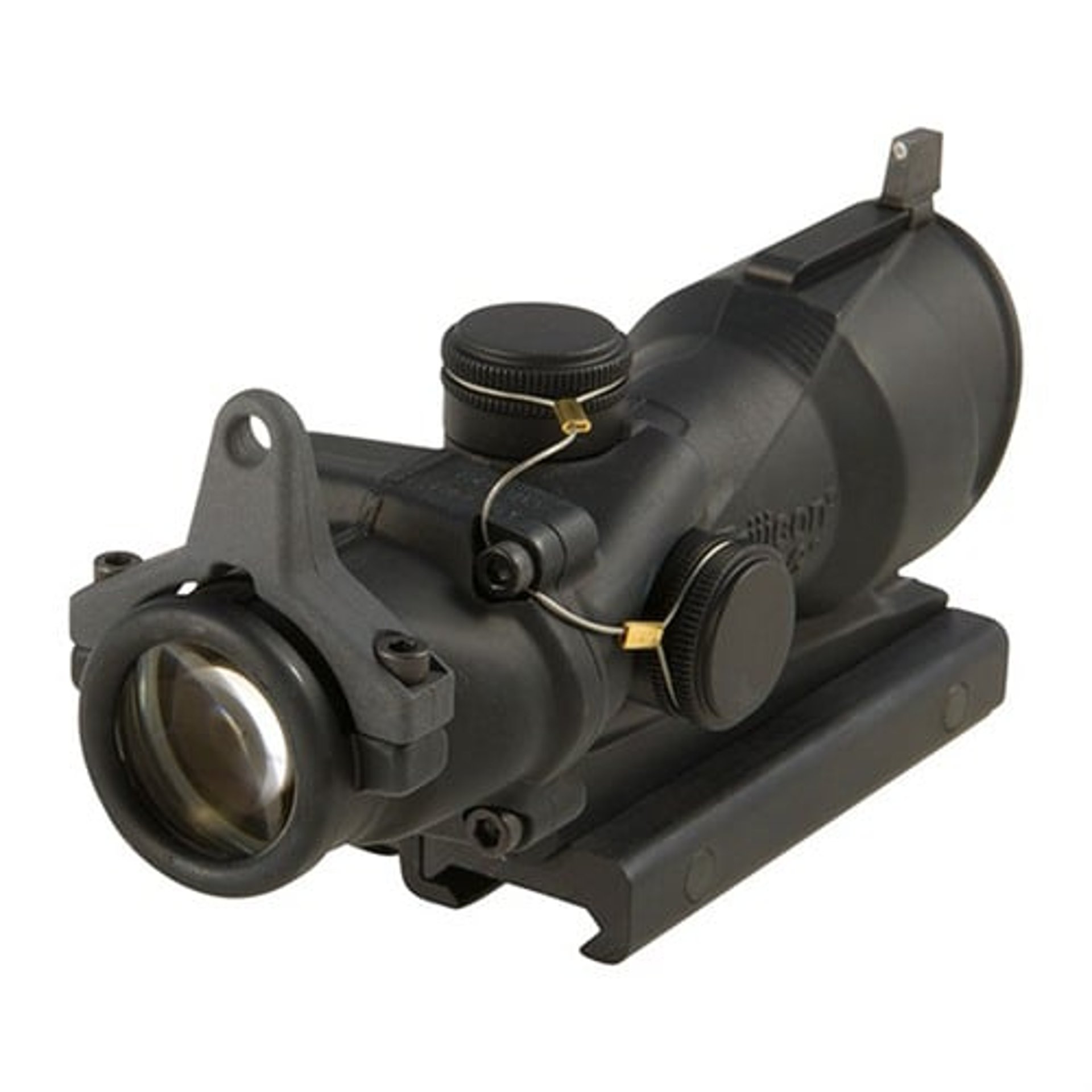

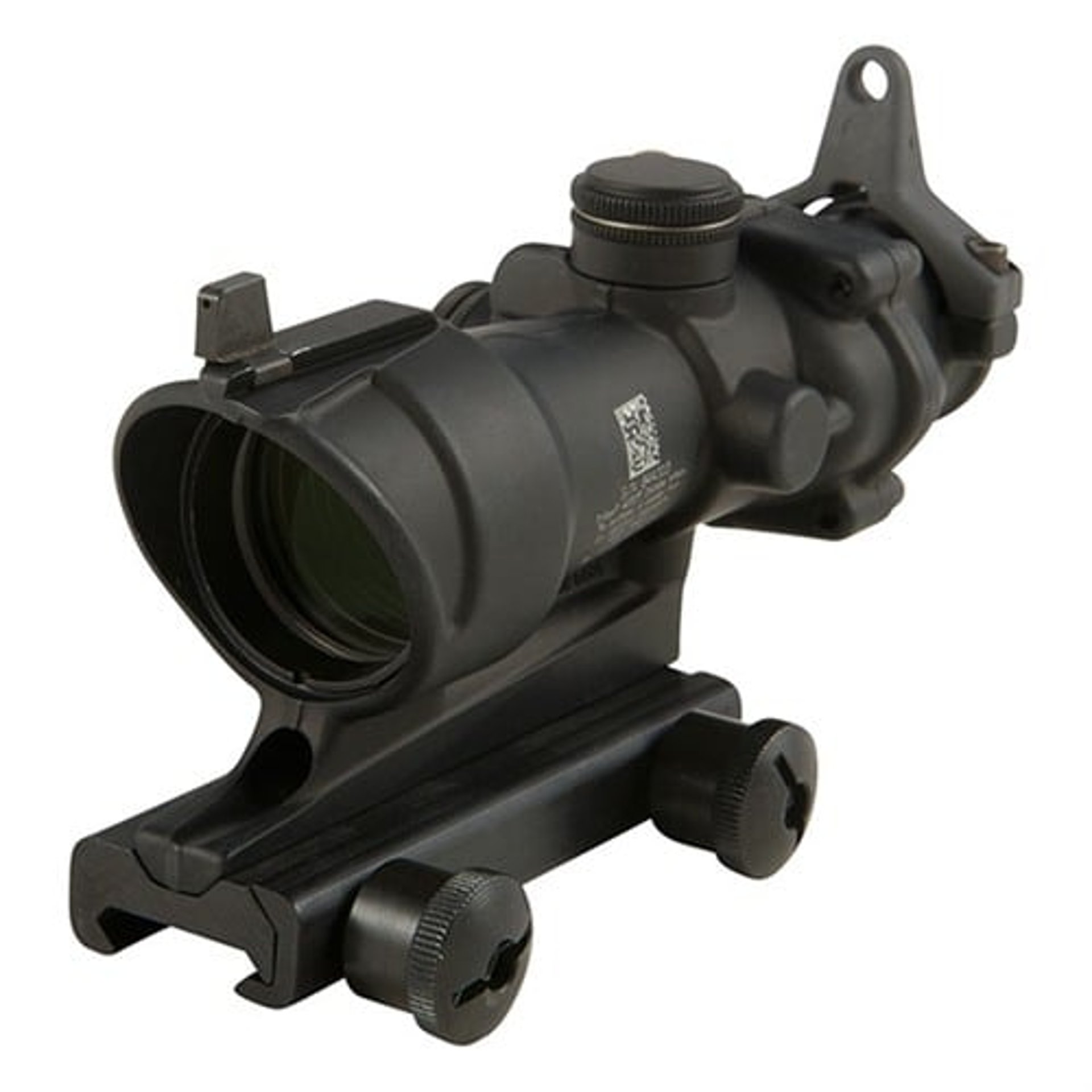

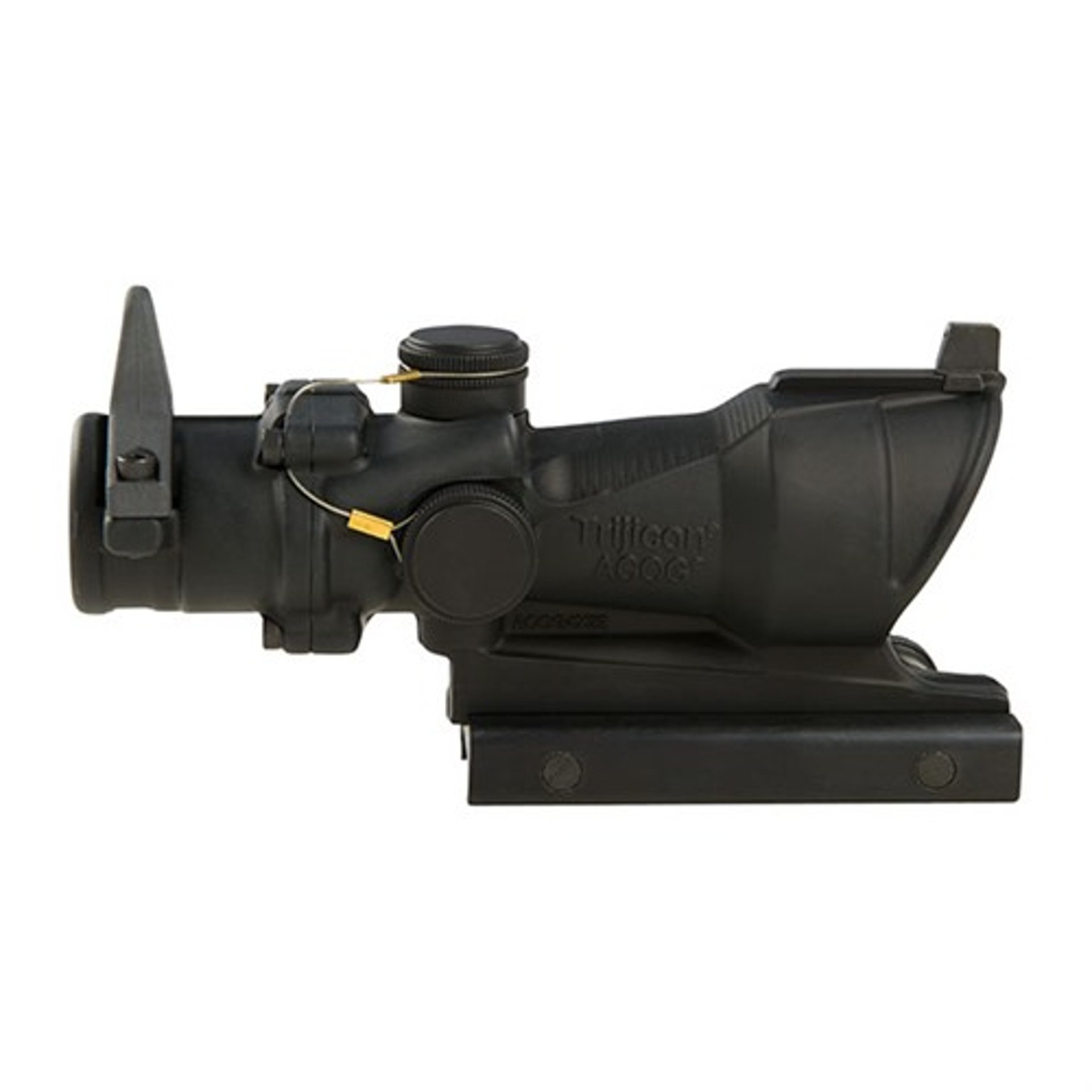

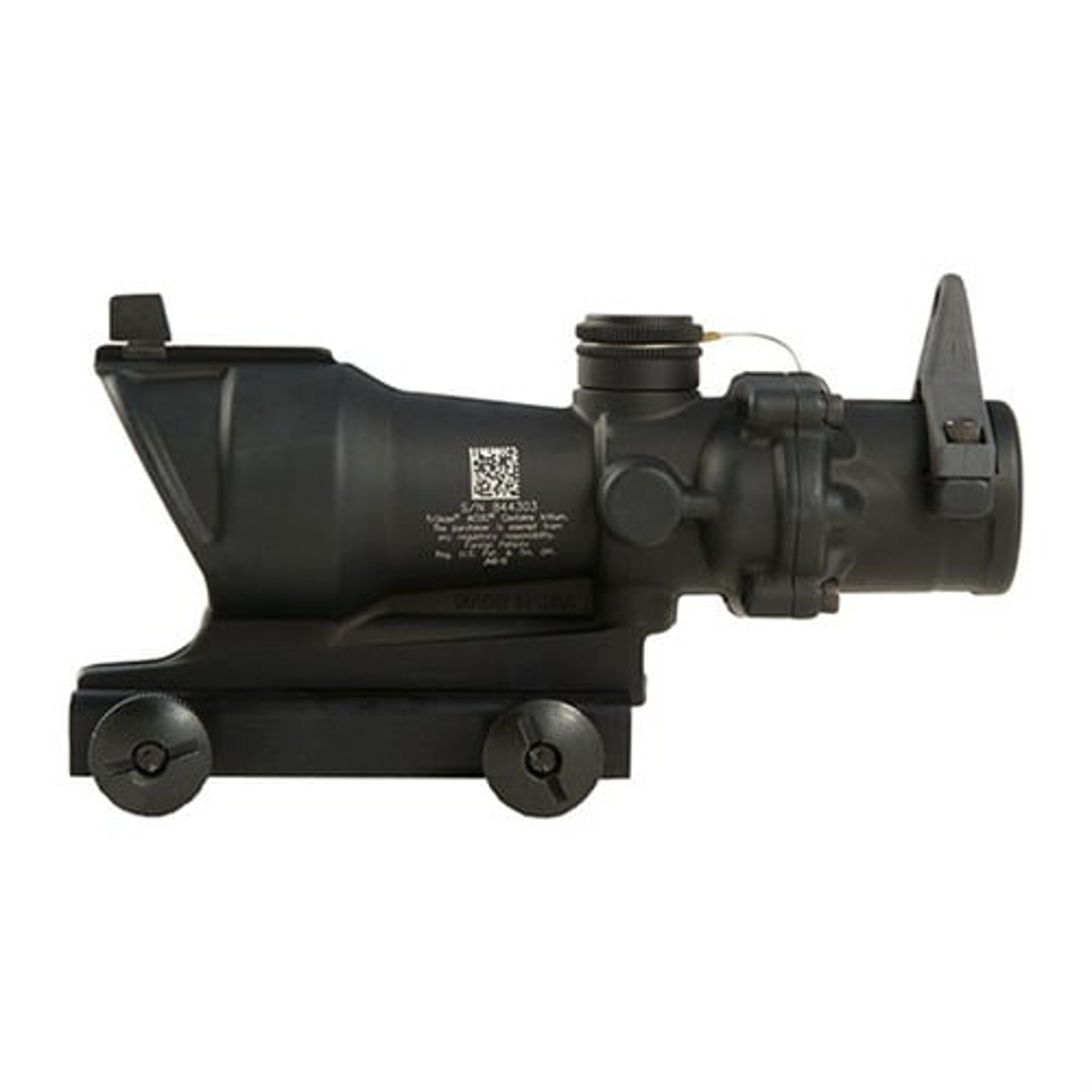

ACOG 223/5.56 BDC 4X32MM FIXED RIFLE SCOPE

There's a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces.

And there’s a reason why more than one million ACOGs have been produced. Every feature of its innovative design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. This is possible through a brilliantly illuminated reticle pattern, a compact design, and legendary durability that continues to lead the industry.

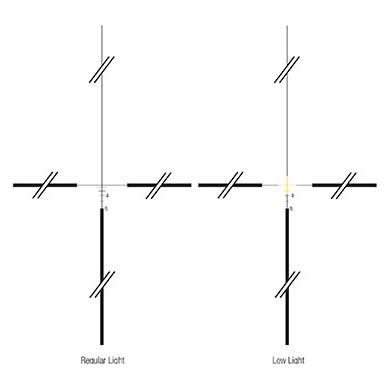

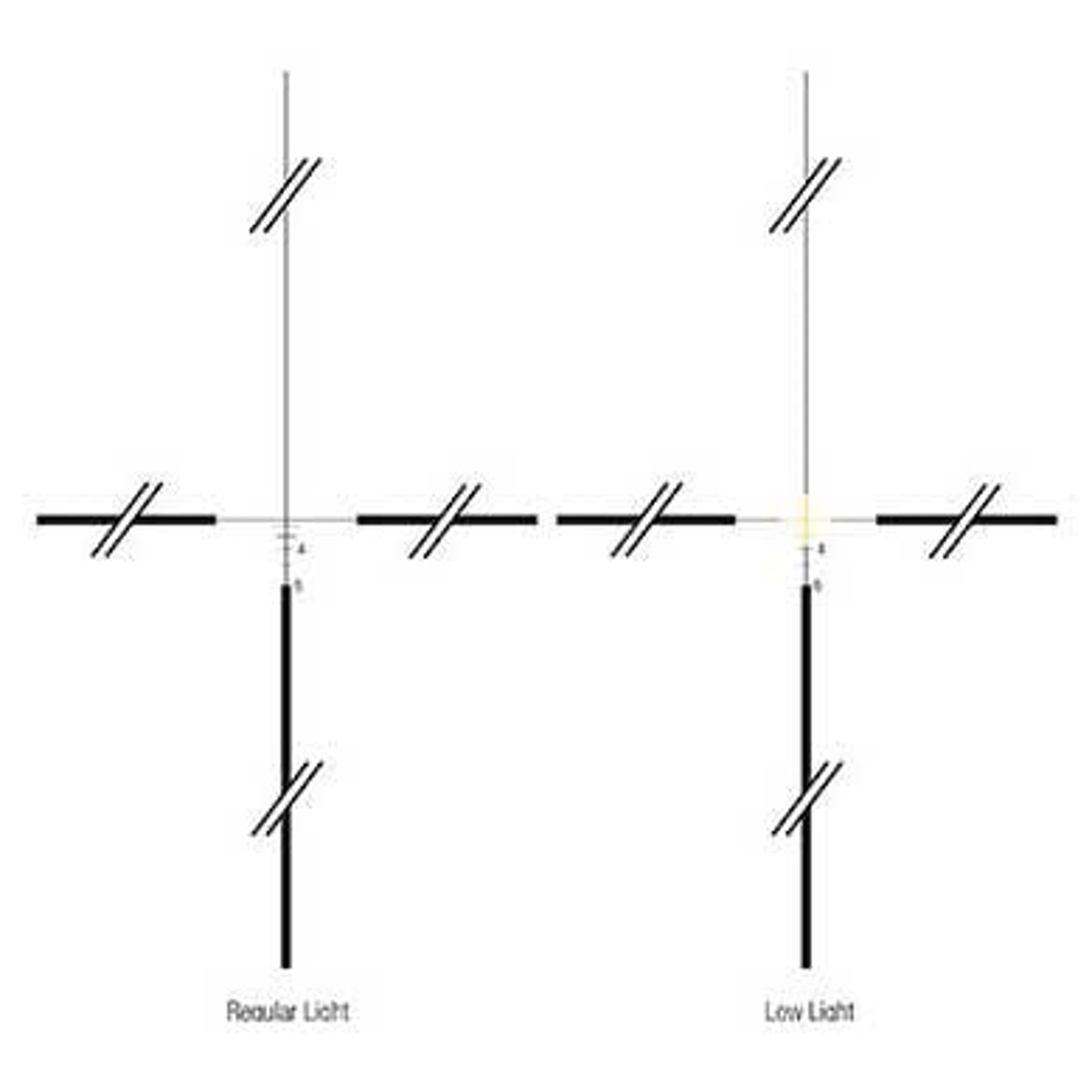

Designed to the exact specifications of the US Special Operations Command for use by elite US forces, the Trijicon ACOG TA01NSN is Trijicon’s most popular ACOG. The ranging reticle allows for bullet drop compensation out to 600 meters without any manual adjustments. The reticle will appear black during the daytime and will glow amber in the dark, thanks to Trijicon’s patented tritium illumination. Includes backup Iron Sights. No batteries needed!

FEATURES:

ALWAYS ON, ALWAYS READY

Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

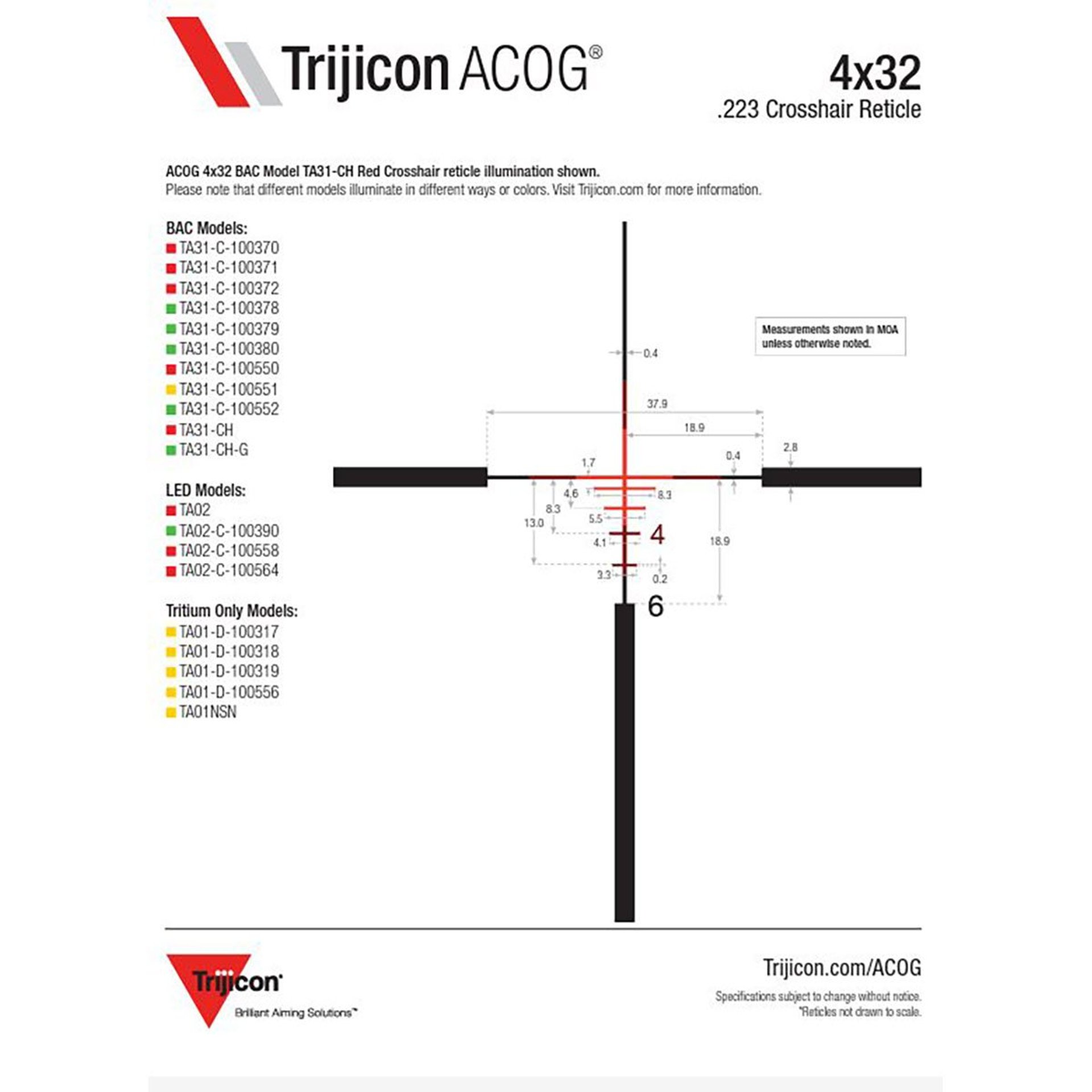

Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

SPECIFICATIONS:

  • Length x Width x Height - 5.8 in x 2 in x 2.3 in (147.32mm x 50.8mm x 58.42mm)
  • Weight – 14.96 oz. (424.11g)
  • Magnification - 4x
  • Objective Size - 32mm
  • Reticle Pattern – Crosshair
  • Day Reticle Color – Amber
  • Night Reticle Color – Amber
  • Bullet Drop Compensating (BDC) - Yes
  • Caliber – .223/5.56
  • Illumination Source - Tritium
  • Power Source – Tritium
  • Adjustment - 2 clicks per inch @100 yards
  • Eye Relief - 1.5 in. (38.1mm)
  • Exit Pupil - 0.32 in. (8.13mm)
  • Field of View (degrees) - 7°
  • Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)
  • Mount - Flattop Thumbscrew Mount (TA51)
  • Housing Material - Forged Aluminum
  • Finish - Matte Black
