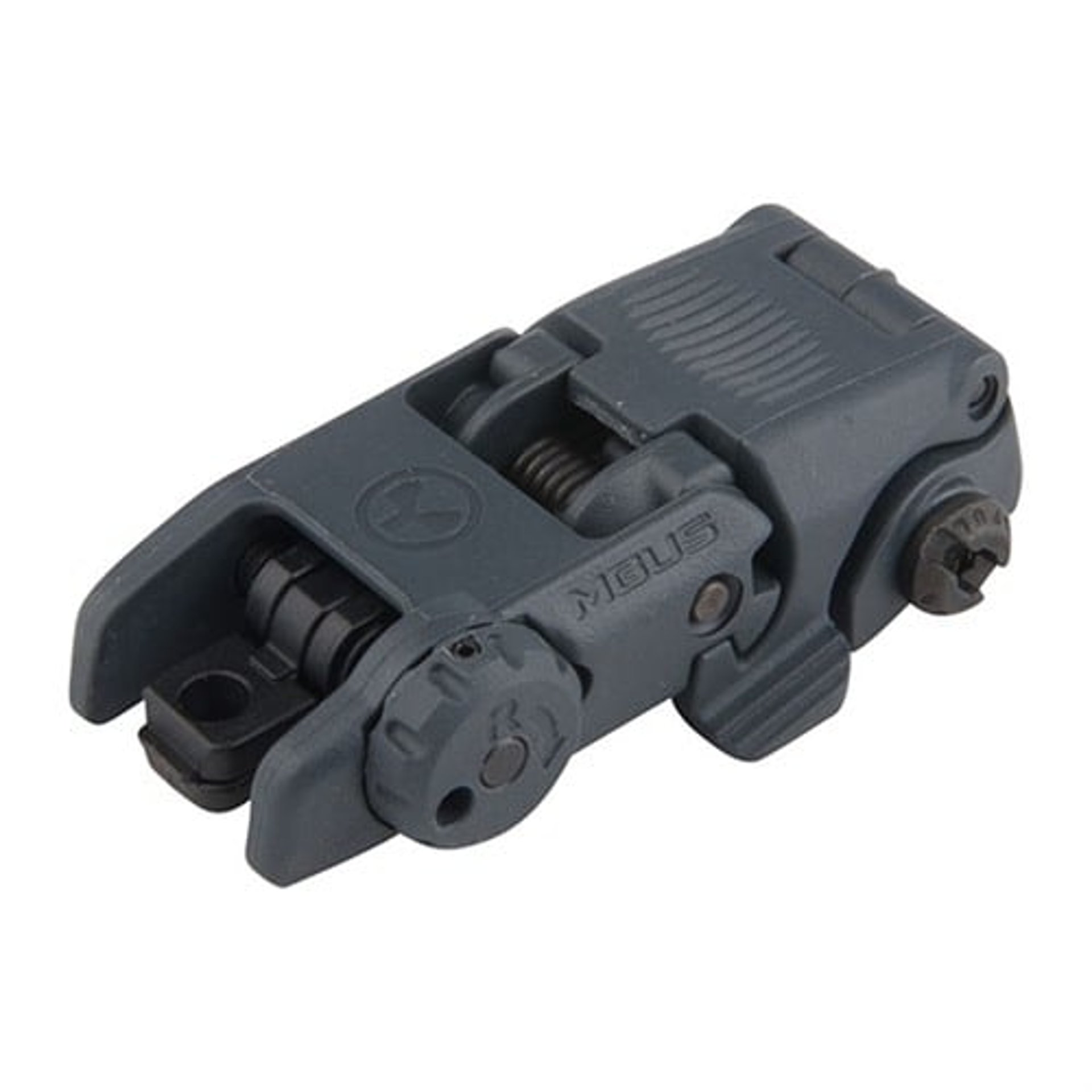

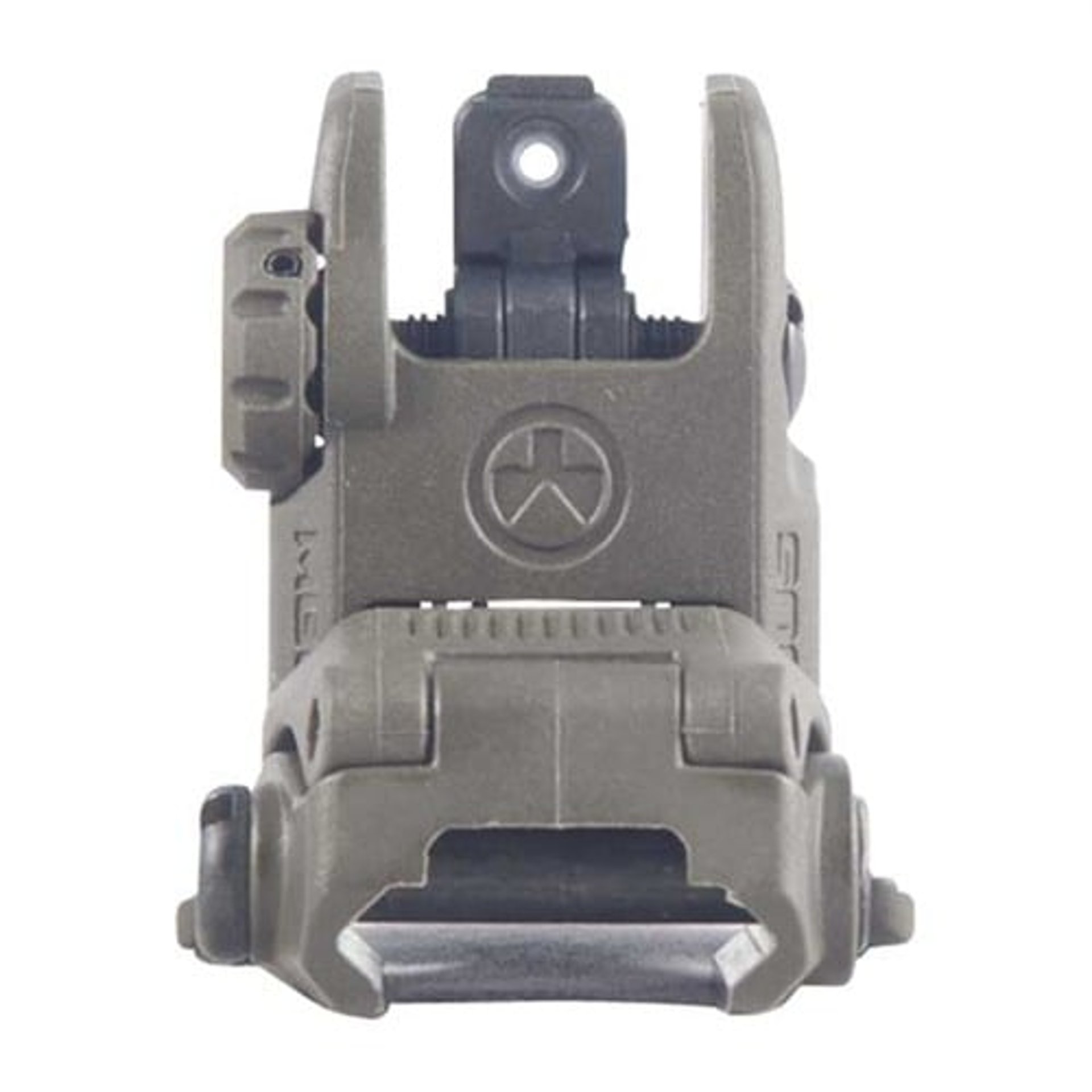

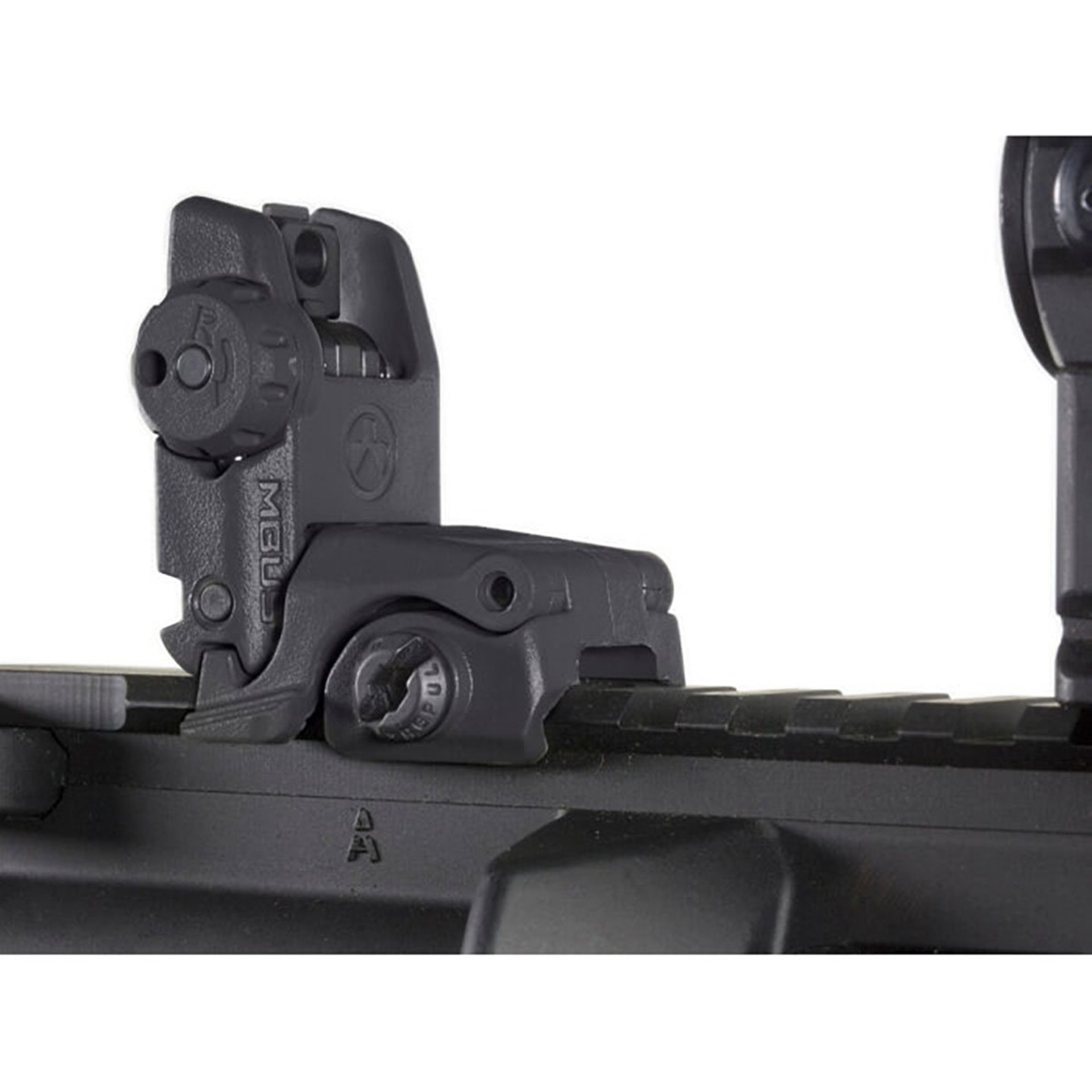

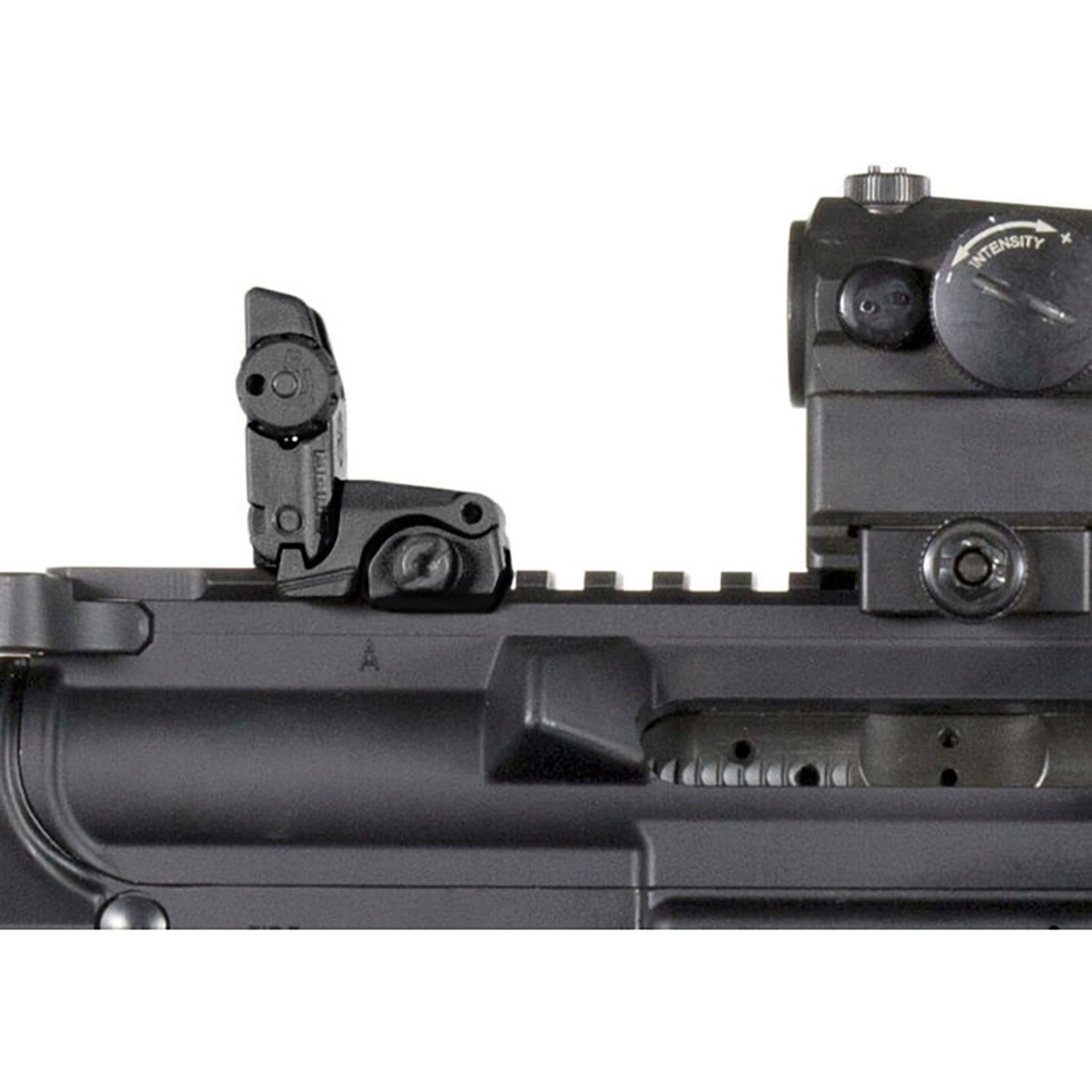

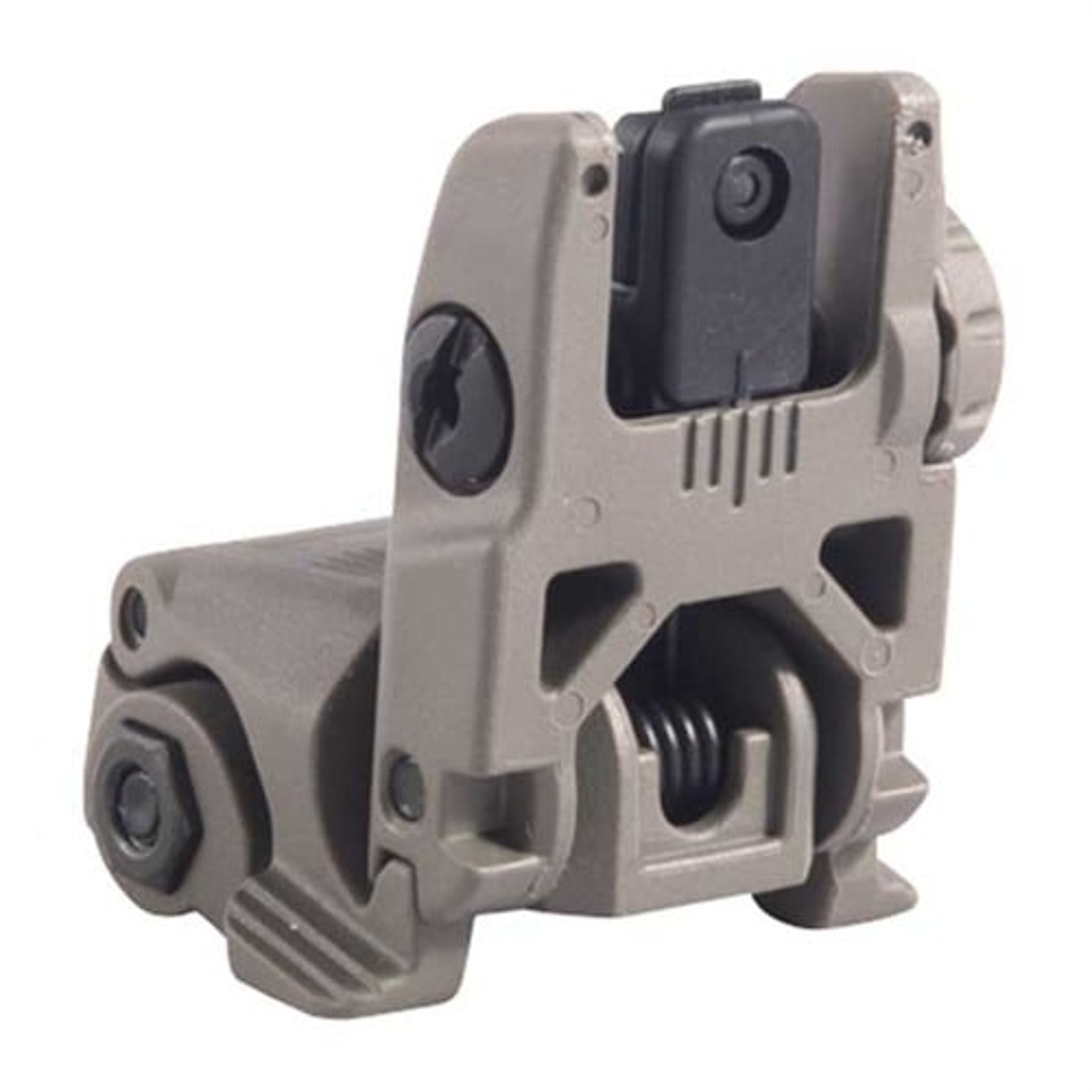

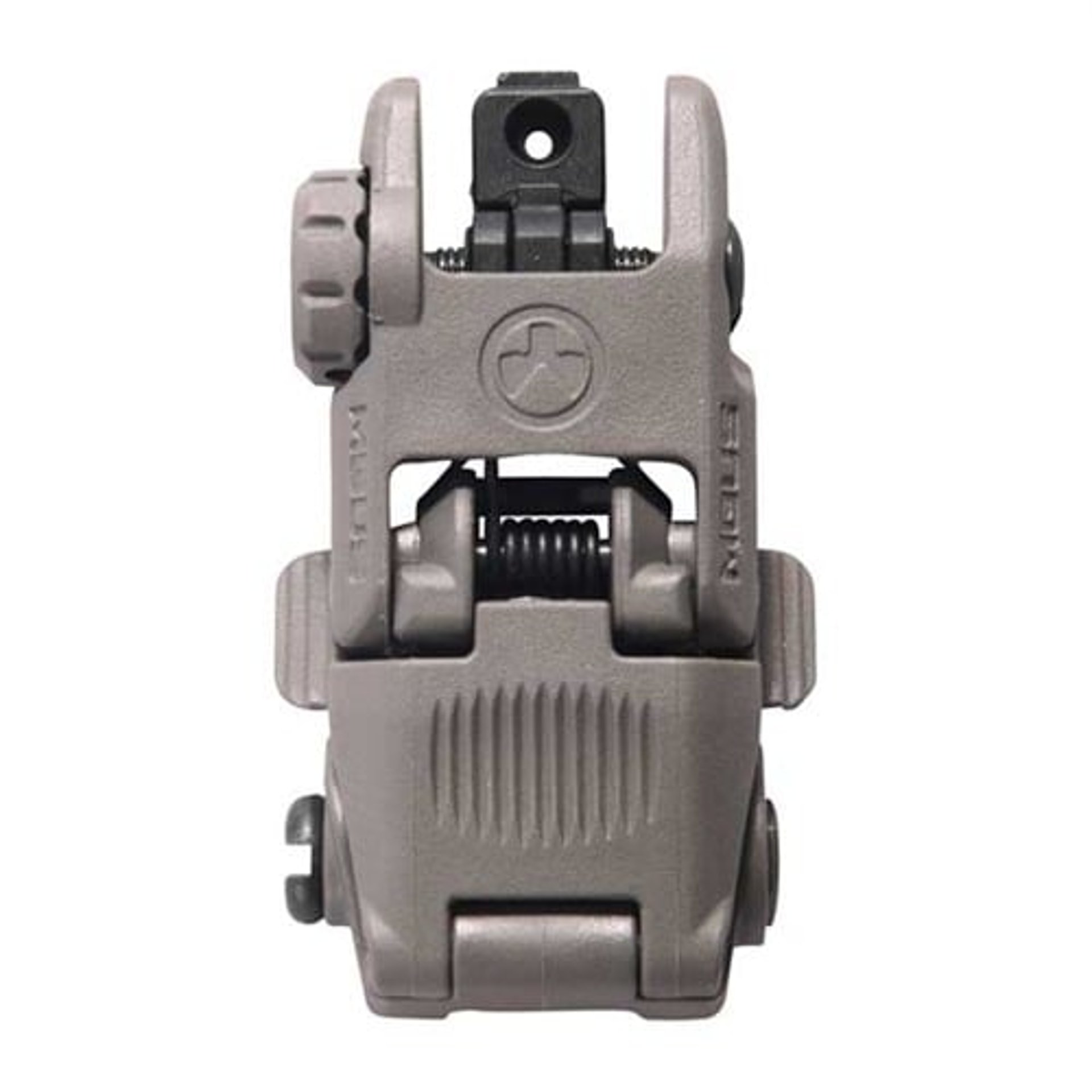

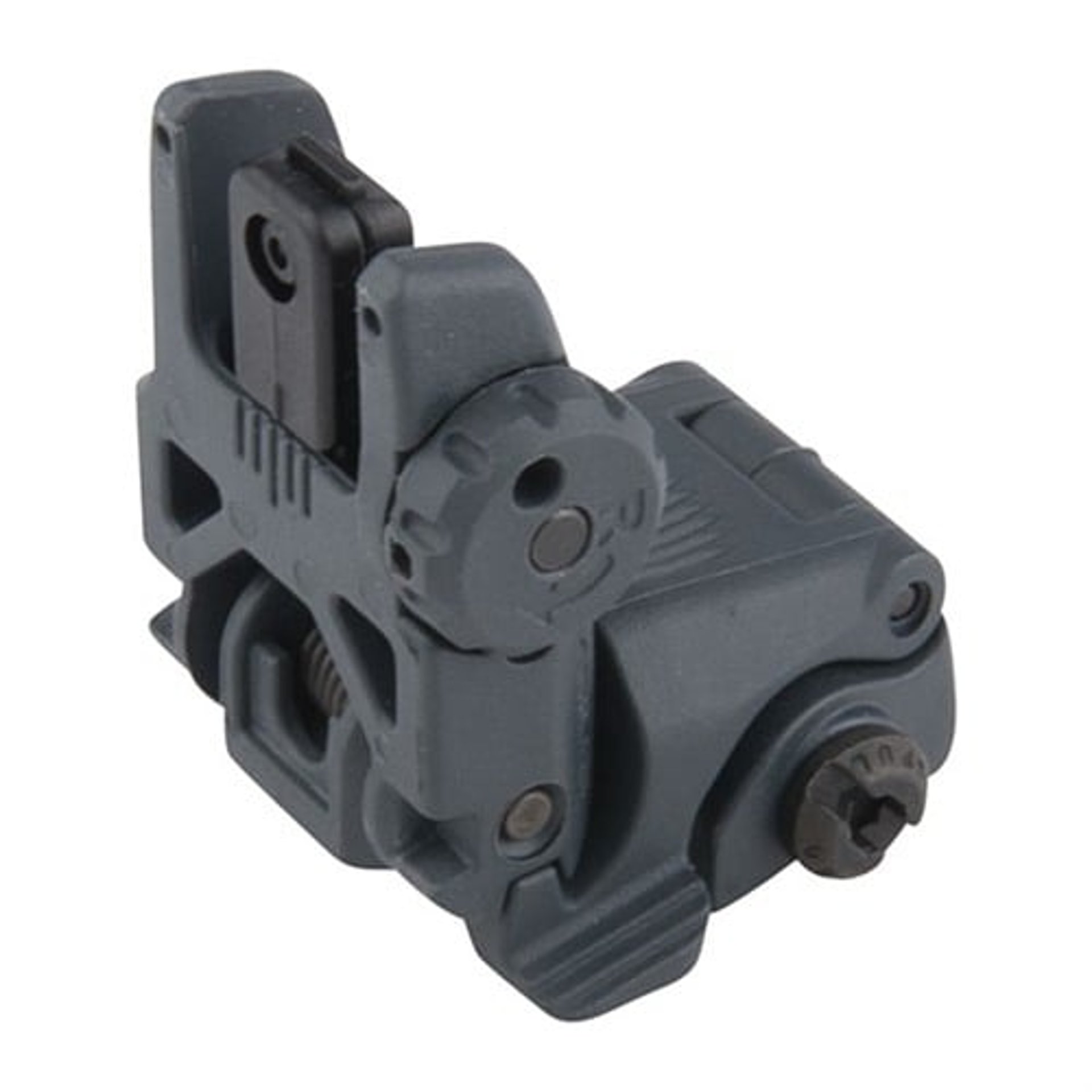

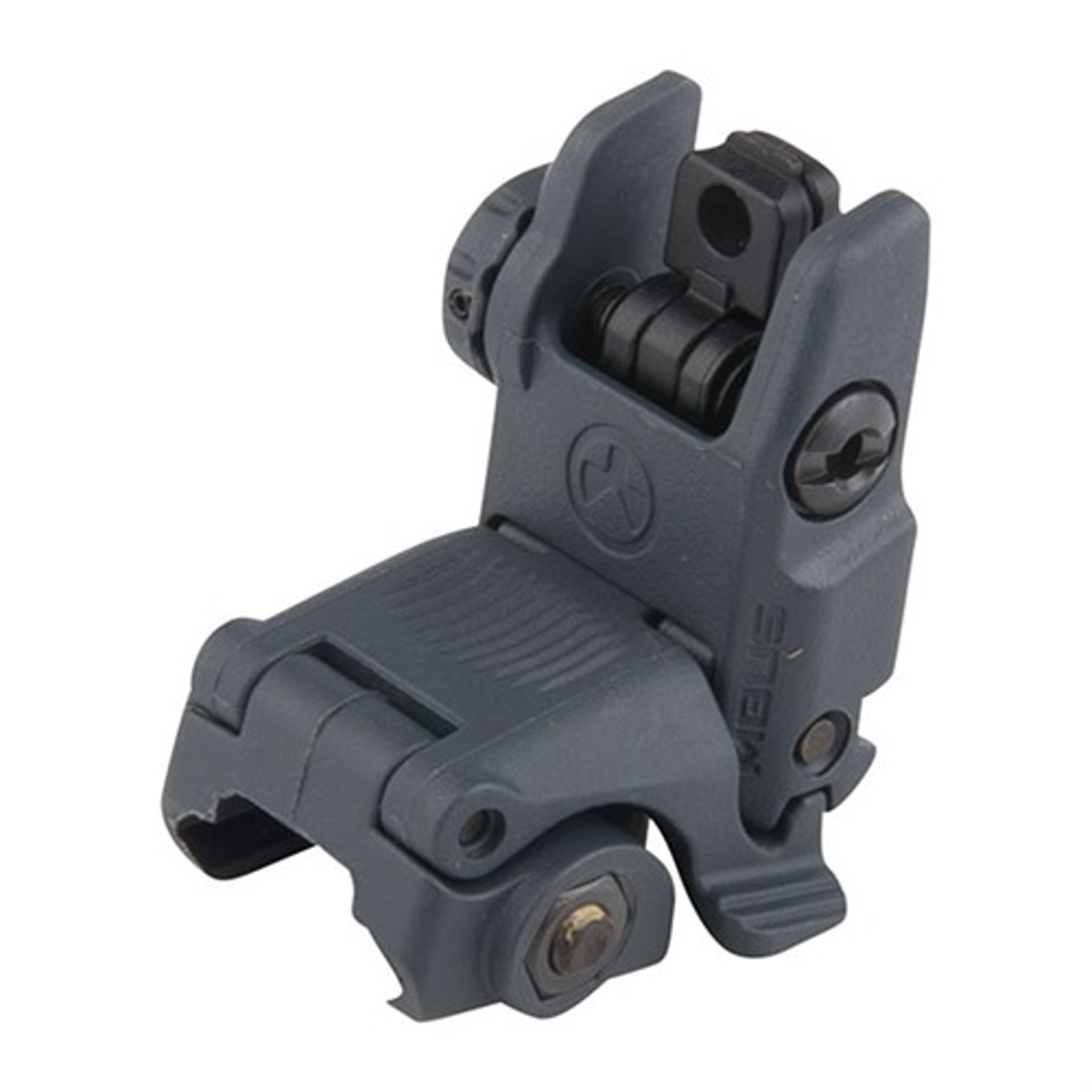

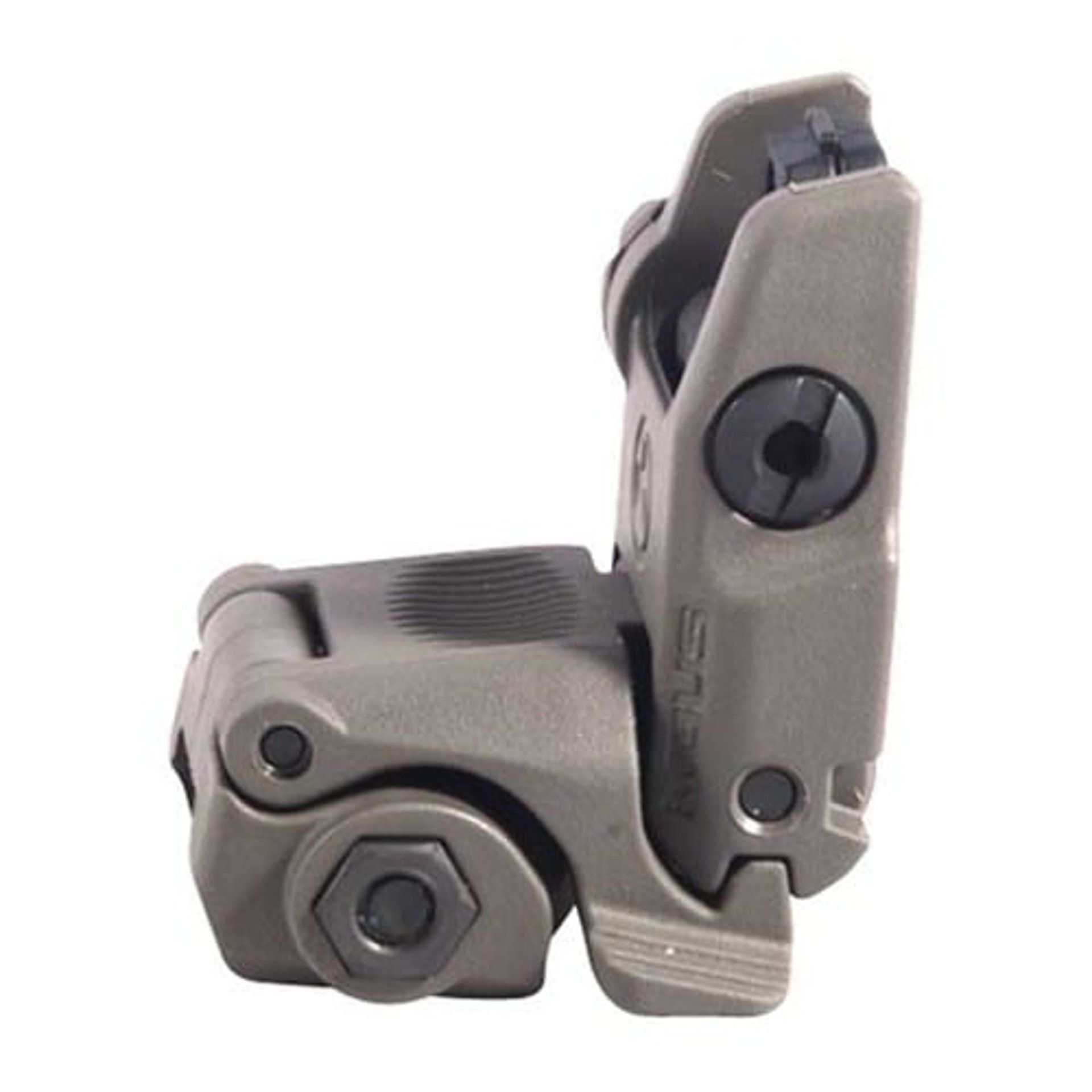

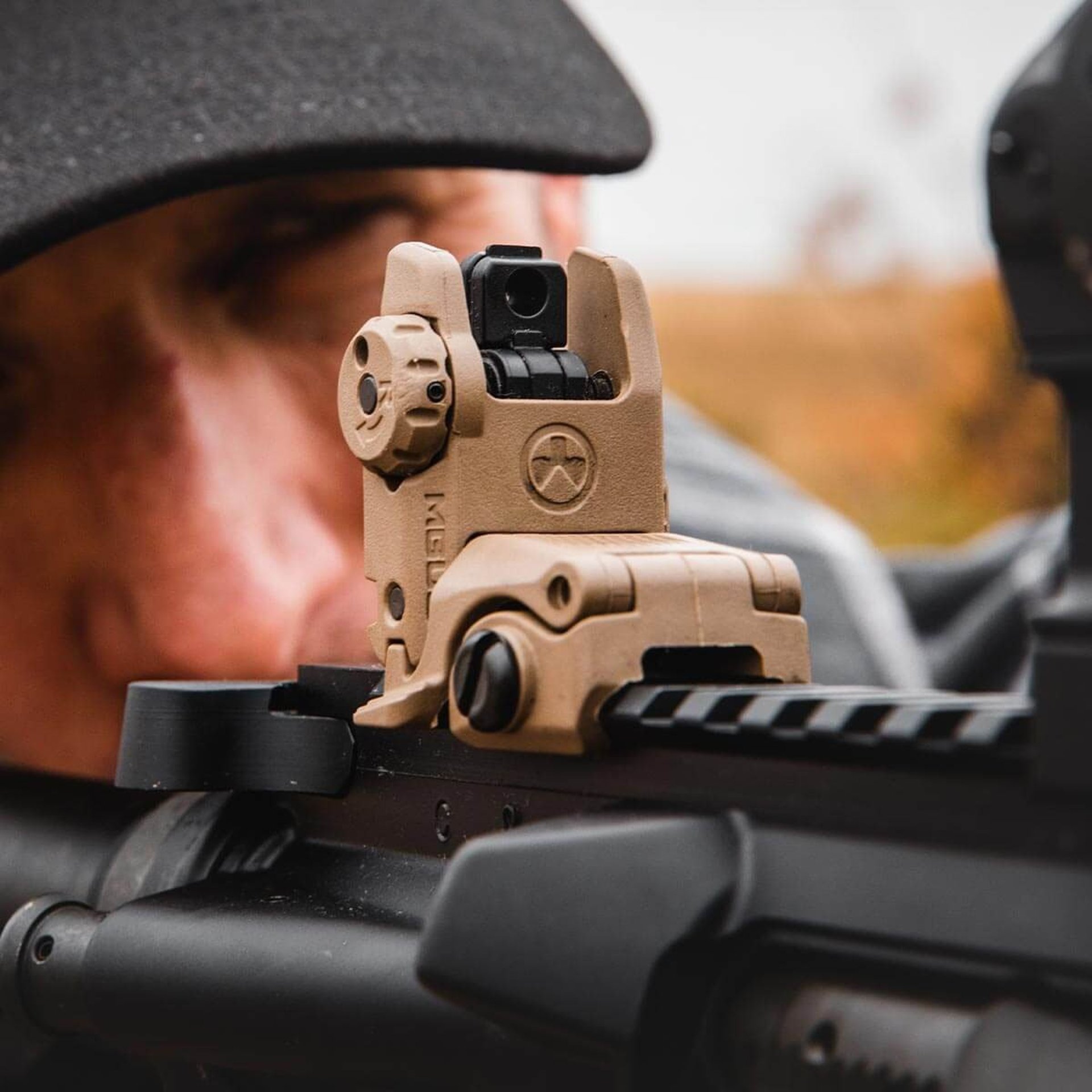

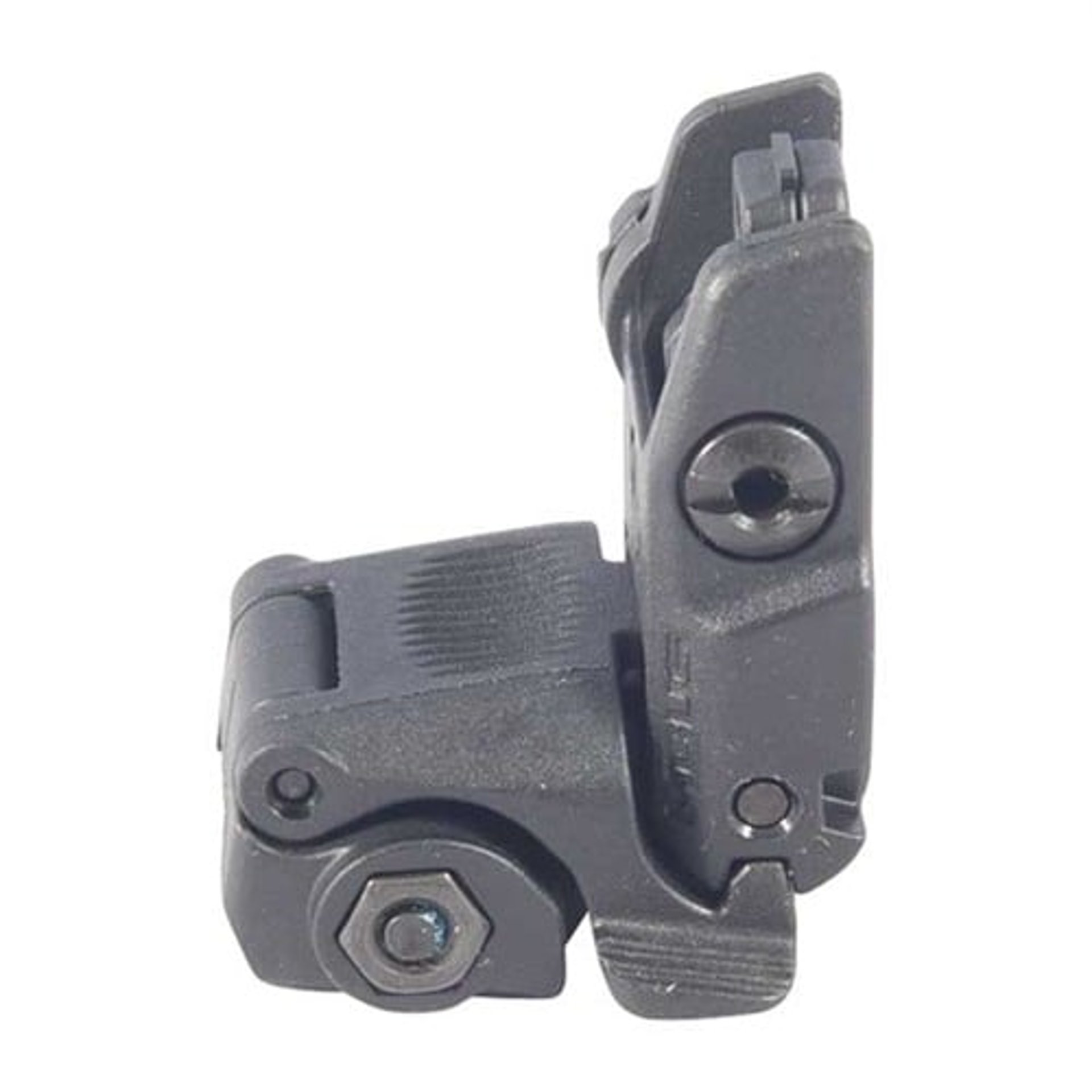

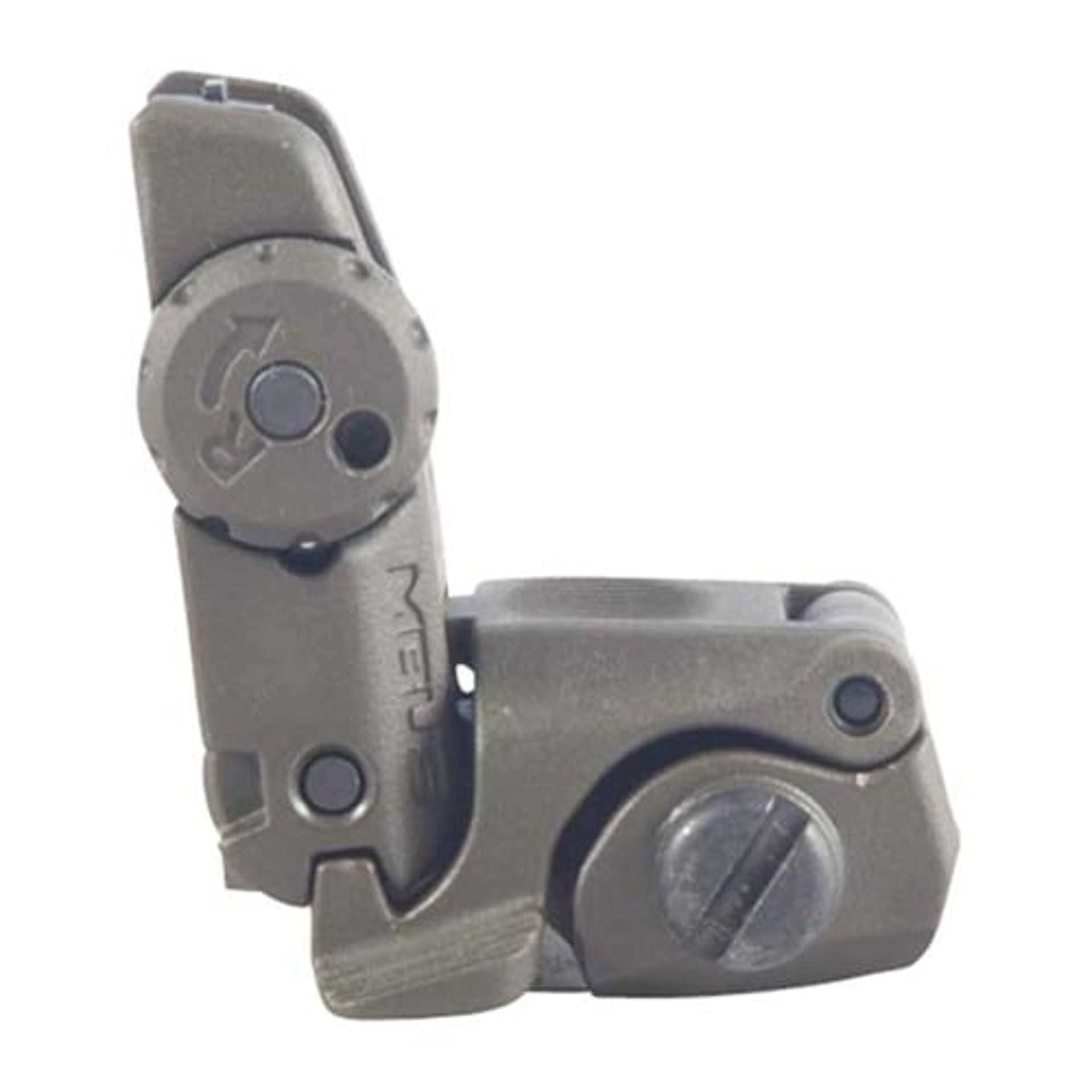

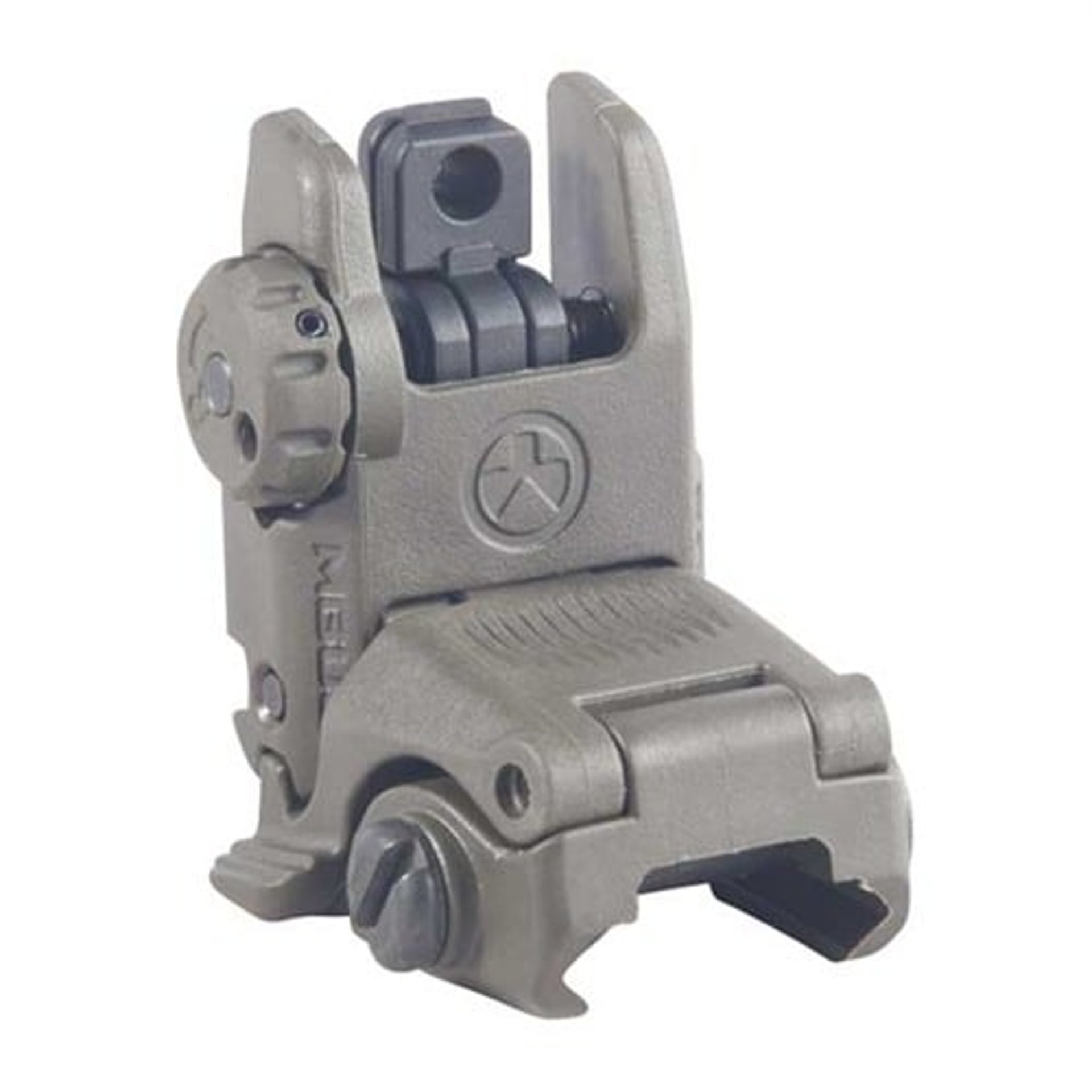

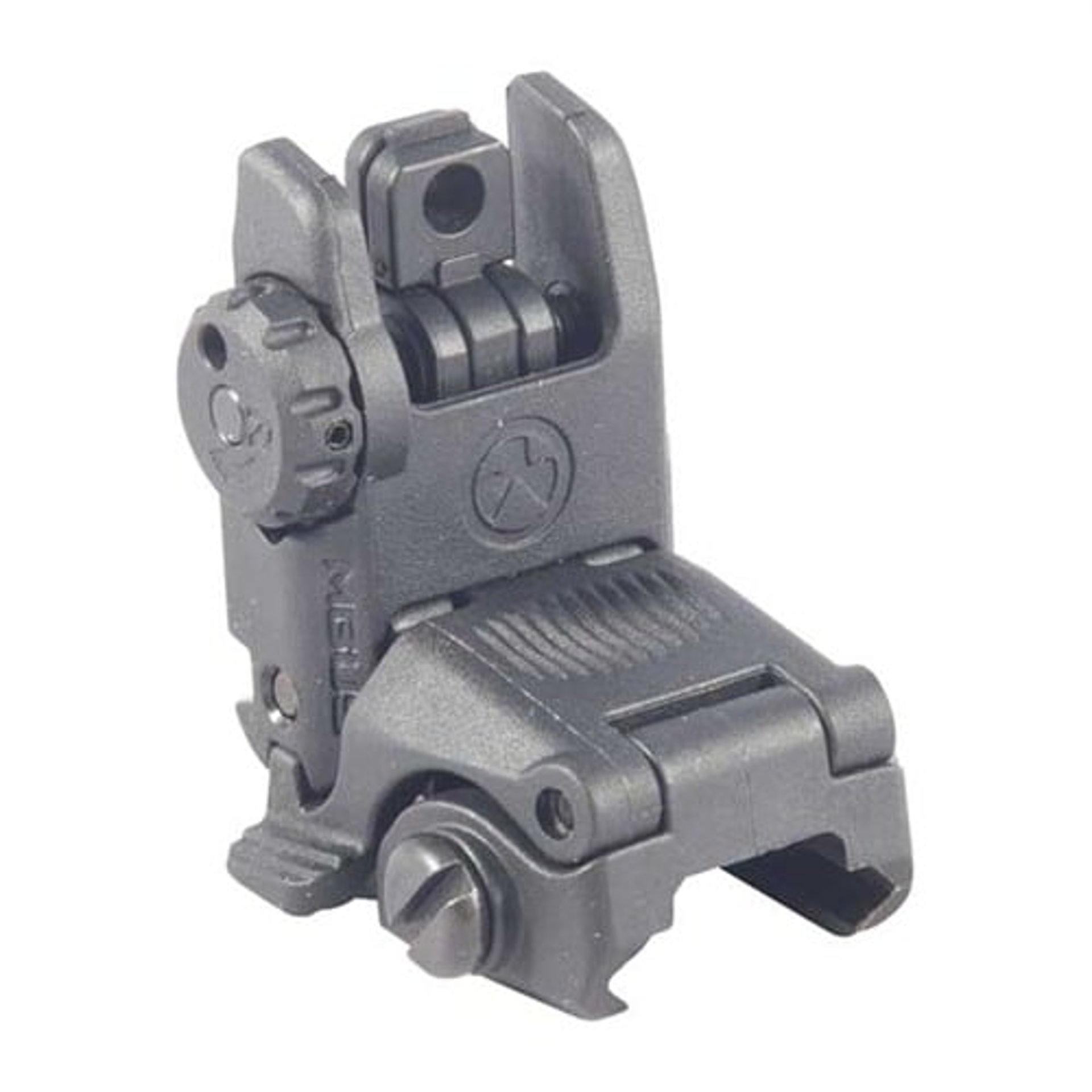

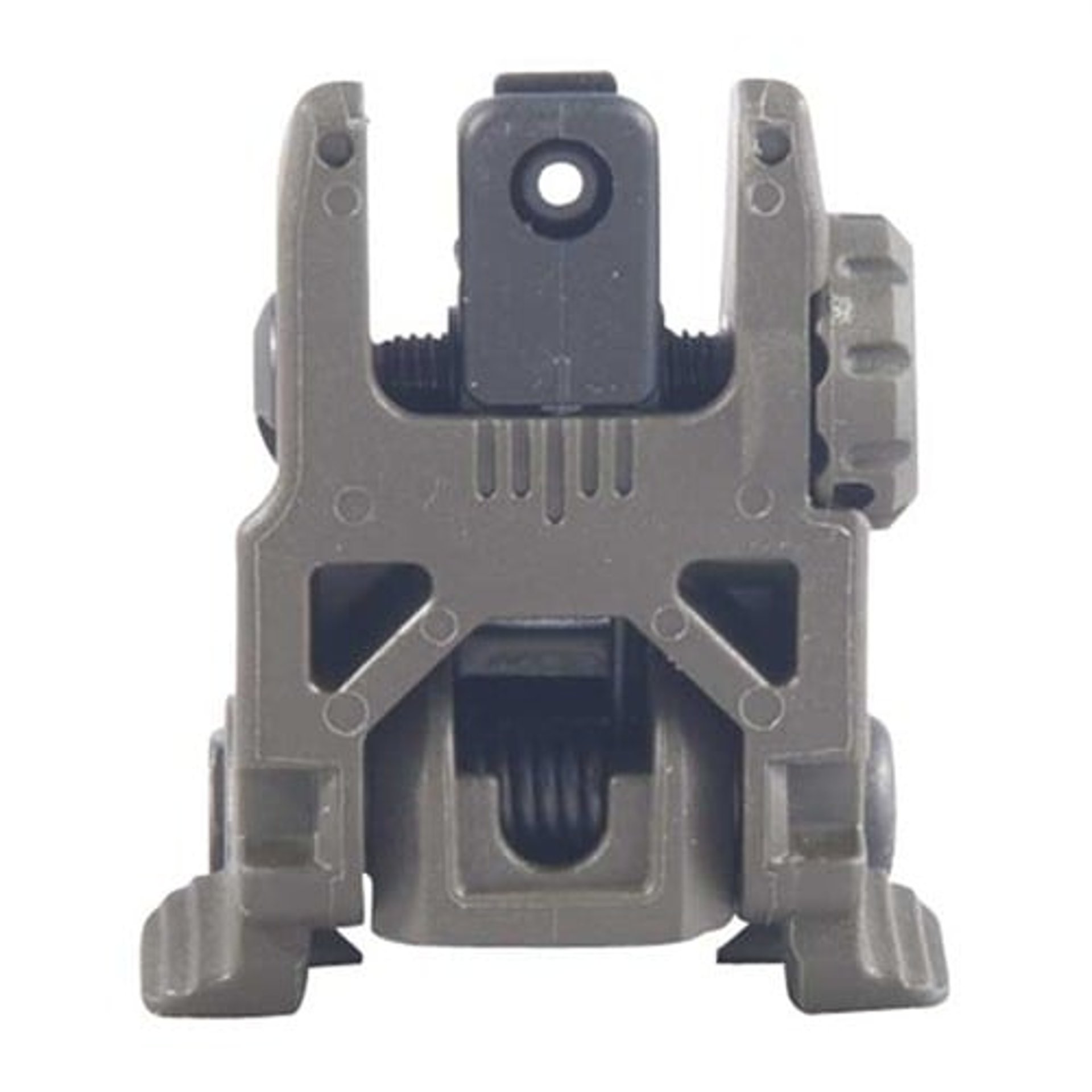

MAGPUL MBUS® FLIP-UP REAR SIGHT FOR AR-15

Color
Brownells #
MFR #
UPC
$38.99 - $45.99
Coupon Code
Purchase Limit Help

In stock

Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Specifications

Please select from the options above to see detailed specifications.

Restriction

Please select from the options above to see detailed restrictions.

Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Description

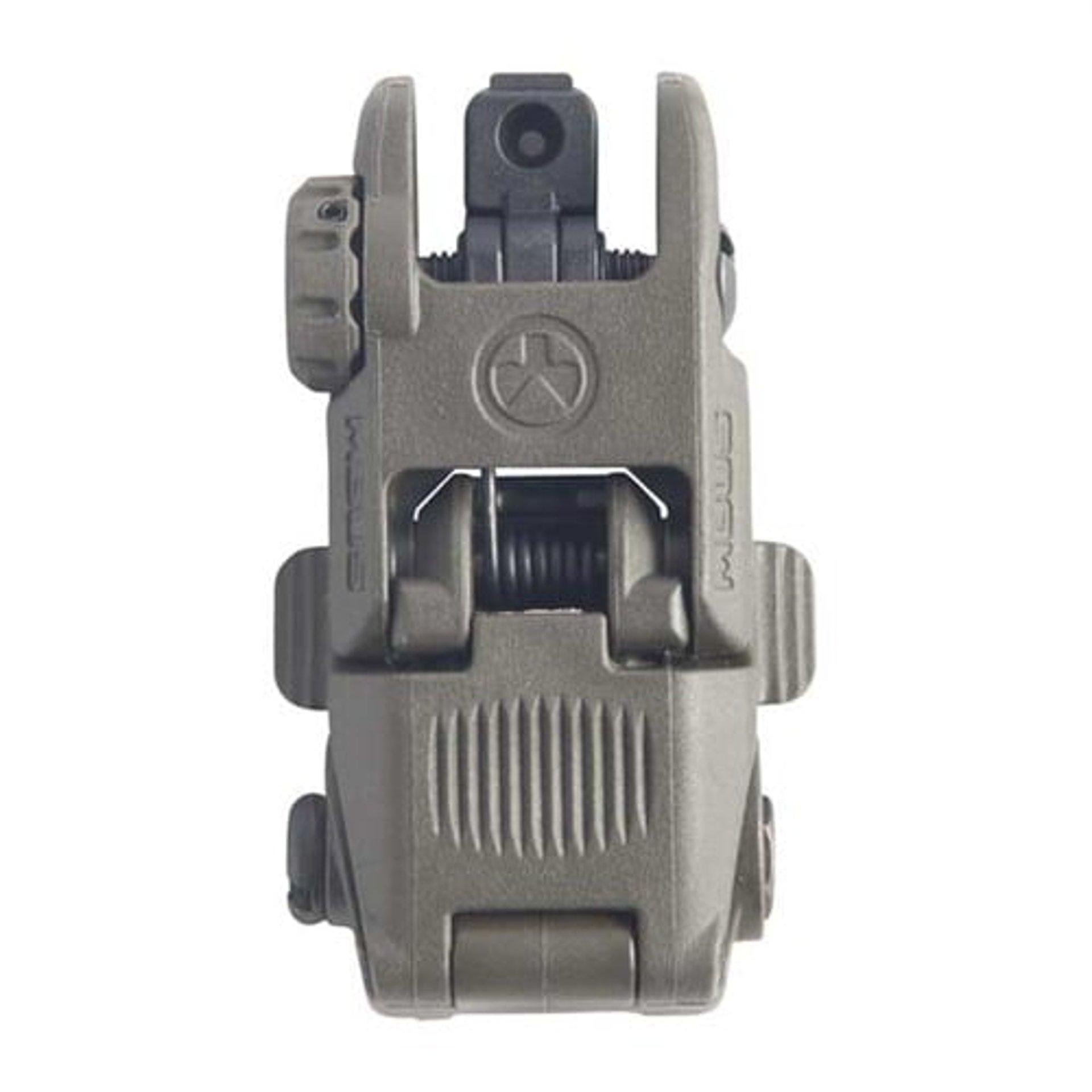

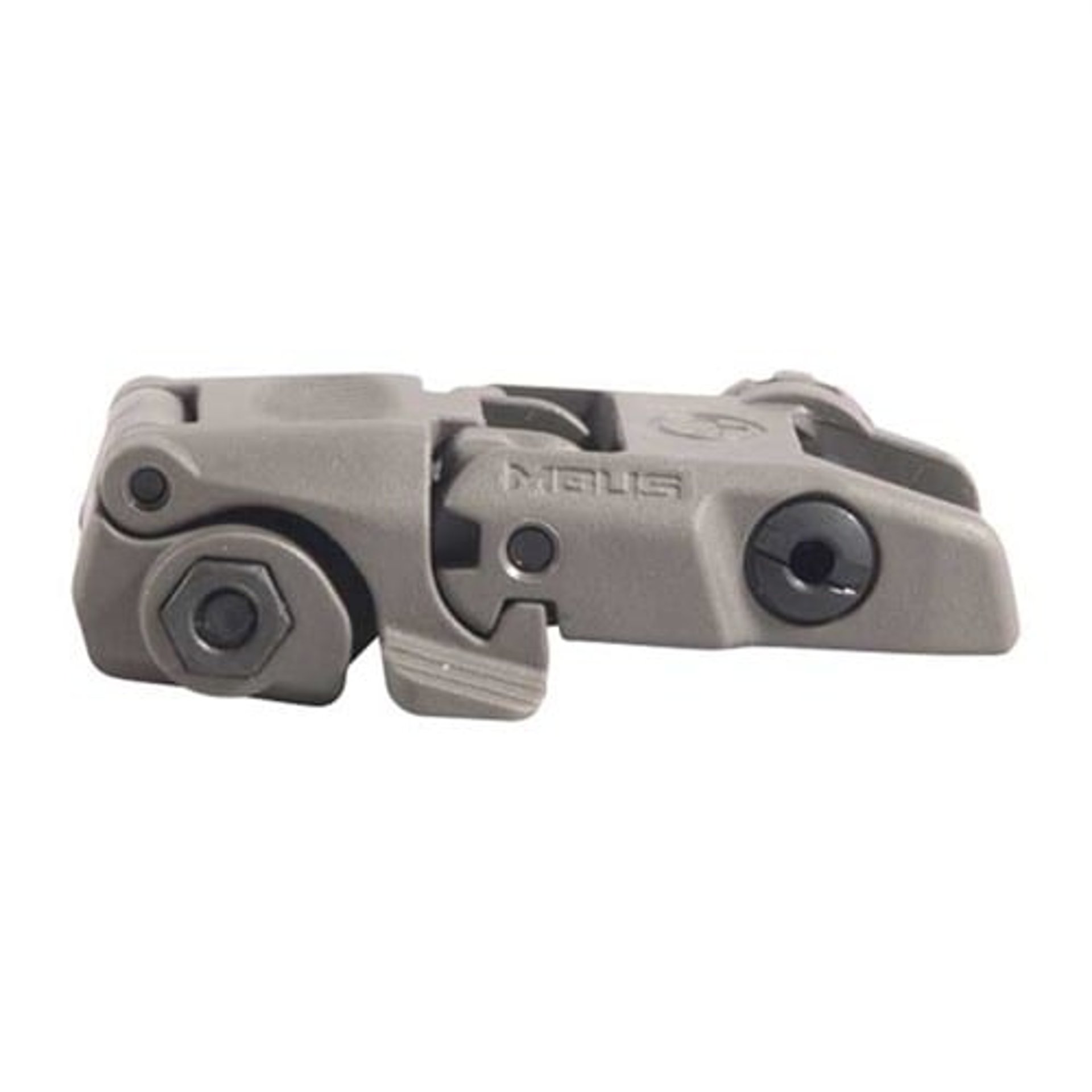

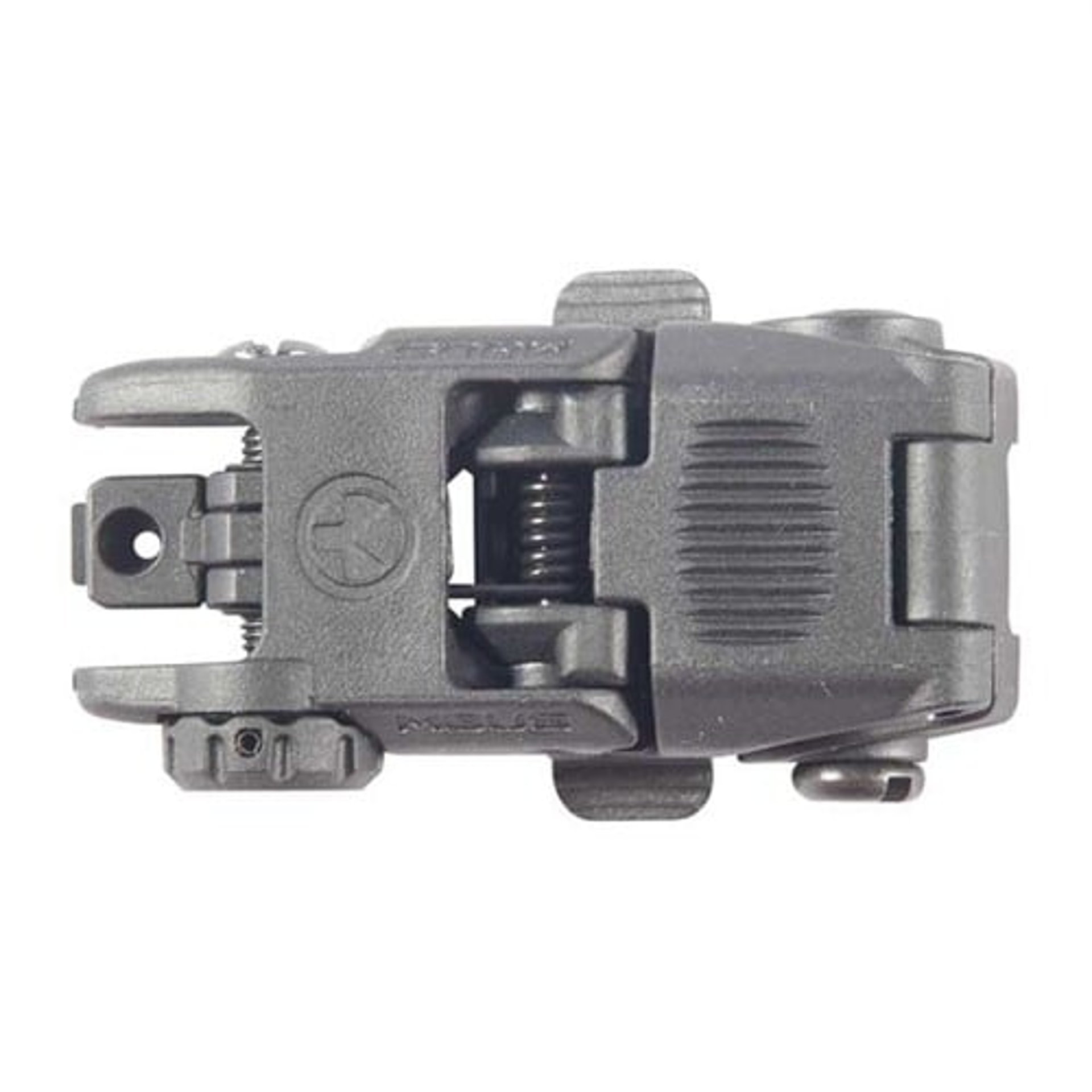

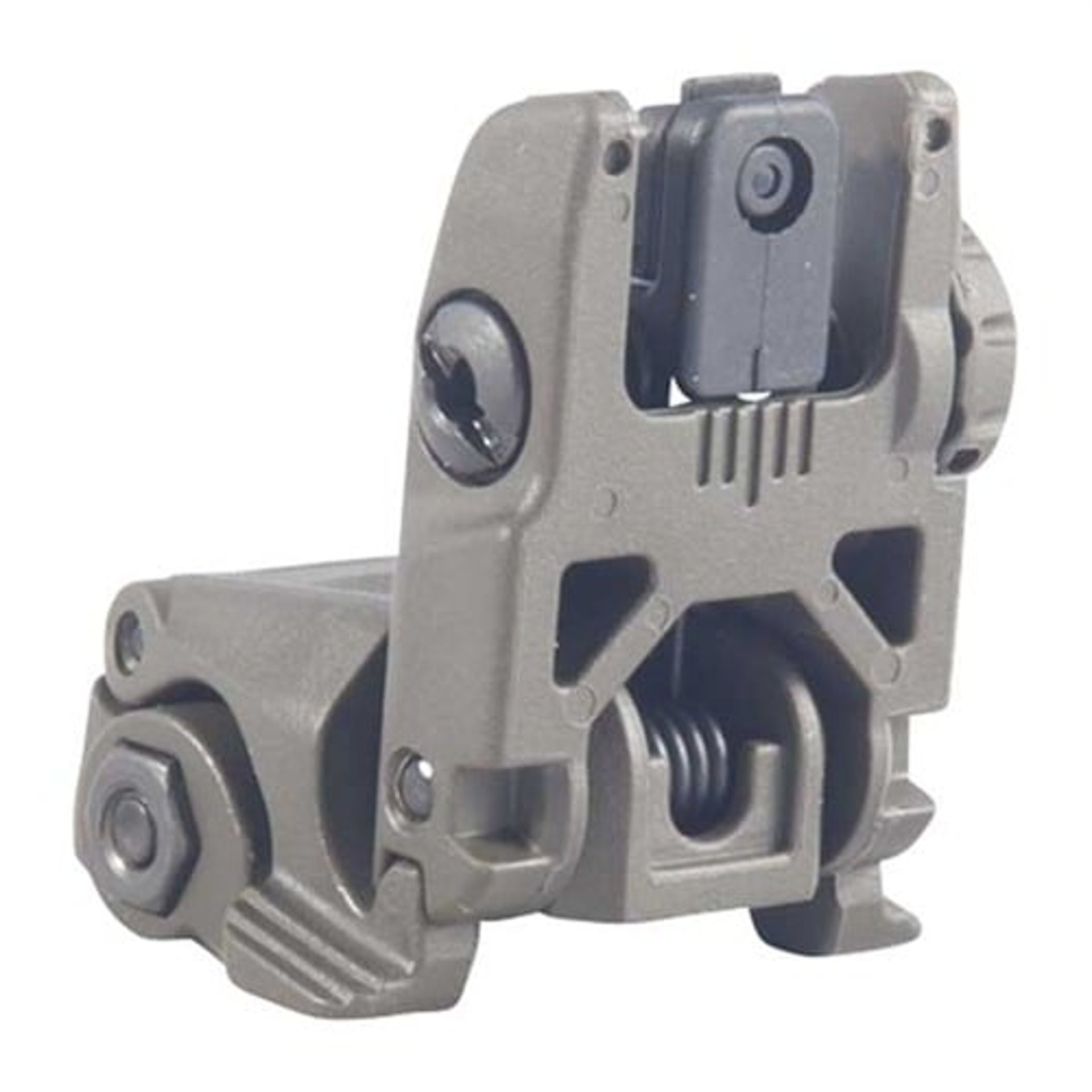

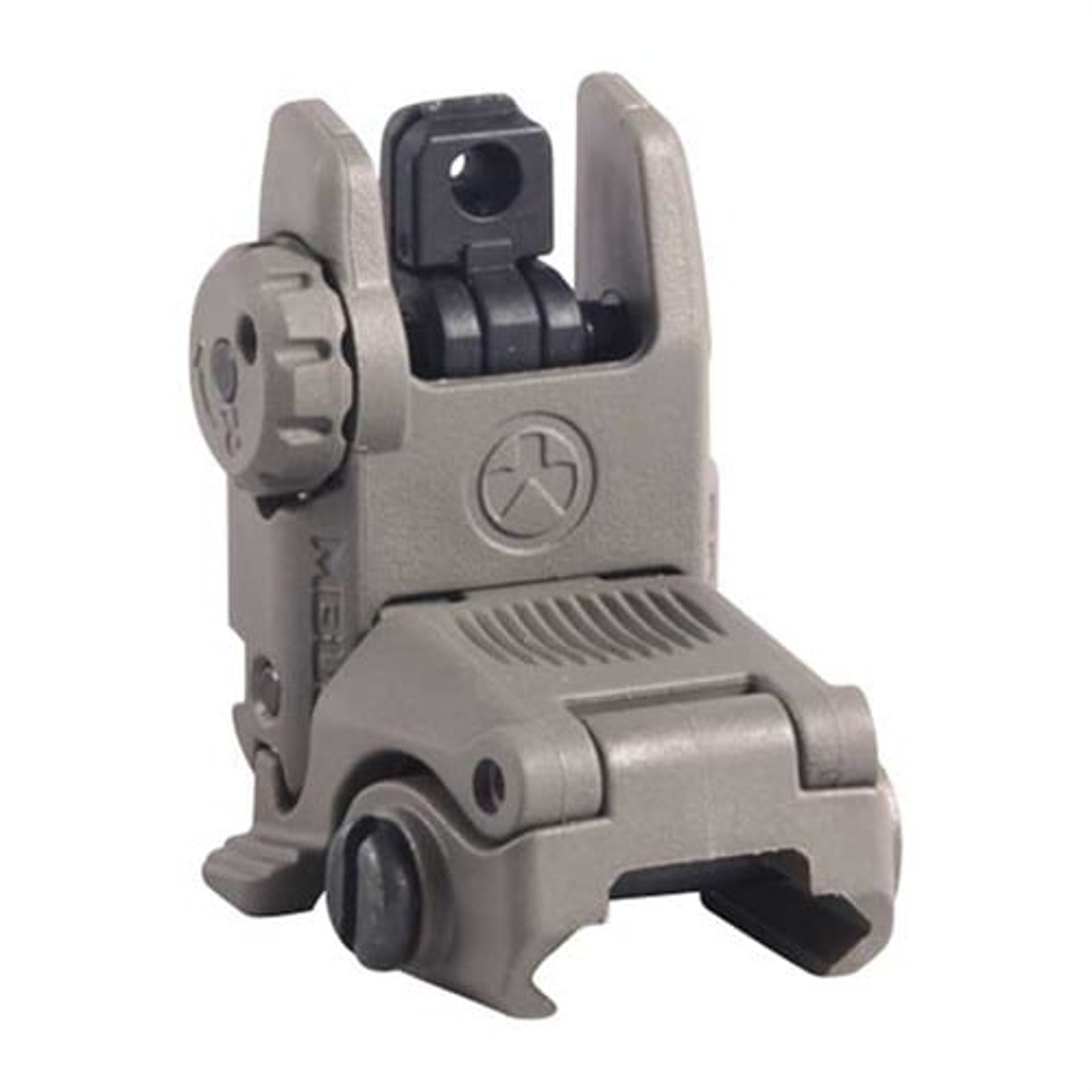

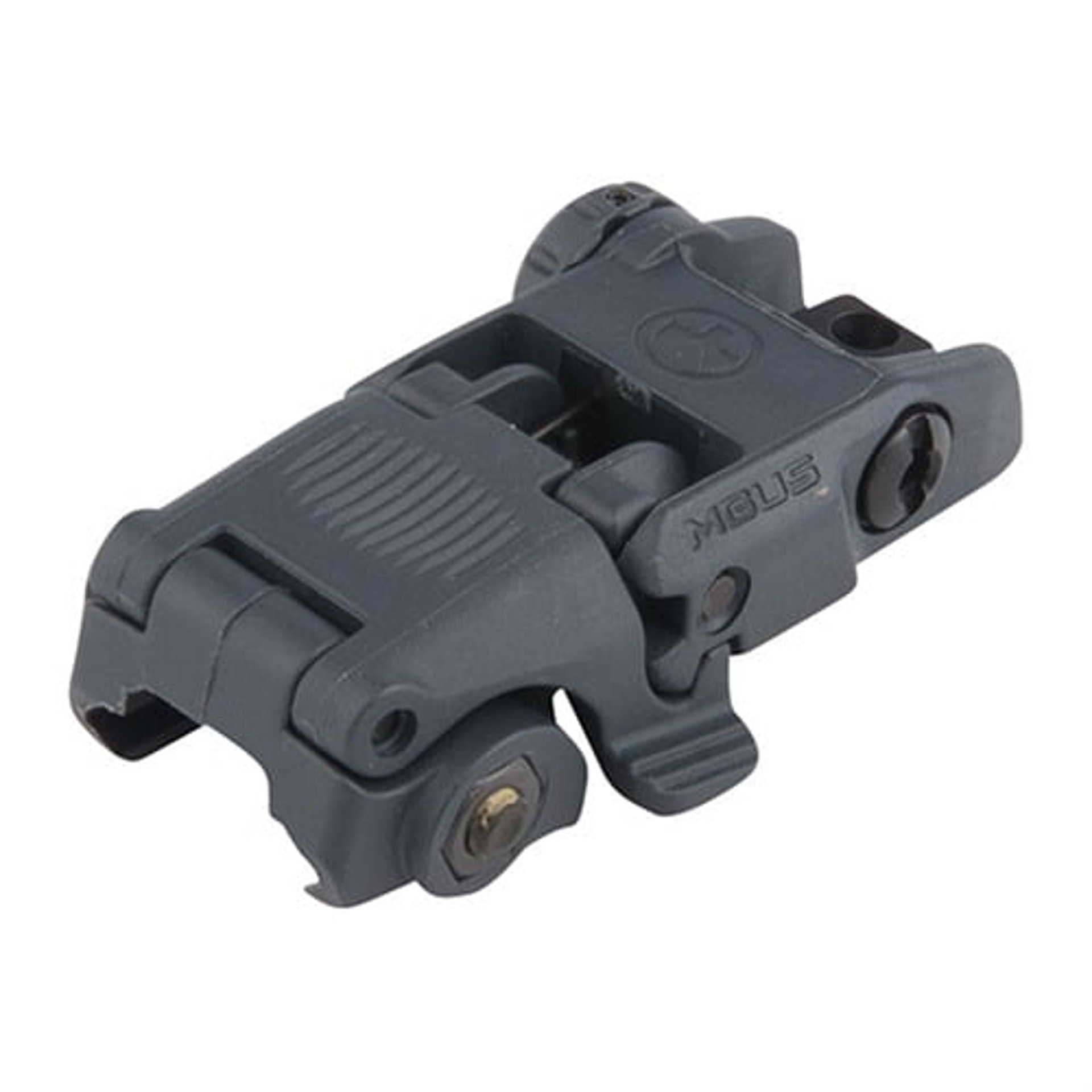

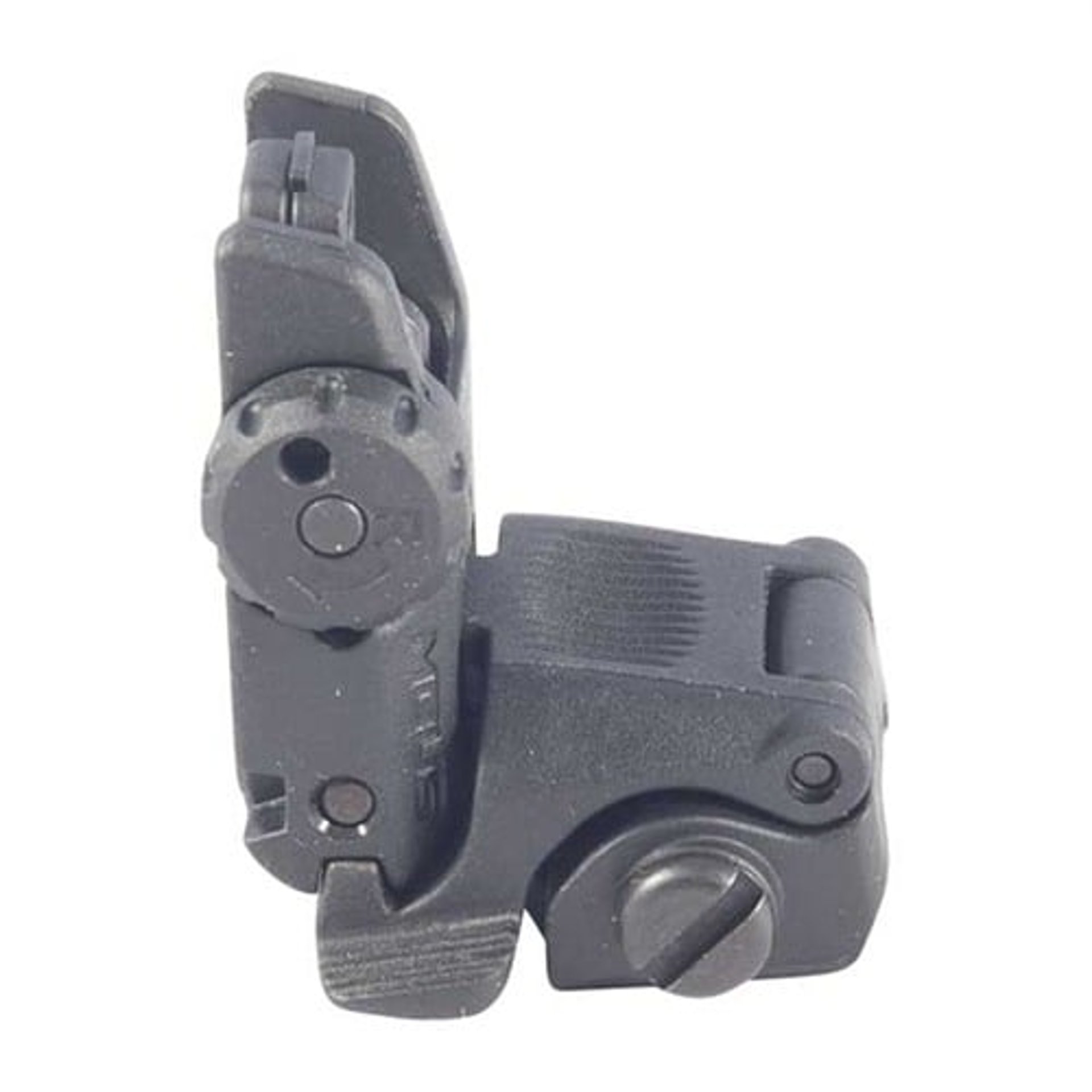

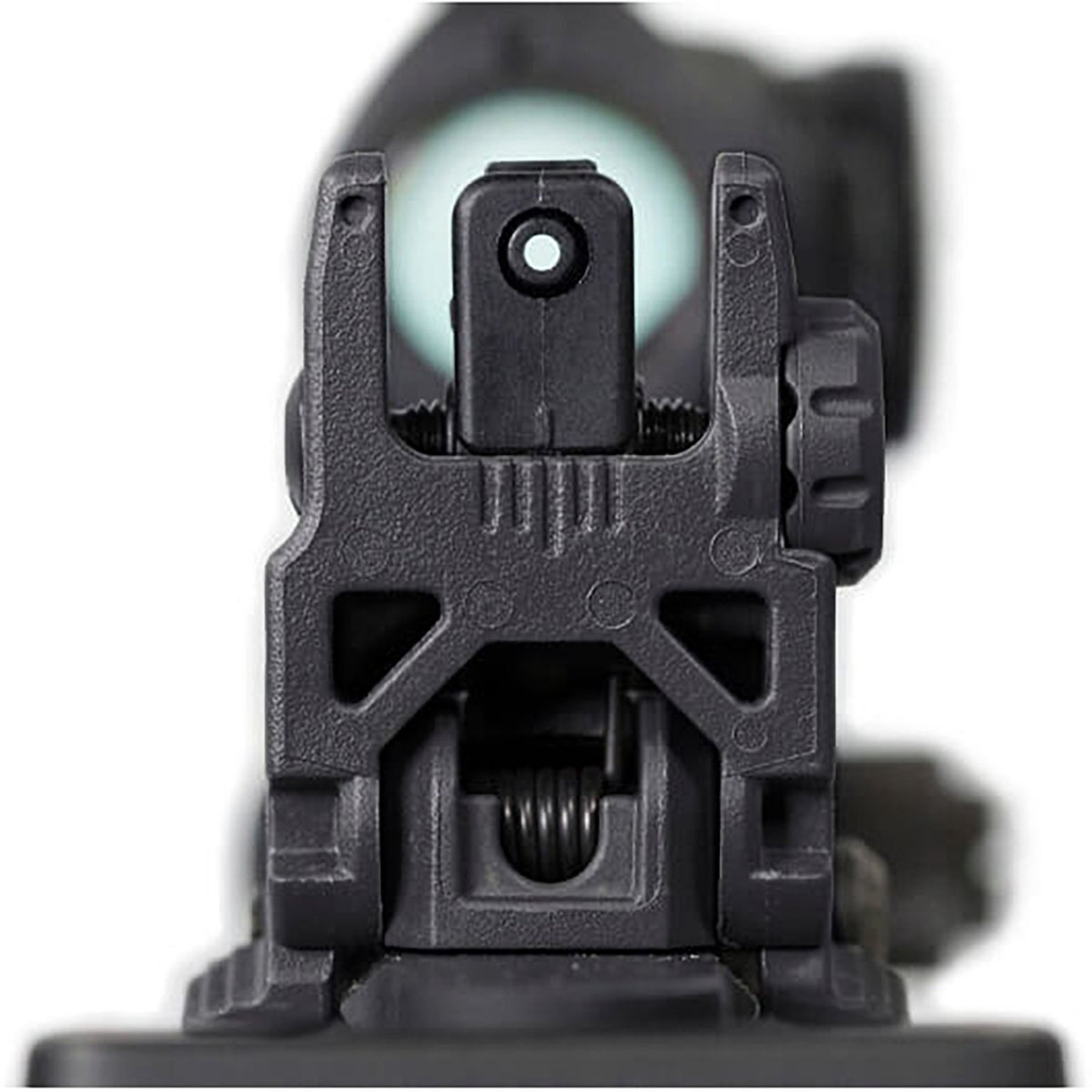

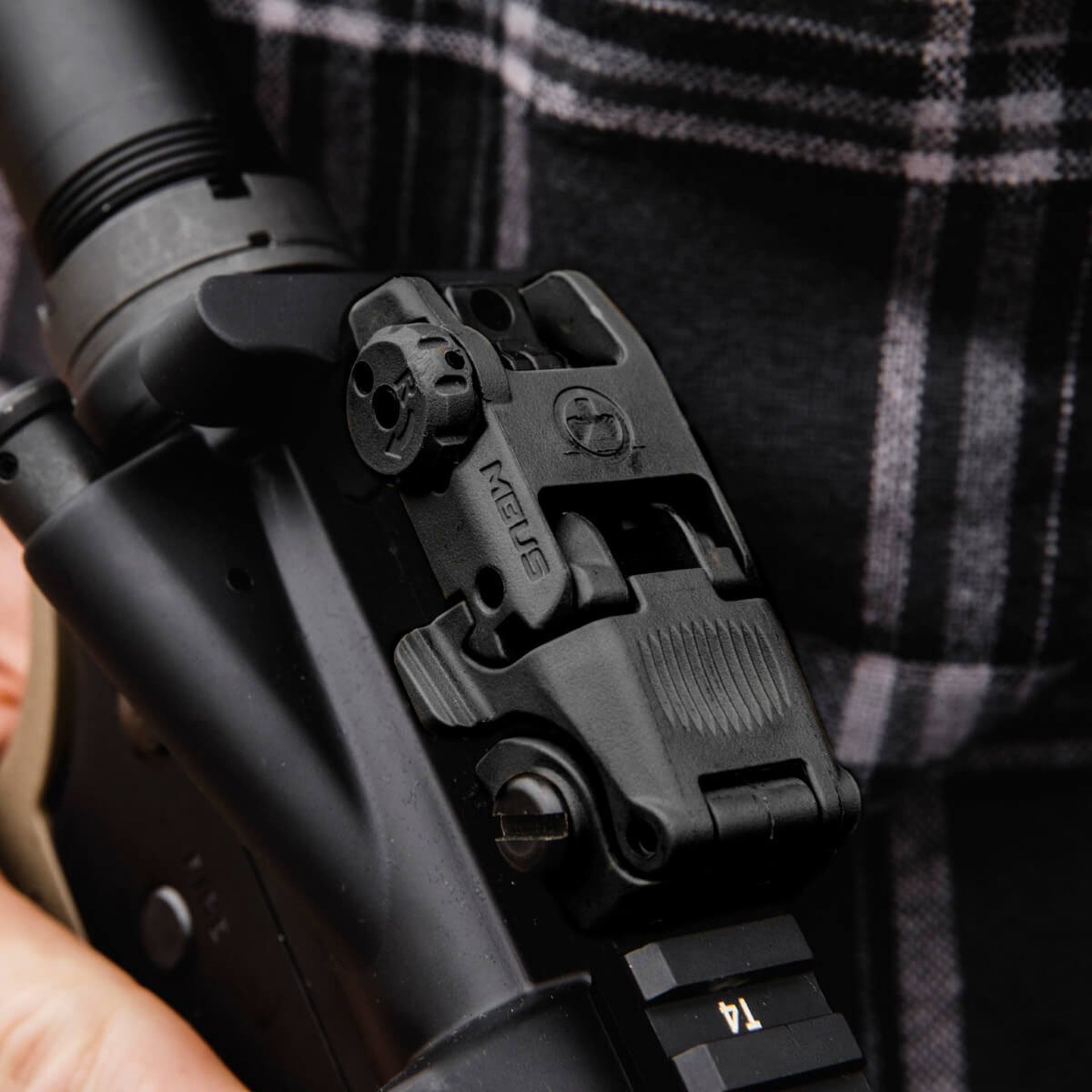

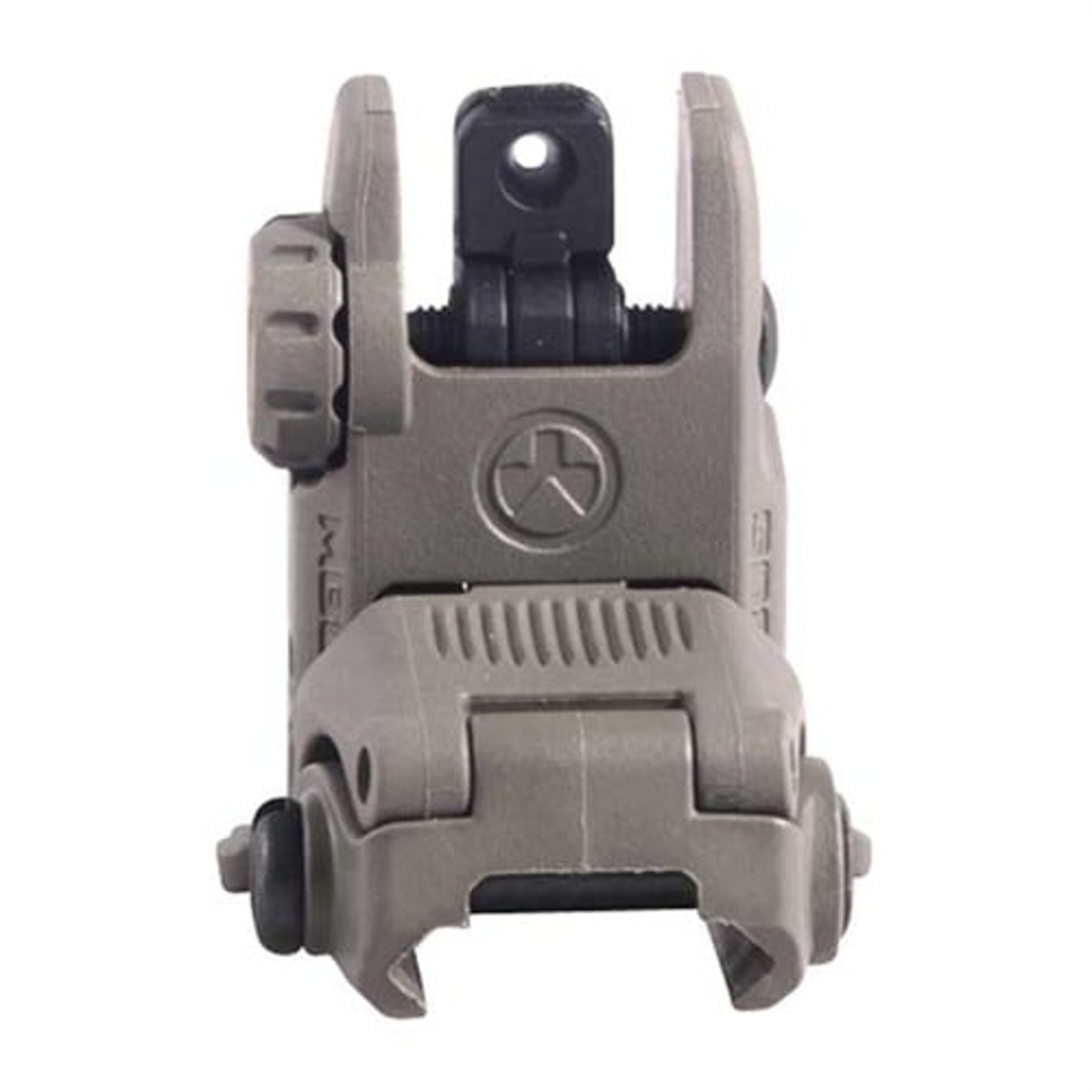

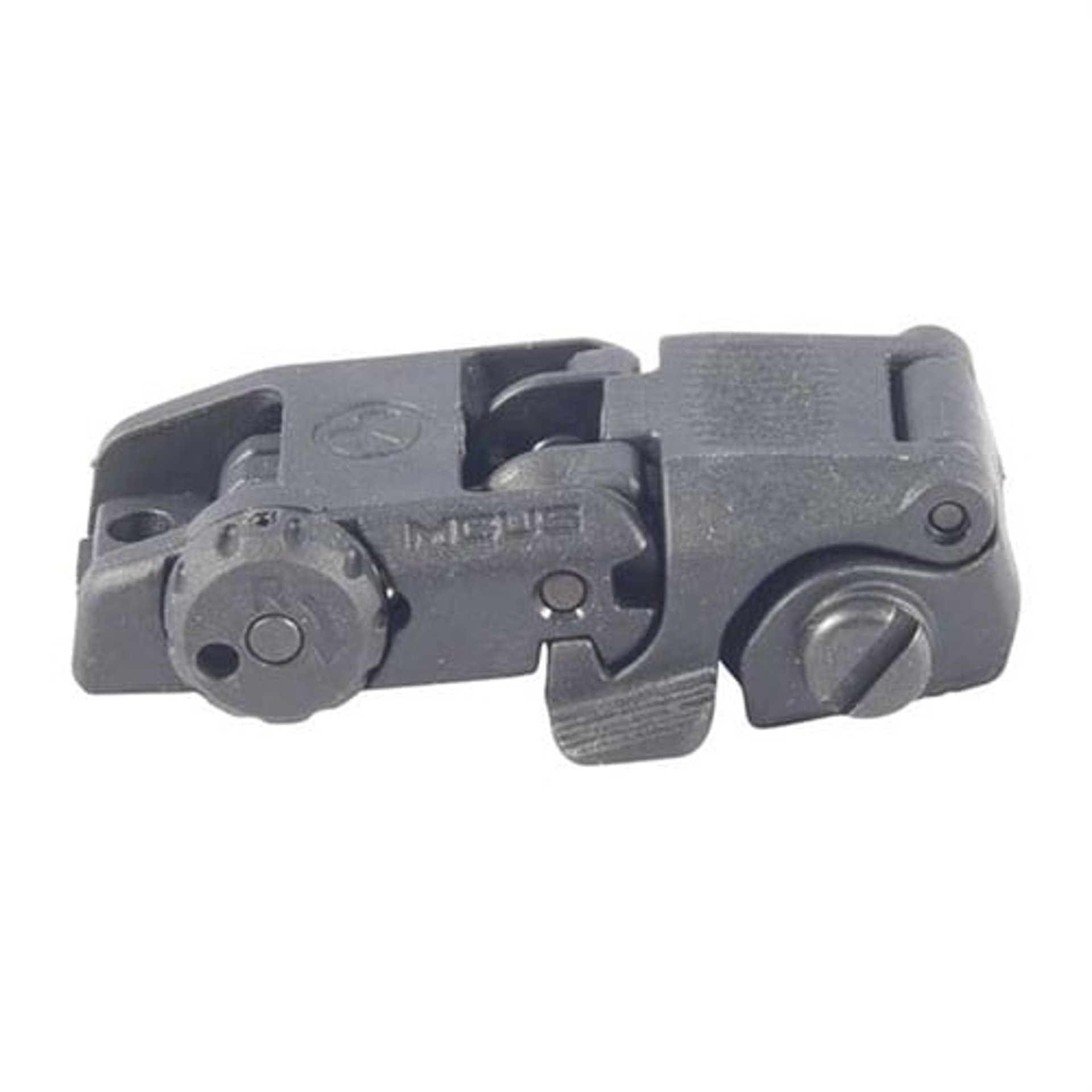

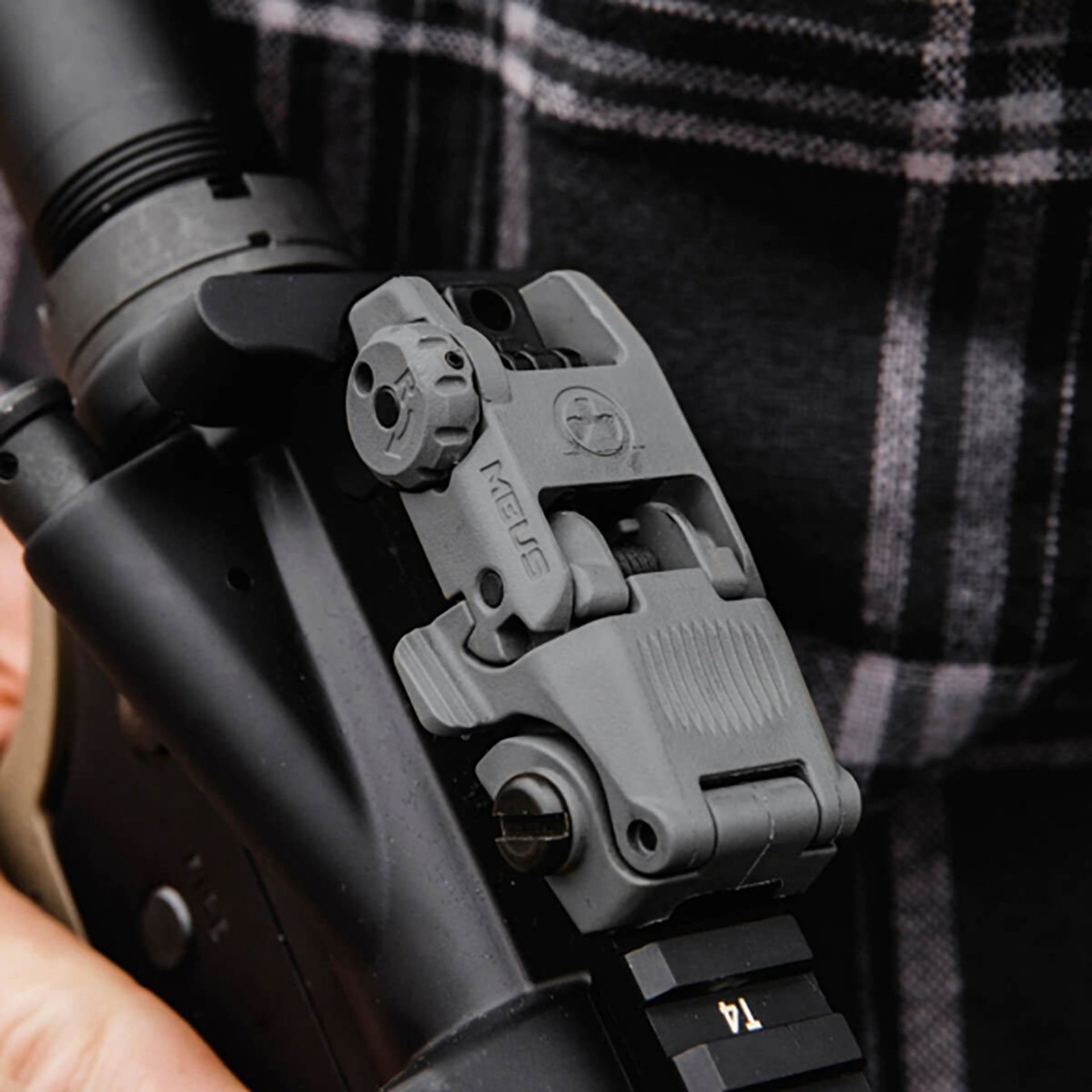

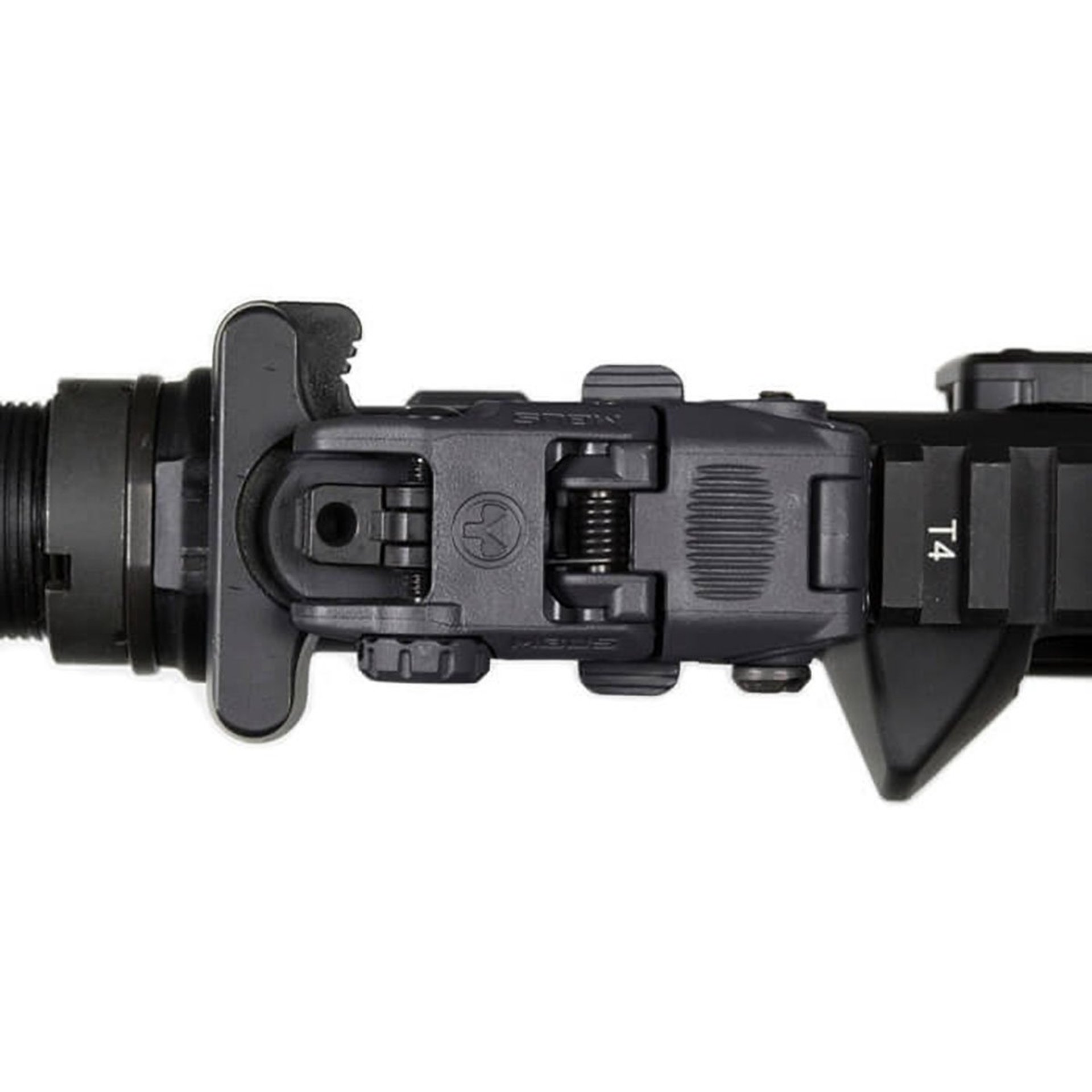

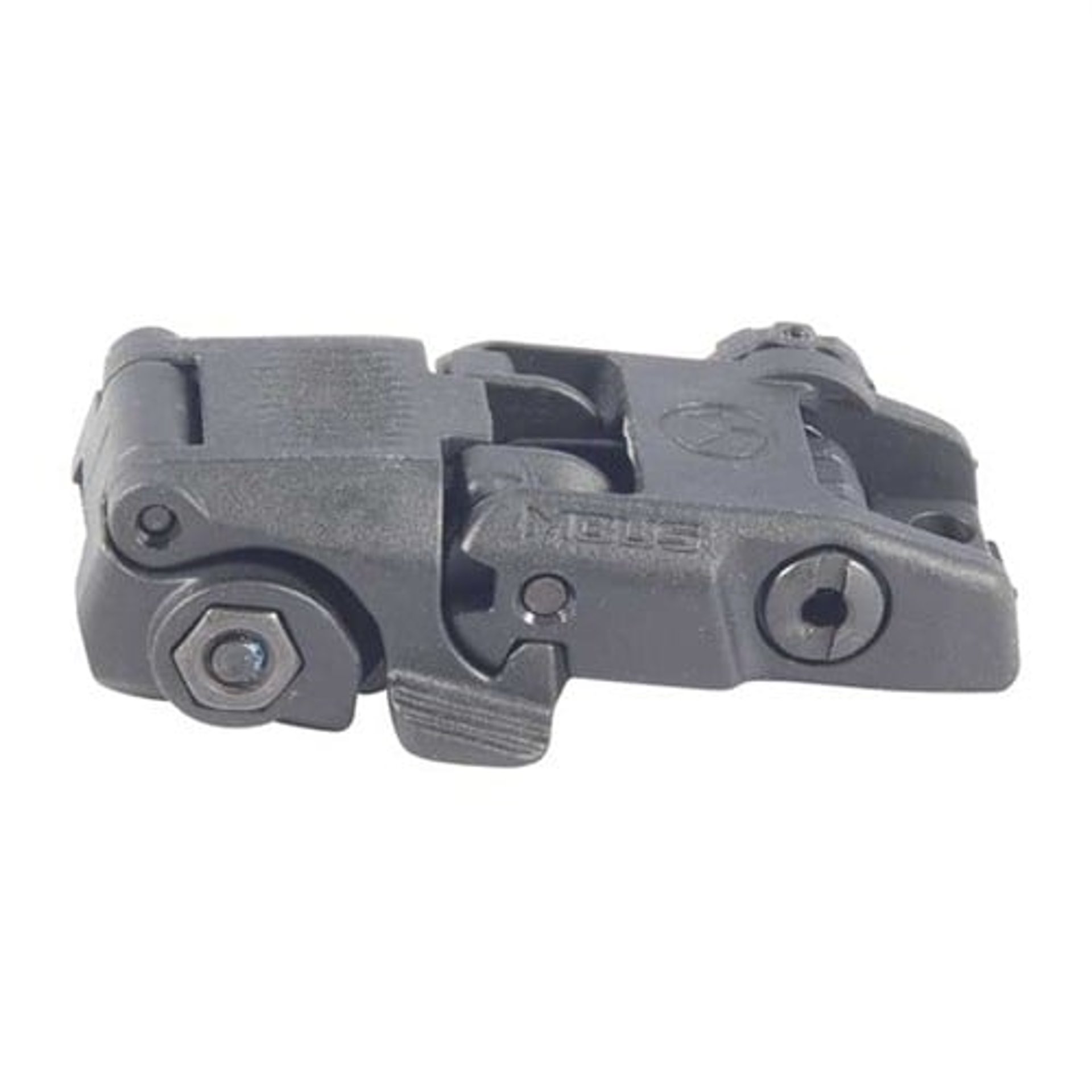

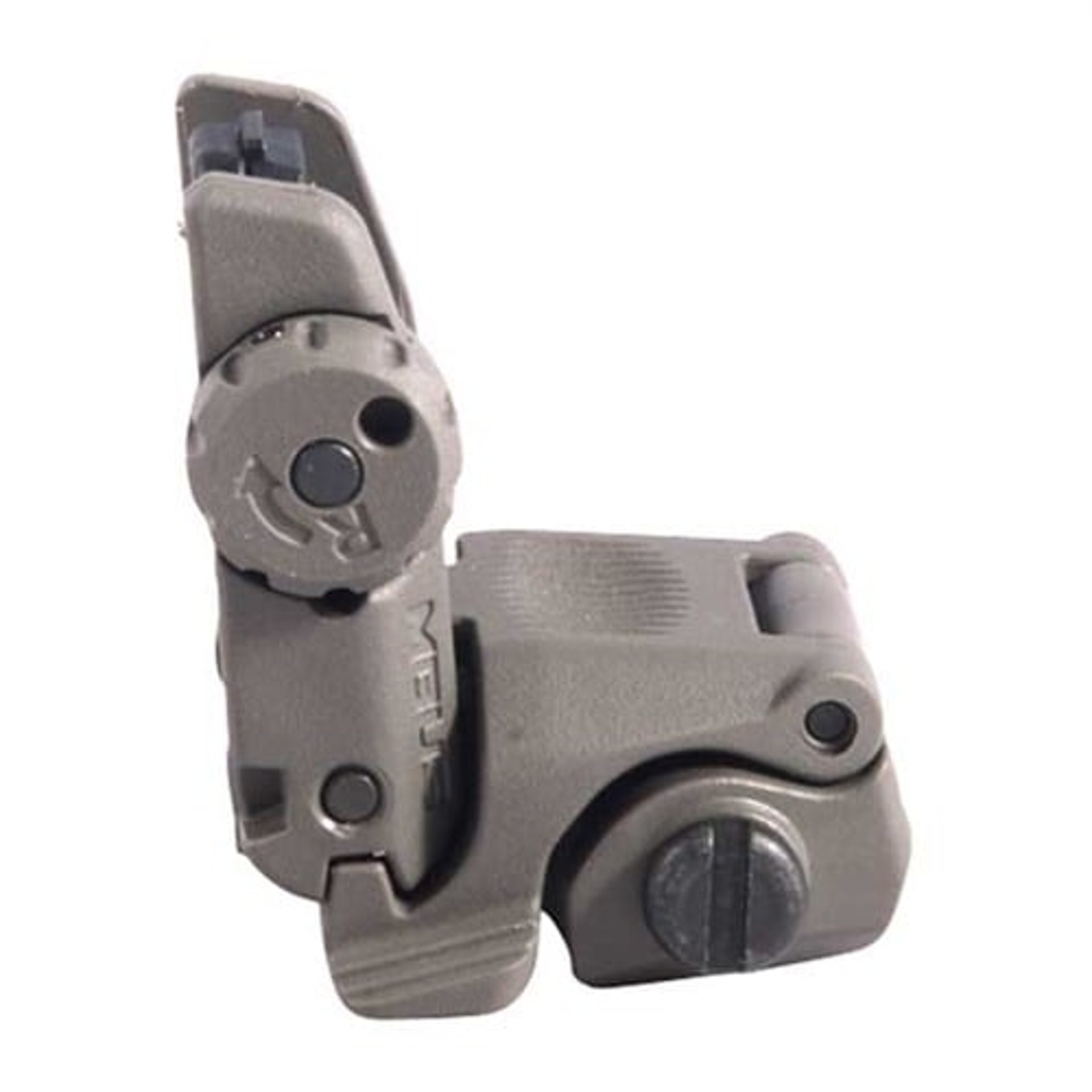

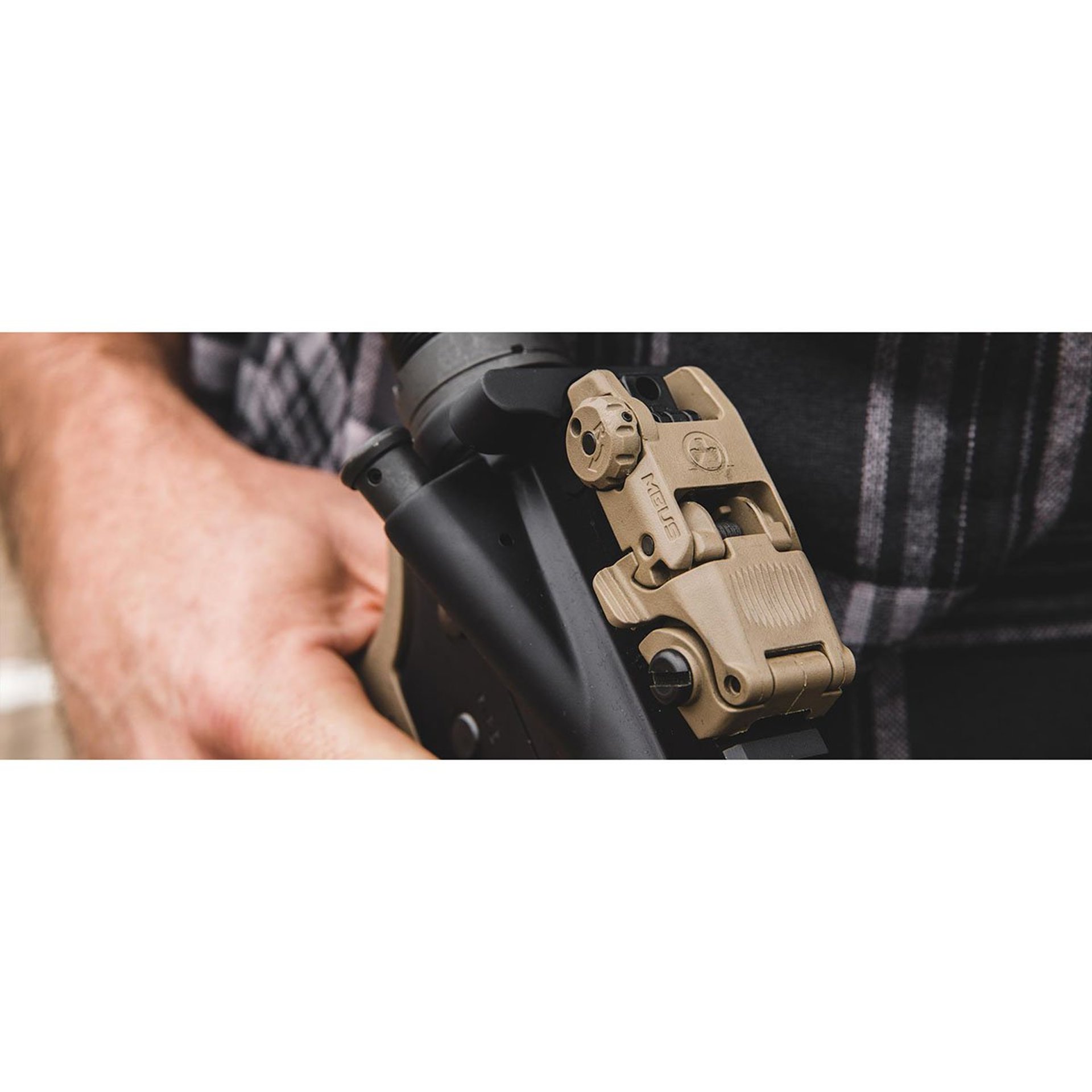

The MBUS (Magpul® Back-Up Sight) is a low-cost, color injection molded, folding back-up sight. The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15 / M16 platform.



FEATURES

  • Spring-loaded flip up sight easily activated from either side or by pressing the top
  • Protective wings shield the dual, same plane flip apertures
  • Sight can still be folded with either large or small aperture in position
  • Detent knob easily and positively adjusts windage
  • Impact-resistant polymer construction provides light weight and resists operational abuse
  • Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
  • Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons
  • Made in the USA.



SPECS

  • Position: Rear
  • Height above rail, stowed: ~0.51 in.
  • Length, deployed: 1.5 in.
  • Length, stowed: 2.6 in.
  • Weight, w/ hardware: 1.3 oz.
  • Center of aperture to top of rail: 1.42 in.



WINDAGE ADJUSTMENT

  • ~0.7 MOA (0.754"/100m) per click with a 14.5" sight radius
  • ~0.5 MOA (0.547"/100m) per click with a 20" sight radius
