BROWNELLS RAMP SOLDERING JIG

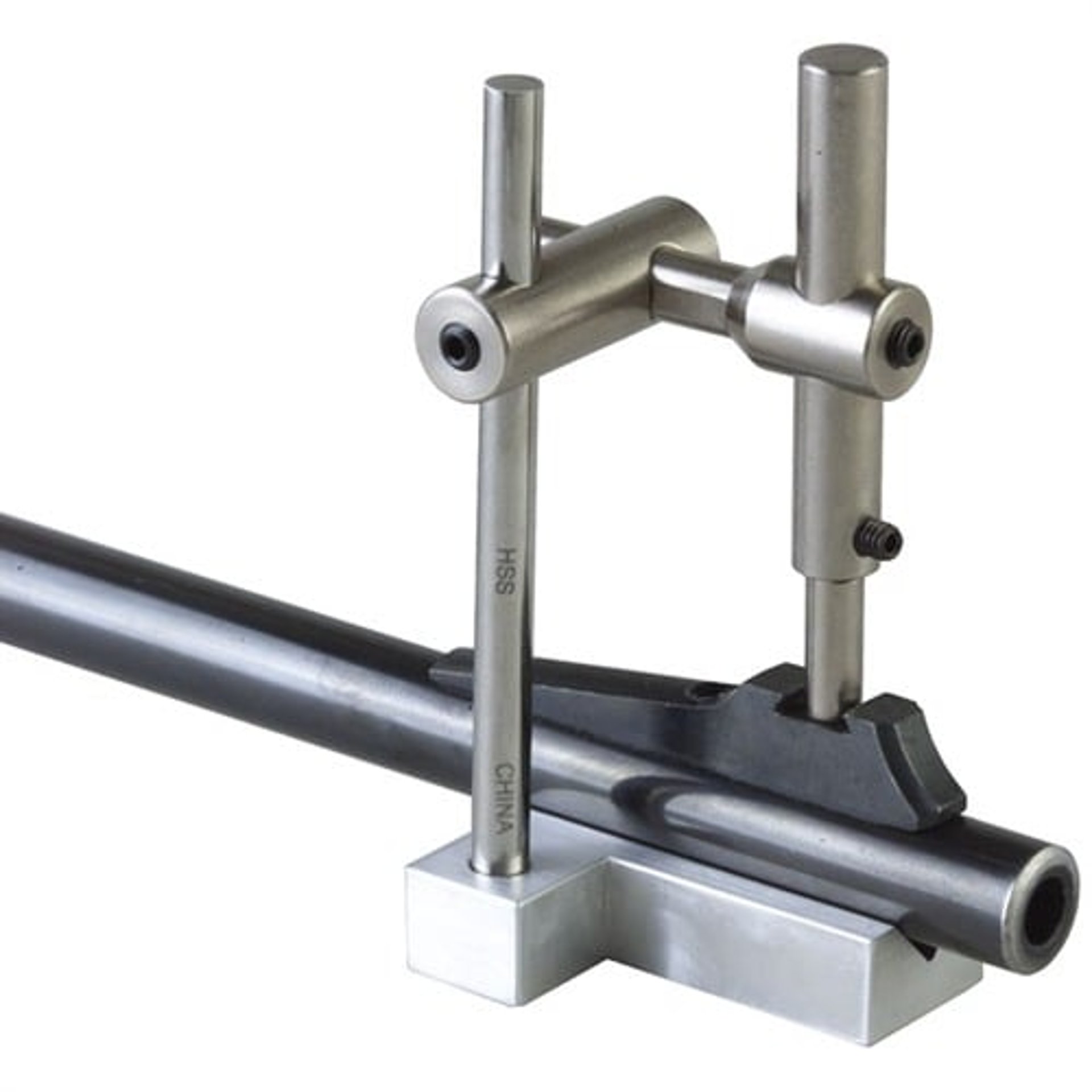

The Brownells Ramp Soldering Jig is a specialized fixture designed to eliminate one of the most frustrating problems encountered during sight and ramp installation: movement of the part at the exact moment the solder begins to flow. Using a pointed, spring-loaded plunger, the jig maintains constant pressure against the ramp, sight, or soldered component throughout the heating process, helping ensure proper alignment and a secure bond.

Built specifically for gunsmithing applications, the jig allows precise adjustment of height, angle, and spring tension to accommodate a variety of installation tasks. The non-marring V-block base automatically centers barrels beneath the plunger, providing a stable platform for soldering front sight ramps, .45 Auto front sights, and even rear sight bases. Its open design also provides excellent torch access, allowing heat to be applied efficiently without interference from the fixture.

Whether installing replacement sights, performing custom barrel work, or restoring vintage firearms, the Ramp Soldering Jig helps improve consistency and accuracy during critical soldering operations.

FEATURES

• Designed for soldering sight ramps and firearm sights
• Eliminates movement during solder flow
• Pointed spring-loaded plunger maintains constant pressure
• Adjustable for height, angle, and spring pressure
• Non-marring V-block base centers barrels automatically
• Holds front sight ramps securely during installation
• Suitable for .45 Auto sights and rear sight bases
• Excellent torch clearance for easier heating
• Improves alignment and installation consistency
• Ideal for gunsmithing, firearm restoration, and custom builds

SPECS

• Brand: Brownells
• Product Name: Ramp Soldering Jig
• Base Material: Aluminum
• Base Length: 2" (5.1cm)
• Overall Height: 4" (10.2cm)
• Over-Arm Length: 1-3/8" (3.5cm)
• Plunger Support Length: 2" (5.1cm)
• Plunger Assembly Length: 3" (7.6cm)
• Base Style: Non-Marring V-Block
• Adjustment: Height, Angle, and Spring Pressure

INCLUDED

• Ramp Soldering Jig
• Spring-Loaded Plunger Assembly
• Adjustable Over-Arm Assembly
• Aluminum V-Block Base

CUSTOMER INSIGHTS

Gunsmiths appreciate the jig's ability to keep ramps and sights from shifting during soldering, a common issue that can require rework if components move while the solder is molten. The adjustable spring pressure and V-block base are particularly valued when working with different barrel diameters and sight configurations. Many users consider it an essential tool for professional-quality sight installations.

The Brownells Ramp Soldering Jig provides a reliable solution for accurately positioning and securing firearm sights and ramps during soldering operations. Featuring a spring-loaded plunger, adjustable positioning system, and non-marring V-block base, this specialized fixture helps ensure precise alignment and consistent results during firearm assembly, repair, and restoration projects.
