Rise Rev 535 Trigger
Rise Armament RAVE 535: A New Approach to AR-15 Trigger Installation
The AR-15 trigger market is filled with drop-in cassette triggers, but the Rise Armament RAVE 535 introduces a unique feature that sets it apart from nearly everything else available today. Instead of relying on retention screws, anti-walk pins, or additional hardware, this trigger uses an integrated spring-loaded detent system that snaps directly into the receiver.
The result is an installation process that is faster, simpler, and more intuitive than many traditional trigger systems.
What Makes the RAVE 535 Different?
At its core, the RAVE 535 is a cassette-style AR-15 trigger. Unlike traditional mil-spec trigger groups that require multiple individual components, the entire trigger assembly comes as a self-contained unit.
The major innovation is the retention system. Spring-loaded detents built into the trigger body engage directly with the receiver pin holes, securing the trigger without additional locking hardware. This simplifies both installation and removal while maintaining a secure fit inside the lower receiver.
Interchangeable Trigger Shoes
Another standout feature is the interchangeable trigger shoe system.
The RAVE 535 ships with both curved and flat trigger shoe options. The shoes attach magnetically and can be swapped quickly to match shooter preference.
This design allows users to experiment with different trigger profiles without purchasing a completely separate trigger assembly. Whether you prefer a traditional curved trigger or a modern flat-face design, both options are available in the same package.
Installation Without Removing the Selector
Many drop-in AR-15 triggers require removal of the selector lever during installation. The RAVE 535 avoids this issue through its removable trigger shoe design.
Once the trigger shoe is removed, the trigger assembly can be inserted into the lower receiver without disassembling additional components. This reduces installation time and makes the upgrade more approachable for first-time builders and hobbyists.
Pre-Installation Inspection
Before installation, it is worth inspecting the detent bushings located on each side of the trigger body.
During shipping, these bushings can occasionally shift slightly. If that occurs, simply pressing the trigger body against a flat surface will return the bushings to their proper position. This is a quick check that can help ensure a smooth installation process.

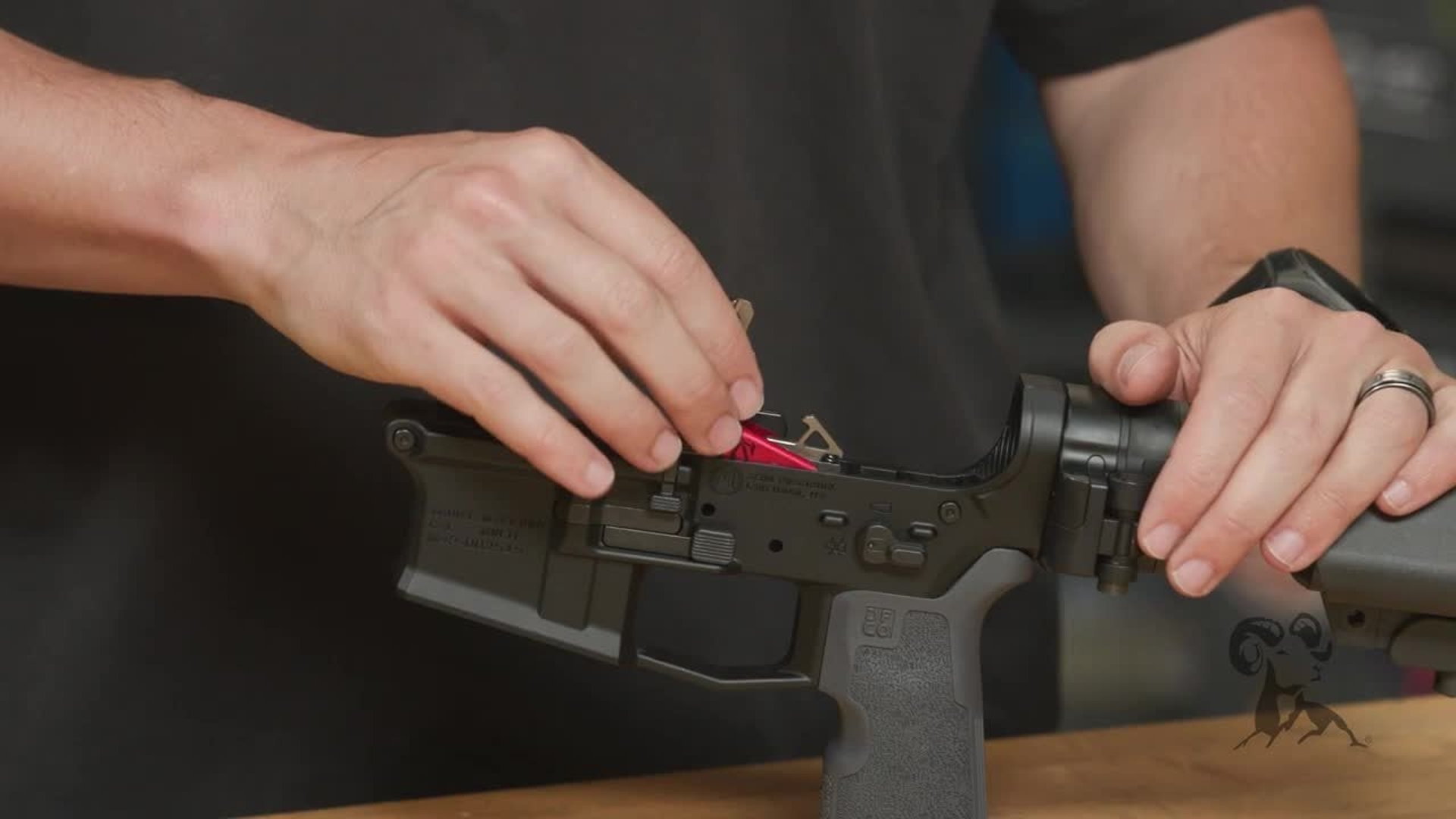

Installing the Trigger
The installation process is remarkably straightforward.
First, position the trigger assembly above the lower receiver and compress the rear detents. Slide the trigger into the receiver and ensure the trigger shoe opening extends through the trigger slot.
Next, hook the trigger tail underneath the selector. Once aligned properly, compress the remaining detents and press the trigger assembly fully into place until all detents engage the receiver holes.
After installation, verify that the detents are flush with both sides of the receiver before proceeding.
Installing the Trigger Shoe
With the trigger body installed, the trigger shoe can be attached.
The shoe is designed to fit only one way. Position the lower crescent-shaped cut onto the mounting pegs and rotate the shoe downward until the magnetic attachment engages.
The geometry of the mounting system keeps the shoe securely attached during operation while still allowing quick changes when desired.
Trigger Performance
After installation, the RAVE 535 delivers the performance shooters expect from a premium single-stage trigger.
The trigger exhibits virtually no take-up or creep before the break. The break itself is crisp and clean, giving the shooter a predictable and repeatable trigger pull.
Reset performance is equally impressive. The reset is short, positive, and easy to feel, allowing for rapid follow-up shots while maintaining control.
Final Thoughts
The Rise Armament RAVE 535 offers a genuinely unique solution for AR-15 owners looking for a simple trigger upgrade. The snap-in retention system eliminates unnecessary hardware, the interchangeable trigger shoes add versatility, and the installation process is among the easiest available for a drop-in trigger.
For shooters seeking a premium single-stage trigger with innovative installation features, the RAVE 535 stands out as one of the more interesting developments in the AR-15 trigger market.
