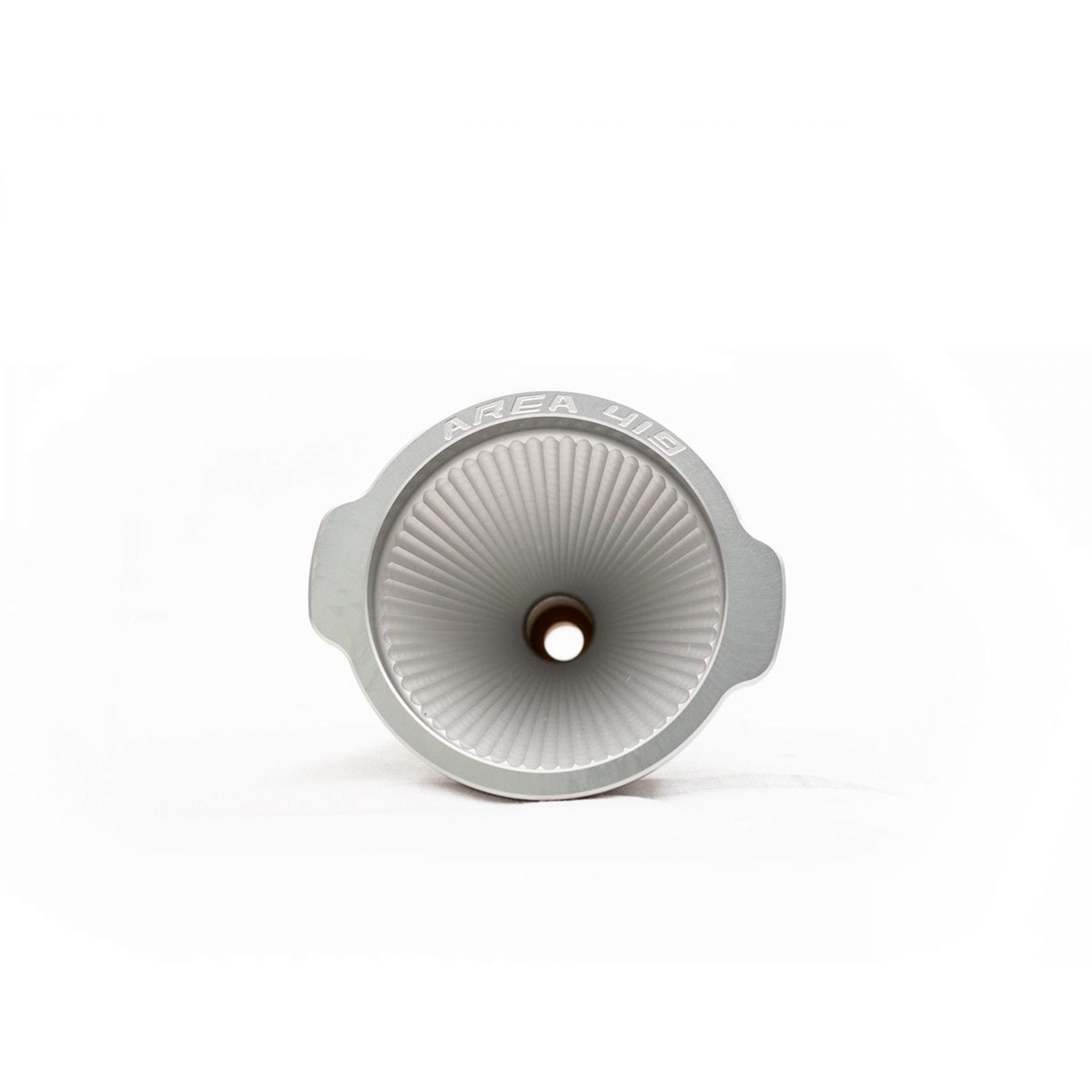

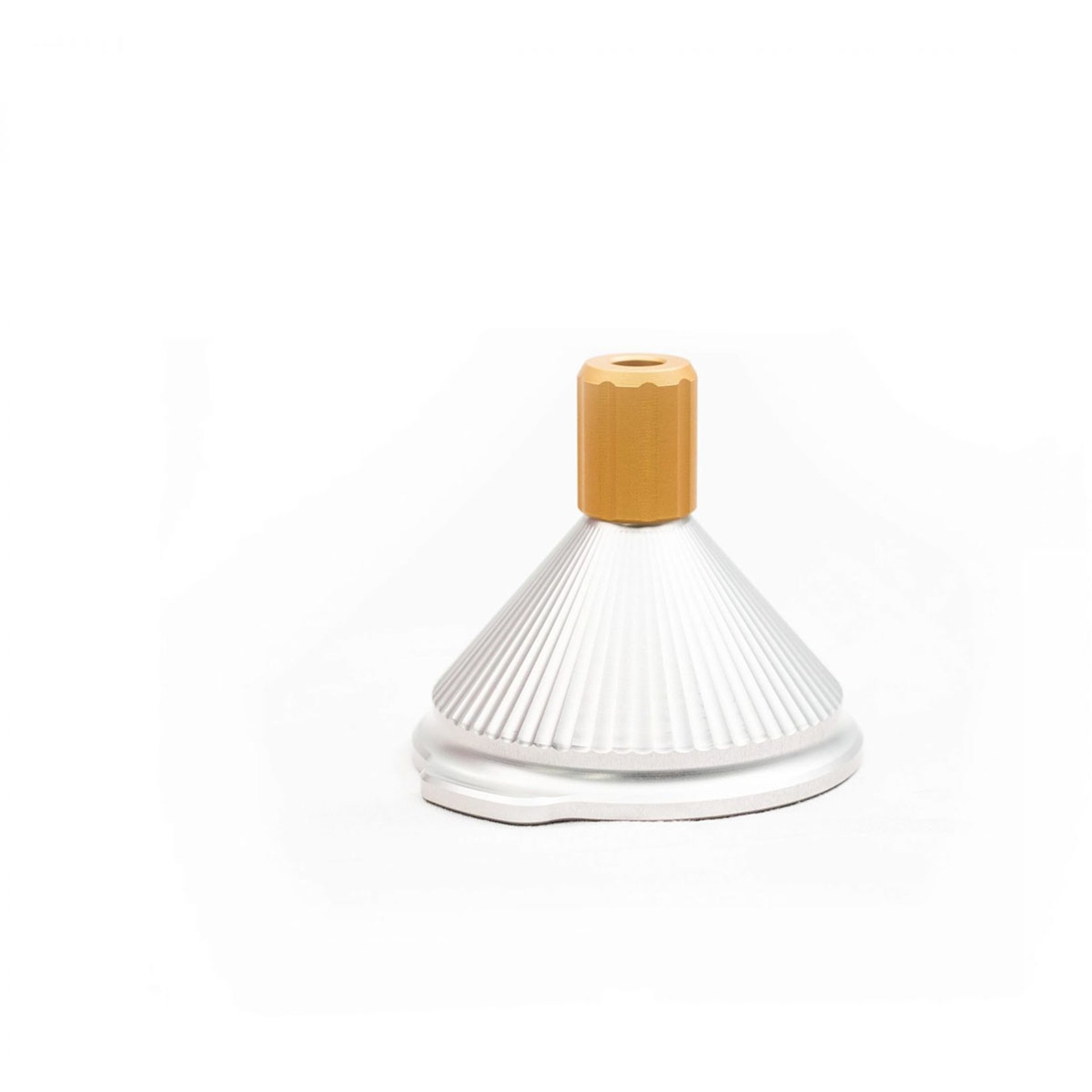

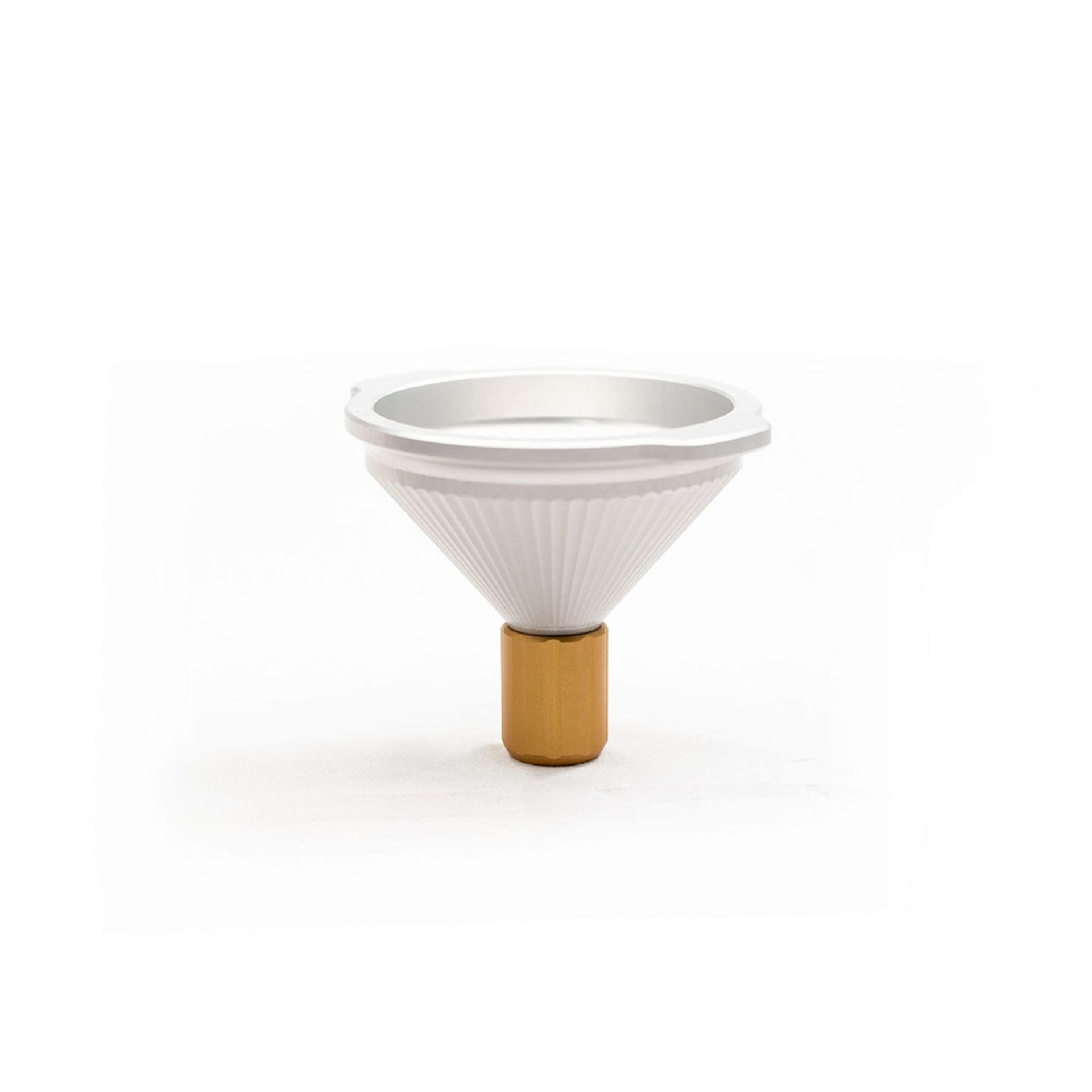

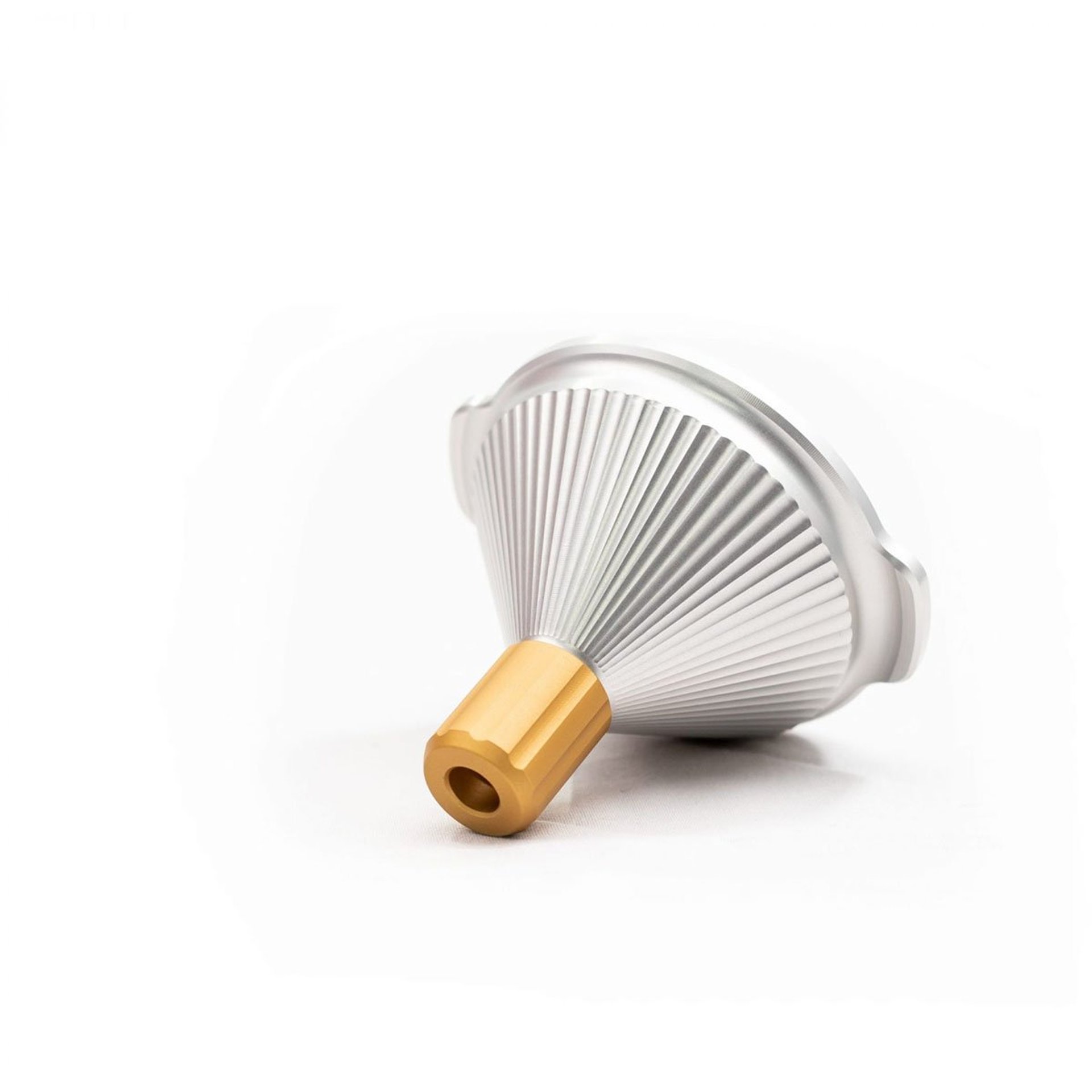

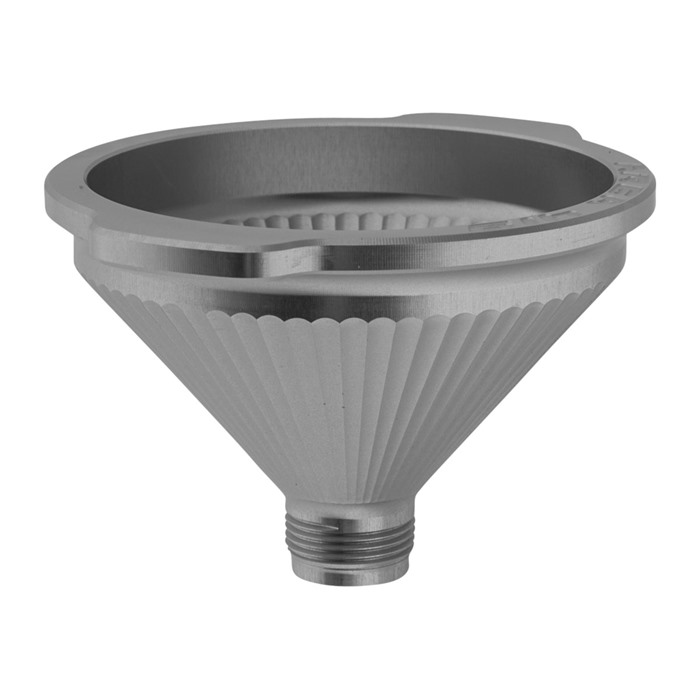

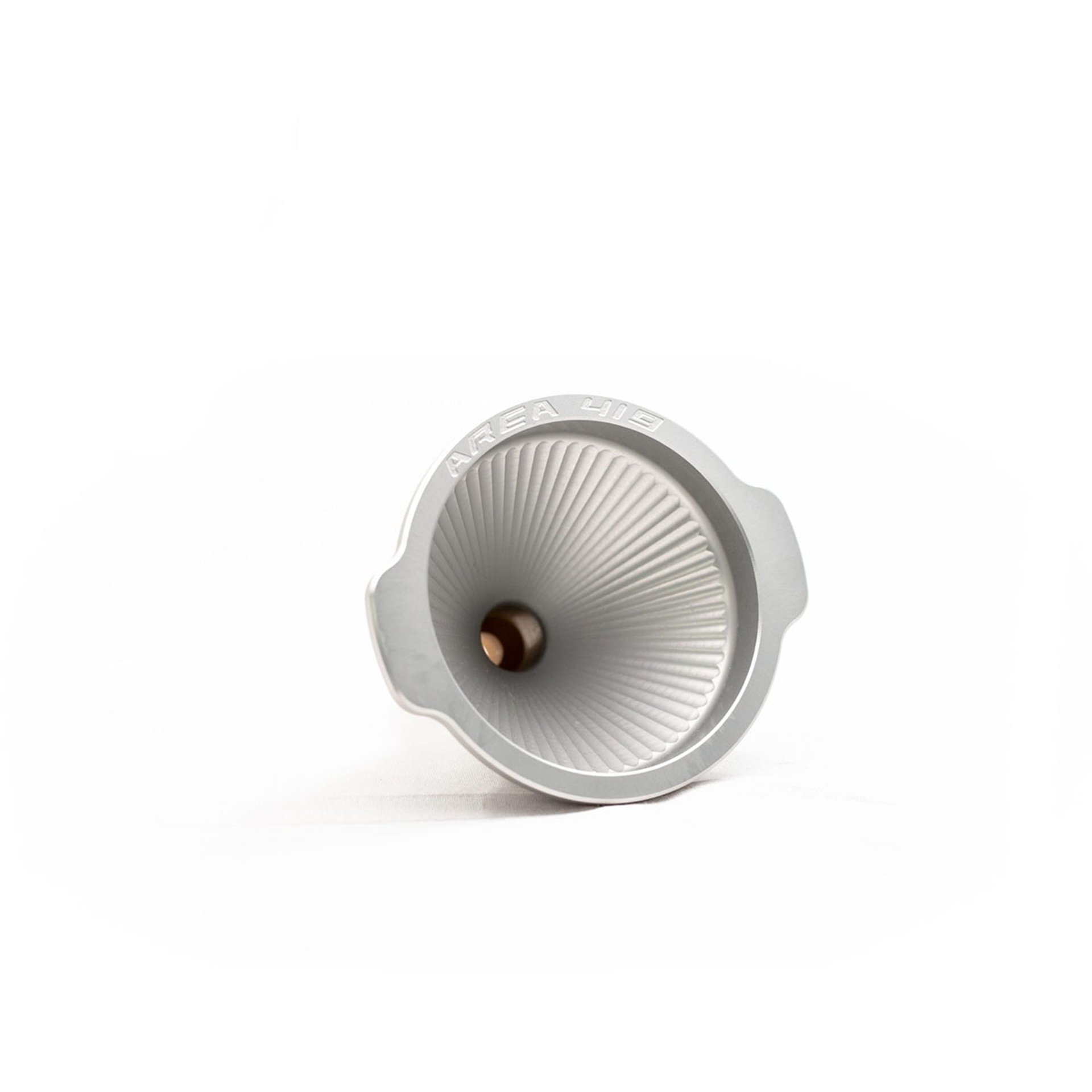

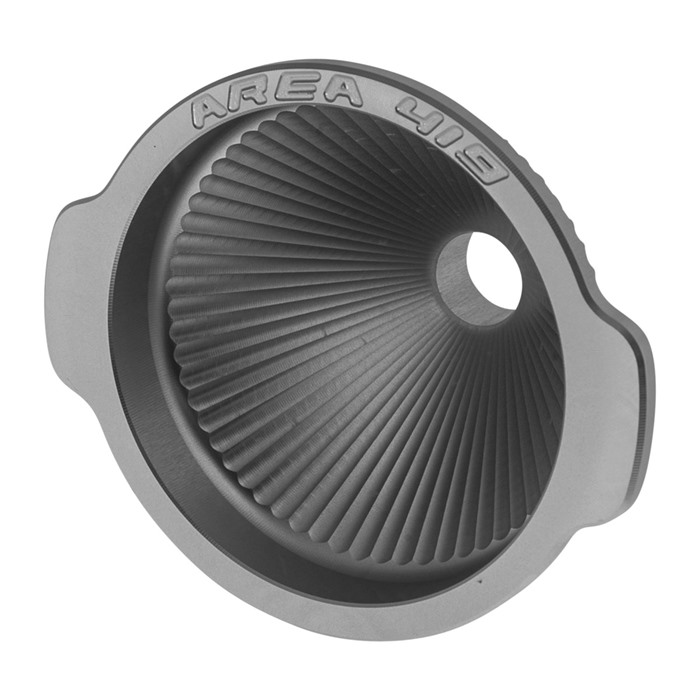

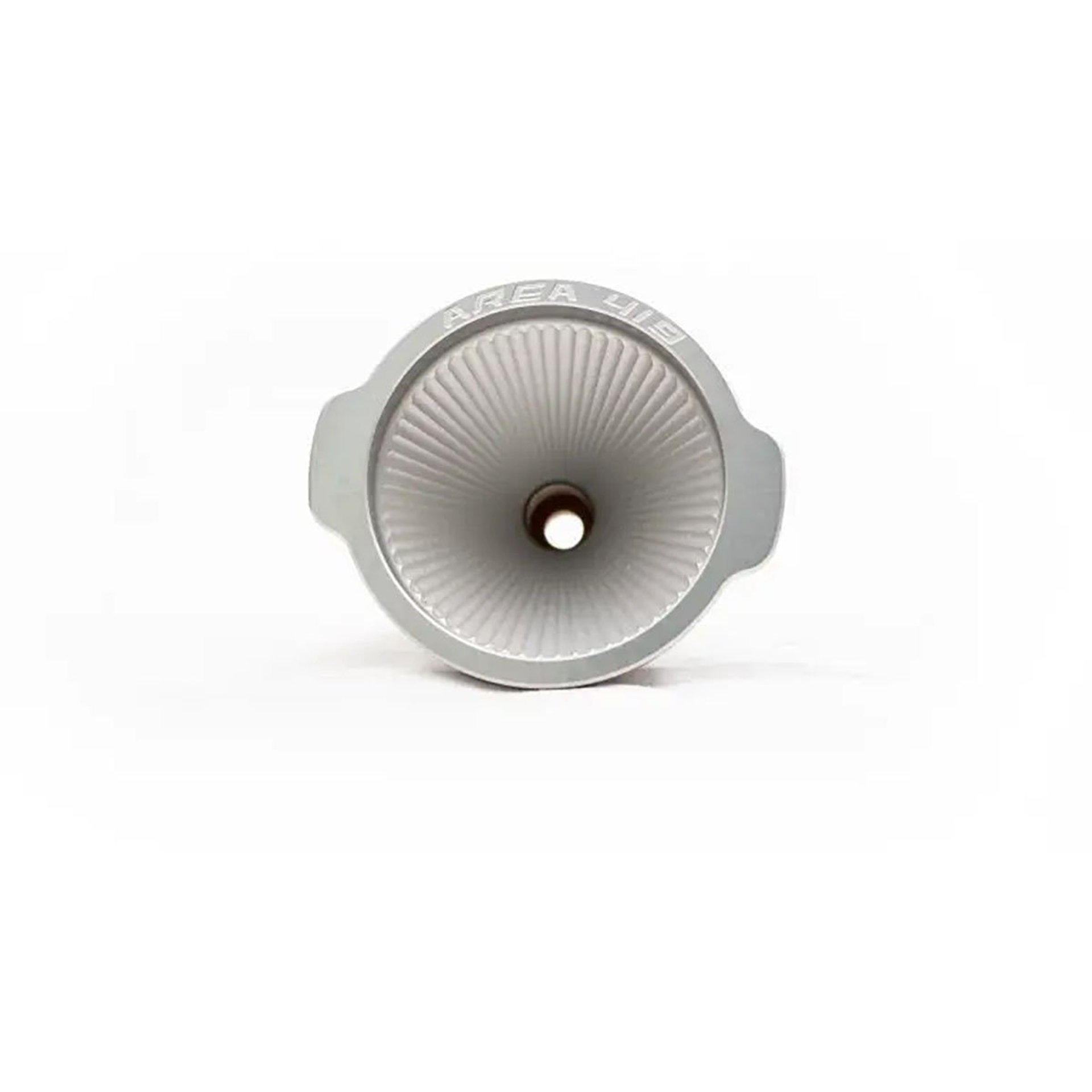

AREA 419 - Billet Aluminum Powder Funnel

BILLET ALUMINUM POWDER FUNNEL

The Area 419 billet aluminum powder funnel uses a system of interchangeable, caliber specific, heads to make it the ultimate funnel for reloaders available today. The Area 419 Funnel’s interchangeable heads thread onto the funnel and are neck diameter specific for each caliber. They do not rely on fitting over the body of the case to hold in place. They are sized slightly larger than the neck diameter so that they hold solid on the case. Each head has a bore sized a few thousandths smaller than the bullet diameter, so maximum flow is achieved for each caliber. This is huge for the super ultra-magnum guys (375 Cheytac, 408 Cheytac, 50 BMG, etc). The interface between the heads and the funnel is designed in such a way that no kernels can ever get stuck between the two, as long as the head is tightened completely.

• 3/8″ tall straight section at the top to help prevent kernels of powder from bouncing out when poured in.
• Smooth surfaces at the neck of the funnel and inside the heads promote quick flow and prevent any sticking kernels.
• MADE IN USA! From USA made aluminum, on a USA made HAAS mill, with USA made cutting tools!

The Funnel’s design is both aesthetic and performance driven. Being machined from a solid billet of 6061-T6 aluminum means no static charge to cling kernels to the funnel walls. This also makes it far safer for use with black powder. “Flutes” on the outside are for looks, on the inside though, they disturb the powder kernels from trying to jam up at the neck. It also gives some airspace so they do not get packed up so tightly, all aimed to increase flow through the nozzle.

Billet Aluminum Powder Funnel only
