SINCLAIR INTERNATIONAL - SINCLAIR CONCENTRICITY GAUGE

Sinclair Concentricity Gauge - Achieving Peak Ammunition Consistency

For precision shooters and dedicated reloaders, the difference between a hit and a near-miss often comes down to microscopic details. One of the most critical-and overlooked-factors in ammunition performance is concentricity. The Sinclair Concentricity Gauge is designed to give reloaders a clear, accurate measurement of both neck concentricity and bullet runout, allowing them to fine-tune their reloading process for maximum consistency and downrange accuracy.

The Role of Concentricity in Precision Shooting

Concentricity refers to how well the bullet is aligned with the cartridge case. Even slight misalignments can lead to uneven pressures, inconsistent velocities, and accuracy degradation-especially noticeable in long-range or competition shooting. By measuring and correcting concentricity issues, reloaders can reduce group sizes, improve shot-to-shot consistency, and extend the effective range of their ammunition.

The Sinclair Concentricity Gauge gives reloaders the ability to quickly identify alignment issues, whether caused during resizing, seating, or by inconsistent case preparation. It provides a way to spot these flaws before they impact performance on the firing line.

Design and Build Quality

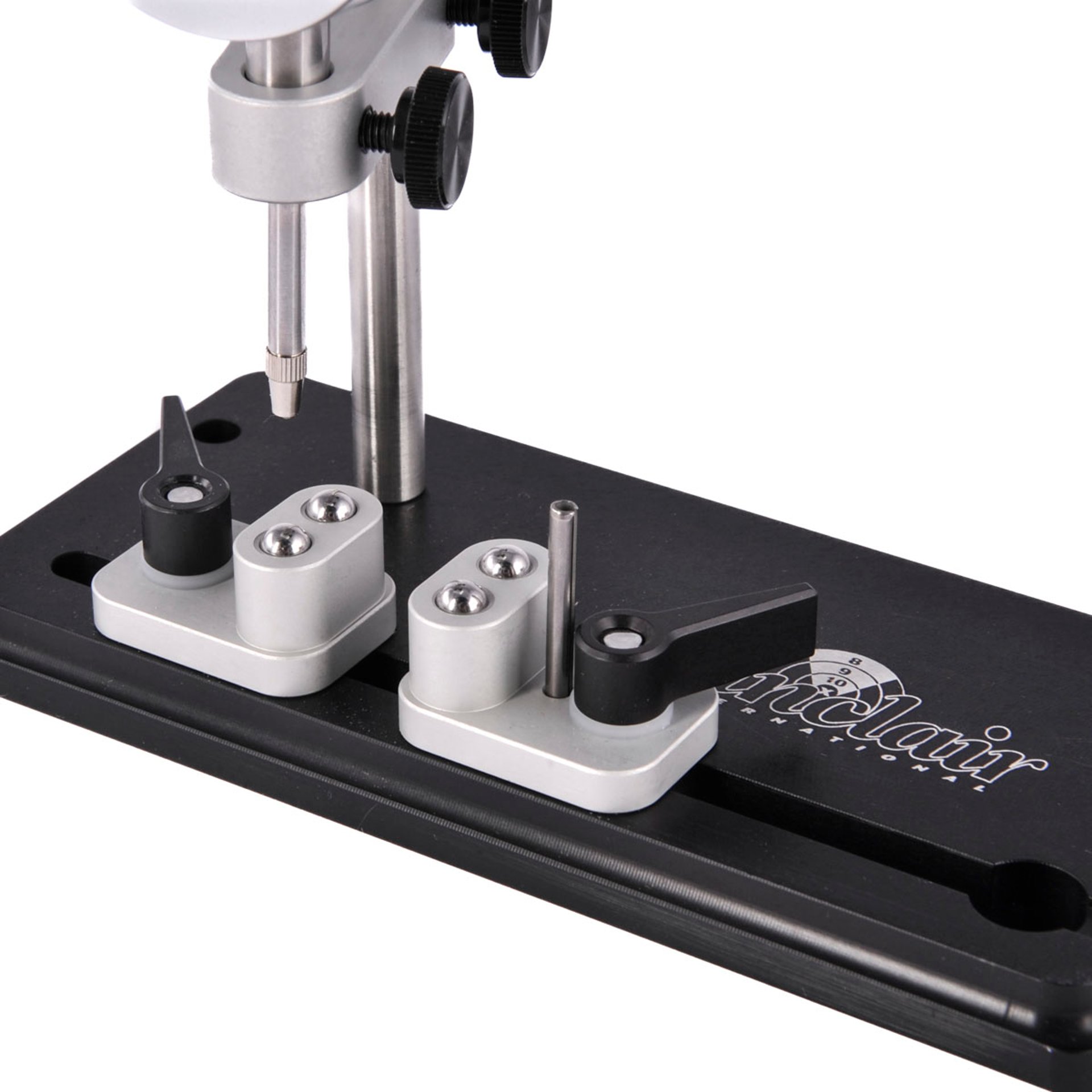

The Sinclair Concentricity Gauge is built from anodized aluminum for a balance of lightweight handling and rigidity, with hardened steel roller bearings that support smooth, stable cartridge rotation during measurement. The rollers are mounted in milled V-blocks, ensuring that each round is held securely and spins without wobble. This stability is key for producing repeatable, trustworthy measurements.

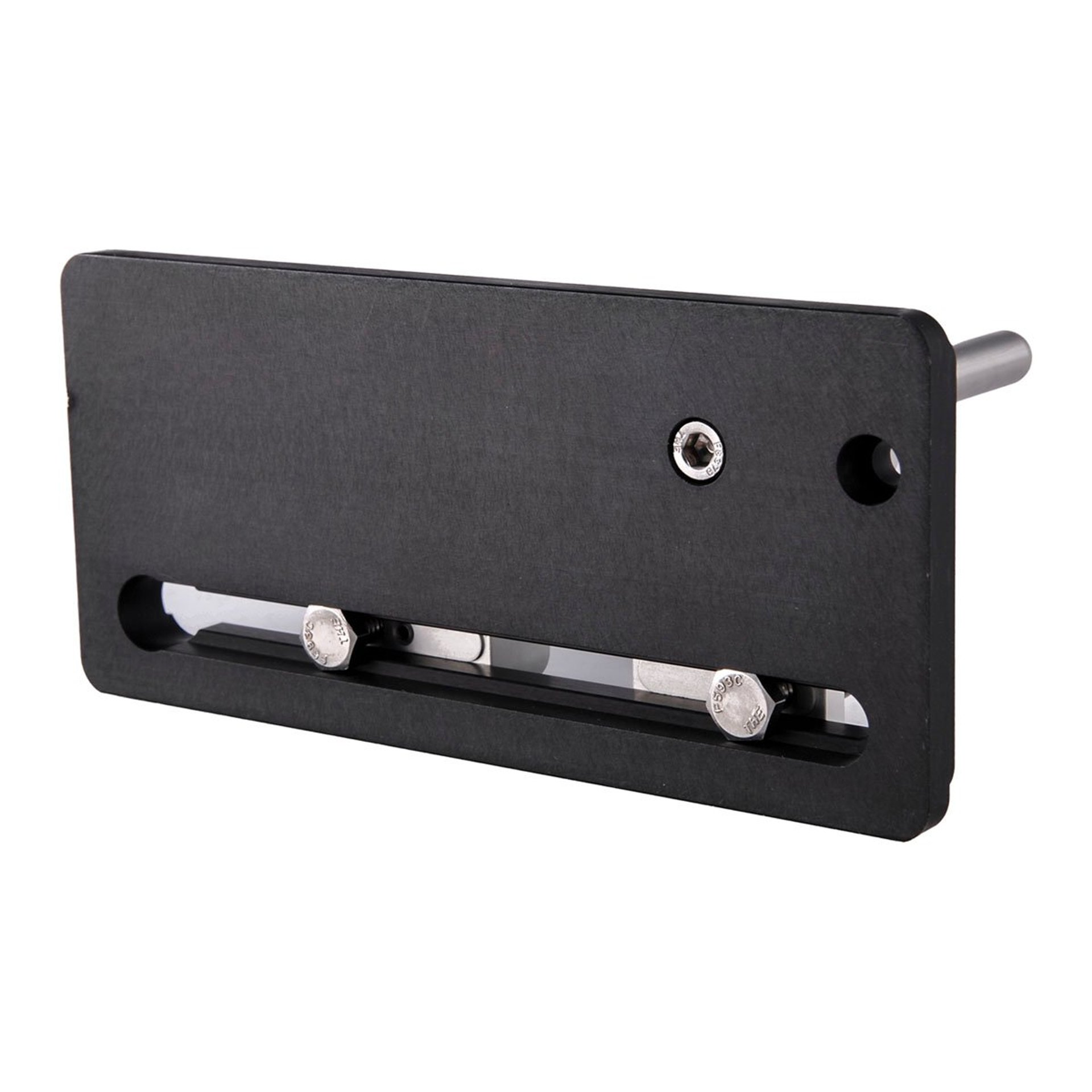

The gauge’s base is long enough to accommodate everything from small varmint cartridges to large-caliber rounds like the .50 BMG. This wide compatibility makes it ideal for reloaders who work across multiple calibers.

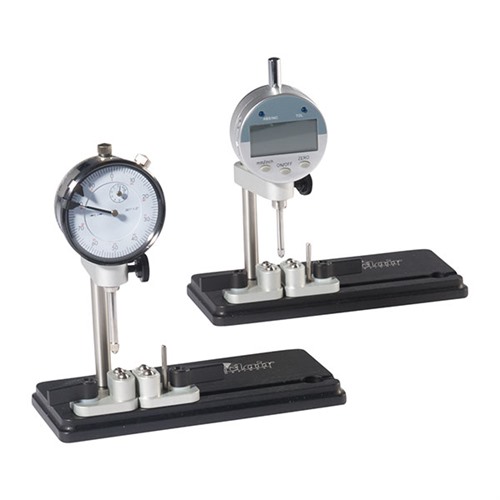

Three versions are available:

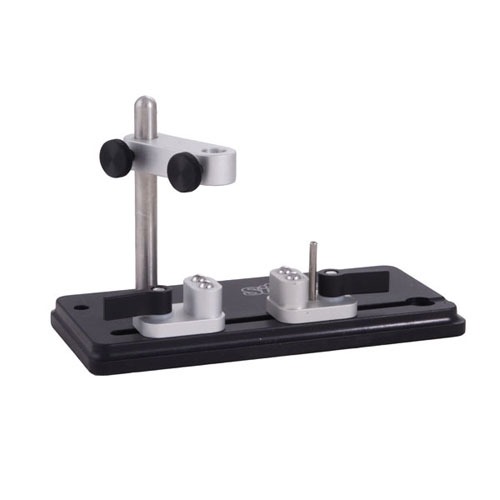

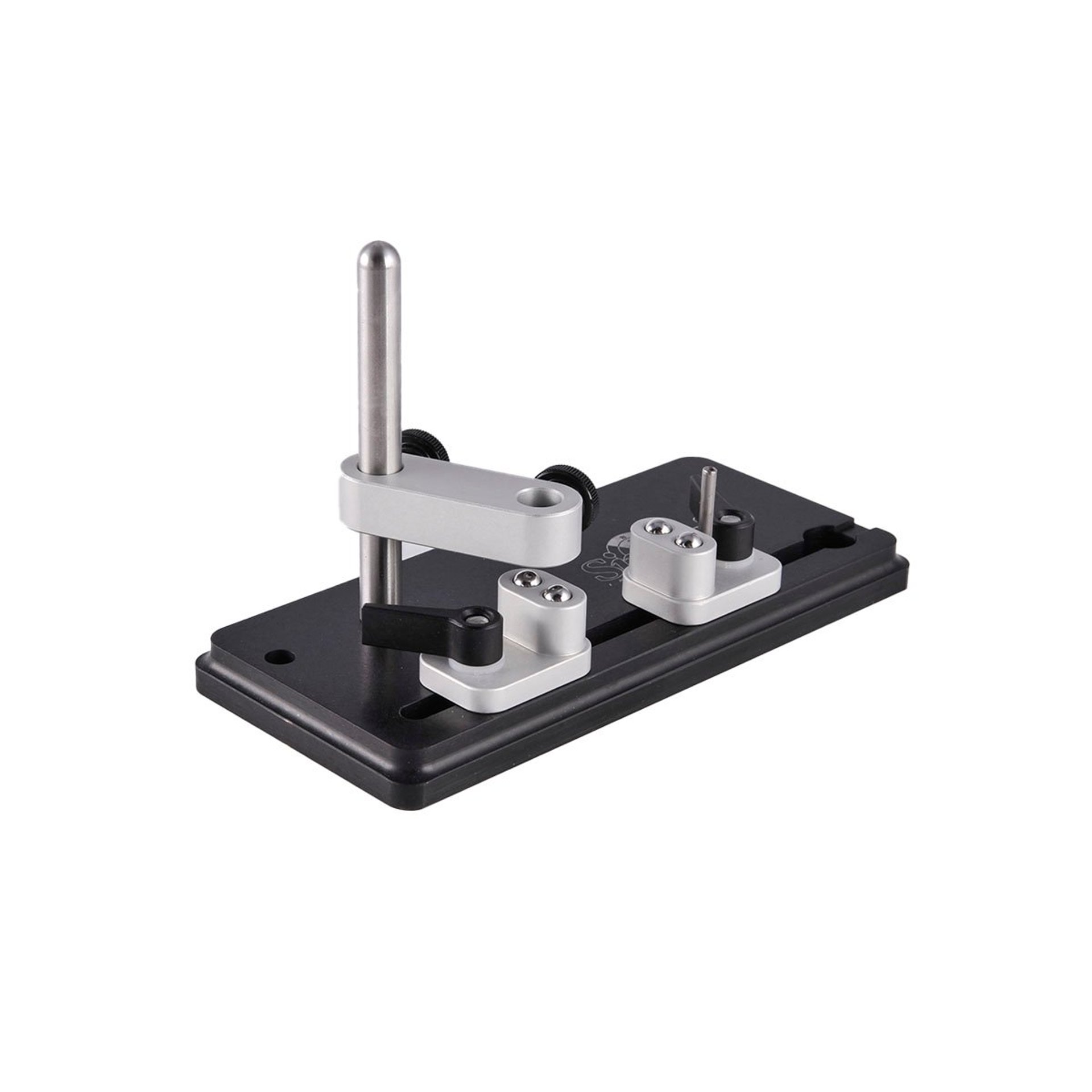

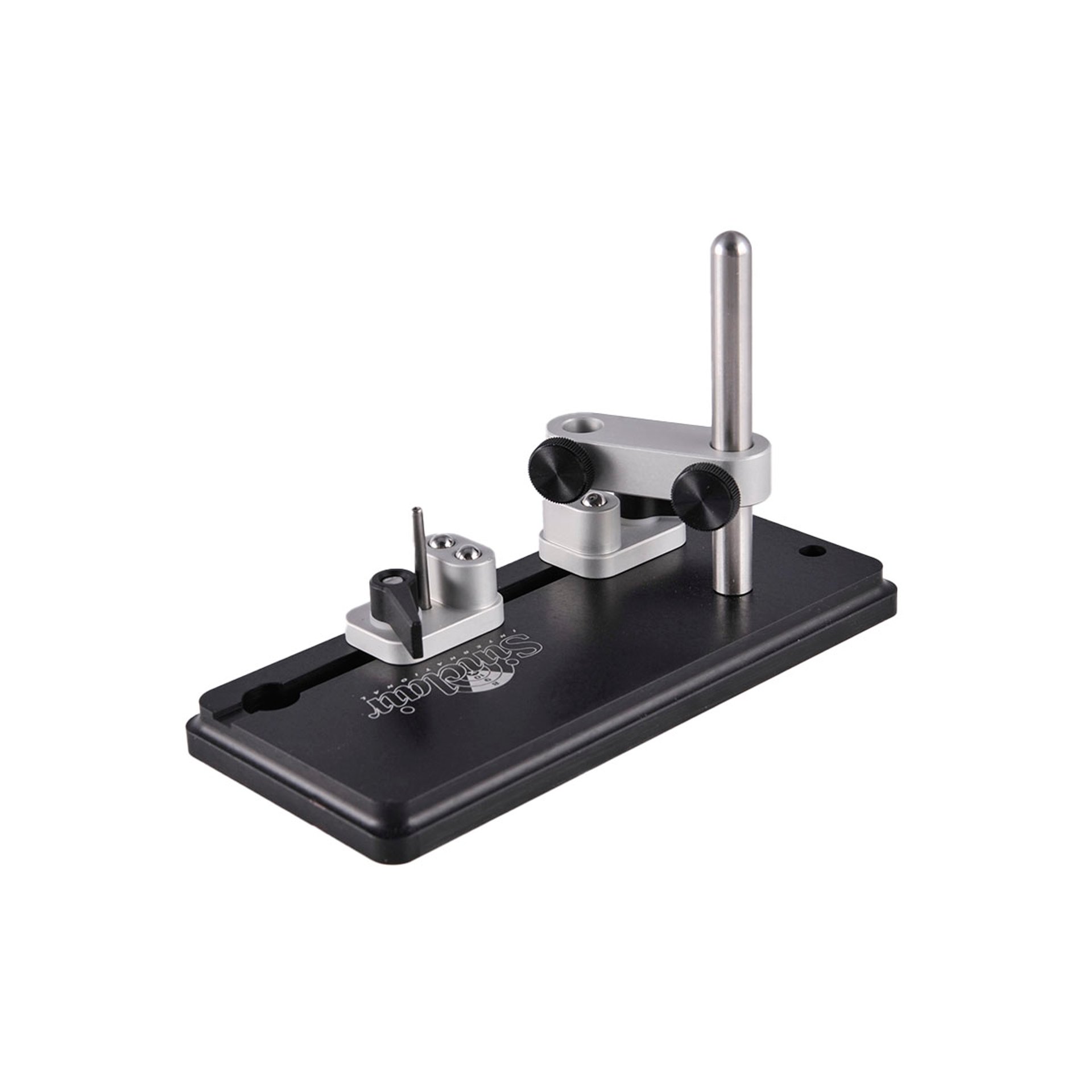

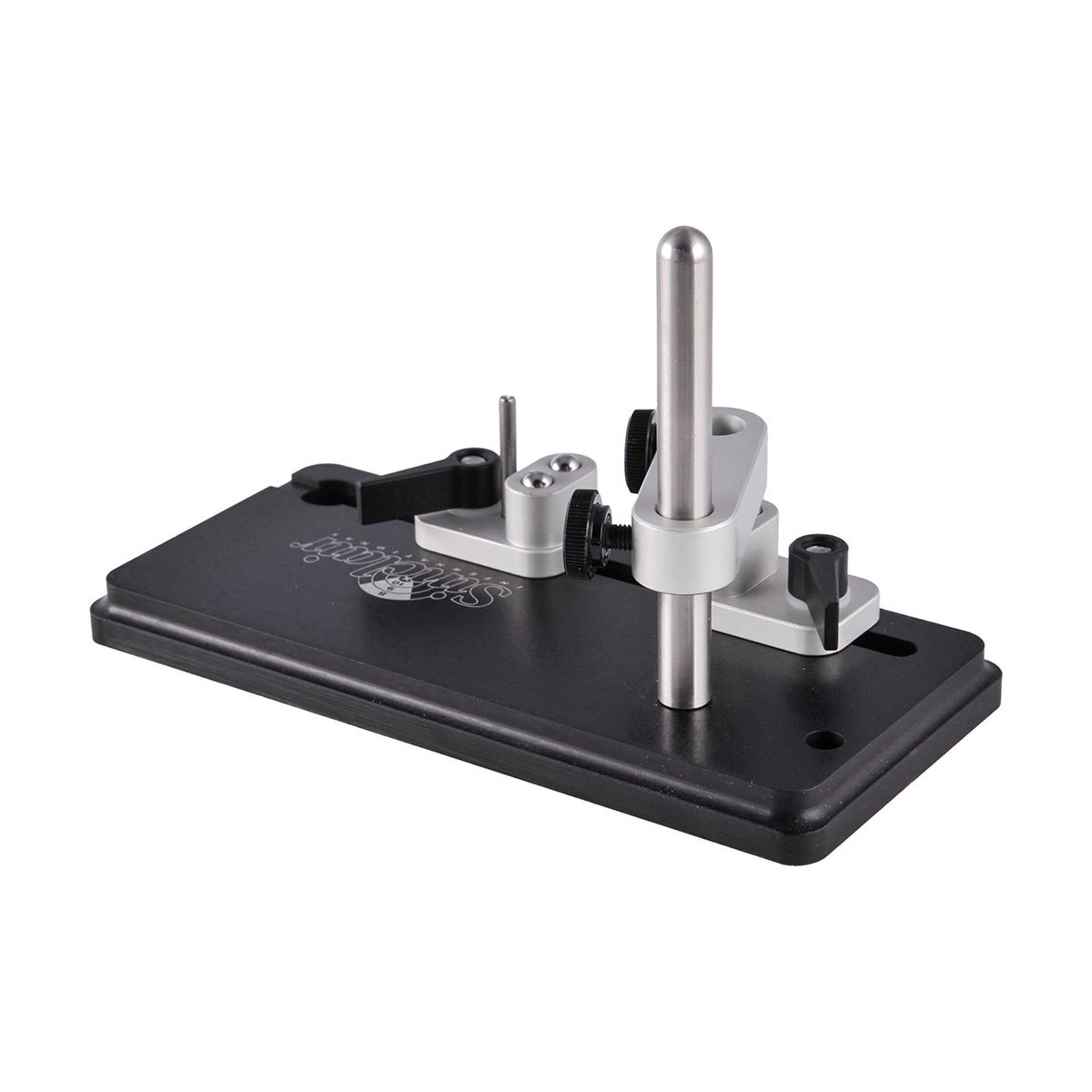

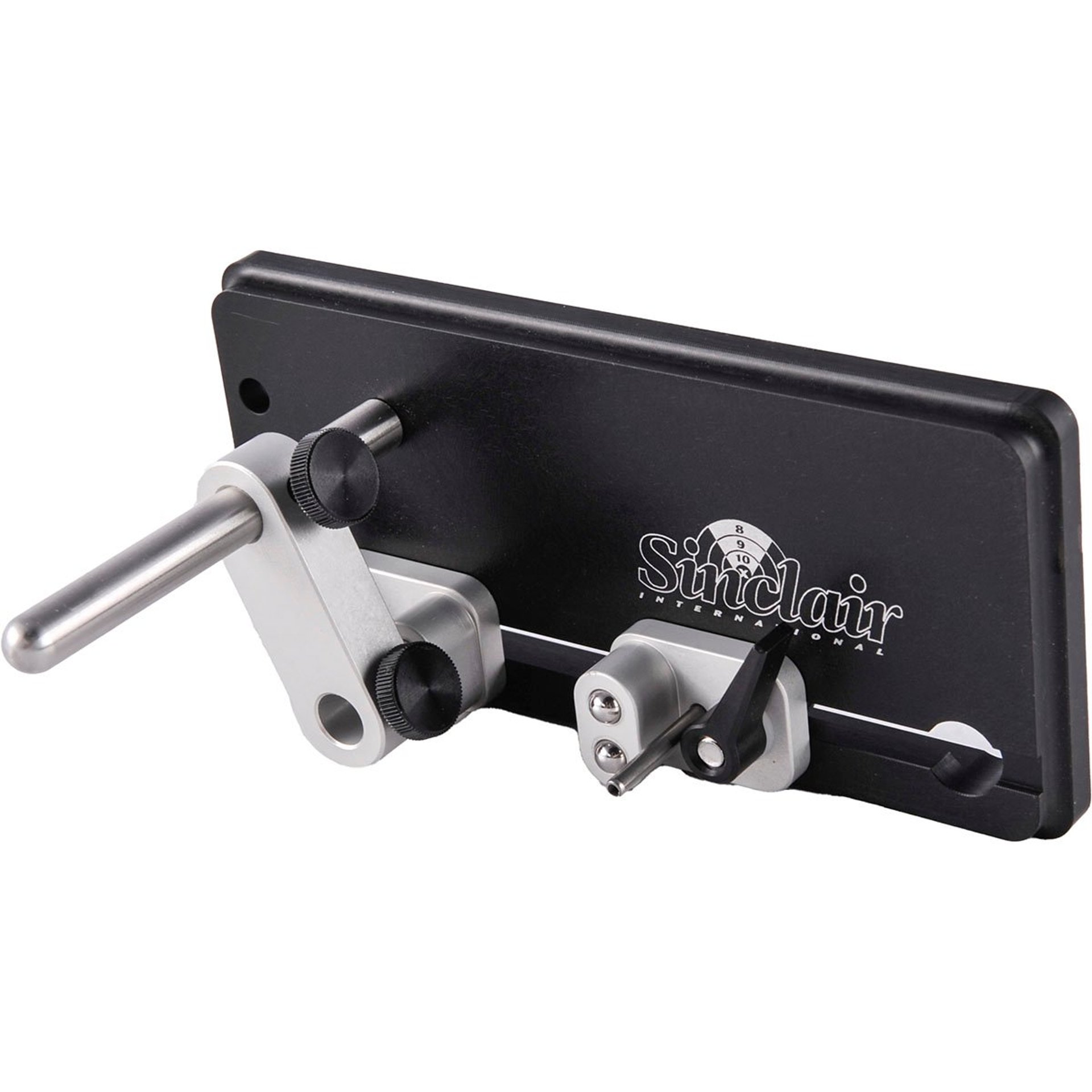

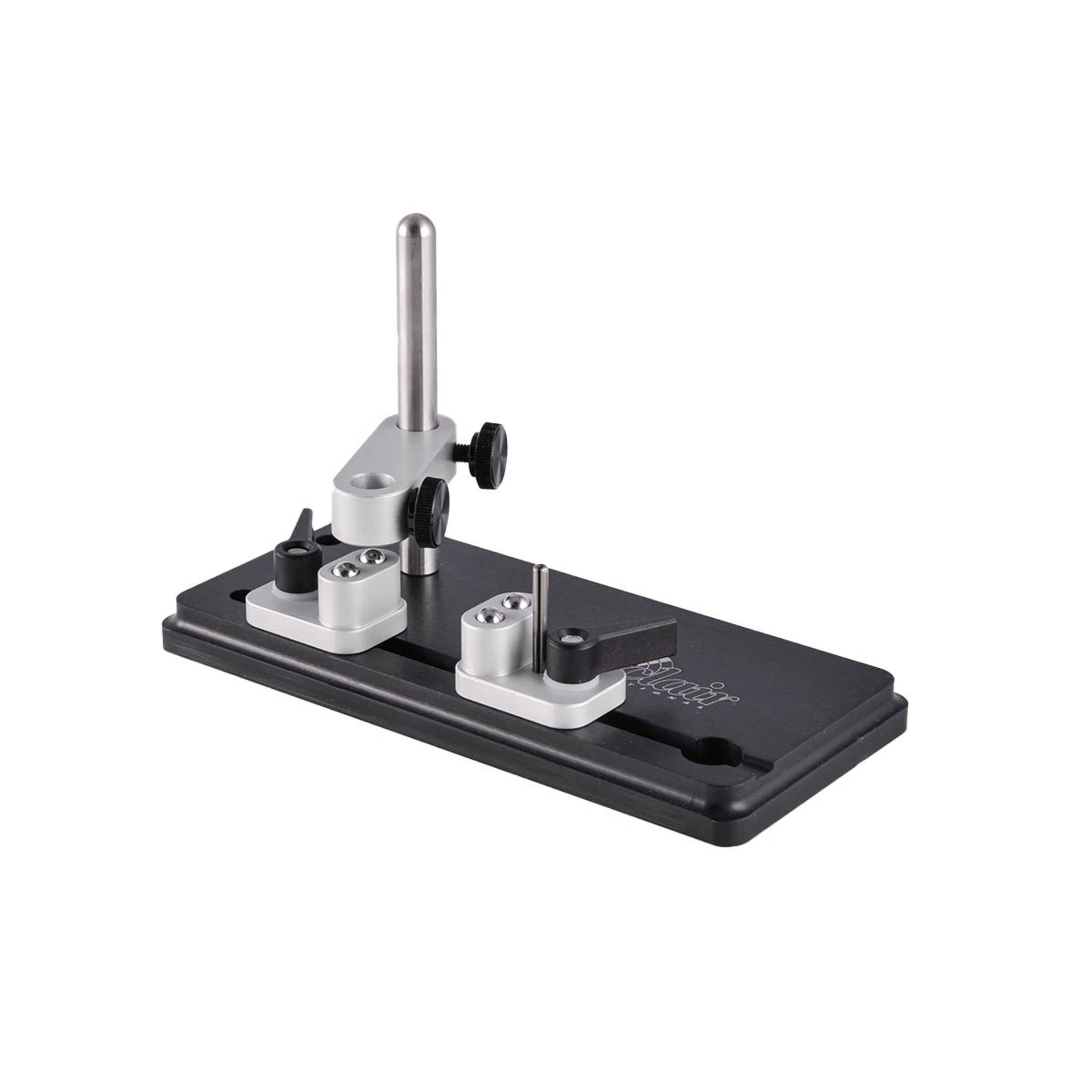

1. Base-only model – For those who already own a compatible dial indicator.

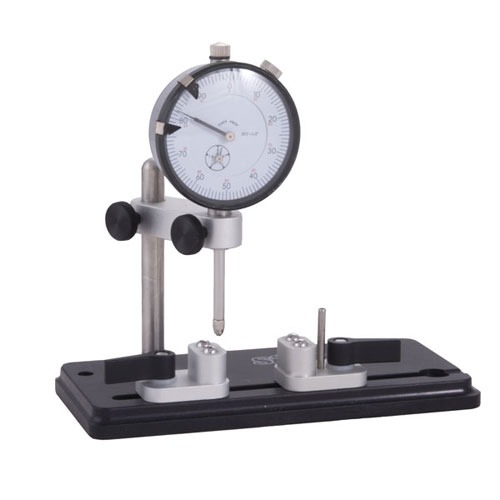

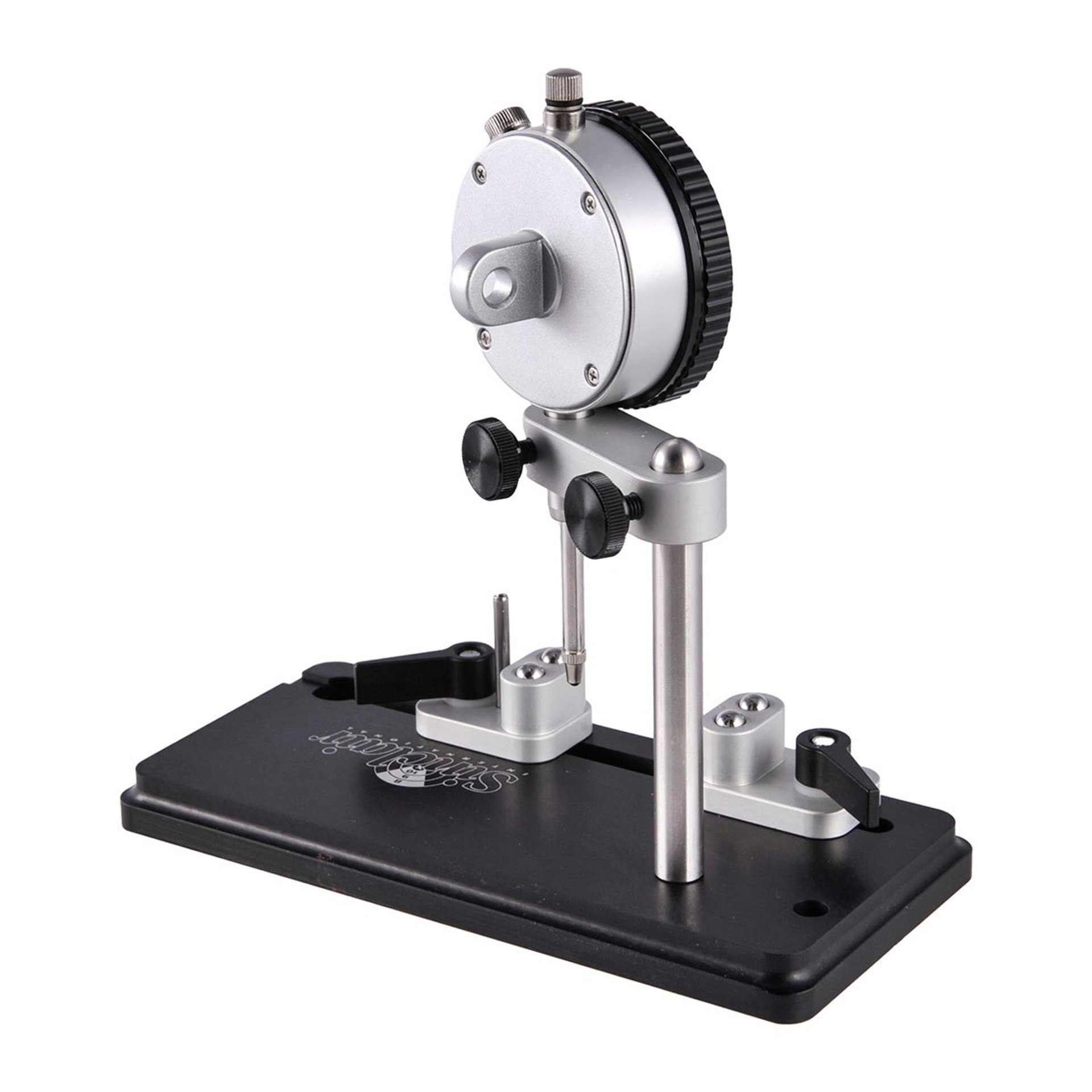

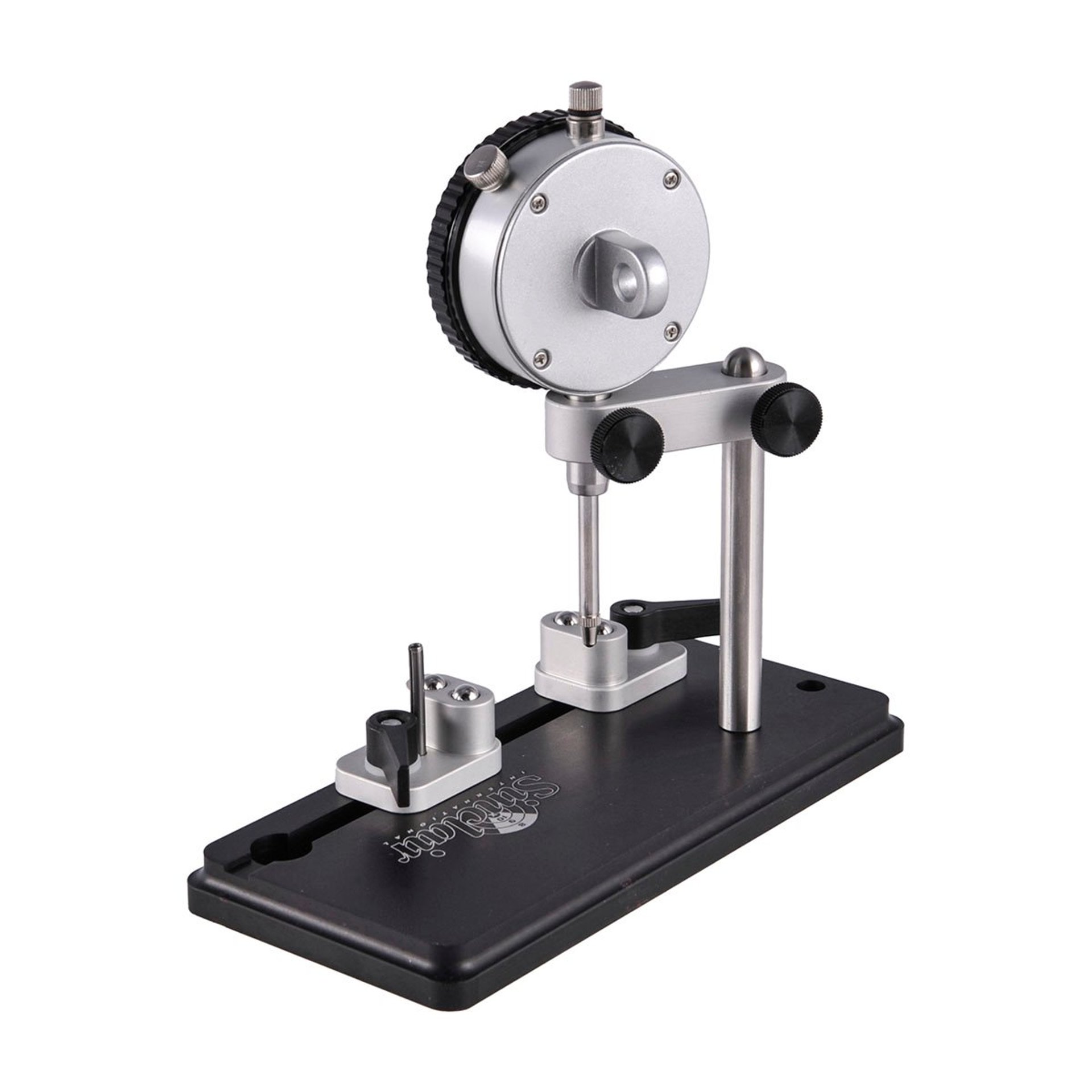

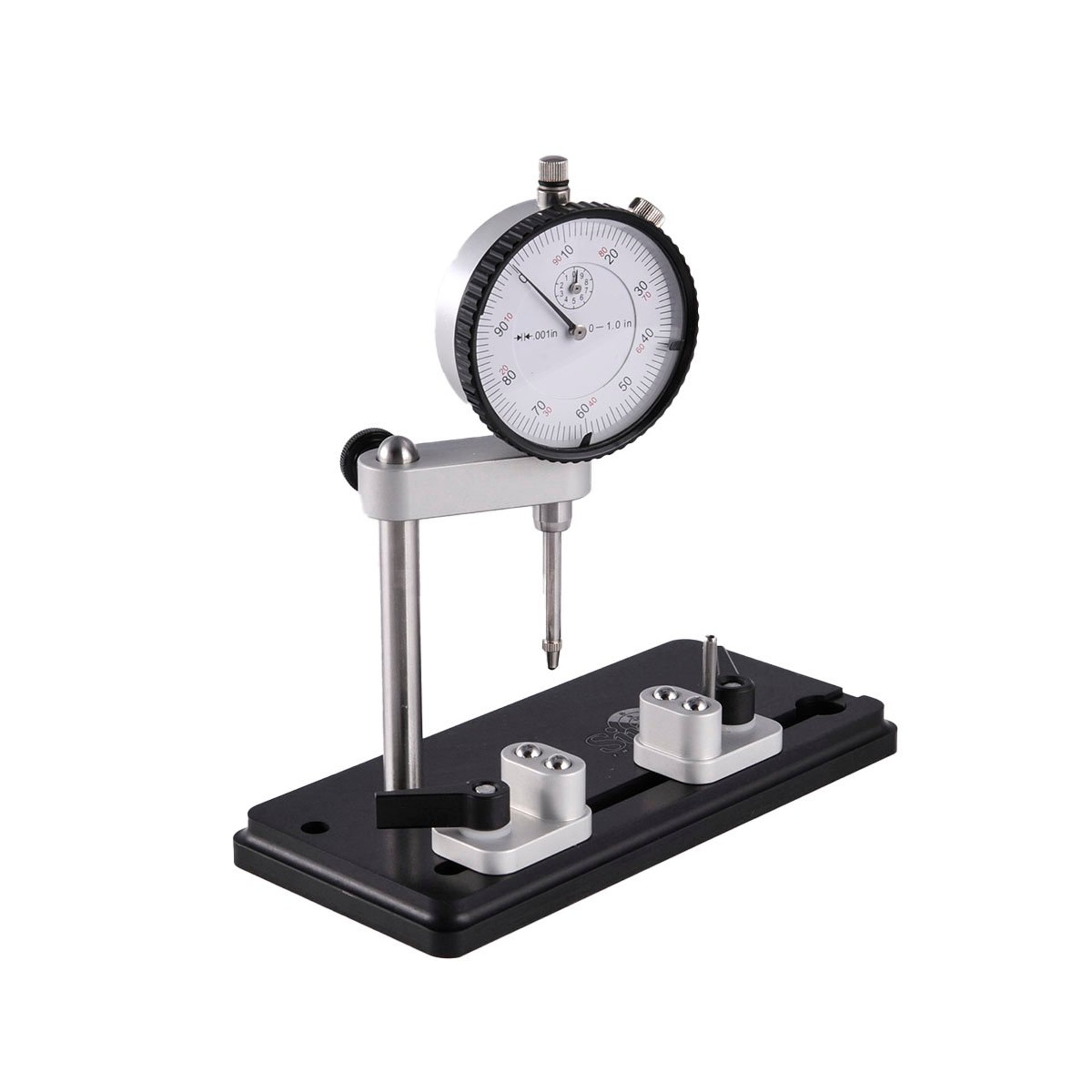

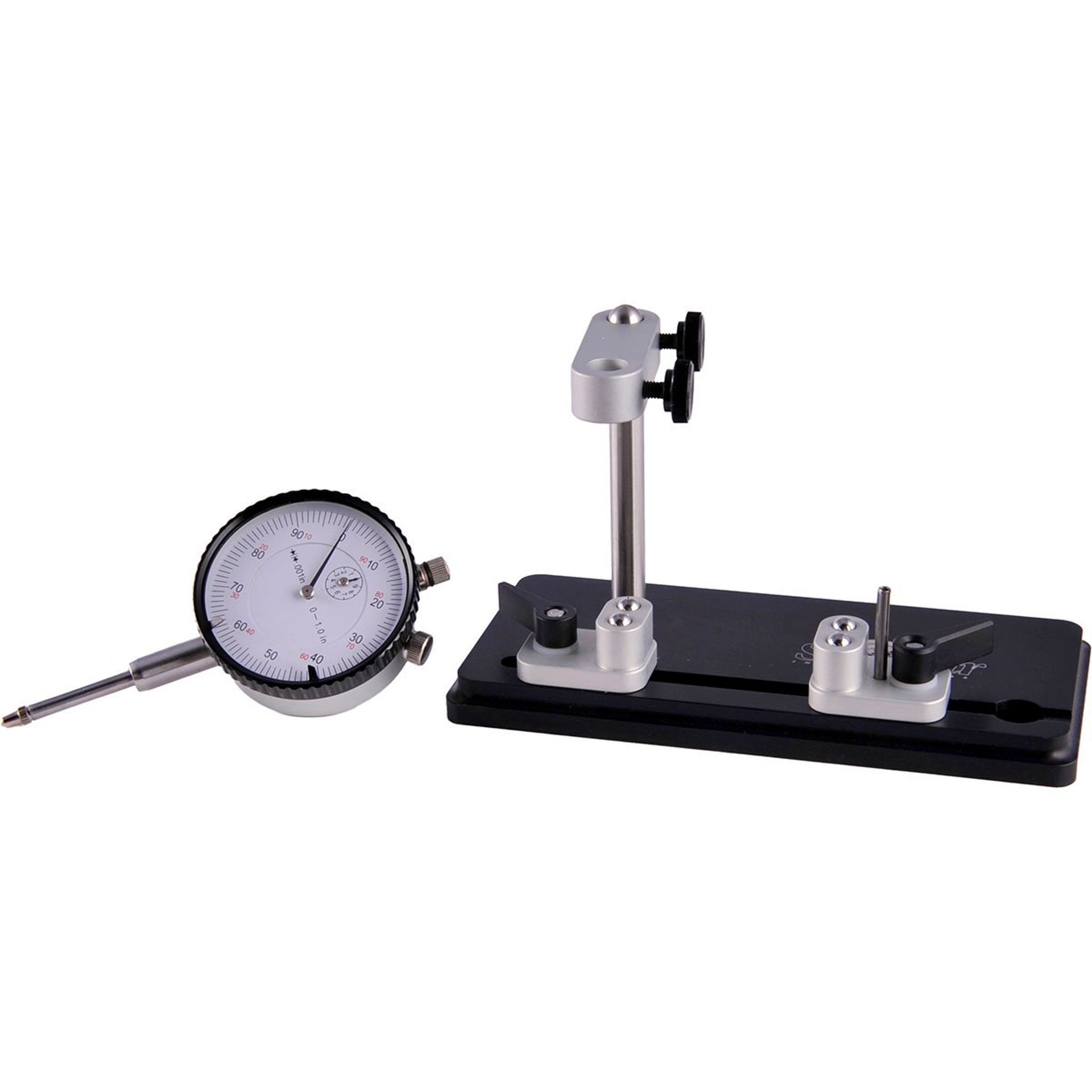

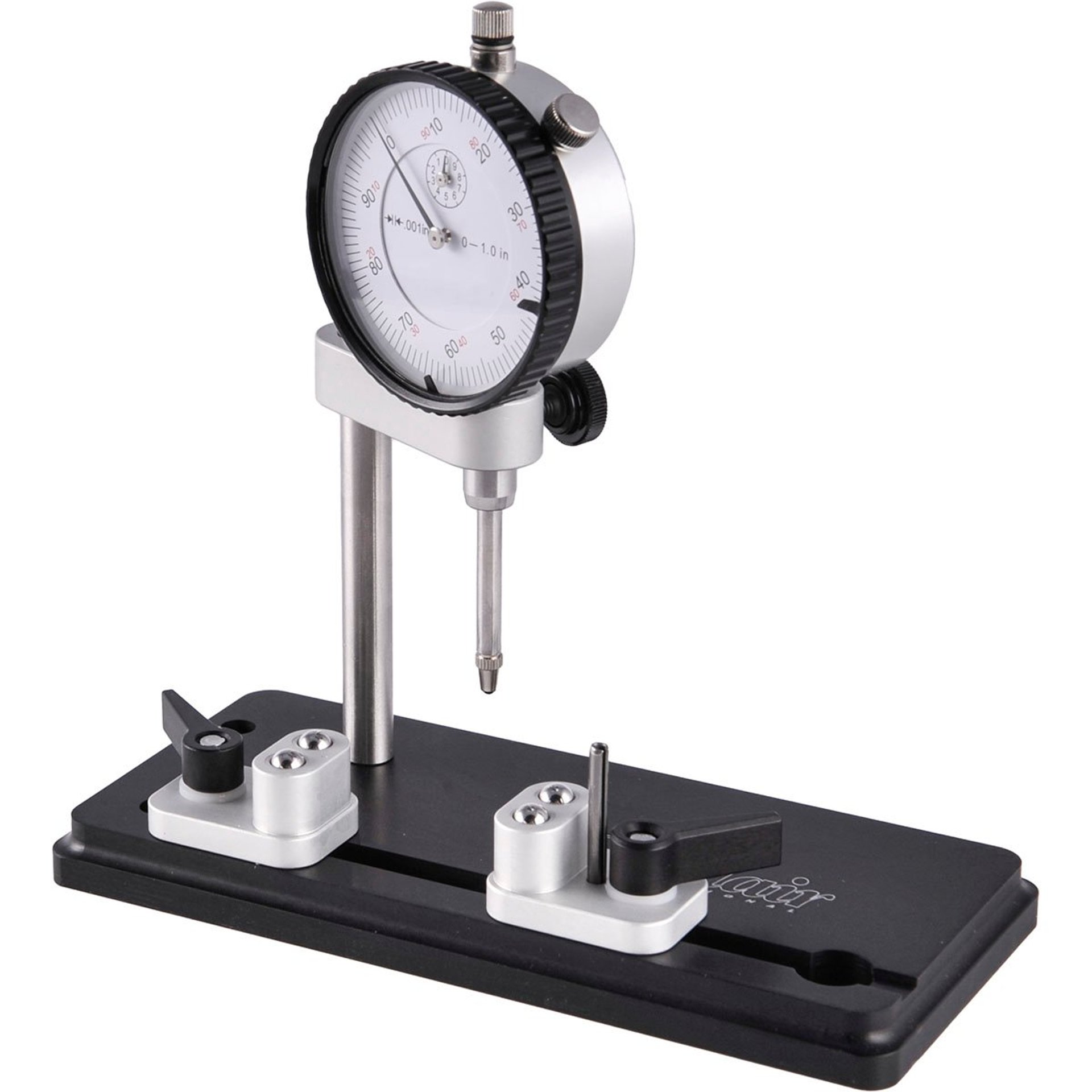

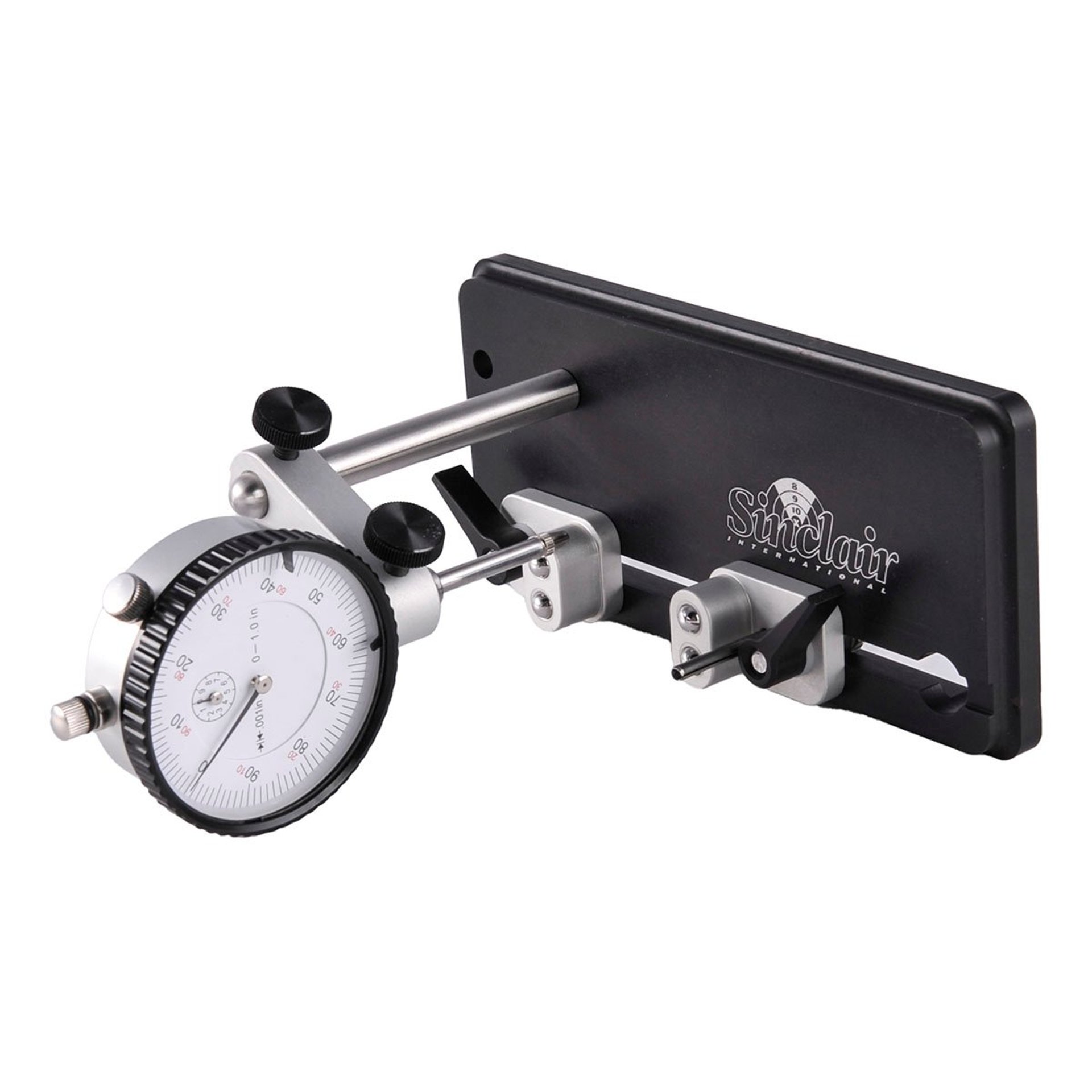

2. Dial indicator model – Equipped with a precision analog indicator.

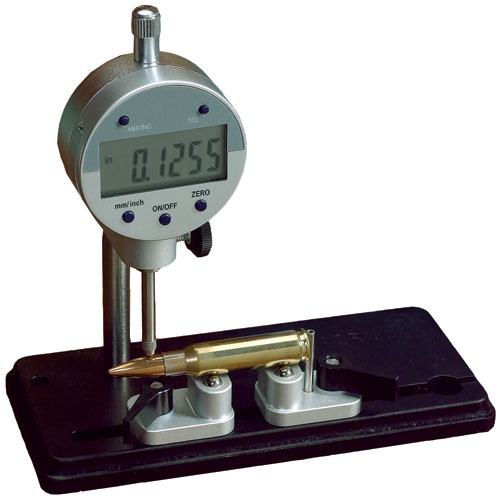

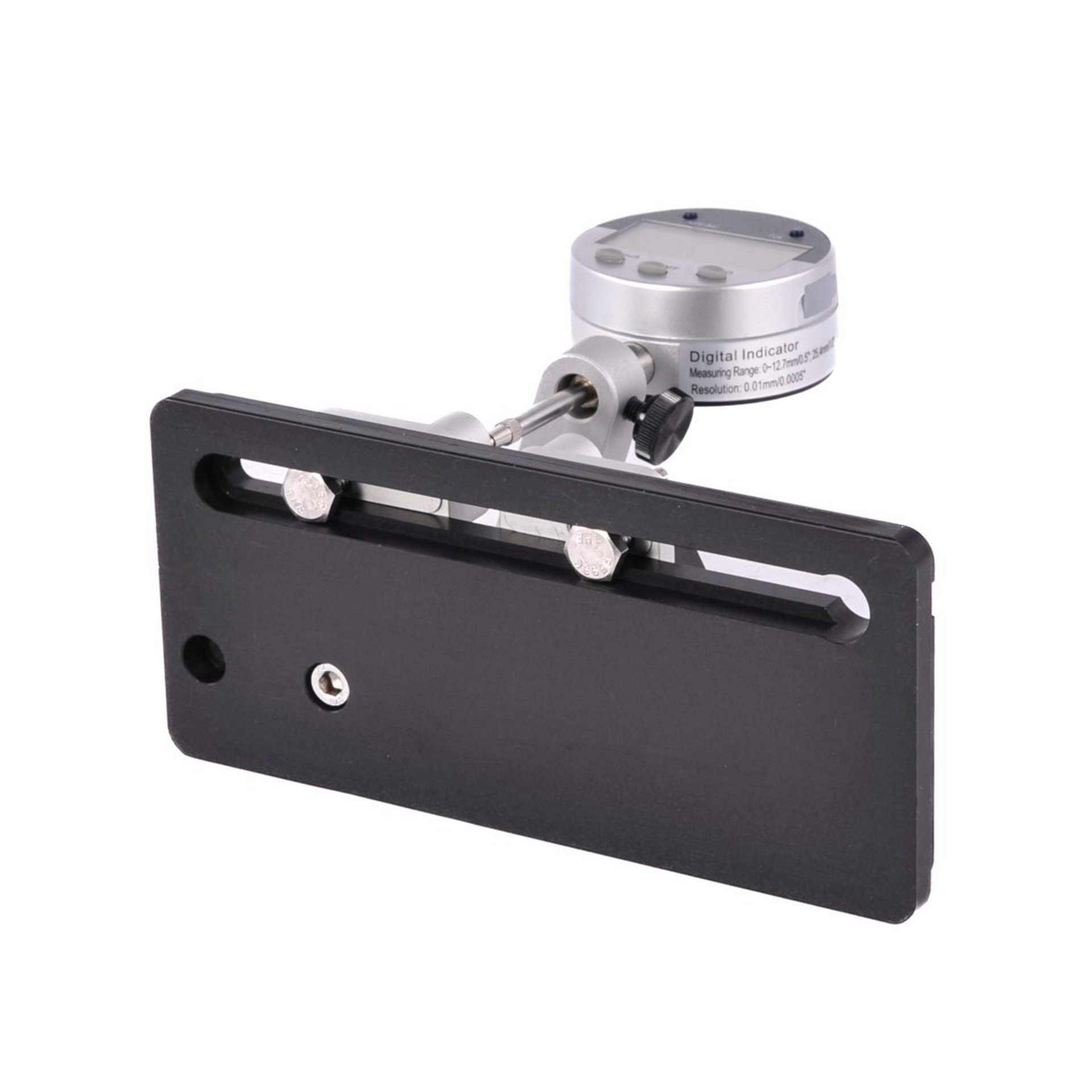

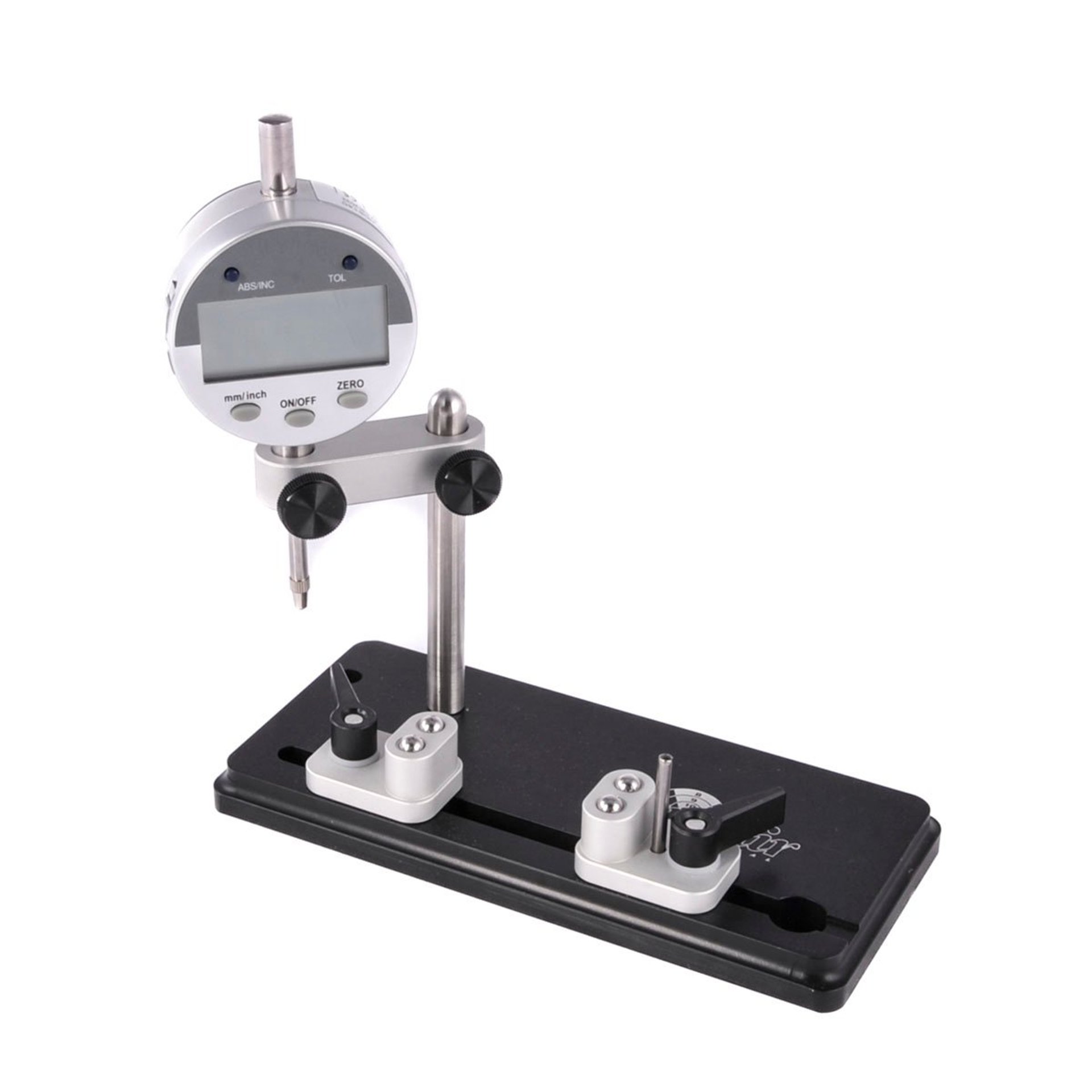

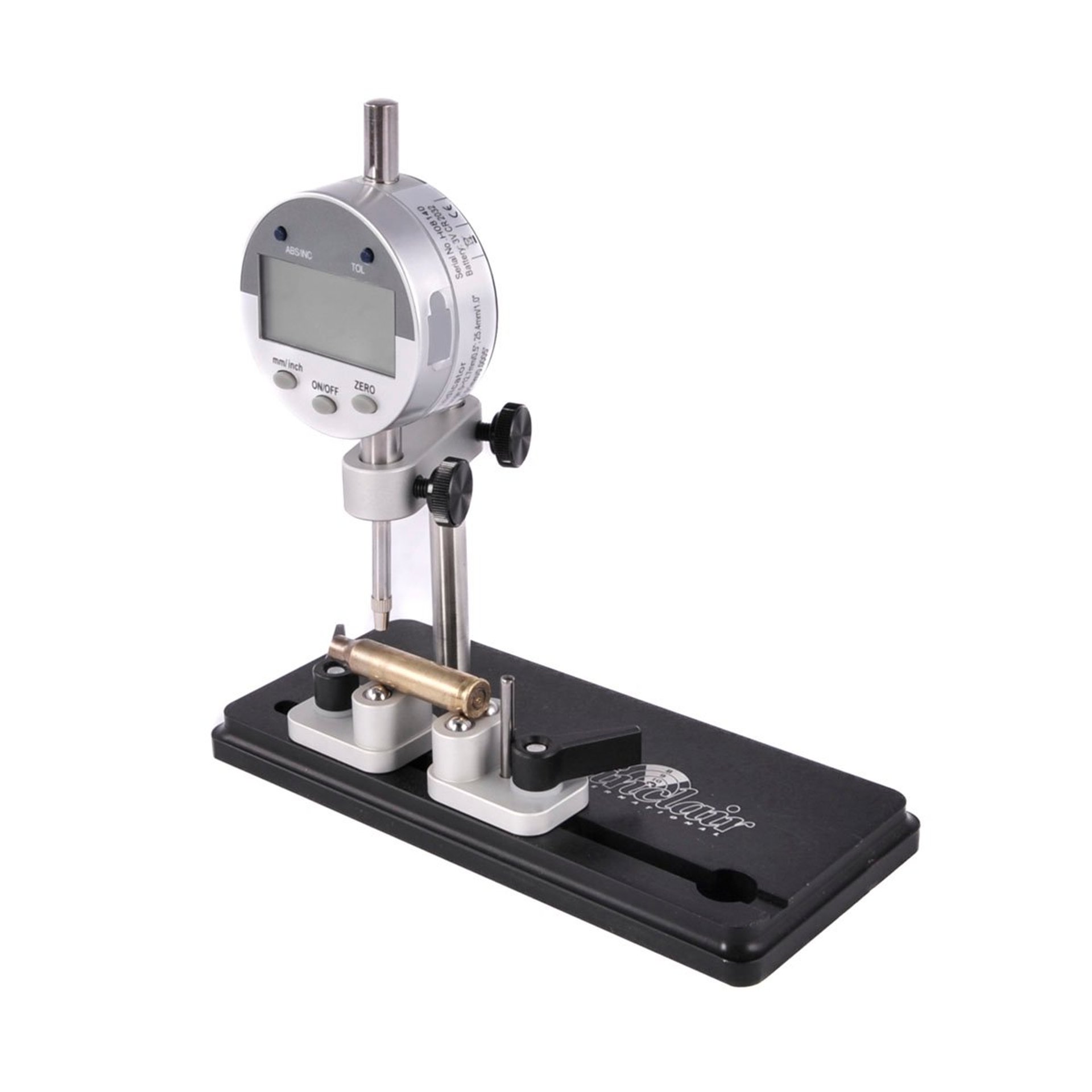

3. Digital indicator model – Offers high-resolution readings in a digital format.

All versions accept any indicator with a 0.375″ stem, giving reloaders flexibility in tool selection.

Ease of Use

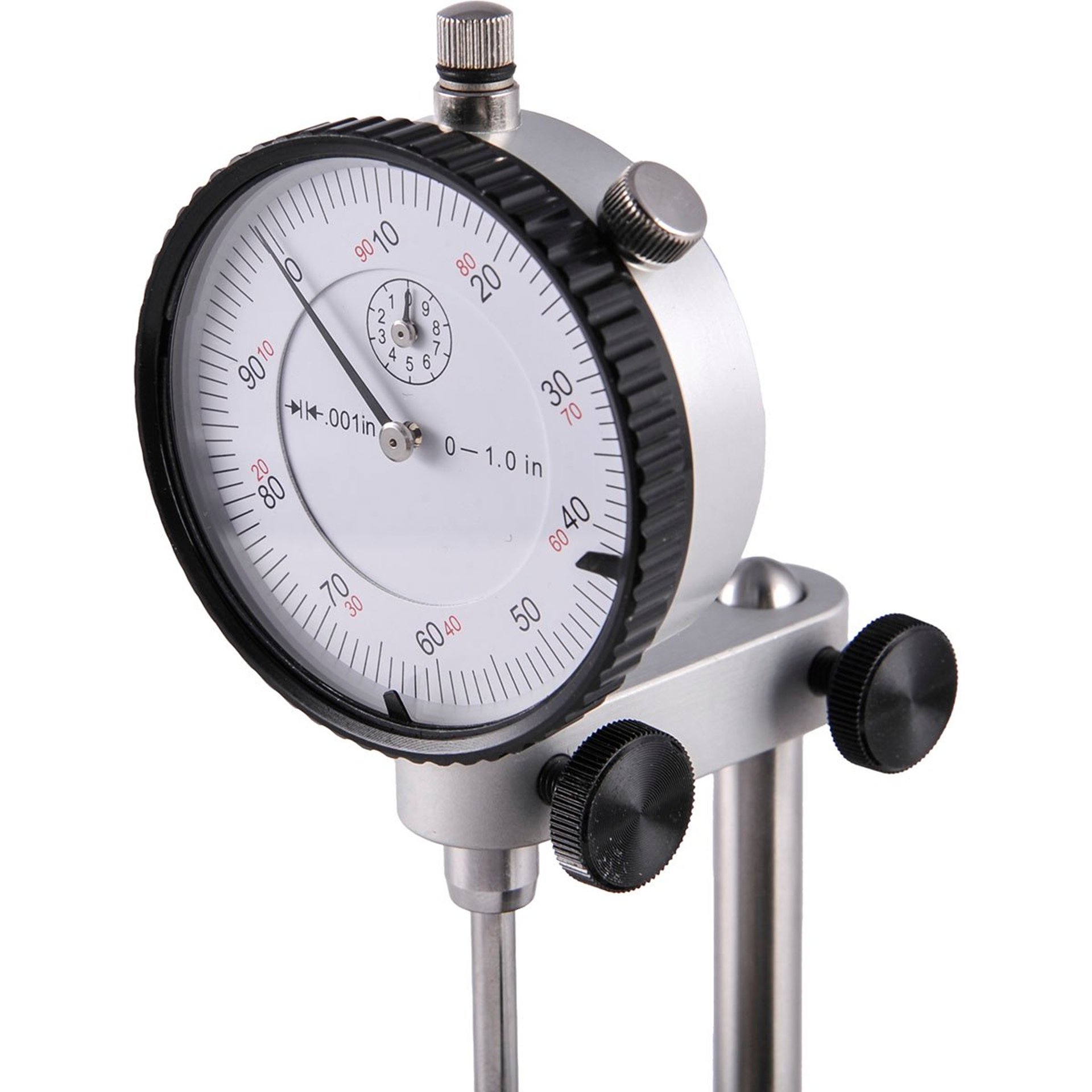

One of the strengths of the Sinclair Concentricity Gauge is its straightforward setup and operation. Two adjustable roller blocks slide along the base to fit different cartridge lengths. The indicator tower offers both vertical and lateral adjustment so the probe can be perfectly aligned with the measurement point-whether you’re checking case neck runout or bullet alignment.

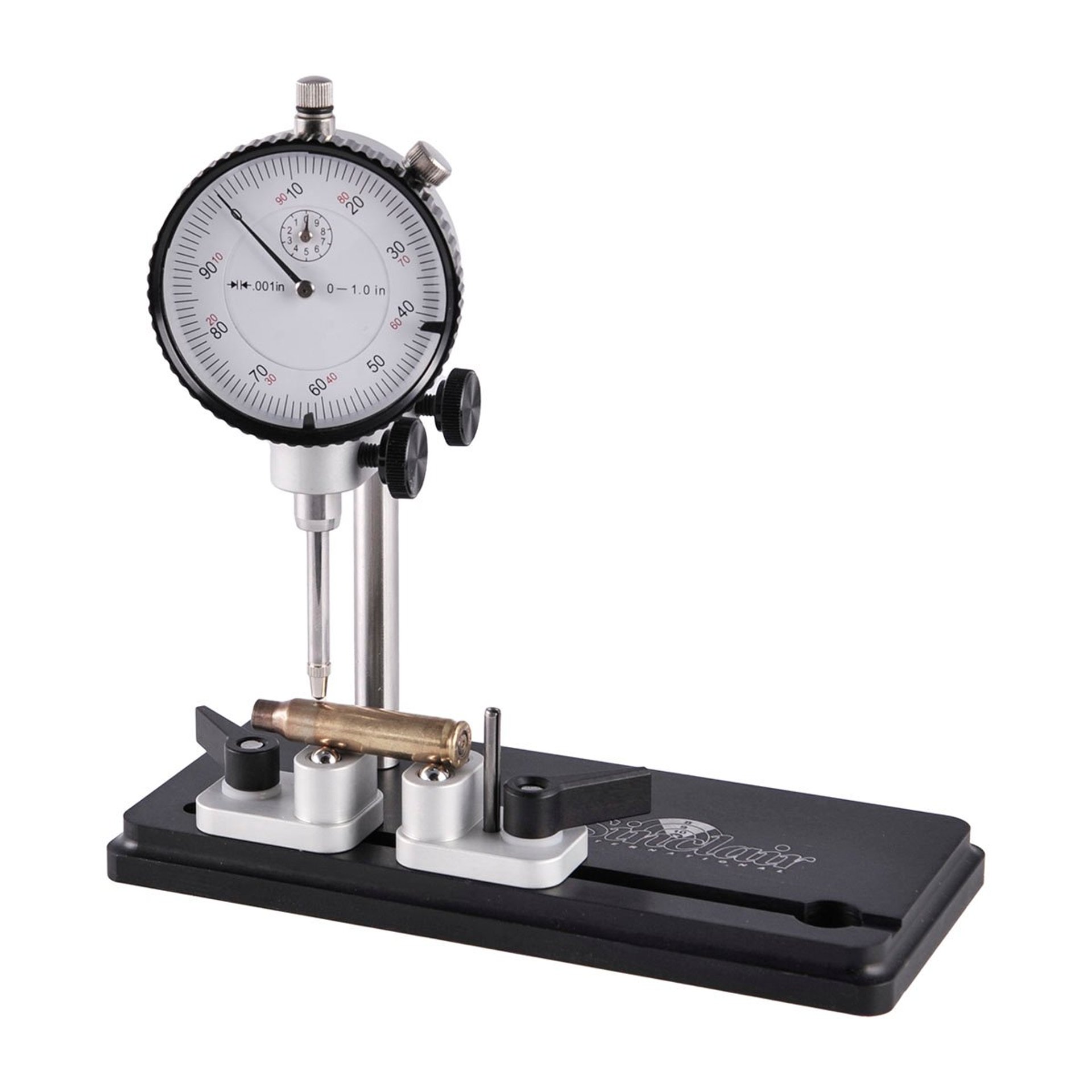

To use the tool, place the case or loaded cartridge on the rollers, position the indicator tip at the desired point, and slowly rotate the round. The difference between the high and low readings is the measured runout. Many reloaders aim for a reading under 0.002 inches for precision loads.

Real-World Shooter Feedback

Reloaders consistently praise the Sinclair Concentricity Gauge for its smooth operation, clear readings, and sturdy build quality. Users highlight its ability to reveal inconsistencies that other tools may miss, allowing them to troubleshoot problems in their sizing dies, seating dies, or case prep process.

Competitive shooters have reported measurable improvements in group size after using the gauge to weed out rounds with excessive runout. Others use it as a quality-control step in every batch, ensuring match-grade ammo before it leaves the bench.

Compared to budget gauges, the Sinclair is noted for its longevity-some owners have used the same unit for over a decade without loss of accuracy. The tool’s ability to handle a wide range of calibers also makes it a long-term investment that grows with a shooter’s needs.

How It Stands Against Similar Tools

When compared to alternatives like the Hornady Concentricity Tool, the Sinclair is often considered more precise and sturdier, though at a slightly higher price point. While other designs may require more setup time or only work well with certain case lengths, the Sinclair’s roller system provides universal support without the need for multiple adapters. This not only saves time but also reduces the risk of measurement errors from improper seating.

Another advantage is its non-marking, free-spinning support system, which prevents damage to cases while eliminating unnecessary friction that could influence readings. This is a key difference from clamping-style gauges that can introduce minor distortions during measurement.

Applications Beyond Competition

While the Sinclair Concentricity Gauge is a natural fit for competitive shooters and precision rifle reloaders, it also benefits hunters, varmint shooters, and anyone seeking better consistency from their handloads. Hunters who need guaranteed first-round accuracy can verify their loads before a big trip, while varmint shooters appreciate knowing that each round will track identically over extended shooting sessions.

It’s also a powerful diagnostic tool. If your groups suddenly open up, checking concentricity can quickly reveal whether your reloading process or component consistency has shifted.

Technical Specifications

Why the Sinclair Concentricity Gauge Is Worth Owning

In precision shooting, small details make big differences. The Sinclair Concentricity Gauge offers a rare combination of accuracy, durability, and versatility that earns it a place on any serious reloader’s bench. Its solid construction ensures long-term reliability, while its ease of use encourages reloaders to incorporate concentricity checks into every loading session.

By catching misaligned rounds before they make it to the range-or worse, the match-the gauge not only helps improve accuracy but also builds confidence in your ammunition. Whether you load a few dozen rounds a month or thousands a year, this tool can help you get the very best performance from your rifle.

If your goal is to produce ammunition that shoots as consistently as possible, the Sinclair Concentricity Gauge is a wise and lasting investment.
