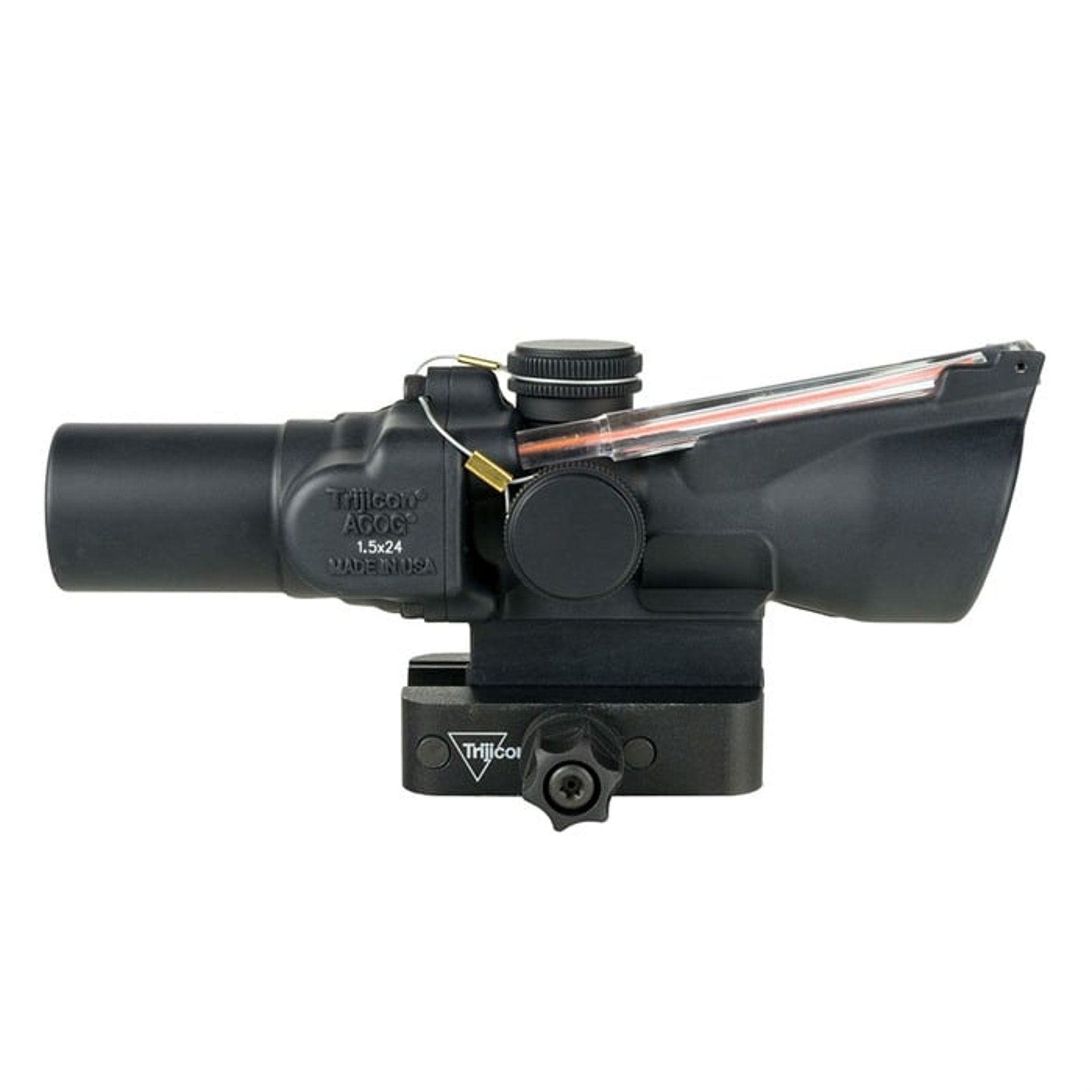

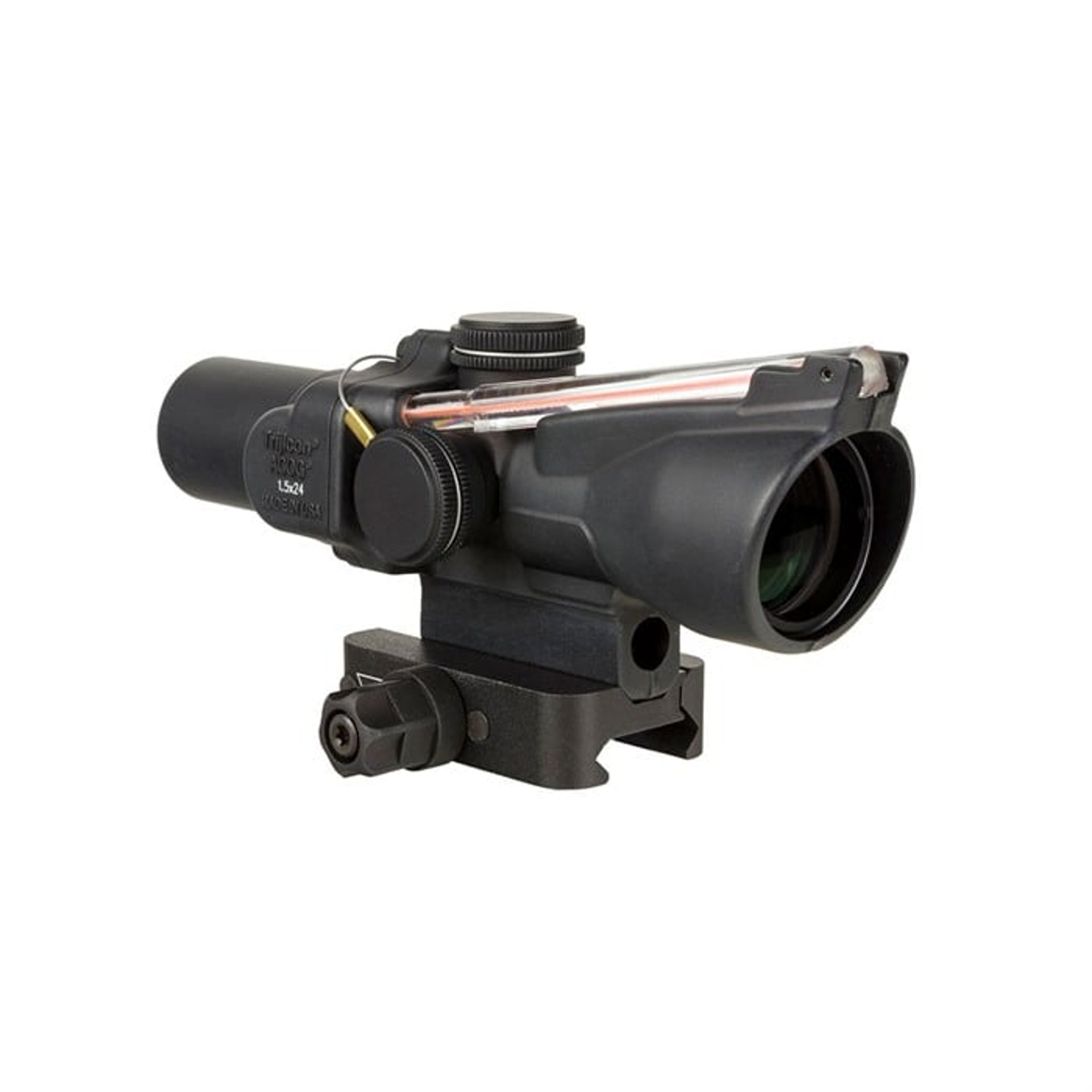

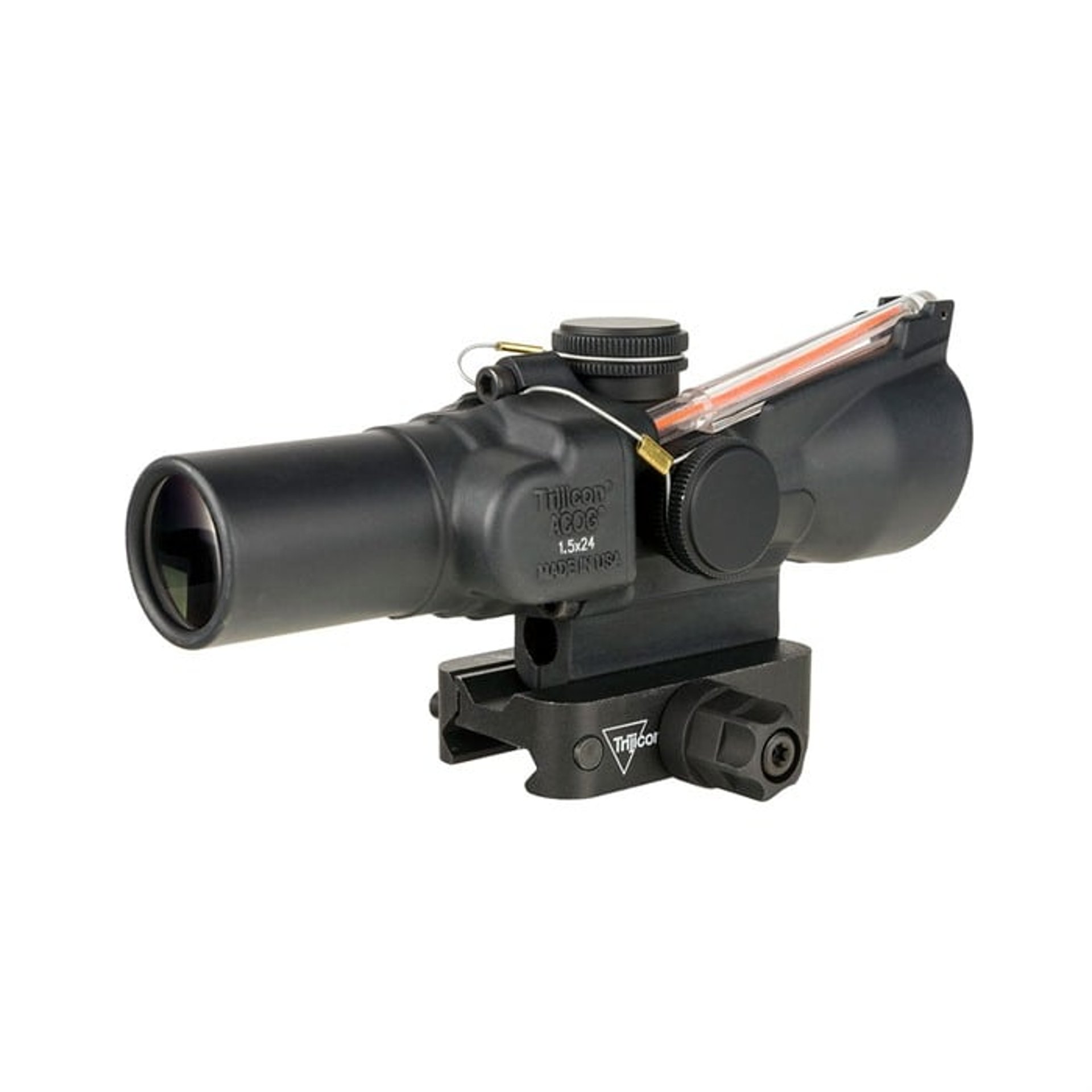

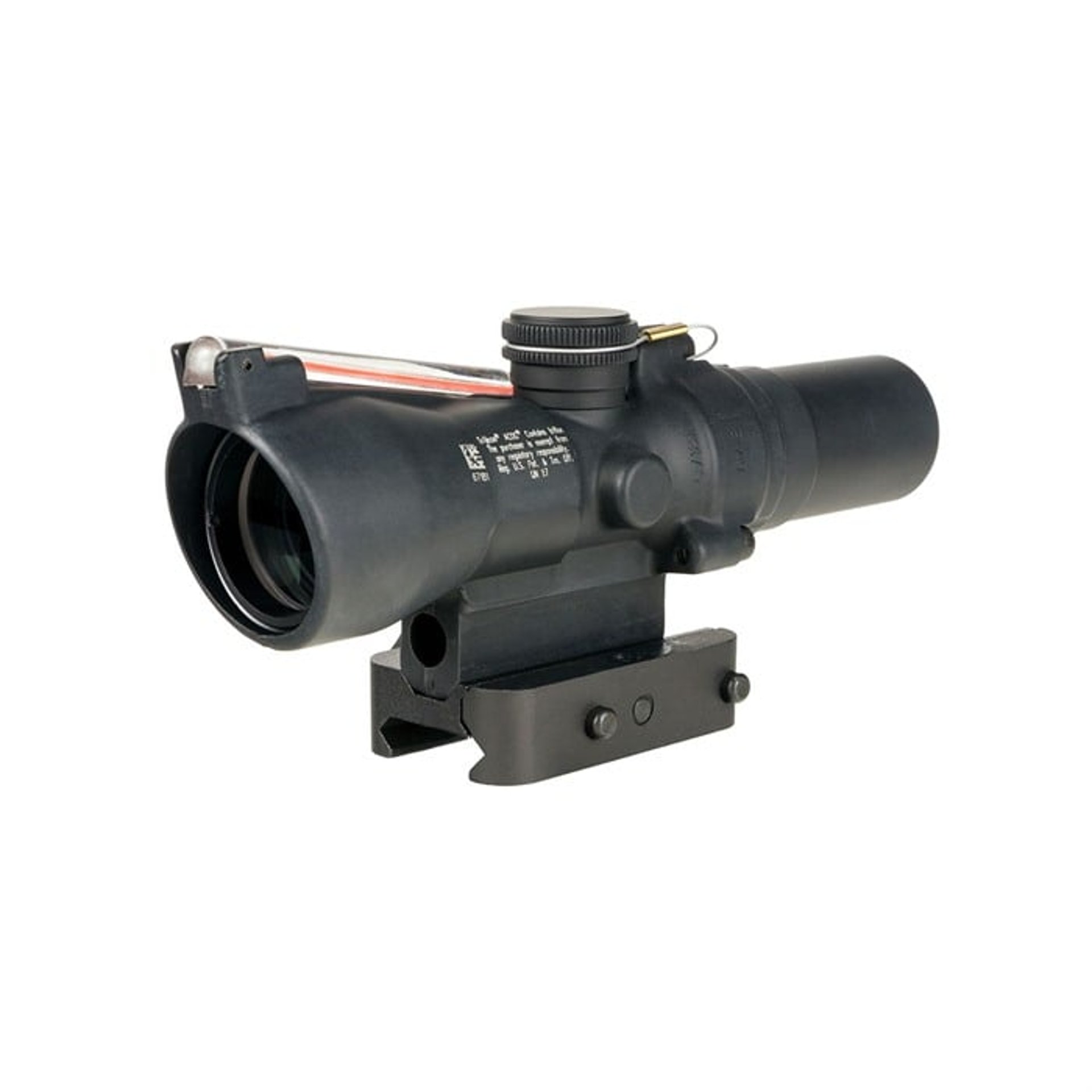

COMPACT ACOG® 1.5X24MM FIXED RIFLE SCOPE
If you’ve heard of the Trijicon ACOG® (Advanced Combat Optical Gunsight), you likely know about the legendary performance this platform offers. The ACOG 1.5x24 model, offers a battery-free dual illuminated reticle pattern that works in any lighting conditions, with the added freedom of eye movement afforded by a larger exit pupil and longer eye relief.
The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.
The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.
- Matte black anodized finish
- Made in the USA
Torque Spec (to rail):
- Spring Tension Only: 12-16 in. / lbs.
- Can be Tightened To: 44-66 in. / lbs
FEATURES:
ALWAYS ON, ALWAYS READY
Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
TAKE CONTROL
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
RUGGED, RELIABLE HOUSING DESIGN
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“BOTH EYES OPEN” DESIGN
“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
OUTSTANDING CLARITY
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
EXACT TARGET DISTANCES & HOLDS
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
COMBAT PROVEN
No other magnified optic has been used more in combat than the ACOG.
SHOCK-RESISTANT
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
WATERPROOF
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
INCLUDED IN BOX:
- Trijicon Q-LOC™ Technology Mount
- Scopecoat
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
SPECIFICATIONS:
- LENGTH: 5.8”
- WIDTH: 2.1
- HEIGHT: 2.6
- MAGNIFICATION: 1.5x

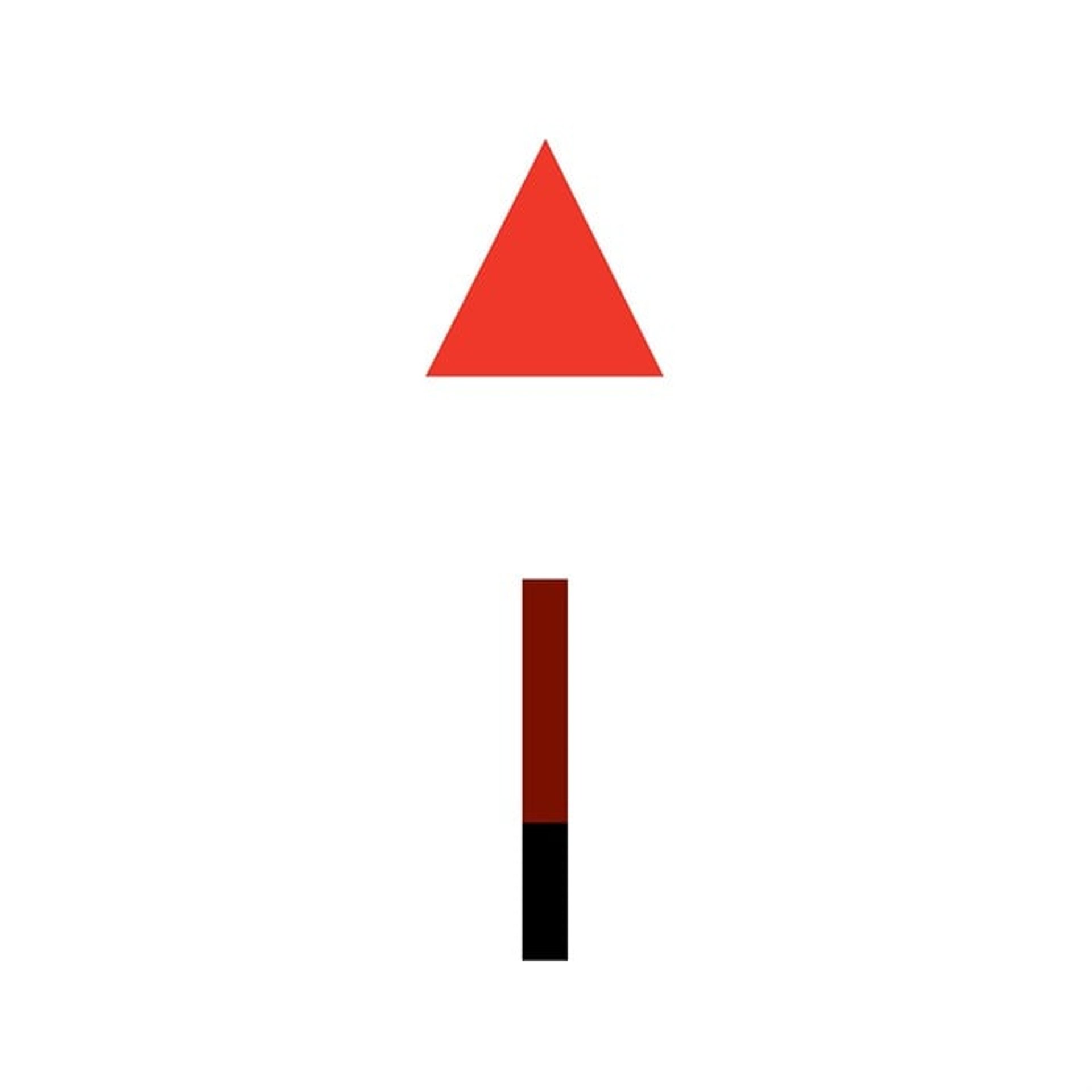

- RETICLE PATTERN: Triangle
- ILLUMINATION SOURCE: Fiber Optic & Tritium
- EXIT PUPIL: 3.6 in. (91.44mm)
- FIELD OF VIEW (feet): 25.6 ft. @ 100 yds. (8.53m @ 100m)
- HOUSING MATERIAL: Forged Aluminum
- WEIGHT: 8.4oz (238.14g)
- OBJECTIVE SIZE: 24mm
- DAY RETICLE COLOR: Red
- NIGHT RETICLE COLOR: Red
- EYE RELIEF: 3.6 in. (91.44mm)
- FIELD OF VIEW (degrees): 4.9°
- FINISH: Matte Black
- POWER SOURCE: Fiber Optic & Tritium
- ADJUSTMENT: 2 clicks per inch @100 yards
- BINDON AIMING CONCEPT™ (BAC): Yes
- MOUNT: Trijicon Q-LOC™ Technology Mount
