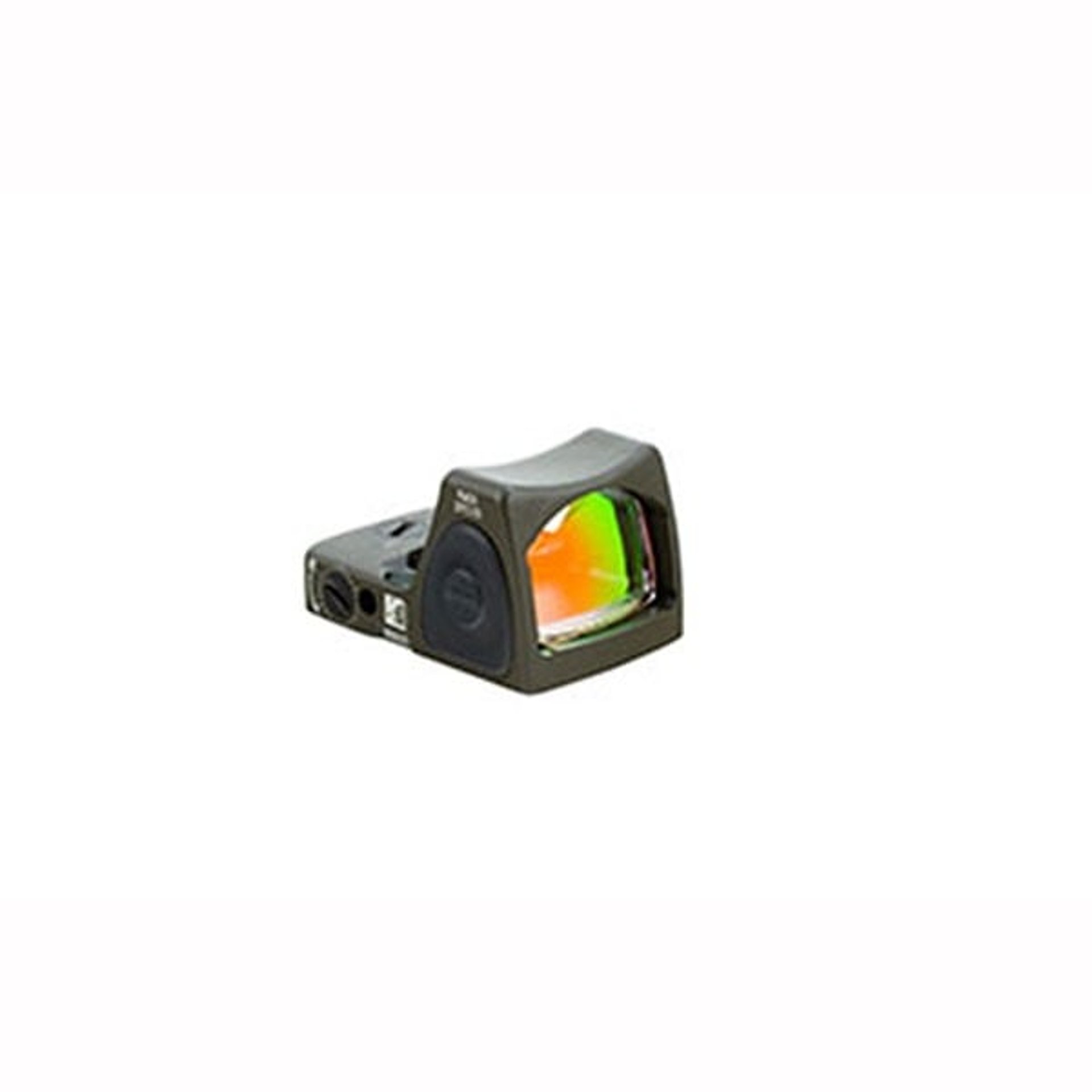

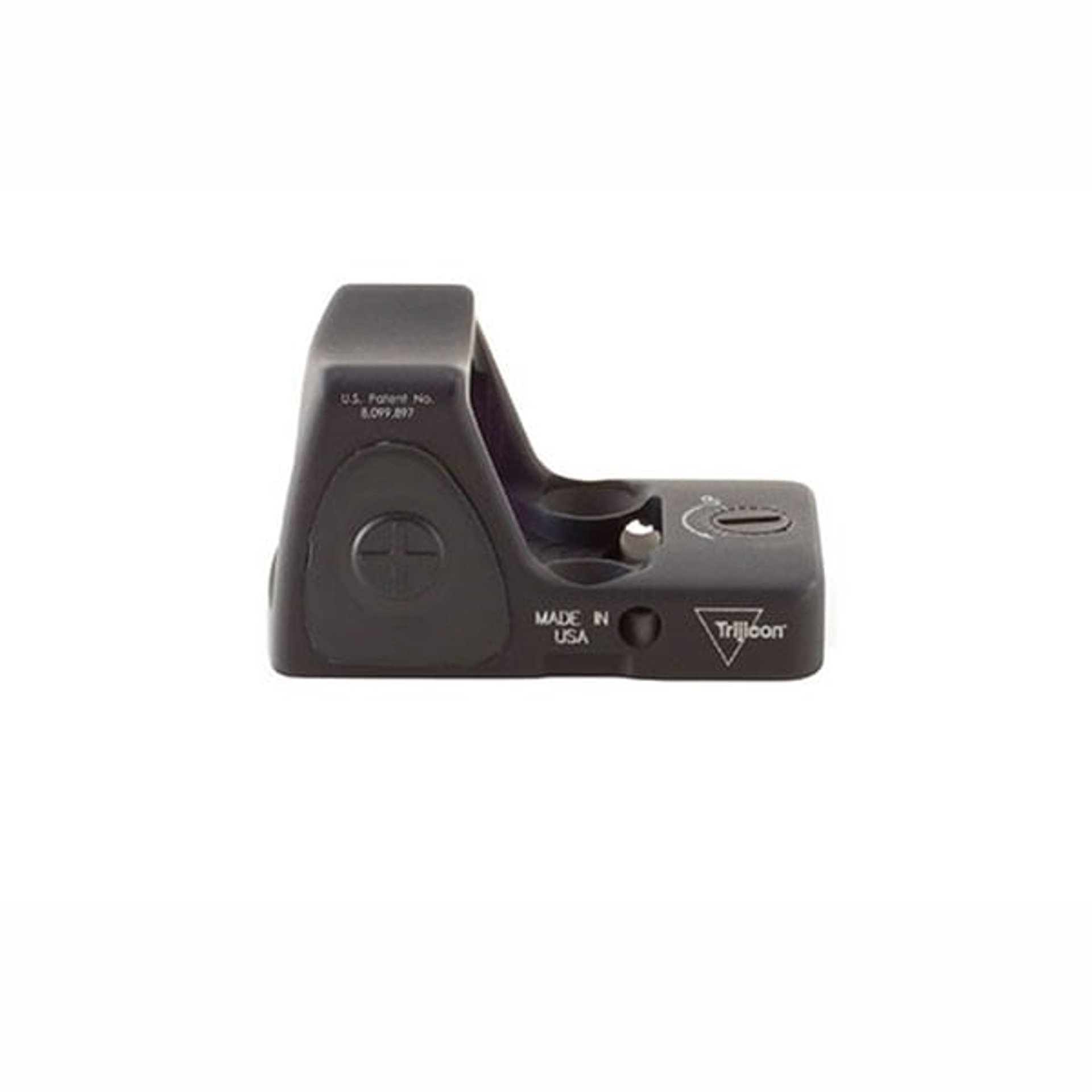

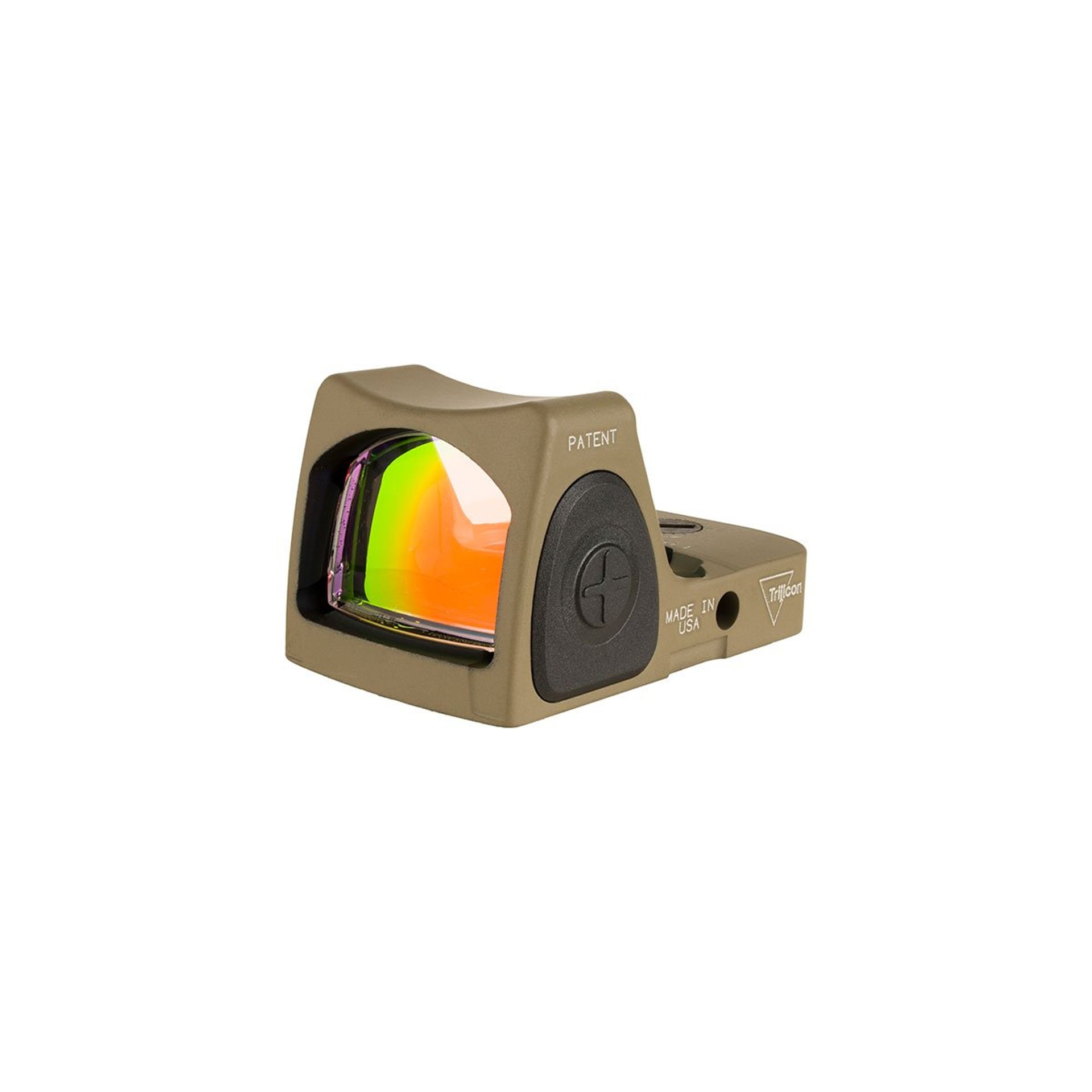

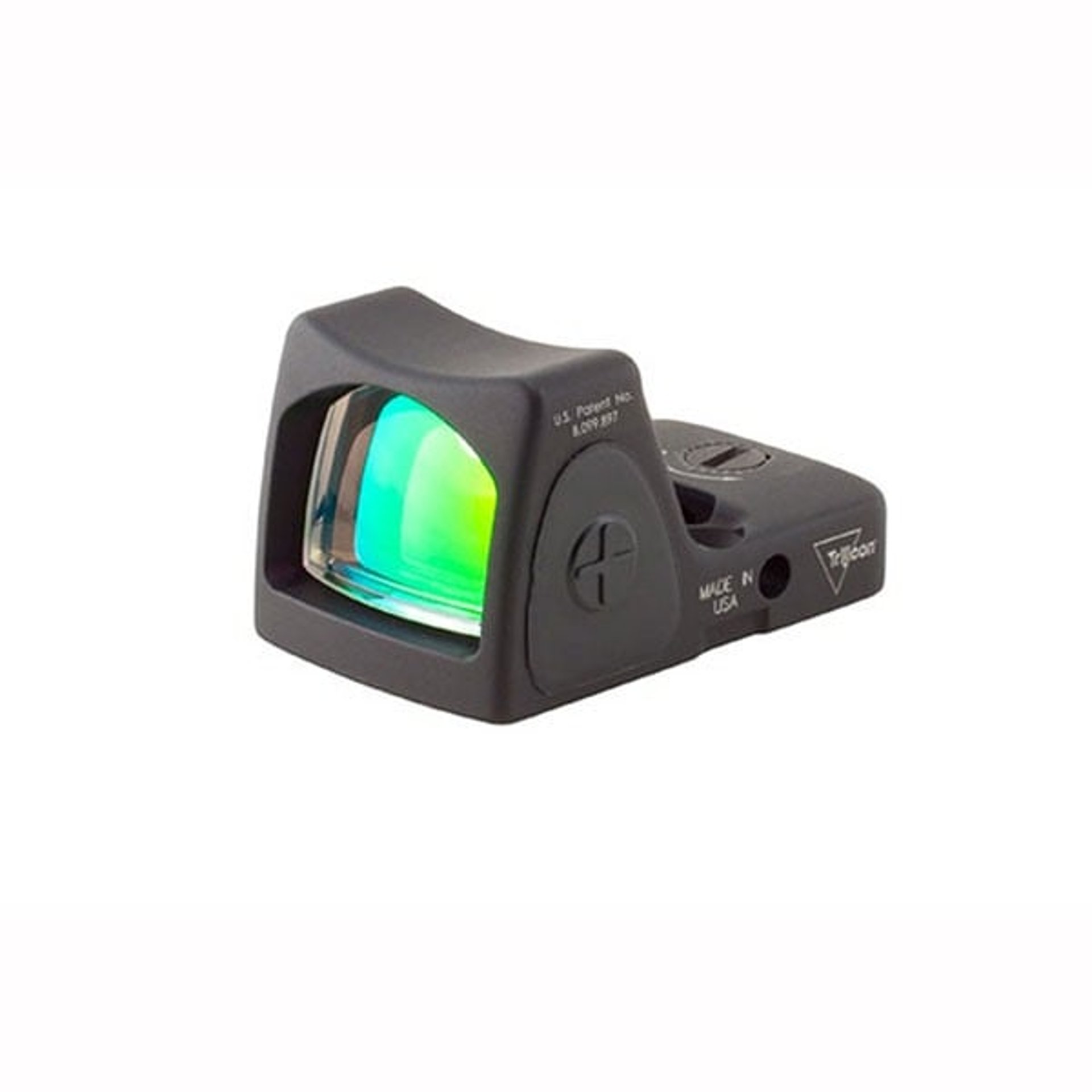

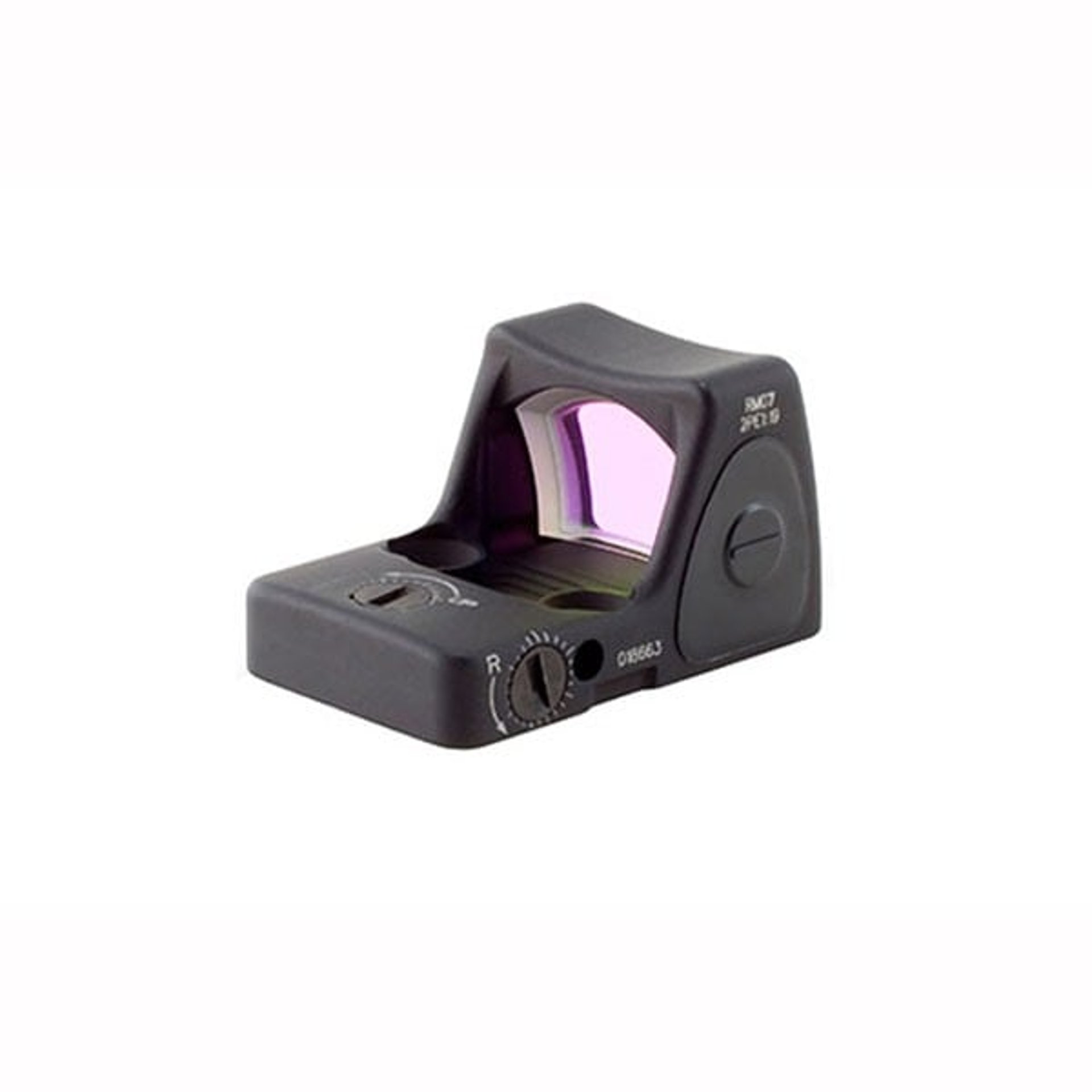

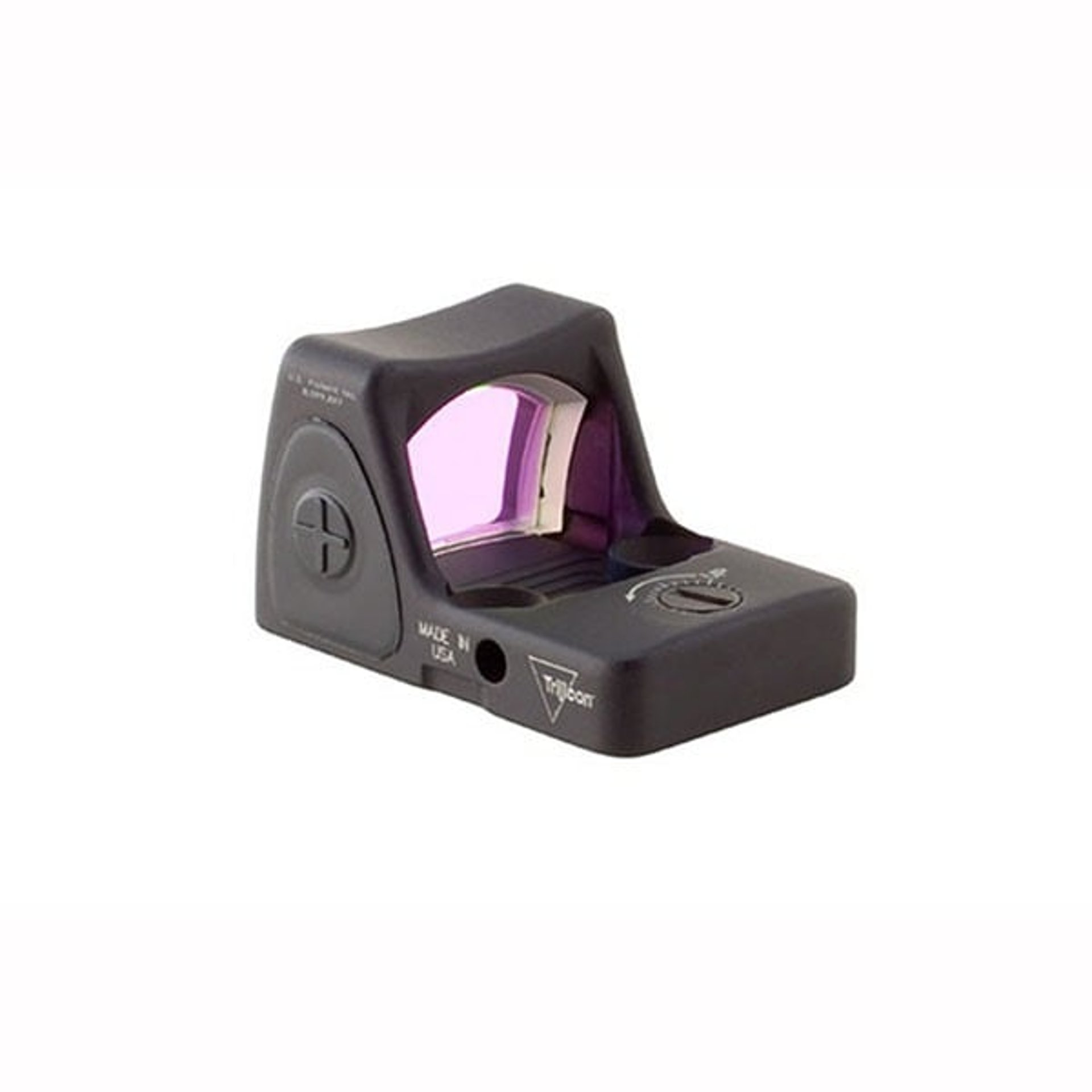

RMR TYPE 2 RM09 1.0 MOA LED RED DOT REFLEX SIGHT

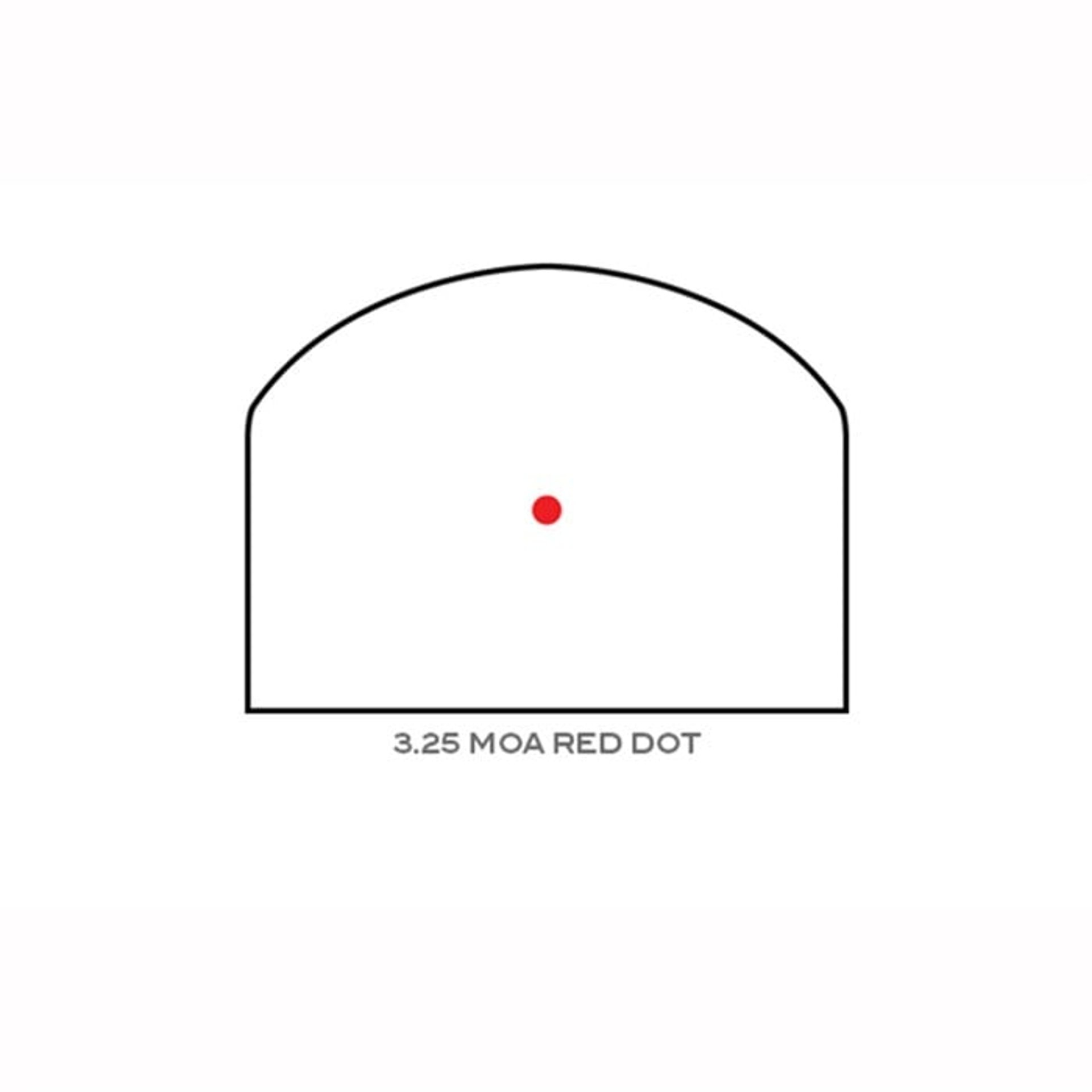

The RMR Type 2 is designed with a patented housing shape that absorbs impacts and diverts stresses away from the lens to increase durability. It also offers redesigned and upgraded electronics that have been proven to perform when mounted on slide ride pistols and other small arms. It’s suitable for military, law enforcement, concealed carry self-defense, target shooting, and hunting applications. The RMR® Type 2 Adjustable LED sight puts the illumination control in the user’s hands. Easy-to-use buttons on the sides of the optic allow the user to adjust the illumination brightness, toggle between manual and automatic modes, and power down the RMR for storage. The automatic mode functions the same as the LED RMR version. If a manual mode has been chosen, the RMR will remain in manual mode for 16.5 hours following the last push of a button. After 16.5 hours, the optic will default back to the automatic mode so that the RMR will be ready for your next mission or task. All RMR Type 2 Adjustable LED sights are compatible with night vision devices, with the 3.25 dot size being the most popular. The user can also lock out the buttons so that the RMR functions in automatic mode only. This ensures that inadvertent button pushes do not cause a loss of aiming solution. The 1.0 MOA dot in the RM09 gives the user our smallest dot available in our Adjustable LED models. The fine dot allows for shooting more accurately at greater distances and is a great solution for long range pistols, rifle, and carbine applications.
FEATURES:
OUTSTANDING DURABILITY
Unique, patented housing shape diverts the force of an impact away from the lens, greatly increasing durability.
DUAL-ILLUMINATED OPTION
Tritium-phosphor lamp illuminates reticle in low-light conditions and fiber optics automatically adjust the brightness level and contrast to available light conditions.
BUILT TO HANDLE THE WORST
Designed to be waterproof to 20 meters (66 ft.)
BATTERY CONSERVATION MODE
Automatically adjusts aiming dot to ambient lighting conditions after 16.5 hours (Automatic LED & Adjustable LED RMR only).
TRUE-COLOR, MULTI-COATED LENS
Creates a wide-band light transmission for minimal change in target area color.

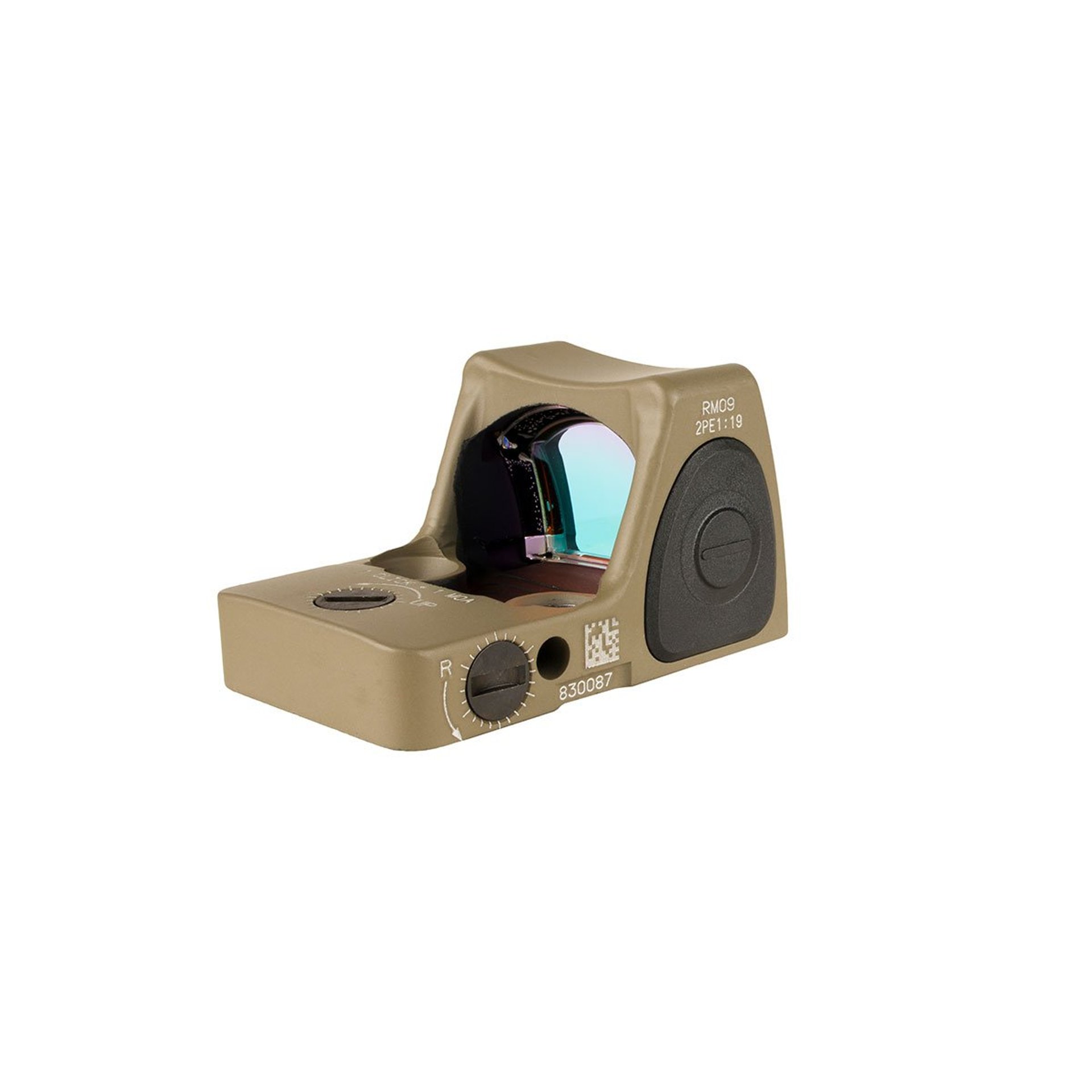

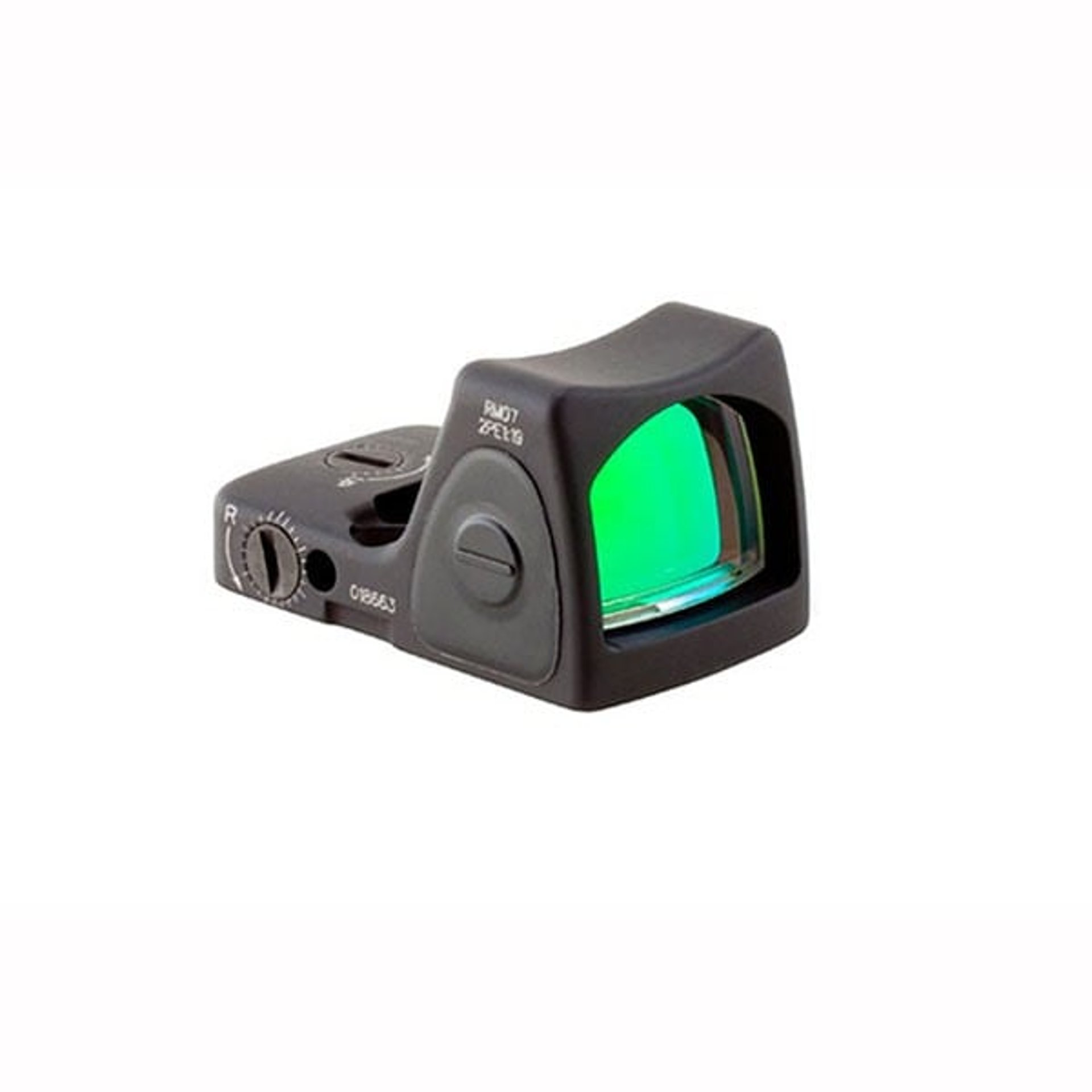

EASILY ADJUSTABLE WINDAGE/ELEVATION
No need for special tools. 1 MOA per click.
ADJUSTABLE LED OPTION
Easy-to-use buttons on the sides of the optic allow the user to adjust the illumination brightness, toggle between manual and automatic modes, and power down the RMR® for storage.
MULTI-PLATFORM-FRIENDLY
Multiple primary applications including rifle, pistol, shotgun and carbine, or use as a secondary sight with a magnified optic.
UPGRADED ELECTRONICS
Ruggedized battery contacts and electronics ensure performance and survivability in harsh environments (Automatic LED & Adjustable LED RMR only).
SPECIFICATIONS:
- Length x Width x Height: 1.8 in x 1.1 in x 1 in (45.72mm x 27.94mm x 25.4mm)
- Weight: 1.2 oz. (34.02g)
- Magnification: 1x

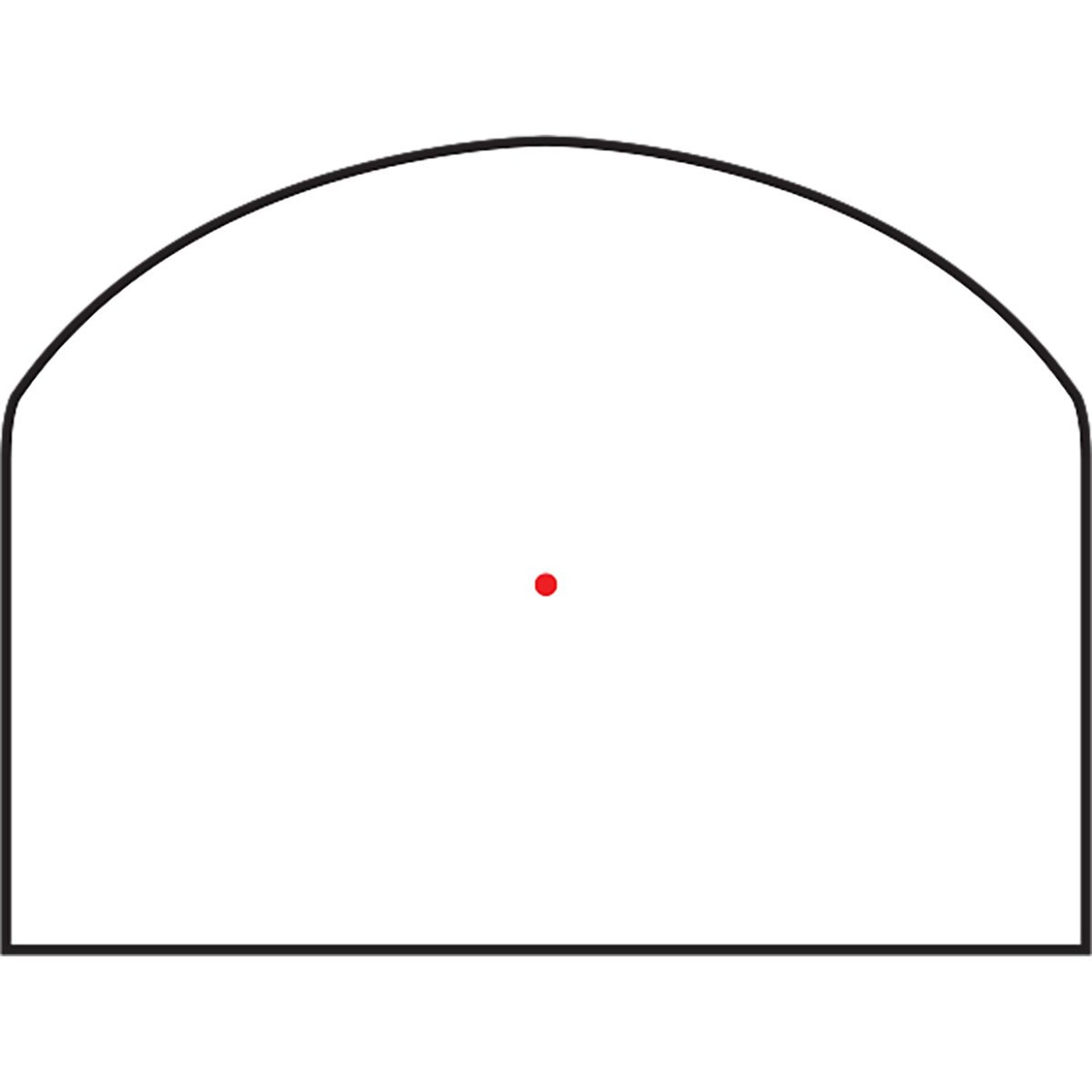

- Reticle Pattern: 1.0 MOA Dot
- Day Reticle Color: Red
- Night Reticle Color: Red
- Bullet Drop Compensating (BDC): No
- Bindon Aiming Concept™ (BAC): No
- Illumination Source: LED
- Illumination Settings: Automatic & 8 Adjustable Settings
- Power Source: CR2032 Lithium Battery
- Battery Life: Over 4 years of continuous use (when used at 70ºF (21ºC)) at setting 4 of 8. *Extreme temperatures (high or low) will affect lithium battery performance.
- Adjustment: 1 MOA Per Click
- Mount: Not Included
- Housing Material: Forged Aluminum
- Finish: Matte Black
NOTE: The RMR® Type 2 has identical physical dimensions and mounting footprint to that of the original RMR Type 1. If selecting an RMR for mounting on the Glock® MOS, Springfield® OSP, Walther® PDP, or H&K® VP9 Optics Ready, a Trijicon RMR® mounting kit (AC32064) is required.
