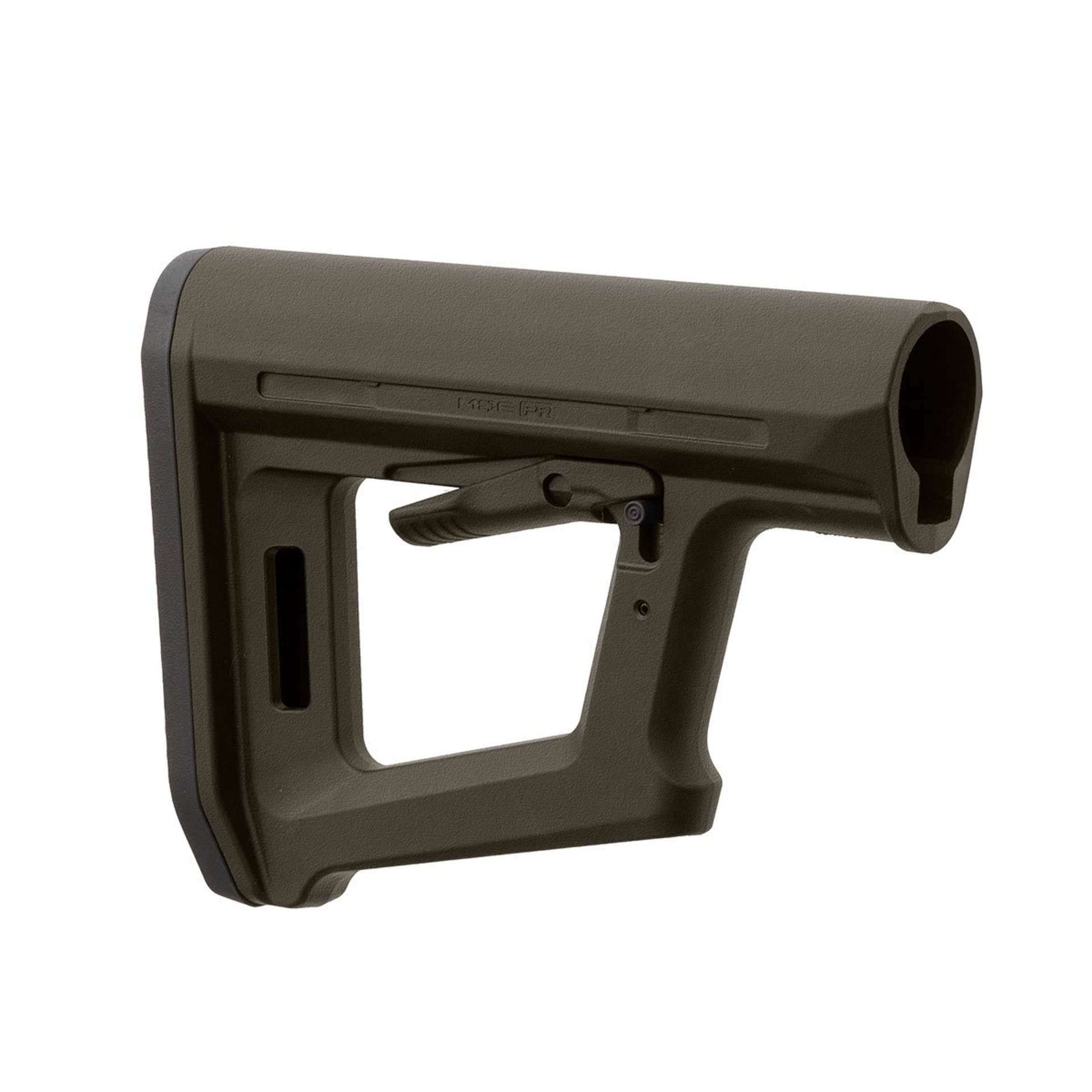

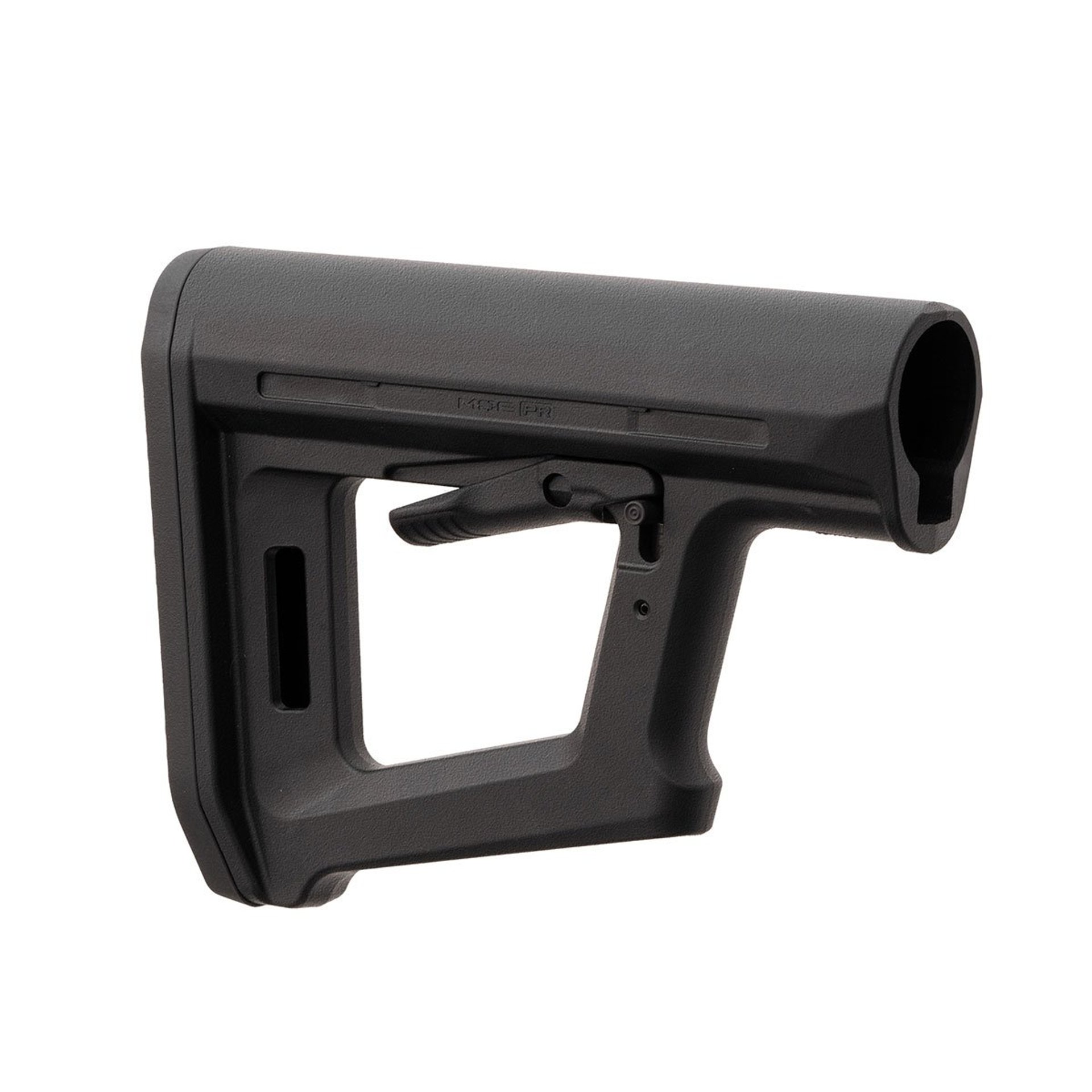

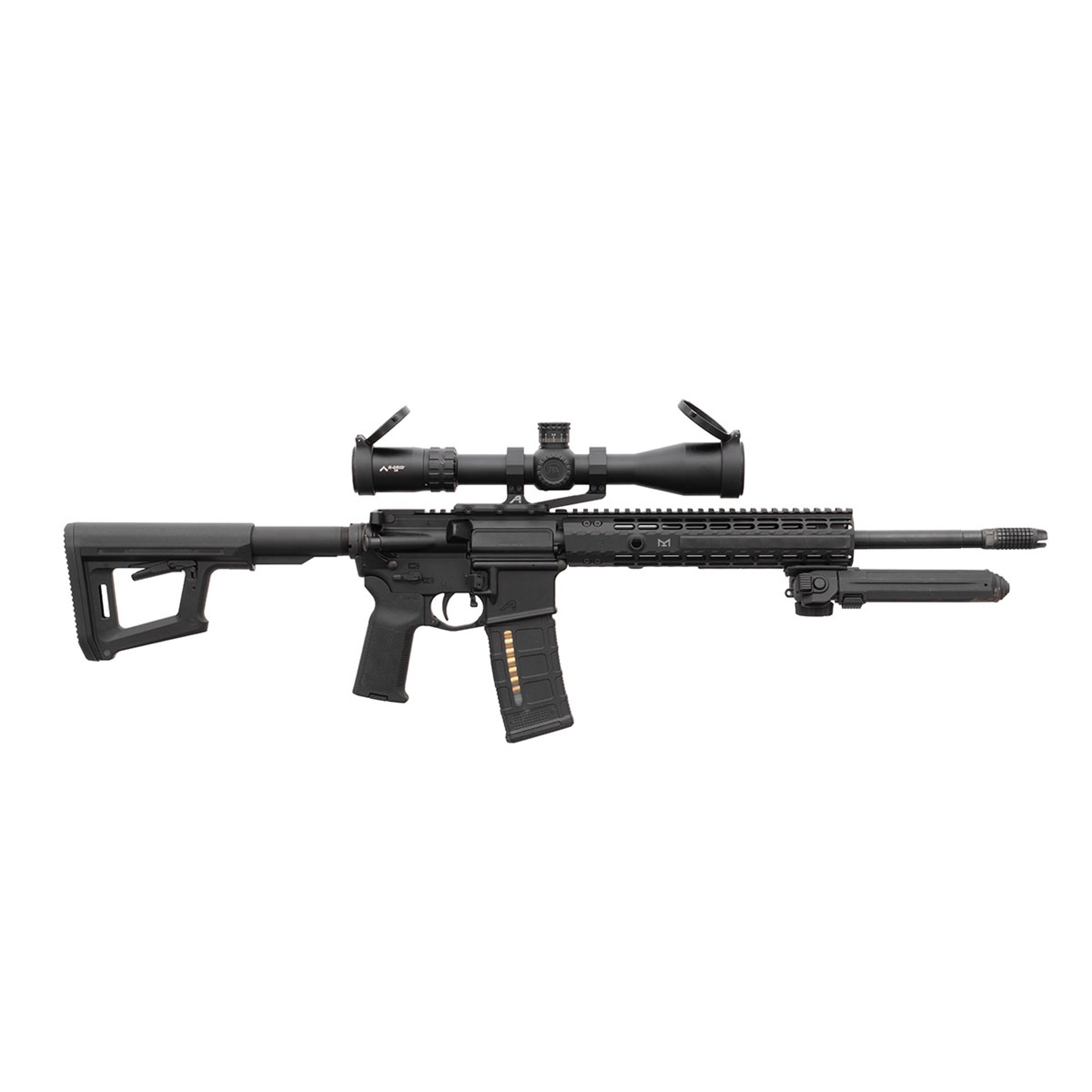

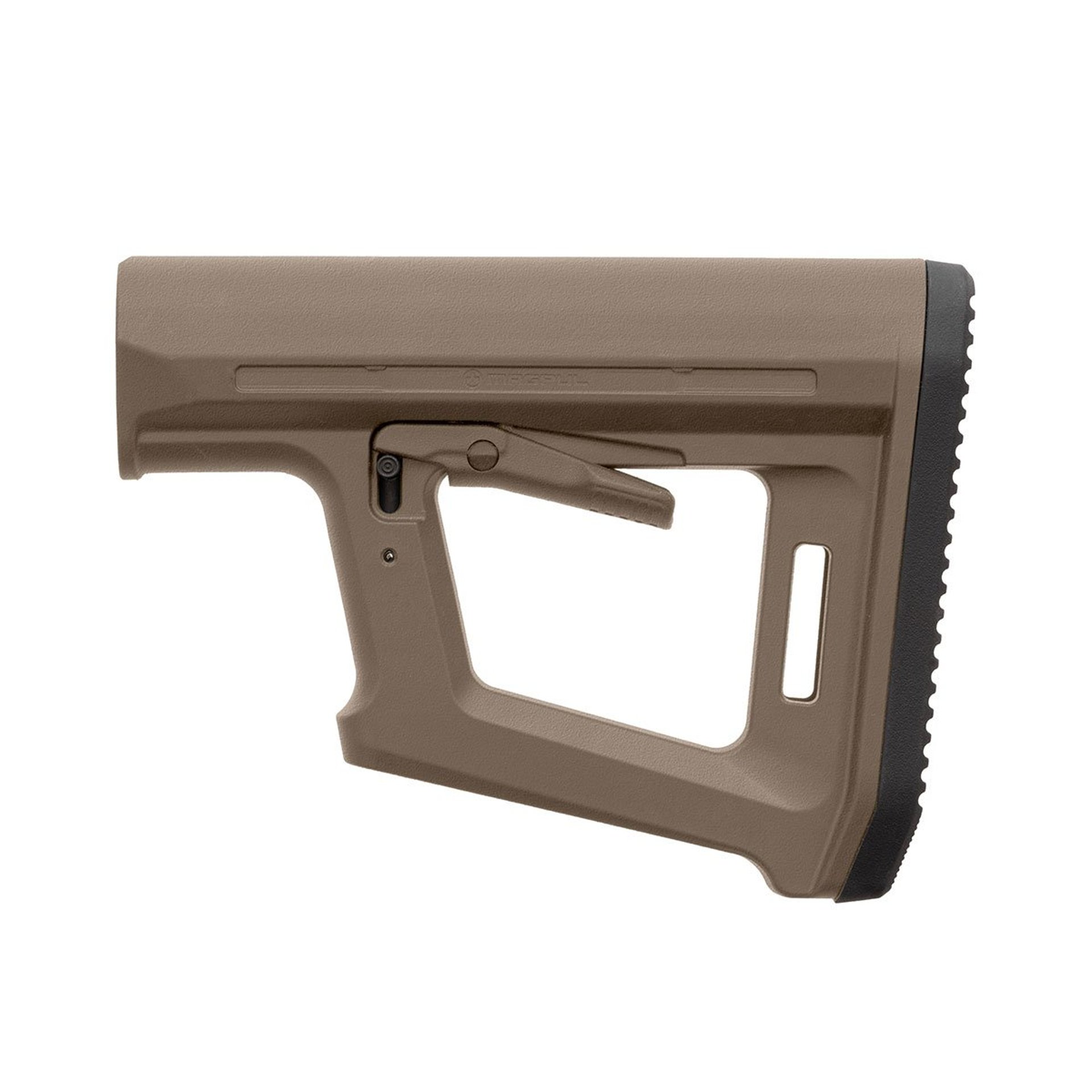

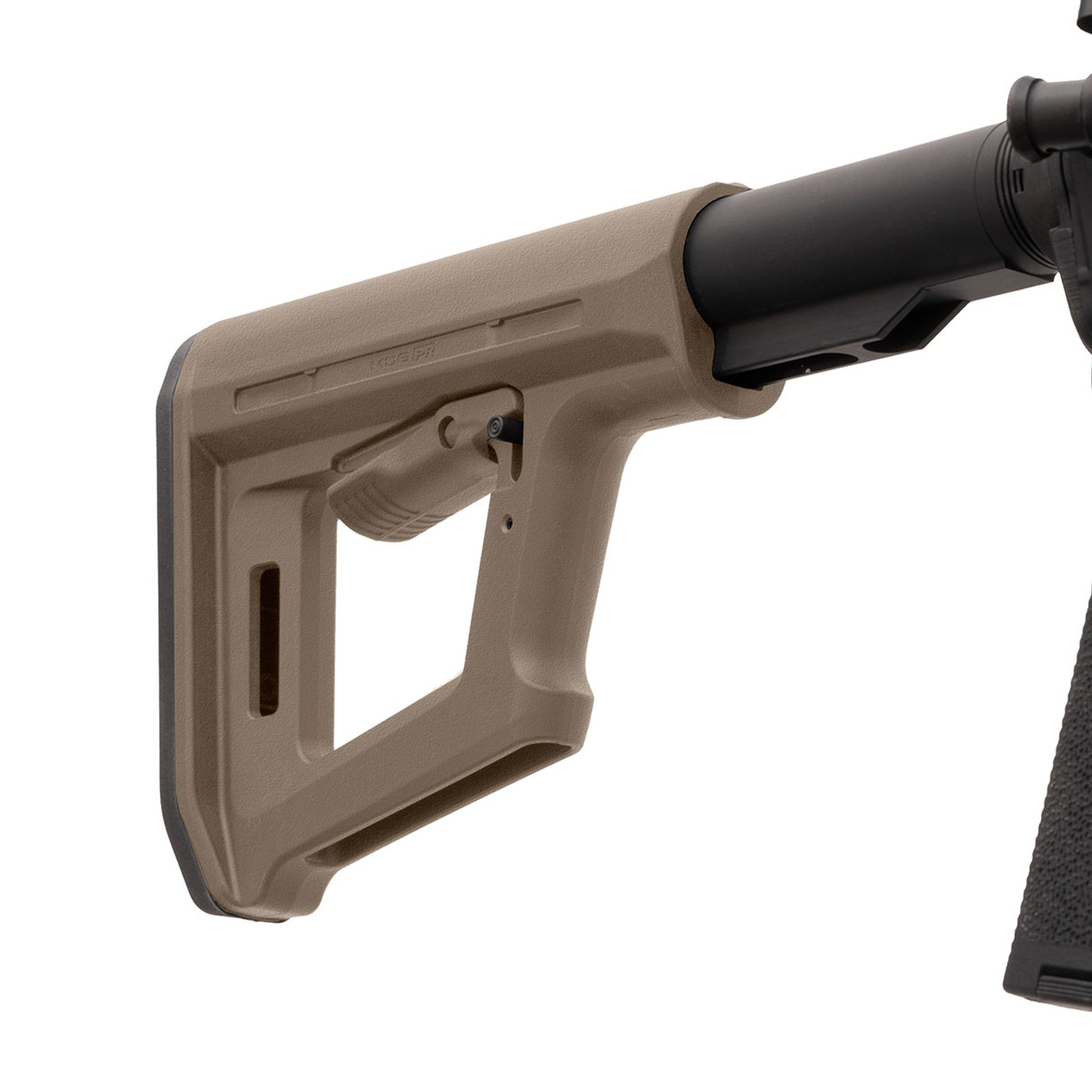

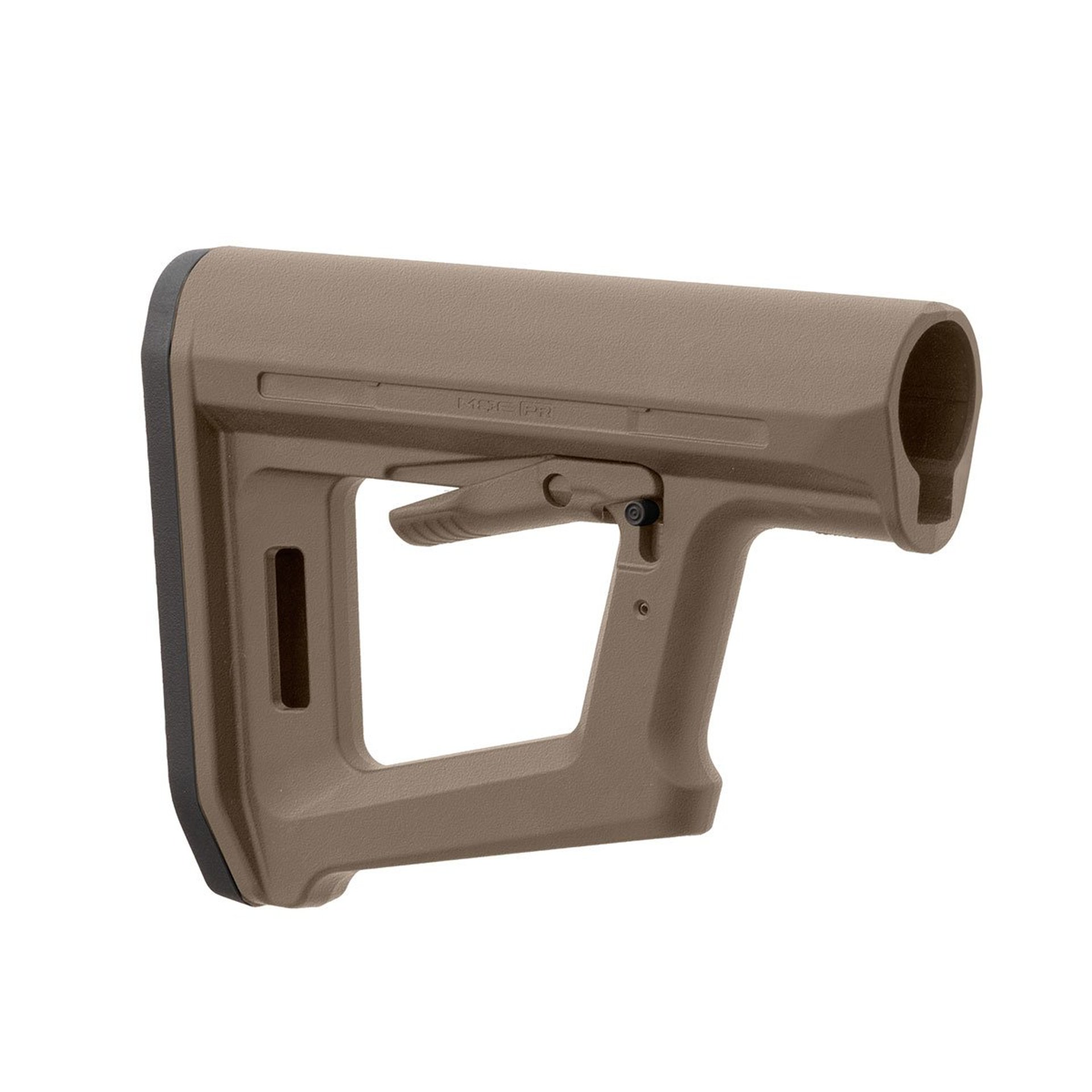

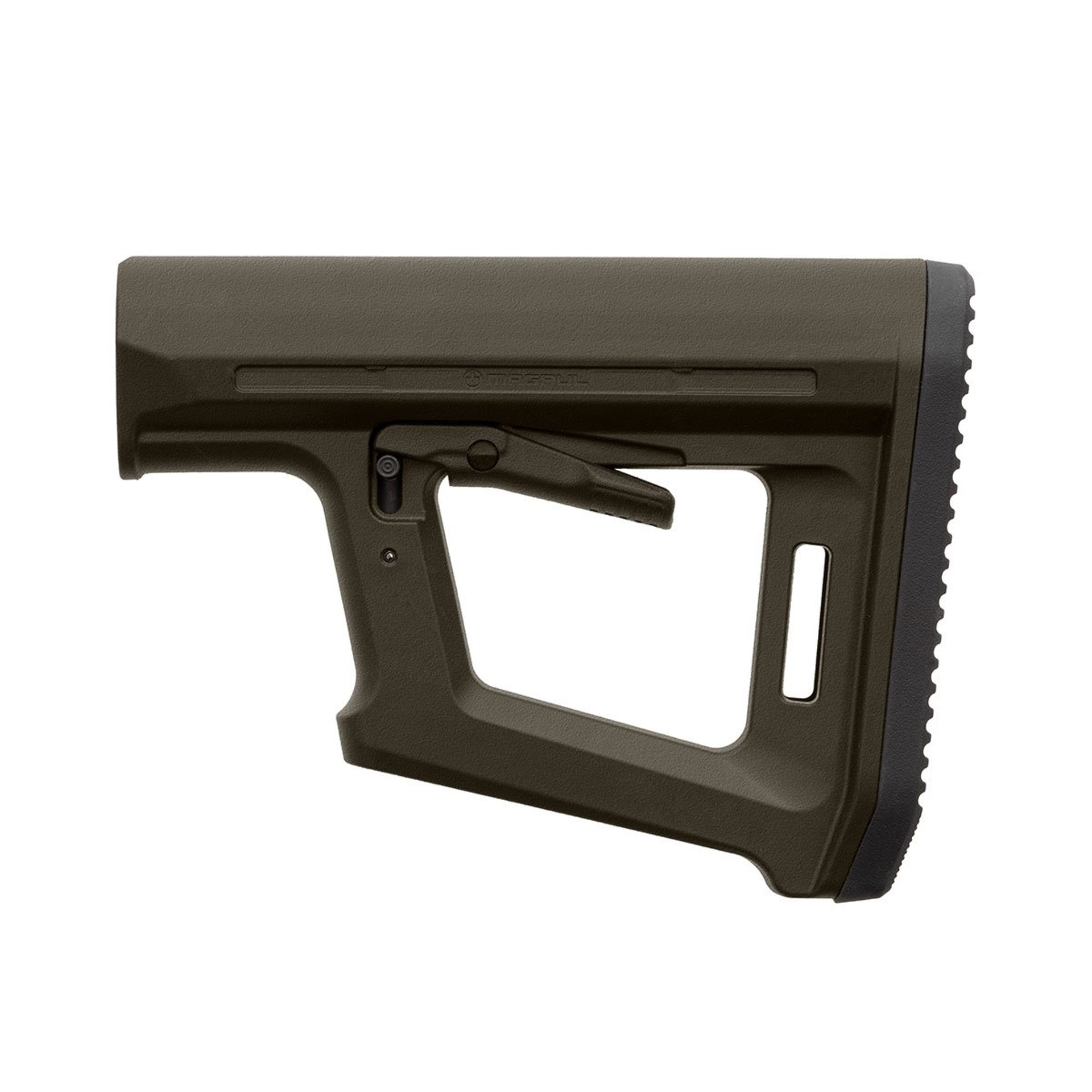

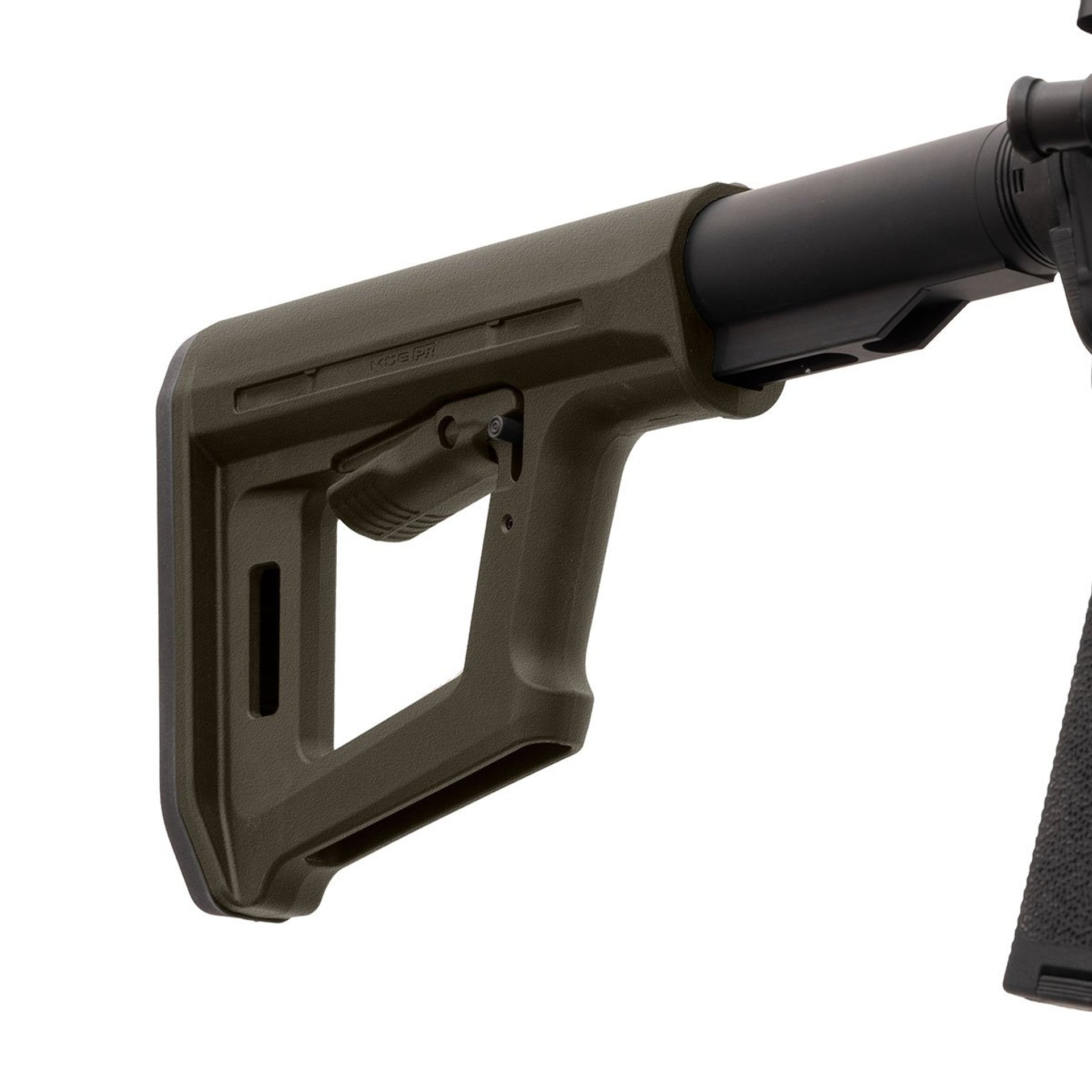

The MOE PR is a full-size carbine stock that blends the simplicity of the legacy MOE Carbine Stock with design lines reminiscent of the PRS® Lite. These similarities naturally incorporate some of the features found on the PRS Lite, including a rest on the front edge of the stock for the support hand that allows shooters to apply rearward pressure to drive the stock securely into the shoulder for precise shot placement, and the bottom of the stock’s frame also serves as a bag rider.
Other features include a sloping cheek weld that combines a slim profile with user comfort, and a non-slip, rubber butt-pad that increases impact protection and allows for easier shoulder transitions and better fit with body armor. With an M-LOK slot molded into the rear of the stock, shooters can attach a sling using the slot as a footman’s loop or by adding the Magpul M-LOK® QD Sling Mount to one or both sides of the M-LOK slot.
FEATURES

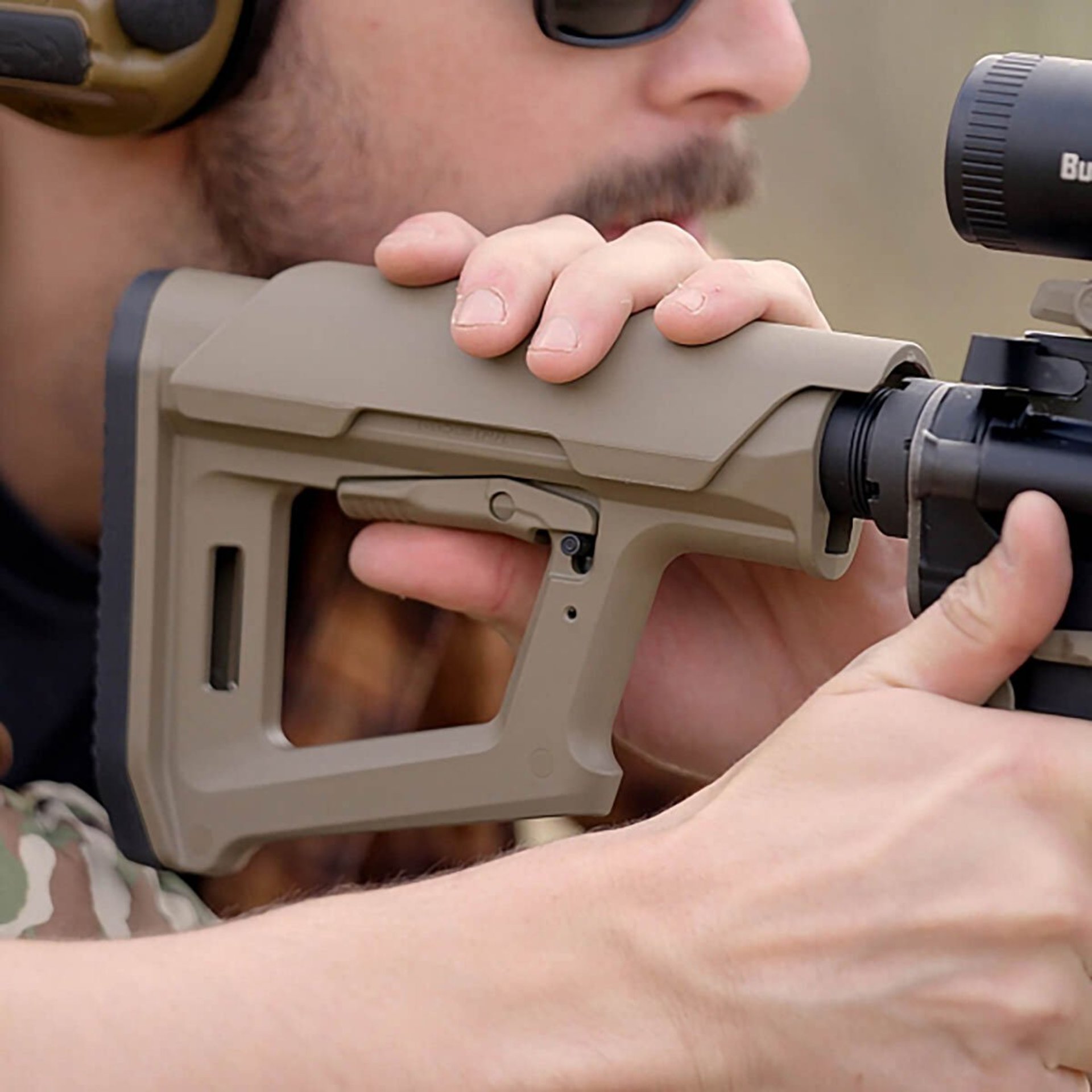

- Support-hand rest on front strap to minimize movement

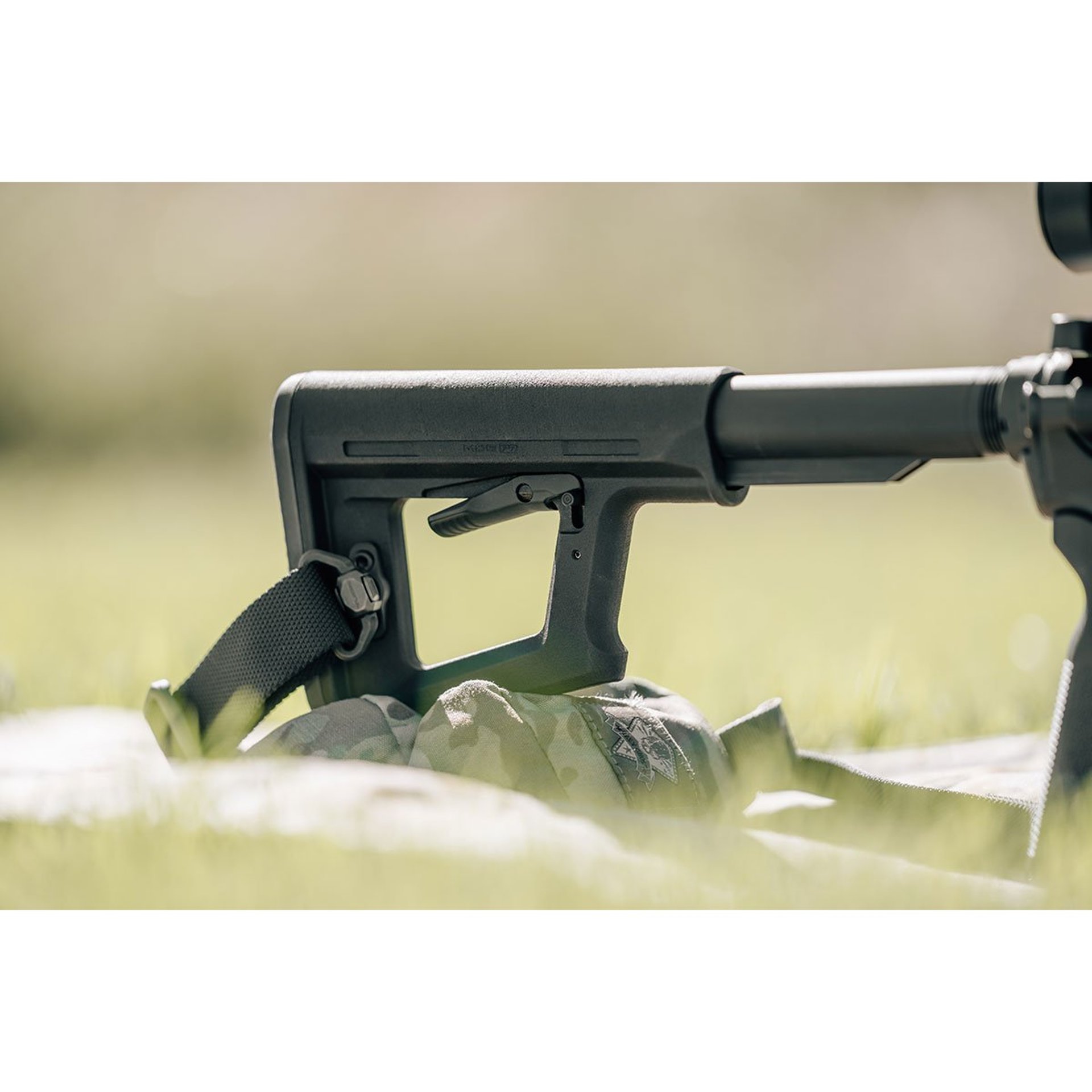

- Bottom support acts as a bag rider for shooting rests
- Non-slip rubber butt-pad with rollover on the toe
- Sloping cheek weld combines a slim profile with user comfort
- Compatible with Magpul CTR® Cheek Risers for use with a fully extended stock and on rifles without rear-facing charging handles
- Shielded, ambidextrous release latch prevents snagging and accidental operation
- Premium chrome-silicon lock spring provides positive locking and long service life
- Compatible with Magpul ASAP®, ASAP® QD and other receiver-mount sling attachments
- Rear M-LOK slot functions as a footman's loop for direct sling attachment, and can also accept the optional M-LOK® QD Sling Mount for push-button swivels
- Side mounting slots accept optional CTR® Cheek Risers for NON AR15/M4 applications
- Compatible with MOE SL® Enhanced Rubber Butt-Pad, 0.70"" for additional LOP
- Made in the USA
SPECS
- Platform: AR10, AR15, M4, M16, M110, SR25
- Compatibility: Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others*
- LOP, M4 Collapsed: ~11.0 in.
- LOP, M4 Extended: ~14.3 in.
- LOP Adjustment Range: 3.3 in.
- Length, max: 7.4 in.
- Height, max: 5.3 in.
- Weight: 11.2 oz.
- Weight, w/ receiver extension: ~15.2 oz.
- Width, max: 1.6 in.
NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. The MOE PR Carbine Stock will only fit with the common Mil-Spec tube.
Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.
