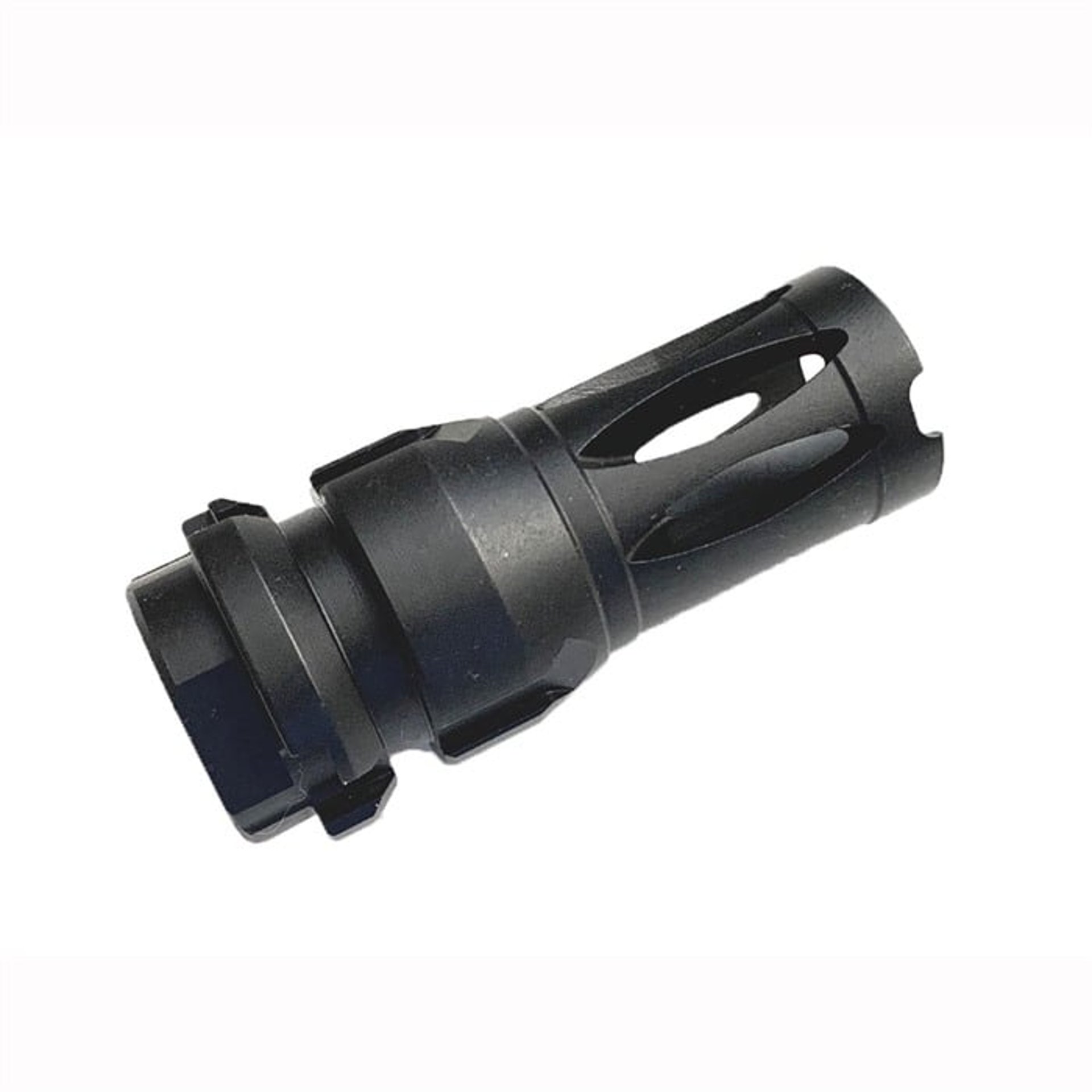

6315KM is the Dead Air sound suppressor Keymo mount of their 6315 (1/2x28) flash suppressor, compatible with .223 Dead Air sound suppressors with Keymo interface.
6315KM-L (Long) is the Dead Air sound suppressor Keymo mount of our 6315 (1/2x28) flash suppressor designed for 13.9" barrels, compatible with .223 Dead Air sound suppressors with Keymo interface. 6315KM-L is 2.7" long, and can bring a 13.9" barrel to non-NFA length (16.1", assuming 0.5" of threading on the barrel)
FCD are a big fan of the A2 flash suppressor / compensator (compensator is the Army TM 9-1005-319-23&P, Air Force TO 11W3-5-5-42, Navy SW370-BU-MMI-010 designation). It is inexpensive, and does a decent job of what's asked of it. FCD went through a phase of expensive and fancy brakes and comps, all of them have worked well but FCD know they're not practical for defense/duty ARs. The flash, noise and concussion they produce are the result and byproduct of reducing the felt recoil (brakes) and keeping the muzzle down (comps).
Threaded for 1/2x28, precision machined from solid 4140 steel bar stock, heat treated and QPQ coated, it is probably the finest A2 style comp/flash suppressor ever produced. Its 3 and 9 o'clock ports are 25% smaller (shorter and narrower) than the other three upward facing ports so more gas is vented through the upward facing ports, it is a superior compensator to the A2, its flash suppression is equal to that of an A2. 6315KM is compatible with Dead Air 5.56mm sound suppressors. Note that since 6315KM does have flash suppression capability equal to that of an A2, it is to be treated as a flash suppressor for states that feel threatened by them, such as CA, MA and NY.
Since FCD now have more room in front of the 3 and 9 o'clock ports, FCD incorporated wire cutter alignment notches ahead of these ports. The wire cutter notches will probably earn some flak and endless ribbing about having to cut wires at the range while punching holes on paper, but FCD always design combat features into their products, they're there, you don't have to use them :)
6315KM is a light and short blended performance muzzle device. It provides 15 to 20% better muzzle rise compensation than the A2, and what is impressive is that it does so without sacrificing its flash suppression capabilities, or creating more noise and concussion.
The number 63 in its name pays homage to the Stoner 63 light machine gun, the shape of its ports draws heavily from the Stoner 63 LMG's flash suppressor design. 6315KM is a part of Forward Controls' x15 muzzle device series. KM denotes its Keymo Dead Air sound suppressor capability.
Forward Controls Design is an authorized licensee of Dead Air suppressor mounts.
Proudly designed and made in USA.
- Machined in 4140, heat treated and QPQ coated.
- 6315KM: 2.38” / 3.97oz / Includes a single use packet of Rocksett
- 6315KM-L (Long): 2.7" 6315KM Long is designed for 13.9" barrels / 3.8oz
- Drilled for pinning
- Recommended torque: 25ft lbs +/- 5
CAUTION!
Forward Controls Design will no longer replace muzzle devices damaged from improper installation.
6315KM has wrench flats for torquing it on the barrel. Do not use a screwdriver and insert it into one of its ports to torque it. With 30ft lbs of torque, using a rod or screw driver will cause damage to the muzzle device.
Screw driver not included (but seriously, use a 3/4 wrench, armorer's wrench, or JMW, not a screw driver.)
