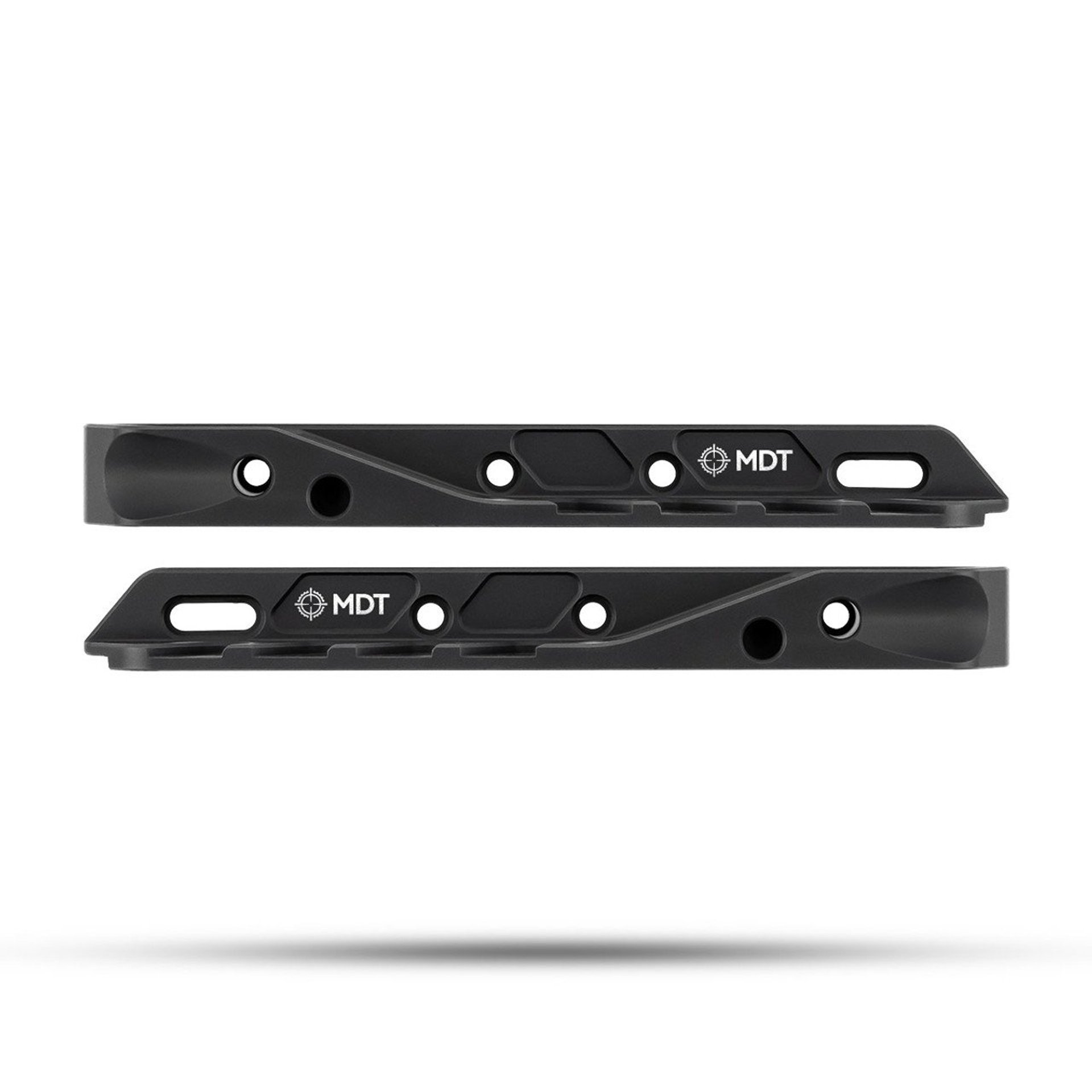

MDT BAKER WINGS

DESCRIPTION

The MDT M-LOK Baker Wings were designed and tested by Keith Baker, an MDT Prostaff shooter and multi-national level PRS match winner. These wings are designed to provide the shooter with more stability when shooting off of an unstable position and utilizing a front bag, as well as providing more control surfaces for the shooter's support hand. In short, these wings will help you, a.) control the tracking of the recoil on your rifle, b.) maintain better control on the front of your rifle and c.) provide a wide and flat contact surface on a bag!

SPECIFICATIONS

• Integral QD flush cup to attach slings and other accessories

• 4 mounting holes spaced 160 mm (6.33") apart, requiring the use of 4 full M-LOK slots to ensure proper mounting

• Rear hole is slotted to allow the wings to be run further back on R700, Tikka and Savage inlet ACC Chassis

• Comes as a pair for left and right sides

COMPATIBILITY

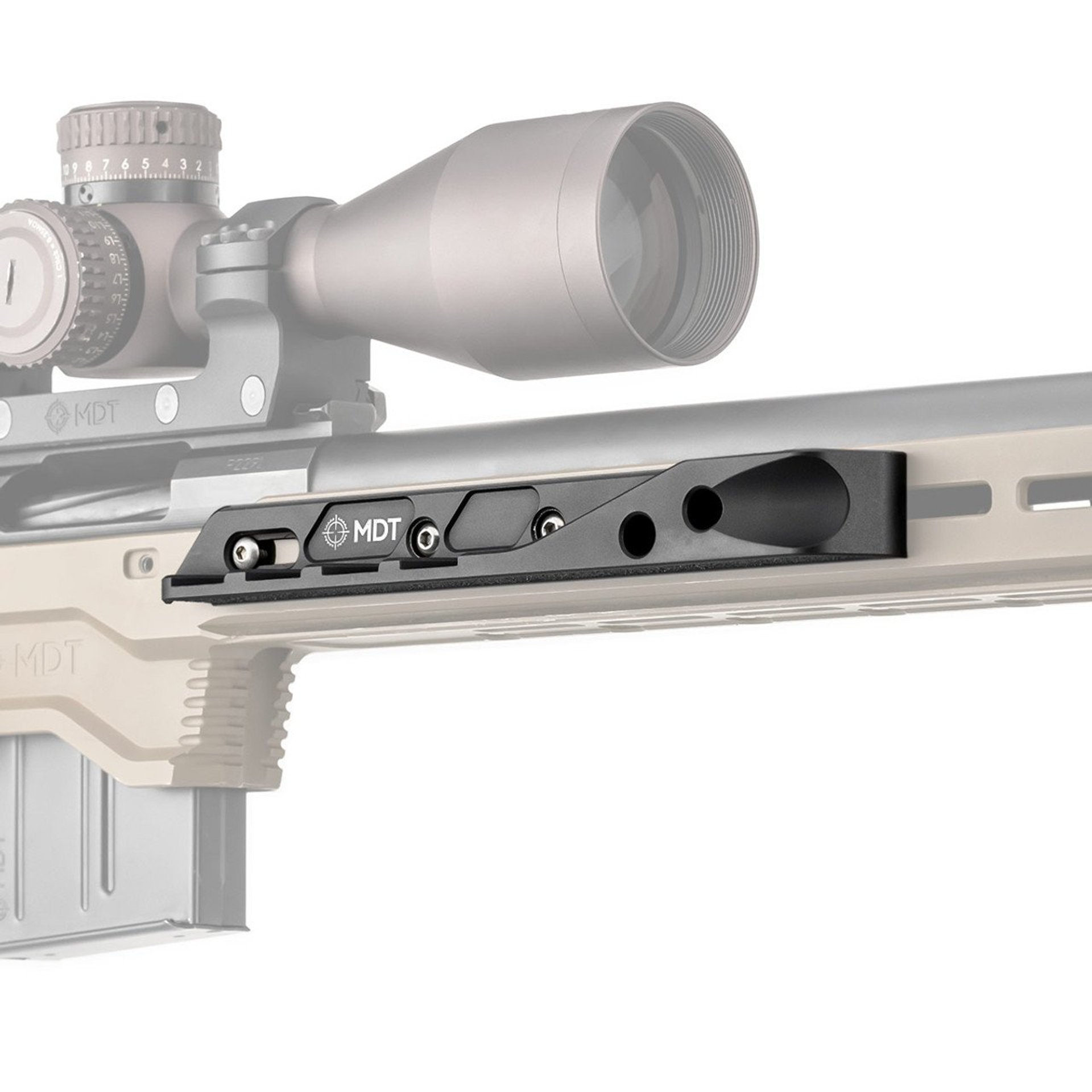

• This product has been designed to fit any chassis or stock that is M-LOK compatible. These will fit on the MDT ACC, ESS, TAC21 (M-Lok forend) and LSS-XL Gen2 chassis.

• These have also been tested on other, commonly used competition chassis as well as precision AR-10/15 M-Lok forends.

• There is an additional cut out on the rear of each wing to allow clearance for an AR-15 front takedown pin.

HARDWARE

• 6x #10-24x1/2" Button Head Cap Screws

• 2x #10-24x3/8" button head cap screw

• 8x standard M-LOK T-Nuts

• Integral grip tape on underside for added traction

DIMENSIONS

• 229 mm (9") long x 24.6 mm (0.97") tall x 24.6 mm (0.97") wide (each)

• Add's roughly 2" width to your forend

• Weight: 0.84 lbs / 382.7 g

• Material: 6061-T6
