BROWNELLS - SHORT, PILOTED BARREL LINER DRILL BIT

5 Reviews
Caliber
Brownells #
361504008, 361504013
MFR #
8MM SHORT LINER DRILL, 13 MM BBL LINING DRILL
UPC
050806030336, 050806030343
$100.42 - $119.99
Coupon Code
Purchase Limit Help

In stock

NOTIFY ME WHEN IT'S BACK IN STOCK
Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}

How To Buy Guns Online

International purchase information

What is the BROWNELLS - SHORT, PILOTED BARREL LINER DRILL BIT?

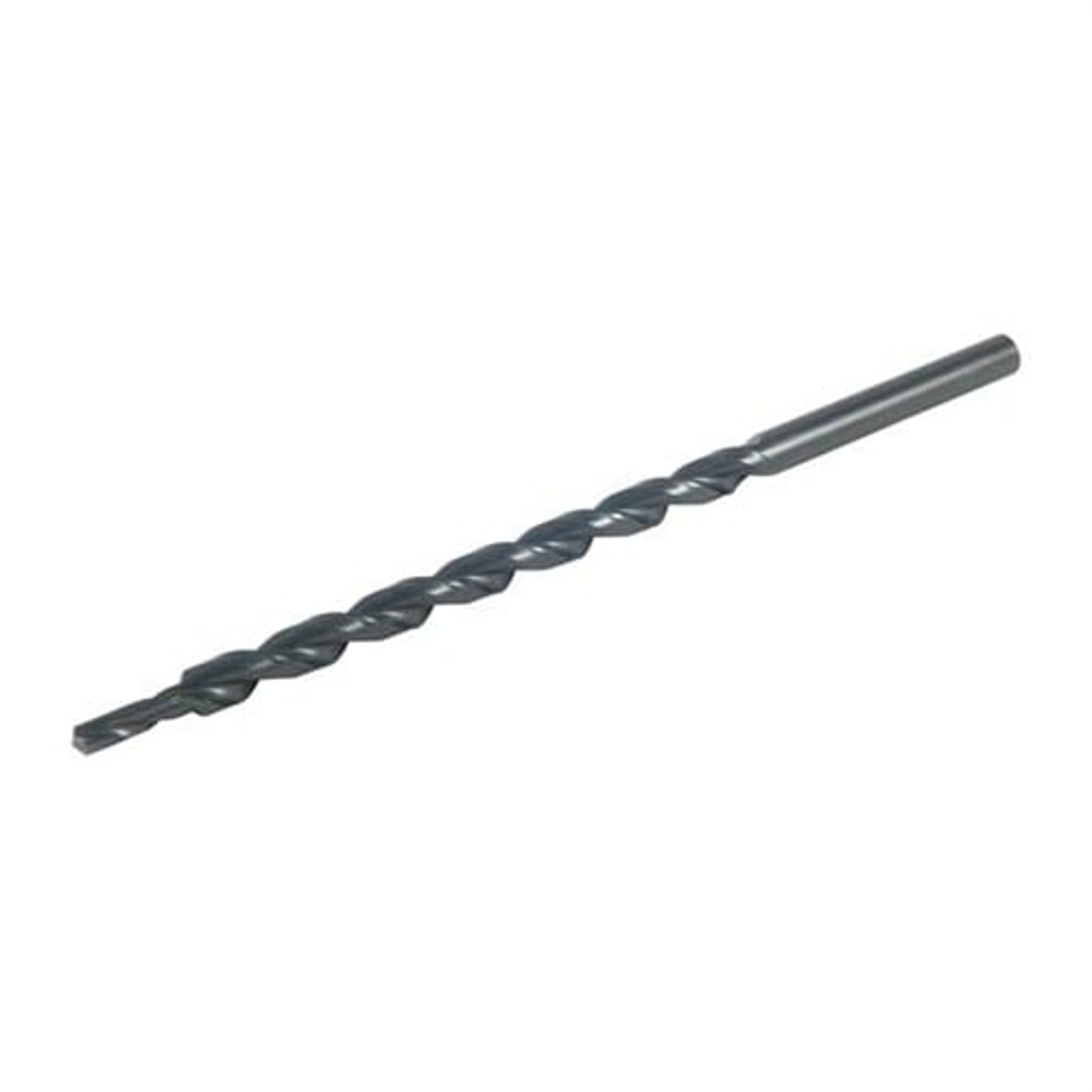

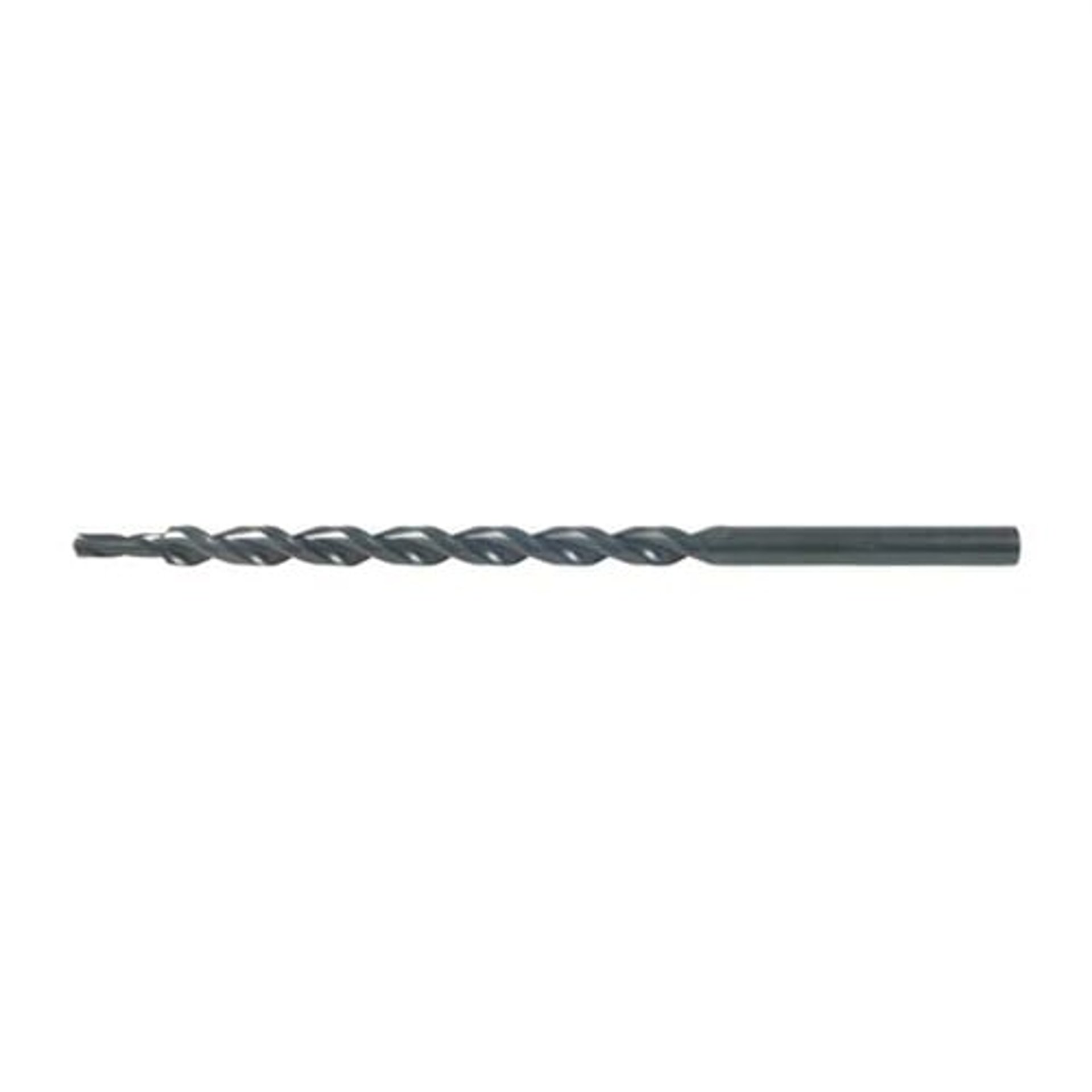

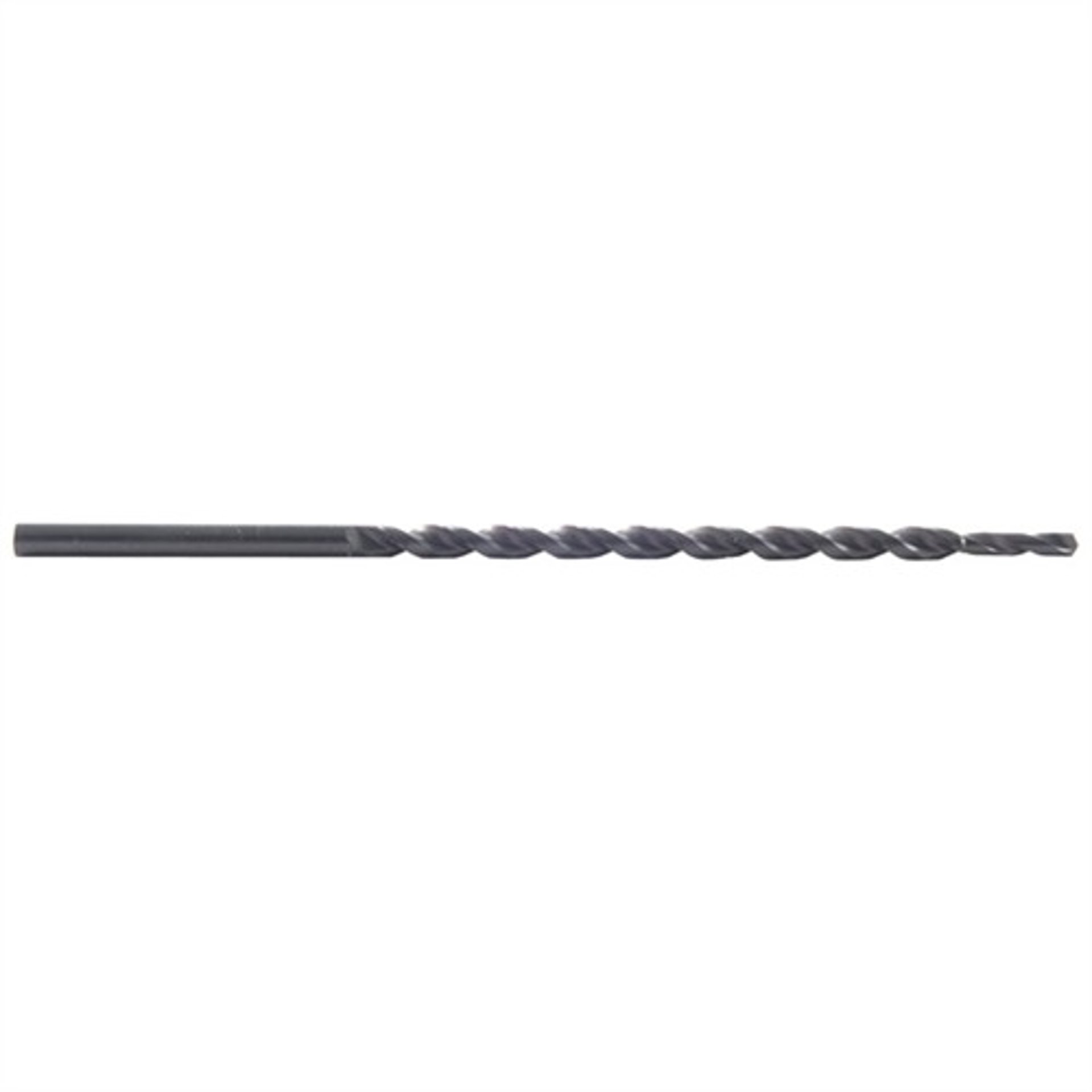

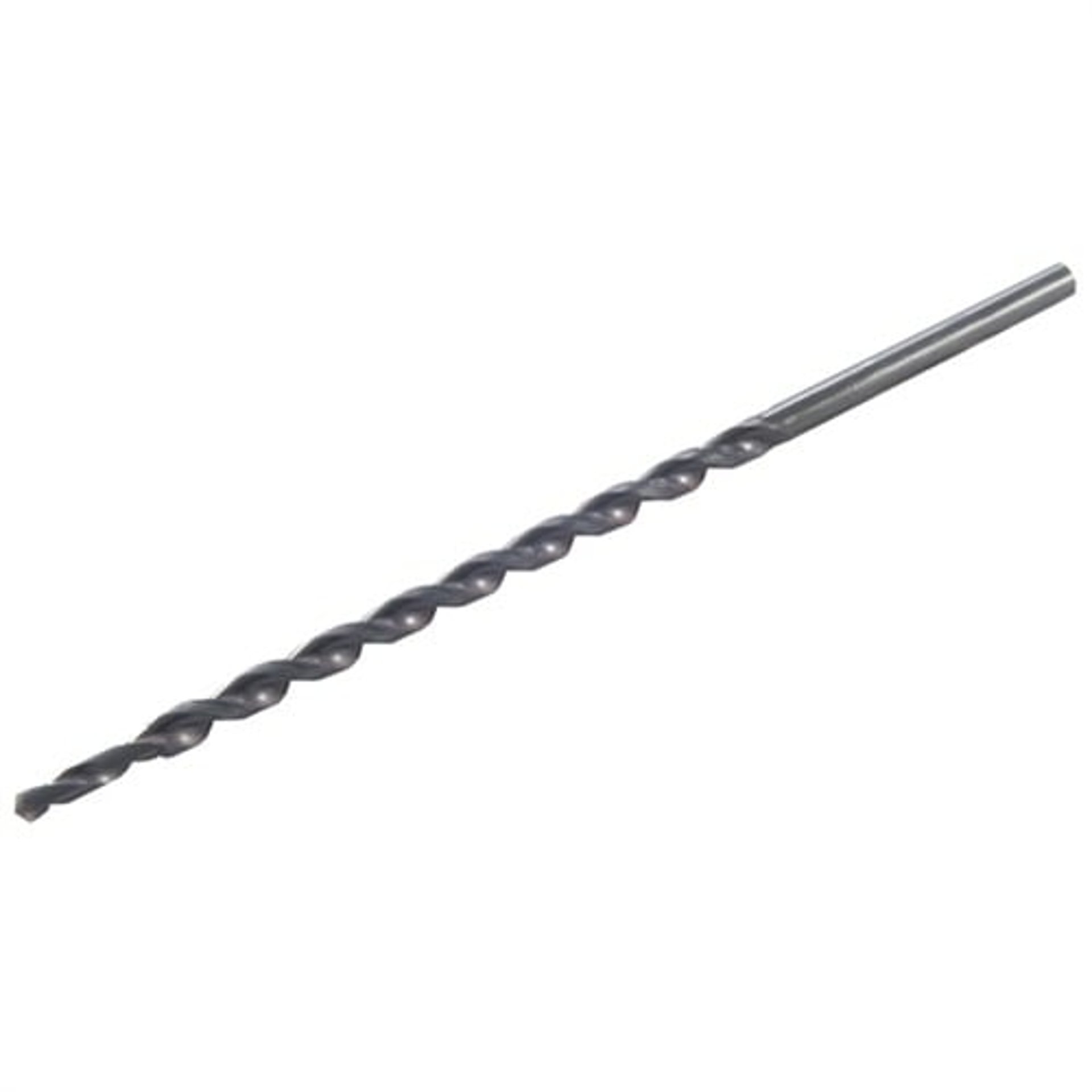

SHORT, PILOTED BARREL LINER DRILL BIT


The Brownells Short, Piloted Barrel Liner Drill Bit is an essential tool for gunsmiths aiming to reline firearm barrels with precision and efficiency. Designed to follow the original bore accurately, this drill bit ensures the creation of a straight and true hole, facilitating the proper installation of barrel liners.


Key Features:

  • Piloted Design: The integrated pilot guides the drill bit along the existing bore, maintaining alignment and preventing deviation during the drilling process.
  • High-Speed Steel Construction: Crafted from high-speed steel, the drill bit offers exceptional durability and maintains sharpness, even when working with hard barrel steels.
  • Optimized Flute Geometry: Featuring deep hole flute geometry and a special helix angle, the drill bit efficiently removes chips and reduces the risk of jamming, ensuring smooth operation.
  • Reinforced Web: The reinforced web design contributes to accurate hole dimensions, providing a solid foundation for the barrel liner.


Specifications:

  • Material: High-speed steel
  • Available Sizes:
    • .22 Caliber: 0.215" pilot diameter, 0.315" major diameter, 9.5" overall length
    • .32-20 Caliber: 0.302" pilot diameter, 0.512" major diameter, 11.6" overall length


Customer Insights:

Customers appreciate the Brownells Short, Piloted Barrel Liner Drill Bit for its precision and reliability in barrel relining projects. The piloted design is particularly valued for maintaining alignment, resulting in accurate and straight holes essential for effective barrel liner installation. The high-speed steel construction ensures longevity, even under frequent use, making it a trusted tool among professional gunsmiths and firearm enthusiasts.


Incorporating the Brownells Short, Piloted Barrel Liner Drill Bit into your gunsmithing toolkit ensures precise and efficient barrel relining, maintaining the integrity and performance of the firearm. Its thoughtful design and durable construction make it an indispensable tool for those committed to excellence in firearm maintenance and restoration.

Specifications

Please select from the options above to see detailed specifications.

Restriction

Please select from the options above to see detailed restrictions.

Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}

How To Buy Guns Online

International purchase information

Please select a FFL Dealer
or
7 dealers near
Distance:
10miles
arrow-down
Sort by:
Nearest first
arrow-down
pin wrong
No dealers found

Please search by another zipcode to find the nearest dealer.

Close
Brownells Retail Store
Phone Call
Pin in
Clock
You must select required check box

Note:

Listed hours & fees are not guaranteed and subject to change. Please contact the dealer to confirm current hours & fees.
* Must accept required fields.
  • Pin in Brownells Featured Dealers

    Choosing a Brownells Featured Dealer is the fastest and easiest way to complete your purchase. Brownells Featured Dealers have agreed to perform FFL transfers on guns purchased online from Brownells. We have their necessary FFL information on file and your FFL order will ship directly to them once processed.

  • Pin in Standard Dealers

    Standard Dealers have not yet agreed to perform FFL transfers on guns purchased online from Brownells. If you choose a Standard Dealer, you are responsible for contacting that dealer and arranging for the dealer to submit a signed copy of an FFL and to give Brownells permission to ship the gun.

  • Pin in Not Available Dealers

    Not Available Dealers are dealers Brownells cannot ship guns to at this time. These dealers either do not meet our requirements for FFL transfers, or prefer to not perform transfers for guns purchased online from Brownells.

Switch view map
7 dealers near

Alternative products

Left Badge
Right Badge OFF
5 Stars

200

300

Add on

Left Badge
Right Badge OFF
5 Stars

200

300

SHORT, PILOTED BARREL LINER DRILL BIT REVIEWS

4.0
5 Reviews
5 Stars
60%
4 Stars
0%
3 Stars
20%
2 Stars
20%
1 Stars
0%
Reviews Summary
The SHORT, PILOTED BARREL LINER DRILL BIT has received mixed reviews, with users appreciating its functionality and clear instructions, while some encountered difficulties with drilling and hardening issues. Although it works as advertised, several reviewers faced challenges in modifying the drill for better use.
What Reviewers Are Saying
Functionality
50%
Many users highlight that the drill bit functions as intended, effectively helping with drilling tasks. Positive remarks about the overall performance indicate that the drill meets specific expectations for users who utilize it appropriately.
Hardness Issues
50%
A considerable number of reviewers express frustration with the hardness of the drill bit, making initial modifications challenging. This often required special tools to drill into the bit, which some found to be unexpectedly tough.
Instructions and Ease of Use
50%
Reviewers appreciate the clear instructions on how to attach an extension, contributing to a more satisfying user experience. This clarity is seen as a significant advantage for those unfamiliar with the tool's operation.
Modification Challenges
40%
Several customers faced complications while trying to modify the drill. Issues arose when attempting to drill into the softened area, indicating that modification is not straightforward and might require additional tools.
Value for Money
30%
While some reviews appreciate the quality of the product, others suggest it might have been more economical to purchase a ready-made liner drill, reflecting a concern for overall value in relation to the effort required for modifications.
5
8mm pilot drill bit
had to heat base of bit to remove some of the hardness so I could drill a recessed hole . Turned a section of 14 in drill stock to size and silver soldered to bit put between centers on Lathe and heated silver solder to get a completely straight joint polished off excess solder . Have drilled out 2 barrels so far and had no problems where hole joined were in perfect alignment..
by mark1945 on September 21, 2021
Was this review helpful? 2
5
Barrel Liner Drill, Fits .22 RF, Drill D
Works as advertised.
by Wally on September 26, 2019
Was this review helpful? 1
5
Liner Drill
Good product, good instructions for use as well as how to extend the length.
by firearmdoc on September 15, 2009
Was this review helpful? 3
3
Not so good.
I ordered the short piloted 1/2" drill because it was supposed to be able to silver solder an extension to it by drilling the base. I tried every type of drill I have in my shop, I even ruined a carbide end mill trying to drill the base. The length of the drill alone doesn't do me much good.
by DAVID THOMAS on February 04, 2025
Verified Purchase
Was this review helpful? 0
2
The Story Not Told
The first thing to do is to attach an extension per the instructions. I expected to have to do this--no surprise here. And the first step to attach the extension is to drill a 3/16" hole in the butt end of the drill bit. I figured no problem, because surely they would not heat treat the end we need to drill like they heat treat the business end. Boy, was I wrong! I don't have carbide center drills, so I dulled a new cobalt center drill. I was able to center drill this with a special drill designed to drill out broken taps. Now, I have to order a 3/16" carbide drill. It would have been cheaper to get the liner drill complete.
by Electron on August 23, 2020
Was this review helpful? 3
