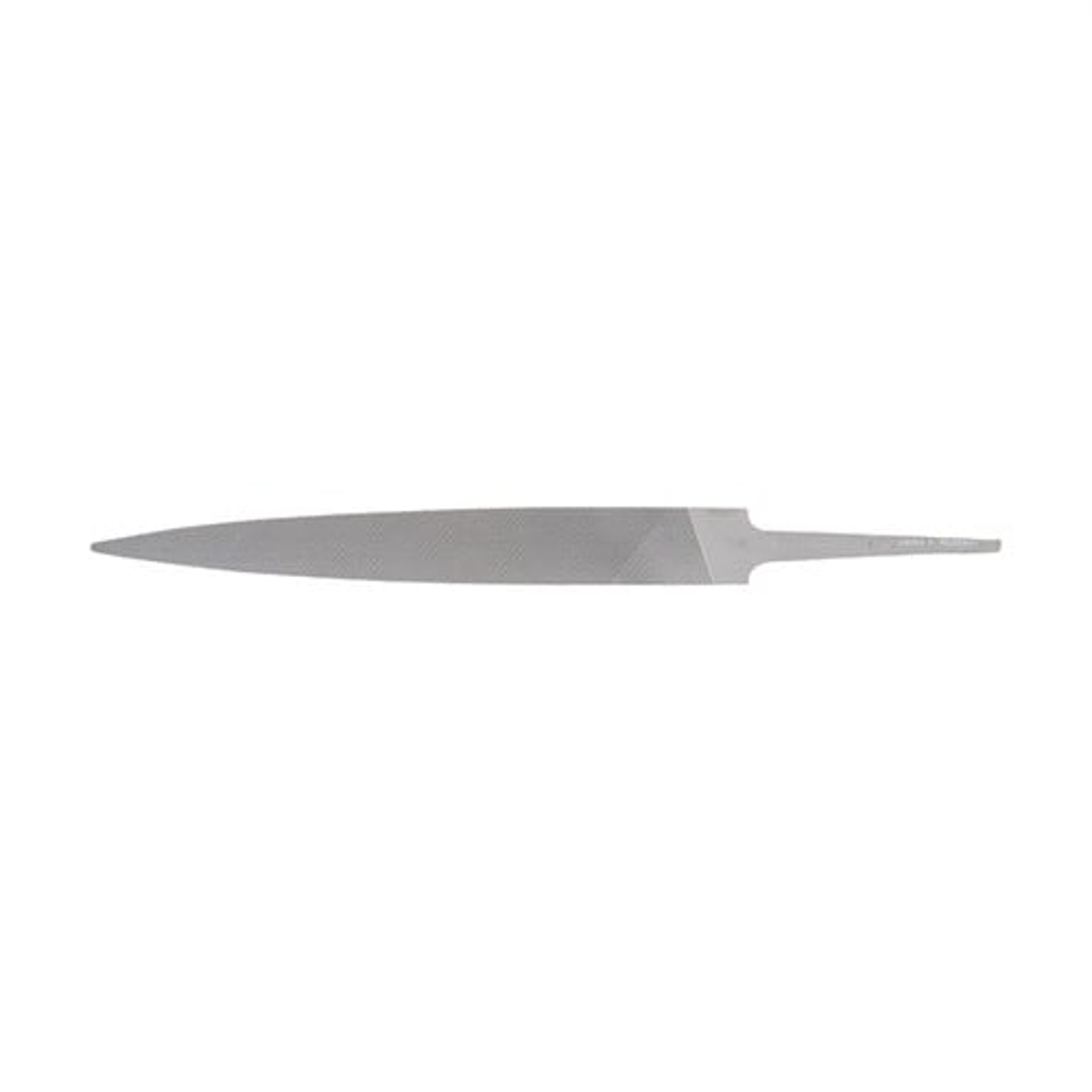

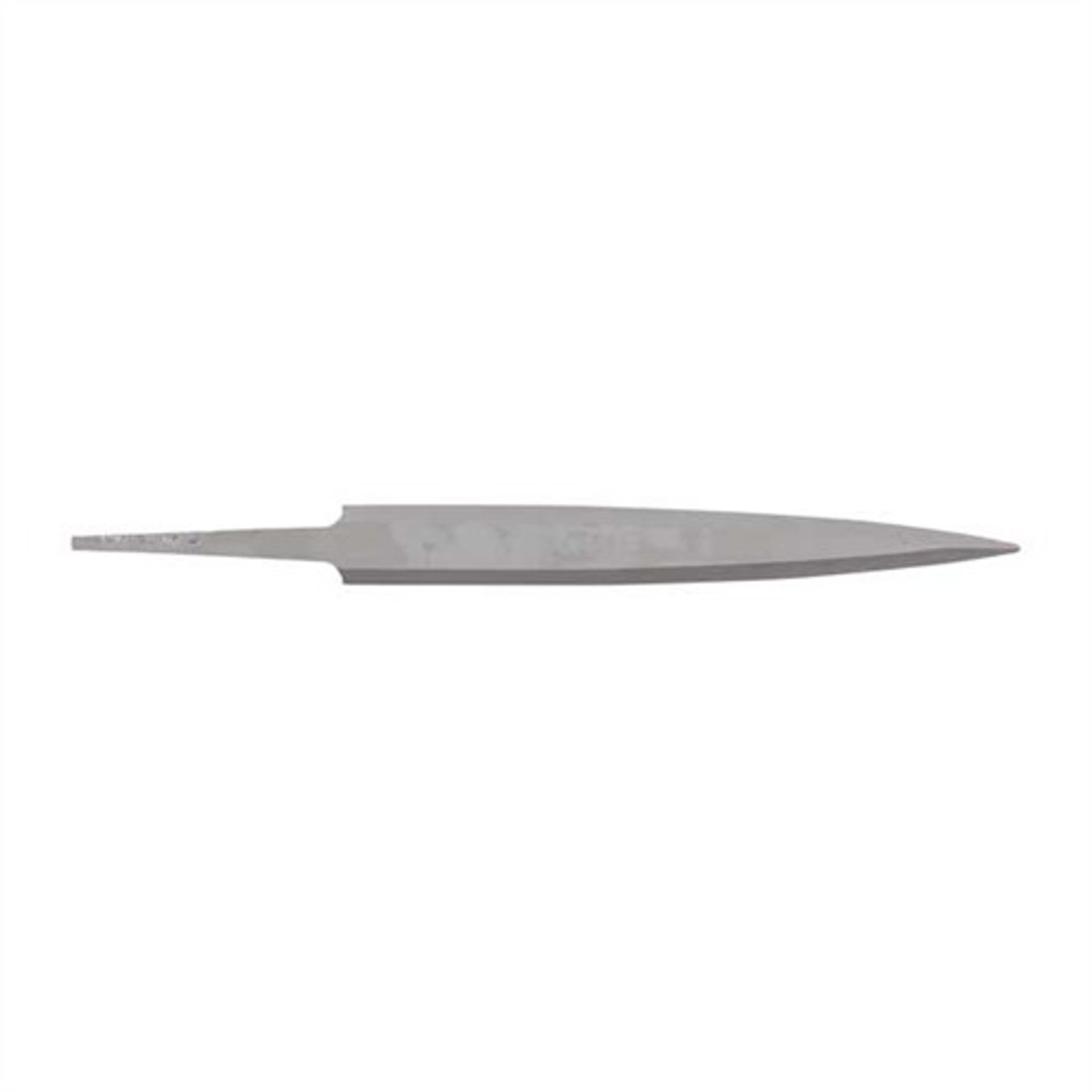

APEX TOOL GROUP - Swiss Pattern Barrett File #1 Cut 4" Length Steel

APEX TOOL GROUP SWISS PATTERN BARRETTE FILE

The APEX TOOL GROUP Swiss Pattern Barrette File is a specialized precision file designed for intricate fitting and finishing work in confined areas. Its unique barrette profile makes it especially useful for gunsmiths, machinists, engravers, and toolmakers who need to file up to sharp corners, work around dovetails, and refine slots without risking damage to adjacent surfaces.

The file features a single working face with double-cut teeth, while the back and both edges are intentionally left safe (toothless). This design allows precise material removal on one surface while protecting neighboring surfaces from unintended cutting. The safe edges are additionally beveled at a 33° angle, making the file particularly effective for dovetail fitting, precision slots, and other close-tolerance work.

Tapering from its maximum width to a narrow point, the Swiss Pattern Barrette File provides excellent access to tight spaces where conventional flat files cannot reach, making it a valuable addition to any professional gunsmithing or metalworking toolkit.

FEATURES

• Precision Swiss Pattern barrette file for detailed fitting and finishing
• Ideal for dovetails, slots, corners, and other close-tolerance work
• Double-cut teeth on the flat working face
• Safe back and edges prevent unwanted material removal
• Edges beveled at a 33° angle for improved access and control
• Tapers to a narrow point for working in confined spaces
• Excellent for gunsmithing, engraving, toolmaking, and general precision metalworking
• Allows filing right up to shoulders and corners without damaging adjacent surfaces

SPECIFICATIONS

• Manufacturer: APEX TOOL GROUP
• File Style: Barrette
• Length: 4" (10.2 cm)
• Width: 0.488" (12.7 mm)
• Height: 0.102" (2.59 mm)
• Weight: 0.039 lbs.
• Tooth Pattern: Double-Cut Working Face
• Back: Safe (No Teeth)
• Edges: Safe (No Teeth), Beveled at 33°

The APEX TOOL GROUP Swiss Pattern Barrette File is a purpose-built precision file engineered for detailed fitting work in tight spaces. Featuring a double-cut working face, safe beveled edges, and a tapered profile, it excels at dovetail fitting, slot work, and fine gunsmithing tasks where accuracy and surface protection are essential.
