Tech Tip: Sight Height Calculators
Sight Height Calculators

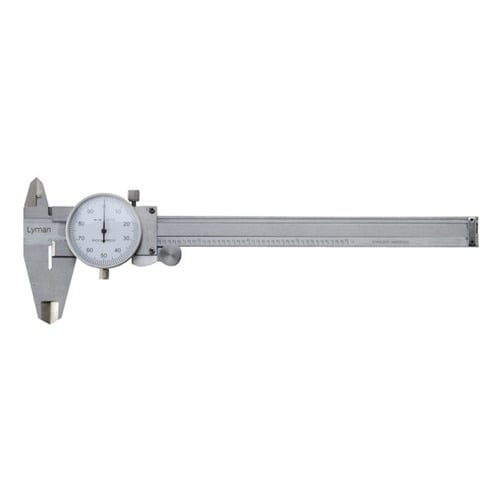

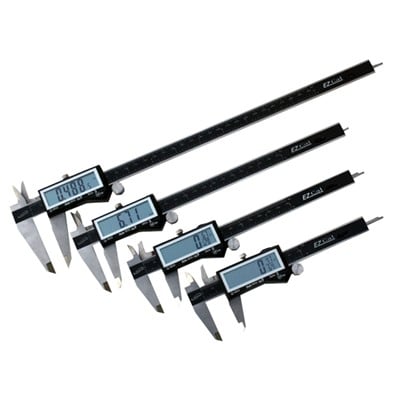

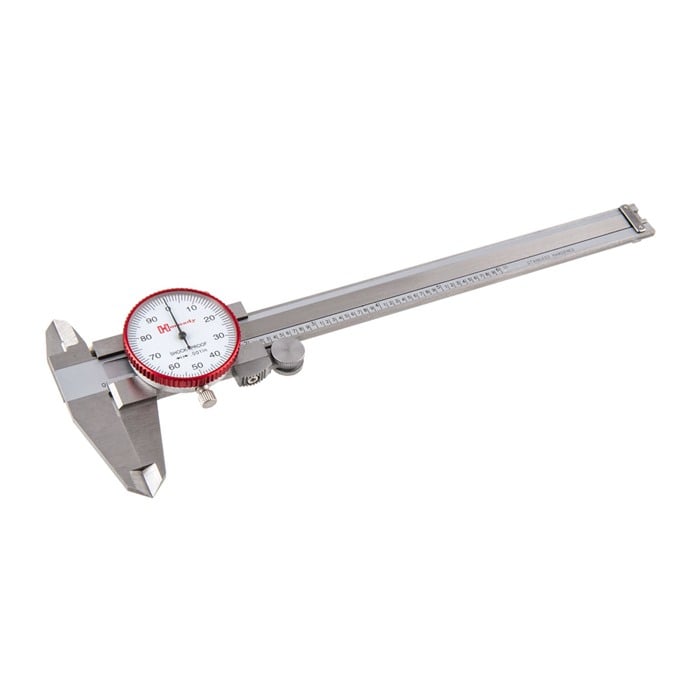

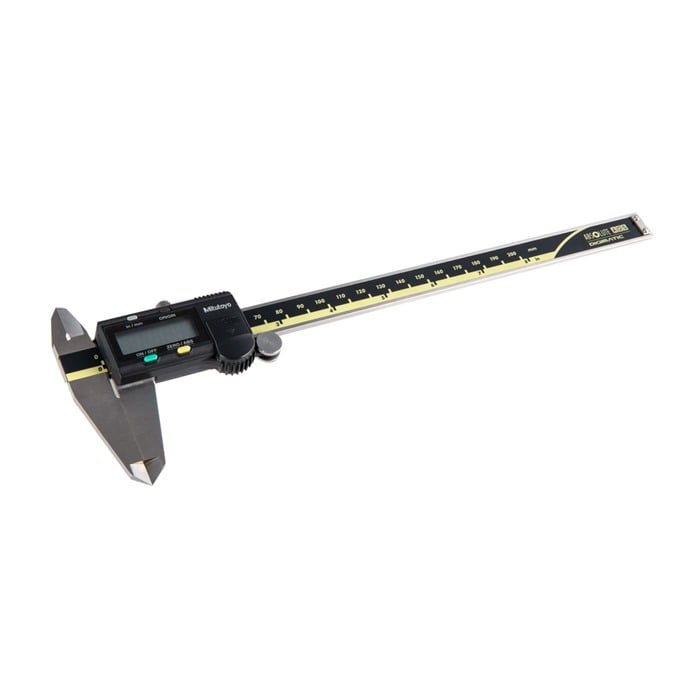

The goal is to make the front and rear sights the same height above the center of the barrel. When you make your measurements you MUST use a caliper or micrometerto come up with a decimal number (for example, .875) in inches for the calculator to work. A few thousandths can have a substantial effect on your sights performance.
Front Sight Height
Measure the barrel outside diameter at Rear Sight base.
Measure the rear sight height.
Measure barrel outside diameter at Front Sight base.
The Front Sight height should be:
- . --- Inches
2: Rear Sight Height
0.000"
Calculated Front Height:
-----
1: Barrel Diameter
At Rear Sight
0.000"
3: Barrel Diameter
At Front Sight
0.000"
Rear Sight Height
Measure the barrel outside diameter at Rear Sight base.
Measure barrel outside diameter at Front Sight base.
Measure the front sight height.
The Rear Sight height should be:
- . --- Inches
3: Front Sight Height
0.000"
Calculated Rear Height:
-----
1: Barrel Diameter
At Rear Sight
0.000"
2: Barrel Diameter
At Front Sight
0.000"
