6.5 Grendel Rifle Build
Building a 6.5 Grendel AR-15 Upper Receiver
The 6.5 Grendel remains one of the most capable long-range AR-15 cartridges available, and in this build Caleb walks through assembling a practical and compact 6.5 Grendel upper receiver setup designed for precision shooting out to 500 yards and beyond.
This build uses a standard AR-15 lower receiver paired with a custom upper featuring a Ballistic Advantage 16-inch 6.5 Grendel barrel, Samson SXT handguard, SureFire muzzle device, and Nightforce NX8 optic. The goal is to create a lightweight, accurate AR platform without unnecessary barrel length.
Choosing Parts for a 6.5 Grendel Build
One of the key points discussed in the video is that 6.5 Grendel does not require an entirely proprietary rifle. Most standard AR-15 components still work perfectly.
The primary differences between a standard 5.56 AR-15 and a 6.5 Grendel build are:
- Barrel
- Bolt
- Magazine
- Optional dedicated firing pin
Caleb explains the importance of using a Type 2 6.5 Grendel bolt, which has become the industry standard. Older Type 1 components can create compatibility issues if mixed improperly.
The build also uses DuraMag 6.5 Grendel magazines, which are known for reliable feeding and compatibility with both 6.5 Grendel and 6mm ARC cartridges.
Upper Receiver Preparation and Barrel Installation
Before assembly, the mil-spec upper receiver was lapped to ensure proper barrel extension contact. Caleb notes that the receiver had noticeable high spots, making the lapping process worthwhile for improving consistency and alignment.
Brownells Action Lube Plus is applied to the receiver threads and barrel extension before installation. The Ballistic Advantage barrel is then installed using the Samson barrel nut system.
For torque values, Caleb follows a process similar to BCM’s recommended approach:
- Initial torque to 50 foot-pounds
- Back off the barrel nut
- Final torque to approximately 65 foot-pounds
This method helps properly seat the barrel extension and achieve consistent barrel nut tension.
Gas Block Alignment Using a Borescope
One of the most useful sections of the build is the gas block alignment procedure.

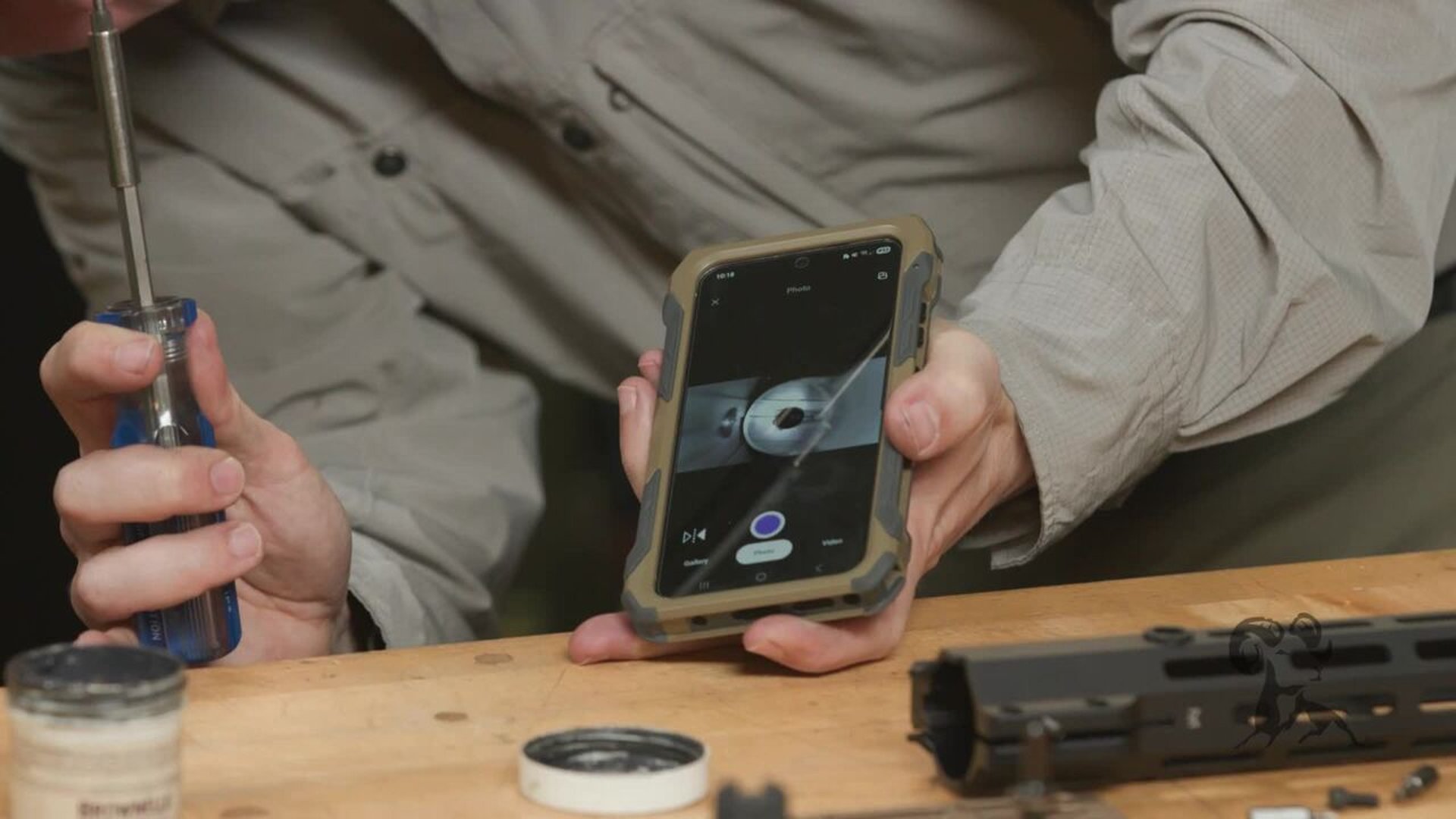

Rather than relying entirely on visual alignment marks, Caleb uses a Lyman borescope to inspect the gas port directly through the barrel. This allows precise gas block positioning and ensures the gas port is centered correctly.
Proper gas tube alignment is critical for long-term reliability because an improperly aligned gas tube can cause uneven wear inside the bolt carrier group.
The Samson handguard also includes a bias block designed to help guide the gas tube straight into the upper receiver. This reduces stress on the gas system and improves consistency over time.
Handguard and Muzzle Device Installation
The Samson SXT handguard uses a clamp-style mounting system with multiple retention screws. Because Samson does not provide exact torque values, Caleb uses practical torque estimates based on experience, settling around 40 inch-pounds for the side screws.
The build also uses a SureFire flash hider compatible with a SOCOM 762 suppressor. Since the 6.5 Grendel barrel uses 5/8x24 muzzle threads, any compatible .30 caliber suppressor mount will generally work well.
Caleb also discusses Rocksett use for suppressor mounts, although he skips it for this temporary setup.
Optic and Arca Rail Setup
For optics, the rifle uses a Nightforce NX8 2.5-20 scope mounted in a Midwest Industries mount. Caleb emphasizes pushing the mount forward in the rail slots before tightening to maintain consistent recoil lug engagement.
The build also includes an Area 419 Arca rail mounted to the bottom of the handguard for tripod and bipod use. This setup adds versatility for precision shooting applications.
Final Bolt Carrier Group Assembly
Instead of purchasing a complete dedicated 6.5 Grendel bolt carrier group, Caleb simply swaps a 6.5 Grendel bolt and firing pin into a standard AR-15 carrier.
He recommends using the proper 6.5 Grendel firing pin because the slightly different dimensions help prevent pierced primers in higher-pressure loads.
Once lubricated and assembled, the completed bolt carrier group is installed along with the Geissele Airborne charging handle.
Final Thoughts on the 6.5 Grendel AR-15
The finished rifle delivers a lightweight and compact precision-oriented AR-15 setup that still takes full advantage of the 6.5 Grendel cartridge’s excellent ballistic performance.
For shooters looking to extend the practical range of the AR-15 platform without moving to a larger AR-10 rifle, 6.5 Grendel remains one of the best options available.
