SHORT ACTION CUSTOMS, LLC. NEXUS PRESS

Nexus Press
Brownells #
430109992
MFR #
SAC-NXRPK
UPC
$875.00
Coupon Code
Purchase Limit Help

In stock

Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Specifications
Item Weight (lbs):
17.000
Item Height (Inches):
18.000
Item Width (Inches):
6.000
Color:
Black
Item Length (Inches):
8.000
Material:
Steel
Quantity:
1
Restriction
Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Description
The Focal Point of Your Reloading Process


When Short Action Customs set out to develop the Nexus Press, they were trying to build a press that eliminated any issues associated with the die and shell holder relationship. They also wanted to develop a more consistent and powerful cam over action every single cycle of the press as well as a work envelope so you can easily and efficiently process your brass without annoying C arms or small work areas in your way.
One of the highly innovative features of the Nexus Press is the dual floating shell holder system; which is also quick change and tool-less. This is similar to a custom rifle action’s floating bolt head feature. The shell holder will center on your die each time because of the “floating” ability of the shell holder. The shell holder system also allows .010″ more sizing than all other shell holders on the market. So, if you are having issues not getting enough sizing out of your dies, there is no need to modify them anymore; the Nexus Press will take that headache out of the equation.


One of the most groundbreaking features of the Nexus Press is the dual cam over pucks, which precisely stop the movement of your floating die block every single cycle of the press, eliminating the relationship between your shell holder and die when it comes to sizing and consistency. One of the issues SAC discovered when developing the Nexus Press was the need for shell holder contact on the bottom of your die with traditional reloading presses. This causes much stress on your reloading press and sizing or seating die, so they wanted to have the Nexus press cam over independently of the shell holder. Every single cycle of the press, your hard cam over pucks limits the travel, which gives you the same amount of cam over every single cycle, regardless of where your die is in relation to the shell holder. The press cams over 2 degrees past the top dead center, allowing the same amount of sizing or seating with each stroke of the press.


The die retention system is entirely unique. Two detents hold the die in the press, and you can use any standard lock ring available on the market today. The die retention system has radial floating capabilities, allowing your die to center up each time it is used. Additionally, the Nexus Press has storage areas for all your shell holders, dies, or cam over pucks. There are also two 8×32 threaded holes to put small brushes in to help with brass prep.


The Nexus Press will easily allow you to run seven-eighths diameter and one-inch-diameter dies. To run one-inch diameter dies, you would simply replace this die retention top plate, and that’s it. The 1-inch plates will be available in early summer 2024. The Nexus Press uses two precision ground linear guide rods and two linear guide rod bearings, giving the Nexus Press a very smooth and consistent feel. Every Nexus Press is built to last; they use pre-hardened steels, which are then salt bath nitrided, increasing their strength, lubricity, and corrosion resistance. They also use high-strength aluminum that is Type III hard coat anodized.
So, if you are tired of inconsistencies with your sizing or seating dies or having to modify your dies to get enough sizing, the Nexus Press is the fix you are looking for!

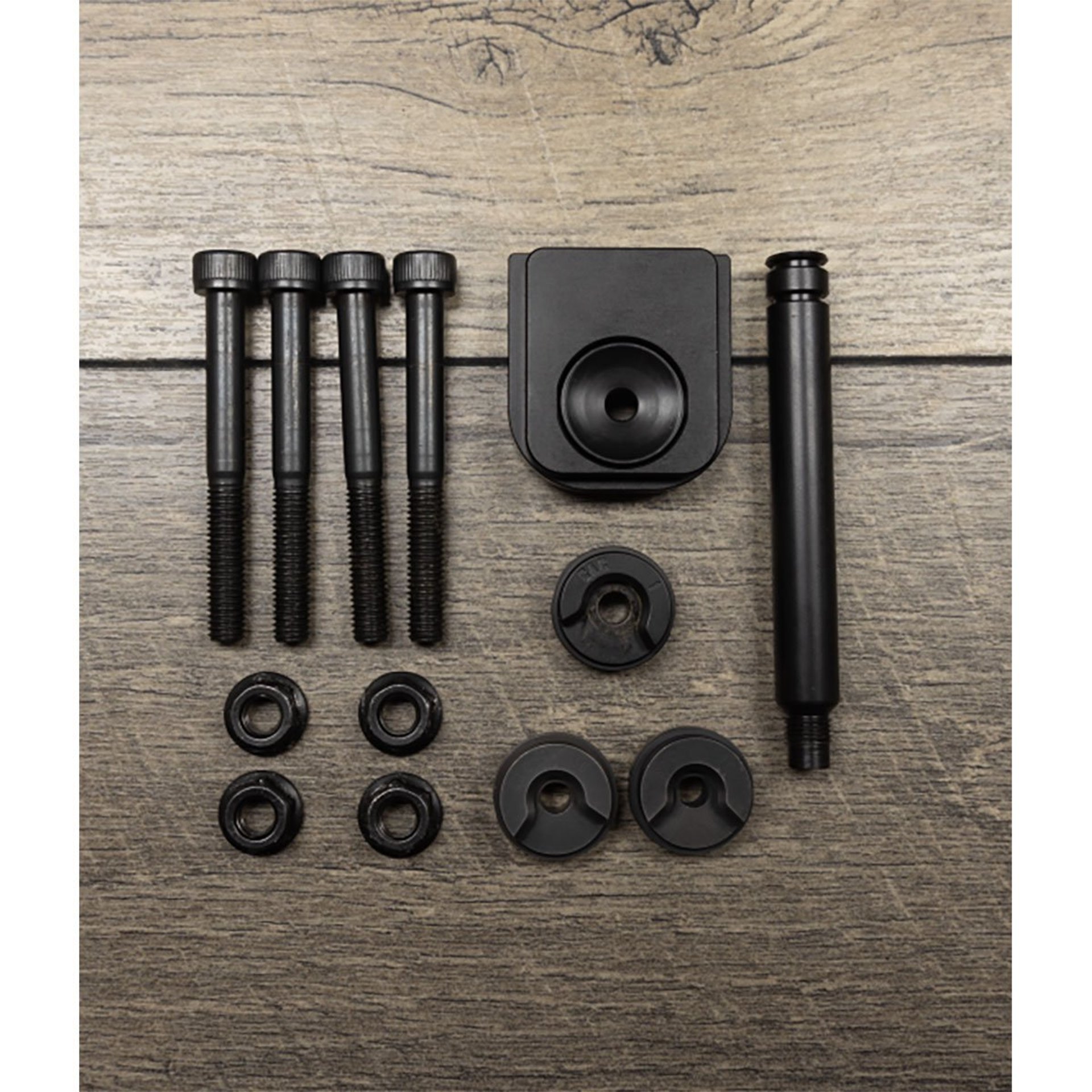

What’s in the box?
• Nexus® Press
• 223 Bolt face Shell holder for cartridges like, 223 Remington, 204 Ruger, 222 Remington, etc
• 308 Bolt face Shell holder for cartridges like 308 Winchester, 6.5 Creedmoor, 6 Dasher, 30-06, etc
• Magnum Bolt face Shell holder for cartridges like 300 PRC, 6.5 PRC, Belted Magnums, RUM’s, Noslers, etc
• Lapua Magnum Bolt face Shell holder for cartridges like 338 Lapua Magnum, 300 Norma Magnum, etc
• Primer Drop Tube
• Template for drilling your bench
• 4 Allen head mounting bolts and nuts
