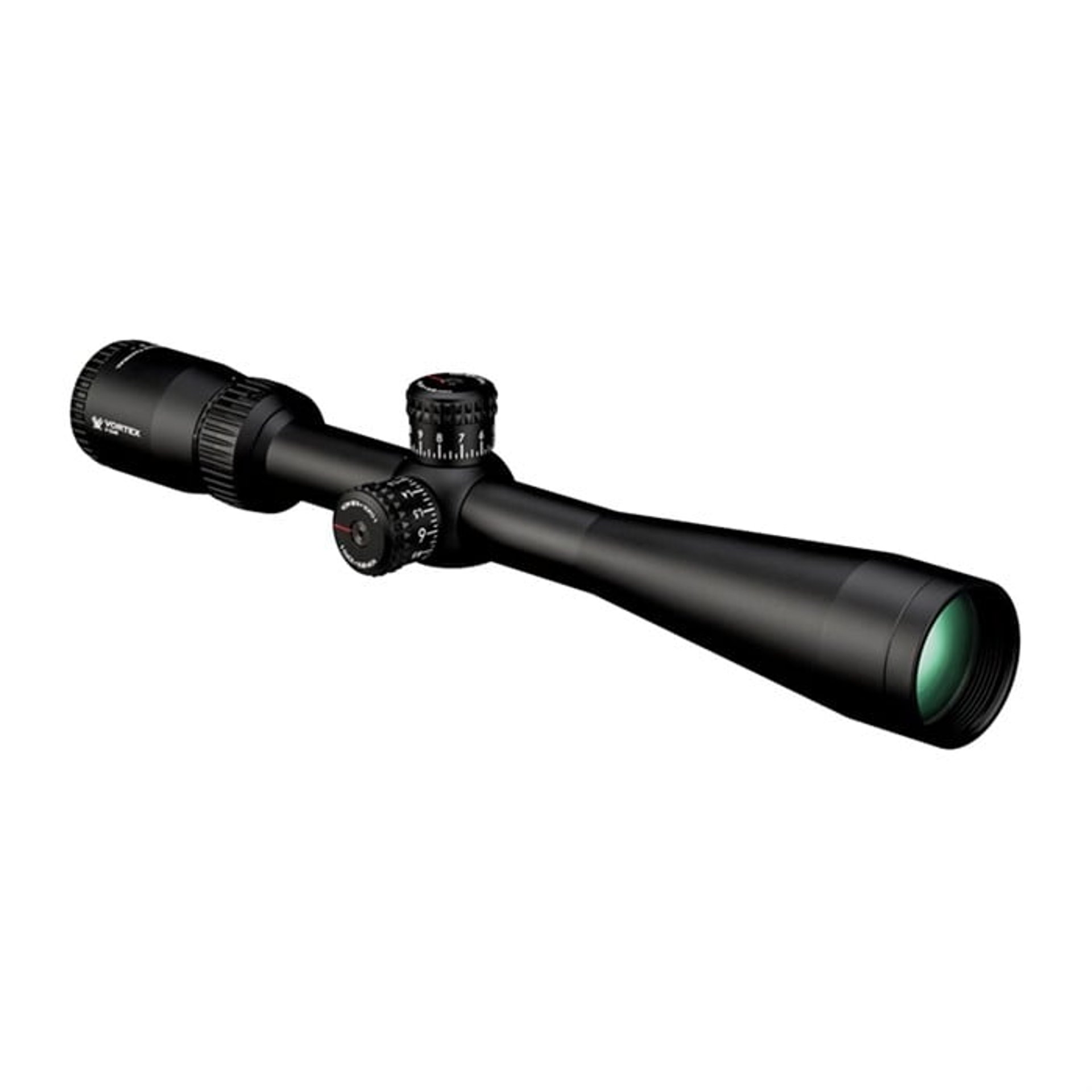

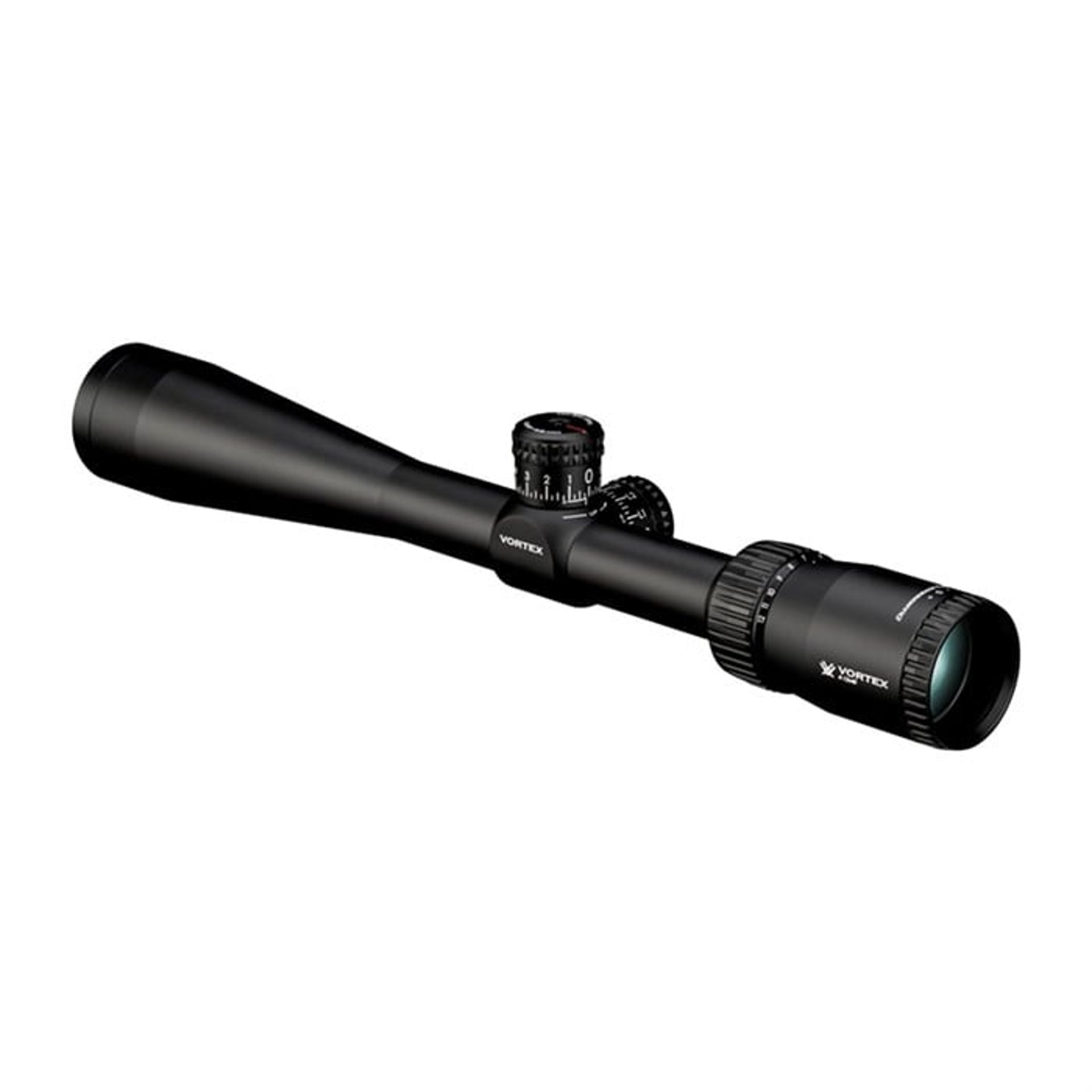

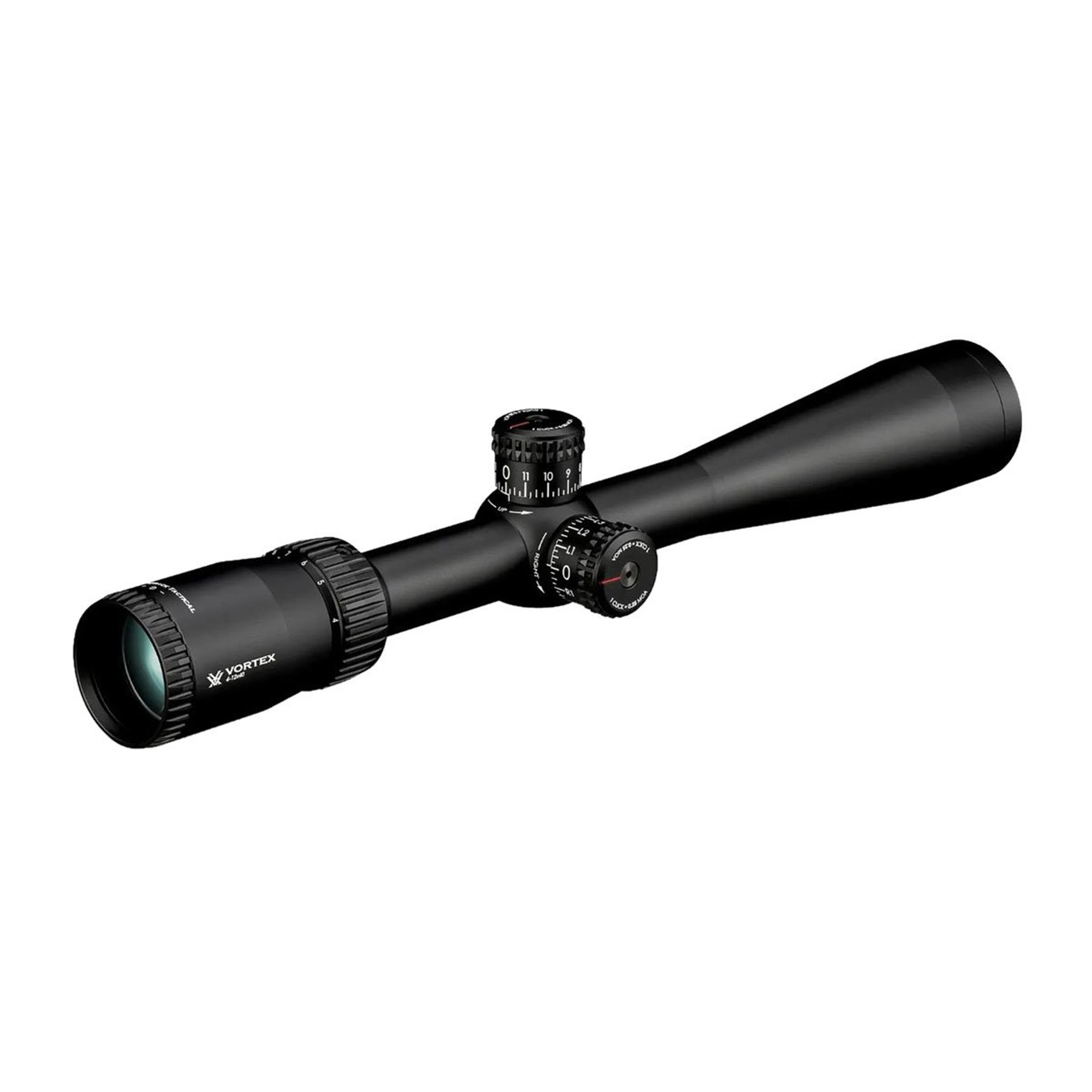

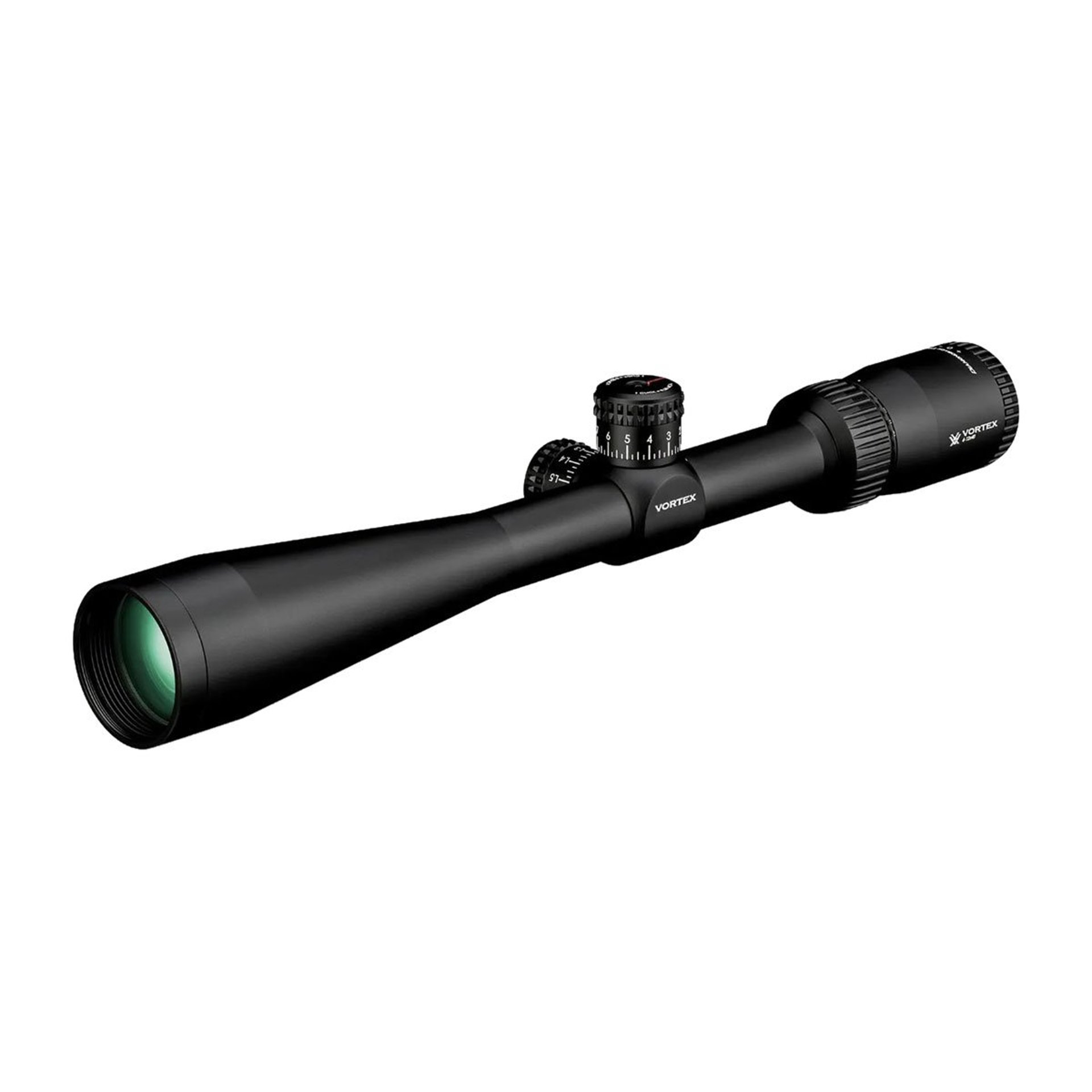

VORTEX OPTICS DIAMONDBACK TACTICAL 4-12X40MM SFP RIFLE SCOPE

Diamondback Tactical 4-12x40mm SFP VMR-1 Black
Brownells #
100025611
MFR #
DBK-10025
UPC
875874008694
$299.99
Coupon Code
Purchase Limit Help

In stock

Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Specifications
Finish:
Matte
Battery Type:
No
Color:
Black
Illumination:
No
Click Value:
1/4 MOA
Item Weight (lbs):
1.013
Item Length (Inches):
14.200
Eye Relief (Maximum Inches):
3.9
Model Number:
Diamondback Tactical
Objective Size:
40
Material:
Aluminum
Mount Type:
Not Included
Reticle Type:
VMR-1 MOA
Min Magnification:
4
Focal Plane:
Second
Quantity:
1
Max Magnification:
12
Scope Tube Diameter:
1 in
Restriction
Oversea shipping:
No
Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}
Description

Exposed tactical turrets built for dialing elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise - we mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fiber optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.

Easy to read gradations on the Vortex Optics' 4-12X40mm Diamondback Tactical riflescope turrets track ultra-true, then reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in. Integrated fiber optic indicators in the tops of the turrets provide a highly visible reference for turret position and rotation.

FEATURES

  • Aluminum Grade: Aircraft
  • Multi-Coated: Fully Multi-Coated
  • HD Lens Elements: XDâ„¢
  • Shockproof: Rugged construction withstands recoil and impact.
  • Magnification: 4-12x
  • Objective Lens Diameter: 40 mm

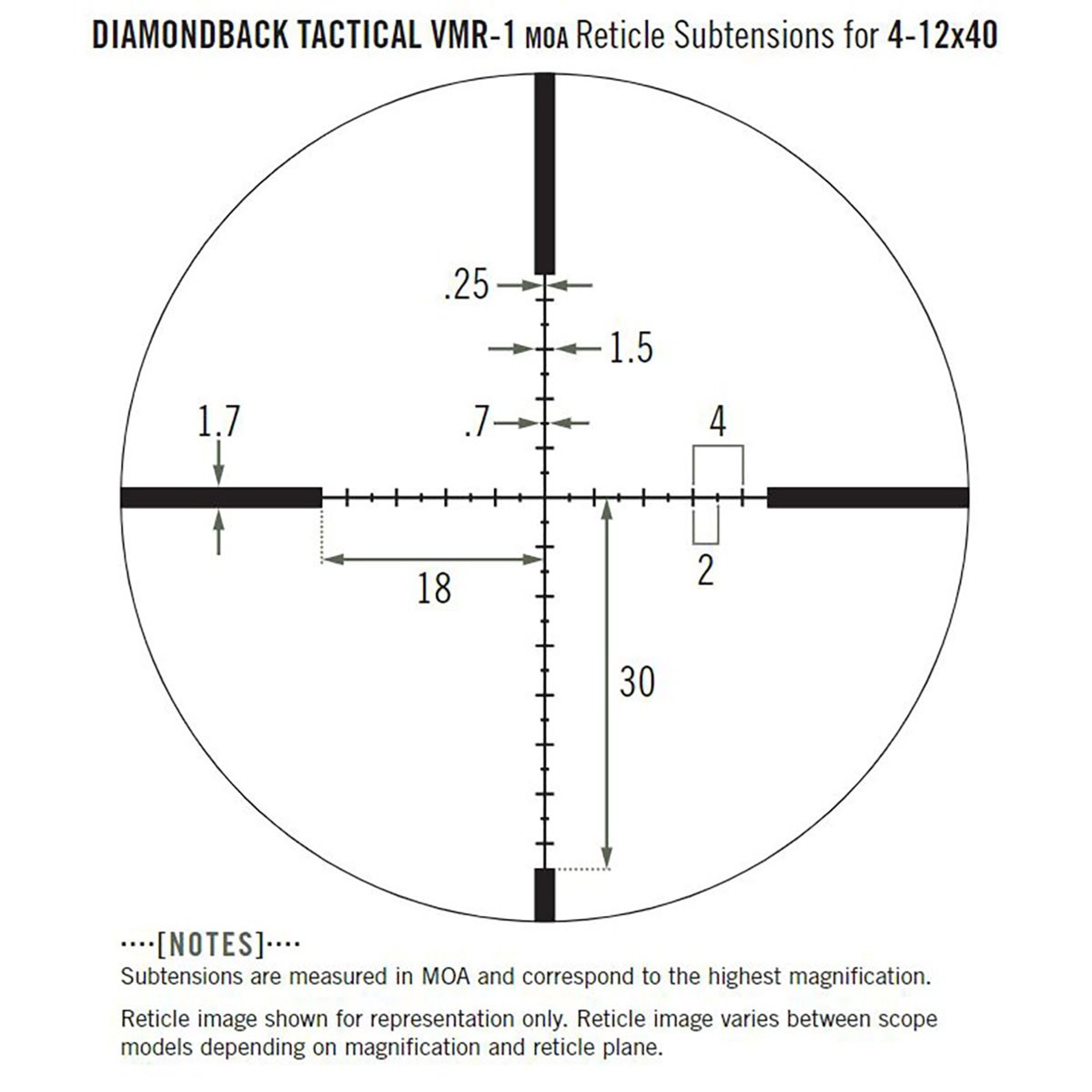

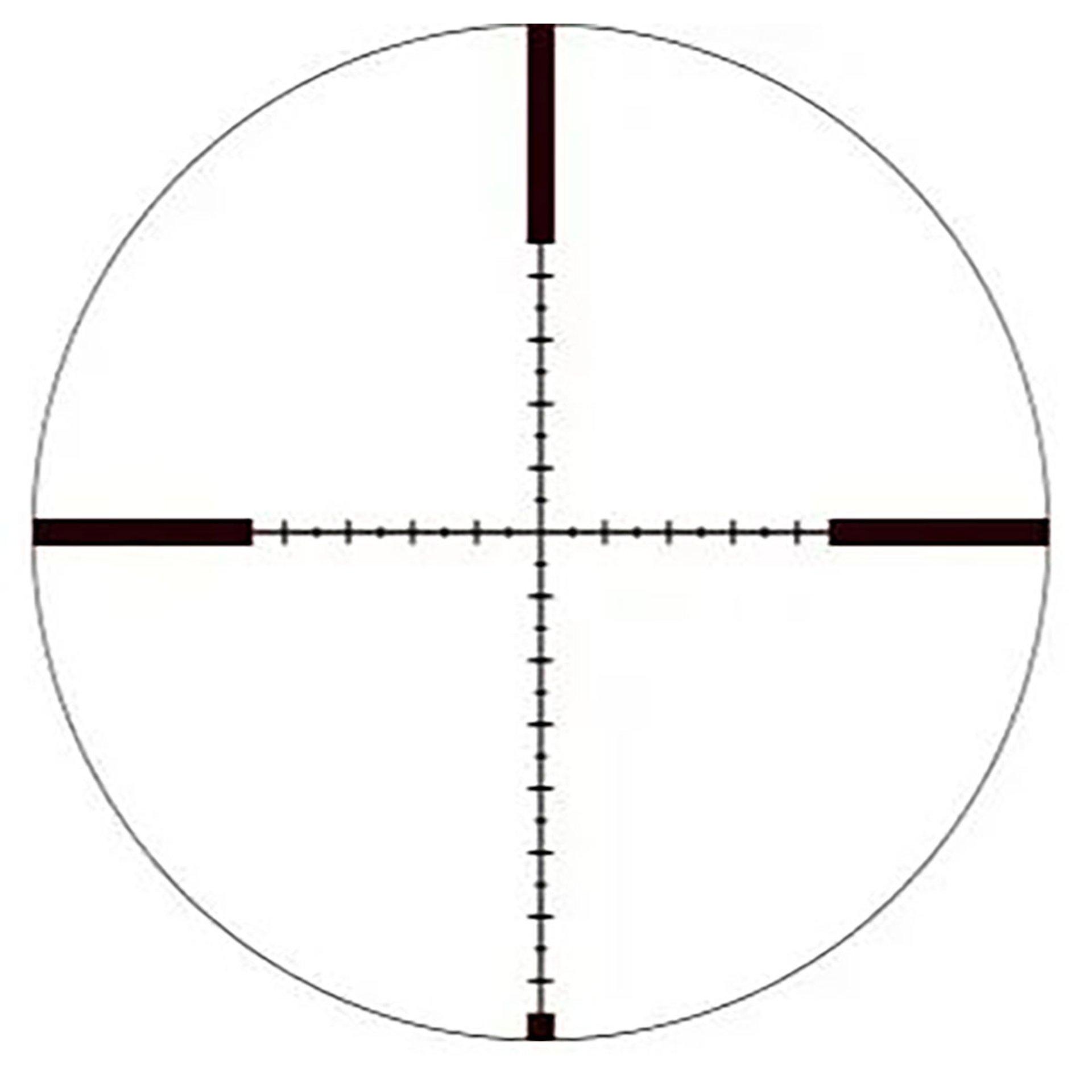

  • Reticle: VMR-1 (MOA)
  • Turret Style: Tactical
  • Tube Size: 1 inch
  • Adjustment Graduation: 1/4 MOA
  • Parallax Setting; 100 yards
  • Max Windage Adjustment: 70 MOA
  • Max Elevation Adjustment: 70 MOA
  • Travel Per Rotation: 12 MOA
  • Field of View; 23.6-7.9 ft/100 yds
  • Eye Relief: 3.9 inches
  • Second focal plane reticle
  • Easy to read MOA elevation and windage graduations
  • Matching MOA reticle and turrets

INCLUDED IN THE BOX

  • Lens covers
  • Lens cloth
