VORTEX OPTICS DIAMONDBACK 4-12X40MM SFP RIFLE SCOPE

Diamondback 4-12x40 SFP Dead-Hold BDC Black
Brownells #
100008114
MFR #
DBK-04-BDC
UPC
875874001152
$259.99
Coupon Code
Purchase Limit Help

In stock

NOTIFY ME WHEN IT'S BACK IN STOCK
Can we ship this to you?

How To Buy Guns Online

International purchase information

Specifications
Battery Type:
No
Eye Relief (Maximum Inches):
3.4
Finish:
Matte
Click Value:
1/4 MOA
Eye Relief (Minimum Inches):
3.1
Focal Plane:
Second
Item Weight (lbs):
0.912
Color:
Black
Min Magnification:
4
Max Magnification:
12
Quantity:
1
Illumination:
No
Mount Type:
Not Included
Objective Size:
40
Scope Tube Diameter:
1 in
Item Length (Inches):
12.000
Reticle Type:
Dead-Hold BDC
Material:
Aluminum
Model Number:
Diamondback
Restriction
Oversea shipping:
No
Can we ship this to you?

How To Buy Guns Online

International purchase information

Description

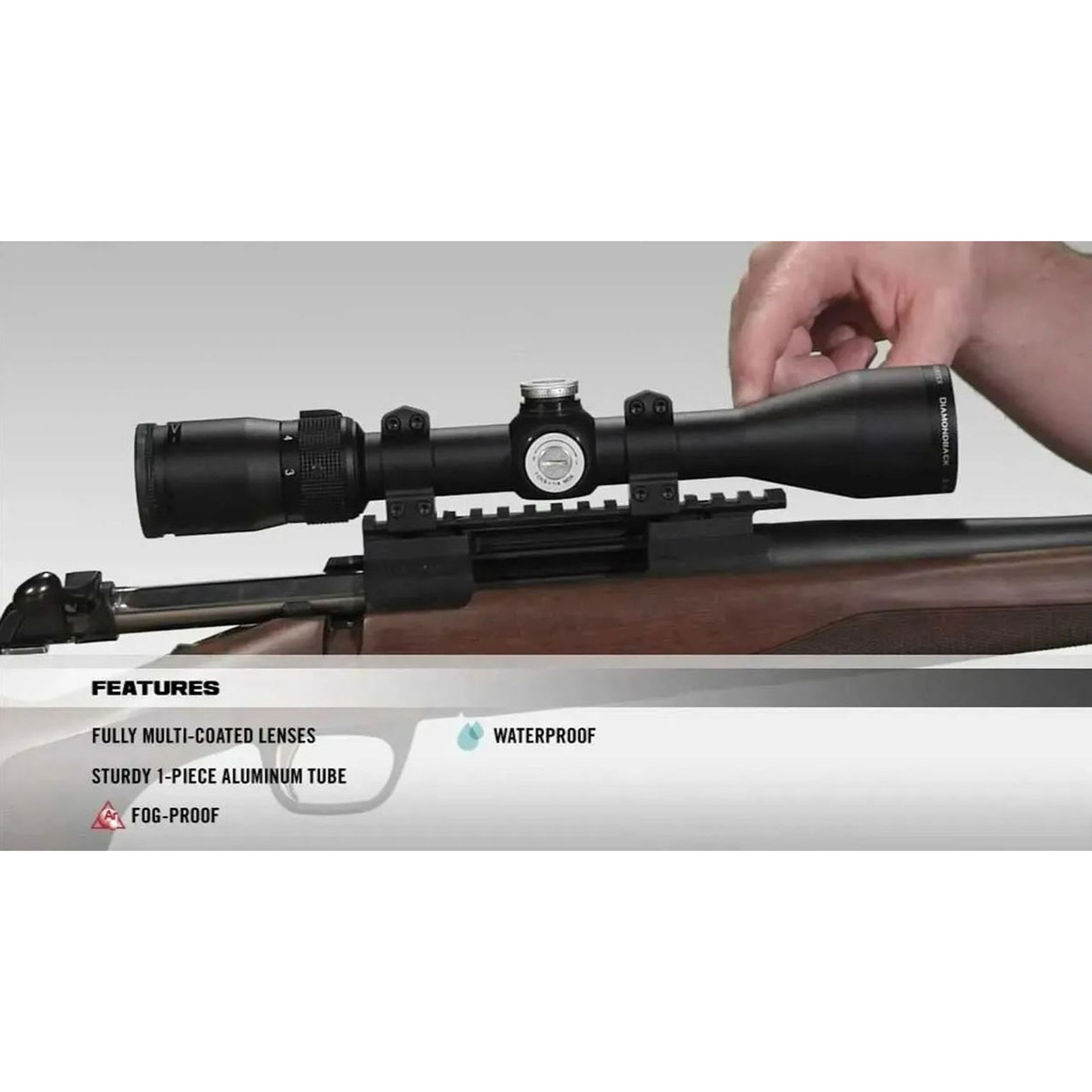

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

FEATURES
  • Aluminum Grade: Aircraft
  • Multi-Coated: Fully Multi-Coated
  • Shockproof: Rugged construction withstands recoil and impact.
  • Magnification: 4-12x
  • Objective Lens Diameter: 40 mm

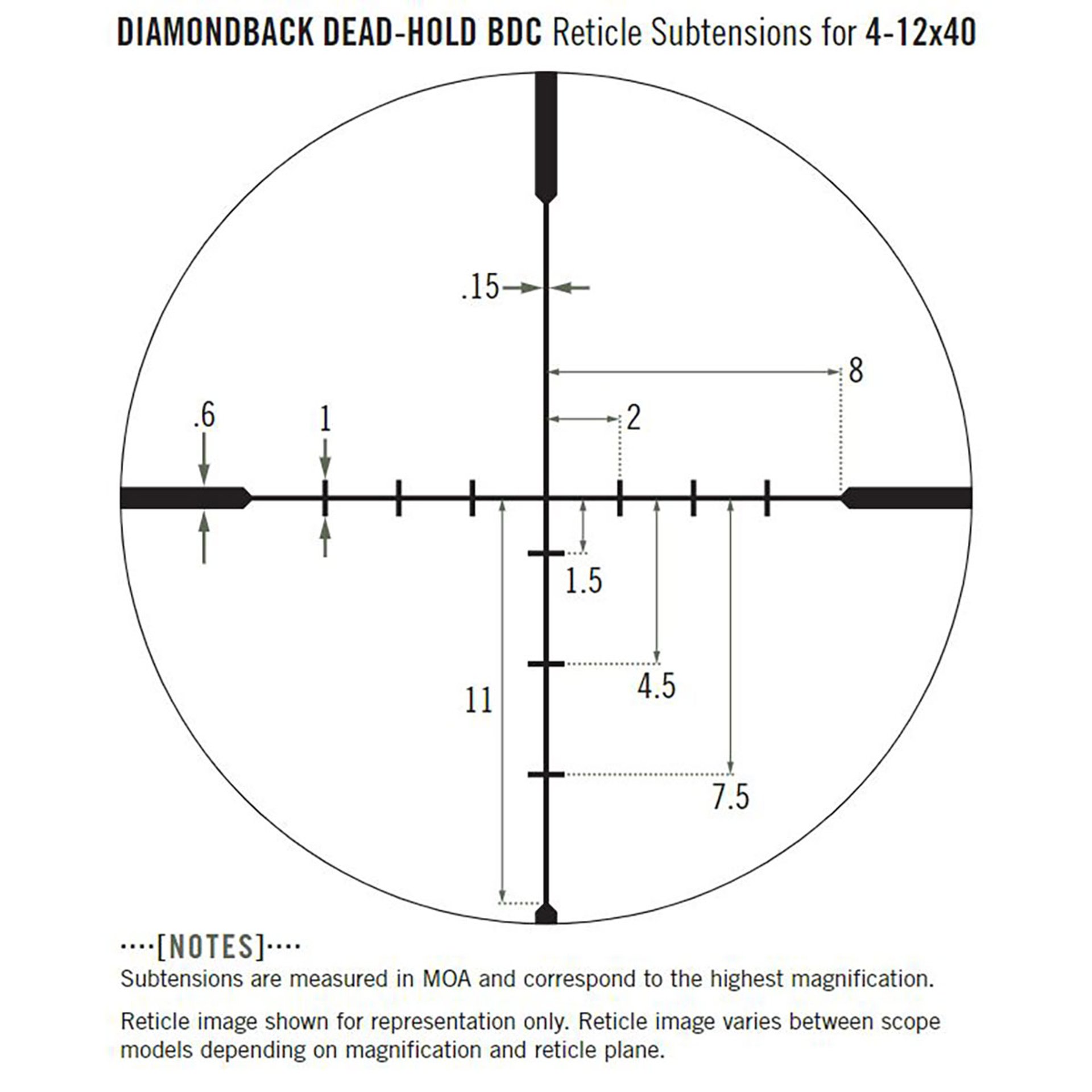

  • Reticle: Dead-Hold BDC (MOA)
  • Turret Style: Capped
  • Tube Size: 1 inch
  • Adjustment Graduation: 1/4 MOA
  • Parallax Setting: 100 yards
  • Max Windage Adjustment: 60 MOA
  • Max Elevation Adjustment: 60 MOA
  • Travel Per Rotation: 15 MOA
  • Field of View: 32.4-11.3 ft/100 yds

INCLUDED IN THE BOX
  • Removable lens covers
  • Lens cloth
