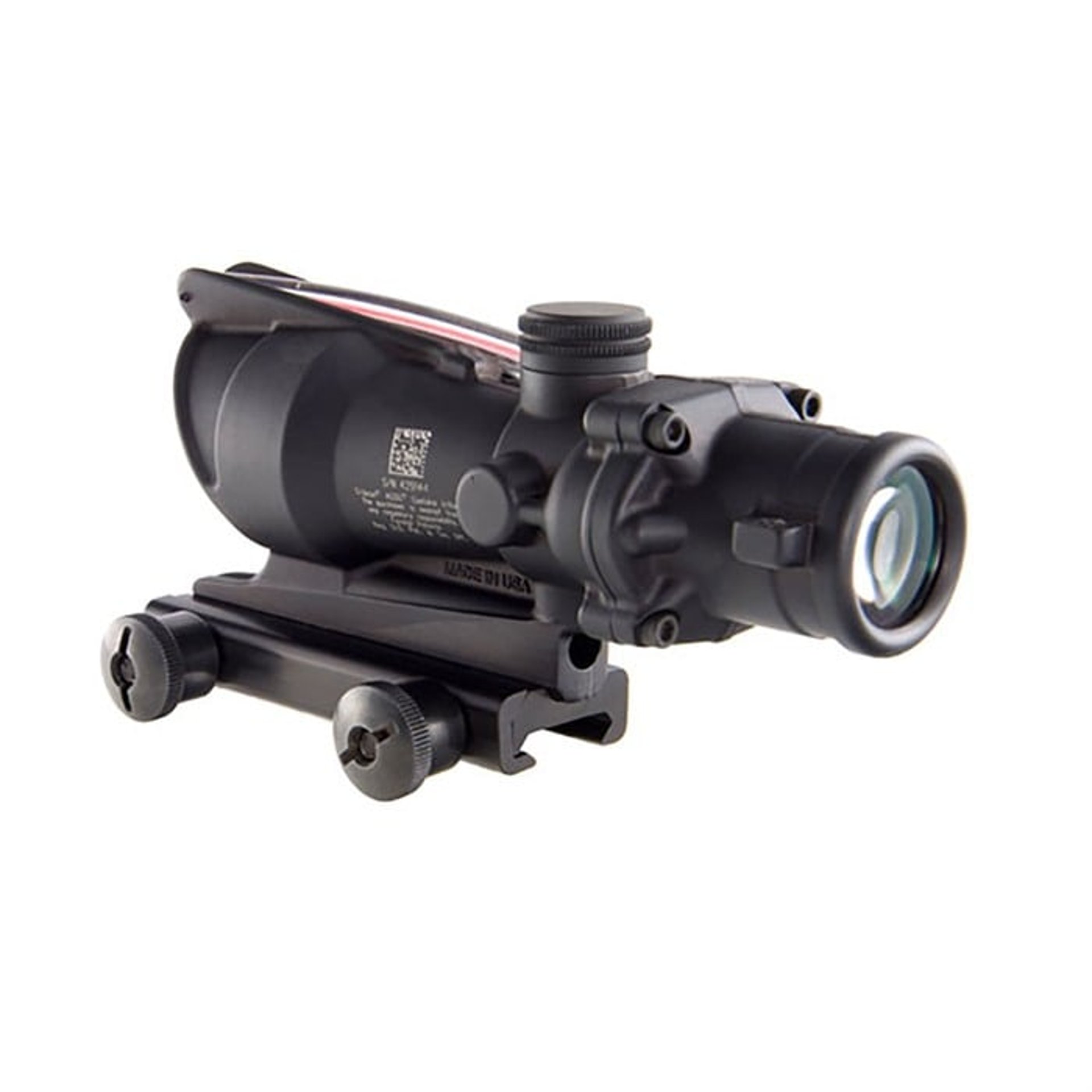

There's a reason the Trijicon ACOG® (Advanced Combat Optical Gunsight) is the official medium-distance engagement optic of the Marine Corps and U.S. Special Operations Forces.
And there’s a reason why more than one million ACOGs have been produced. Every feature of its innovative design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. This is possible through a brilliantly illuminated reticle pattern, a compact design, and legendary durability that continues to lead the industry.
FEATURES:
ALWAYS ON, ALWAYS READY
Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
TAKE CONTROL
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
RUGGED, RELIABLE HOUSING DESIGN
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“BOTH EYES OPEN” DESIGN
“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
OUTSTANDING CLARITY
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
EXACT TARGET DISTANCES & HOLDS
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
COMBAT PROVEN
No other magnified optic has been used more in combat than the ACOG.
SHOCK-RESISTANT
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
WATERPROOF
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
INCLUDED IN BOX:
- Thumbscrew Flattop Adapter (TA51)
- 4x32 Scopecoat (TA64)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG Manual
- Warranty Card
SPECIFICATIONS:
- Weight – 15.1 oz. (428.08g)
- Magnification - 4x
- Objective Size - 32mm

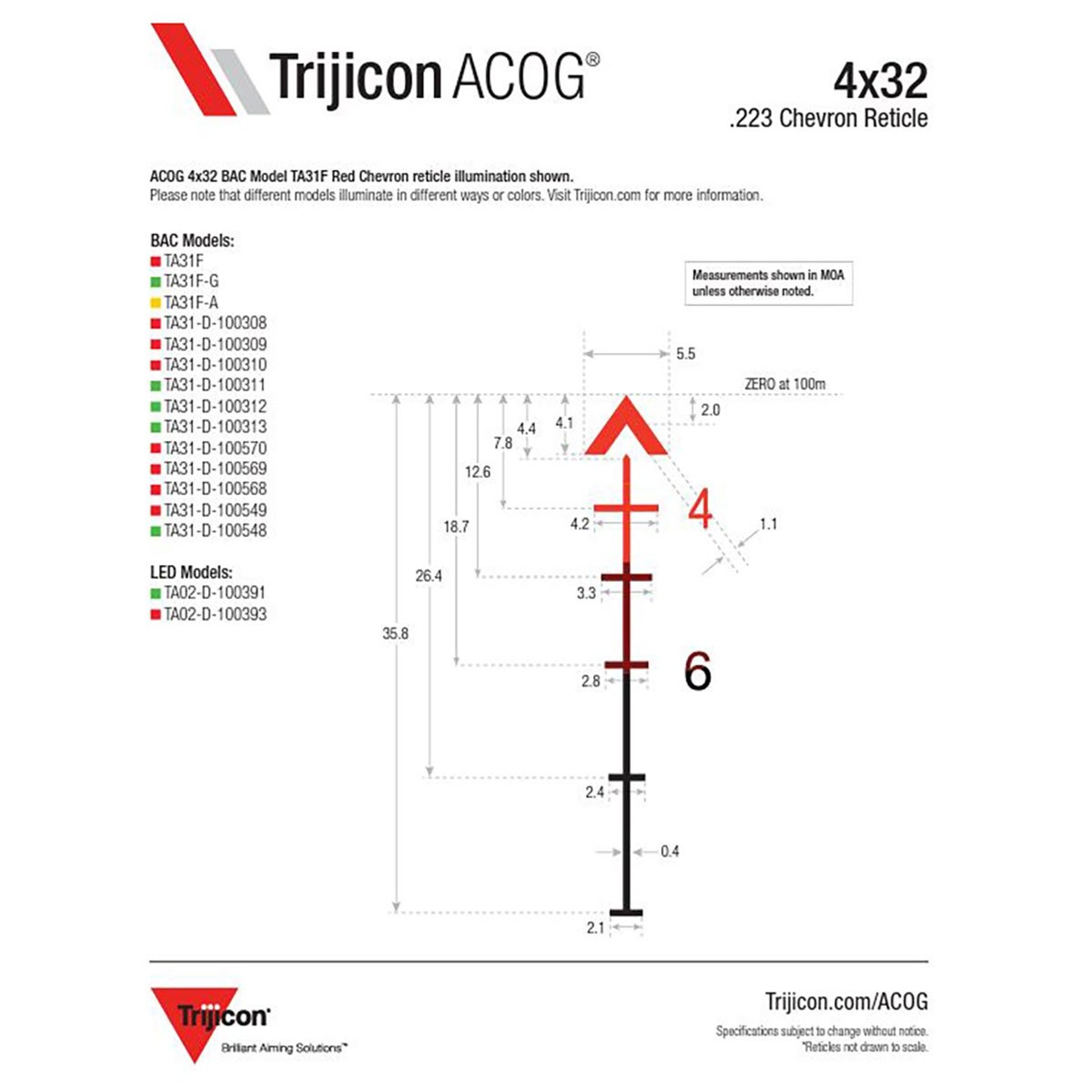

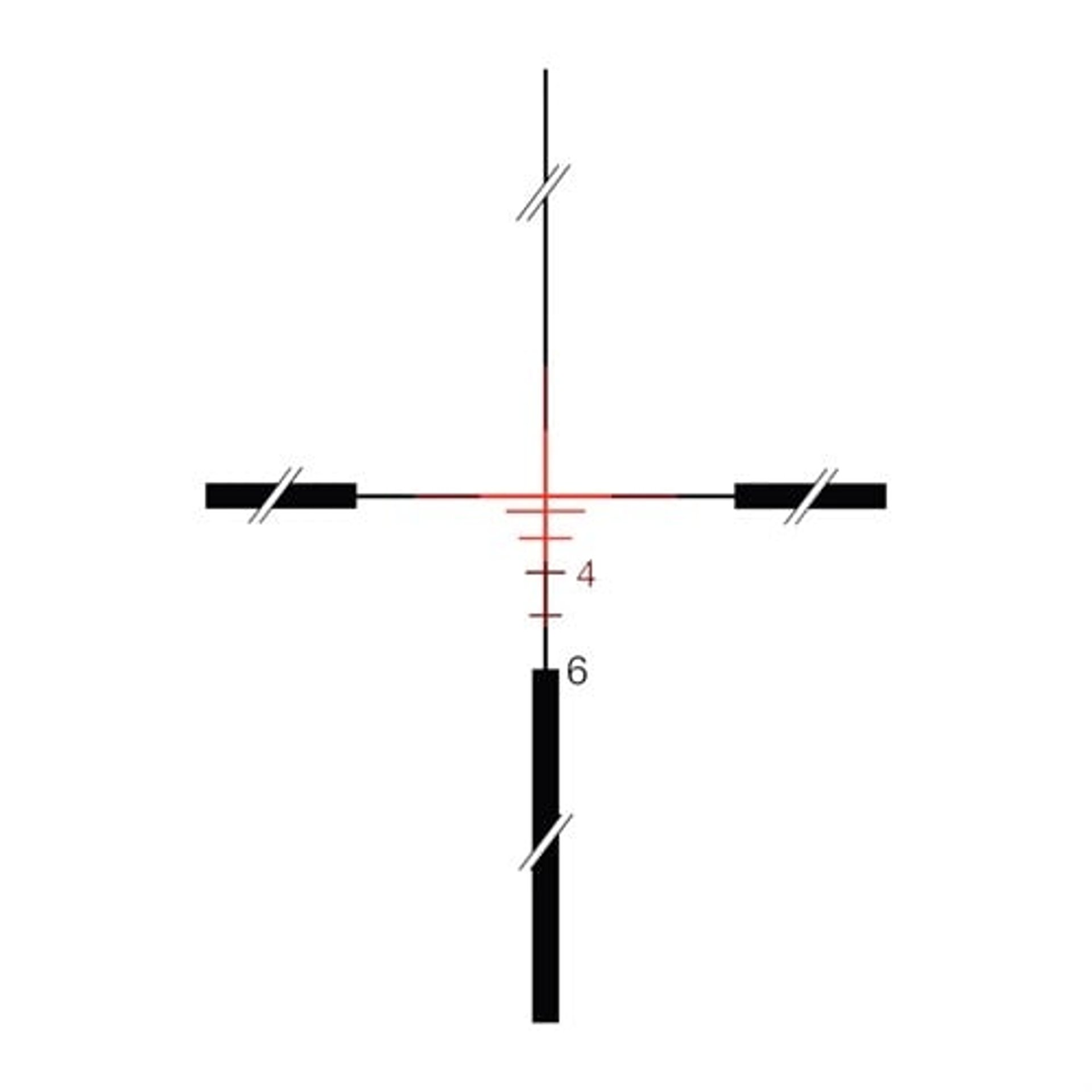

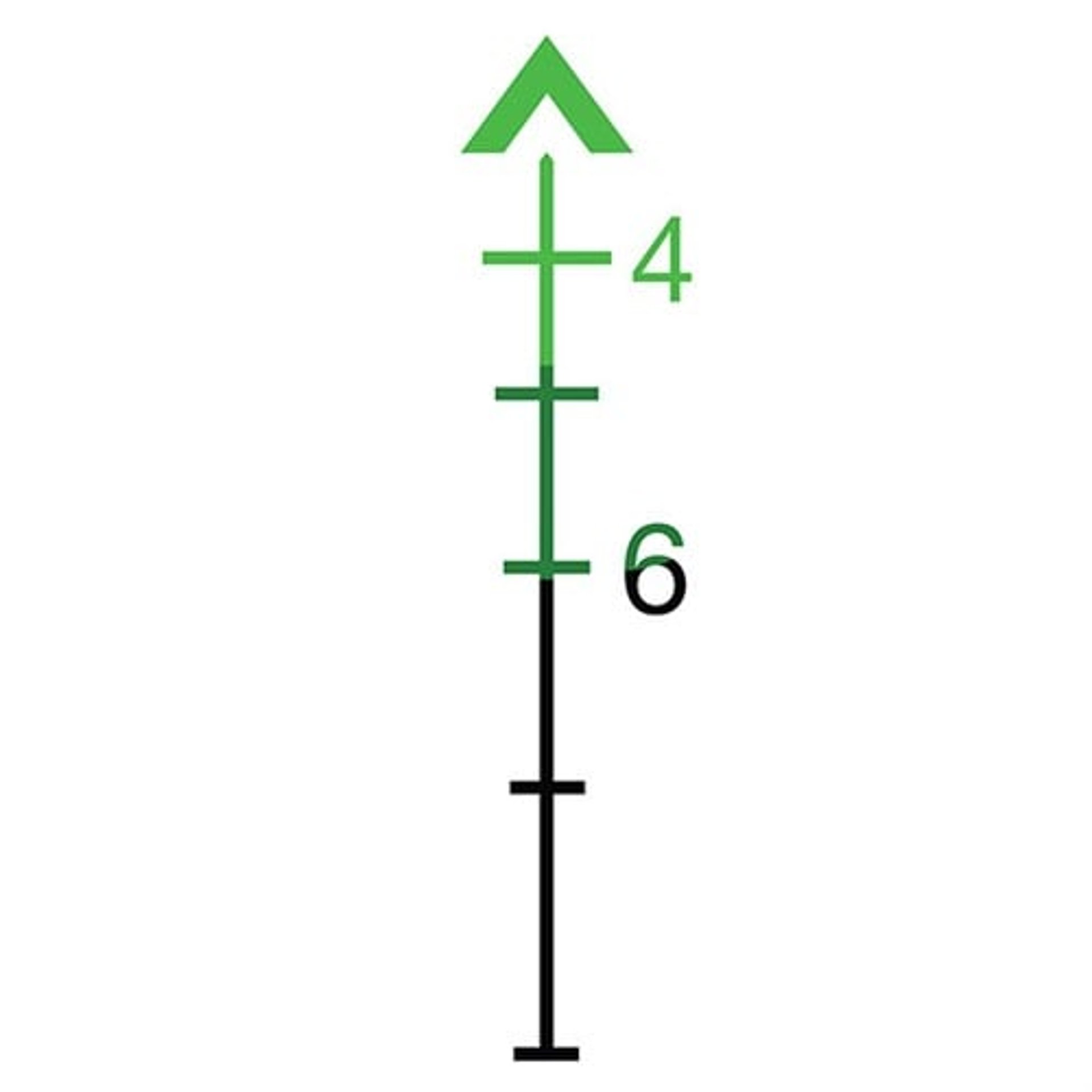

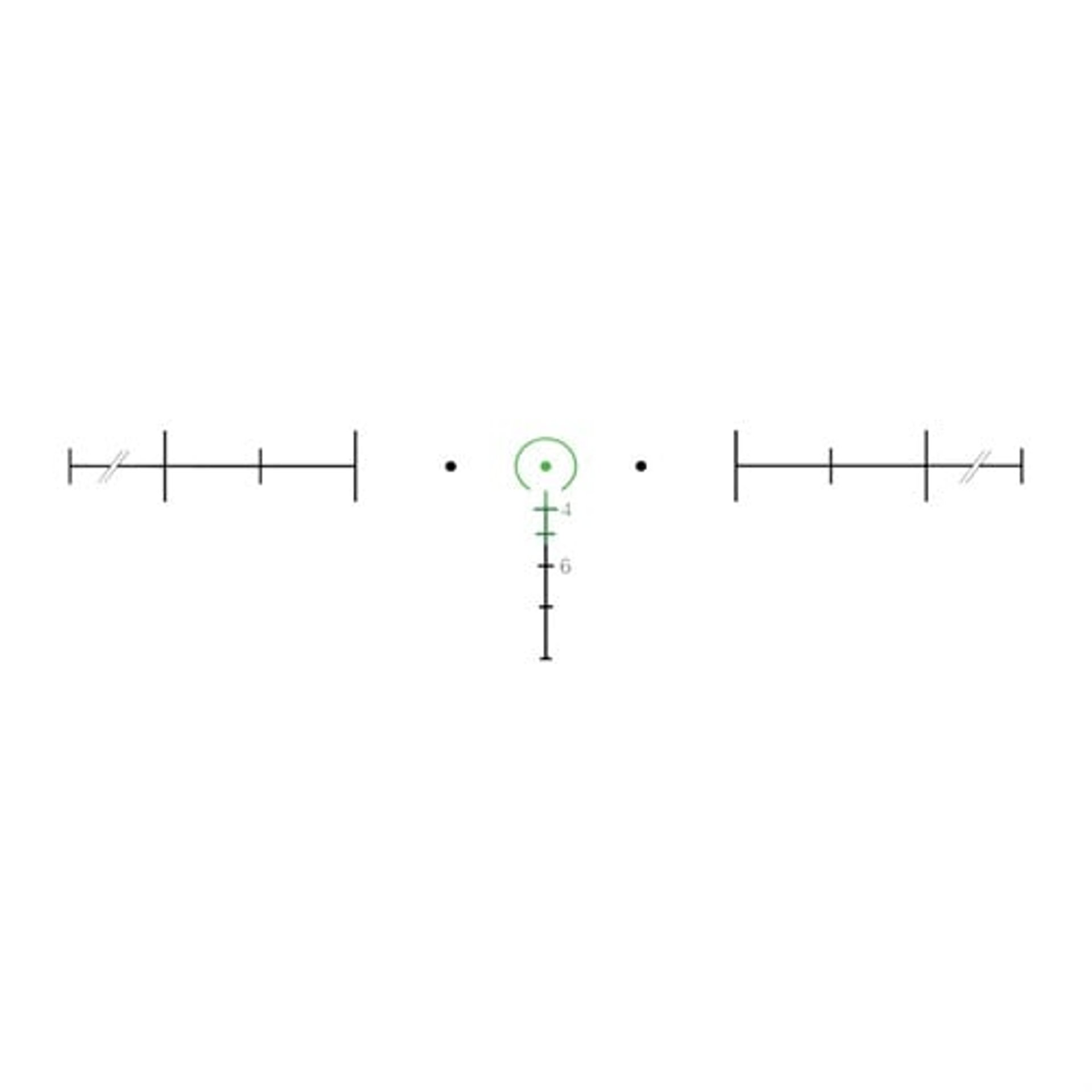

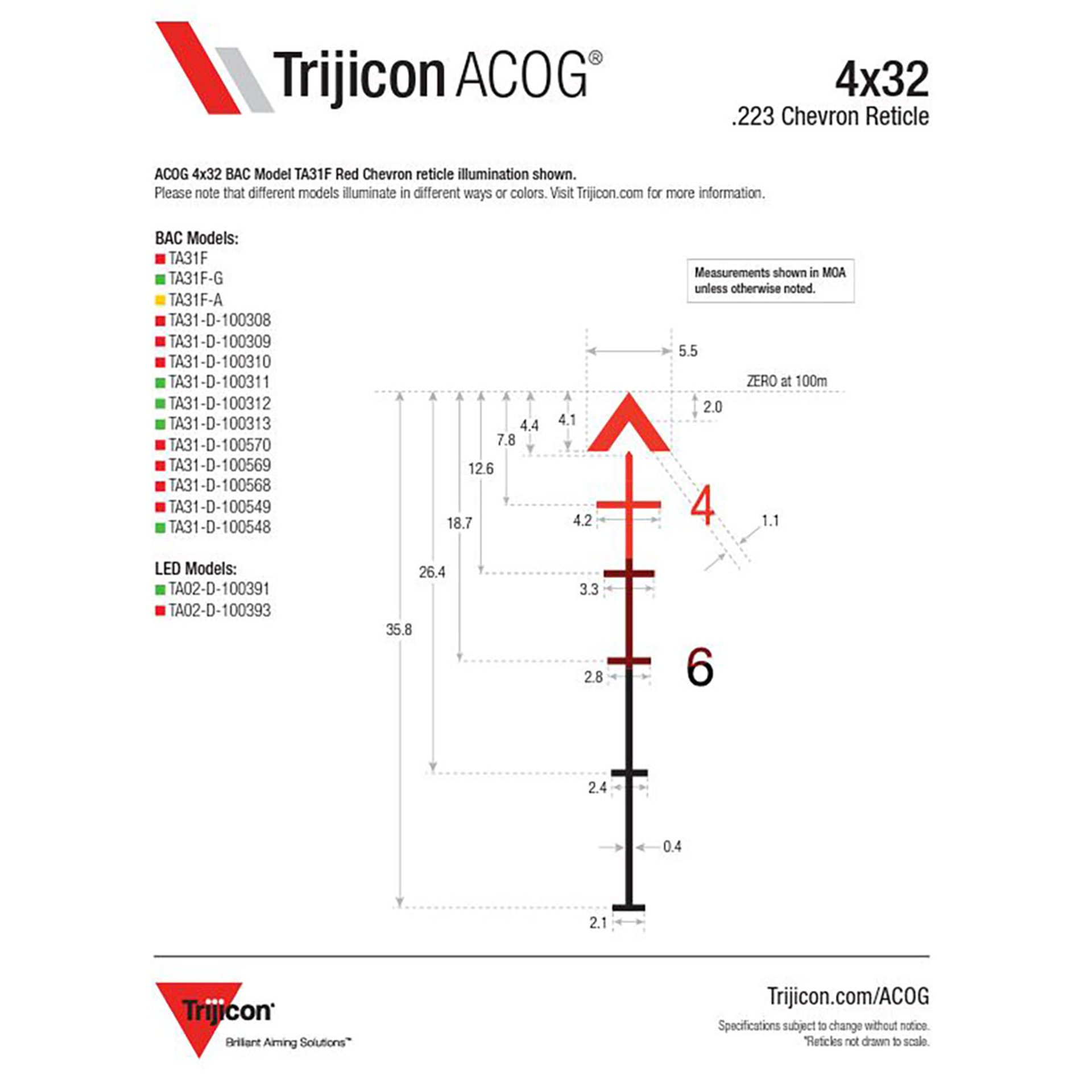

- Reticle Pattern - Chevron, Crosshair, Horseshoe/Dot
- Day Reticle Color – Red or Green
- Night Reticle Color – Red or Green
- Bullet Drop Compensating (BDC) - Yes
- Caliber - 0.223 (14.5 in. barrel)
- Bindon Aiming Concept™ (BAC) - Yes
- Illumination Source - Fiber Optics & Tritium
- Power Source - Fiber Optics & Tritium
- Eye Relief - 1.5 in. (38.1mm)
- Exit Pupil - 0.32 in. (8.13mm)
- Field of View (degrees) - 7°
- Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)

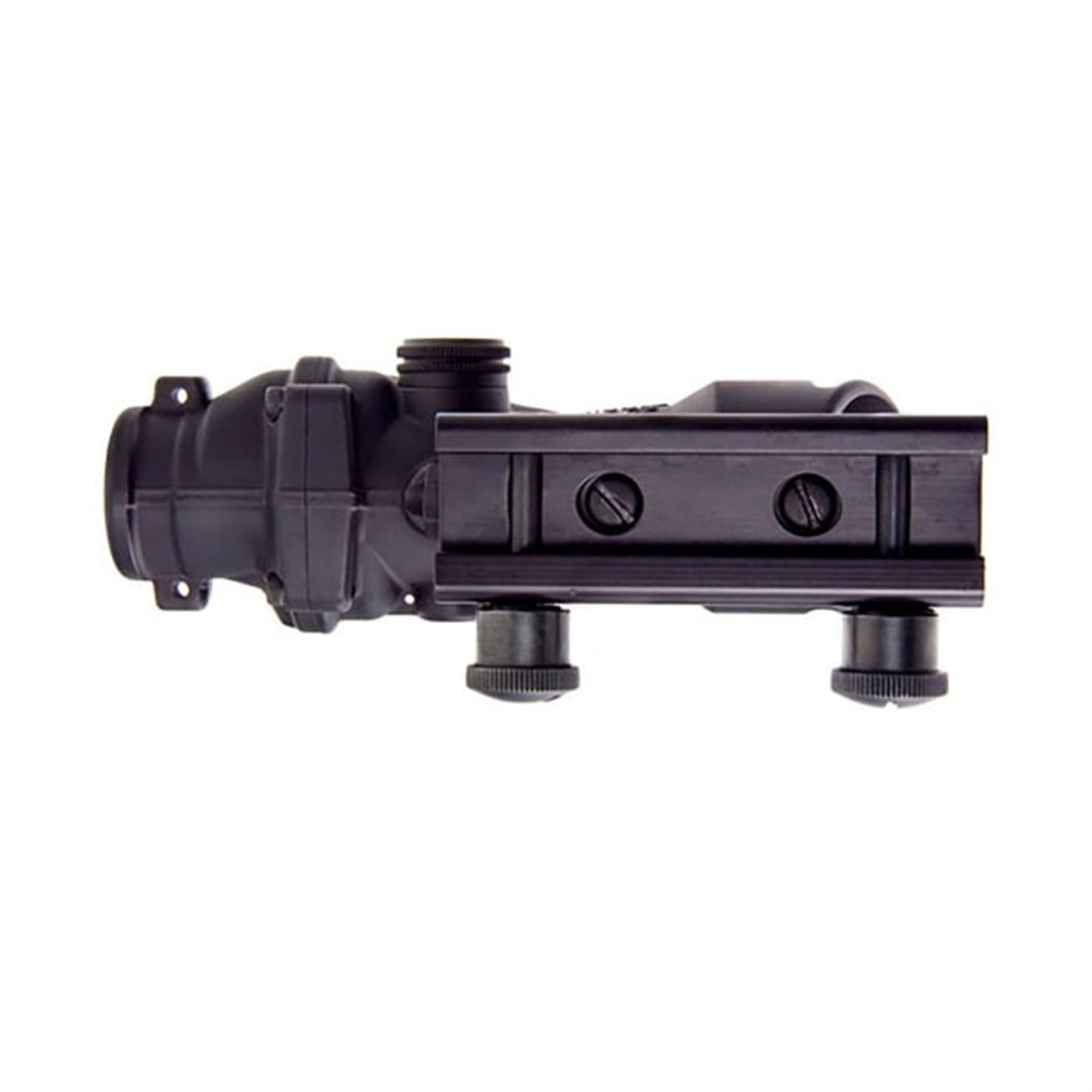

- Mount - Flattop Thumbscrew Mount (TA51)
- Housing Material - Forged Aluminum
- Finish - Matte Black or Tiger Camo
