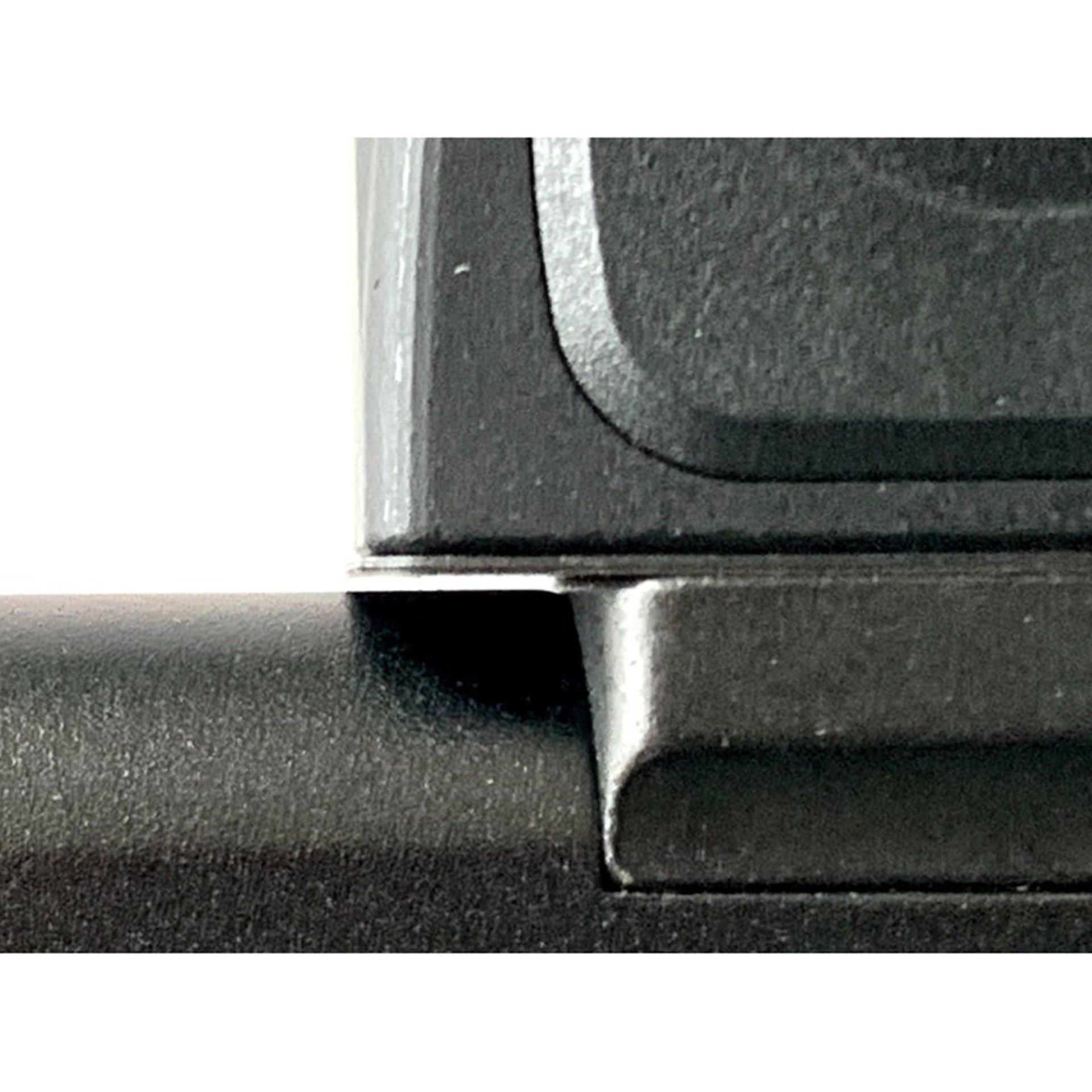

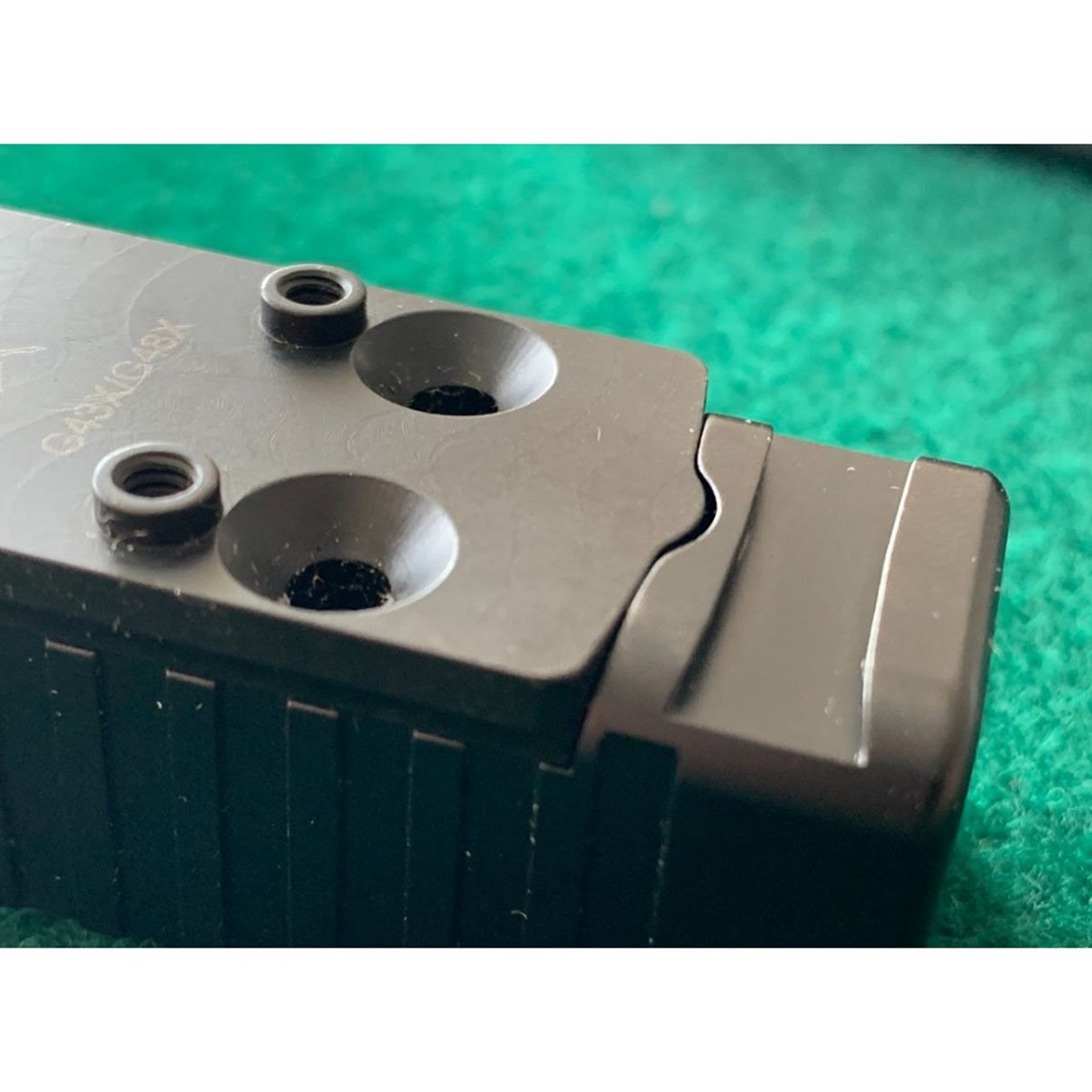

OPF-G43x/48, RMRcc (Optics Platform, Forward Controls, G43x/48, RMRcc) is the latest member of the OPF line. G43x and 48 MOS slides are designed for direct mounting of the Shield RMRcc sight. Trijicon's RMRcc is longer and requires an adapter plate which also necessarily raises the mounting surface in order to mount an RMRcc. RMRcc has its own footprint. Gone are the two lug holes in front, these are replaced by two larger diameter threaded posts (bosses) through which the sight to mount/plate screws are installed. The sight to mount/plate screws are also significantly strengthened, though with the OPF-G, RMRcc design that holds the sight immobile on the plate, the larger diameter and stronger screws aren't as important, with the OPF-G43x/48, RMRcc, As RMRcc is longer than the G43X/48 MOS cut, the sight overhangs on the slide. When installed, the bottom of RMRcc (with Trijicon provided sealing plate installed) is almost flush with the top of the slide so the sight is as low as possible. They positioned the RMRcc towards the center of the plate as much as feasible, this is done to reduce the amount of unsupported overhang on the RMRcc's sealing plate in front.

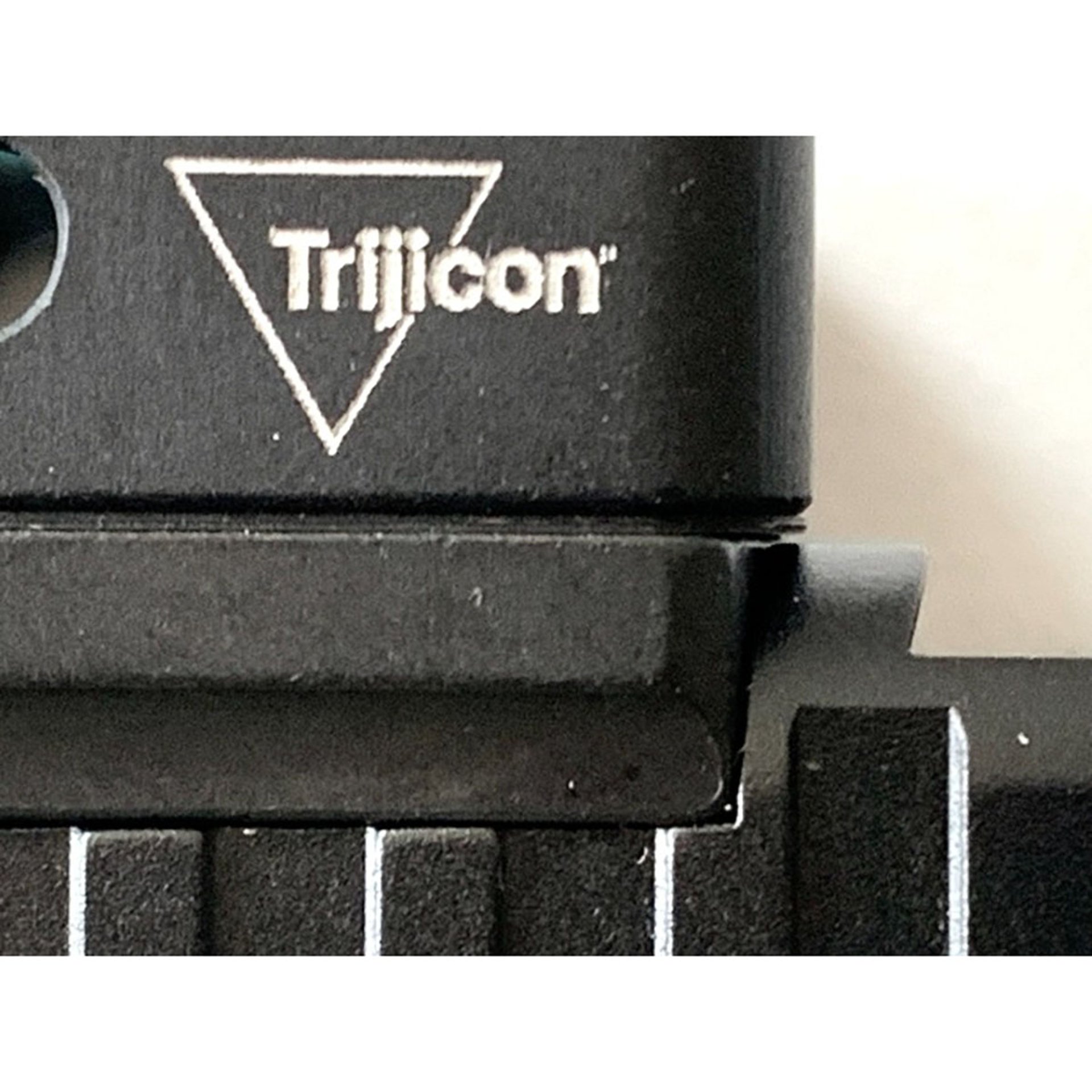

RMRcc has a rubber gasket around its battery compartment to keep water and moisture at bay, which pushes the sealing plate downward. This isn't an issue if the plate is of the same length as the RMRcc, but with an overhang, it creates a slight gap between the gasket and the sealing plate. OPF-G43x/48, RMRcc's design eliminates the gap/opening between the sight and sealer plate, to the point of emulating a plate that's as long as the sight itself. To wit, if the plate is as long as the RMRcc, it will make the installed height of RMRcc even taller, which is the very reason we chose to let the sight overhang.
Torque value:
Plate to slide: 12 to15 in·lbs.
Sight to plate: 18 in·lbs..
Weight: 0.75oz
Material: 1018 steel, black nitride
