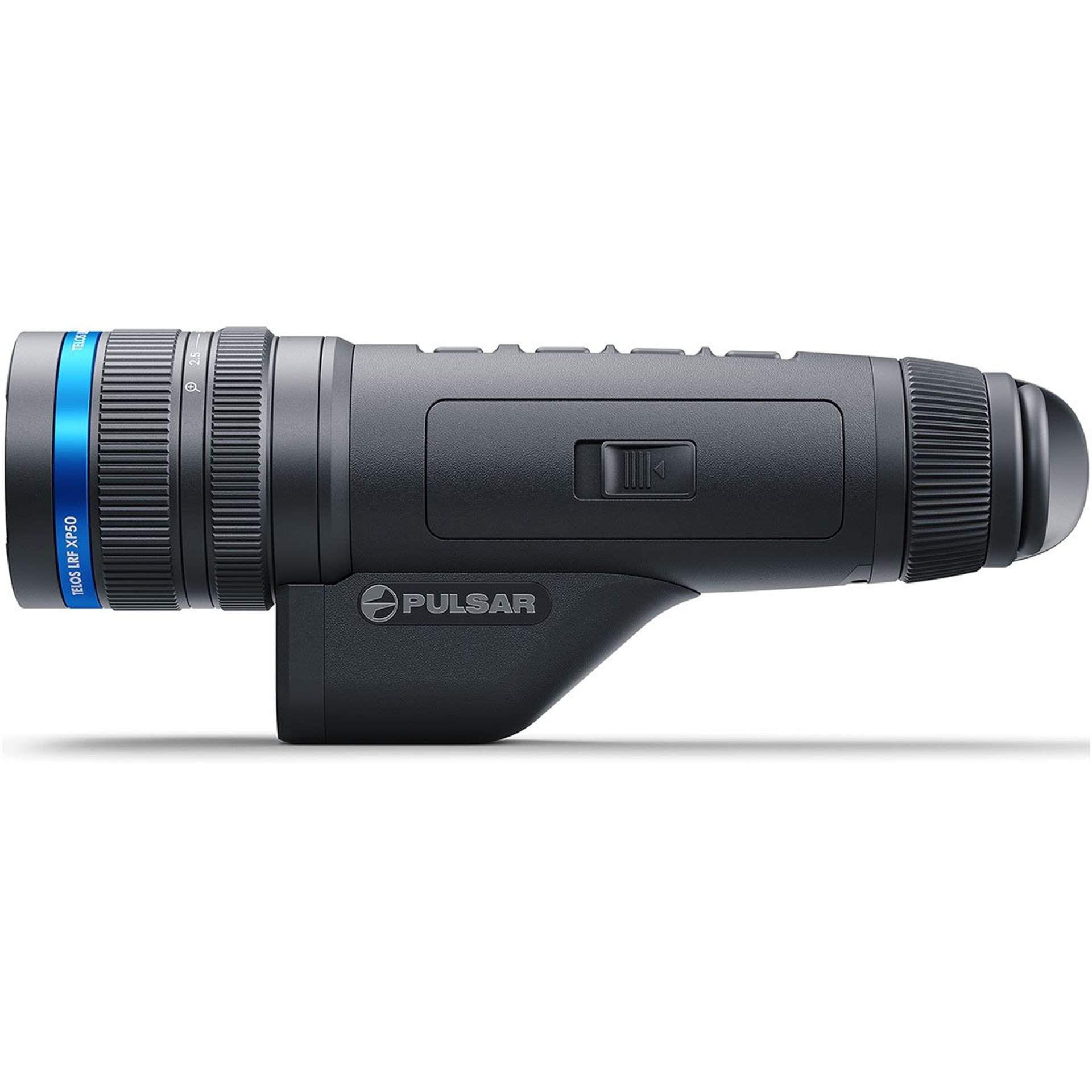

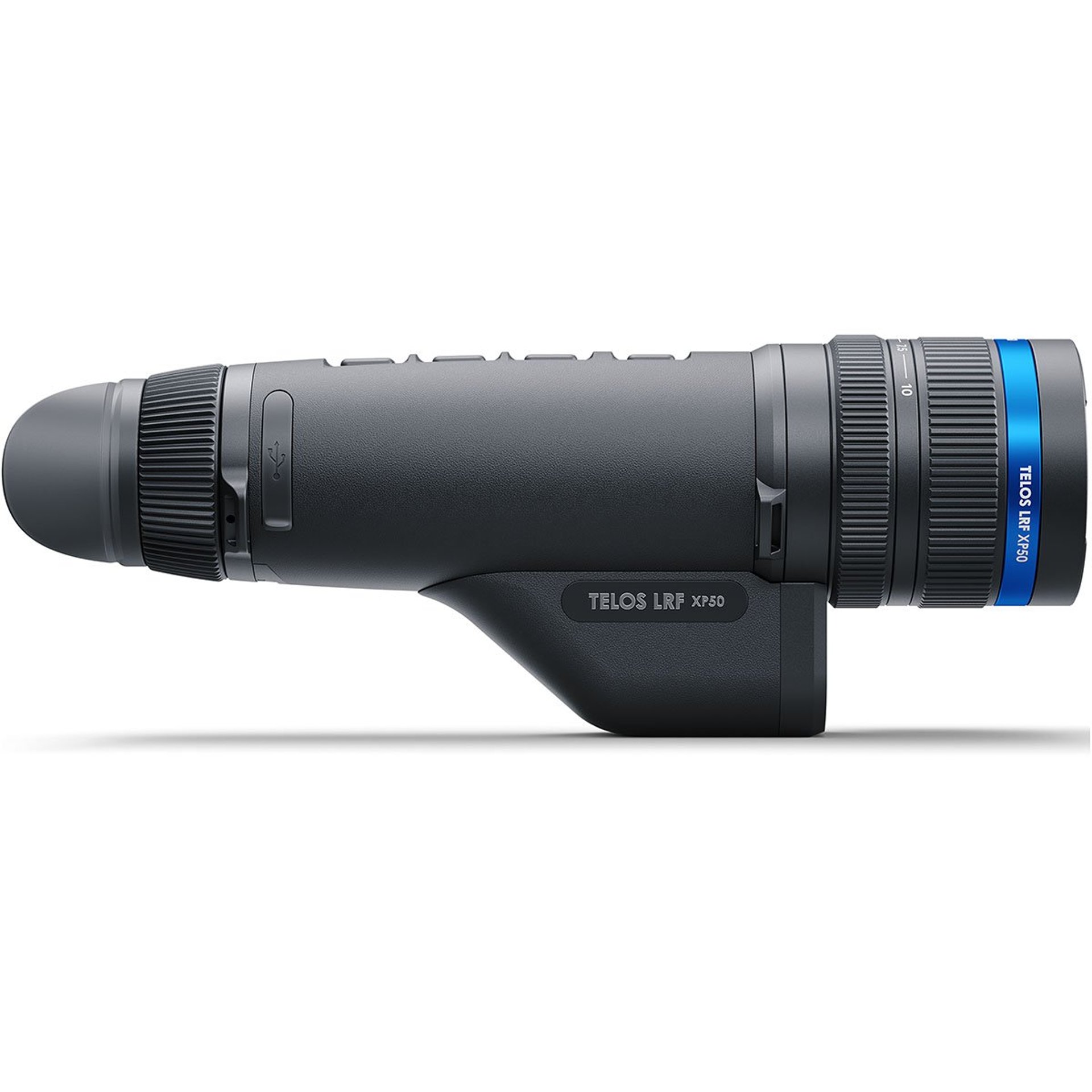

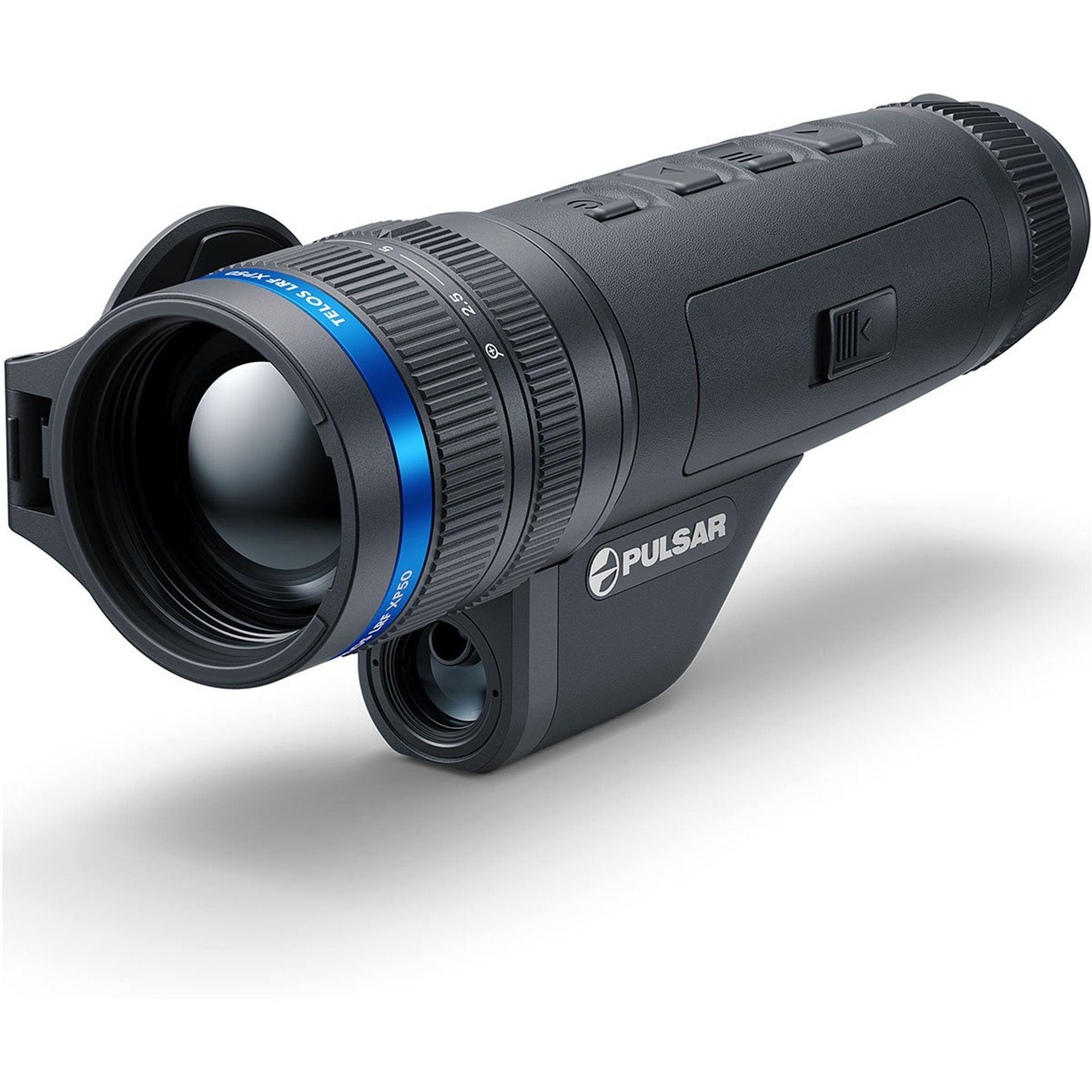

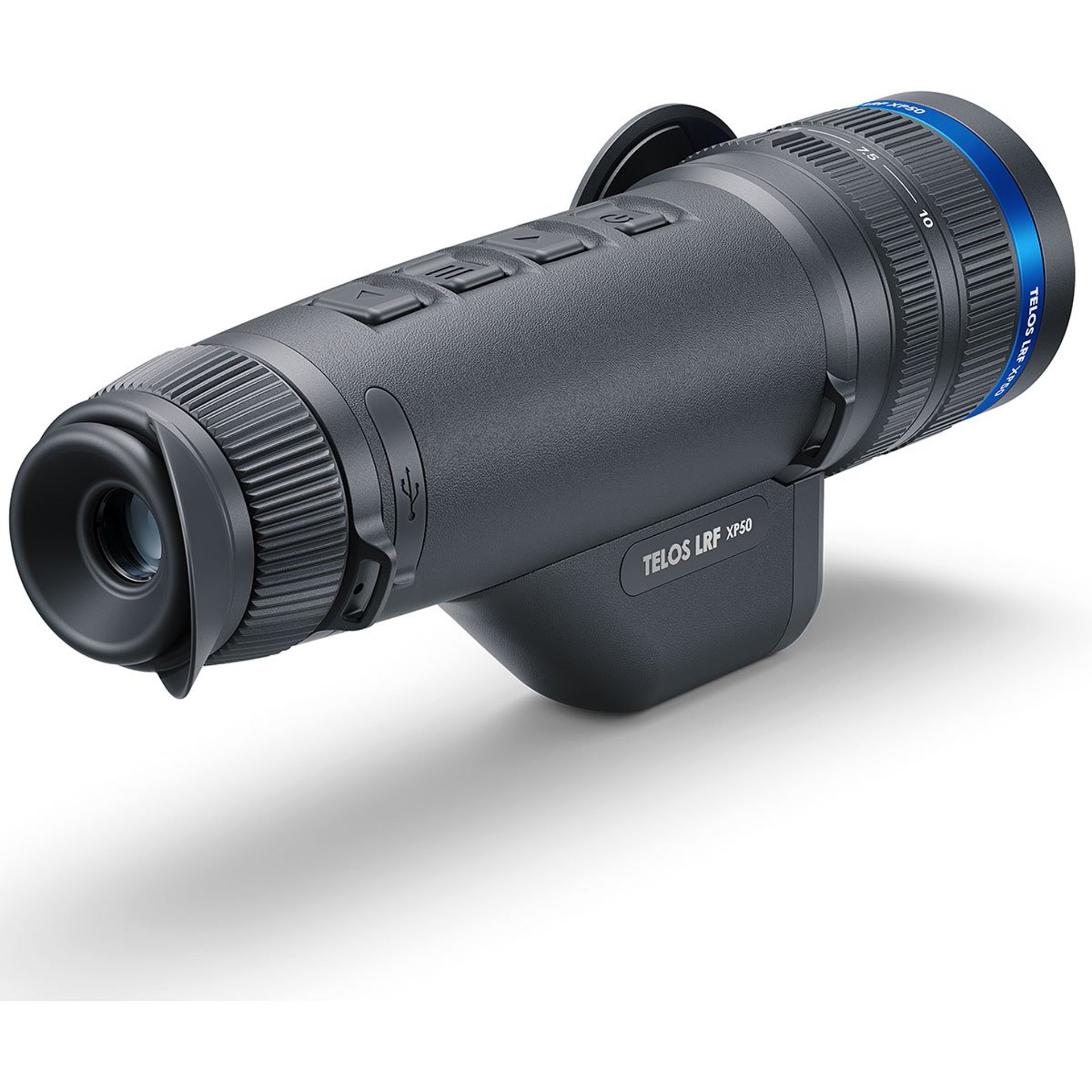

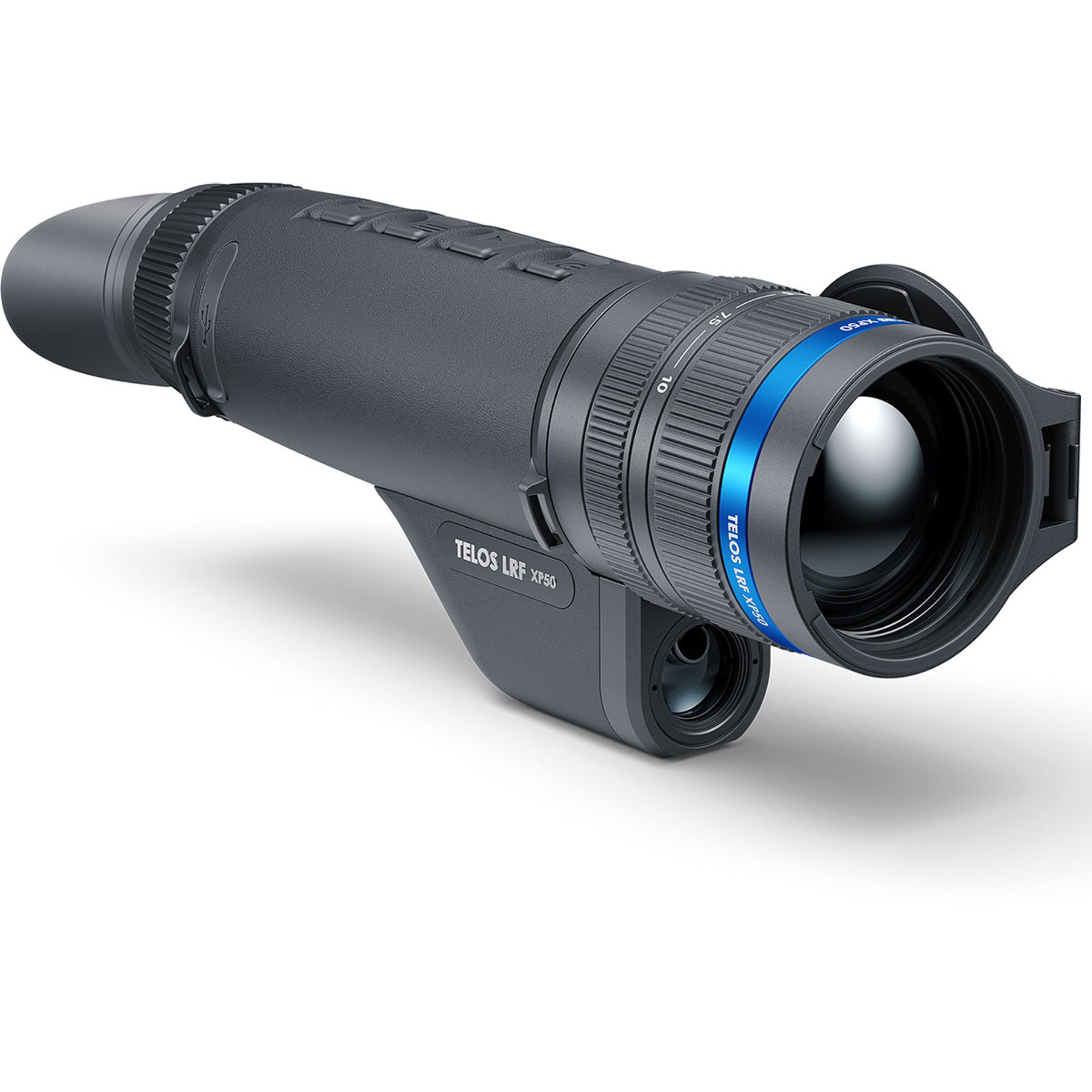

Pulsar is once again at the forefront of innovation with the new Telos LRF XP50 digital thermal monocular. The rapid rate of technological advancement in today’s world requires modularity and precision. Pulsar has designed its new Telos LRF XP50 with this in mind. With components and parts that are capable of being upgraded and customized according to the user’s needs, the new Telos LRF XP50 ensures cutting-edge thermal technology is at your fingertips for years to come.

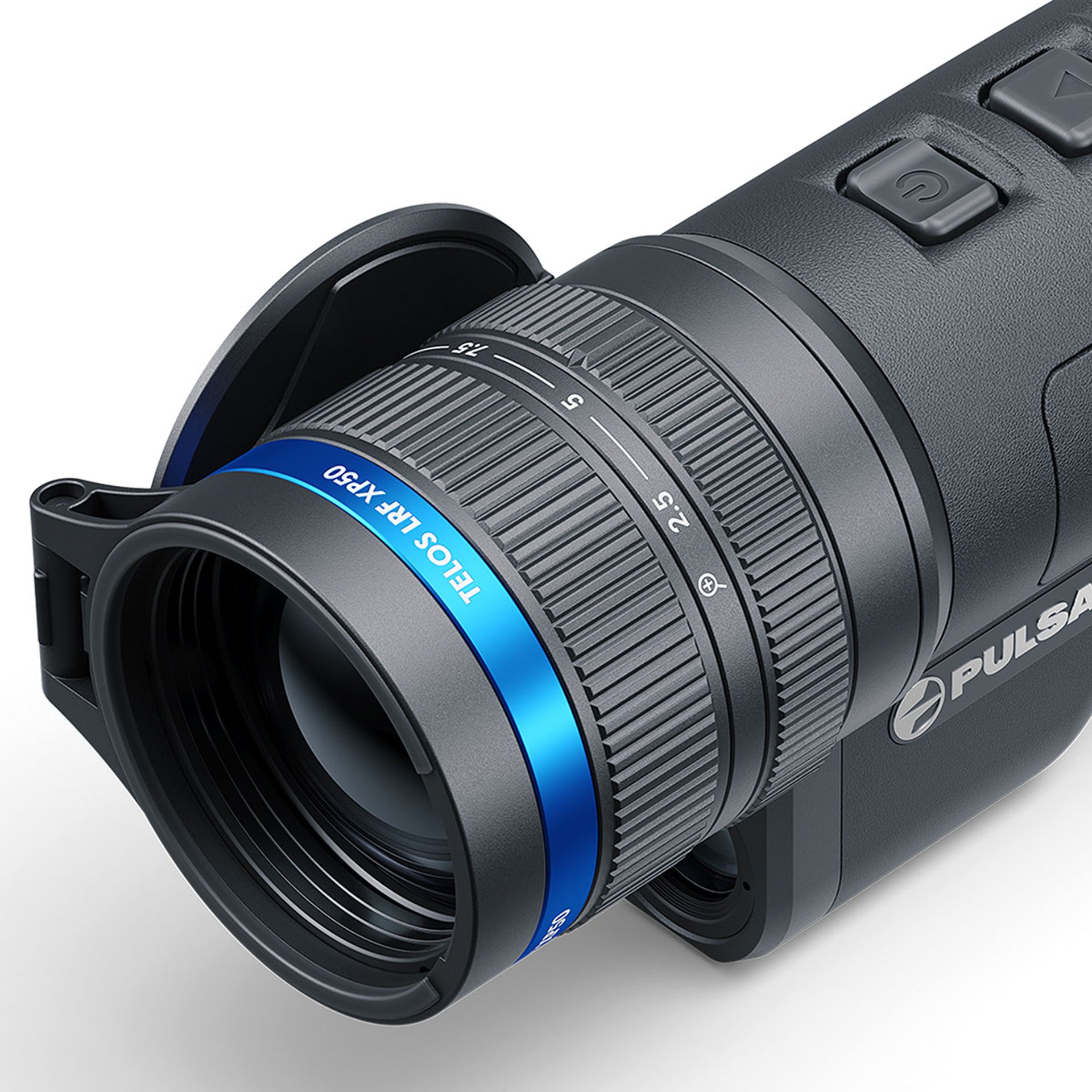

The Telos LRF XP50 stands as an extremely powerful optic. With an industry leading <18mk netd sensor and enhanced image processing algorithms, this extremely powerful thermal monocular gives users highly refined details, even in the toughest conditions. for the first time in a pulsar product, the telos lrf xp50’s adjustment rings allow users to gradually zoom in and focus in one fluid motion. this fine camera-like digital control system allows smooth magnification adjustments and pristine quality even at high magnifications.>

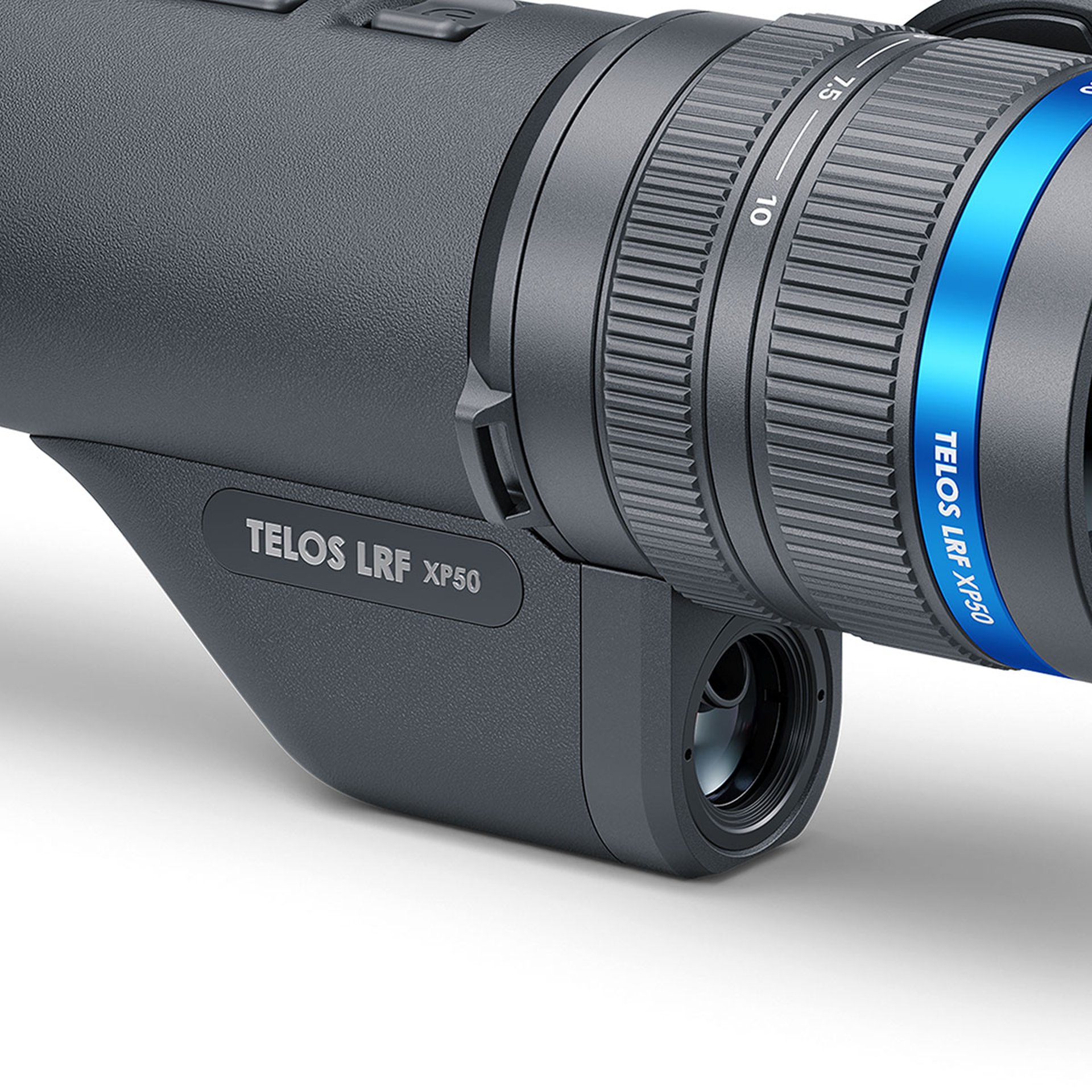

Further enhancing its long-range viewing abilities, the Telos LRF XP50 has a detection range of more than 1,900 yards, capable of detecting human-sized heat sources in the harshest weather. Its built-in laser rangefinder has a range of 1,000 yards, helping users survey areas and target objects within a practical accuracy of 1 yard.
The Telos LRF XP50 pro is also built to last. From arctic conditions to wetland swamps, this unit continuously provides reliable heat detection. With a temperature resistance of -13° to 104° F, the Telos can survive anywhere from the snowfields of Alaska to the rocky wastes of the Mojave. Outfitted with a brand new LPS 7i quick-charge Lithium-ion battery, the Telos LRF has more than 8 hours of battery life and can be charged with any USB-C compatible charging device, including common cellphone chargers. The LPS 7i also supports wireless charging.
Designed for longevity and crafted with care and precision, Pulsar’s Telos LRF XP50 is the only thermal monocular you will ever need.
MAIN
- Sensor: 640x480 pix. @ 17 µm (NETD <18 mk)>
- Objective lens: F50 / 1.0
- Magnification: x2.5 – 10 (x4 digital zoom)
- Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.3
- Detection range: 1800 m
SENSOR
- Type: uncooled
- Resolution, pixels: 640x480
- Pixel pitch, µm: 17
- NETD, mK: <18>
- Frame rate, Hz: 50
OPTICS
- Objective lens: F50 / 1.0
- Magnification: x2.5 – 10 (x4 digital zoom)
- Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.3
- Eye relief, mm: 14
DISPLAY
- Type: AMOLED HD
- Resolution, pixels: 1024x768
RANGE PERFORMANCE
LASER RANGEFINDER
- Safety class for laser equipment according to IEC 60825-1:20141
- Wavelength, nm: 905
- Max. measuring range, m: 1000
- Measurement accuracy, m: ±1
VIDEO RECORDER
- Video / photo resolution, pixels: 1024x768
- Video / photo format: .mp4 / .jpg
- Built-in memory, GB: 64
WI-FI
- Wireless Protocol: Wi-Fi
- Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz: 2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
- Degree of protection, IP code (IEC60529): IPÐ¥7 (waterproof)
- Operating temperature range, °С: -25 – +40
CONNECTIONS AND COMPATIBILITIES
- Mount, type: 1/4"
- Supported Application: Stream Vision 2
POWER SUPPLY
- Output voltage, V: 3.0 – 4.2
- Battery type: LPS 7i Li-Ion Battery Pack
- Capacity, mAh: 6400
- Operating time on battery pack (at t=22°C), h: 8.5
- External power supply, V: 5V, 9V (USB Type-C Power Delivery)
WEIGHT & SIZE
- Body material: rubber armored reinforced plastic
- Dimensions, mm: 238x72x90
- Weight, kg: 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
