KIDD INNOVATIVE DESIGNGuide Rod and Spring Kit for Ruger 10/22 LR

Guide Rod and Spring Kit for Ruger 10/22 LR
Brownells #
430109375
MFR #
KIDD-22GRSK
UPC
810132050060
$19.99

Out of Stock

Add To Favorite

Add to existing list
Select a list

Or create new one:

List name
Can we ship this to you? (US only)
Specifications
Cartridge:
22 Long Rifle
Make Model Fit:
Ruger.10/22;Brownells.BRN-22
Color:
Silver
Quantity:
1
Material:
Steel
Restriction
Prop 65 restriction:
WARNING: This product contains chemicals known to the state of California to cause cancer, and birth defects or other reproductive harm.
Can we ship this to you? (US only)
Description

Made In The U.S.A.

Products marked with the Stars and Stripes are proudly made in the U.S.A.

Many customers have asked us to show which products are made in America, and we’ve begun working with our vendors to identify them. This information, however, is not available for all items nor does it imply that foreign merchandise is of lesser quality. We will continue to gather this information to assist our customers in making informed buying decisions, and will keep our website current with the latest information.

Guaranteed. Forever.®

We make purchasing and returning products as simple as possible. If you buy a product from Brownells and decide you don’t need it, don’t want it, or just don’t like it, we’ll take it back any time… with a few exceptions

Exceptions include:

  • Firearms
  • Ammunition
  • Modified 80% frames & receivers
  • Gun powder
  • Primers
  • Liquids
  • Limited Quantity/Hazardous items
  • Products that are subject to pending or implemented restrictions due to Federal, State, or Local regulation/legislation

All other products are Guaranteed. Forever.® you can easily identify these products by the Guaranteed. Forever.® Icon.

Guaranteed. Forever.

Guaranteed. Forever.® return policy applies to the product’s original owner along with proof of purchase. Any items returned within 45 days of shipment are entitled to a refund. Any items returned after 45 days of shipment will be issued store credit in the form of a Brownells Gift Card. If a Brownells/Sinclair product was purchased through another retailer as a new product we will require proof of purchase to replace or refund.  (Refund will be issued as store credit in the form of a Brownells gift card.)

Upgrade the bolt handle assembly in the 10/22®

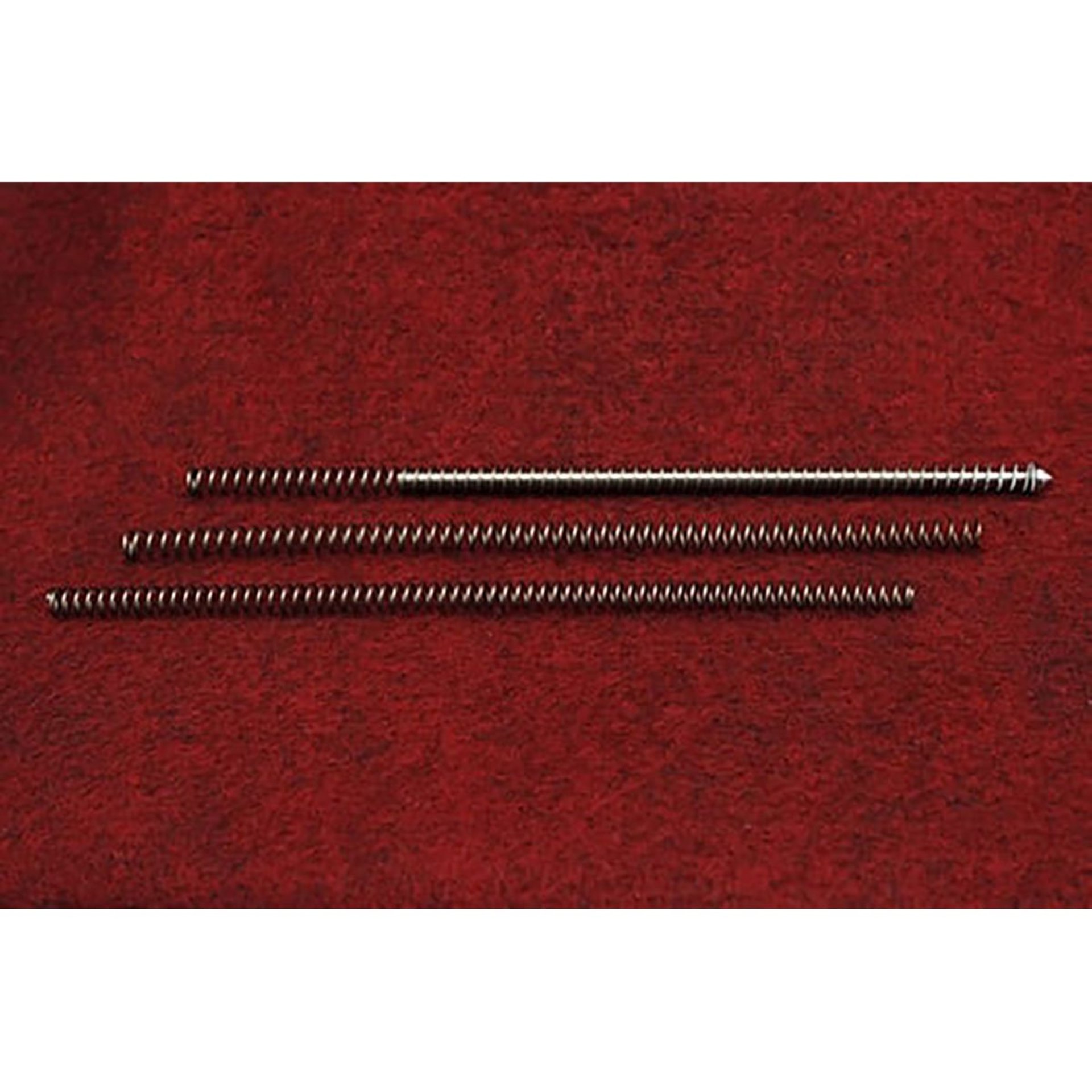

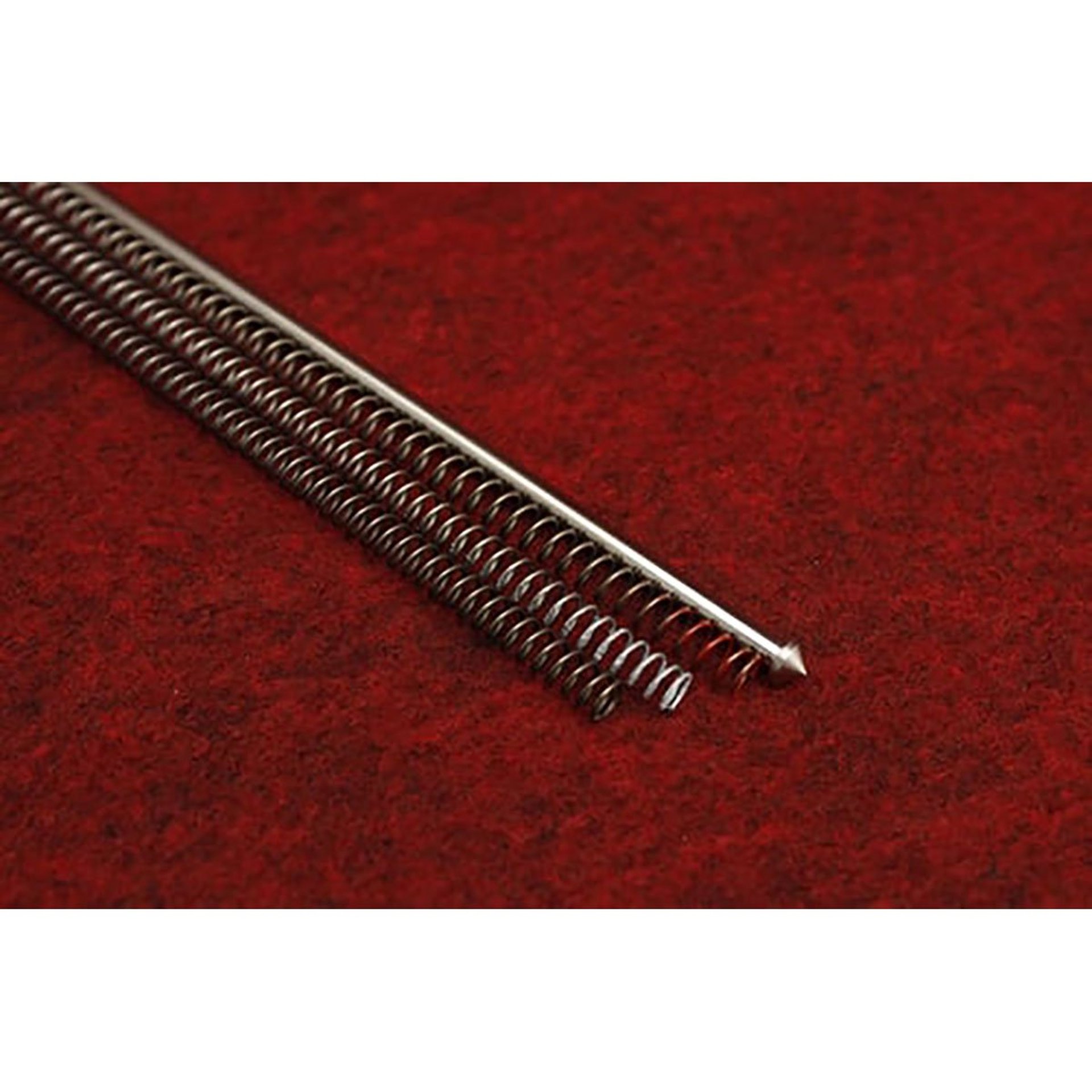

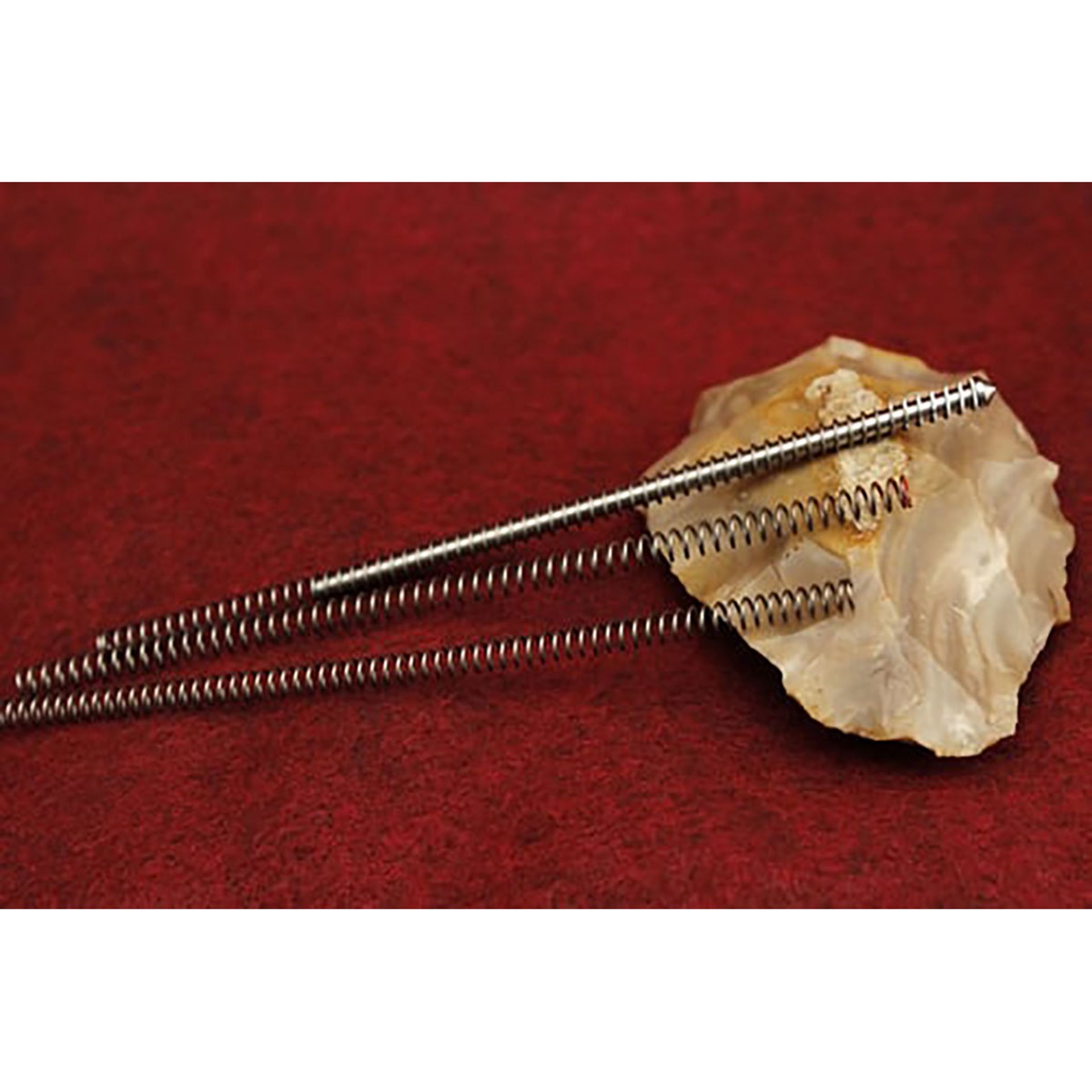

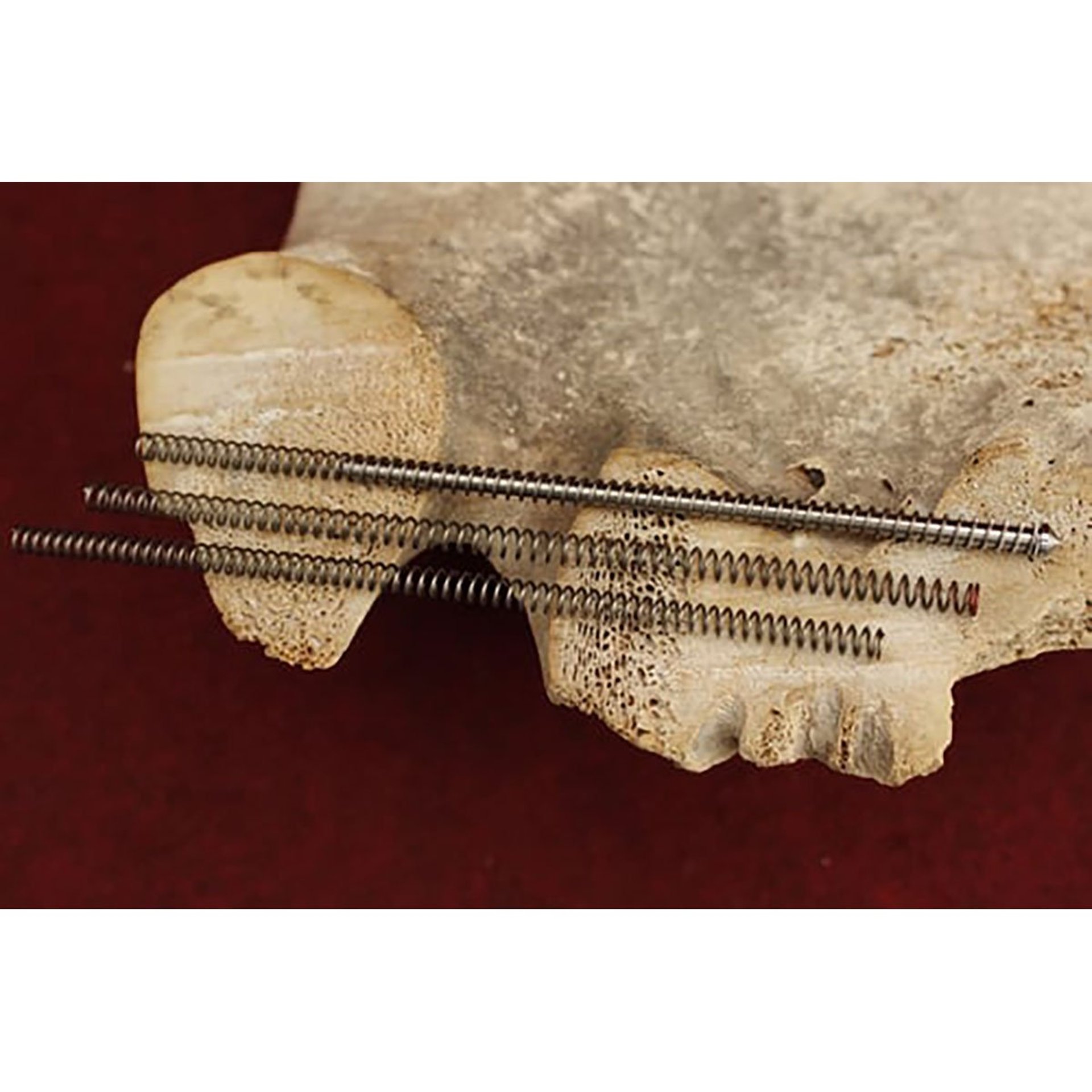

Slick guide rod for easy racking. Interchangeable tuning springs:(White=standard, Red=10% increase, Green=10% decrease)
This great upgrade kit for your 10/22® will provide you with a comfortable bolt handle to grasp, a "super slick" guide rod, and the ability to tune the recoil of your rifle with our interchangeable springs. All bolt handle lengths are 1 3/4", which is 1/4" longer than the factory bolt handle assembly kit giving greater clearance for the shooter's knuckles while racking the bolt.

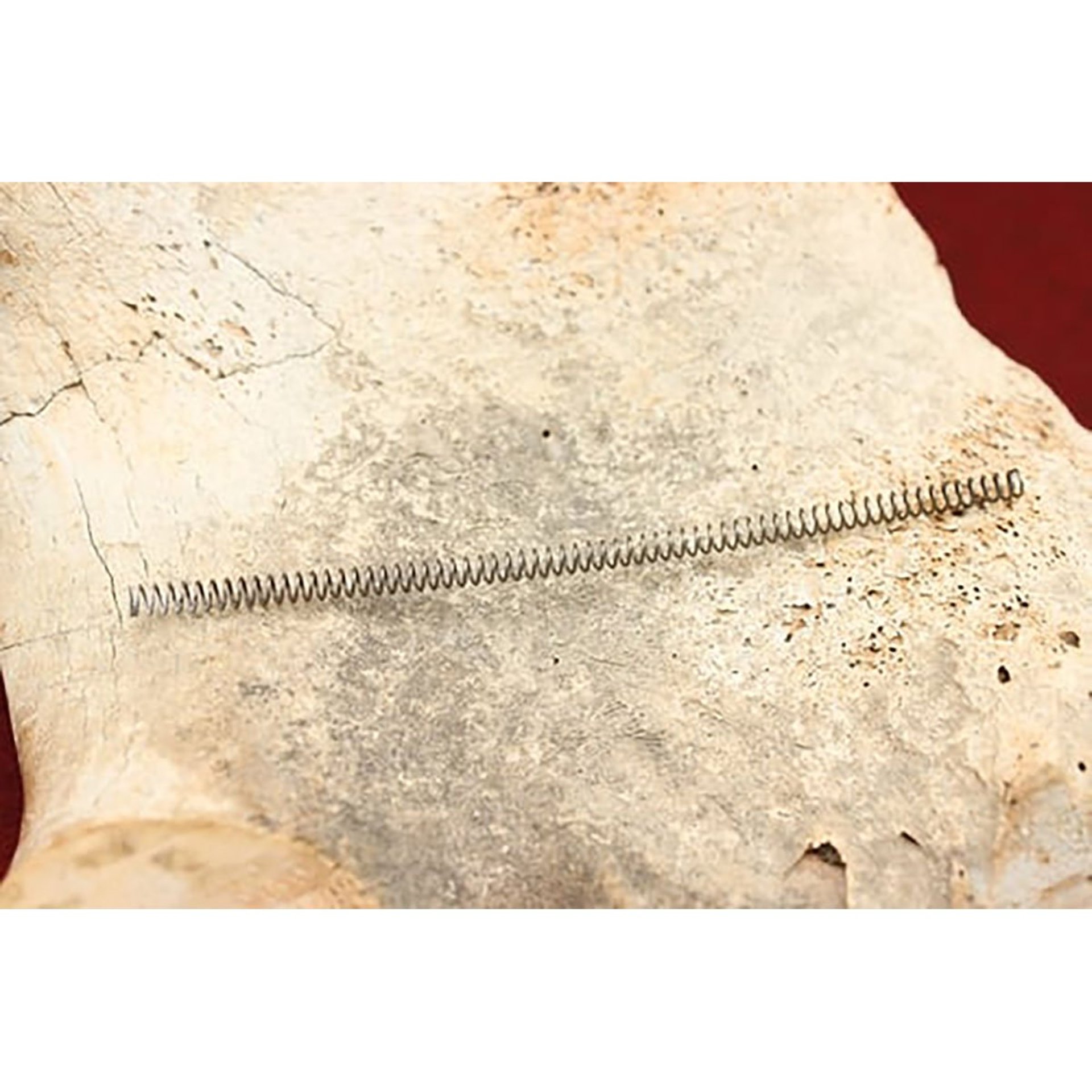

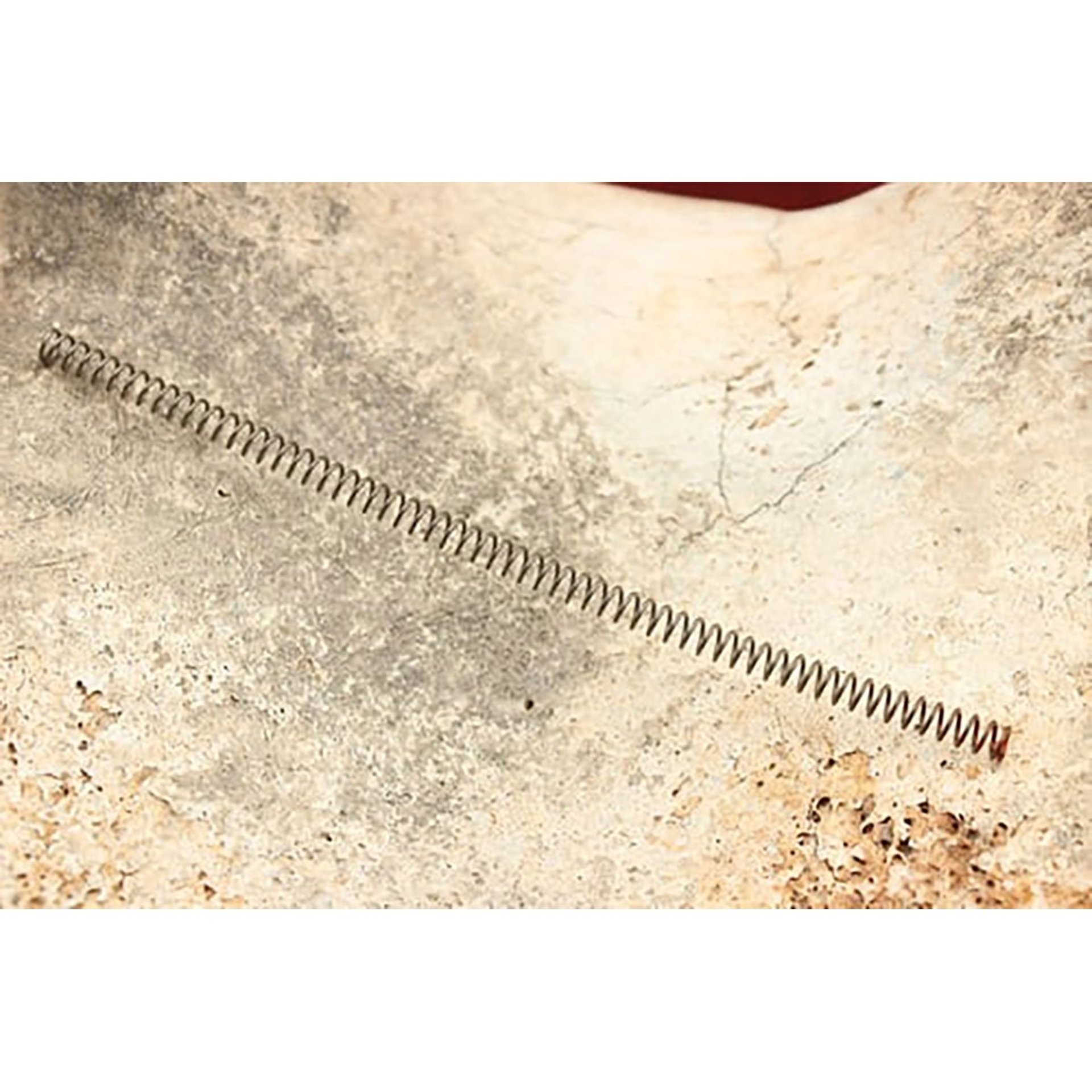

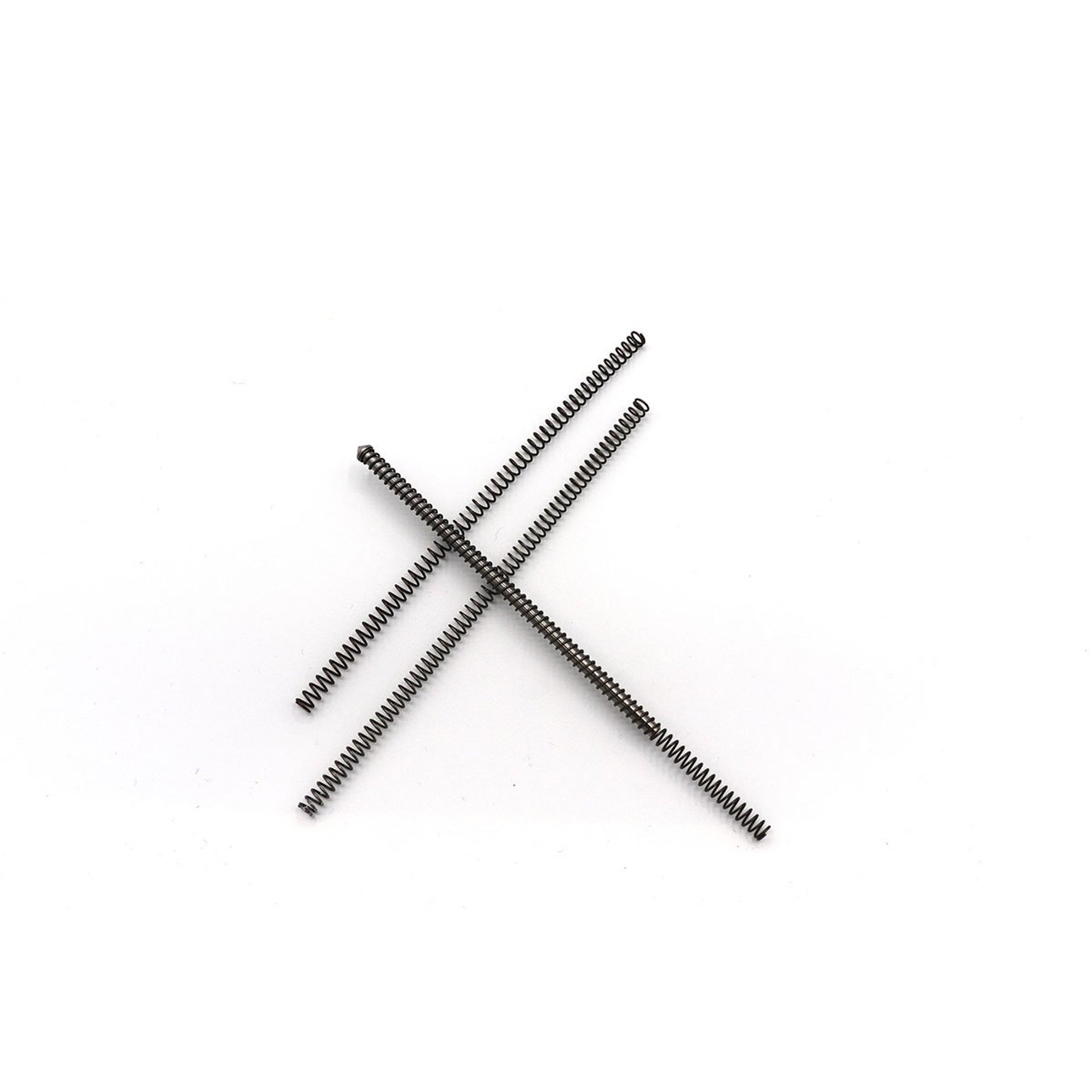

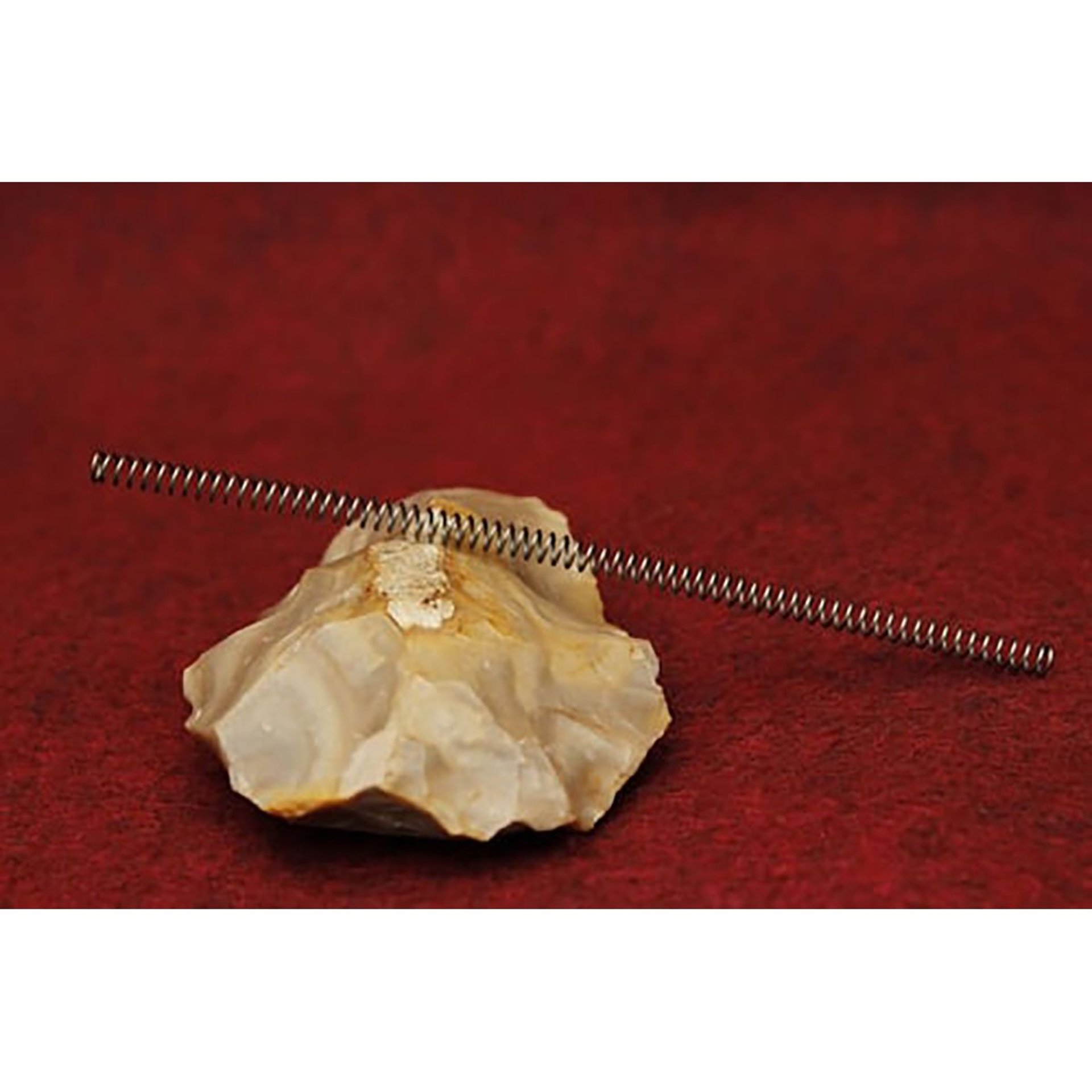

The three tuning springs come in varying tensions for the ultimate in tuning capability. Though by and large the standard tension spring will serve the shooter throughout the different ammunition velocities. If, due to tolerance stacking or preferred ammunition the cycling of the action is out of sync then the shooter has the capability to change the spring without using the more primitive method of cutting coils to tune a spring.

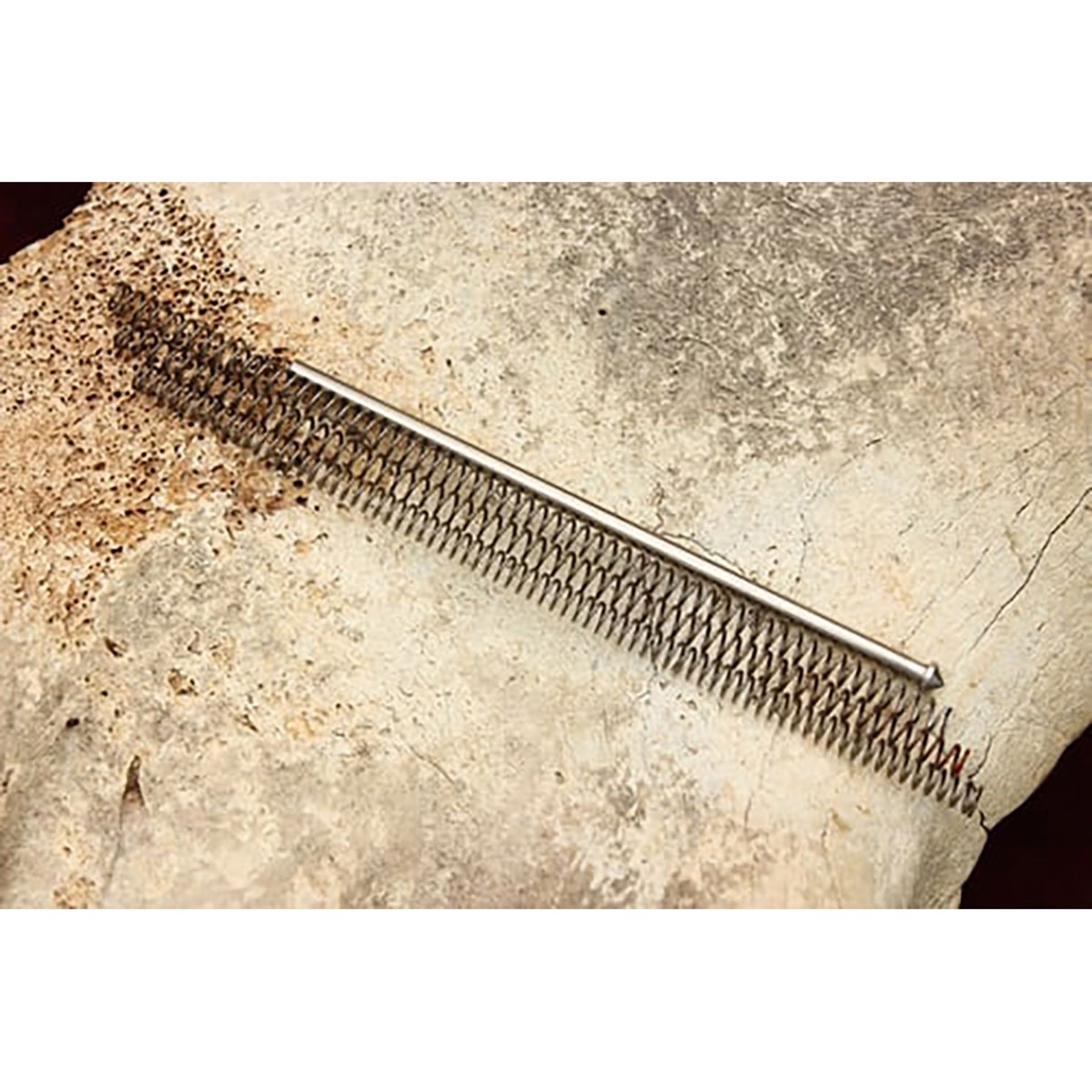

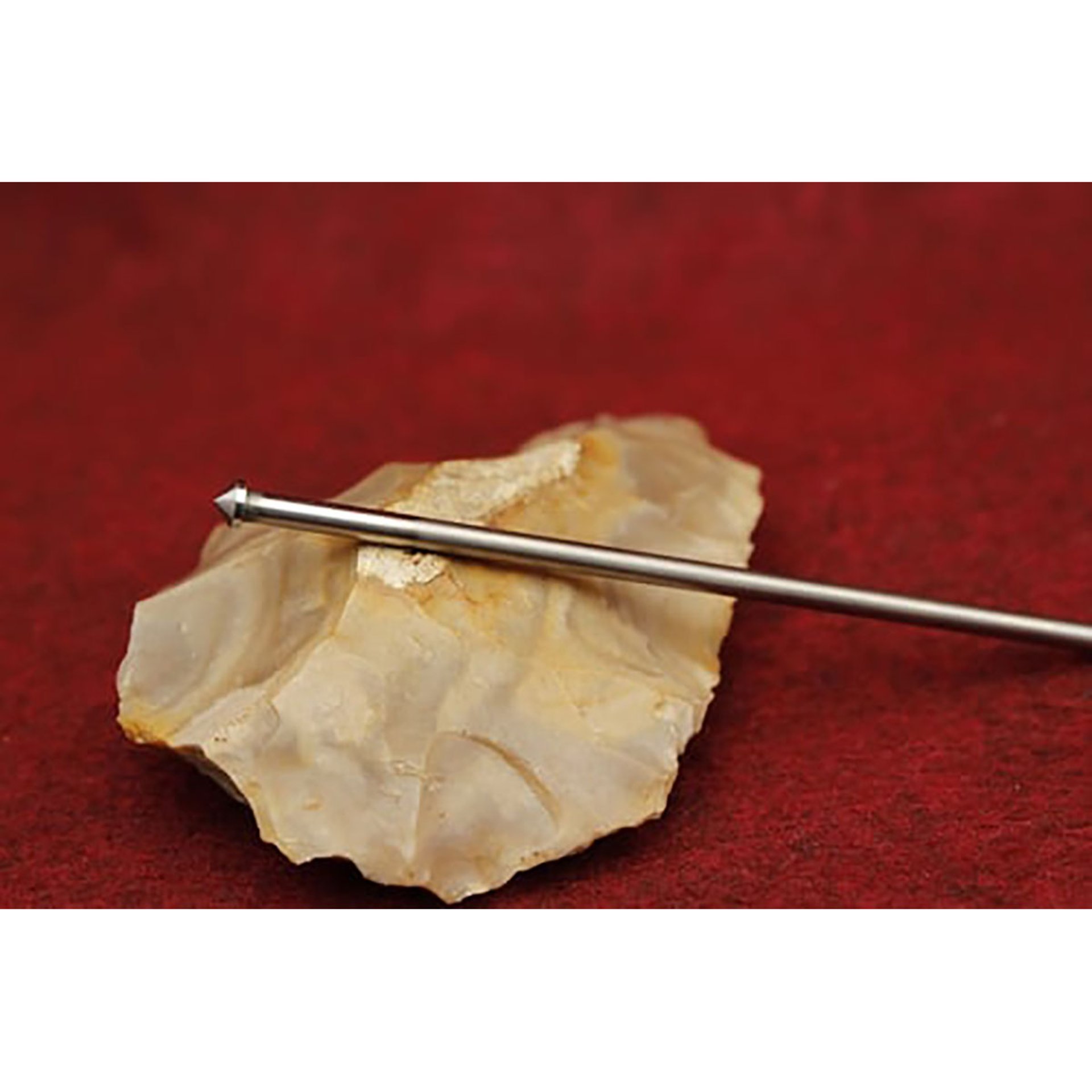

Precision ground guide rod is made from hardened tool steel and held to 2/10,000" tolerance throughout its entire length. The rod is nitride treated which gives its surface a 70C rockwell (harder than a file) surface hardness. Guaranteed the smoothest and slickest guide rod in the industry.


Installation instructions:

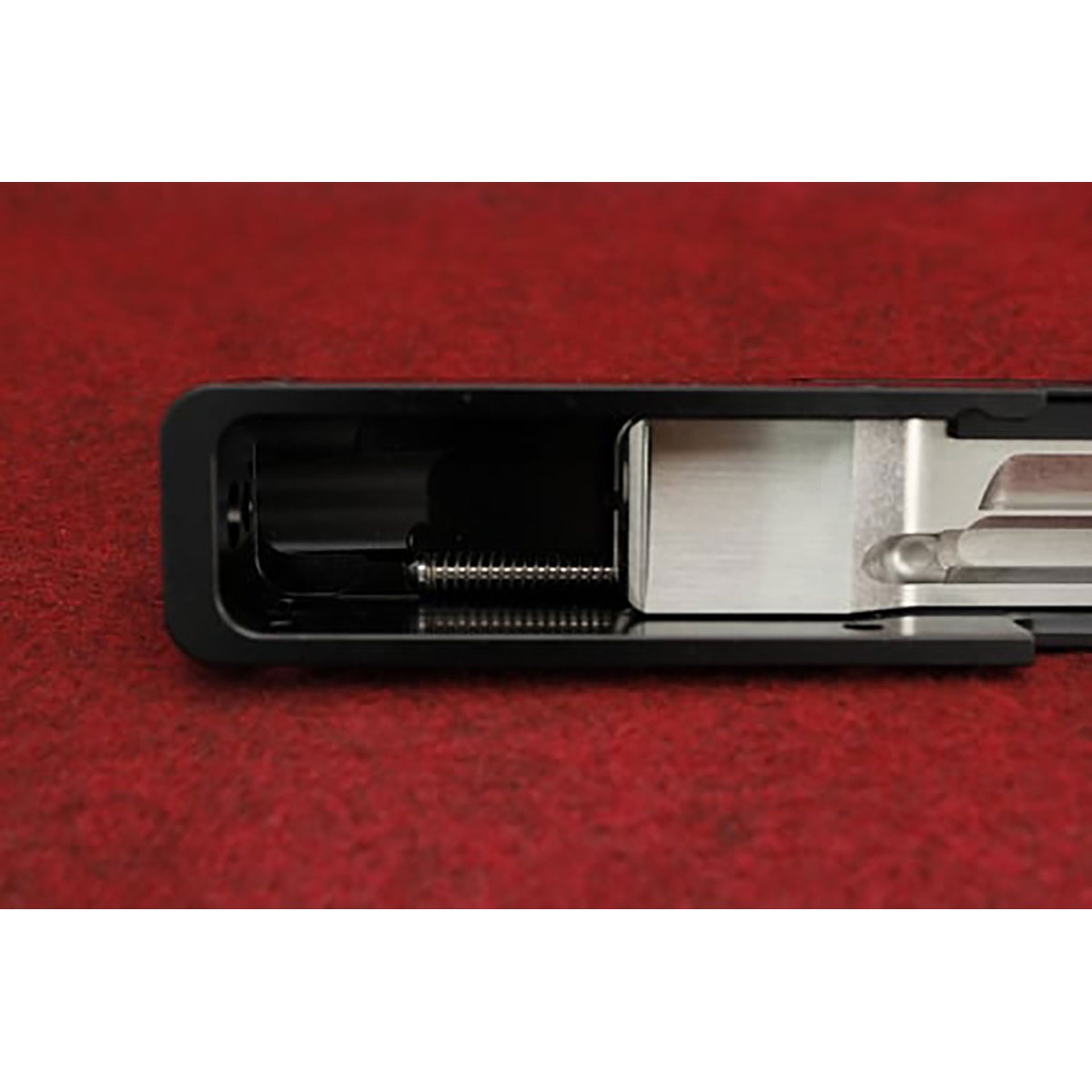

After removing the stock from the barreled action, remove the trigger and bolt stop. This will allow the needed clearance for the bolt to be removed along with the bolt handle assembly. After choosing your proper spring tension slip the bolt handle assembly in from the ejection port, placing the cone end of the rod into the containment hole in the receiver. Then fully compress the bolt handle assembly while placing the bolt on it. After the mating of the bolt handle and bolt, let off the containment allowing the bolt to go forward. Install the bolt stop pin, trigger and stock. The video below offers some of the finer installation points.


Handle Weights:
  • Black 762 (modified z shape flute)= .3 oz

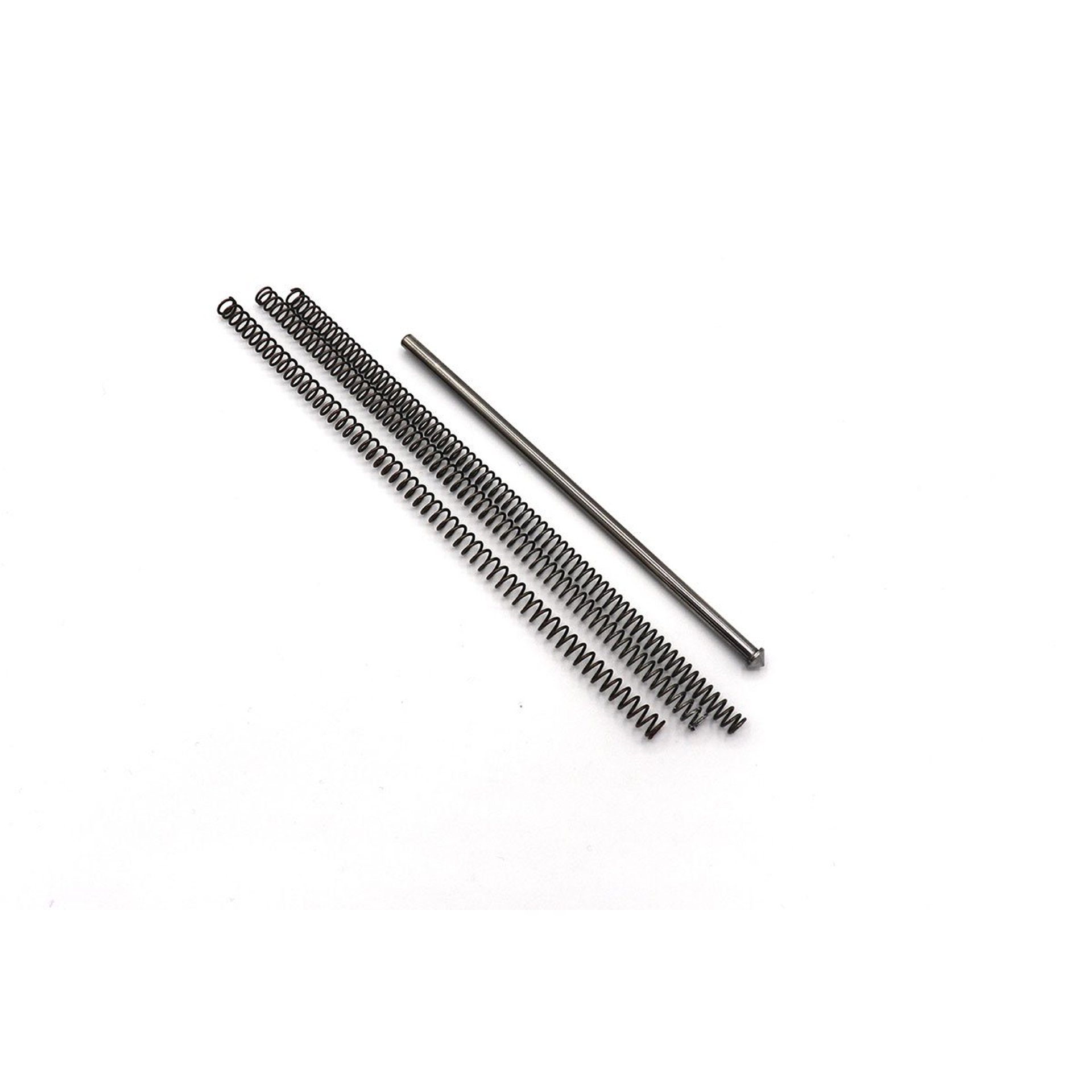

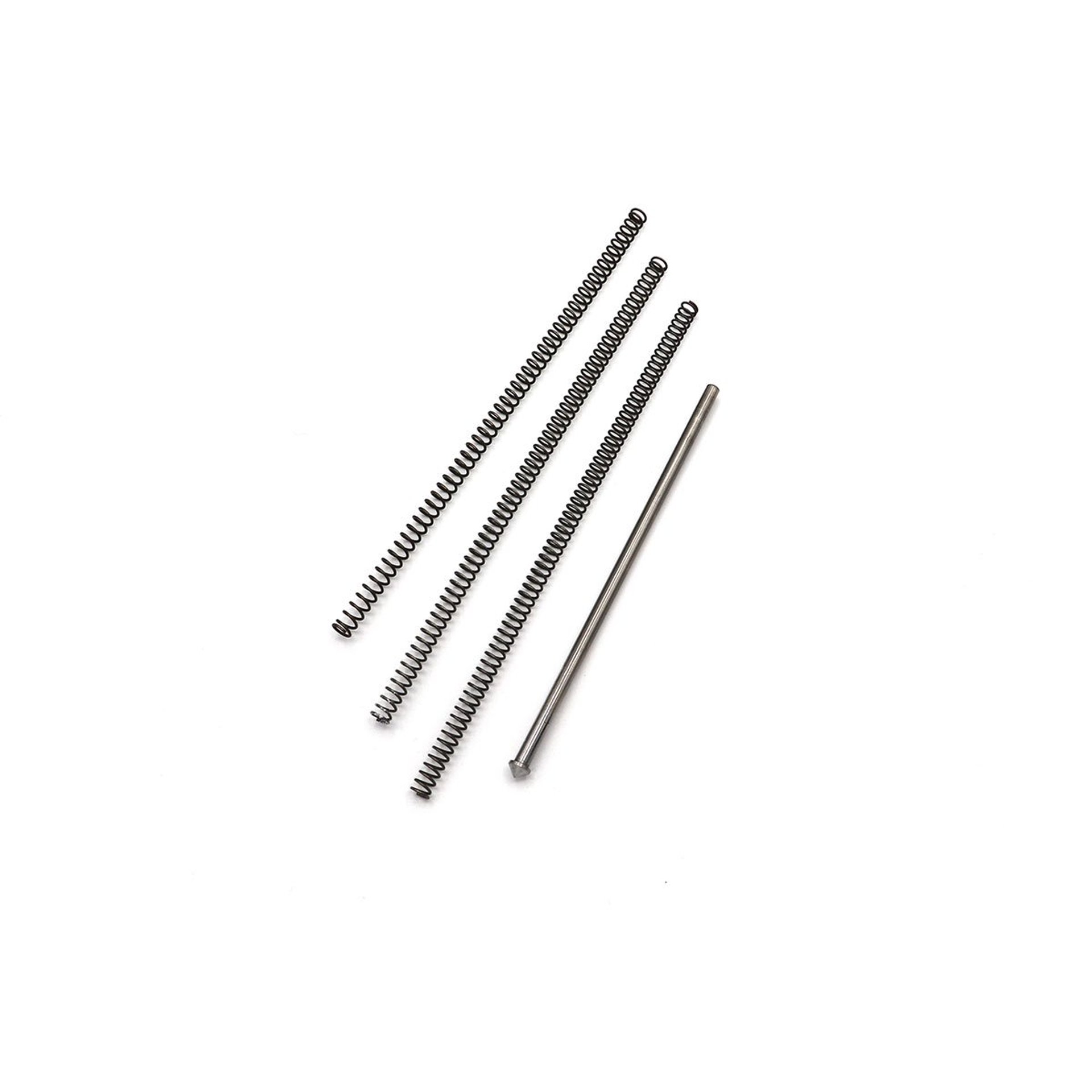

Packaging Includes:
  • Guide rod
  • x3 tuning springs

NOTE: BOLT HANDLE IS NOT INCLUDED
