APEX TACTICAL SPECIALTIES INC. - Evolution K- & L-Frame Hammer for S&W Revolvers

4 Reviews
Evolution K- & L-Frame Hammer for S&W Revolvers
Brownells #
100018576
MFR #
108-001
UPC
856008005406
$166.25
Coupon Code
Purchase Limit Help

Out of Stock

NOTIFY ME WHEN IT'S BACK IN STOCK
Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}

How To Buy Guns Online

International purchase information

Specifications
Make Model Fit:
Smith & Wesson.K Frame;Smith & Wesson.L Frame
Restriction
Gun Part Restrictions:
Yes
View US State Restrictions
Can we ship this to you? (US only)
{{restriction.odmShipCheckMessage}}

How To Buy Guns Online

International purchase information

What is the APEX TACTICAL SPECIALTIES INC. - Evolution K- & L-Frame Hammer for S&W Revolvers?

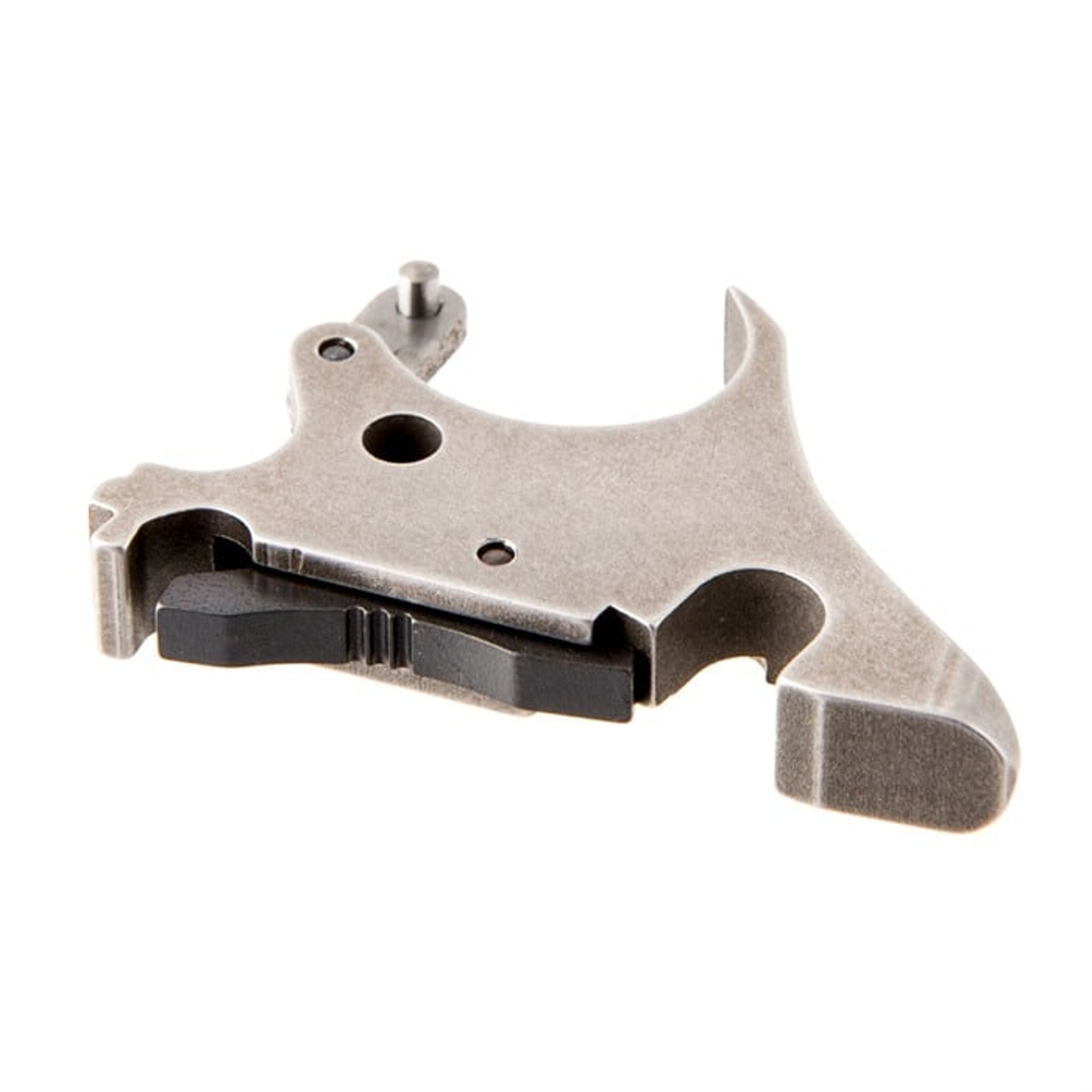

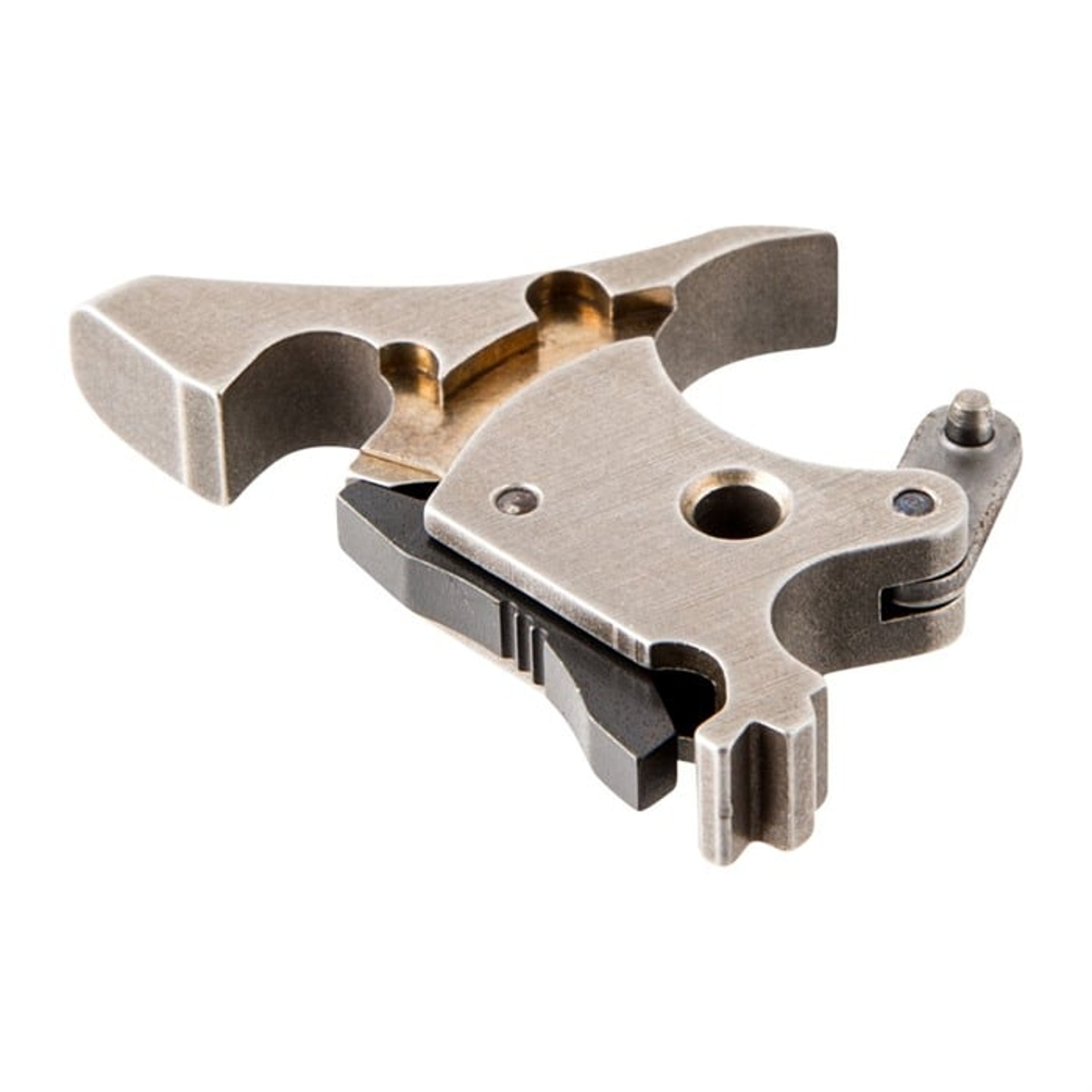

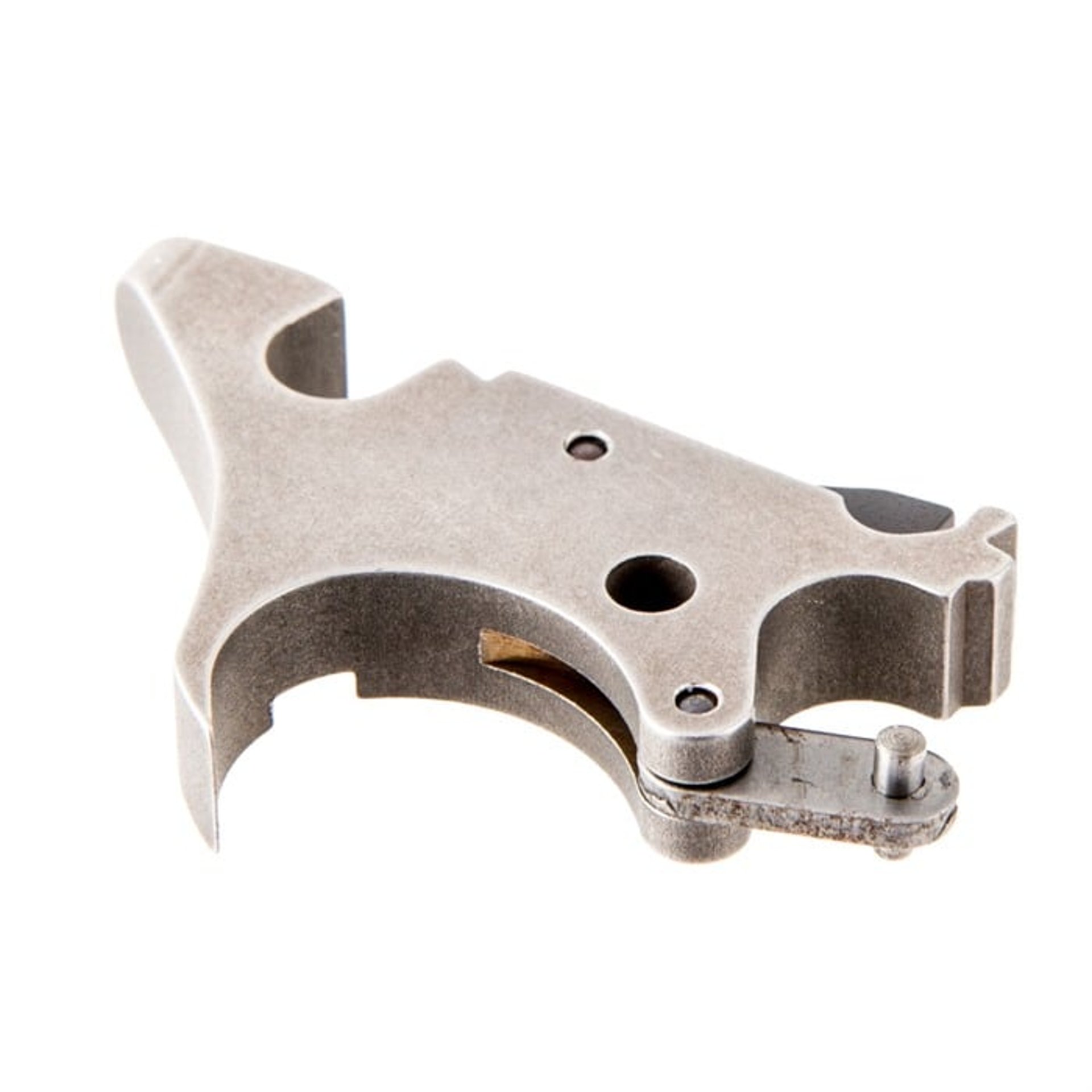

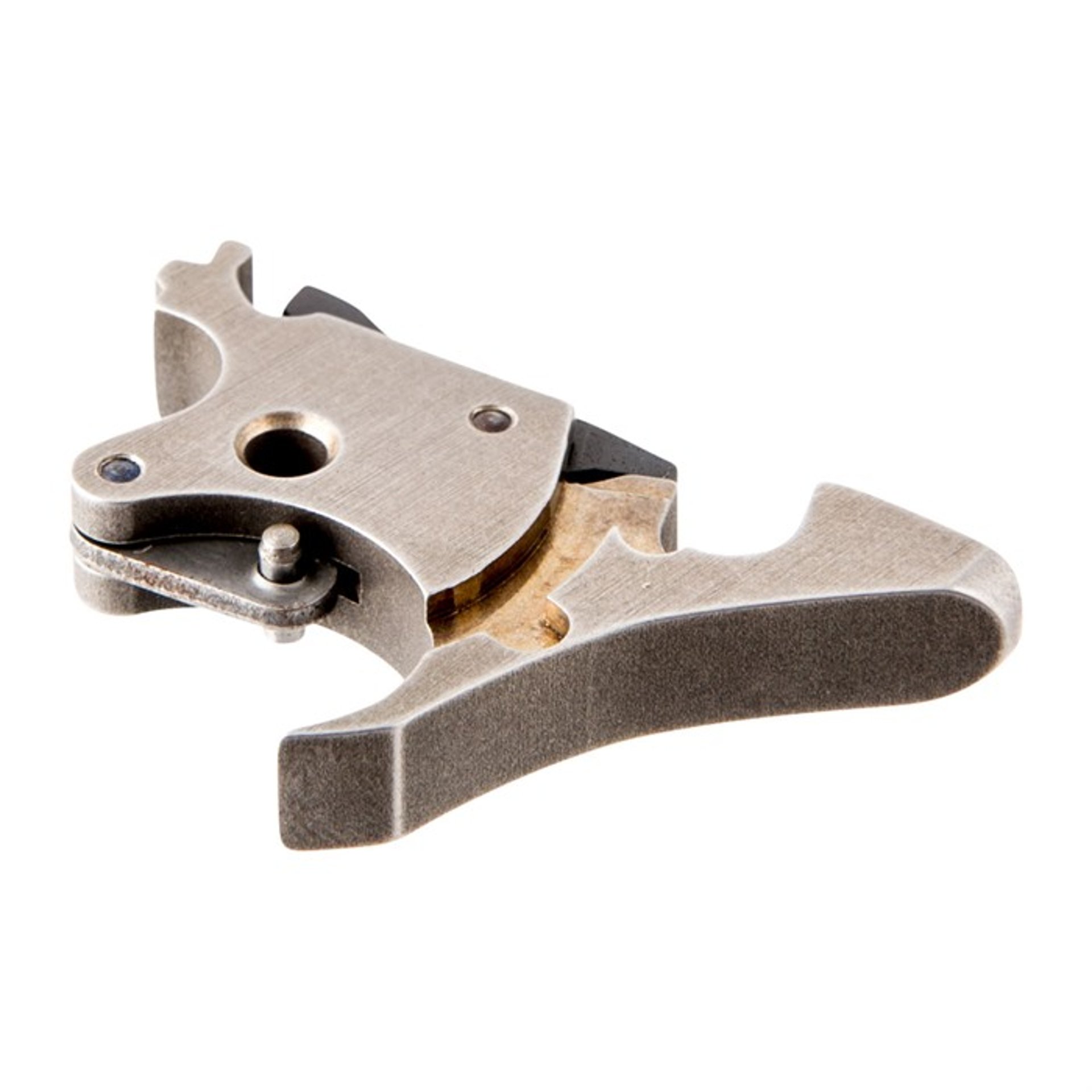

Originally designed as a semi-drop in replacement for Performance Center revolvers, the Apex Evolution IV K/L-Frame Hammer is redesigned using the same pinned sear and stirrup found on the Performance Center hammer. Additionally, the Apex Evolution IV Hammer replaces MIM components found in Smith & Wesson non-Performance Center revolvers and Performance Center revolvers made after January 2012. Manufactured from heat treated 17-4 Ph stainless steel, the hammer is wire EDM and CNC machined then surface ground to ensure consistent performance. Expected Results

  • This hammer converts your revolver to Double Action Only (DAO)
  • Lacks a hammer spur for cocking to single action

Applicable To What Gun(s)

Works in current production Smith & Wesson K-Frame and L-Frame centerfire revolvers only.

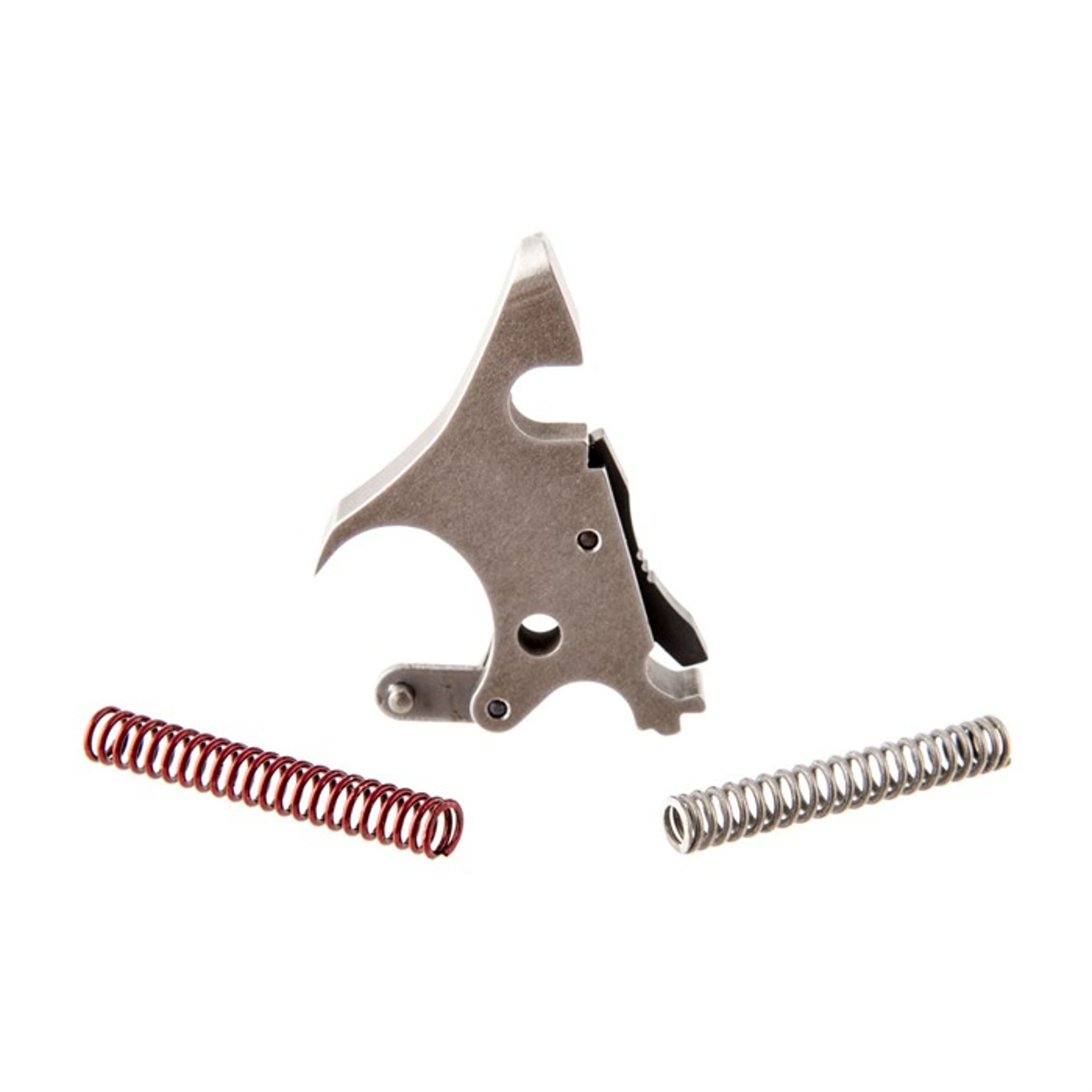

In The Package

  • 1 ea. Apex Evolution 4 Hammer (K/L-Frame)
  • 1 ea. Apex Fully Machined Revolver Sear (pre-installed)
  • 1 ea. Apex Sear Spring (pre-installed)
  • 1 ea. Stirrup and pins (pre-installed)
  • 1 ea. Competition Rebound Slide Spring (0.165” silver)
  • 1 ea. Duty/Carry Rebound Slide Spring (0.160” green)
  • 1 ea. Apex Firing Pin
  • 1 ea. Firing Pin Return Spring


SPECS: Contents: Evolution IV K- & L-Frame Hammer (fully assembled with the following: Apex fully machined revolver sear, Apex sear spring, stirrup and pins), Rebound slide spring(0.165" silver), Rebound slide spring(0.160" red).


Gun Part Restriction
Gun Parts have restricted shipping to CA.

Please select a FFL Dealer
or
7 dealers near
Distance:
10miles
arrow-down
Sort by:
Nearest first
arrow-down
pin wrong
No dealers found

Please search by another zipcode to find the nearest dealer.

Close
Brownells Retail Store
Phone Call
Pin in
Clock
You must select required check box

Note:

Listed hours & fees are not guaranteed and subject to change. Please contact the dealer to confirm current hours & fees.
* Must accept required fields.
  • Pin in Brownells Featured Dealers

    Choosing a Brownells Featured Dealer is the fastest and easiest way to complete your purchase. Brownells Featured Dealers have agreed to perform FFL transfers on guns purchased online from Brownells. We have their necessary FFL information on file and your FFL order will ship directly to them once processed.

  • Pin in Standard Dealers

    Standard Dealers have not yet agreed to perform FFL transfers on guns purchased online from Brownells. If you choose a Standard Dealer, you are responsible for contacting that dealer and arranging for the dealer to submit a signed copy of an FFL and to give Brownells permission to ship the gun.

  • Pin in Not Available Dealers

    Not Available Dealers are dealers Brownells cannot ship guns to at this time. These dealers either do not meet our requirements for FFL transfers, or prefer to not perform transfers for guns purchased online from Brownells.

Switch view map
7 dealers near

Alternative products

Left Badge
Right Badge OFF
5 Stars

200

300

Add on

Left Badge
Right Badge OFF
5 Stars

200

300

EVOLUTION IV K & L FRAME HAMMER REVIEWS

4.5
4 Reviews
5 Stars
50%
4 Stars
50%
3 Stars
0%
2 Stars
0%
1 Stars
0%
5
Fast and easy
This product smooth out my trigger pull and helped increase or should I say decrease my time splits.
Would you recommend this? Yes, I would recommend to a friend
by JAMES SKELTON on May 14, 2025
Verified Purchase
Was this review helpful? 0
5
Expensive but worth it
No gunsmithing required for my 686-6. Note the kit includes new rebound spring, firing pin, and firing pin spring.
by Rob B on August 06, 2019
Was this review helpful? 0
4
Nice Hammer
Very nice product. Installed into my S&W 686 Pro series. Easy installation, no gunsmithing required. Minor polishing with stone internal contact points. For my pistol, the Duty/Carry Rebound Slide Spring gave the lightest pull weight. I also installed a Wolff reduced power rib mainspring. Once completed, the trigger pull was shorter and smoother. However, the weight was at 6.5, not the 4 lb. stated on the APEX website description. I can adjust the rebound spring to 4, but the strike is too light and does not work with Winchester primers. After discussion with APEX, they suggest only using Federal primers in order to reach the goal of 4-5 lb. trigger pull. I just acquired a brick of Federal, and will try them in the future.
by Tom on October 11, 2020
Was this review helpful? 2
4
No more light strikes
1 month of ownership, installed on S&W 617 that I put a spring kit in. I had 2 adjacent cylinder that would not fire. The sear needed some stoning to reset, other than that it dropped right in. A gun that has wear on the trigger may drop in, my gun was new. It's a little pricy but it does what it's supposed to. 300 rounds so far and no issues.
by Spence2 on February 10, 2017
Was this review helpful? 1
