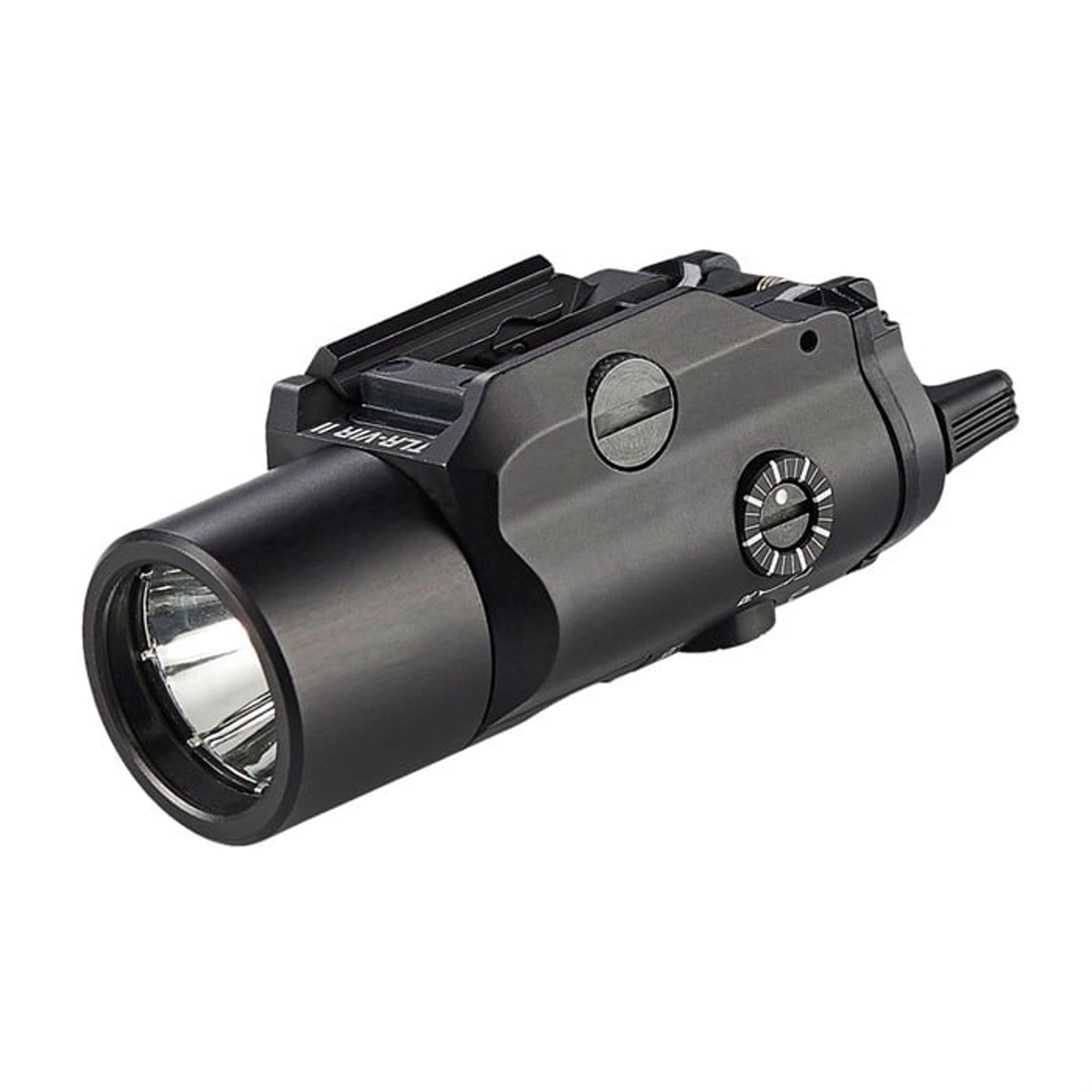

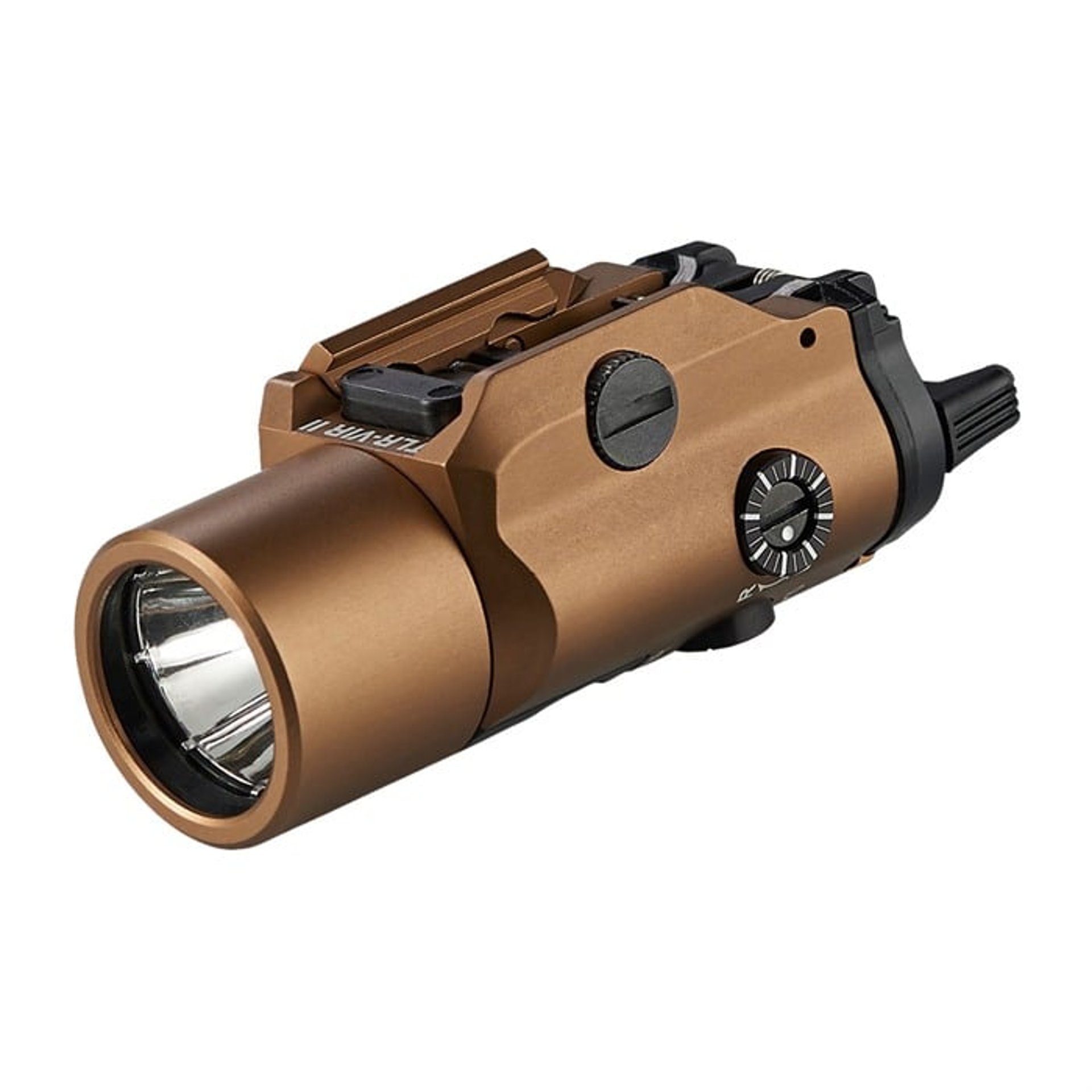

Lightweight, compact, lithium battery powered Weapon-Mounted Tactical Illuminator with integrated IR LED/Laser and visible LED. The light is built with shock-proof LEDs and provides at least 1.5 hours of continuous run time when using visible illumination mode or 12 hours when using IR LED/Laser illumination mode. Rail clamp designed to rapidly attach/detach from side of weapon without tools.
FEATURES
- Extreme brightness with C4® LED and IR LED.
- Class 1 eye safe IR Laser with 3 mrad adjustment increment markings.
- Tactile indicator on housing identifying IR Illumination position.
- Ambidextrous momentary/steady On-Off switch. One handed interface keeps hands away from muzzle when attaching/detaching.
- Securely fits M17/M18 pistols and all long guns with MIL-STD-1913 rails. Extensively live-fire tested impact resistant construction.
- Operating temperature: -25°F to +140°F.
- IPX7 rated design; waterproof to 1 meter for 30 minutes.
SPECS
- CASE MATERIAL: 6000 Series machined aircraft aluminum with coyote anodized finish main body. High impact, chemically resistant engineering polymer black switch housings. DIMENSIONS: Length: 3.30 in. (8.39 cm) Height: 1.40 in. (3.56 cm) Width: 1.45 in. (3.69 cm)
- WEIGHT: 3.82 oz (108 grams) with battery. LENS: High temperature, shock mounted, impact resistant Boro Float glass with anti-reflective coating.
- ILLUM SOURCE: Visible LED: C4® LED technology, impervious to shock with a 50,000 hour lifetime. Infrared LED: 850 nm, impervious to shock with a 20,000 hour lifetime. Infrared Laser: 850 nm; Class 1.
- ILLUM OUTPUT: Visible: 5,000 candela peak beam intensity and 300 lumens measured system output. Deep-dish parabolic reflector produces a concentrated beam with optimum peripheral illumination. Infrared: LED produces 600mW/sr typical radiant intensity providing optimum illumination when using night vision equipment. Laser is Class 1; eye safe output power less than 0.8mW.
- ON/OFF &
- MODE SELECT: Ambidextrous momentary/steady On-Off switch. IR Illumination mode selection tactile indicator on housing. Three position Mode Selector switch (IR Illumination/IR Laser, Safe OFF, Visible Illumination).
- RUN TIME: Visible LED: 1.5 hours regulated runtime; 2 hours to 10%. Infrared LED/Laser: 12 hours regulated runtime when using IR illumination mode.
- BATTERY: One (1) 3 Volt CR123A lithium battery, with a storage life of 10 years.
