FORWARD CONTROLS DESIGN LLC AR-15 TAKEDOWN PINS STAINLESS STEEL 5.56MM

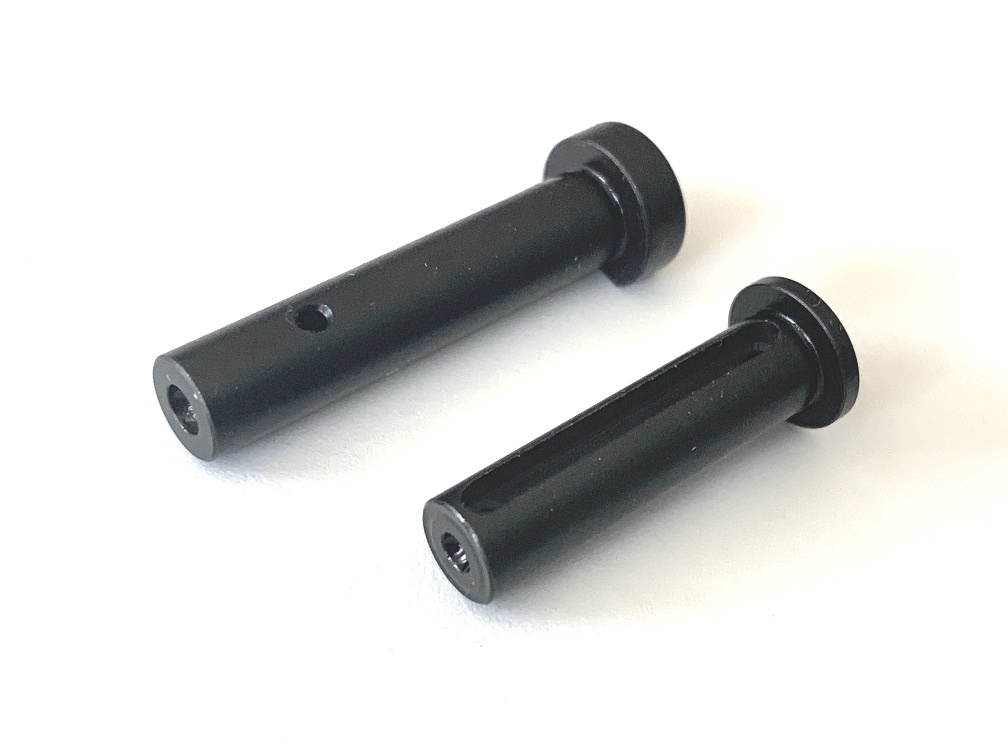

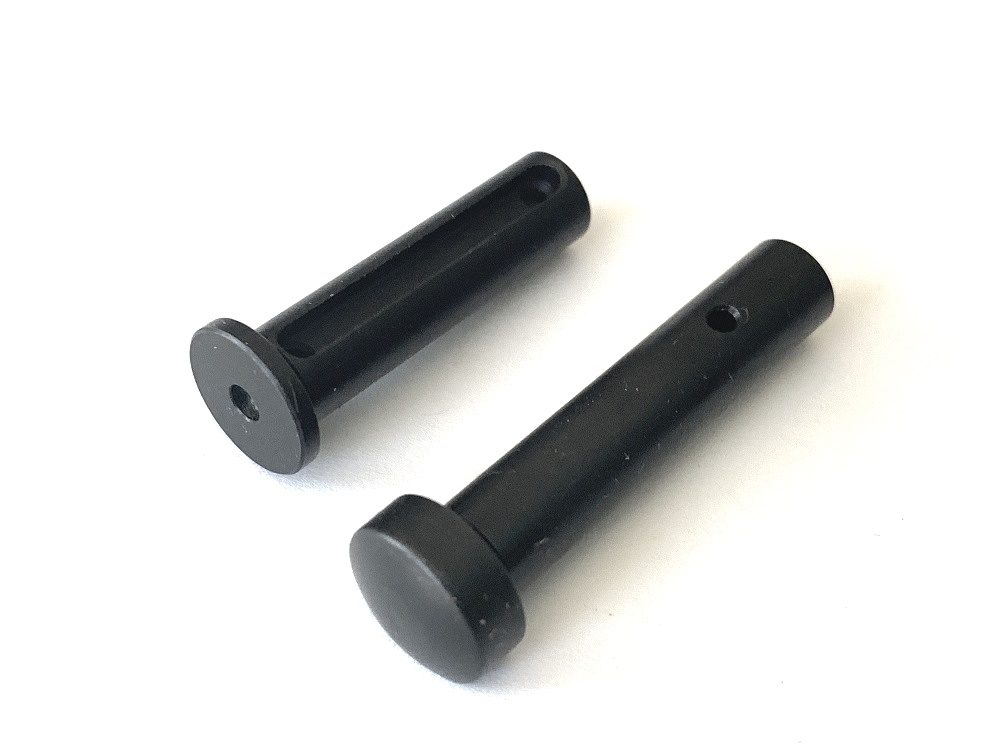

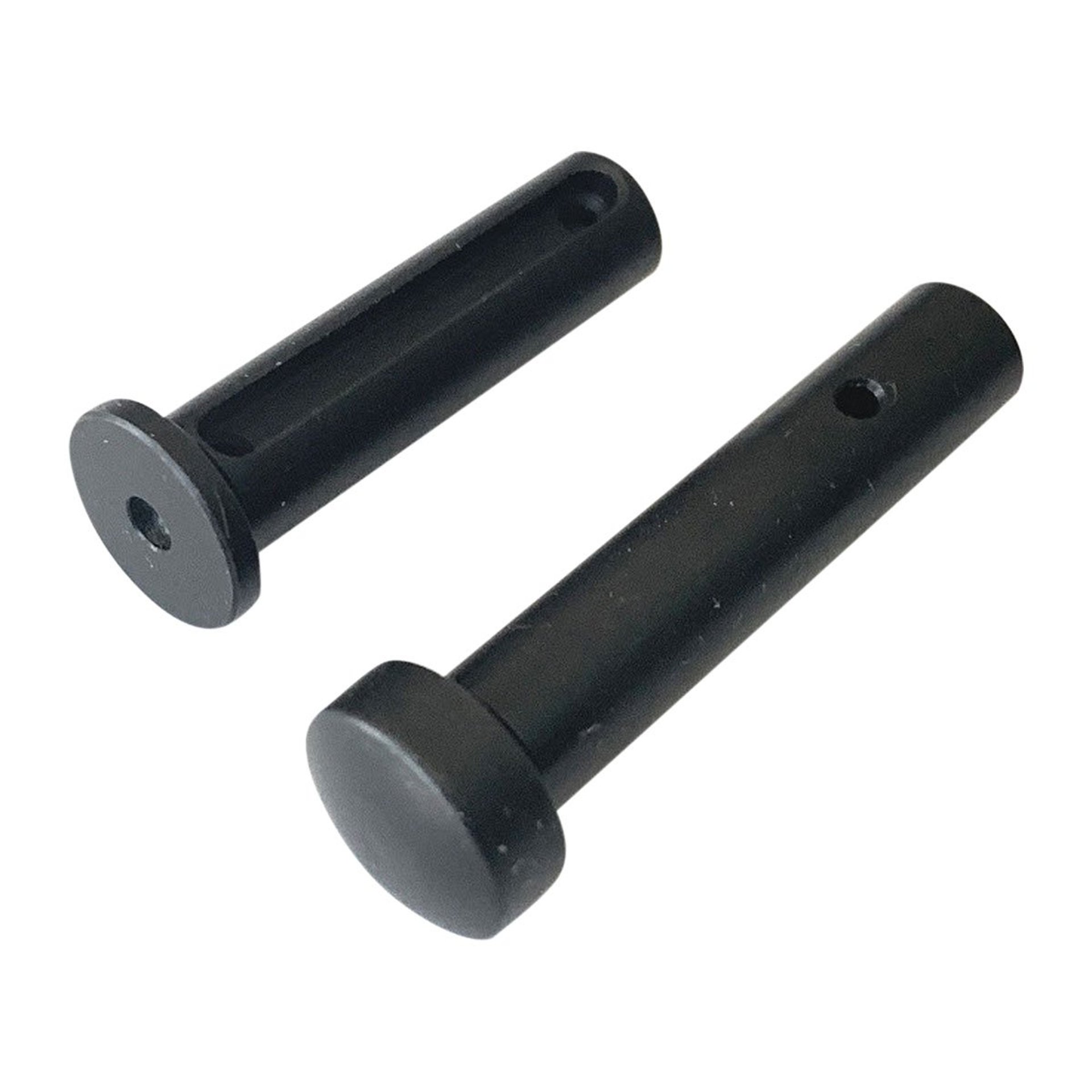

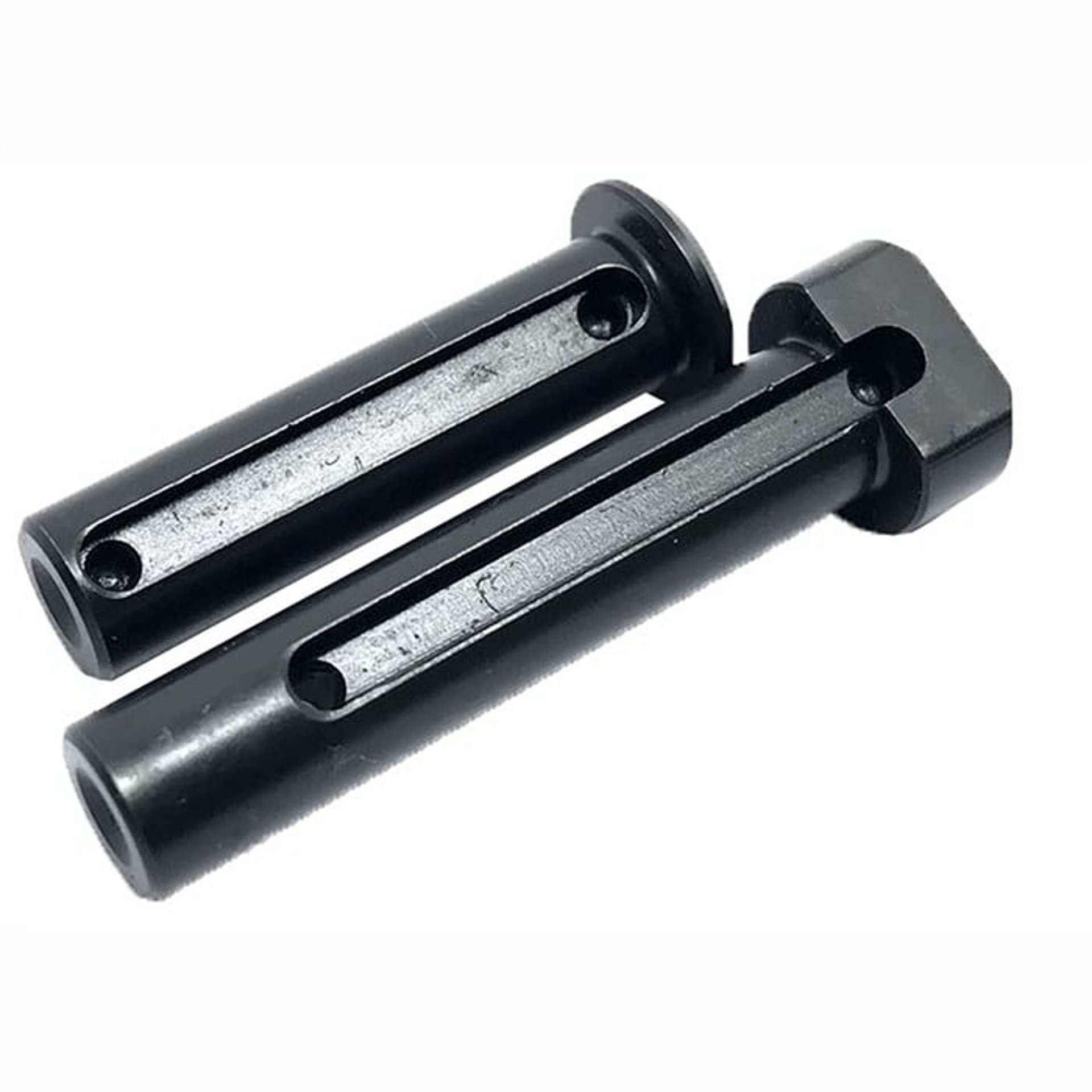

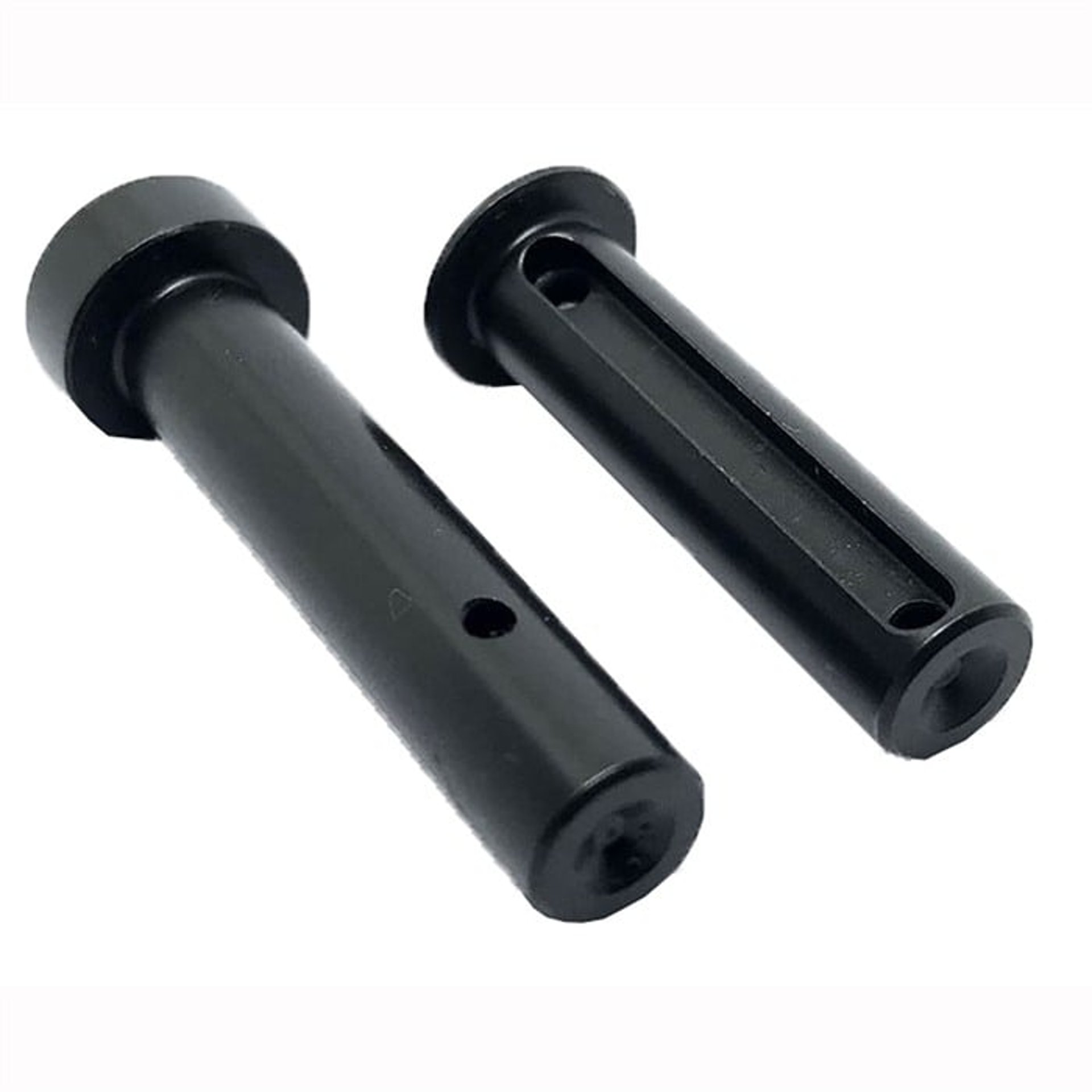

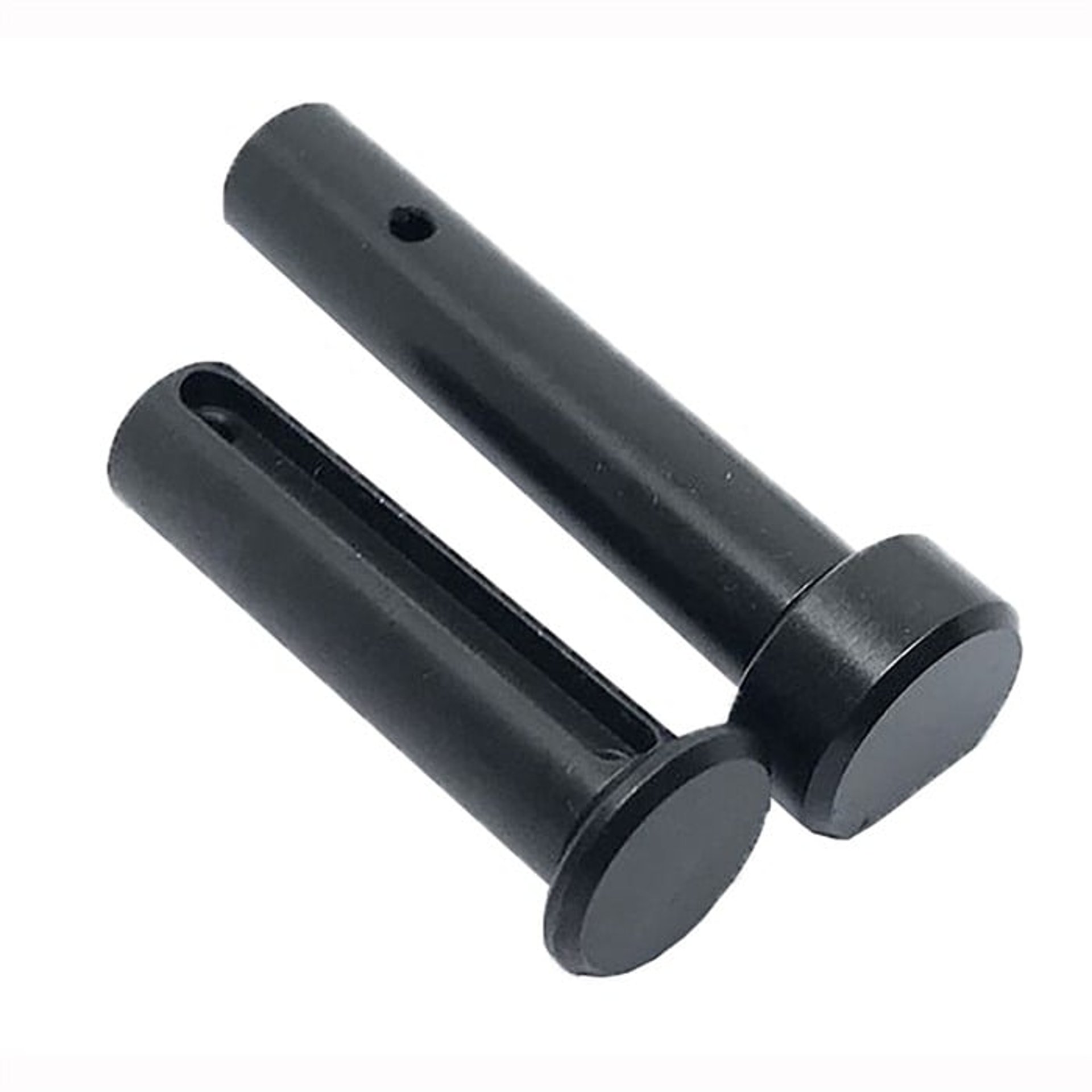

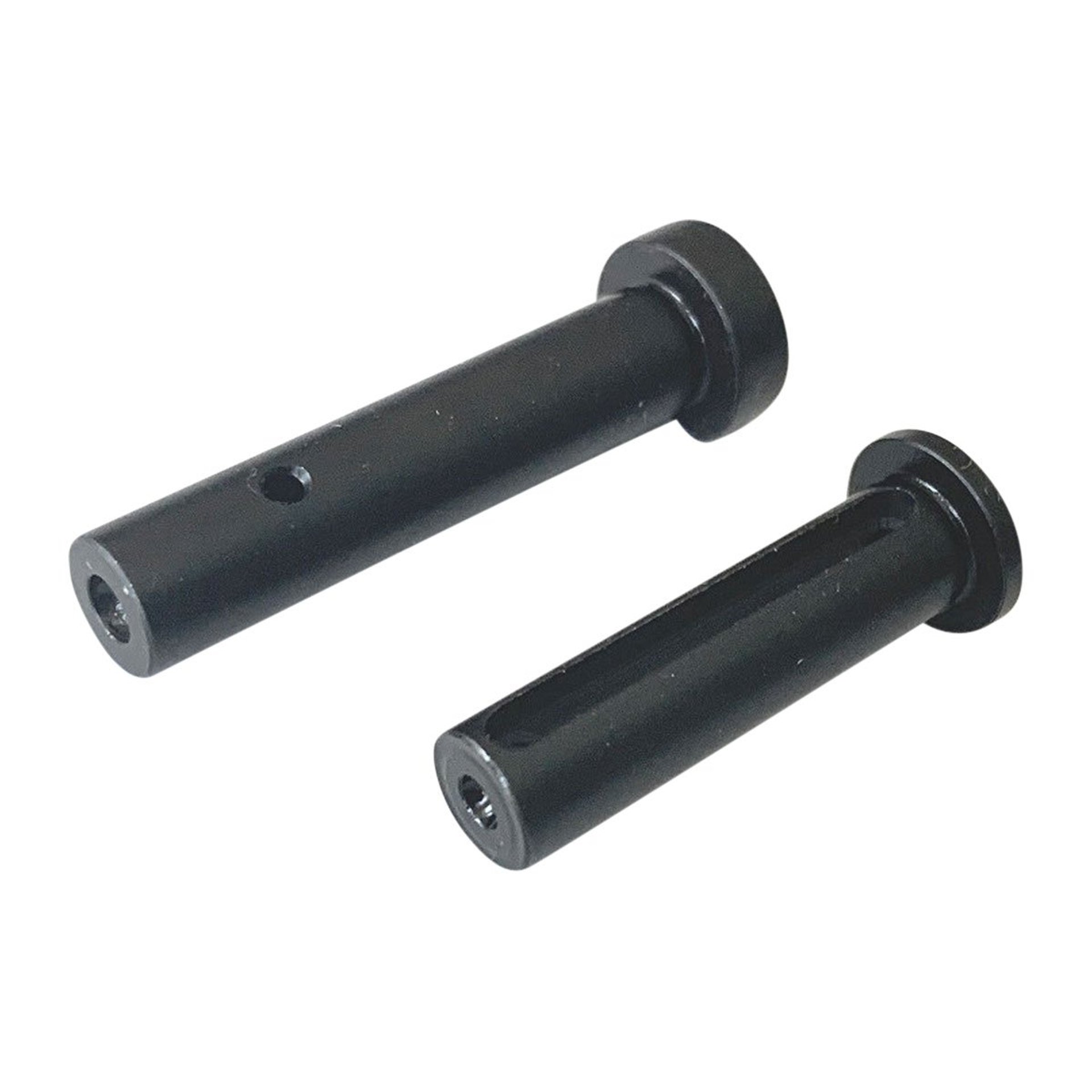

PF-040 (Pins, Forward Controls, 0.040) is a set of elegantly simple, and superbly crafted AR15/M16 pivot and take down pins. Machined from 17-4 PH SS bar stock and QPQ finished, these pins are 0.040 longer than TDP spec pivot and take down pins. PF-040 pins can be aptly described as "reverse extended", in that they're longer on the left side of the receiver, the additional length of the take down pin doesn't interfere with ambidextrous safety operation.


When PF-040 pins are pushed in from the left side, the +0.040 transforms to extra length and grasping area on the right side pin head, which combined with their silky smoothness, makes pulling the pin a cinch. PF-040 has the same elegant and unadorned pin heads design that is in line with our design philosophy which prioritizes functionality over aesthetics. PF-040 right side pin heads (when installed on a receiver, with the muzzle pointing away) are flat, with a small 45 degree chamfer.


There is a small dimple on the left pin head, and the tip of bullets (up to 9mm) can be used to push the pins in on tight fitting receivers.

• AR-15/M16 17-4
• QPQ treated pivot and take down pin
• 0.040 extra length
