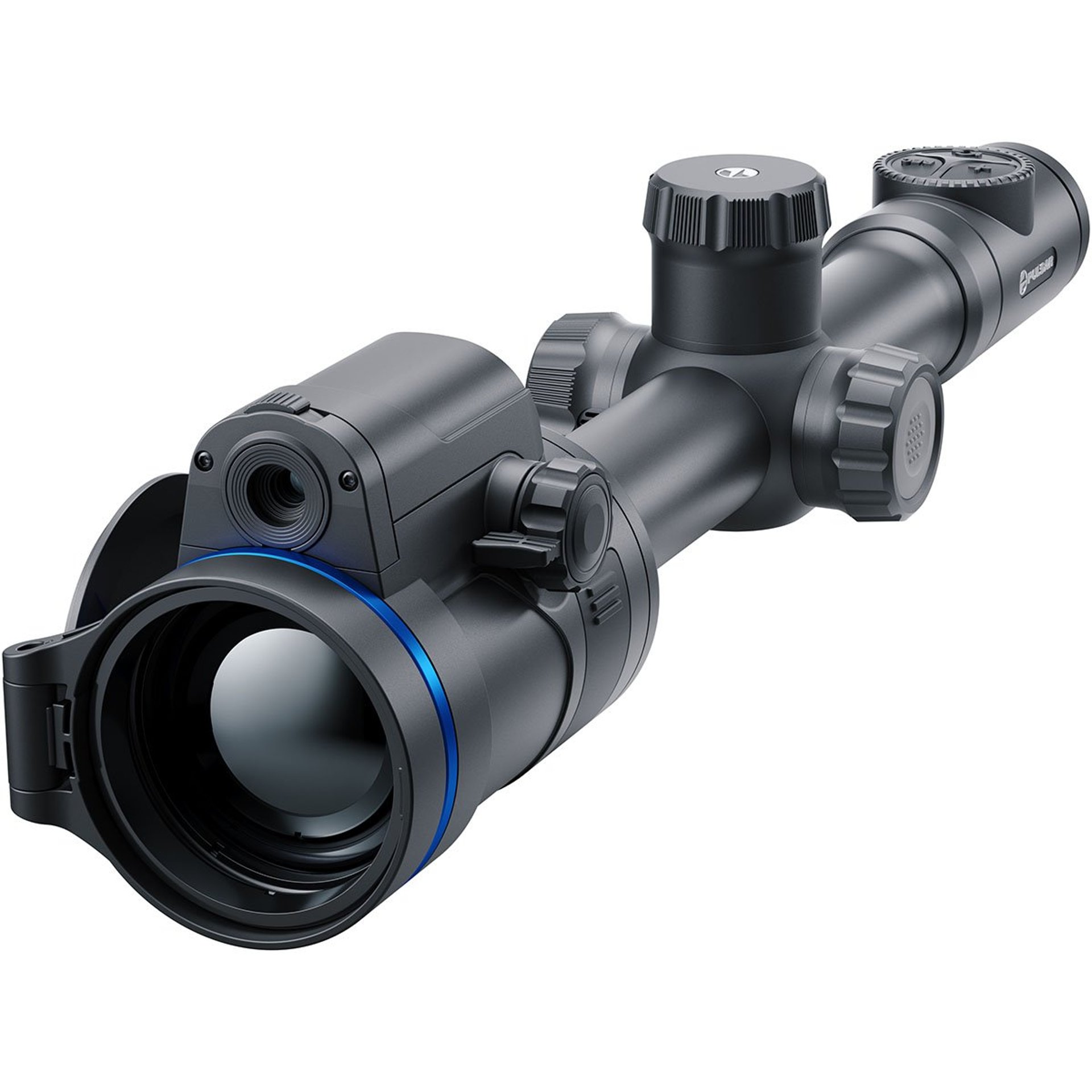

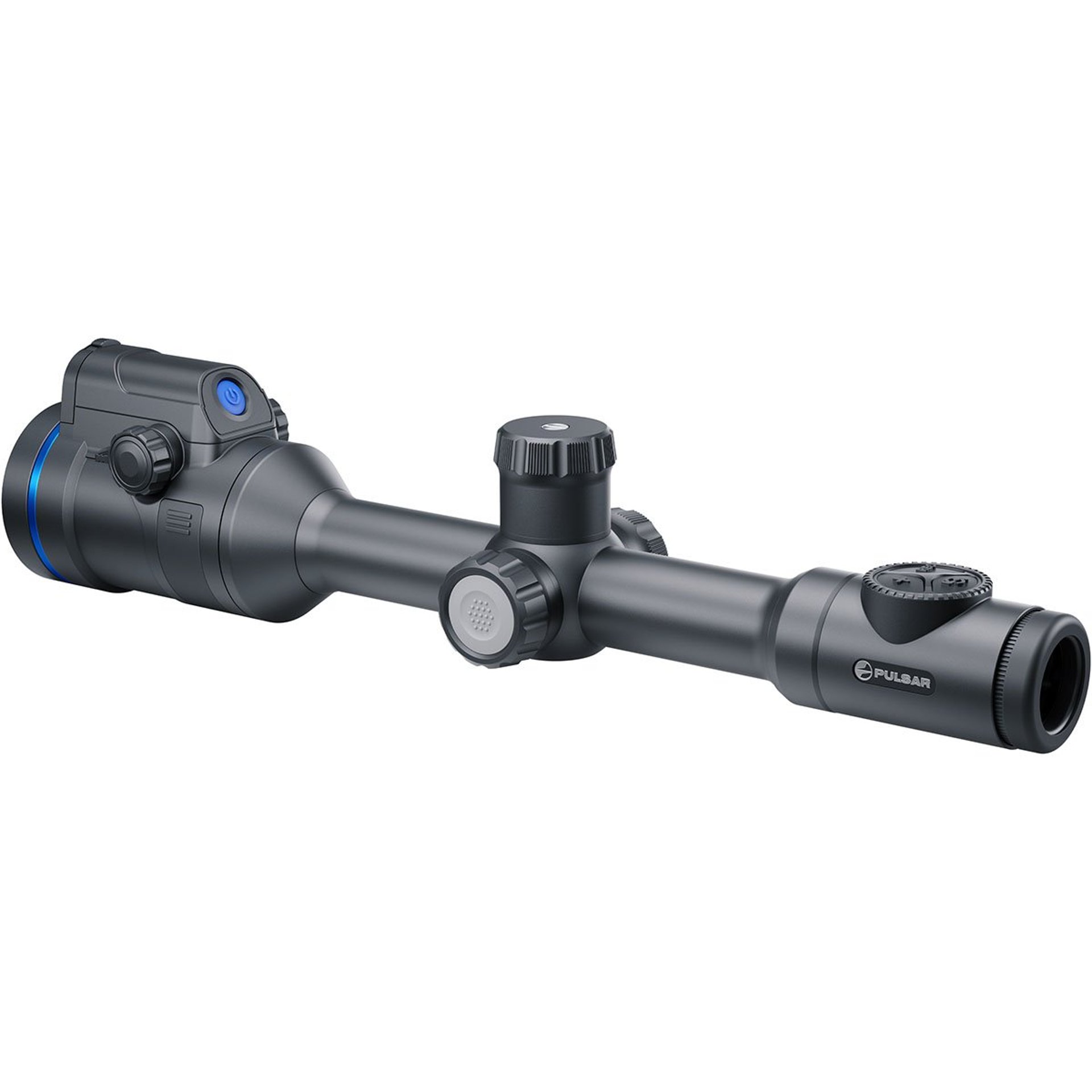

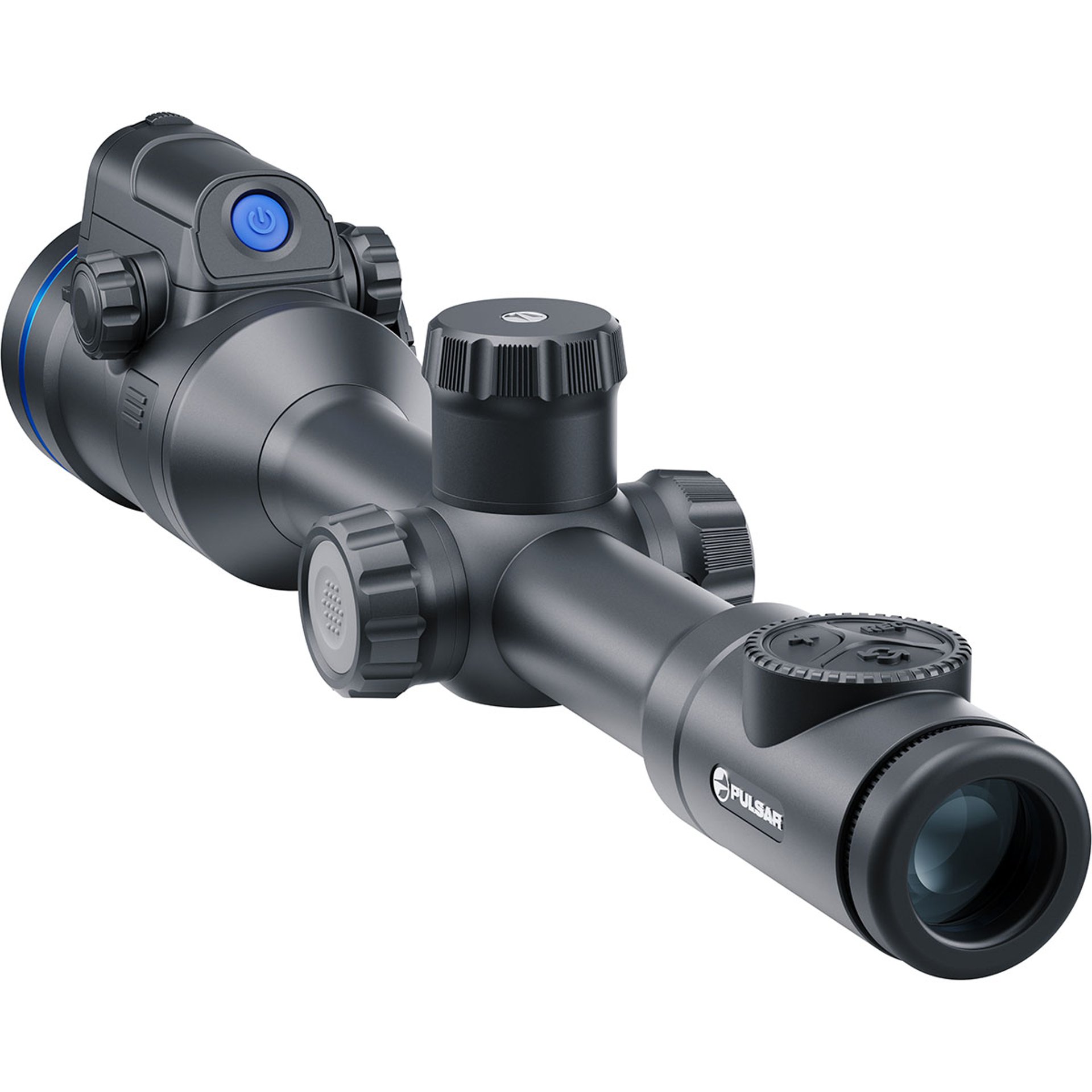

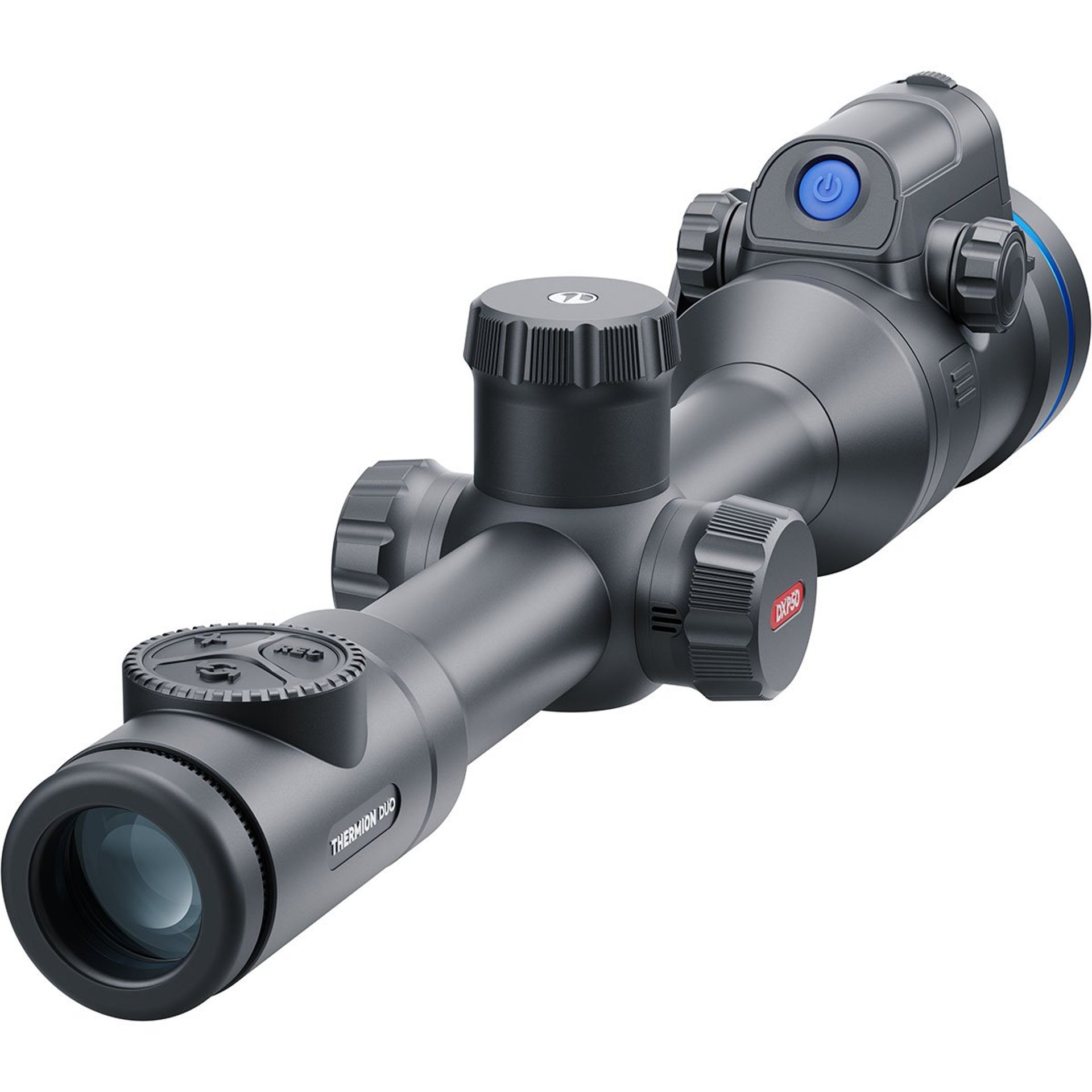

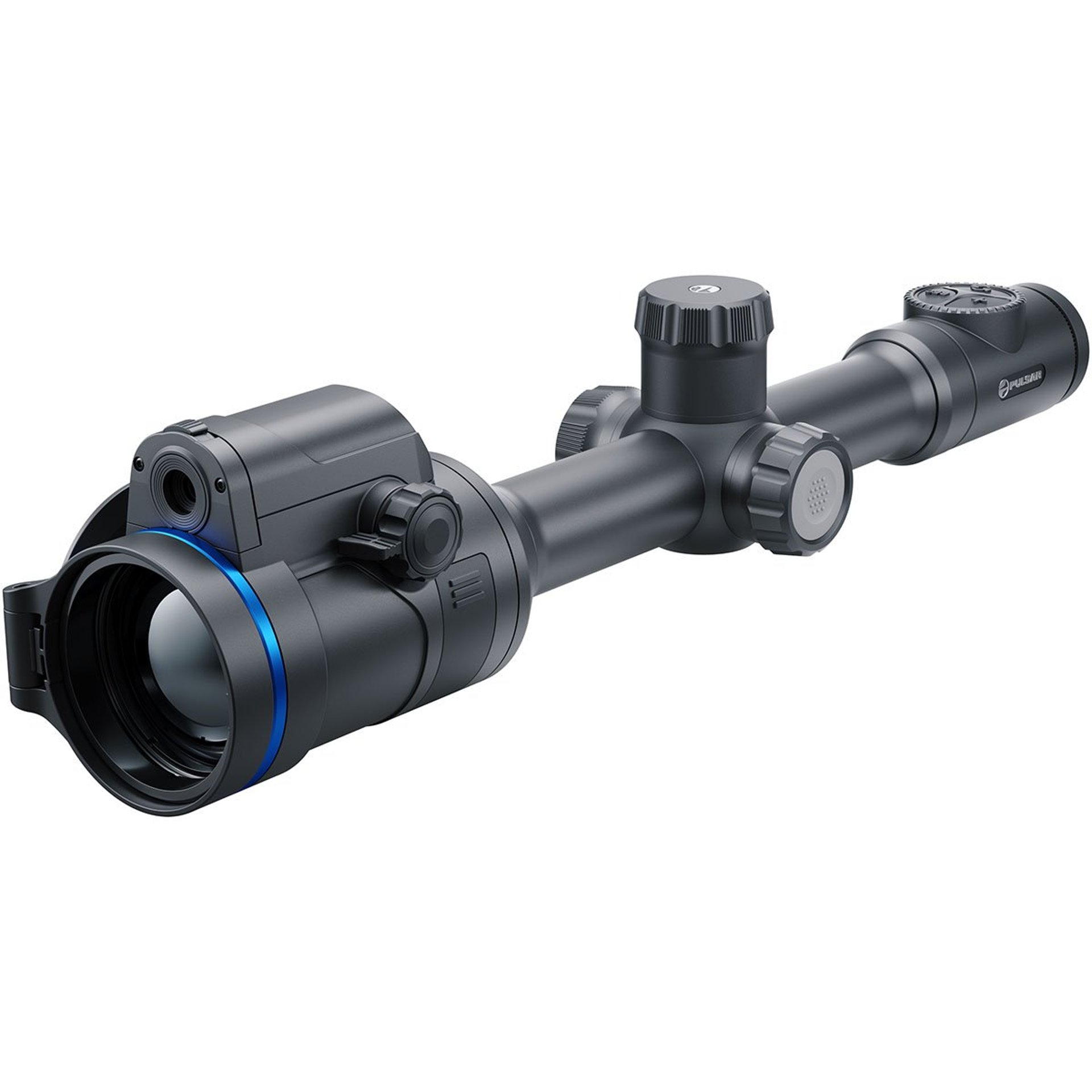

The Pulsar® Thermion Duo DXP55 Multispectral Thermal Rifle Scope gives you 640x480 resolution to reliably identify your target. See anatomical details and small landscape features. The sensor's size offers a wide field of view for easy observation for static or dynamic field use. The fast, high-aperture F/1.0 lens ensures maximum detection efficiency in all weather conditions, and at any time of day.

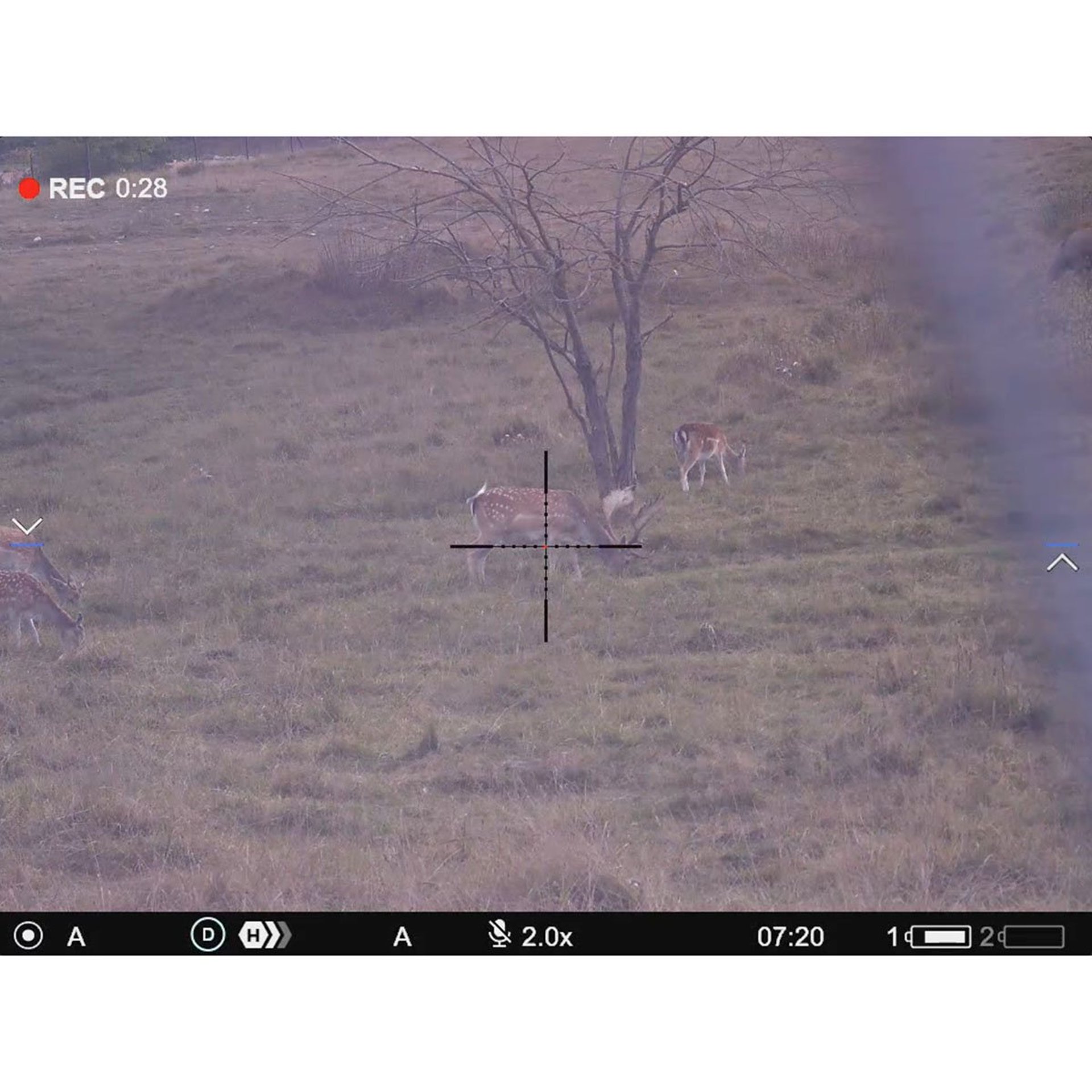

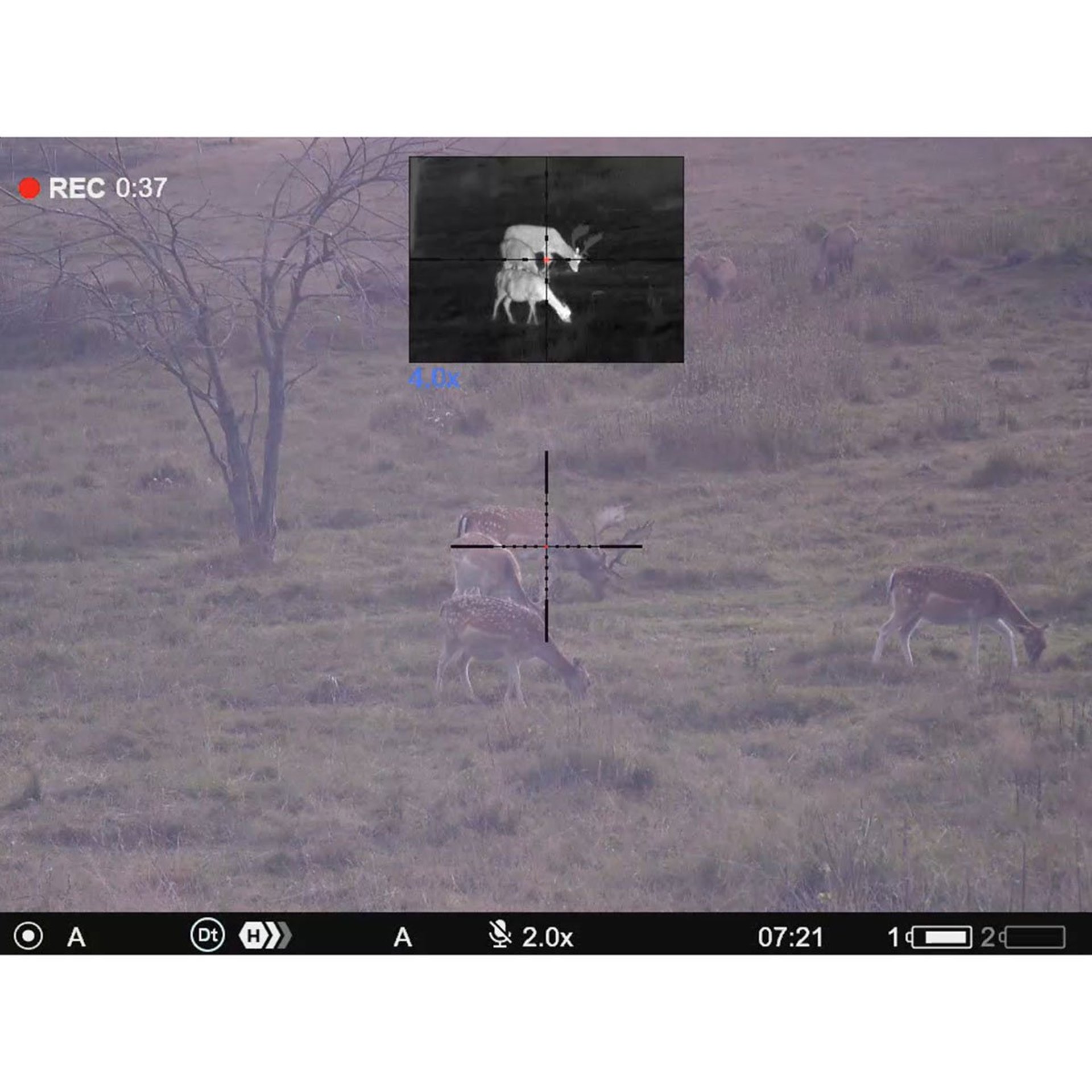

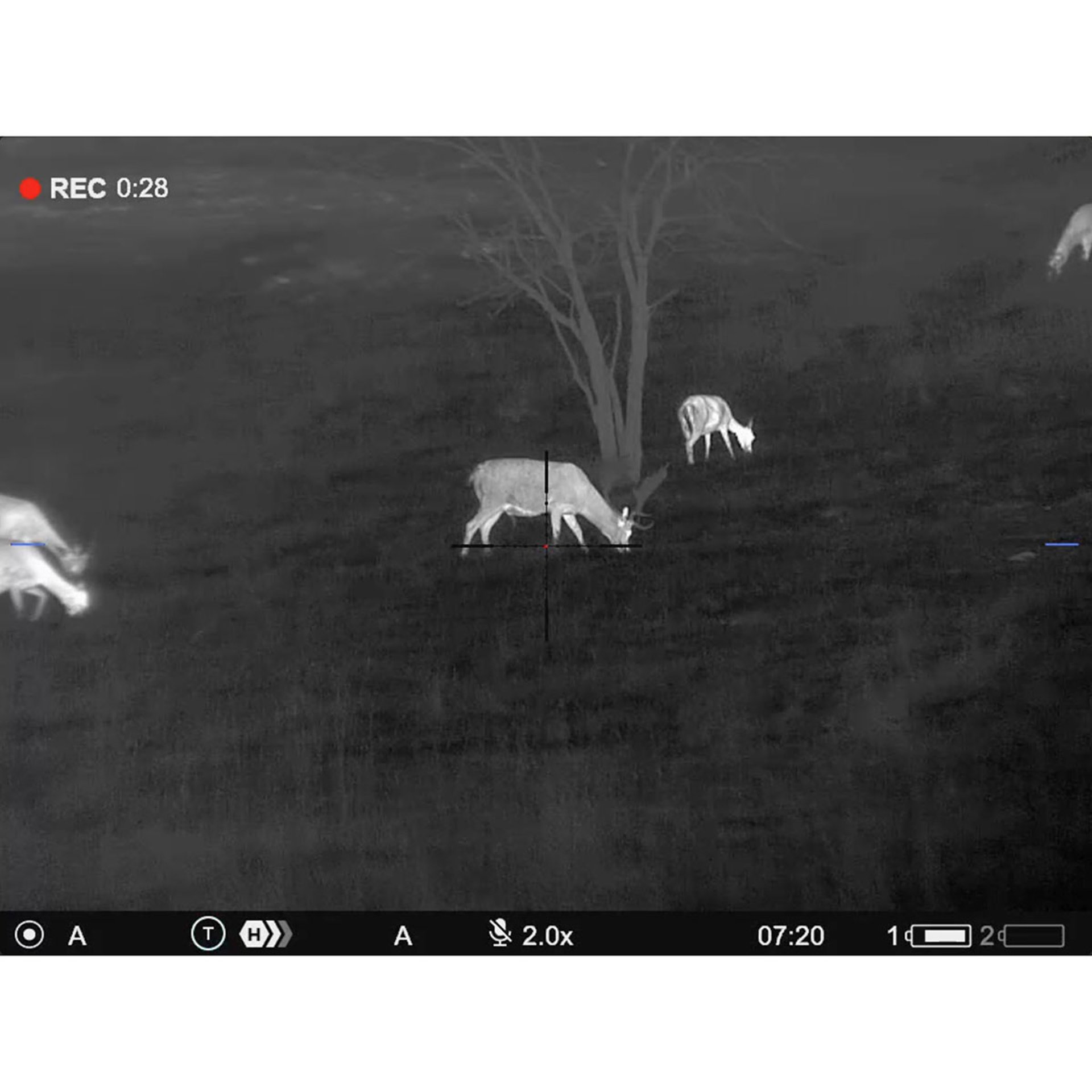

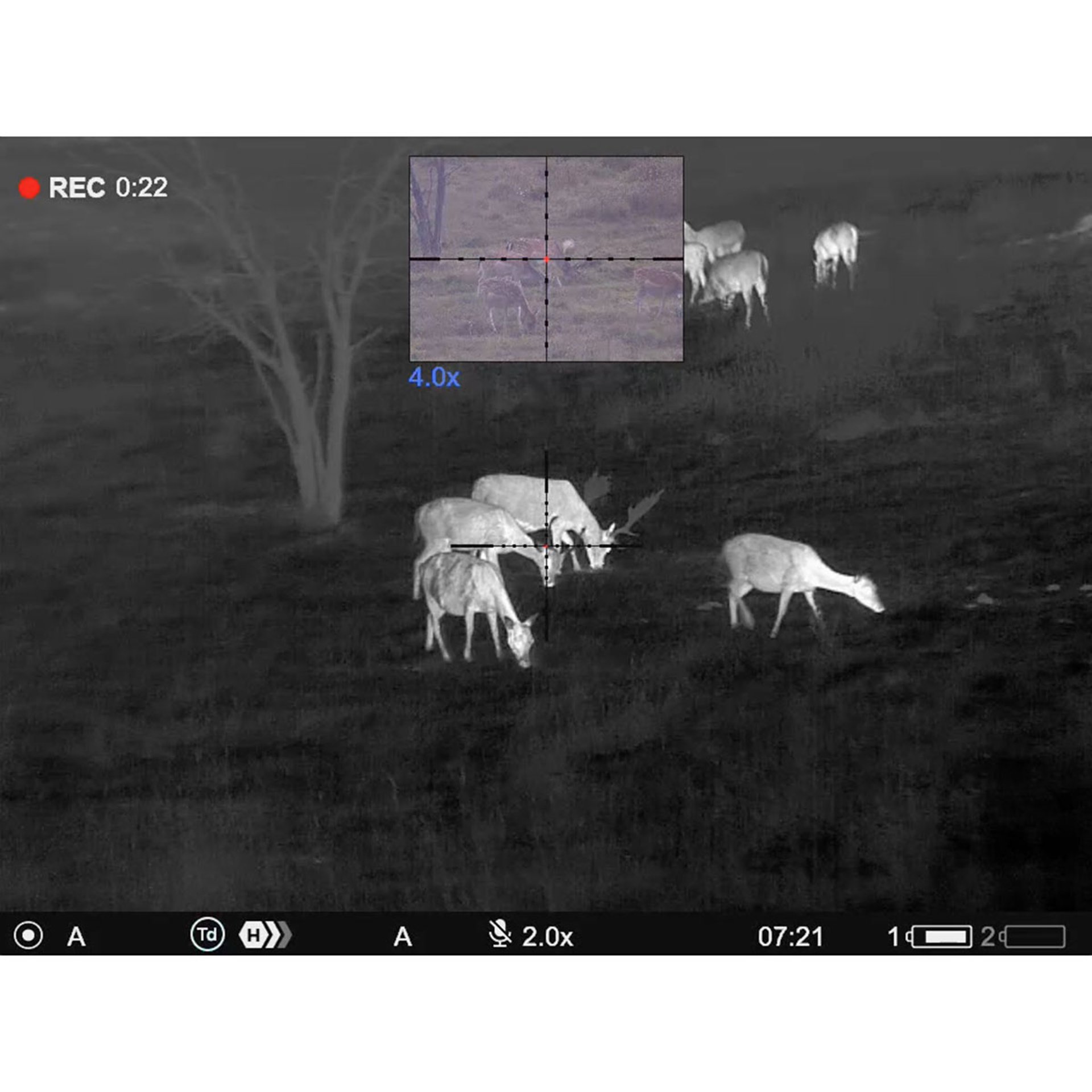

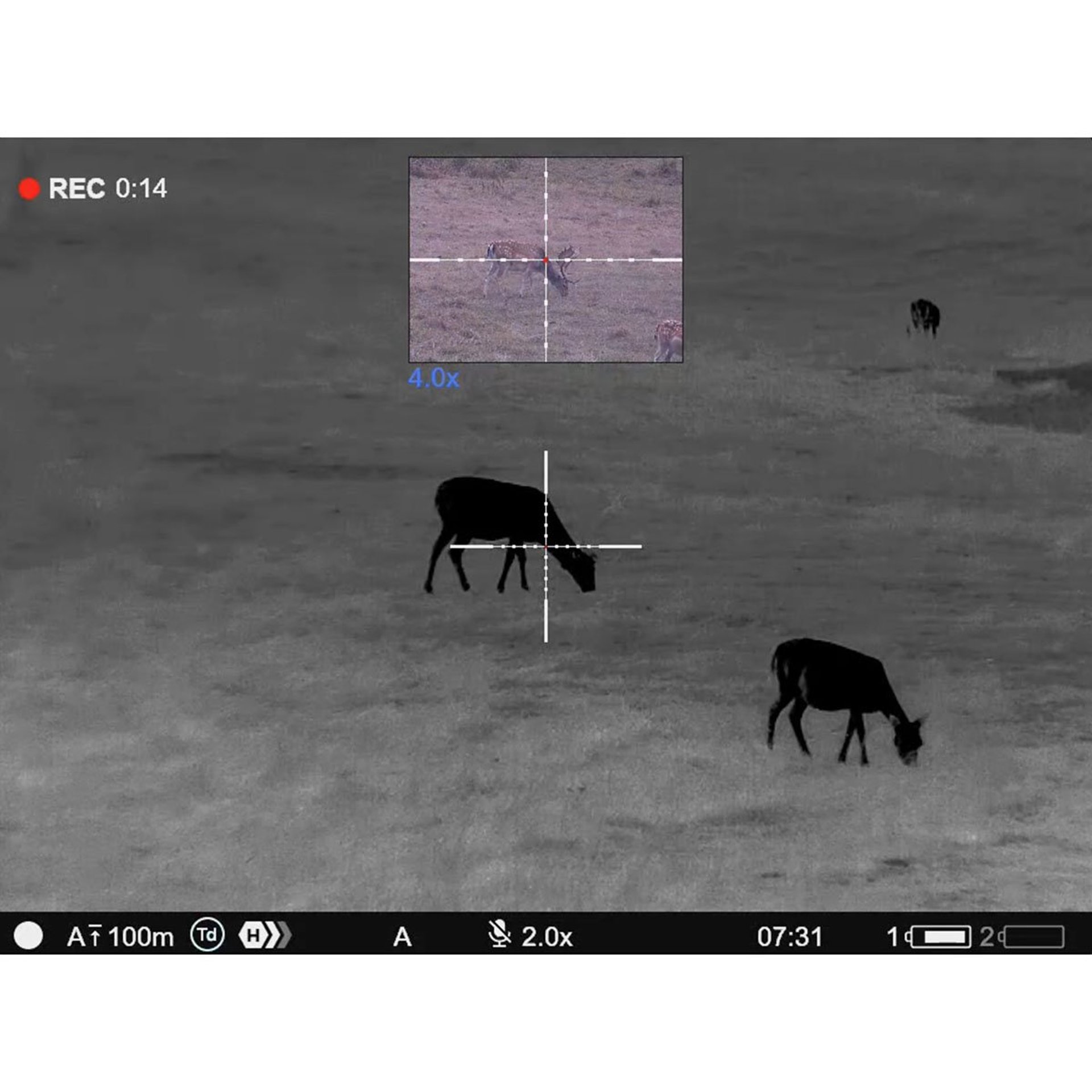

Use the digital image mode for daytime and the thermal mode for night or day for thermal assistance on hard-to-find targets. Picture-in-picture mode allows you to simultaneously see images from both channels with either one prioritized. An active sensor in the Thermion Duo senses when light decreases and switches to black and white mode.
10 reticle options and 9 different colors give the user a lot of customization for the perfect, tailored fit. 8 color palettes in thermal mode. 2-16x thermal and 4-32x digital magnification lets you reach out and discover more. This also works in PIP mode, so you can stay wide in one frame, while zoomed in inside the other frame.
1800 meter thermal detection range during day or night. Utilize the onboard Wi-Fi connectivity to link up to the Stream Vision 2 app. Save videos and images and share with friends later. 16GB internal memory lets you save hours of video and thousands of photographs.
MAIN
- Sensor: 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital)
- Objective lens: F50/1.0 (thermal) | F35/4.34 (digital)
- Magnification: x2 – 16 (thermal) | 4 – 32 (digital)
- Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
- Detection range: 1800 m (thermal detection)
SENSOR
- Type: Uncooled (thermal) | Full-color CMOS (digital)
- Resolution, pixels: 640x480 (thermal) | 3840x2160 (digital)
- Pixel pitch, µm: 17 (thermal)
- NETD, mK: <25>
- Frame rate, Hz: 50
OPTICS
- Objective lens: F50/1.0 (thermal) | F35/4.34 (digital)
- Magnification: x2 – 16 (thermal) | 4 – 32 (digital)
- Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
- Eye relief, mm: 50
DISPLAY
- Type: AMOLED HD
- Resolution, pixels: 1024x768
- Range Performance
- Detection range: 1800 m (thermal detection)
RETICLE
- Click value, H/V, mm at 100 m: 21.25 / 21.25 (thermal channel) | 10.33 / 10.33 (digital channel)
- Click range, H/V, mm at 100 m: 4250 / 4250 (thermal channel) | 2066 / 2066 (digital channel)
- Number of preloaded reticles: 10
VIDEO RECORDER
- Video / photo resolution, pixels: 1024x768
- Video / photo format: .mp4 / .jpg
- Built-in memory, GB: 16
WI-FI
- Wireless Protocol: Wi-Fi
- Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
- Frequency, GHz: 2.4 / 5
ENVIRONMENTAL CHARACTERISTICS
- Degree of protection, IP code (IEC60529): IPX7
- Operating temperature range, °С: -25 – +50
CONNECTIONS AND COMPATIBILITIES
- Max. recoil power on rifled weapon (Eo), Joules: 6000
- Shock resistance on the smooth-bore rifles, caliber: 12
- Compatible mounts: Standard 30 mm rings
- Supported Application: Stream Vision 2
POWER SUPPLY
- Output voltage, V: 3.0 – 4.2
- Battery type: Li-Ion Battery Pack АPS2 (external) + Li-Ion Battery Pack APS5 (internal)
- Capacity, mAh: 2000 (external) + 4900 (internal)
- Operating time on battery pack (at t=22°C), h: 6
- External power supply, V: 5V, 9V (USB Type-C Power Delivery)
WEIGHT & SIZE
- Body material: Aluminum alloy
- Dimensions, mm: 420x78x83.5
- Weight, kg: 0.96 (batteries included)
