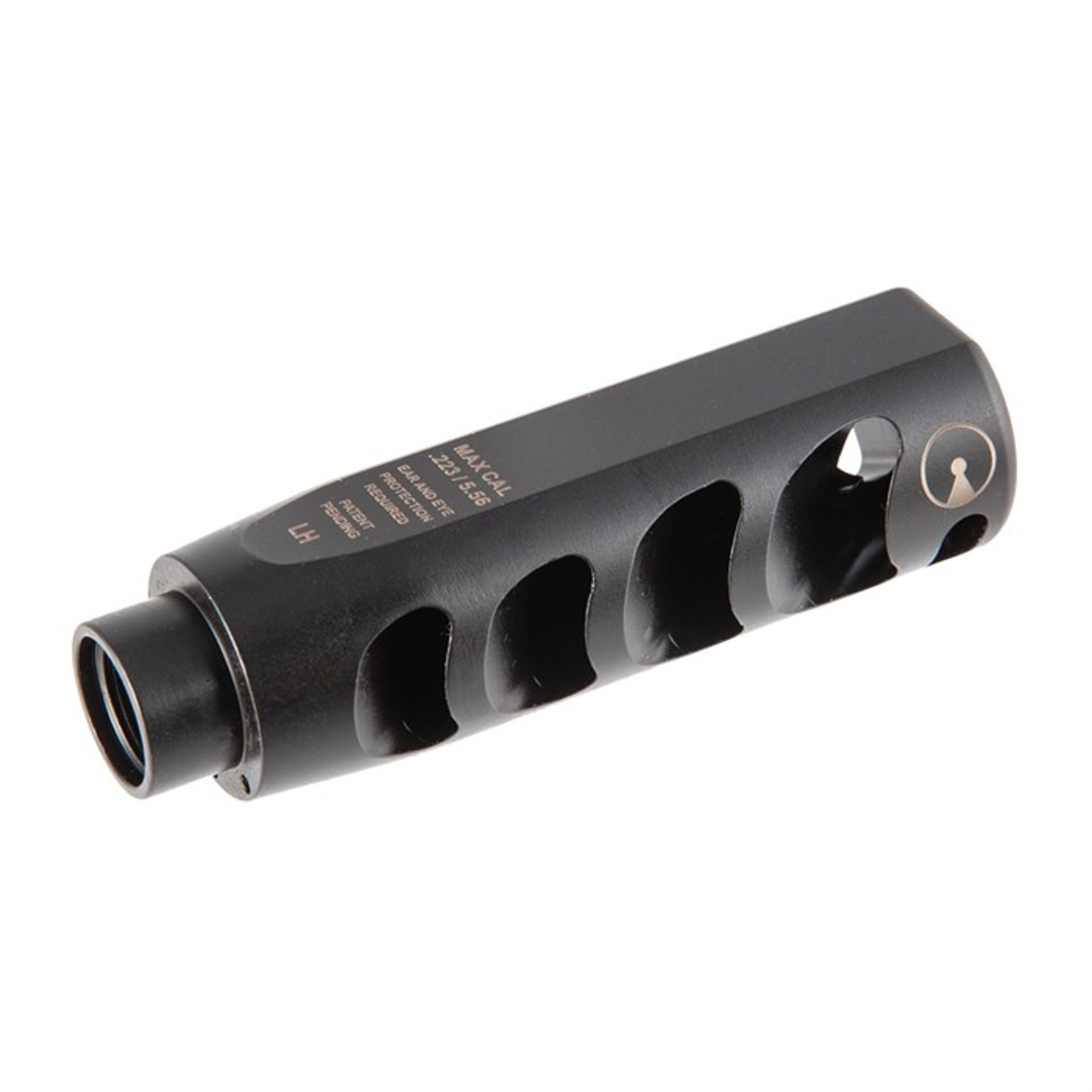

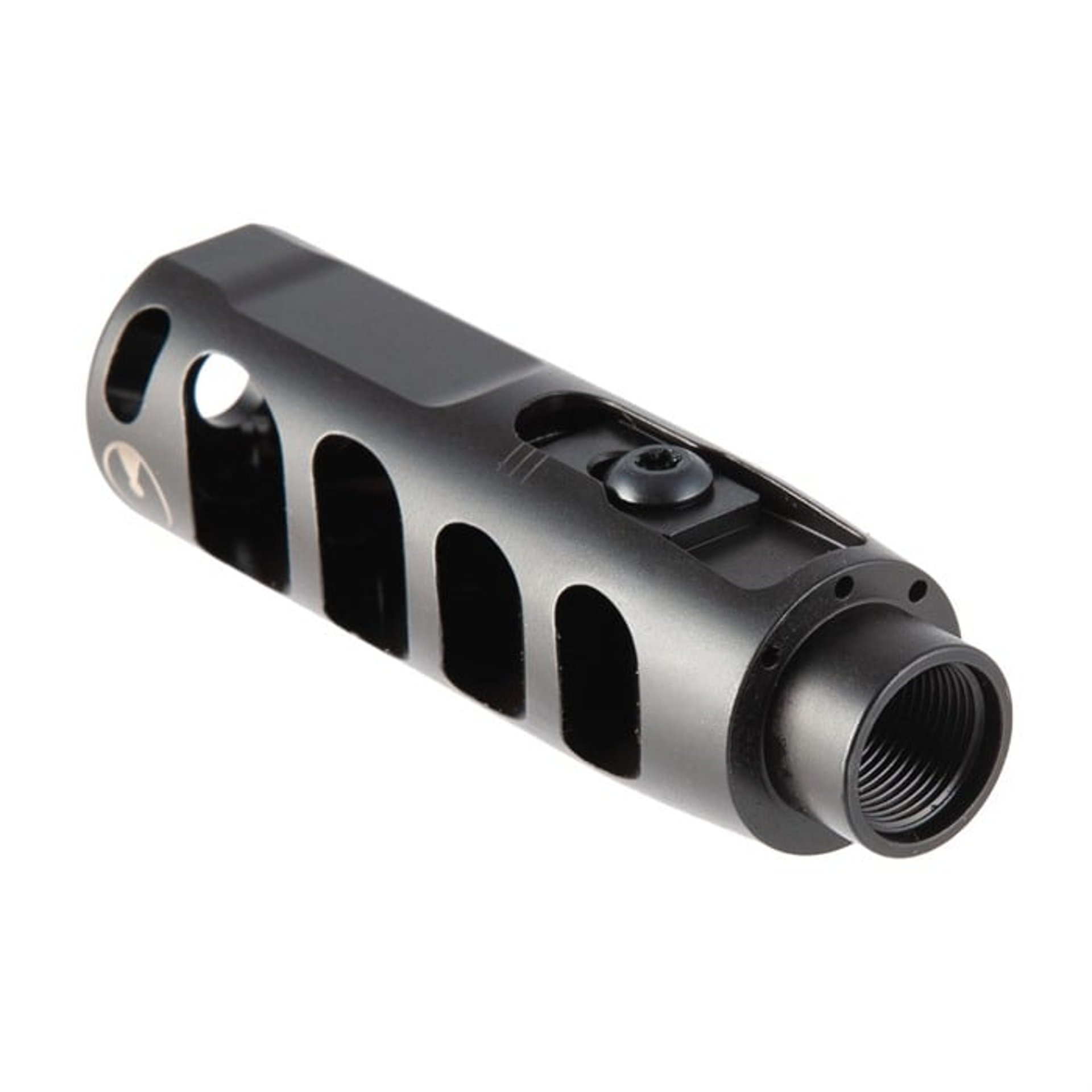

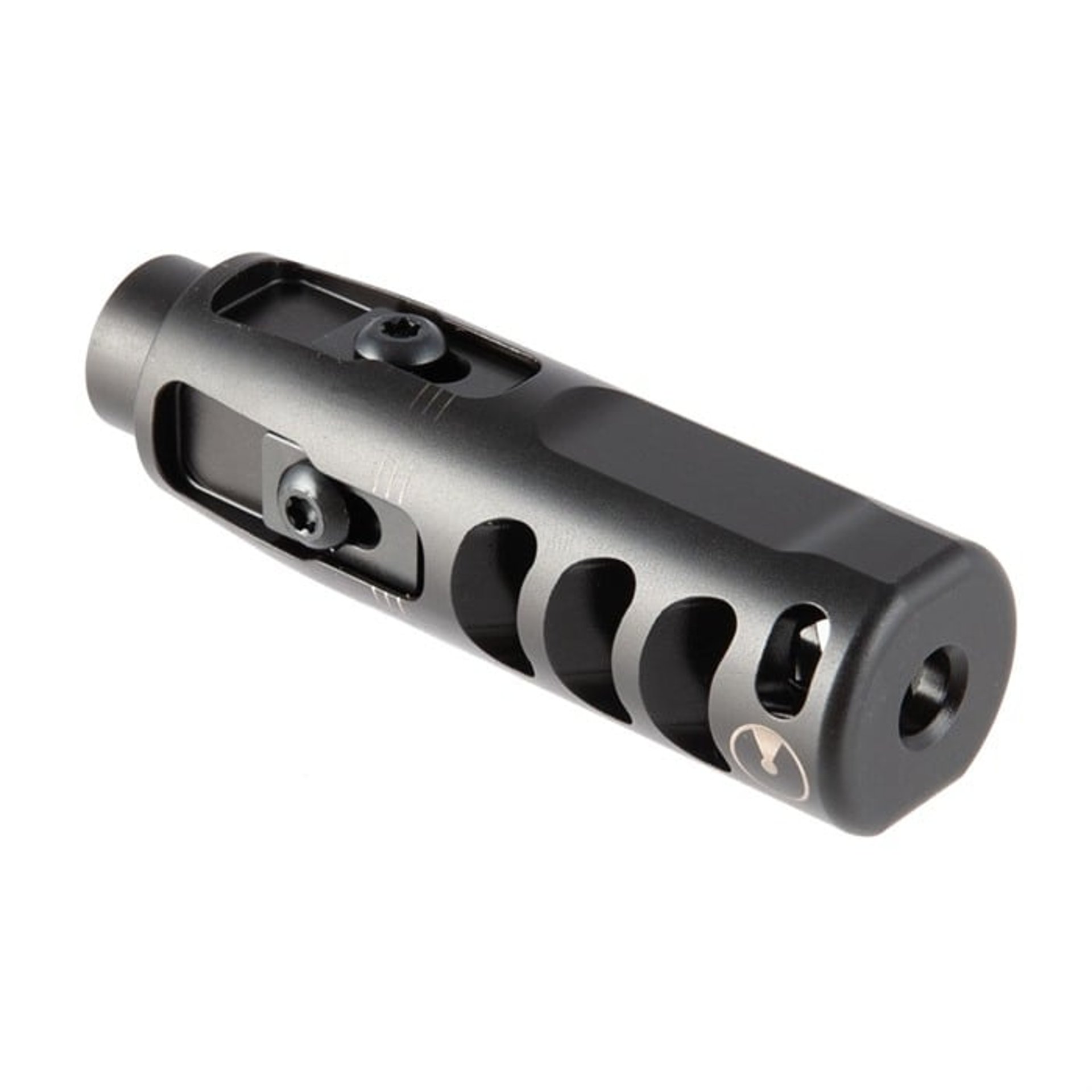

ULTRADYNE USA AR-15 X1 TUNEABLE COMPENSATORS

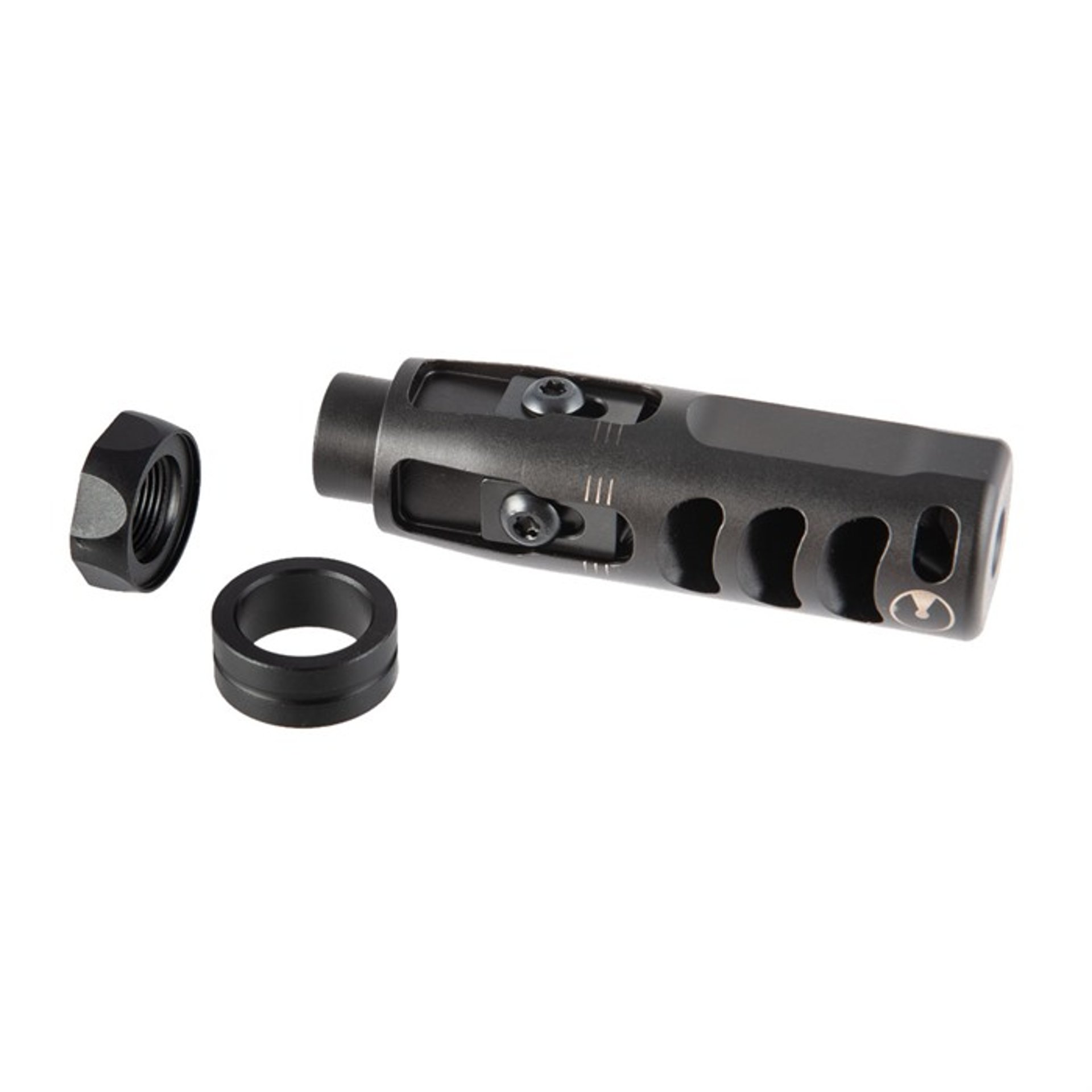

X1 is a tunable, high-performance compensator like no other. It combines a highly efficient asymmetrical port design along with two adjustable ports to create a compensator that will provide optimal performance based on the individual shooter. The adjustable ports counteract for the different variables that cause muzzle movement like shooting style, shooters physical stature, gun weight, barrel length and ammunition to name a few. The only way to have perfect muzzle control is to have a tunable compensator. The X1 makes this process easy with its Adjustable Port Door System which changes compensation on both the x and y axis to enable optimal muzzle control for every shooter no matter the variables. Since there are separate left-hand and right-hand models, and the ports are asymmetrical, the redirected gas path is optimized to give the shooter the maximum amount of performance and recoil reduction with less perceived blast. Like all Ultradyne muzzle devices, a timing nut is included for easy installation. Get unmatched muzzle control with the X1!

TUNABLE

Attain perfect muzzle control

ULTIMATE RECOIL REDUCTION

Class-leading performance.

100% CNC MACHINED IN THE USA

416 Stainless Steel with ultra-rugged salt bath nitride finish.

DYNAMOUNT READY

Barrel mounted sight option eliminates sight deflection associated with handguard mounting.

X1 223 | 5.56 Technical Specs

• CALIBER Rated for .223 Rem | 5.56 x 45
• MINIMUM BARREL LENGTH 16″
• BARREL THREAD 1/2-28 UNEF-2B
• BARREL THREAD LENGTH MINIMUM .600″
• MATERIAL
• 416 Stainless Steel
• Salt Bath Nitride Finish
• MOUNTING Shrouded Timing Nut
• MASS
• Brake Only 150 grams | 5.3 ounces
• Total 173 grams | 6.1 ounces
• DIMENSIONS
• Length 75mm | 2.94 inches
• OD 24.8 mm | 0.975 inches
• WRENCH FLATS 7/8 inch
• ADJUSTABLE PORT SCREW IP-15 Torx Plus

Competition legal, the AR-15 Ultradyne X1 Tunable Compensator is equipped with asymmetrical ports allow both right- and left-handed shooters enjoy the benefits it provides.
