The Geissele Mk18 Handguard

Today

GEISSELE MK18 HANDGUARD OVERVIEW

The Geissele MK18 handguard is built for shooters who need maximum rigidity and full-length mounting capability on a precision AR-15 platform. It is available in 16-inch length only and comes in either DDC or black anodized finishes. The defining feature is the integrated full-length ARCA rail on the bottom, paired with M-LOK slots on the sides and angled flats.

This design eliminates the need for bolt-on ARCA sections, giving you a stronger and more stable interface for bipods, tripods, and barricade shooting.

FEATURES AND DESIGN DETAILS

The MK18 uses Geissele’s proven barrel nut system along with anti-rotation tabs for added security. Steel-reinforced QD sling points are integrated on both sides. The bottom slots are cut for weight reduction and heat dissipation, not for mounting accessories.

The handguard is notably rigid. That rigidity is critical when applying pressure through a bipod or barricade, especially in precision shooting scenarios where consistency matters.

WHY THE ARCA RAIL MATTERSA

A full-length ARCA rail gives you flexibility that standard M-LOK setups cannot match. Instead of being limited to fixed mounting points, you can slide your bipod or tripod attachment anywhere along the rail.

This allows:

ast positional changes
Better recoil management
Improved balance on barricades
Direct tripod mounting without adapters

For precision rifle shooters, this is a major advantage in both competition and field use.

TOOLS REQUIRED FOR INSTALLATION

The installation requires a proper upper receiver vise setup and torque tools. Key tools include:

Upper receiver vise block
Bench vise
Torque wrench (foot-pounds and inch-pounds)
Geissele barrel nut wrench
Roll pin punches
Hammer

Using the correct tools ensures proper torque and alignment, which directly affects accuracy and reliability.

PARTS USED IN THIS BUILD

This build includes:

AR-15 upper receiver
Faxon 18 inch .223 Wylde barrel
Rifle-length gas system
Mark 12 gas block
Dead Air muzzle device and suppressor
Brownells Action Lube Plus

Each component is selected to support a precision-oriented setup.

BARREL INSTALLATION AND PREP

Start by applying lubricant to the barrel extension and receiver interface. This ensures smooth fitment and proper torque distribution. Insert the barrel into the upper receiver, ensuring the indexing pin is aligned.

If the fit is tight, controlled pressure or light tapping with protection on the threads can help seat the barrel fully.

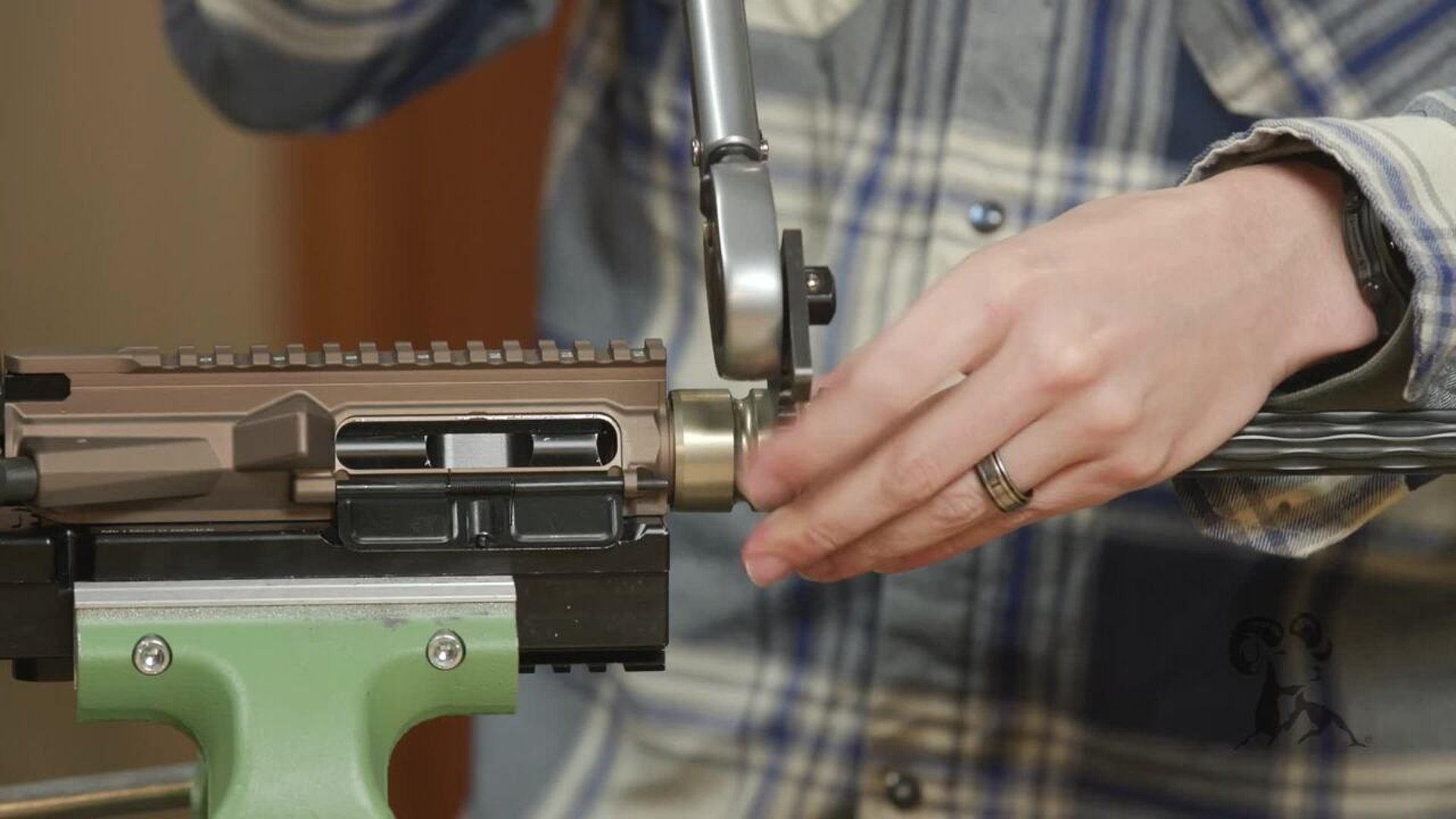

BARREL NUT INSTALLATION AND TORQUE

The Geissele barrel nut comes pre-oiled. Leave that oil in place or apply a light coat if needed. Thread the nut onto the receiver and torque it to approximately 40 foot-pounds.

Geissele notes that exact torque is less critical than staying within a proper range. A working range of roughly 40 to 50 foot-pounds is acceptable, as long as alignment is correct and the gas tube path is clear.

GAS SYSTEM INSTALLATION

Install the gas tube into the gas block using a roll pin. Secure the gas block onto the barrel, ensuring proper alignment with the gas port.

If the barrel is not dimpled, take extra care to align the gas block correctly. Final alignment can be verified later if needed.

HANDGUARD INSTALLATION AND ALIGNMENT

Slide the MK18 handguard over the barrel nut and align it with the upper receiver rail. Proper alignment is critical for optics and accessory mounting.

Install the cross bolts but do not fully tighten them yet. Use the anti-rotation screws to gently contact the receiver. These should be snug but not forceful.

Once aligned, torque the cross bolts to approximately 5 foot-pounds or 60 inch-pounds.

FINAL ASSEMBLY AND ACCESSORIES

Install the muzzle device and tighten it against the barrel shoulder. If using a suppressor, ensure proper mounting and clearance.

The MK18 is compatible with Unity-style front sights and allows easy integration of suppressor covers and other accessories.

FINAL THOUGHTS

The Geissele MK18 handguard is built for serious precision use. Its integrated ARCA rail, rigid construction, and secure mounting system make it a top choice for shooters who demand consistency and flexibility.

If you find one available, it is worth picking up. Availability can be limited, but the performance benefits make it a strong addition to any precision AR-15 build.
