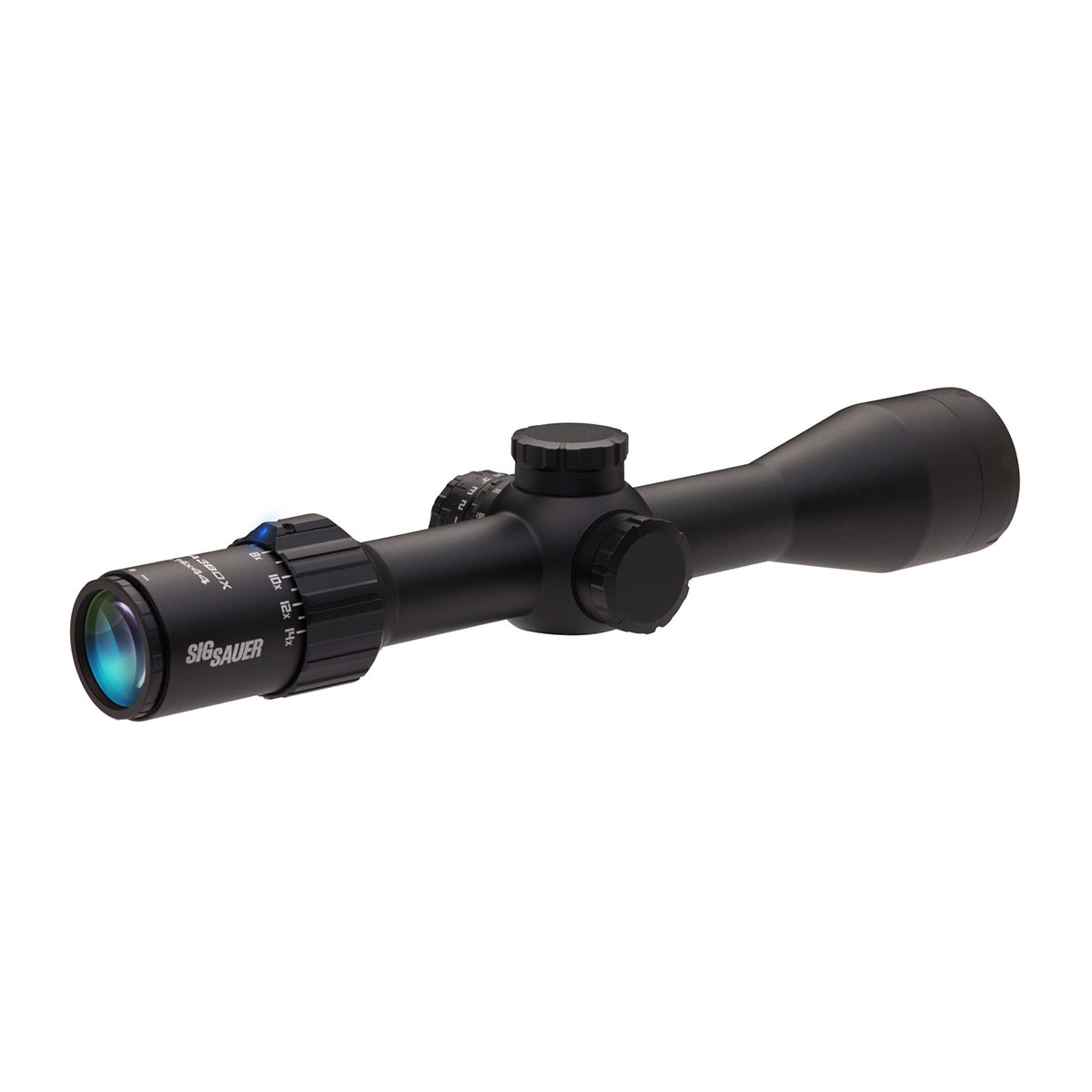

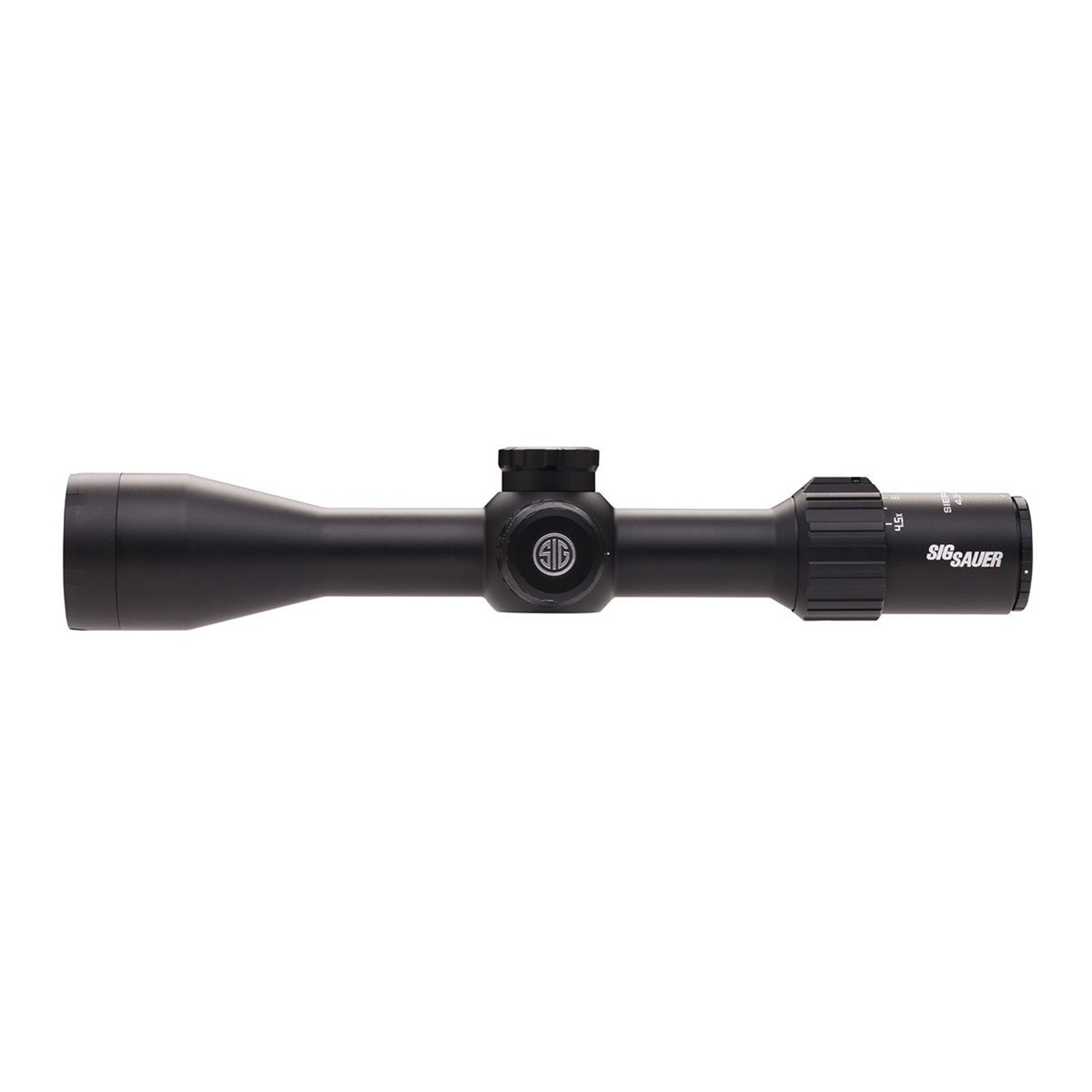

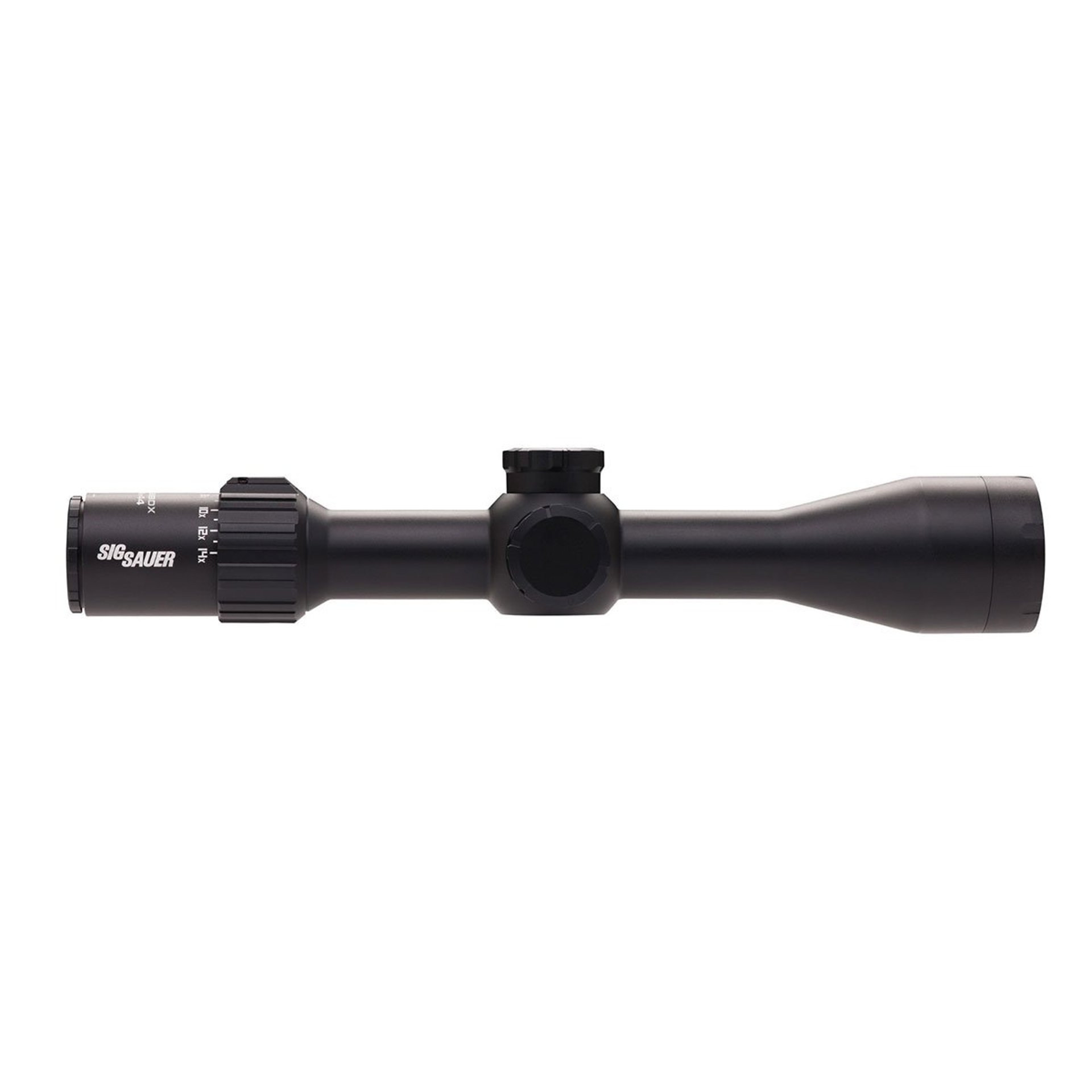

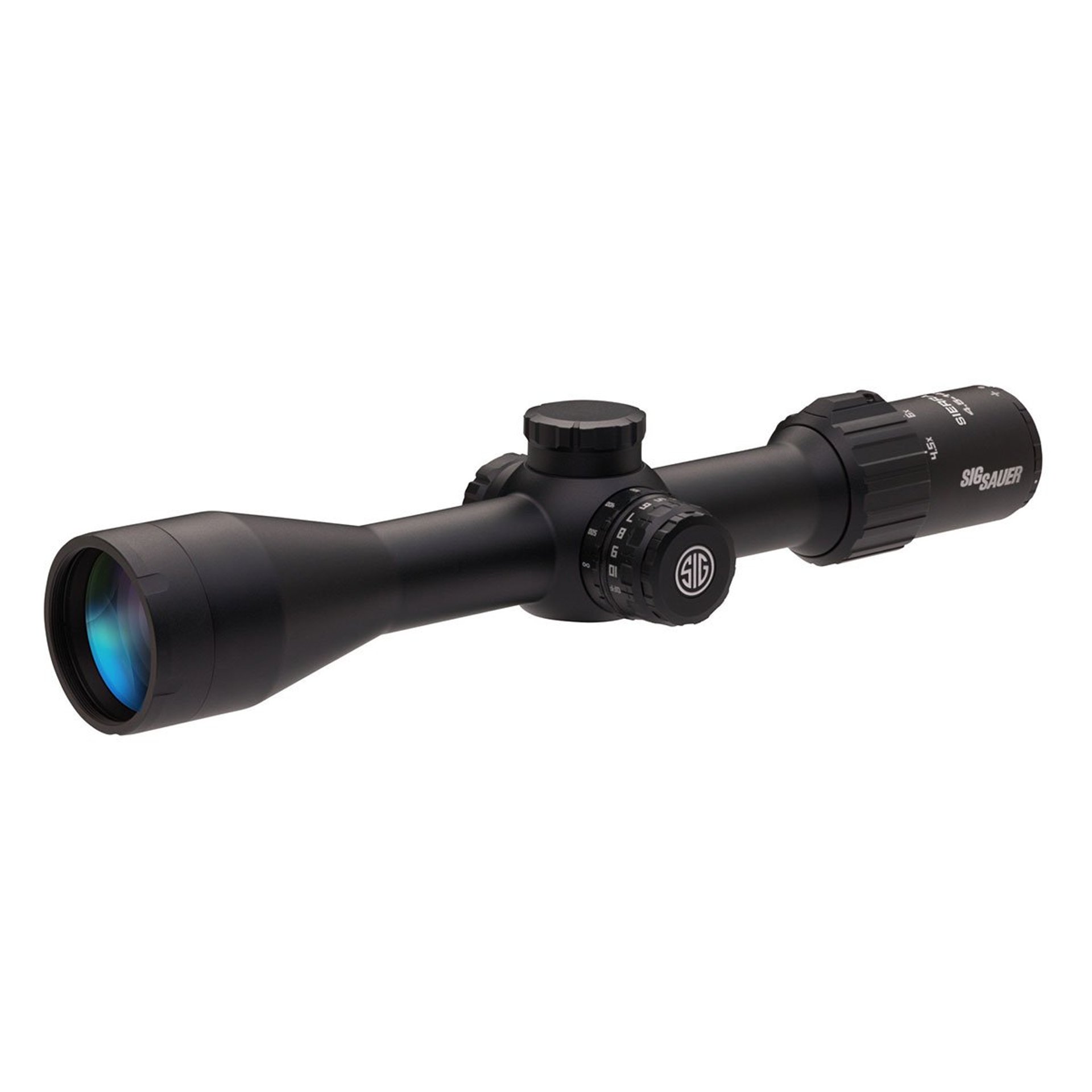

Disguised within the form factor of a traditional riflescope lies the power of the SIG SAUER BDX Ballistic Data Xchange. The SIERRA3BDX riflescope provides the hunter an illuminated auto-holdover dot on targets when coupled with a BDX capable KILO rangefinder. Featuring exceptional SpectraCoat lenses, LevelPlex digital anti-cant, and KinETHIC kinetic energy transfer indicator, the SIERRA3BDX is incredibly simple to use. Range a target, put the holdover dot on target, pull the trigger, impact. SIG SAUER’s BDX, just CONNECT THE DOT
Features
- Integrated BDX Ballistic Data Xchange. A rangefinder and riflescope system that uses ballistics, enviromental conditions and Bluetooth® to illuminate the exact holdover dot.
- Automatic holdover dot on a Digital Focal Plane, combining Second Focal Plane stadias, with an OLED illuminated ballistic holdover dot that automatically scales with zoom to subtend on target at any magnification level.
- Features our MOTAC (Motion Activated Illumination) that powers up when it senses motion and powers down when it does not. Provides for optimum operational safety and enhanced battery life.
- Spectracoat highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels xacross the entire visible spectrum providing superior light transmission.
- SIG SAUER’s innovative KinETHIC kinetic energy transfer indicator. KinETHIC provides assistance in assuring an ethical hunt by indicating when energy on target drops below a threshold that can be set by the hunter using the SIG BDX App.
- New for BDX riflescopes, Auto LevelPlex, automatically increases digital level sensitivity on longer shots.
- Dependable waterproof (IPX-7 rated for complete immersion up to 1 meter) and fog-proof performance.
SPECIFICATIONS:
- FOCAL PLANE – Second
- RETICLE – BDX-R1 Digital
- ADJUSTMENT INCREMENTS –0.25 MOA
- WEIGHT – 23.2 oz
- MAINTUBE DIAMETER – 30 mm
- TRAVEL PER ROTATION – 20 MOA
- PARALLAX SETTING – 100 Yards
- FIELD OF VIEW LOW (FT @ 100 YARDS) – 19.9
- FIELD OF VIEW HIGH (FT @ 100 YARDS) – 6.7
- EYE RELIEF LOW (IN) – 3.35
- EYE RELIEF HIGH (IN) – 4.21
- EXIT PUPIL LOW (MM) – 6.9
- EXIT PUPIL HIGH (MM) – 3.1
- DIOPTER ADJUSTMENT RANGE - +/- 2
- WATERPROOFING – IPX 7
- OCULAR OUTER DIAMETER (IN) – 1.61
- OBJECTIVE OUTER DIAMETER – 2.07
- INTERNAL GAS PURGE – Nitrogen
- ILLUMINATION SETTINGS – 10 Daylight
- TOTAL ELEVATION TRAVEL – 55 MOA
- TOTAL WINDAGE TRAVEL – 55 MOA
- BATTERY – (2) CR-2032
- OBJECTIVE LENS DIAMETER – 44 mm
- COLOR – Black
- MAGNIFICATION – 4.5-14x
- ILLUMINATION - Yes
