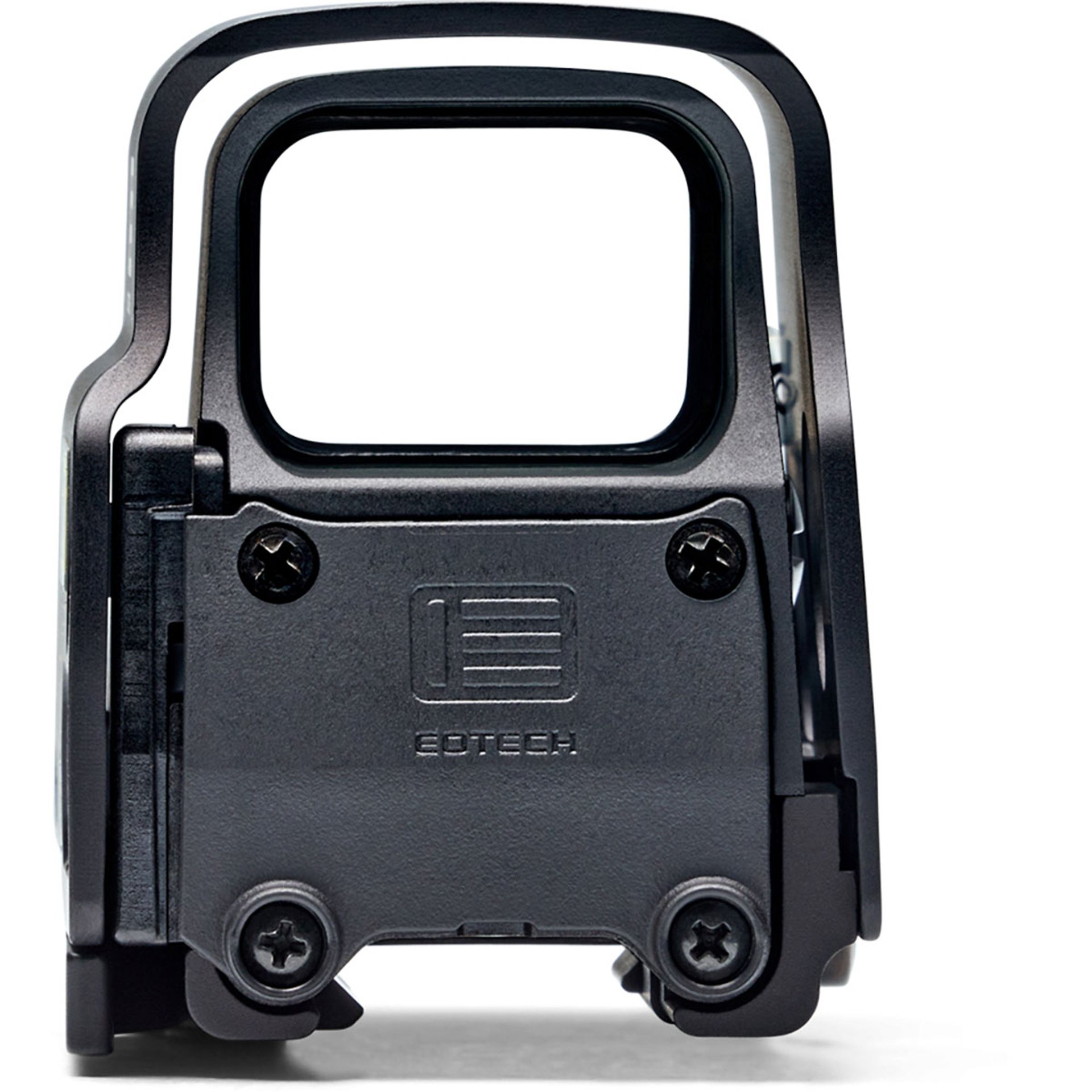

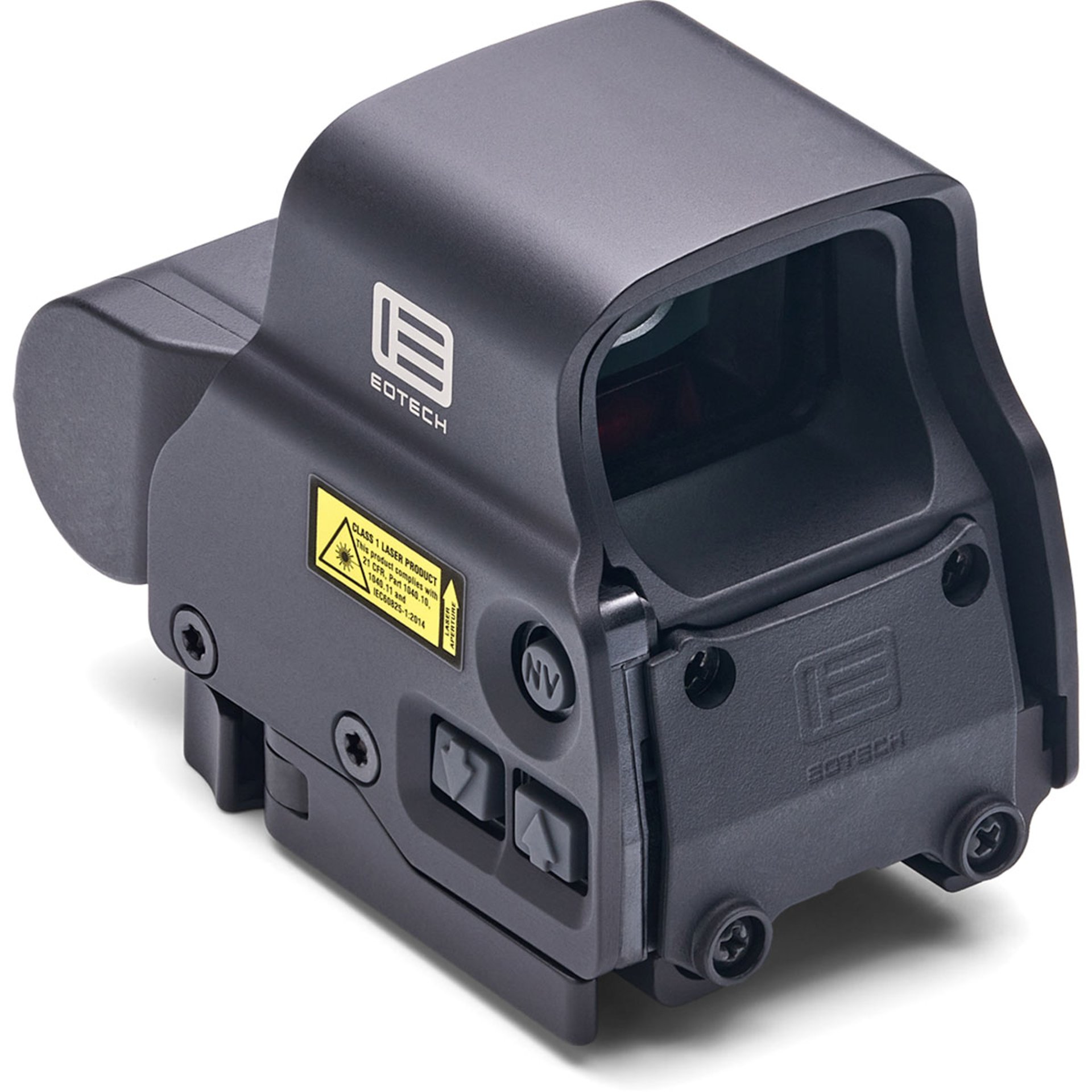

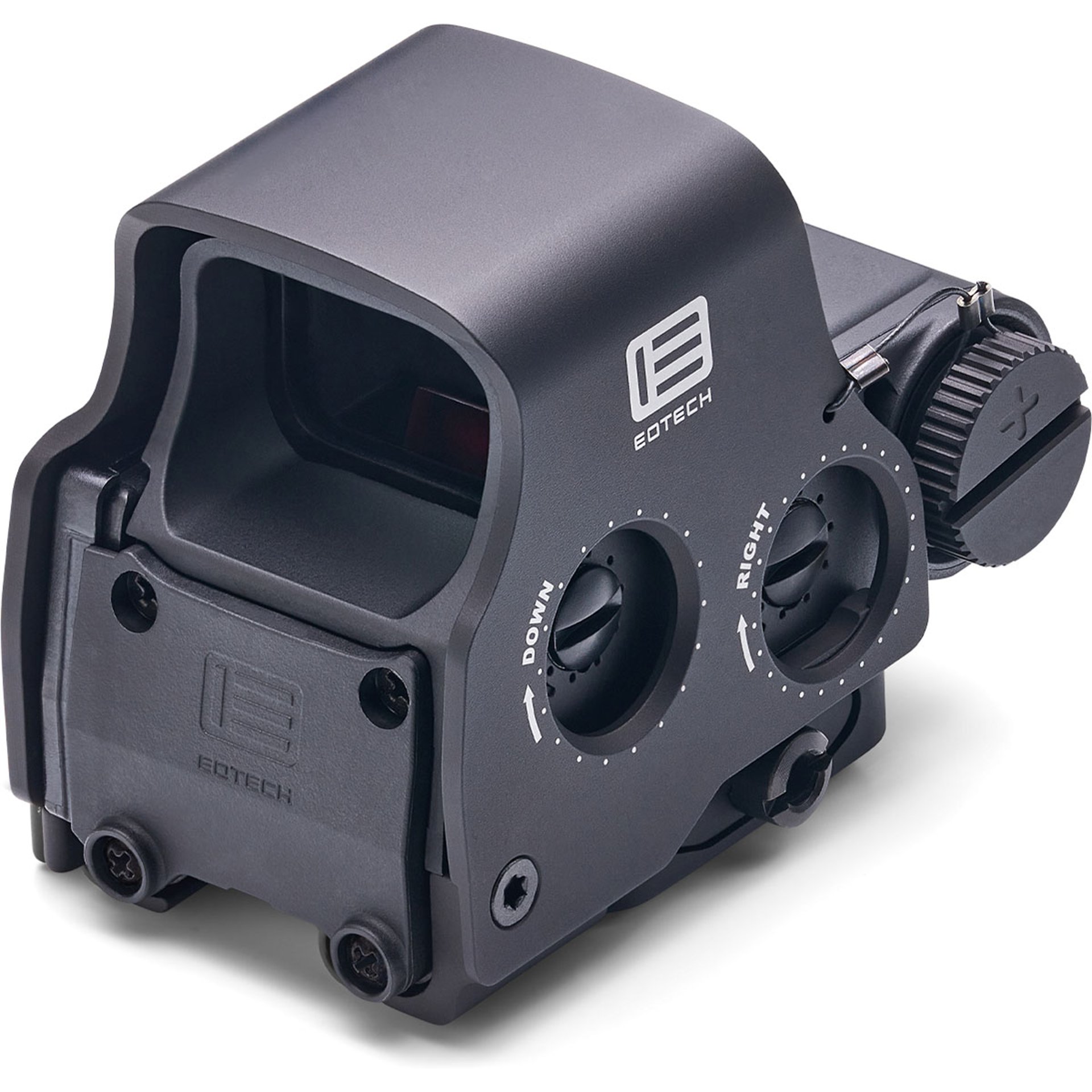

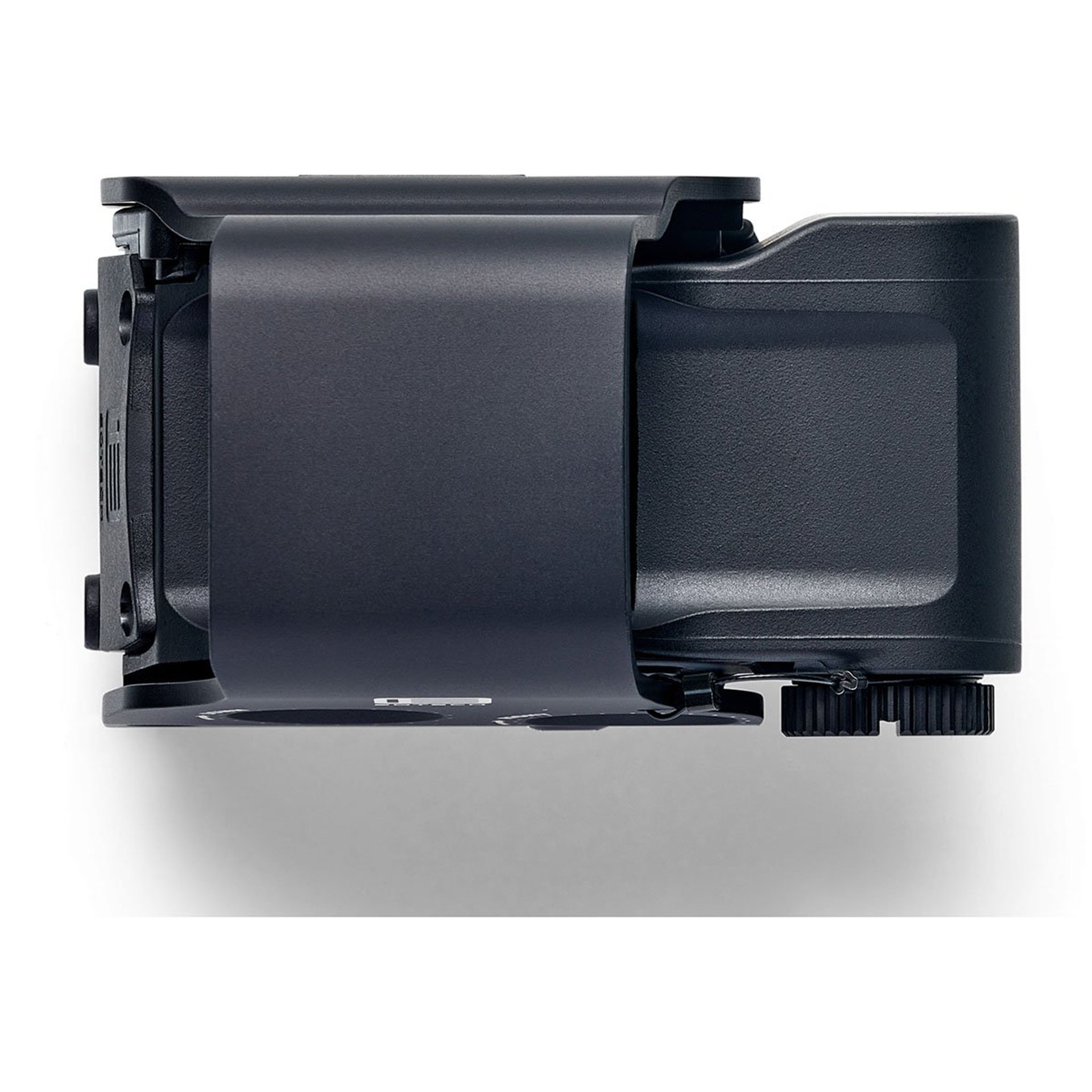

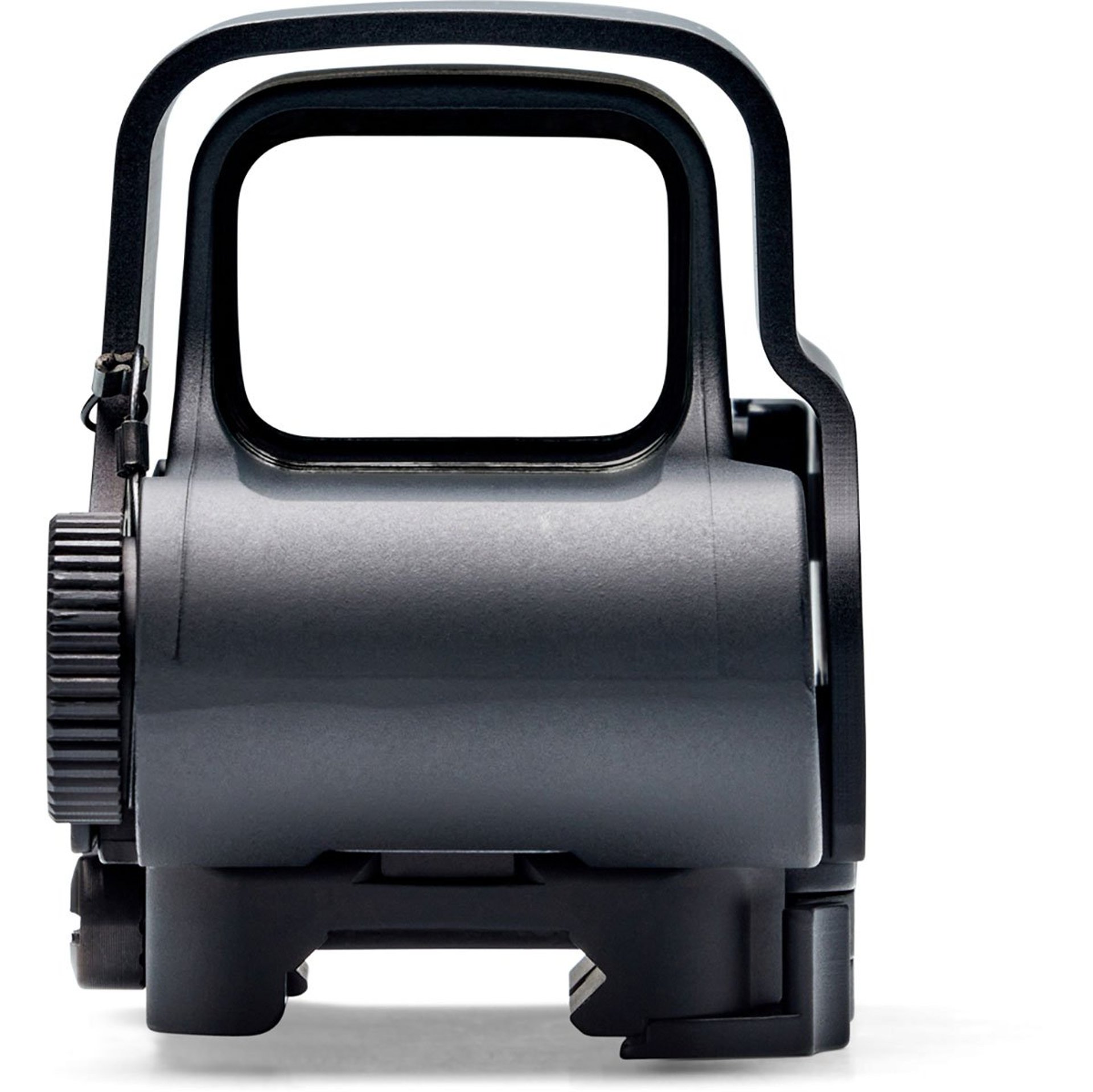

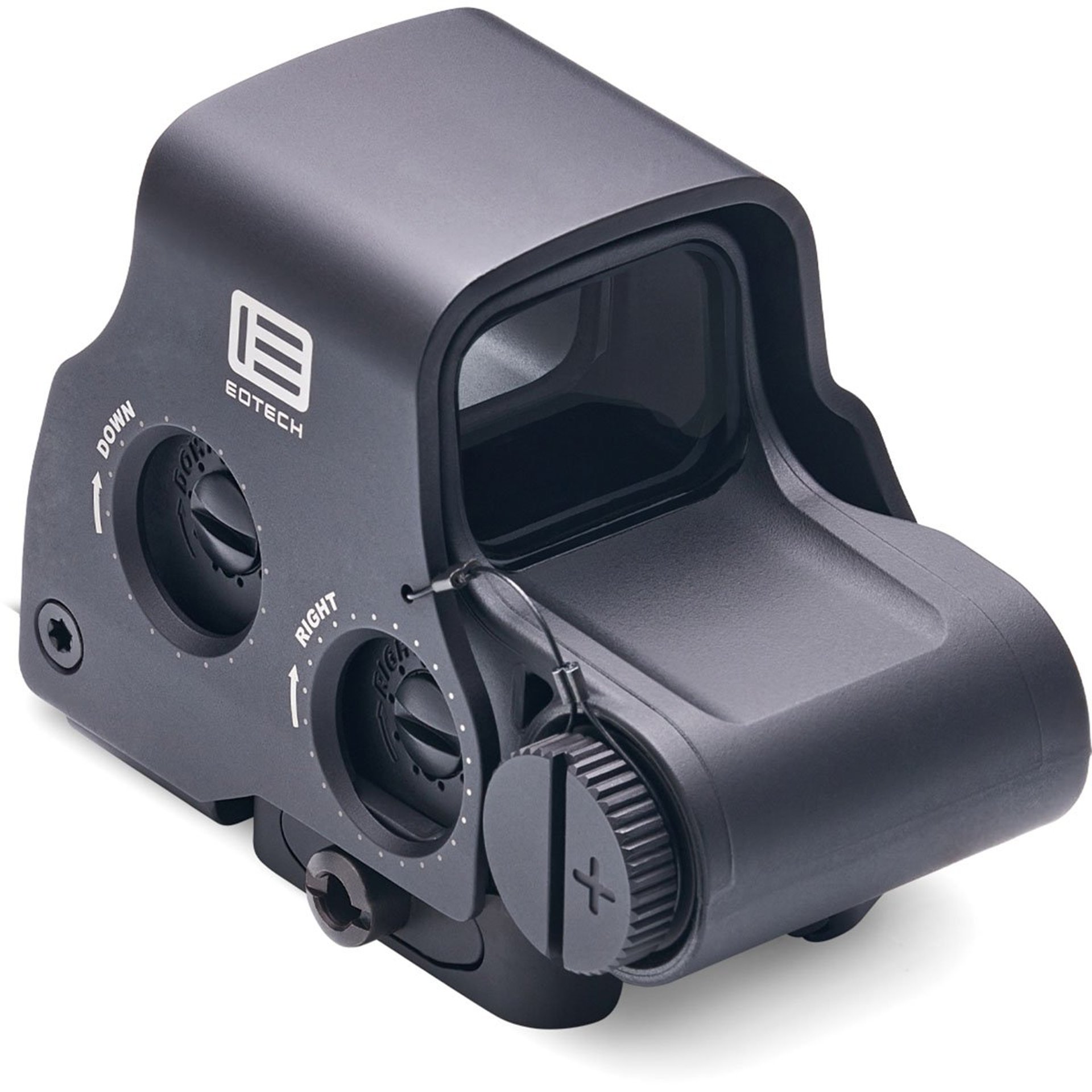

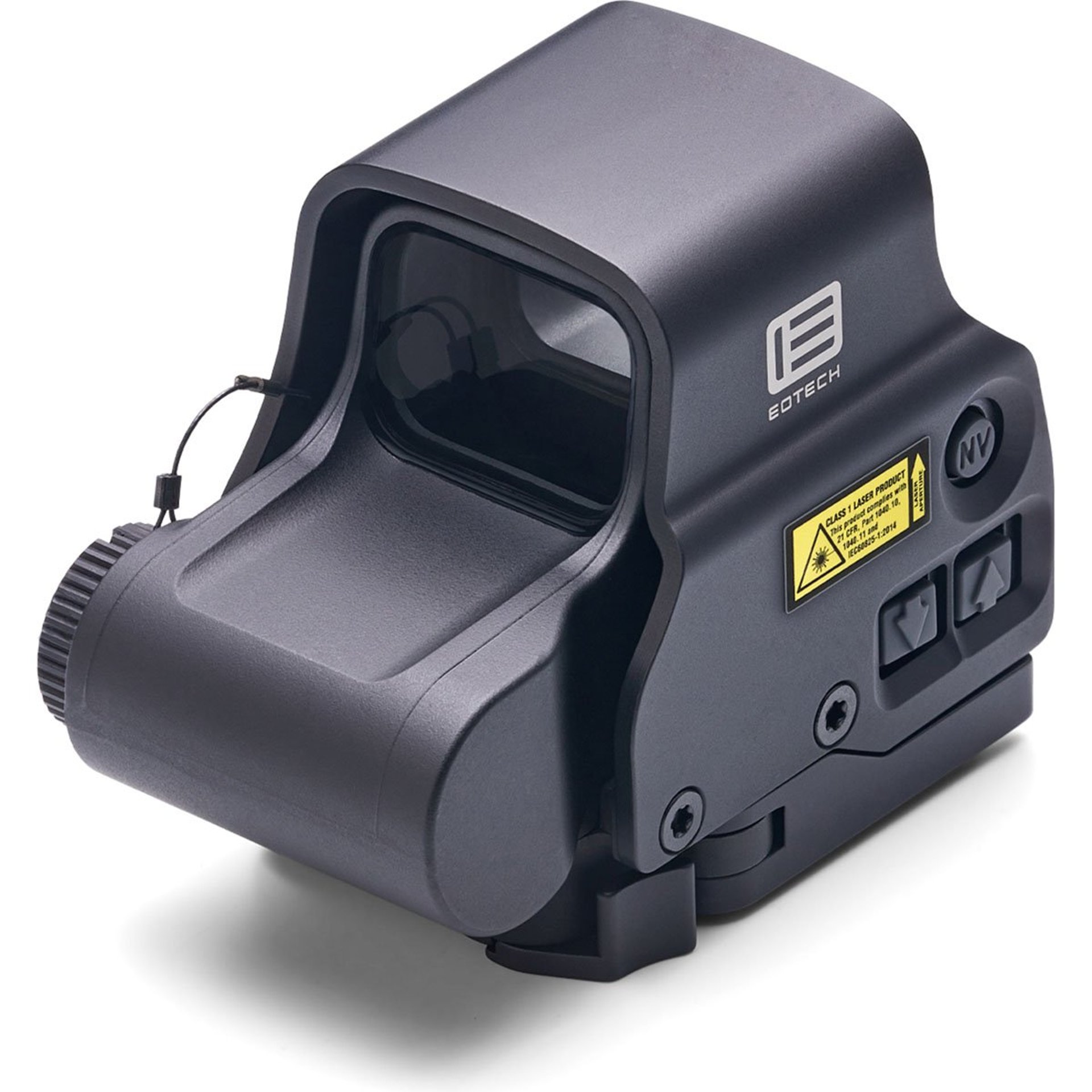

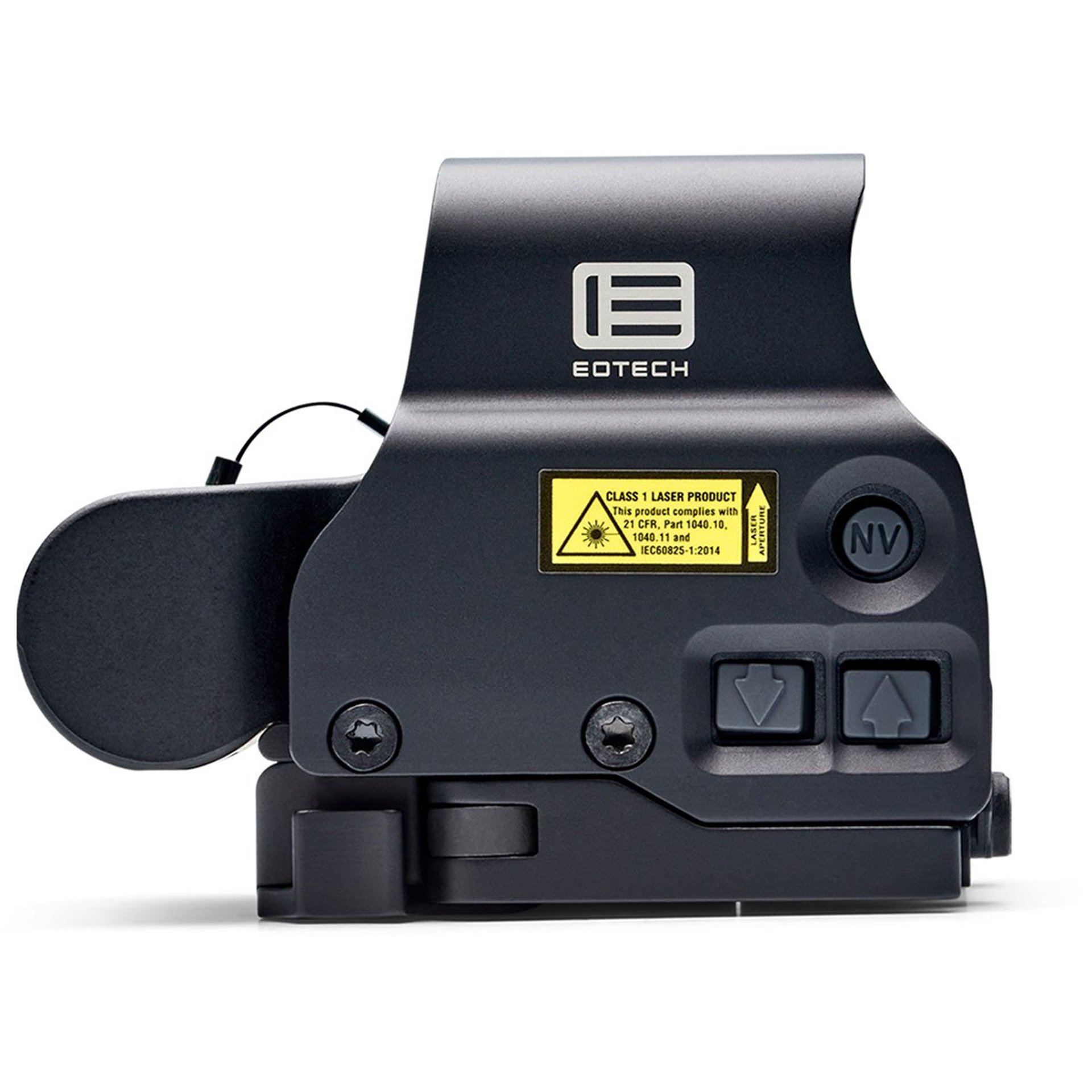

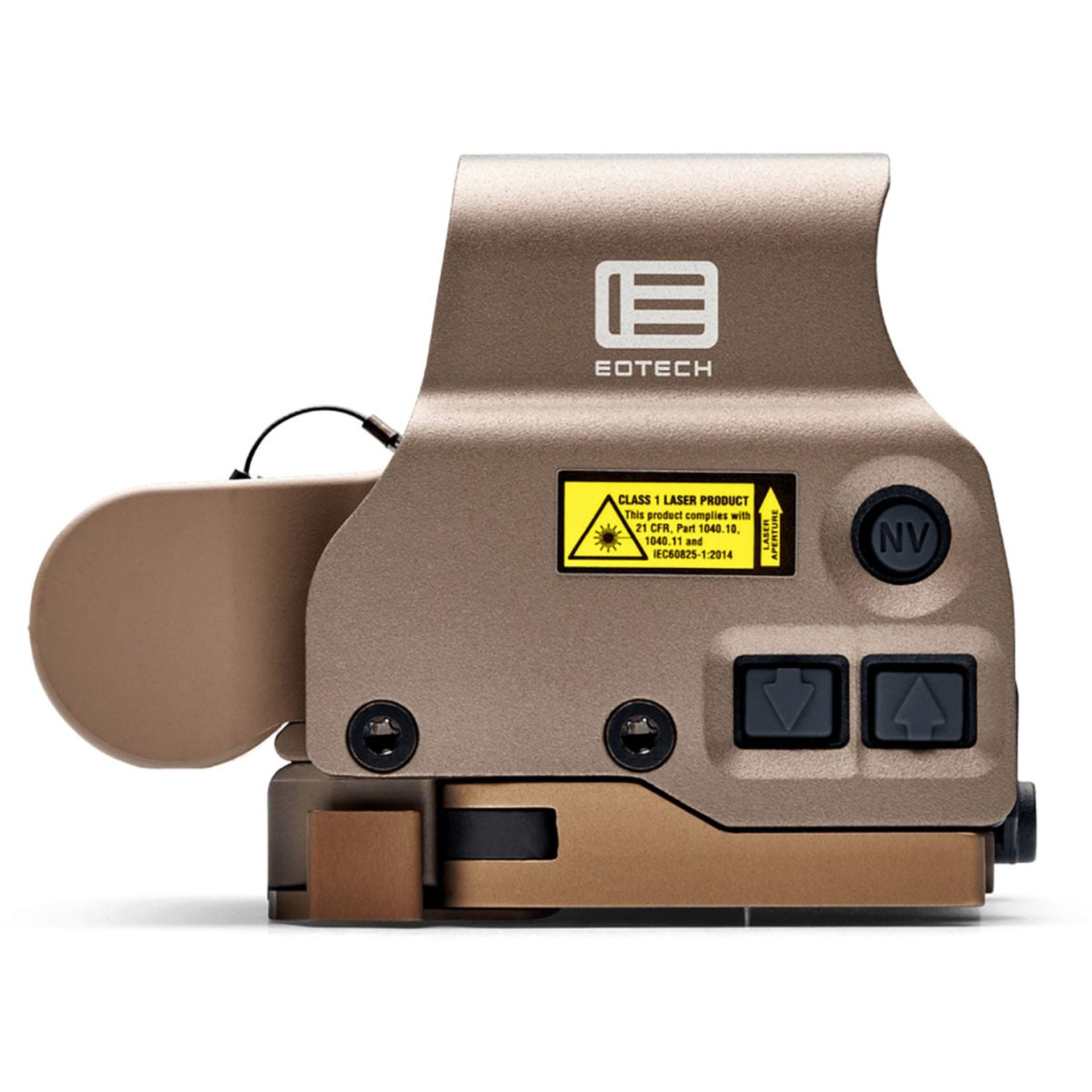

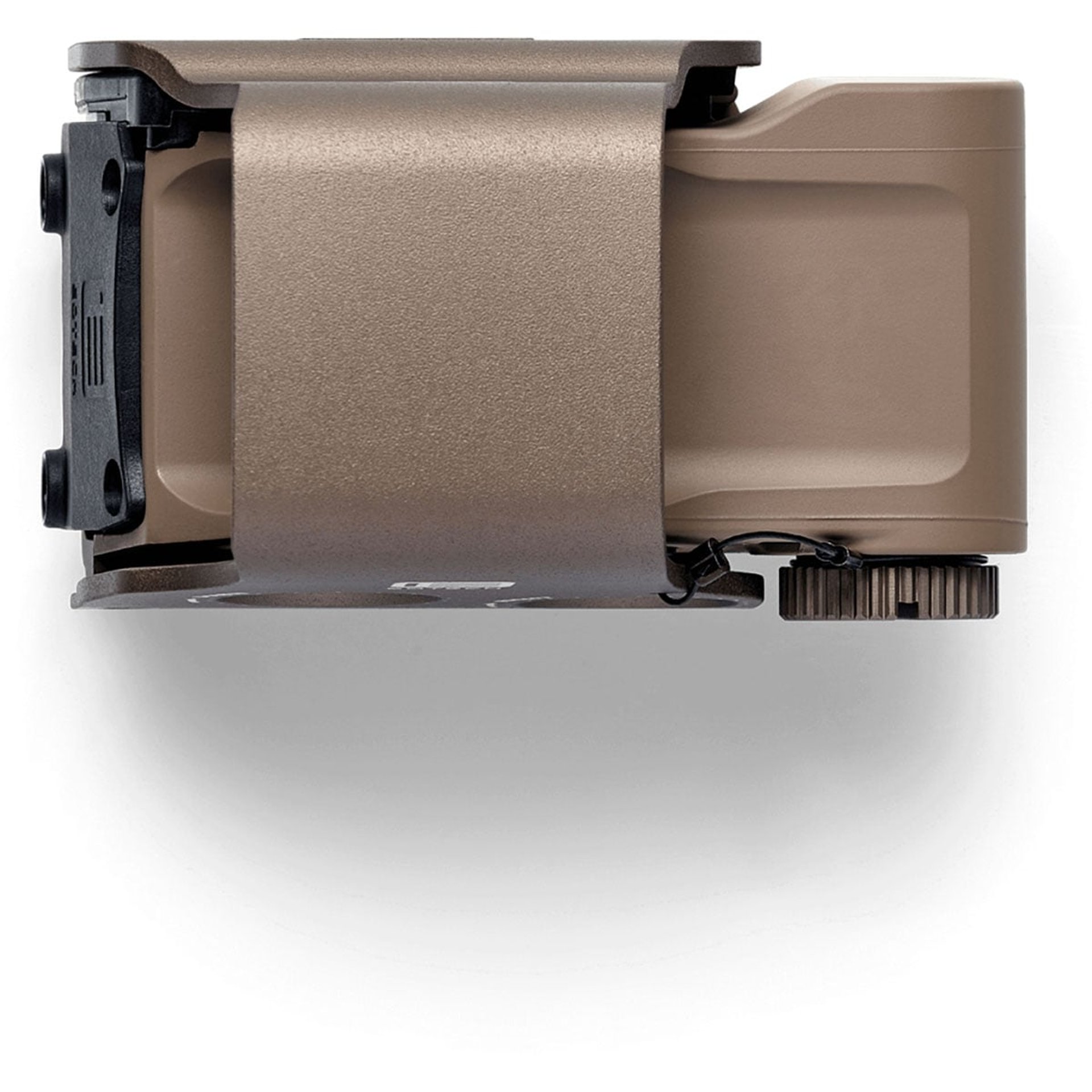

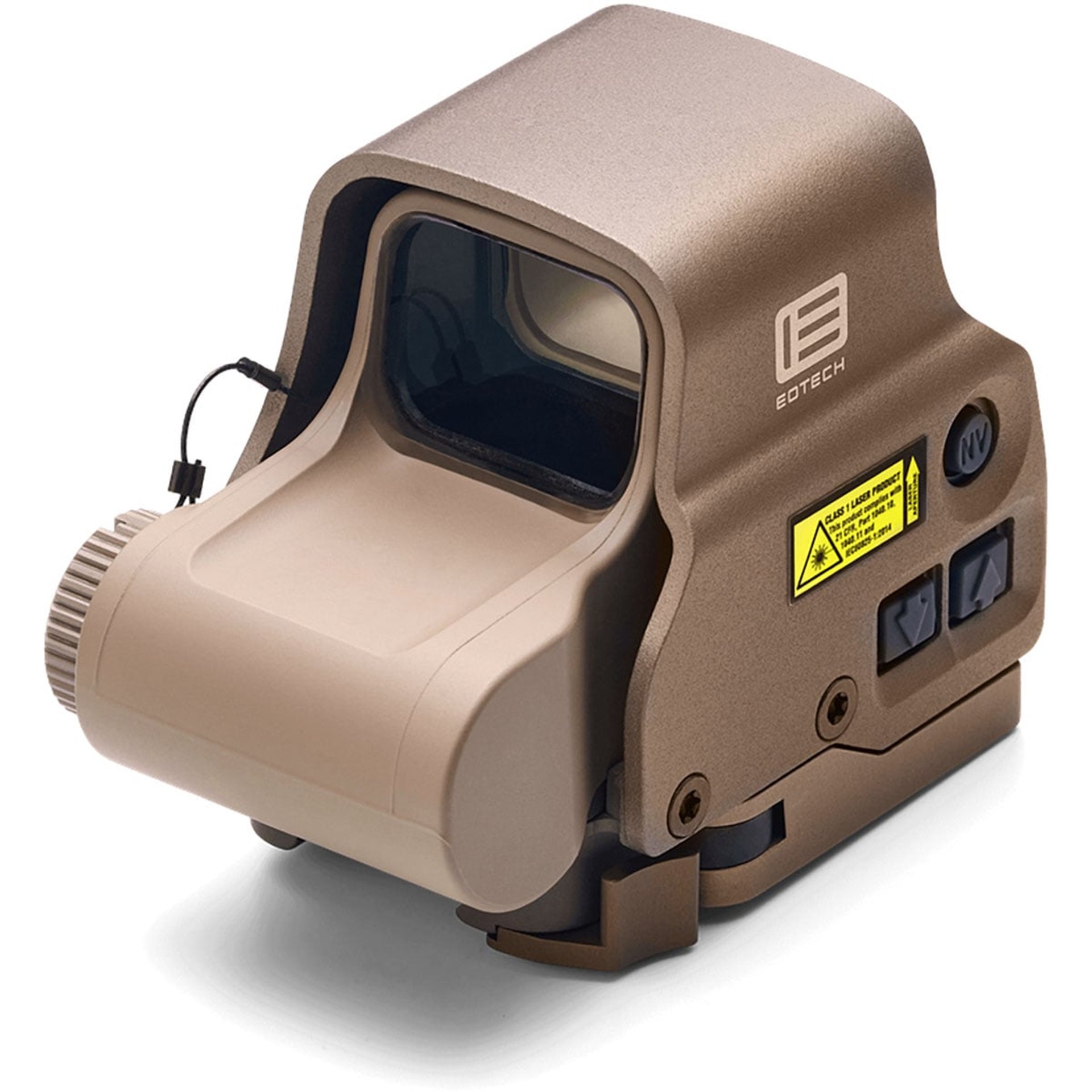

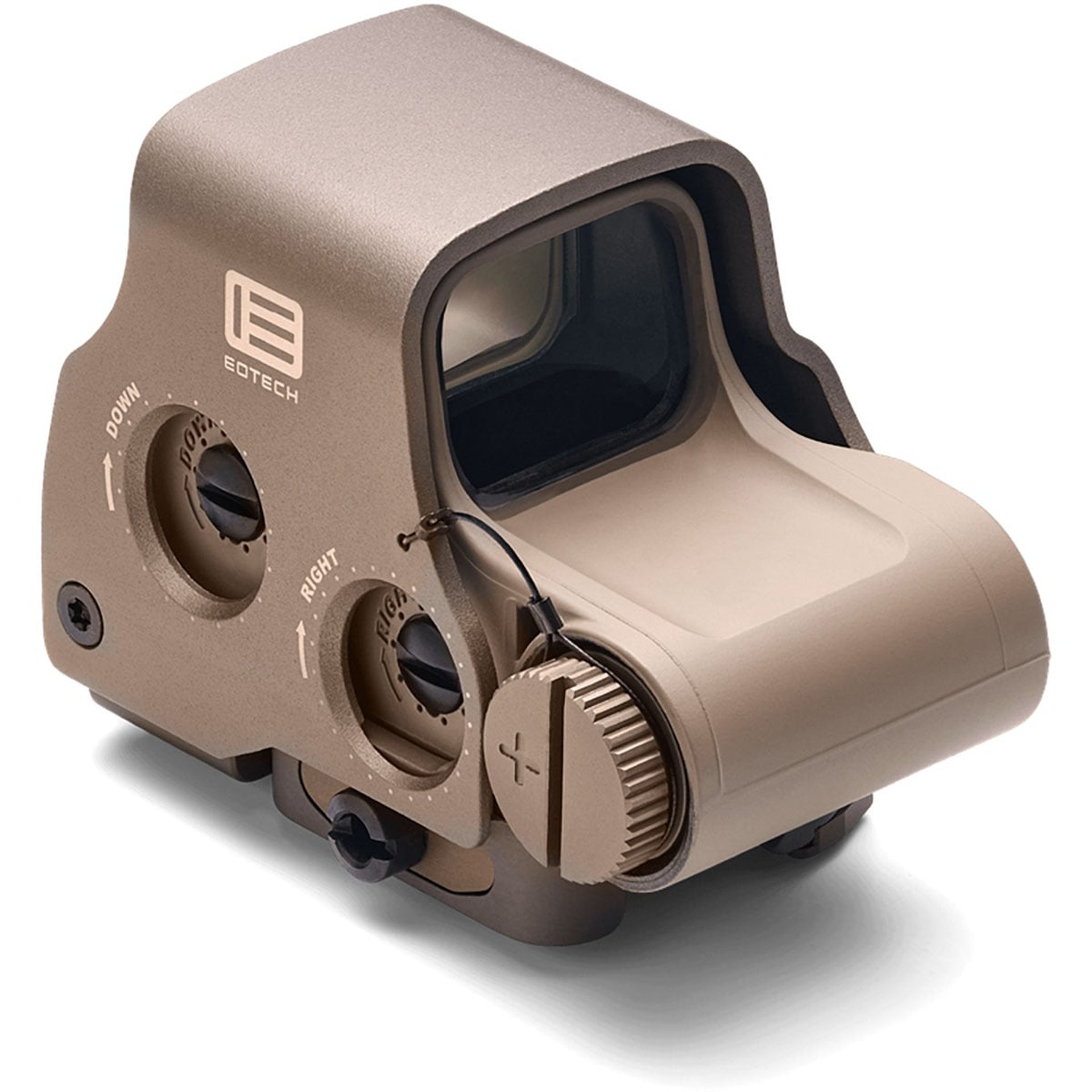

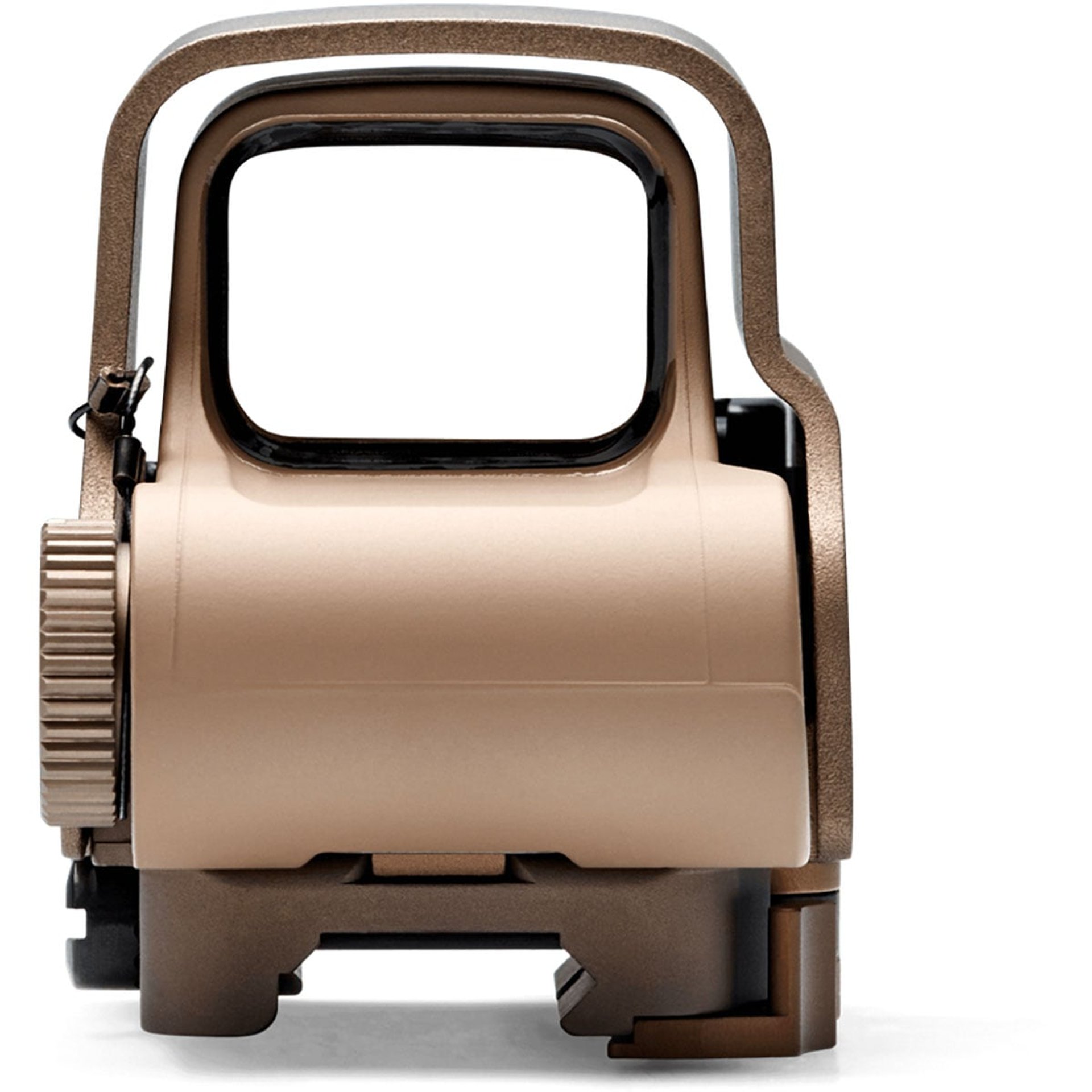

EOTECH HWS EXPS3 DCR HOLOGRPHIC SIGHT

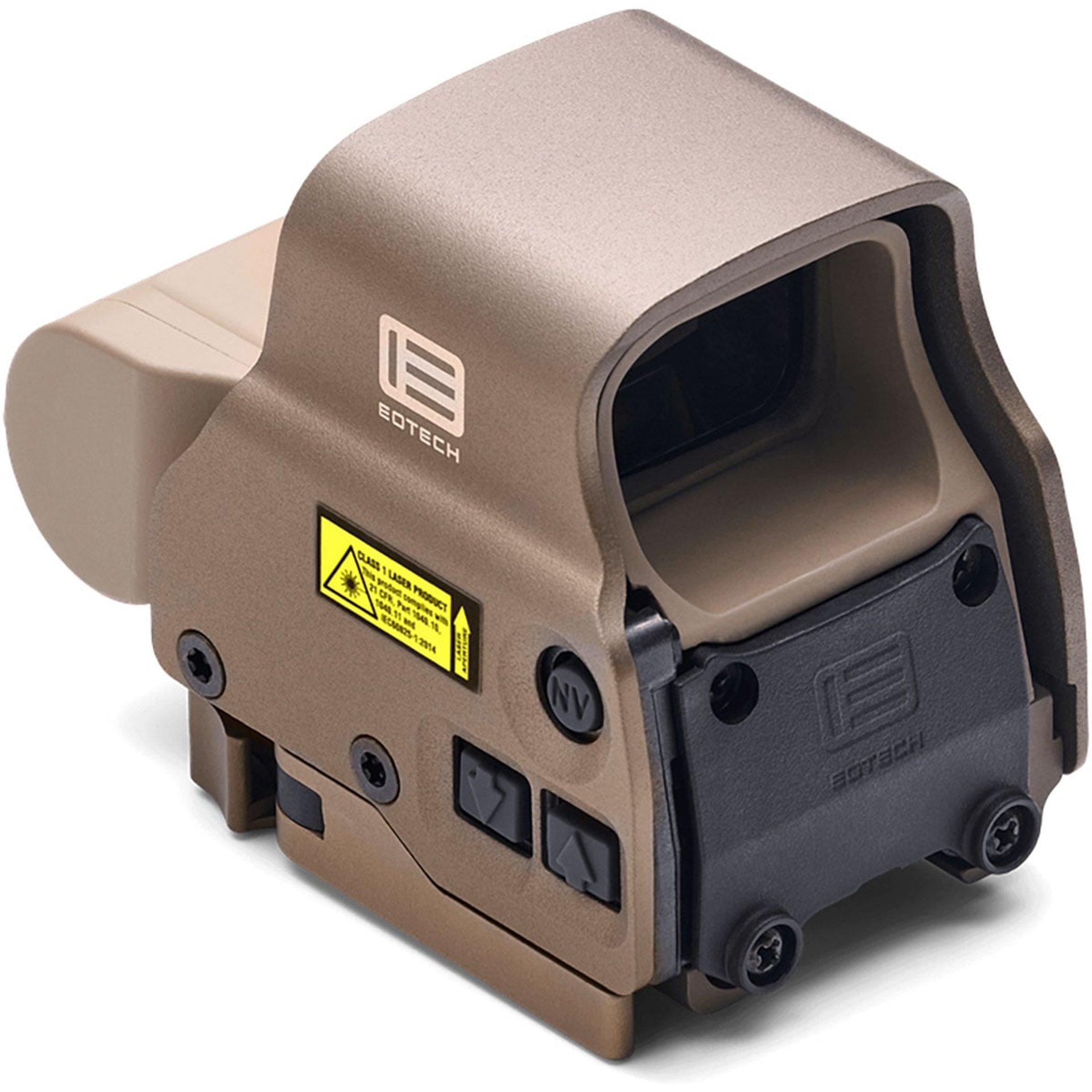

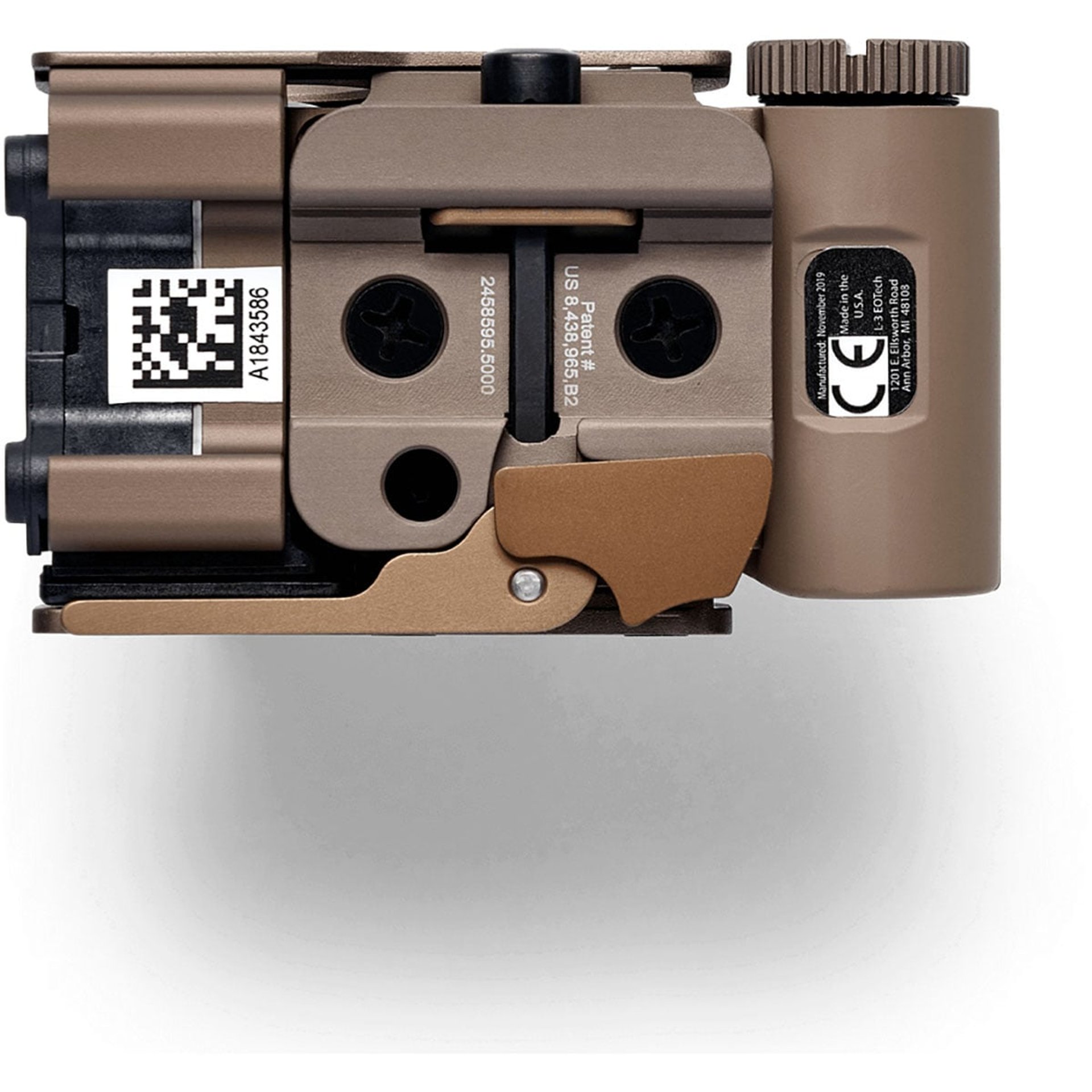

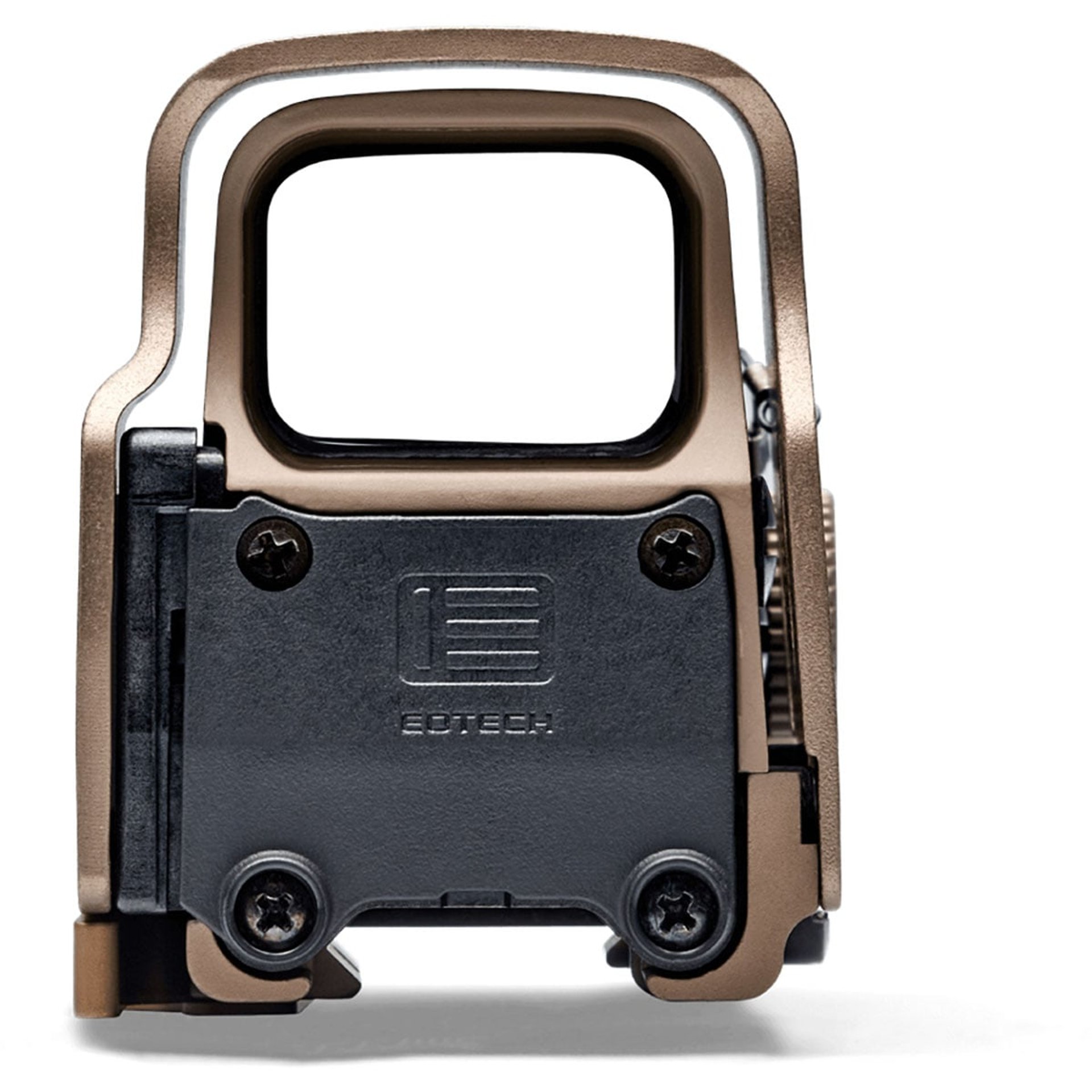

The EXPS3-DCR features the Danger Close Reticle (DCR) that provides fast and accurate shots at typical distances but also an effective close combat aiming point. Housed in the popular EXPS form factor, offering true two eyes open shooting for fast target acquisition, night vision compatible settings and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.

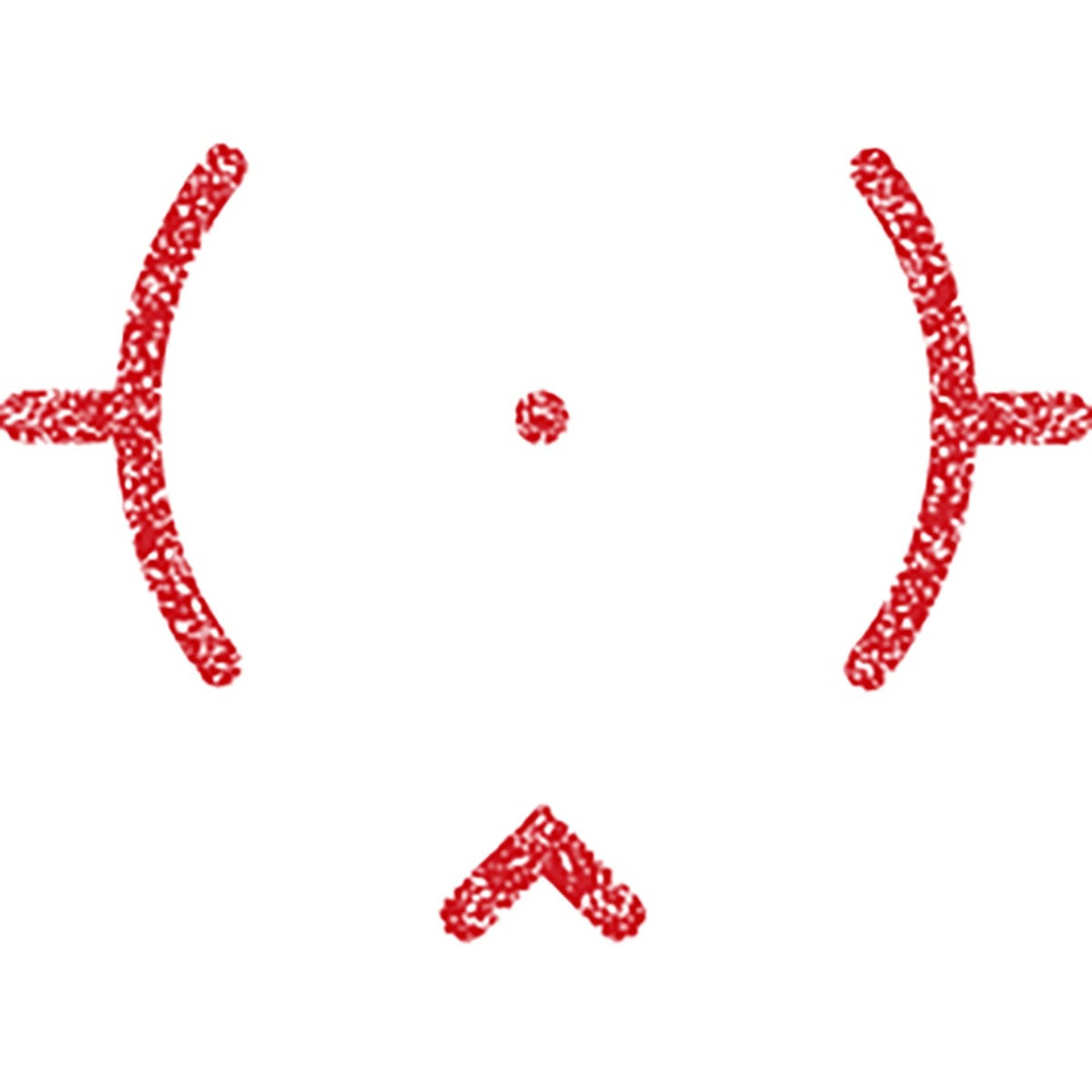

The DCR Reticle is a modification of the popular "speed ring" circle/dot reticle but addresses the point of aim (POA), point of impact (POI) shift that occurs with close engagements when the primary dot is zeroed at distance. The 68MOA width is maintained but the top of the circle is removed providing a cleaner look. The bottom of the ring is also removed and replaced with an easy to find chevron providing that height over bore adjustment needed for dangerously close shot placement. With a .223/5.56 rifle zeroed at 50 yards, the DCR would provide three confident aiming points to include a long distance 200-yard zero as well as a 7-yard solution.
FEATURES:
Innovative Reticle Design
The DCR Reticle, an evolution of the "speed ring" circle/dot, addresses POA/POI shift in close engagements. It maintains a 68MOA width, with the top cutout and an easy-to-locate chevron at the bottom. This ensures precise shot placement even in the most critical situations. Zero your .223/5.56 rifle at 50 yards and the DCR offers confident aiming points for up to 200 yards, with an additional 7-yard close-range solution at the chevron point.
Versatile DCR
Adapt swiftly between distances with a reticle designed for fast, precise shots, offering both a long-range aiming point and an effective close-combat solution.
SPECIFICATIONS:
- Night Vision Compatible
- L X W X H: 3.8" x 2.3" x 2.9" (96.5 x 58.4 x 73.7 mm)
- Weight: 11.2oz (317.5g)
- Water Resistant: 33ft. (10 m) depth
- Mount: 1" Weaver or MIL-STD-1913 rail

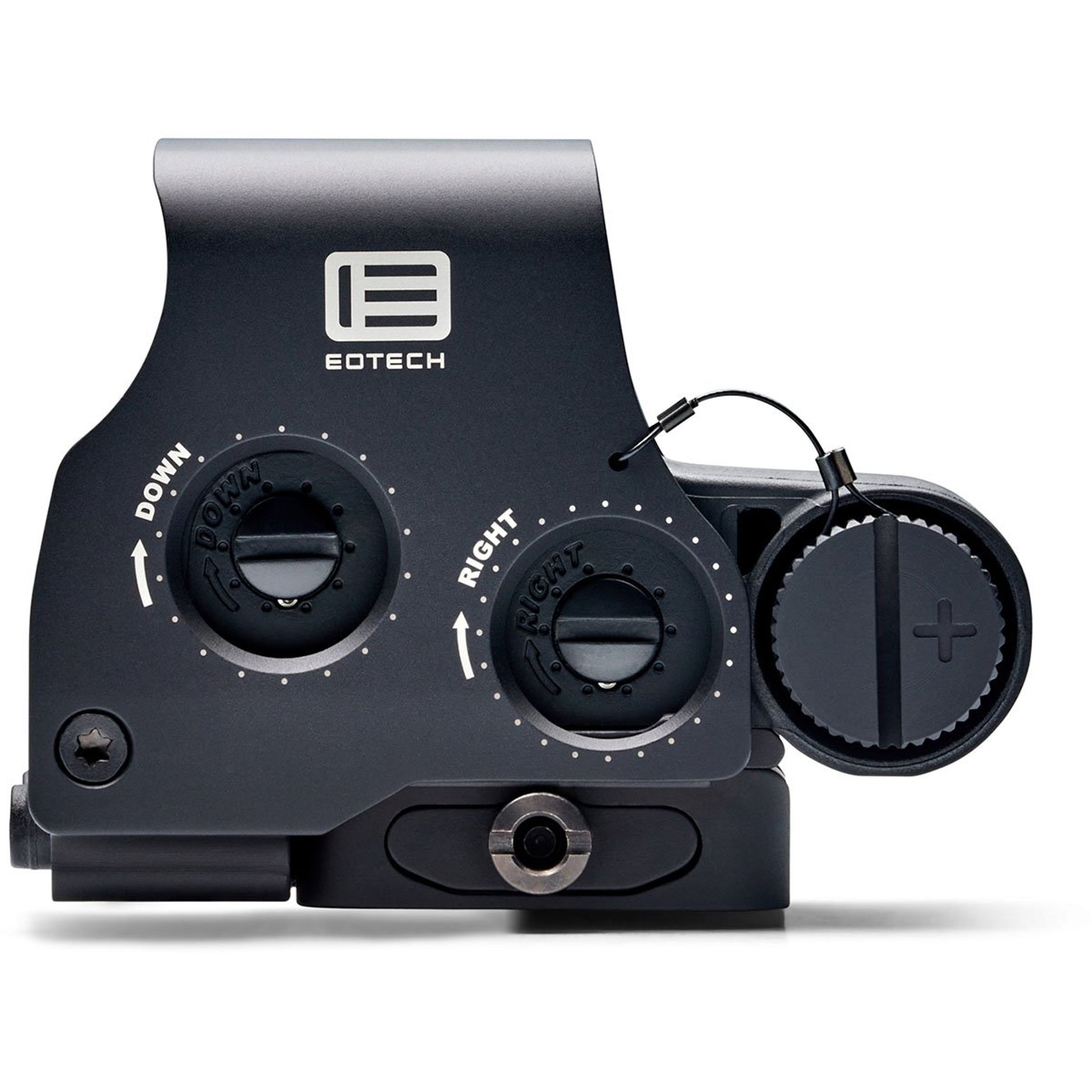

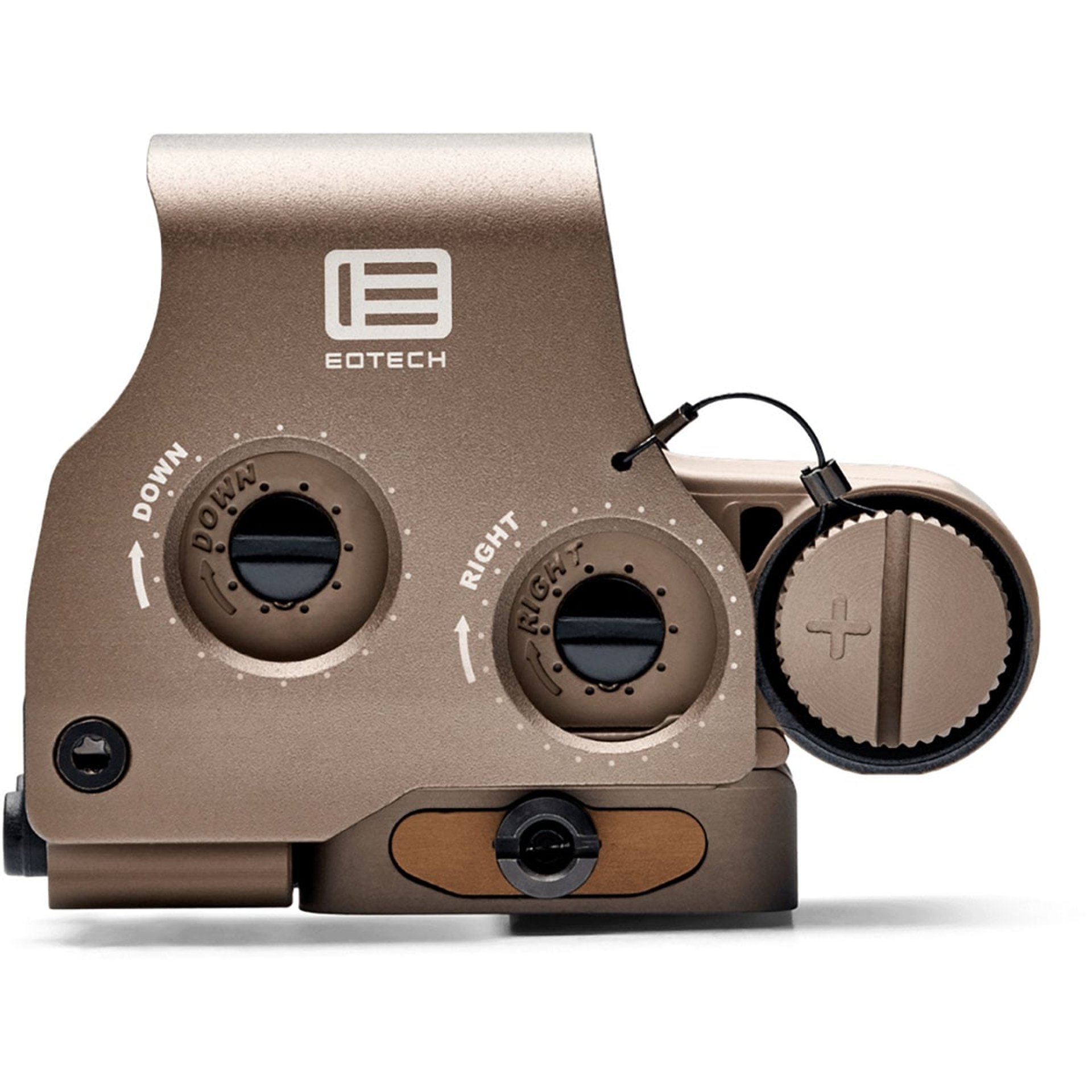

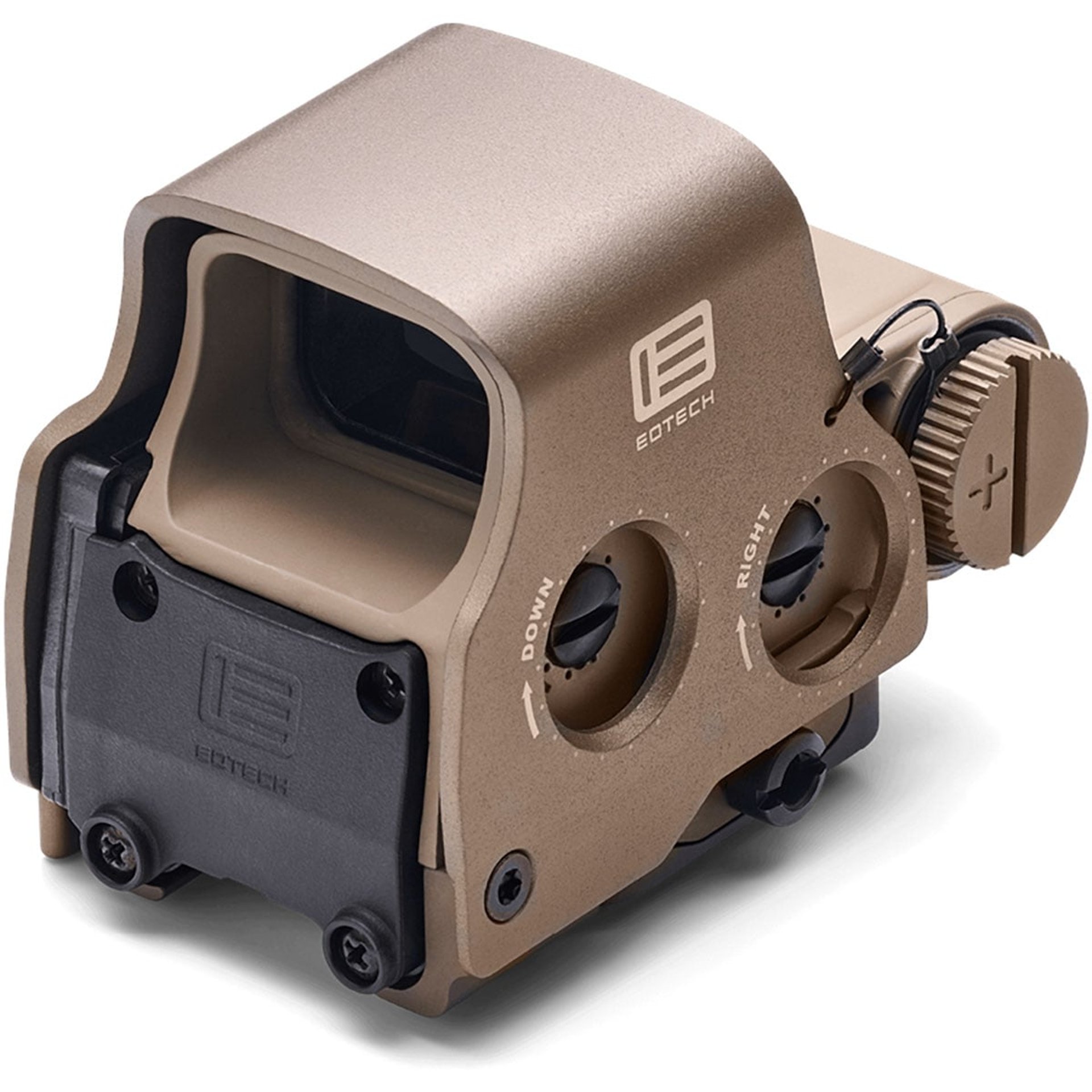

- Windage & Elevation Adjustment: 0.5 MOA per click
- Brightness: 20 daylight settings10 additional settings for Gen I through III+ night vision devices
- Power Source: 1 x CR123 battery
- Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Country of Origin: Made in USA
INCLUDED IN THE BOX:
- HWS EXPS3™ DCR
- Quick-Start Guide
- Warranty Card
- CR123 Battery
