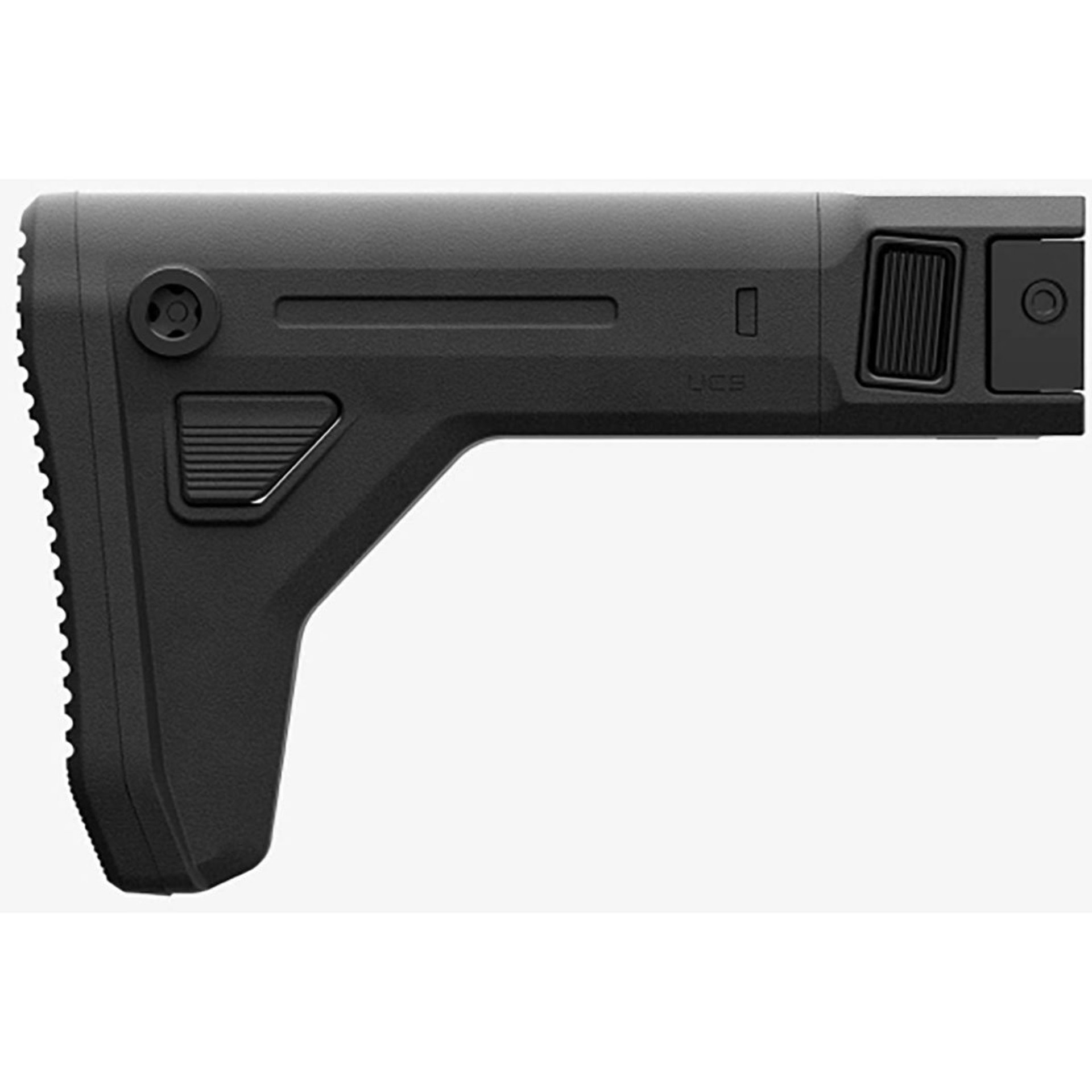

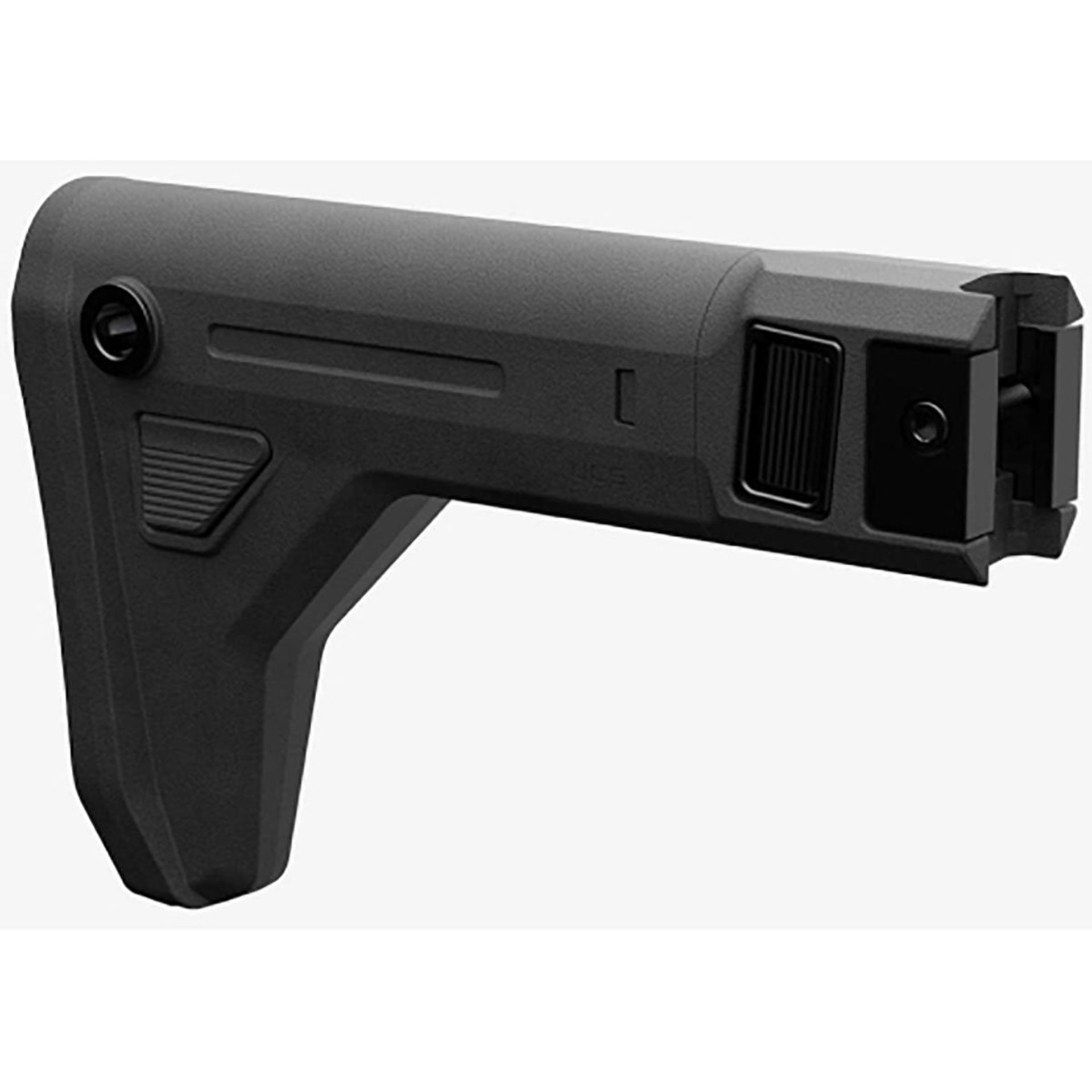

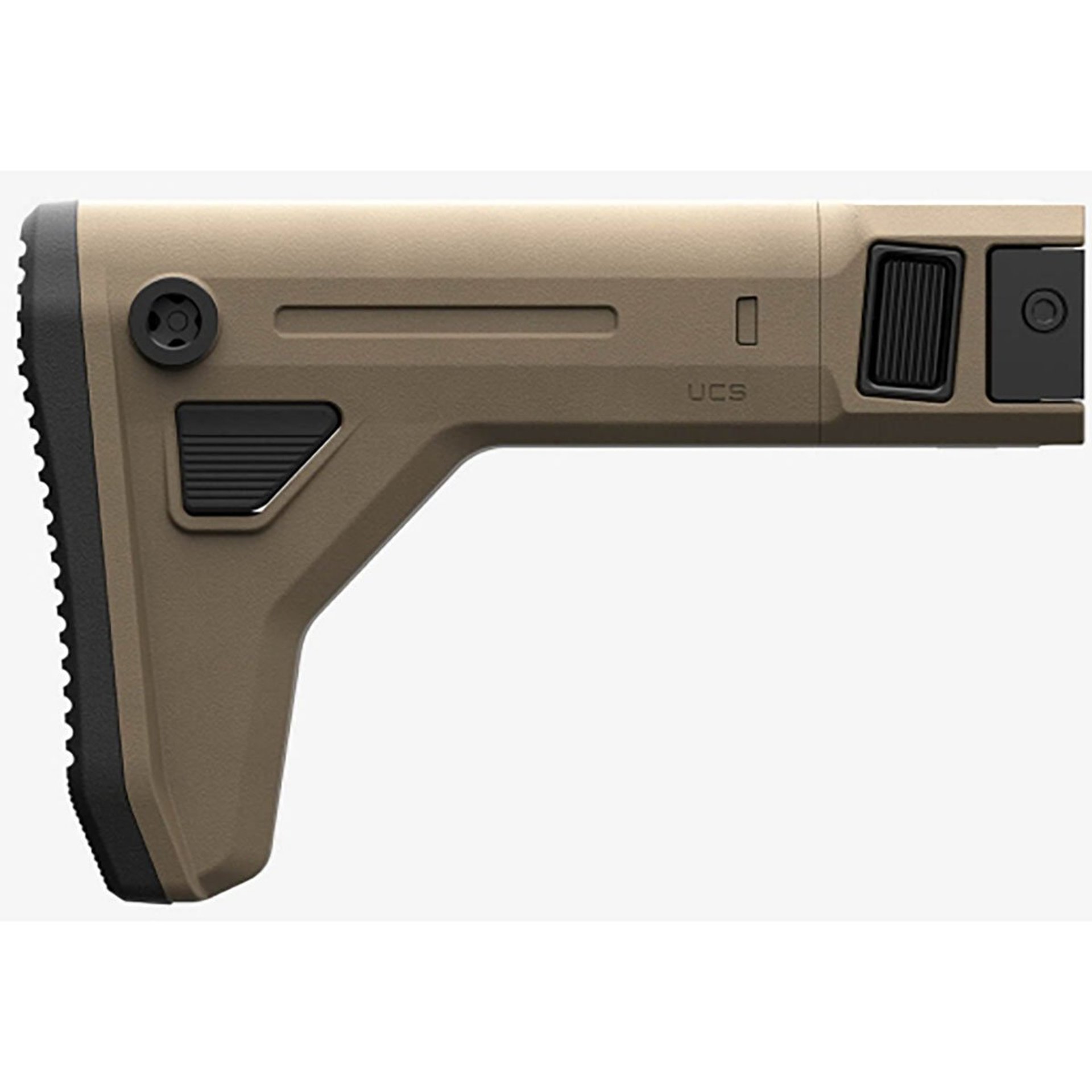

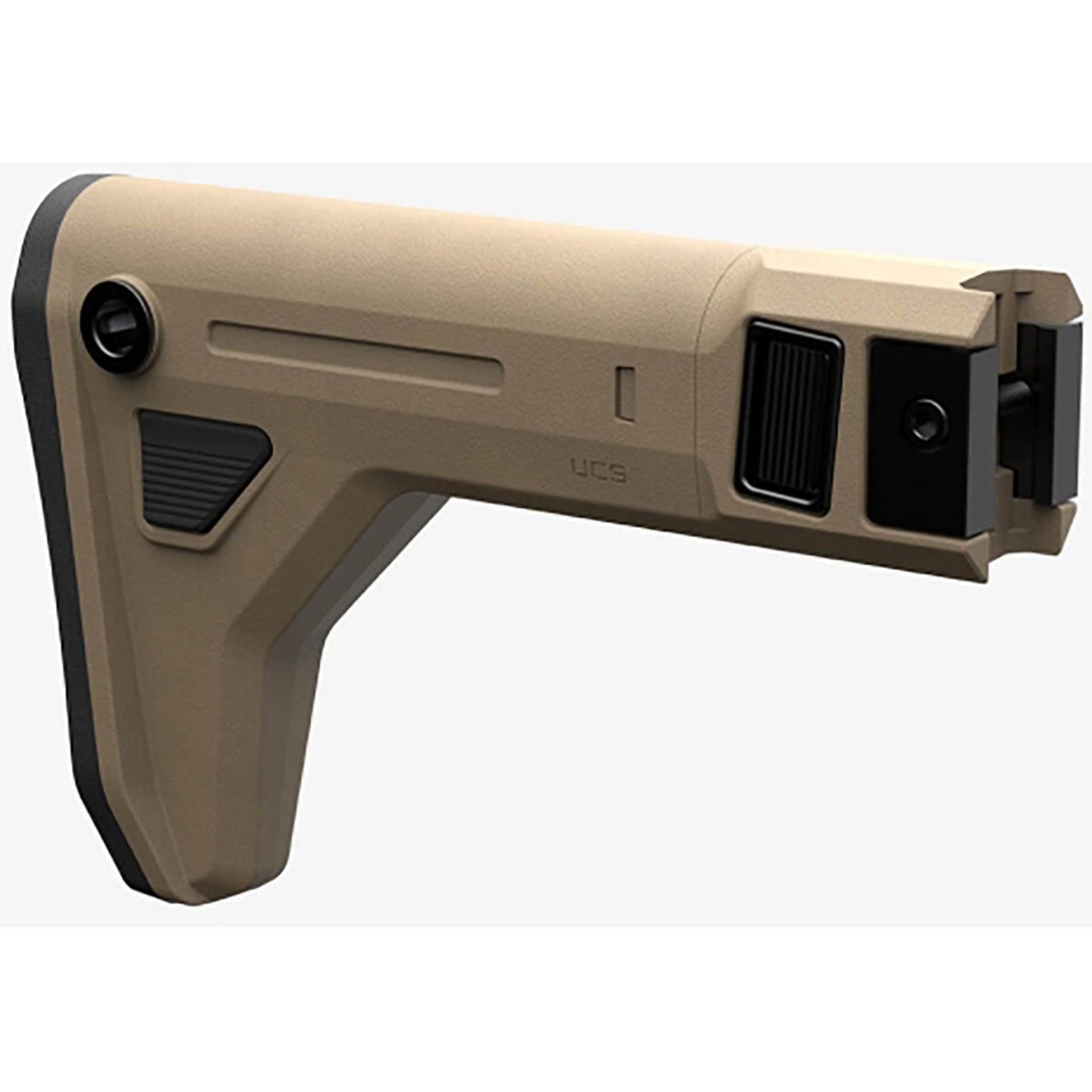

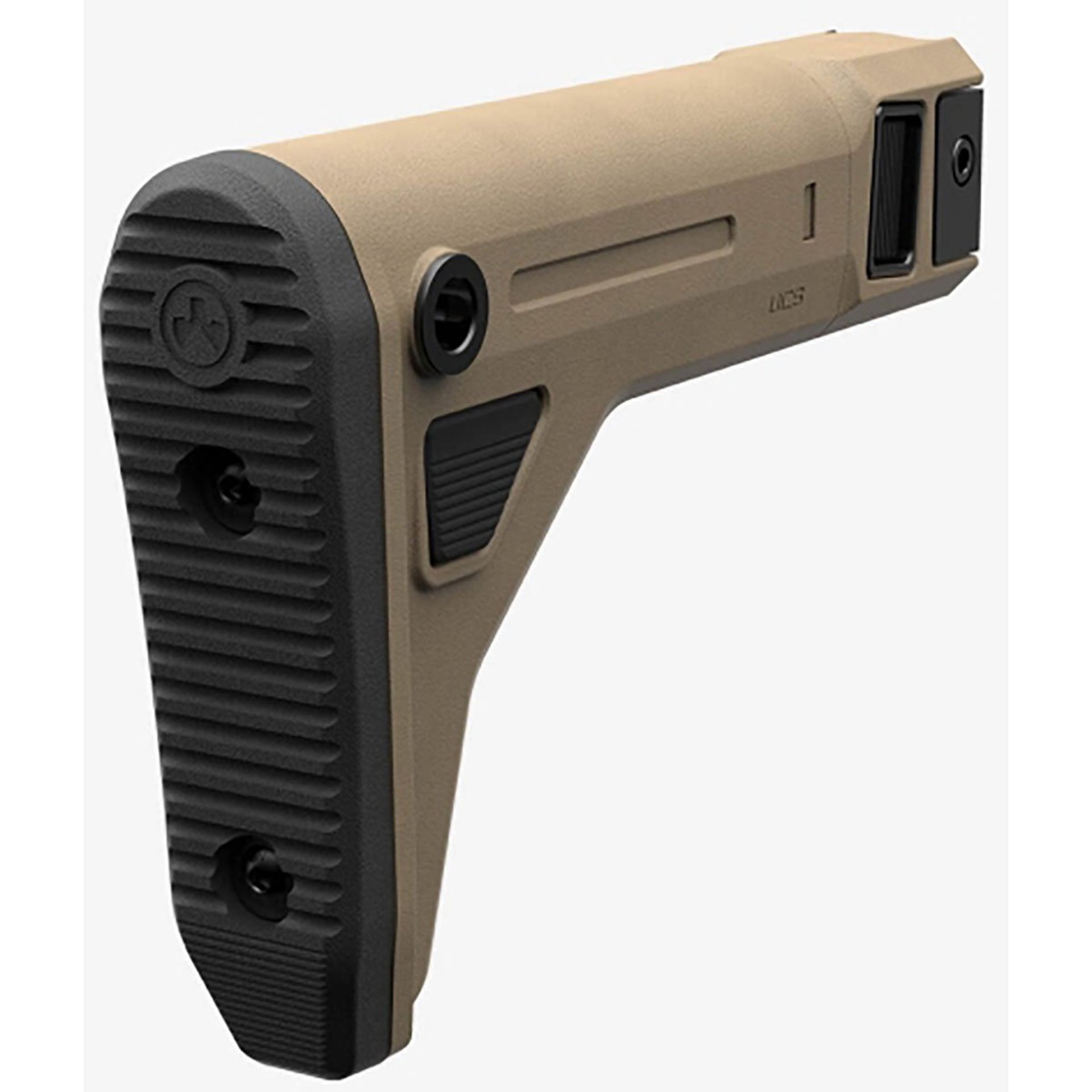

MAGPUL® UCS™ ADJUSTABLE CARBINE STOCK FOR AR-15
The Magpul UCS (Universal Carbine Stock) is designed to be the ideal supplement to the vast array of firearms utilizing a vertical M1913 Picatinny rail on the rear of the receiver for stock fitment. To accommodate the wide variety of charging handles styles, ejection port locations, and control locations, the UCS features a reversible hinge for left and right folding configurations, and five degrees of drop for clearance.

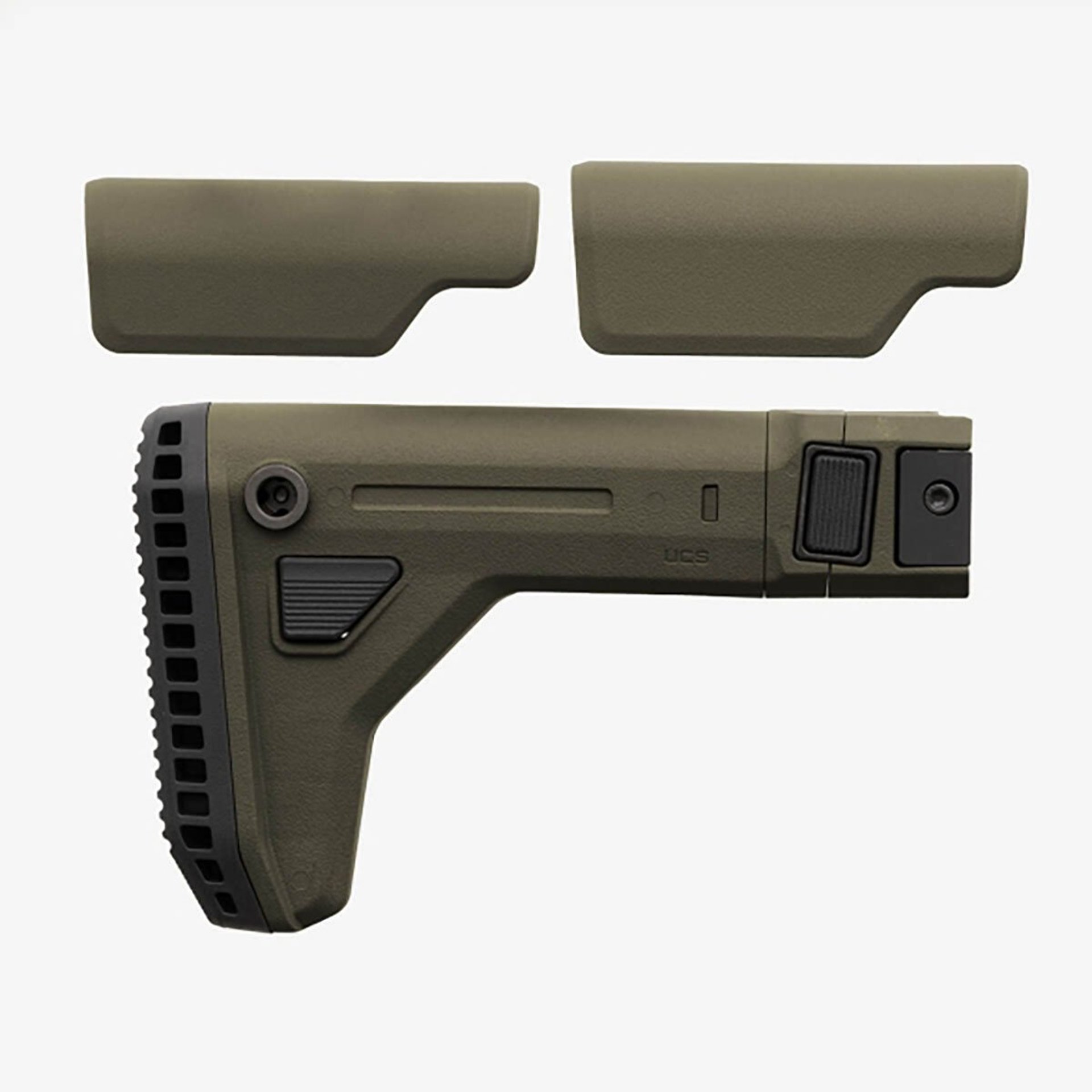

The UCS ships with two reversible Cheek Risers (0.50ʺ, and 0.75ʺ), and when combined with the reversible M1913 clamp (allowing for a 1/2-slot height adjustment), the shooter can dial in head placement for an optimal sight picture using iron sights or optics.
Offering three (3) inches of length of pull (LOP) adjustment spanning six (6) positions – which can be adjusted via the LOP buttons – the stock fits any shooter, with and without armor or other bulky equipment. The UCS also includes a reversible, anti-rotation QD socket for sling attachments, and is compatible with MOE SL® and DT Butt-Pads.
Made in the USA.
FEATURES
- PROVIDES EXTREME ADJUSTABILITY

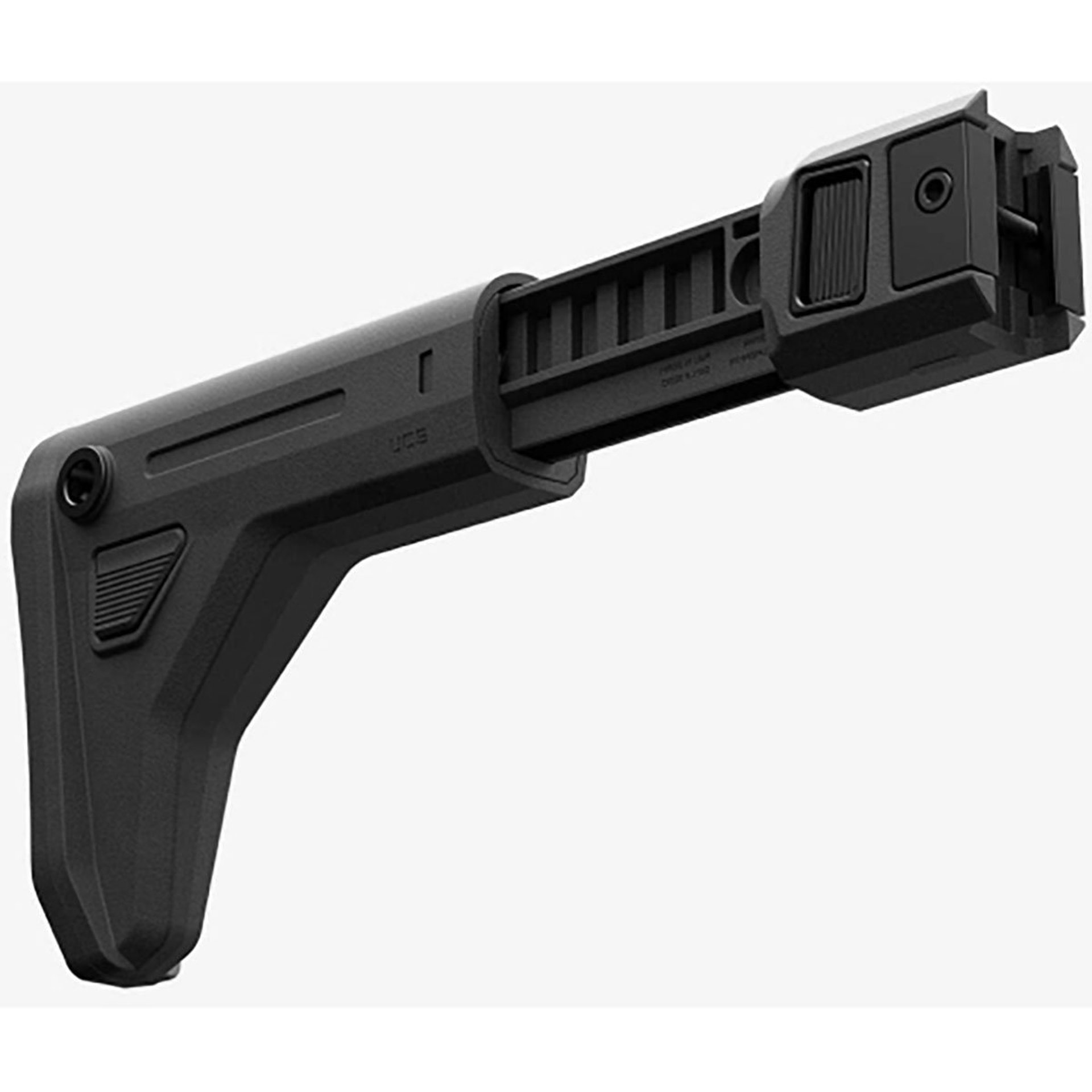

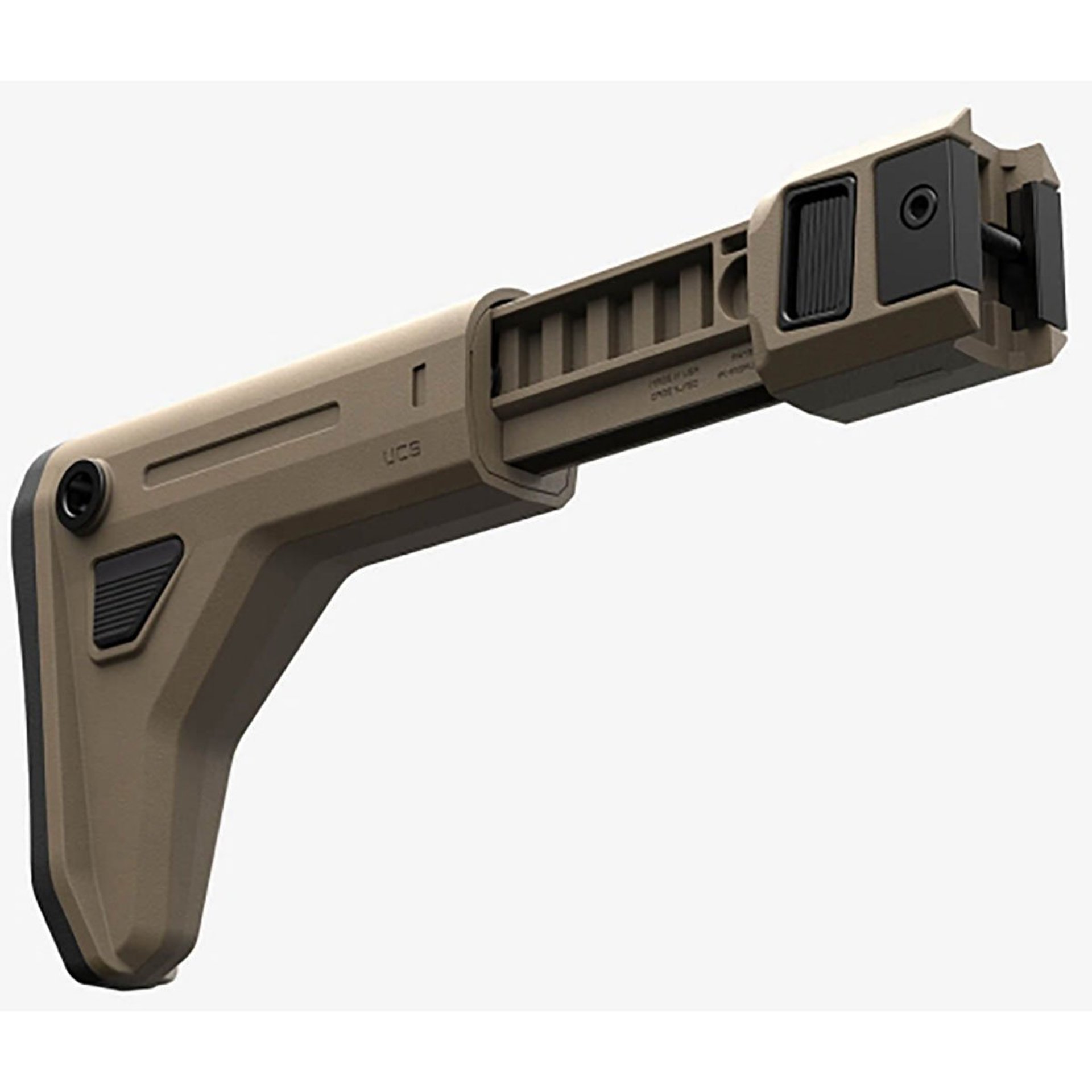

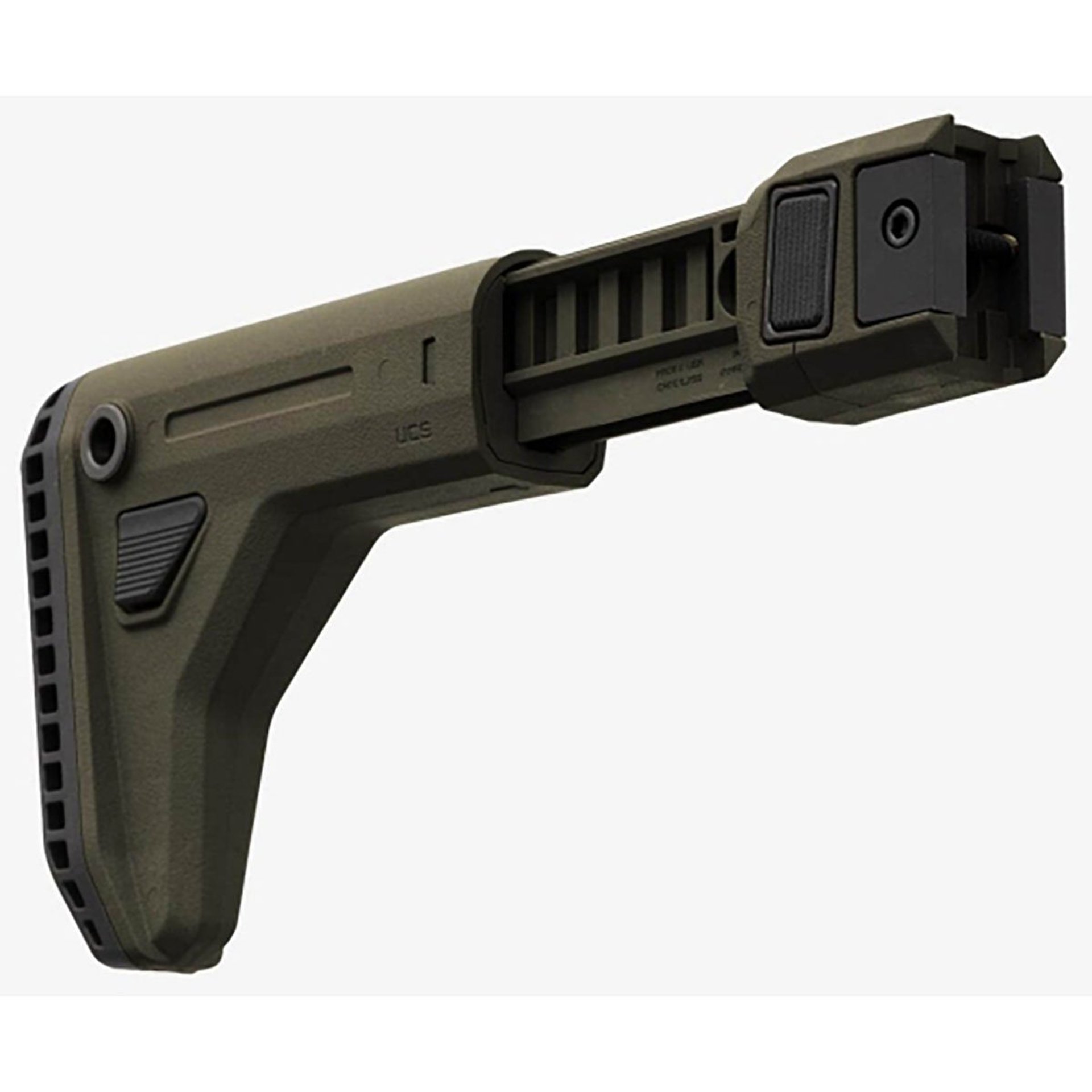

- Six (6) position, push-button LOP adjustment allows three (3) inches of total adjustment
- Toolless, removeable and reversible Cheek Risers for comb height adjustment (0.50ʺ and 0.75ʺ)
- Reversible M1913 clamp allowing for a ½-slot height adjustment for further stock height adjustment
- ADAPTABLE TO MULTIPLE PLATFORMS
- Compatible with all firearms with an M1913 rail on the rear of the firearm’s receiver
- 5° drop angle for charging handle and ejection port clearance

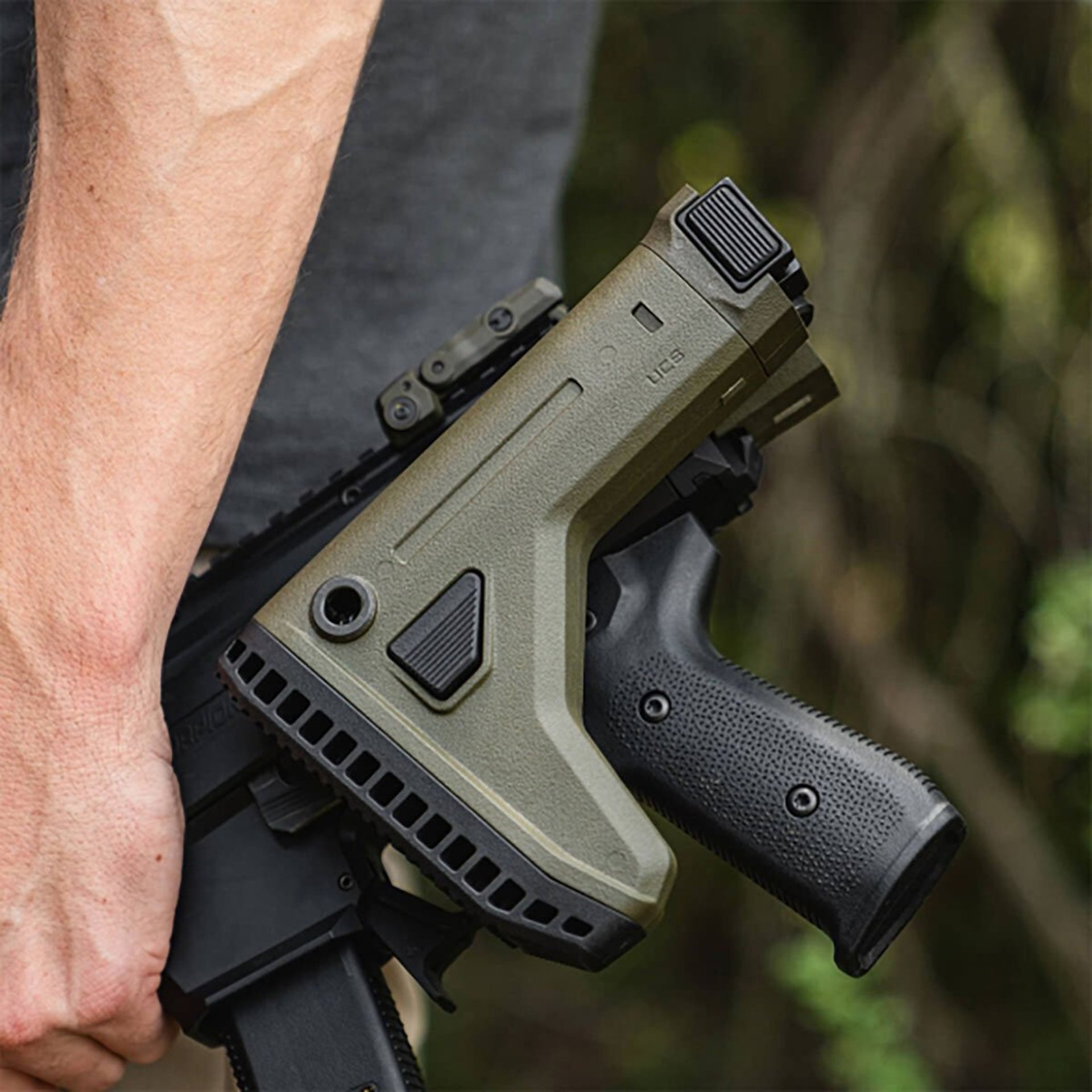

- Reversible folding mechanism to modify folding direction
- SHOOTER CONFIGURABLE

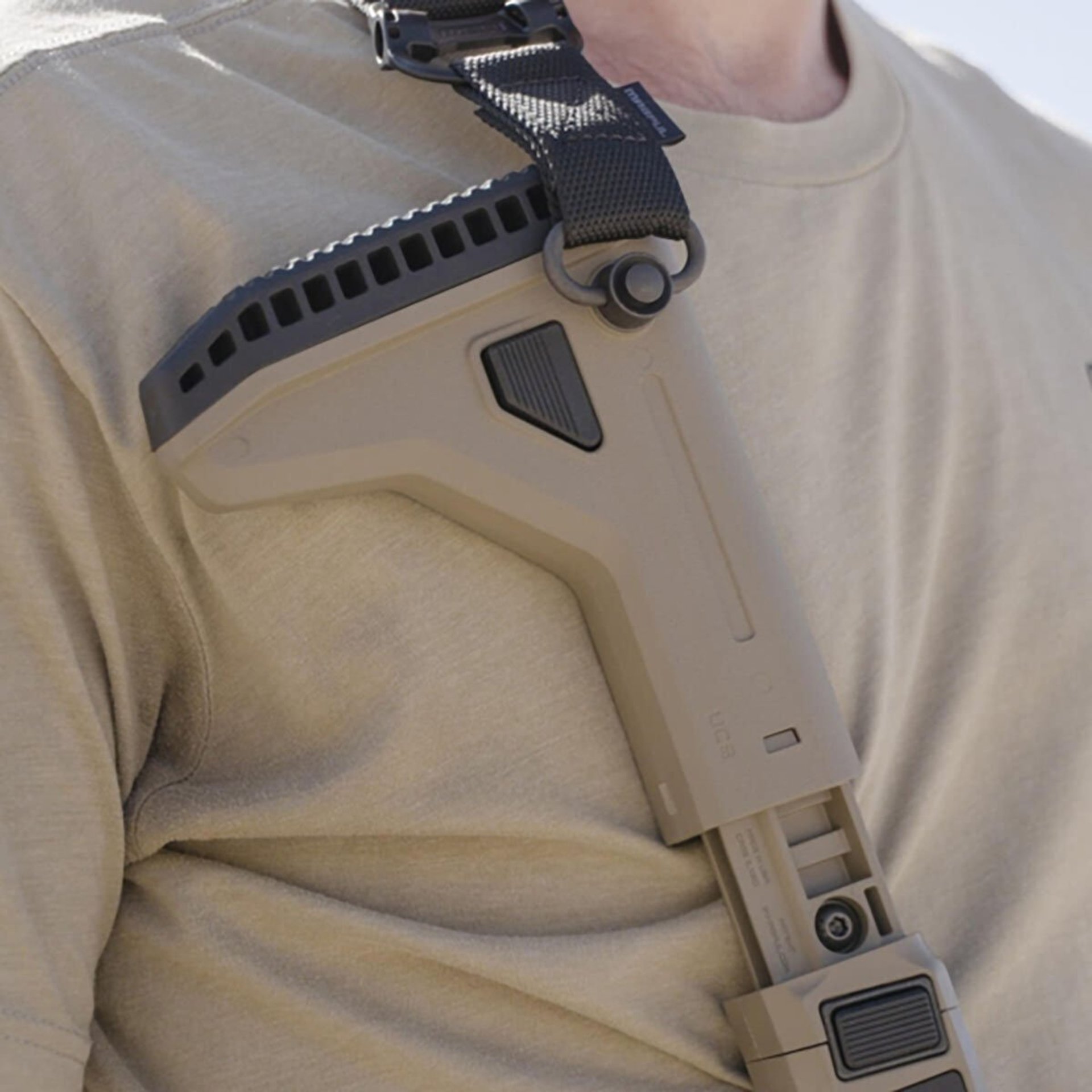

- Reversible, anti-rotational QD socket for sling attachment

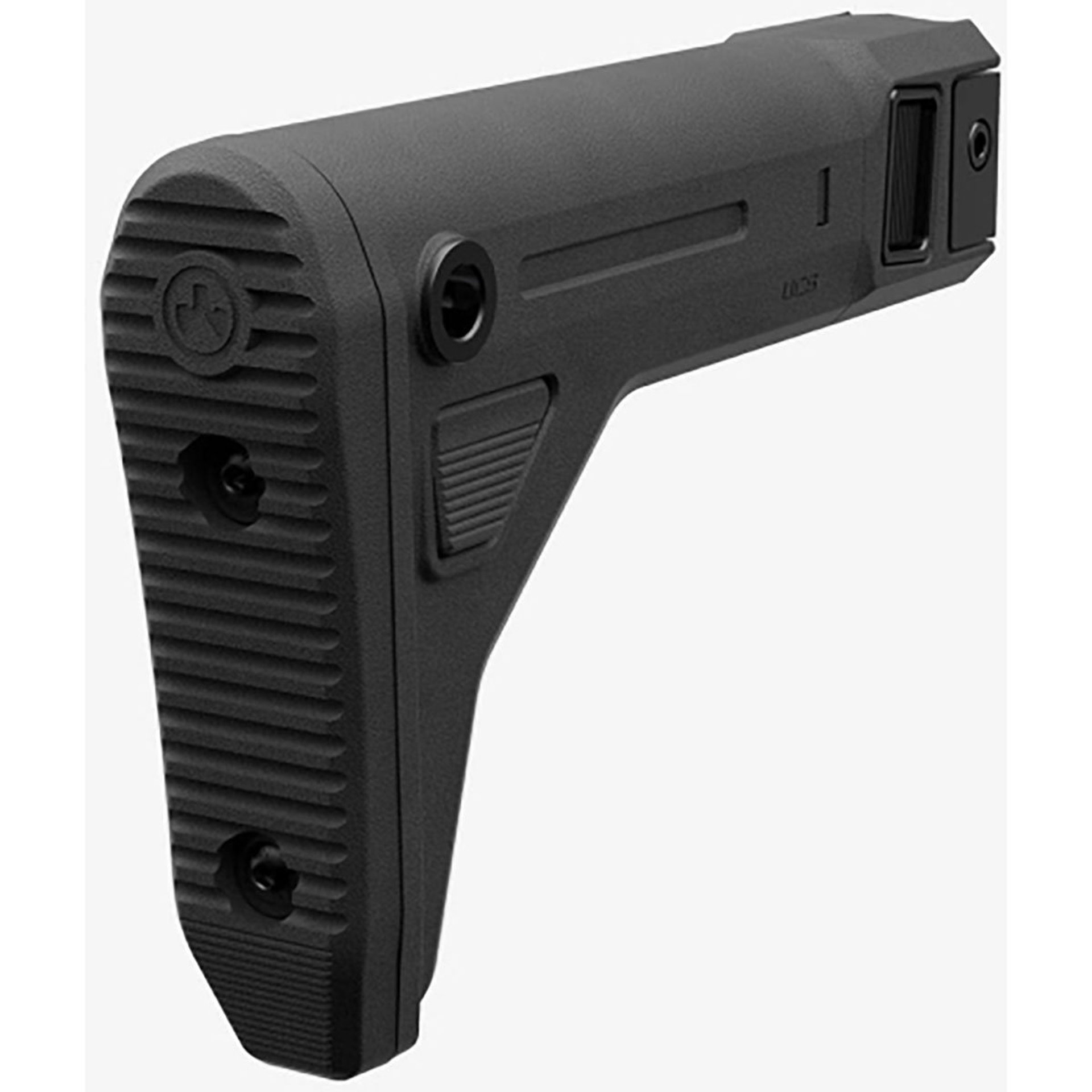

- Compatible with MOE SL and DT Butt-Pads
- Designed to fit shooters with or without bulky gear
- SPECS
- LOP Adjustment Range: 3 in.
- Length: 7.6 - 10.6 in.
- Length of Pull:Exact LOP range varies depending on platform*
- Height at Butt Plate: 5.3 in.
- Weight: 1.1 lbs
- Width, max:1.9 in. (at hinge)
- COMPATIBILITY
- Receivers equipped with an M1913 rail instead of a buffer tube from the factory, or receivers with an M1913 aftermarket adapter, including but not limited to the SIG MPX/MCX, FN SCAR, IWI Galil, CZ Scorpion, Ruger LC carbine, Brownell's BRN-180, and certain AK variants such as the PSA AK/AK-V.
- Exact LOP range varies, known Max/Min LOP follows:
- Sig MCX: 11.3 - 14.3 in.
- Sig MPX: 11.6 - 14.6 in.
- FN SCAR: 11.8 - 14.8 in.
- IWI Galil: 11.3 - 14.3 in.

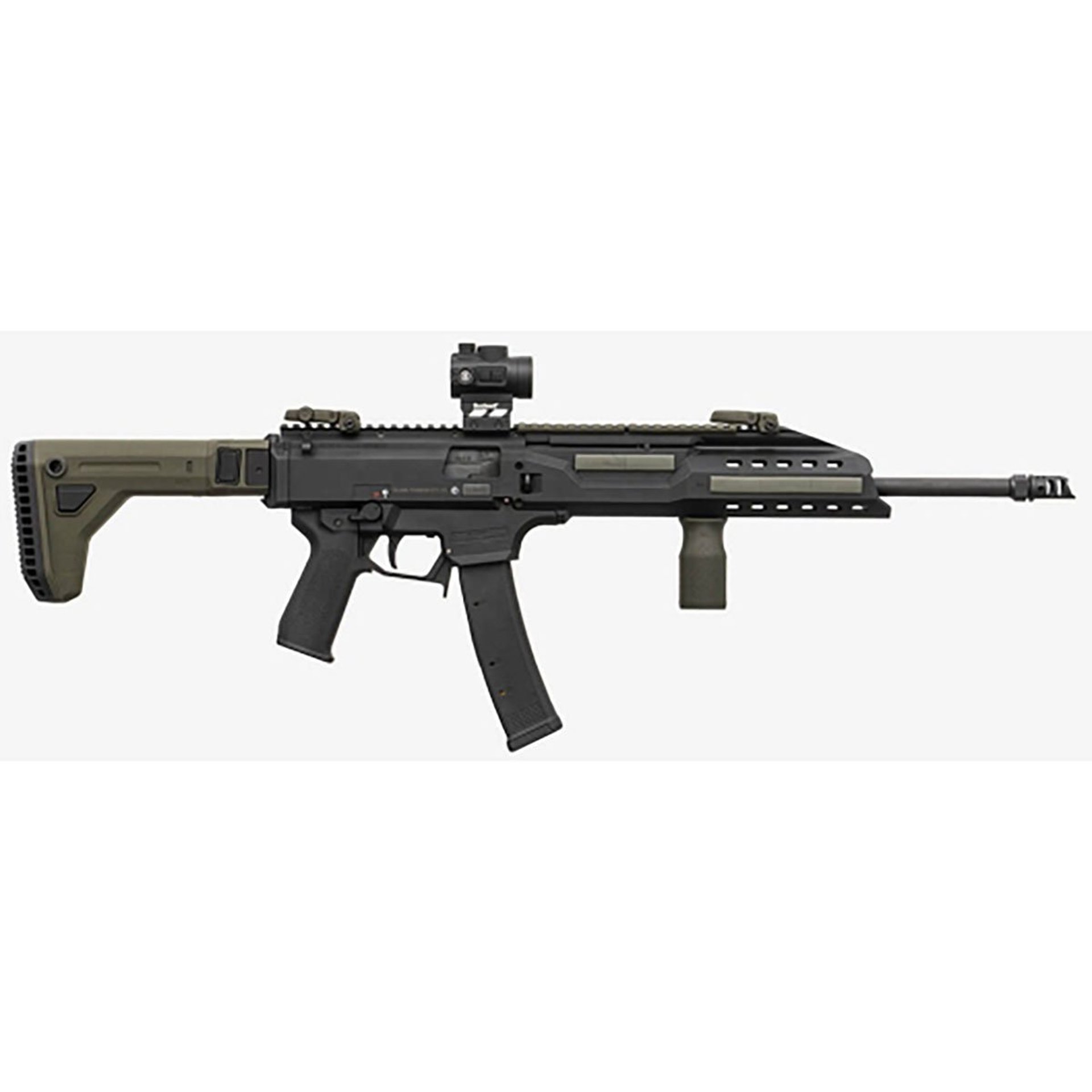

- CZ Scorpion: 11.6 - 14.6 in.
- Ruger LC Carbine: 13.3 - 16.3 in.
- PSA AK: 11.7 - 14.7 in.
