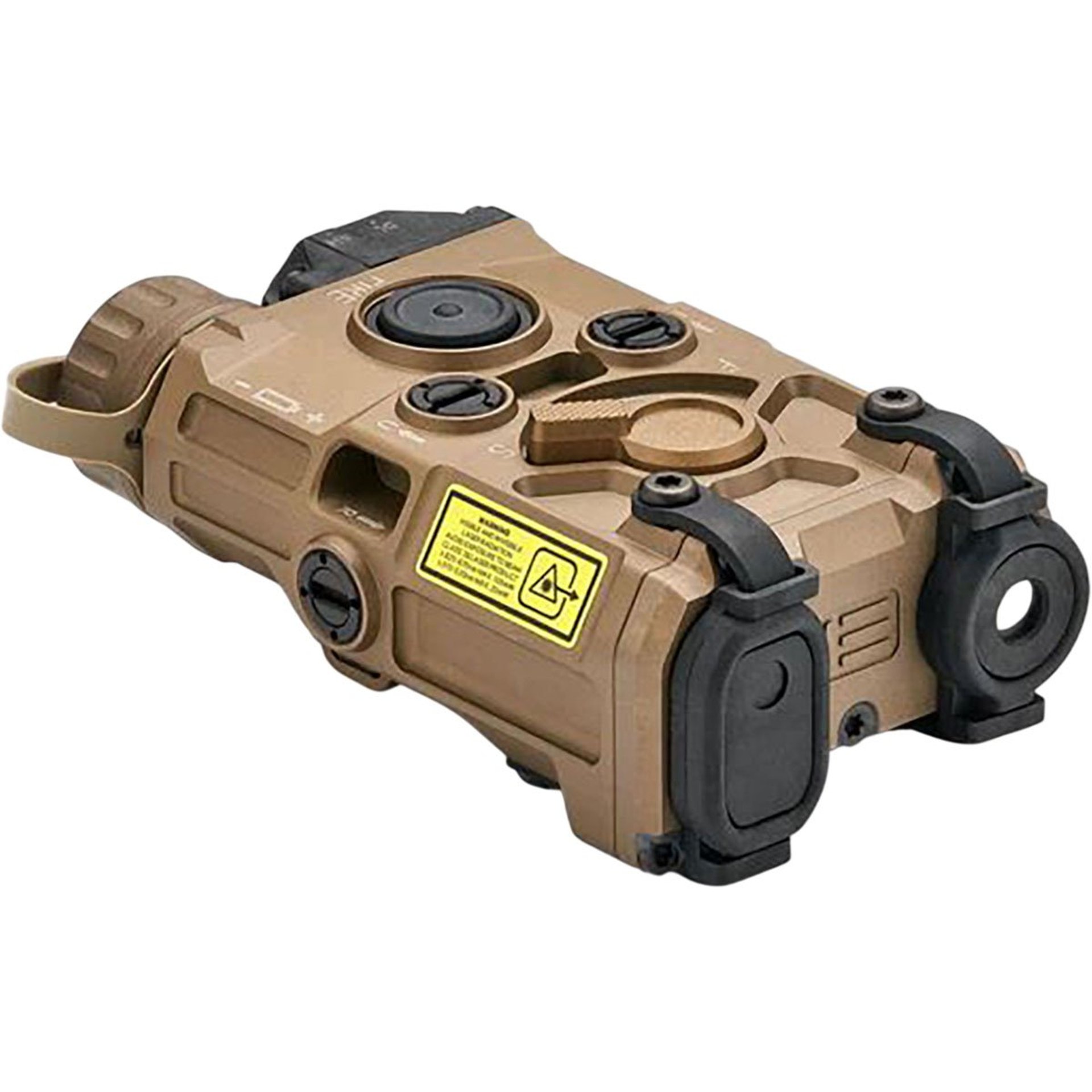

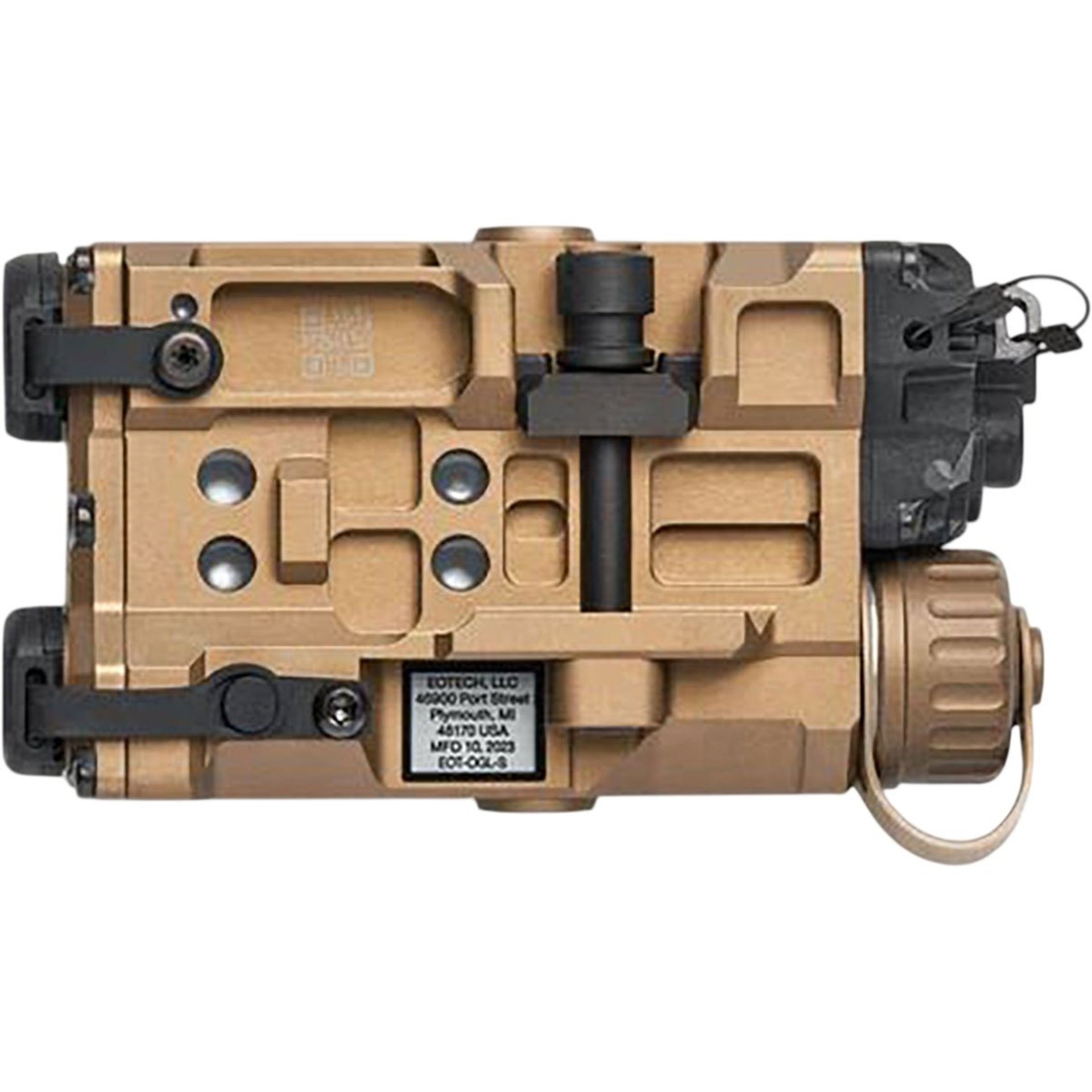

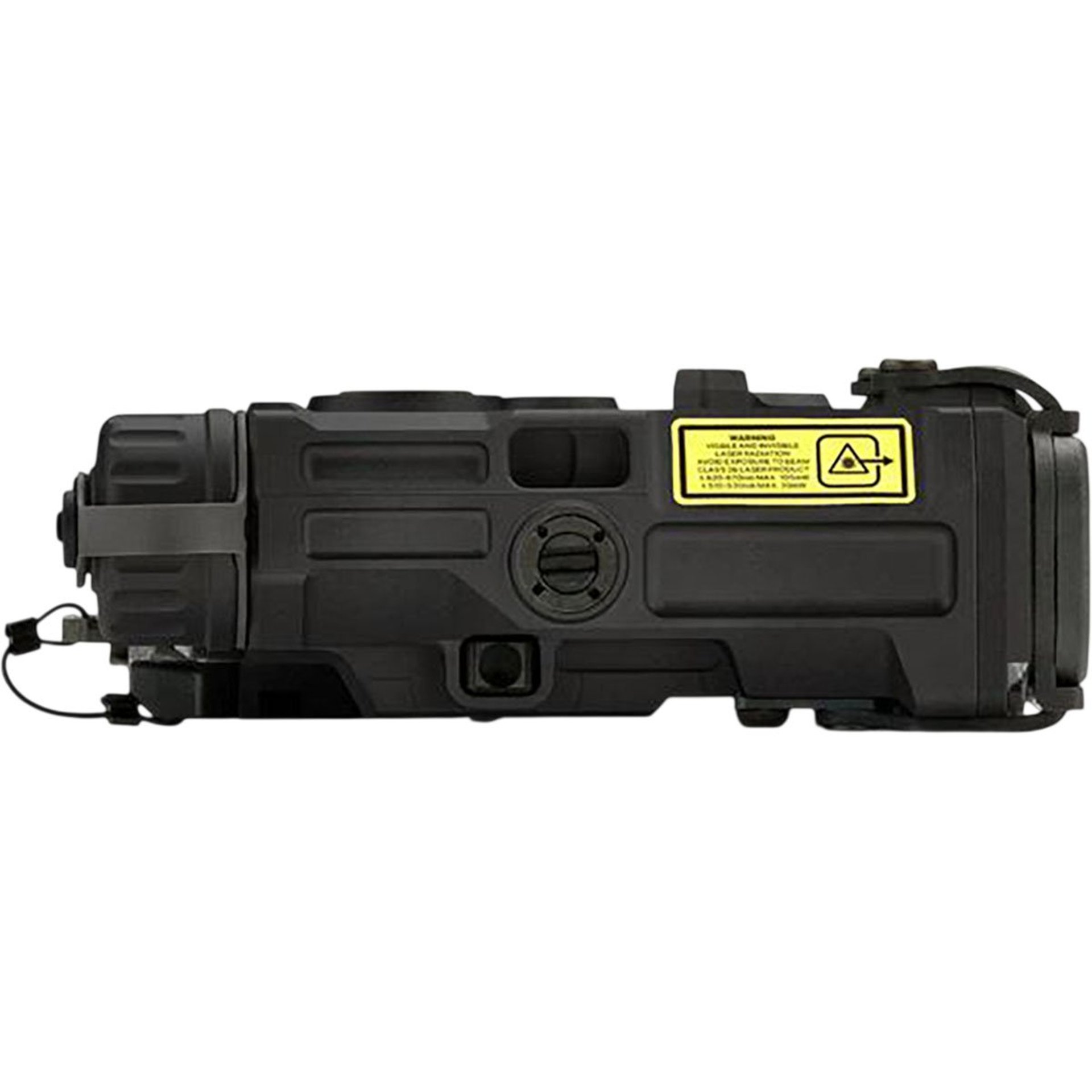

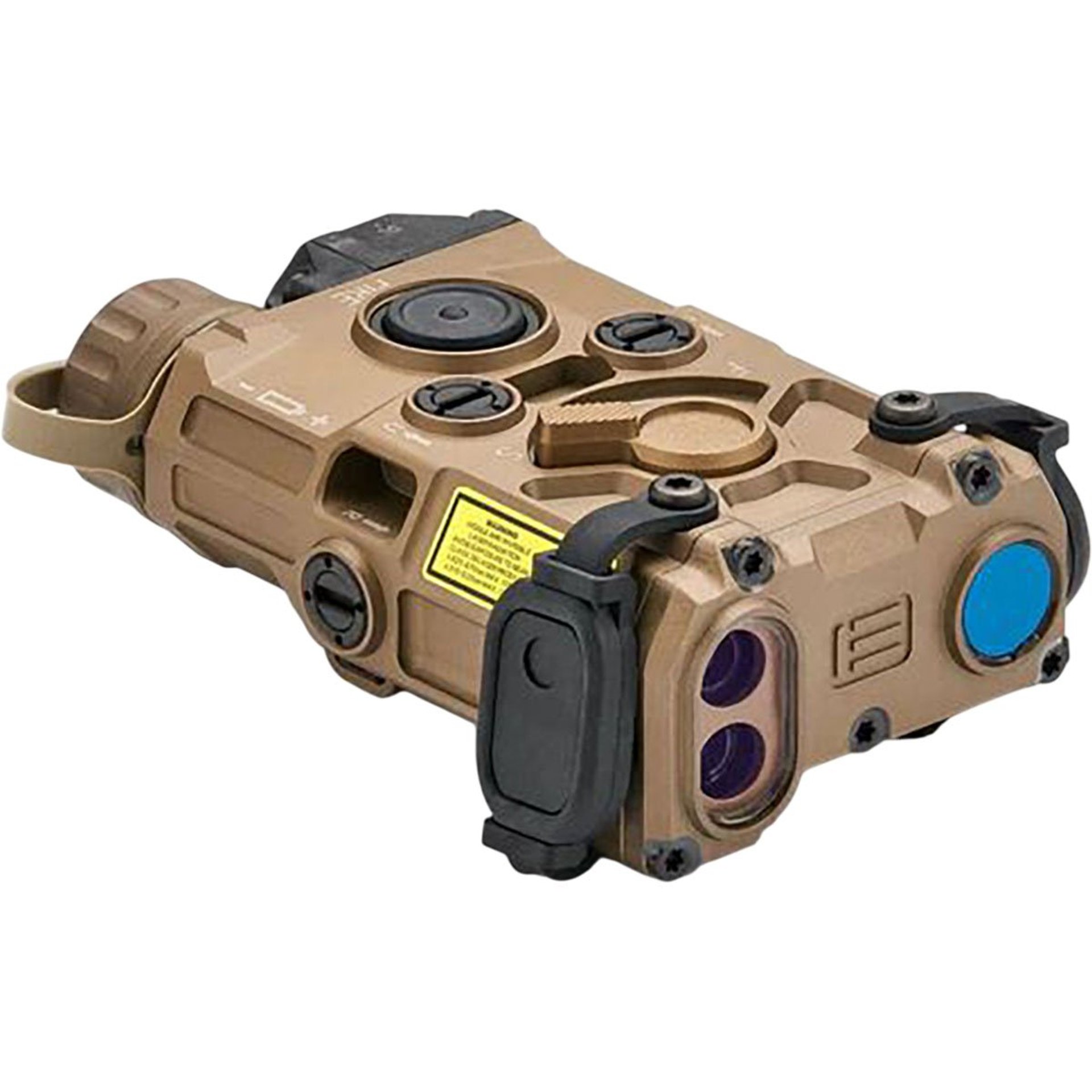

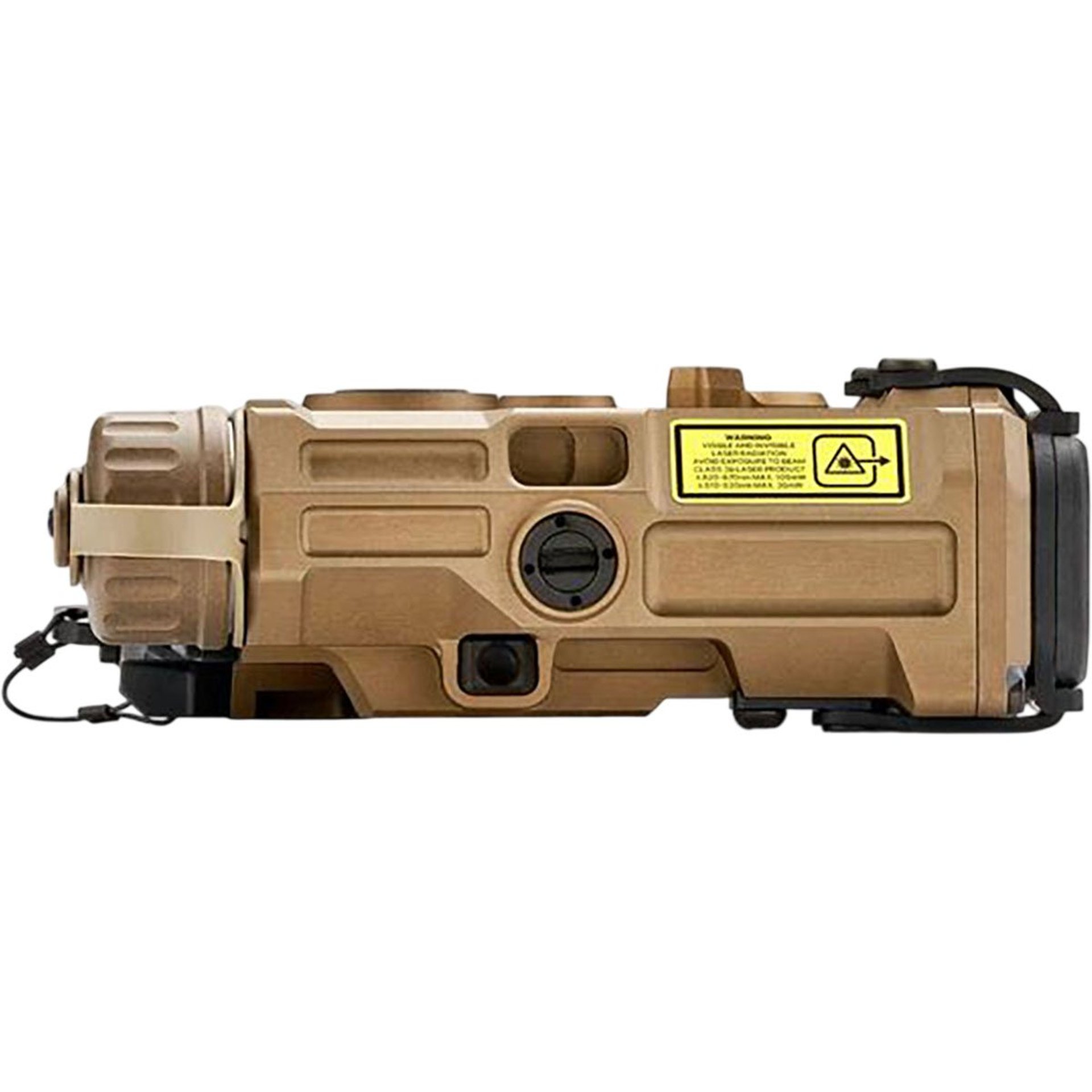

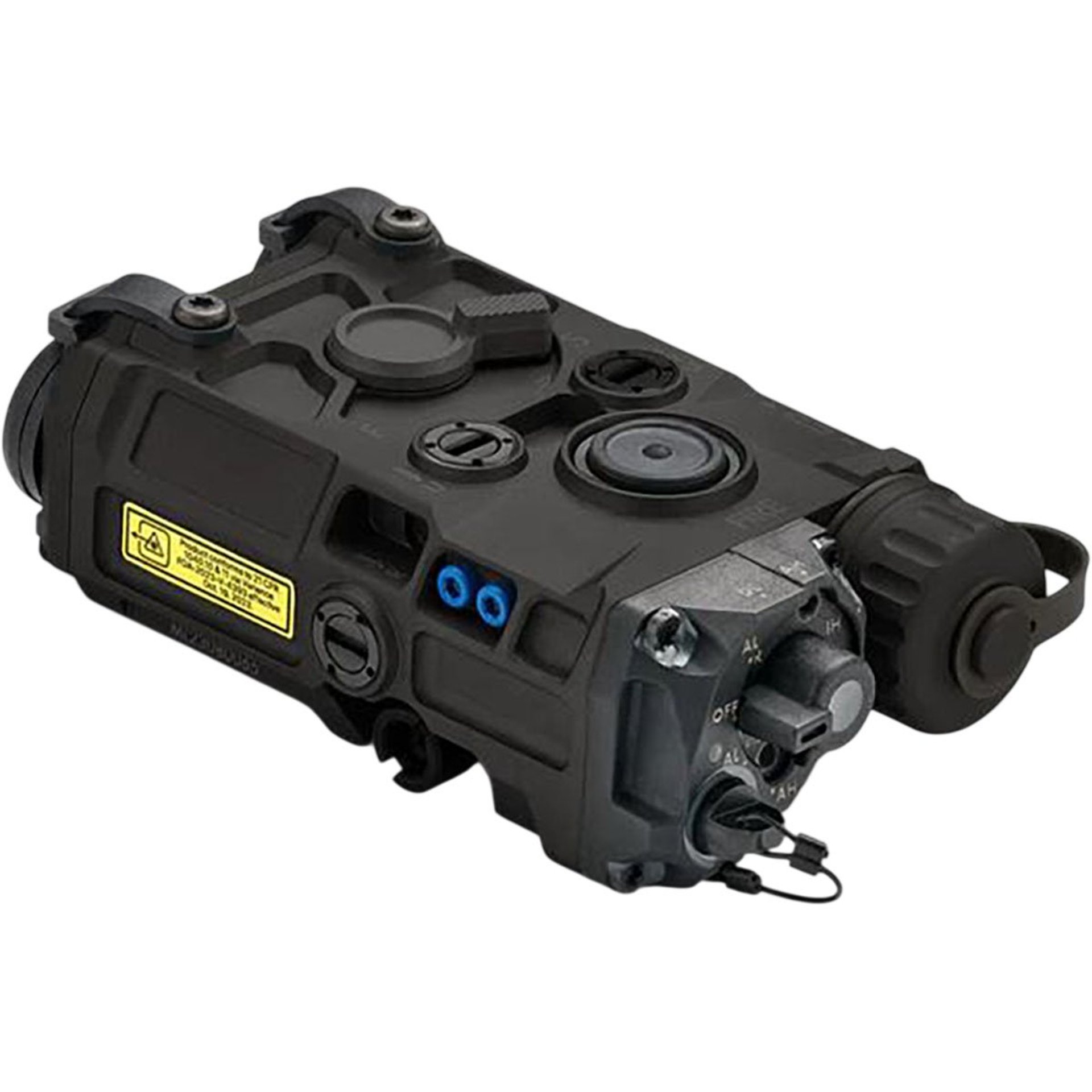

EOTECH OGL STANDARD

The design for the EOTECH On-Gun Laser (OGL) focuses on human performance factors under extreme stress creating the premium choice for professional users. The OGL Standard Power (restricted to MIL/LE use) is powered by a single CR123 battery providing up to 9 hours of continuous run time. The machined aluminum housing provides extreme durability in a compact package roughly the size of a standard deck of playing cards.

The IR illuminator utilizes a high performing Vertical-Cavity Surface-Emitting Laser (VCSEL) diode creating a clean beam and allowing quick adjustments from spot to flood. The ergonomic (patent pending) lever is unique to the OGL and allows professionals to adjust their illumination needs instantly, all while maintaining superior situational awareness.

Visible Aim Laser:

Output Power Low: ≤ 4.7 mW (Class 3R)

Output Power High: ≤ 30 mW (Class 3B)

Beam Divergence: < 0.5 mrad

Wavelength: 520 nm (±10 nm)

NIR Aim Laser:

Output Power Low: ≤ 0.7 mW (Class 3R)

Output Power High: ≤ 35 mW (Class 3B)

Beam Divergence: < 0.5 mrad

Wavelength: 850 nm (±10 nm)

NIR Illuminator:

Output Power Low: ≤ 2.7 mW (Class 3R)

Output Power High: ≤ 105 mW (Class 3B)

Beam Divergence: Spot ≥ 23 mrad, Flood ≥ 105 mrad

Wavelength: 860 nm (+10 / –30 nm)
